Alibaba Cloud Full Stack (4): OSS — Object Storage Done Right

I used to store user uploads on the ECS disk. Profile pictures, PDF invoices, CSV exports — all dumped into /var/data/uploads/ on a single ecs.g7.large running my Flask app. I had a cron job that rsynced the directory to a second ECS instance every six hours as a “backup.” Then one Friday at 3am, the system disk hit 100% because a batch job generated 40GB of reports nobody ever downloaded, the instance went read-only, the app crashed, and the rsync hadn’t run since the previous evening. I lost six hours of user uploads and spent the weekend apologizing to customers. That was the week I learned that object storage is not a nice-to-have — it is the foundation of everything you build in the cloud. Your application server is ephemeral. Your data is not.

This article covers Alibaba Cloud’s Object Storage Service from first principles through production deployment. By the end, you will have a working media storage backend with lifecycle management, CDN acceleration, and presigned uploads from a Python API. We set up the VPC and ECS foundation in Part 2 and Part 3 — now we add the storage layer that survives instance failures, scales to petabytes, and costs a fraction of block storage.

What Is OSS?#

Object Storage Service is Alibaba Cloud’s equivalent of AWS S3. You store files — called “objects” — in containers called “buckets.” Each object has a unique key (its path), the data itself, and metadata. That is the entire data model. There are no directories, no file hierarchies, no POSIX semantics. When you see images/2026/05/avatar.png in OSS, the slashes are part of the key string, not a directory structure. The console renders them as folders for convenience, but the storage layer is flat.

This simplicity is the point. Because OSS does not need to maintain a filesystem tree, it can distribute objects across thousands of storage nodes transparently. You never think about capacity planning, disk IOPS, or RAID configurations. You PUT an object, and OSS figures out where to store it, how to replicate it across zones for durability, and how to serve it back when you GET it. The durability guarantee is 99.9999999999% (twelve nines) for Standard storage. That is “designed to lose at most one object if you store ten billion.”

Three types of cloud storage#

Alibaba Cloud offers three fundamentally different storage products, and using the wrong one is a common mistake:

Storage type	Product	Access pattern	Analogy
Block storage	EBS (Cloud Disks)	Attach to one ECS, random read/write	A hard drive plugged into your computer
File storage	NAS / CPFS	Shared across multiple ECS via NFS/SMB	A network file share in your office
Object storage	OSS	HTTP API, no mount, unlimited capacity	Dropbox with an API

Block storage (cloud disks attached to ECS) gives you a raw block device that the OS formats with ext4 or xfs. It is fast, low-latency, and supports random I/O — perfect for databases, OS boot volumes, and anything that needs POSIX filesystem semantics. But it can only be attached to one instance at a time, and you pay for provisioned capacity whether you use it or not.

File storage (NAS) provides a shared filesystem that multiple ECS instances can mount simultaneously via NFS v3/v4 or SMB. Great for legacy applications that need a shared /data directory, CMS systems, or development environments. But it is expensive per GB and performance depends on the capacity tier you purchase.

Object storage (OSS) is for everything else — and “everything else” is usually 90% of your data. Static assets, user uploads, backups, logs, data lake files, ML training datasets, video, audio, documents. If you access it via HTTP and do not need to edit bytes in the middle of the file, OSS is the right answer.

OSS vs AWS S3#

If you are coming from AWS, the mapping is straightforward:

AWS S3 concept	OSS equivalent	Notes
Bucket	Bucket	Same 3-63 character naming rules
Object	Object	Same key/value/metadata model
Region	Region	Same region-scoped bucket concept
S3 Standard	Standard	Hot data, frequent access
S3 Standard-IA	Infrequent Access (IA)	30-day minimum storage
S3 Glacier	Archive	90-day minimum, 1-minute restore
S3 Glacier Deep Archive	Deep Cold Archive	180-day minimum, hours to restore
Presigned URL	Signed URL	Same concept, different SDK method names
Bucket Policy	Bucket Policy	JSON-based, similar syntax
S3 Lifecycle	Lifecycle Rules	Same transition/expiration model
Cross-Region Replication	Cross-Region Replication	Same async replication model
CloudFront + S3	CDN + OSS	Native integration, same back-to-origin pattern

The main differences: OSS uses AccessKey ID/Secret instead of AWS Signature V4 (though the SDK handles this). OSS endpoints follow the pattern oss-{region}.aliyuncs.com rather than s3.{region}.amazonaws.com. And OSS has a unique “internal endpoint” for each region (e.g., oss-cn-beijing-internal.aliyuncs.com) that provides free data transfer when accessed from ECS instances in the same region — AWS charges for the same traffic.

Key concepts#

Four things you need to understand before writing any code:

Bucket — A globally unique container for objects. Bucket names must be 3-63 characters, lowercase letters, numbers, and hyphens only. They are region-scoped — a bucket in cn-beijing stores data in Beijing. You cannot rename or move a bucket after creation.

Object — A file stored in a bucket, identified by a key (path string). Maximum object size is 48.8 TB. Objects are immutable — you replace the entire object on update, you cannot modify bytes in place.

Region and Endpoint — Each bucket lives in one region. Access it via the public endpoint (oss-cn-beijing.aliyuncs.com), the internal endpoint (free from ECS in the same region), or a custom domain you bind.

AccessKey — Your credentials for API access. In production, never use your root account AccessKey. Use RAM users or STS temporary credentials, which we cover in the Access Control section below.

Storage Classes#

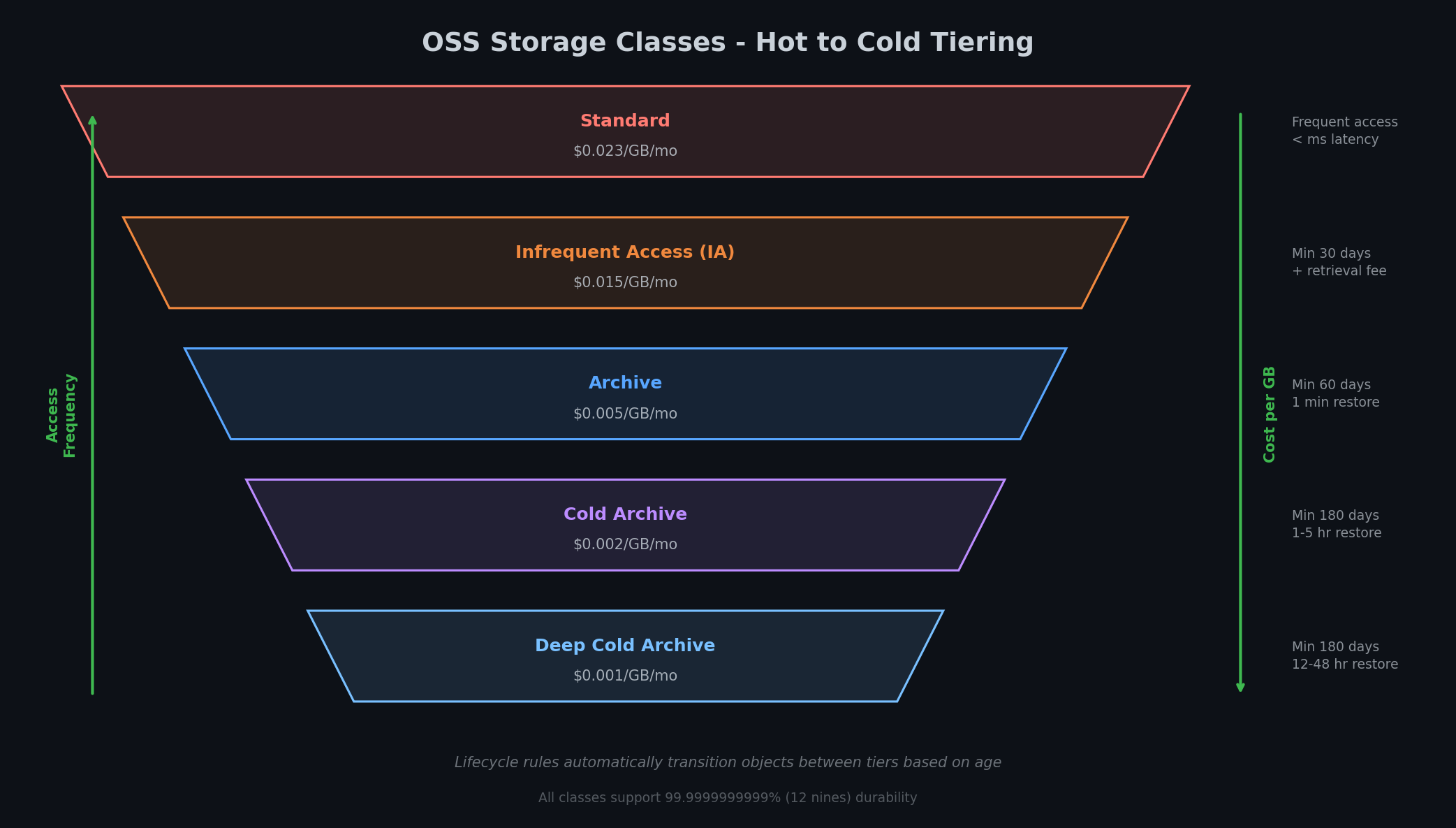

OSS has five storage classes, and choosing the right one can cut your bill by 80% or inflate it by 10x. The mental model: the cheaper the storage, the more expensive and slower the retrieval.

Storage class	$/GB/month	Minimum duration	Retrieval cost	Restore time	Best for
Standard	~0.020	None	Free	Instant	Hot data, frequently accessed files
Infrequent Access (IA)	~0.012	30 days	~0.010/GB	Instant	Data accessed < 1-2x per month
Archive	~0.005	90 days	~0.020/GB	1 minute (Expedited)	Quarterly reports, old backups
Cold Archive	~0.002	180 days	~0.030/GB	1-10 hours	Compliance archives, legal hold
Deep Cold Archive	~0.001	180 days	~0.050/GB	12-48 hours	Data you never want to read again

Prices are approximate for cn-beijing. Check the OSS Pricing Page for current rates and regional variations.

A few things that trip people up:

Minimum storage duration is billed, not stored. If you upload a file to Archive storage and delete it after 10 days, you are still charged for 90 days. This is true for all classes except Standard.

Retrieval costs are per-GB. Restoring 1TB from Cold Archive costs about $30 just for the retrieval, on top of the transfer costs. Think before you archive.

IA has a minimum object size. Objects smaller than 64KB are charged as 64KB. If you are storing millions of tiny JSON files, IA will cost more than Standard.

Archive and Cold Archive require a restore step. You cannot read the object directly. You issue a restore request, wait for the restore to complete, then the object is readable for a configurable period (1-7 days). After that, it goes back to archived state.

The golden rule: start everything in Standard, measure your access patterns for 30 days using OSS access logging, then set lifecycle rules to auto-transition cold data. Do not guess.

Creating and Managing Buckets#

Console walkthrough#

The fastest way to create your first bucket:

Open the OSS Console
Click Create Bucket
Set the bucket name (globally unique, e.g., myapp-prod-media-cn)
Select region (e.g., cn-beijing)
Storage class: Standard (change later via lifecycle rules)
Access Control: Private (always start private)
Versioning: Enable (you can always suspend it later, but enabling retroactively does not version existing objects)
Server-Side Encryption: AES-256 or KMS (I recommend AES-256 for most workloads — it is free and transparent)
Click OK

CLI with ossutil#

ossutil is the OSS command-line tool. Install it first:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# macOS
brew install ossutil

# Linux (amd64)
curl -o ossutil https://gosspublic.alicdn.com/ossutil/v2/2.0.3/ossutil-linux-amd64
chmod +x ossutil
sudo mv ossutil /usr/local/bin/

# Configure credentials
ossutil config set --access-key-id $ALIBABA_CLOUD_ACCESS_KEY_ID \
                   --access-key-secret $ALIBABA_CLOUD_ACCESS_KEY_SECRET \
                   --region cn-beijing

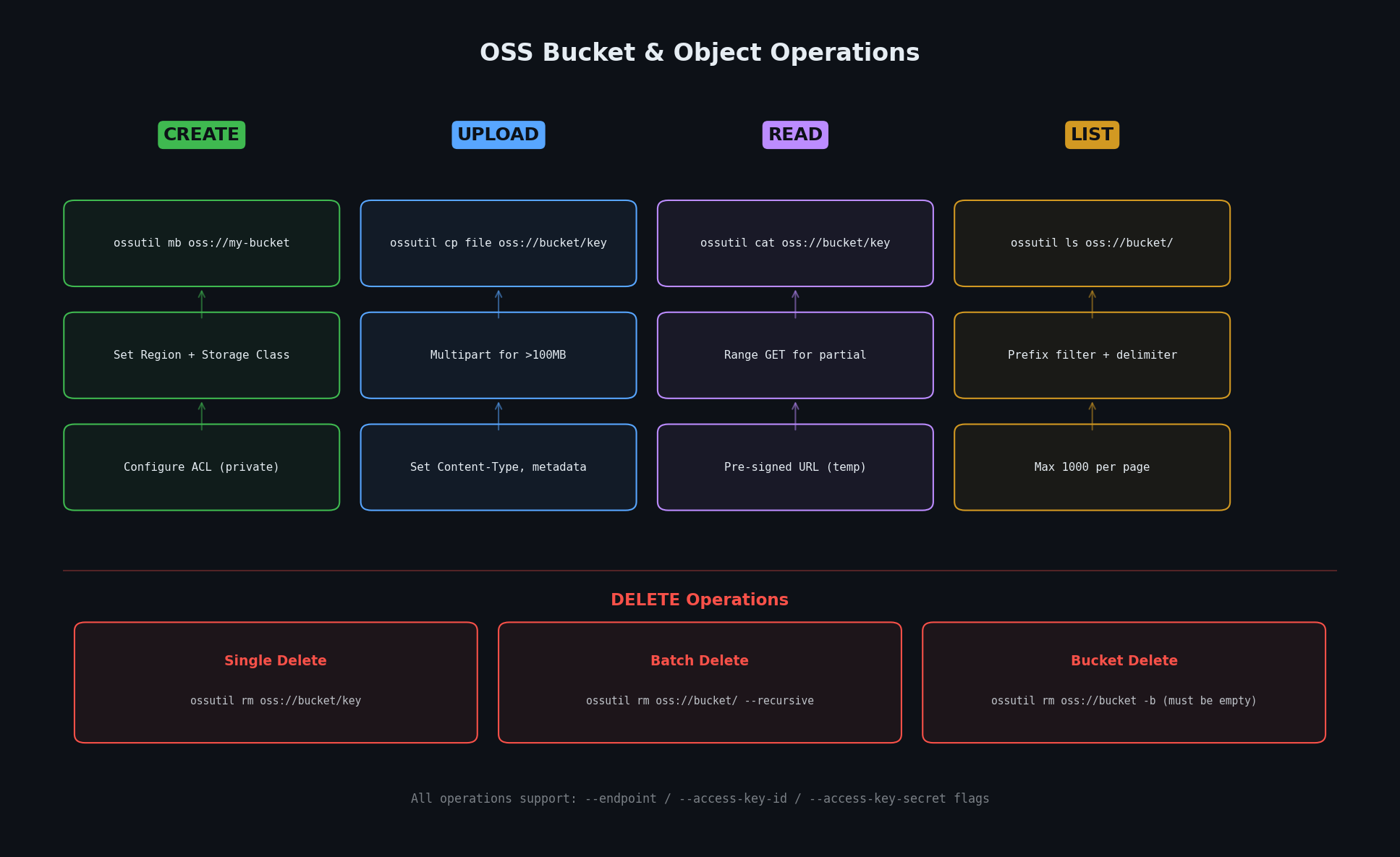

Now create a bucket and start working with objects:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# Create a bucket in cn-beijing with Standard storage
ossutil mb oss://myapp-prod-media --region cn-beijing

# Upload a single file
ossutil cp ./avatar.png oss://myapp-prod-media/images/users/avatar.png

# Upload a directory recursively
ossutil cp ./static/ oss://myapp-prod-media/static/ --recursive

# List objects in a bucket
ossutil ls oss://myapp-prod-media/

# List with details (size, last modified, storage class)
ossutil ls oss://myapp-prod-media/ --all-versions

# Download a file
ossutil cp oss://myapp-prod-media/images/users/avatar.png ./downloaded-avatar.png

# Copy between buckets
ossutil cp oss://myapp-prod-media/images/ oss://myapp-backup-media/images/ \
  --recursive

# Delete a file
ossutil rm oss://myapp-prod-media/old-file.txt

# Delete all objects with a prefix
ossutil rm oss://myapp-prod-media/temp/ --recursive

# Get bucket info
ossutil bucket-info oss://myapp-prod-media

Bucket naming rules#

3-63 characters
Lowercase letters, numbers, hyphens only
Must start and end with a letter or number
Globally unique across all of Alibaba Cloud (not just your account)
Cannot be renamed after creation

I use the pattern {app}-{env}-{purpose}-{region-short} — e.g., myapp-prod-media-cn, myapp-staging-logs-cn. This prevents naming collisions and makes it obvious what each bucket is for when you are staring at a list of 30 buckets at 2am.

Versioning#

Versioning keeps every version of every object. When you overwrite report.pdf, the old version is not deleted — it becomes a non-current version. When you delete report.pdf, it gets a delete marker but the data remains.

1
2
3
4
5
6
7
8
# Enable versioning
ossutil bucket-versioning --method put oss://myapp-prod-media enabled

# Check versioning status
ossutil bucket-versioning --method get oss://myapp-prod-media

# List all versions of objects
ossutil ls oss://myapp-prod-media/ --all-versions

Versioning is essential for any bucket containing user data. The storage cost doubles (because you keep old versions), but the alternative — losing data permanently on accidental overwrite — is worse. Combine versioning with lifecycle rules to auto-delete non-current versions after 30 days, which keeps costs controlled.

Access Control Deep Dive#

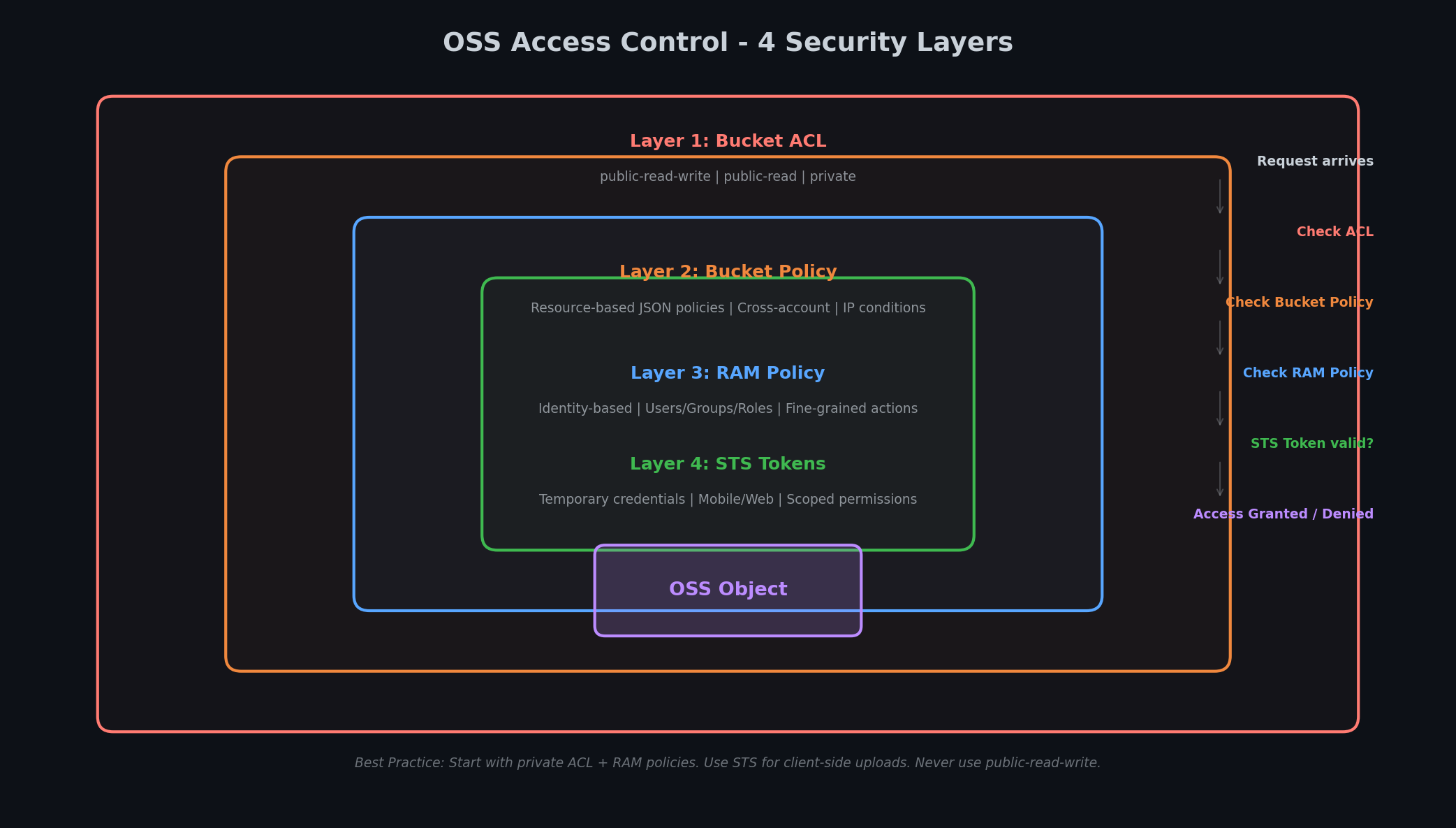

OSS access control has four layers, and understanding how they interact is the difference between a secure system and a public data breach. They are evaluated from most specific to least specific: STS/RAM policies override bucket policies, which override bucket ACLs.

Layer 1: Bucket ACL#

The simplest and coarsest control. Three options:

ACL	Anonymous read	Anonymous write	Use case
private	No	No	Default. Almost everything.
public-read	Yes	No	Static websites, public CDN origin
public-read-write	Yes	Yes	Never use this.

1
2
3
4
5
# Set bucket ACL
ossutil bucket-acl --method put oss://myapp-prod-media private

# Check bucket ACL
ossutil bucket-acl --method get oss://myapp-prod-media

I am not exaggerating about public-read-write. Setting a bucket to public-read-write means anyone on the internet can upload arbitrary files to your bucket, run up your storage bill, and use your bucket as a malware distribution point. I have seen this in production. Do not do it.

public-read is appropriate only for static assets served directly from OSS (without CDN) where you want the simplest possible setup. Even then, I prefer private plus CDN with origin access identity — but we will get to that.

Layer 2: Bucket Policy#

Bucket policies are JSON documents attached to the bucket that define who can do what. They are resource-based policies, similar to S3 bucket policies. This is the recommended way to grant cross-account access or fine-grained permissions without touching RAM.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": ["203917385849****"],
      "Action": [
        "oss:GetObject",
        "oss:GetObjectAcl"
      ],
      "Resource": [
        "acs:oss:*:*:myapp-prod-media/shared/*"
      ],
      "Condition": {
        "IpAddress": {
          "acs:SourceIp": ["203.0.113.0/24"]
        }
      }
    }
  ]
}

This policy says: “Allow Alibaba Cloud account 203917385849**** to read objects under the shared/ prefix, but only from the IP range 203.0.113.0/24.” You can restrict by IP, by VPC, by time of day, by referer header, or by whether the request uses HTTPS.

Apply a bucket policy via the CLI:

1
ossutil bucket-policy --method put oss://myapp-prod-media ./bucket-policy.json

Layer 3: RAM Policy#

RAM (Resource Access Management) policies are identity-based — attached to RAM users, groups, or roles. This is what your application server uses.

Create a RAM user for your application with minimum necessary permissions:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "oss:PutObject",
        "oss:GetObject",
        "oss:DeleteObject",
        "oss:ListObjects"
      ],
      "Resource": [
        "acs:oss:*:*:myapp-prod-media",
        "acs:oss:*:*:myapp-prod-media/*"
      ]
    }
  ]
}

Two resources are needed: the bucket itself (for ListObjects) and bucket/* (for object operations). Missing the first one is a common cause of “Access Denied on ListBuckets.”

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Create RAM user
aliyun ram CreateUser --UserName app-oss-user

# Create and attach the policy
aliyun ram CreatePolicy --PolicyName AppOSSReadWrite \
  --PolicyDocument "$(cat oss-policy.json)"

aliyun ram AttachPolicyToUser --PolicyName AppOSSReadWrite \
  --PolicyType Custom --UserName app-oss-user

# Create AccessKey for the user
aliyun ram CreateAccessKey --UserName app-oss-user

Layer 4: STS Temporary Credentials#

Security Token Service issues temporary credentials that expire after a configurable period (15 minutes to 1 hour). This is what you use for browser-based uploads and mobile apps — never embed long-lived AccessKeys in client code.

The flow:

Client requests an upload token from your backend
Your backend calls STS AssumeRole with a scoped-down policy
STS returns temporary AccessKeyId, AccessKeySecret, and SecurityToken
Client uses those credentials to upload directly to OSS
Credentials expire automatically

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
from alibabacloud_sts20150401.client import Client as StsClient
from alibabacloud_sts20150401.models import AssumeRoleRequest
from alibabacloud_tea_openapi.models import Config

config = Config(
    access_key_id='<RAM_USER_AK>',
    access_key_secret='<RAM_USER_SK>',
    endpoint='sts.cn-beijing.aliyuncs.com'
)
sts_client = StsClient(config)

# Scope the temporary credentials to a specific upload path
policy = '''{
    "Version": "1",
    "Statement": [{
        "Effect": "Allow",
        "Action": ["oss:PutObject"],
        "Resource": ["acs:oss:*:*:myapp-prod-media/uploads/user-12345/*"]
    }]
}'''

request = AssumeRoleRequest(
    role_arn='acs:ram::123456789:role/oss-upload-role',
    role_session_name='user-12345-upload',
    duration_seconds=900,  # 15 minutes
    policy=policy
)

response = sts_client.assume_role(request)
credentials = response.body.credentials
print(f"AccessKeyId: {credentials.access_key_id}")
print(f"AccessKeySecret: {credentials.access_key_secret}")
print(f"SecurityToken: {credentials.security_token}")
print(f"Expiration: {credentials.expiration}")

The critical detail: the policy parameter in AssumeRole further restricts the role’s permissions. Even if the role has full OSS access, the temporary credentials only get PutObject on one specific path. This is defense in depth.

Signed URLs#

For one-off sharing or time-limited downloads, generate a signed URL that expires:

1
2
# Generate a signed URL valid for 1 hour (3600 seconds)
ossutil sign oss://myapp-prod-media/reports/q1-2026.pdf --timeout 3600

This outputs a URL with the signature embedded as query parameters. Anyone with the URL can download the file until it expires. No authentication needed on the client side.

In Python:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
import oss2

auth = oss2.Auth('<ACCESS_KEY_ID>', '<ACCESS_KEY_SECRET>')
bucket = oss2.Bucket(auth, 'https://oss-cn-beijing.aliyuncs.com', 'myapp-prod-media')

# Generate a signed URL for download, valid for 1 hour
url = bucket.sign_url('GET', 'reports/q1-2026.pdf', 3600)
print(url)

# Generate a signed URL for upload
upload_url = bucket.sign_url('PUT', 'uploads/new-file.pdf', 600,
                              headers={'Content-Type': 'application/pdf'})
print(upload_url)

Uploading and Downloading#

Simple upload#

For files under 5 GB, a simple PUT request does the job:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
import oss2

auth = oss2.Auth('<ACCESS_KEY_ID>', '<ACCESS_KEY_SECRET>')
bucket = oss2.Bucket(auth, 'https://oss-cn-beijing.aliyuncs.com', 'myapp-prod-media')

# Upload from a local file
bucket.put_object_from_file('images/photo.jpg', '/tmp/photo.jpg')

# Upload from memory (bytes or string)
bucket.put_object('config/settings.json', '{"debug": false, "version": 3}')

# Upload with metadata
headers = {
    'Content-Type': 'image/jpeg',
    'x-oss-meta-uploaded-by': 'user-12345',
    'x-oss-meta-original-filename': 'vacation.jpg'
}
bucket.put_object_from_file('images/photo.jpg', '/tmp/photo.jpg', headers=headers)

Multipart upload#

For files larger than 100 MB, use multipart upload. The file is split into parts (minimum 100 KB each, except the last), uploaded in parallel, then assembled server-side. If a part fails, you retry just that part — not the entire file.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
import oss2

auth = oss2.Auth('<ACCESS_KEY_ID>', '<ACCESS_KEY_SECRET>')
bucket = oss2.Bucket(auth, 'https://oss-cn-beijing.aliyuncs.com', 'myapp-prod-media')

# The SDK handles multipart automatically for large files
# Default part size is 10 MB, parallelism is 1
oss2.resumable_upload(
    bucket,
    'videos/presentation.mp4',
    '/tmp/presentation.mp4',
    part_size=10 * 1024 * 1024,    # 10 MB per part
    num_threads=4                   # Upload 4 parts in parallel
)

Under the hood, resumable_upload does:

Calls InitiateMultipartUpload to get an upload ID
Splits the file into parts
Uploads each part with UploadPart (parallelized)
Calls CompleteMultipartUpload to assemble the object
Saves a checkpoint file locally so it can resume if interrupted

Resumable download#

For large downloads on unreliable networks:

1
2
3
4
5
6
7
oss2.resumable_download(
    bucket,
    'videos/presentation.mp4',
    '/tmp/downloaded-presentation.mp4',
    part_size=10 * 1024 * 1024,
    num_threads=4
)

Using ossutil for bulk operations#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Upload a directory with 8 parallel threads
ossutil cp ./media/ oss://myapp-prod-media/media/ \
  --recursive --jobs 8 --parallel 4

# Download with filters
ossutil cp oss://myapp-prod-media/logs/2026-05/ ./local-logs/ \
  --recursive --include "*.gz"

# Sync (like rsync -- only uploads changed files)
ossutil sync ./static/ oss://myapp-prod-media/static/ --delete

# The --delete flag removes objects in OSS that don't exist locally.
# Be very careful with this -- test without --delete first.

Presigned URL upload from the browser#

The most common pattern for user-facing applications: generate a presigned PUT URL on the server, send it to the browser, let the browser upload directly to OSS. Your server never touches the file bytes.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# Server-side: generate presigned upload URL
url = bucket.sign_url(
    'PUT',
    f'uploads/{user_id}/{filename}',
    600,  # 10 minutes
    headers={
        'Content-Type': content_type,
        'x-oss-forbid-overwrite': 'true'  # Prevent overwrites
    }
)
# Return this URL to the frontend

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
// Client-side: upload directly to OSS
async function uploadToOSS(file, presignedUrl) {
  const response = await fetch(presignedUrl, {
    method: 'PUT',
    headers: {
      'Content-Type': file.type,
      'x-oss-forbid-overwrite': 'true'
    },
    body: file
  });

  if (!response.ok) {
    throw new Error(`Upload failed: ${response.status}`);
  }
  return response;
}

This saves you from proxying file uploads through your application server, which would consume bandwidth and memory proportional to file size. With presigned URLs, the browser talks directly to OSS, and your server just coordinates.

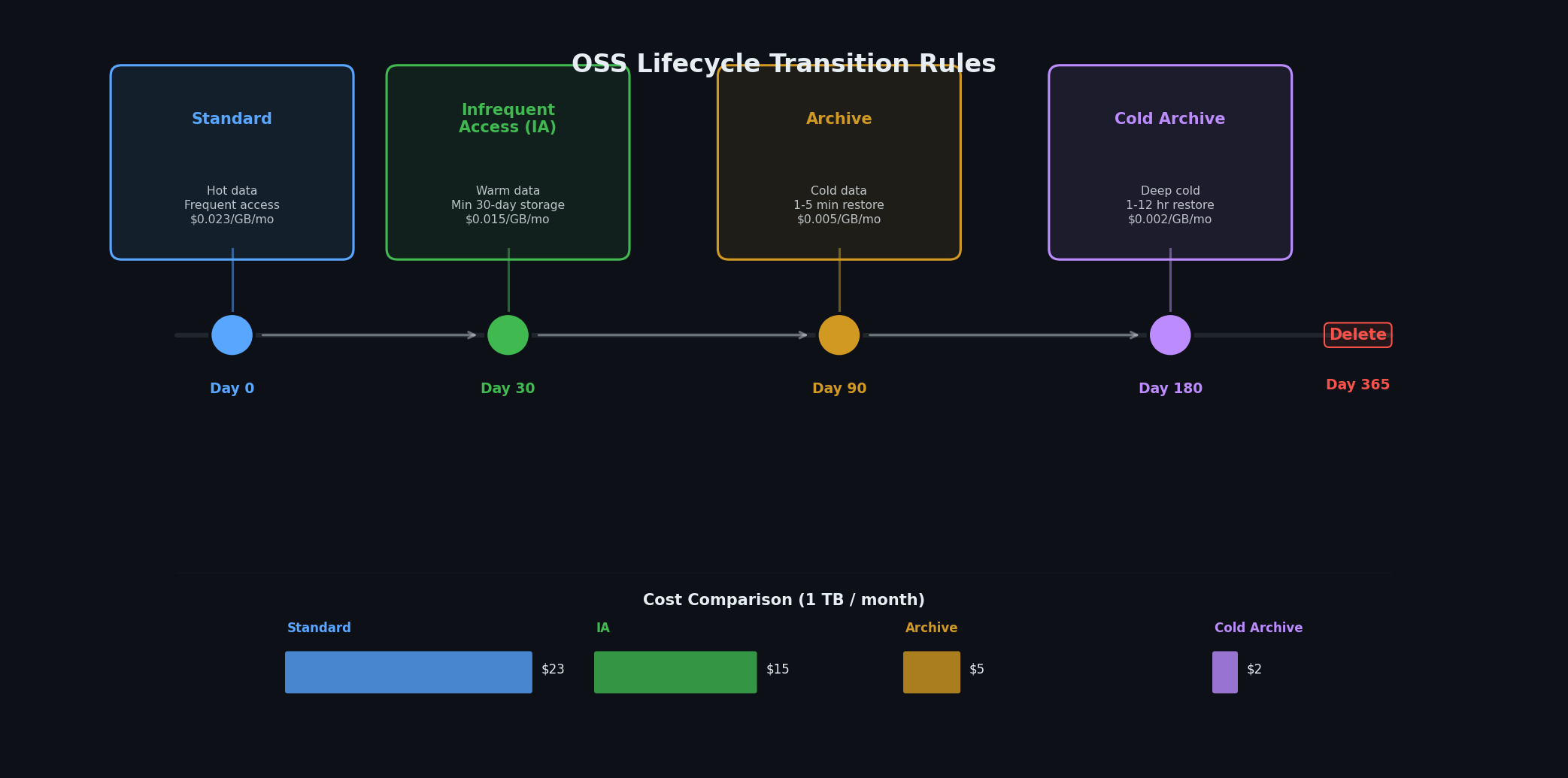

Lifecycle Rules#

Lifecycle rules automate storage class transitions and object expiration. This is where the real cost savings happen. Set them up once and forget about them.

Common patterns#

Pattern 1: Progressive archival

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
  "Rules": [
    {
      "ID": "progressive-archive",
      "Prefix": "logs/",
      "Status": "Enabled",
      "Transitions": [
        {
          "Days": 30,
          "StorageClass": "IA"
        },
        {
          "Days": 90,
          "StorageClass": "Archive"
        },
        {
          "Days": 365,
          "StorageClass": "ColdArchive"
        }
      ],
      "Expiration": {
        "Days": 730
      }
    }
  ]
}

This rule, applied to the logs/ prefix, says:

After 30 days, move to Infrequent Access (saves ~40%)
After 90 days, move to Archive (saves ~75%)
After 365 days, move to Cold Archive (saves ~90%)
After 730 days (2 years), delete entirely

Pattern 2: Clean up incomplete multipart uploads

Incomplete multipart uploads consume storage but are invisible to ls. They accumulate silently. Always add this rule:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
{
  "Rules": [
    {
      "ID": "abort-incomplete-uploads",
      "Prefix": "",
      "Status": "Enabled",
      "AbortMultipartUpload": {
        "Days": 3
      }
    }
  ]
}

Pattern 3: Delete old versions

If versioning is enabled, non-current versions pile up. Prune them:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
{
  "Rules": [
    {
      "ID": "cleanup-old-versions",
      "Prefix": "",
      "Status": "Enabled",
      "NoncurrentVersionTransitions": [
        {
          "NoncurrentDays": 30,
          "StorageClass": "IA"
        }
      ],
      "NoncurrentVersionExpiration": {
        "NoncurrentDays": 90
      }
    }
  ]
}

Apply lifecycle rules via CLI#

1
2
3
4
5
# Apply lifecycle configuration from a JSON file
ossutil lifecycle --method put oss://myapp-prod-media ./lifecycle.json

# Check current lifecycle rules
ossutil lifecycle --method get oss://myapp-prod-media

Cost impact#

Here is a real example from a production bucket I manage. 2 TB of log data, growing ~50 GB/month:

Strategy	Monthly cost	Annual cost
All Standard, no lifecycle	~ $40 \\| ~$ 480
Lifecycle: IA at 30d, Archive at 90d	~ $18 \\| ~$ 216
Lifecycle: IA at 30d, Archive at 90d, delete at 365d	~ $14 \\| ~$ 168

That is a 65% reduction by adding a single JSON file. Multiply by 20 buckets across an organization and you are saving thousands of dollars a year for ten minutes of work.

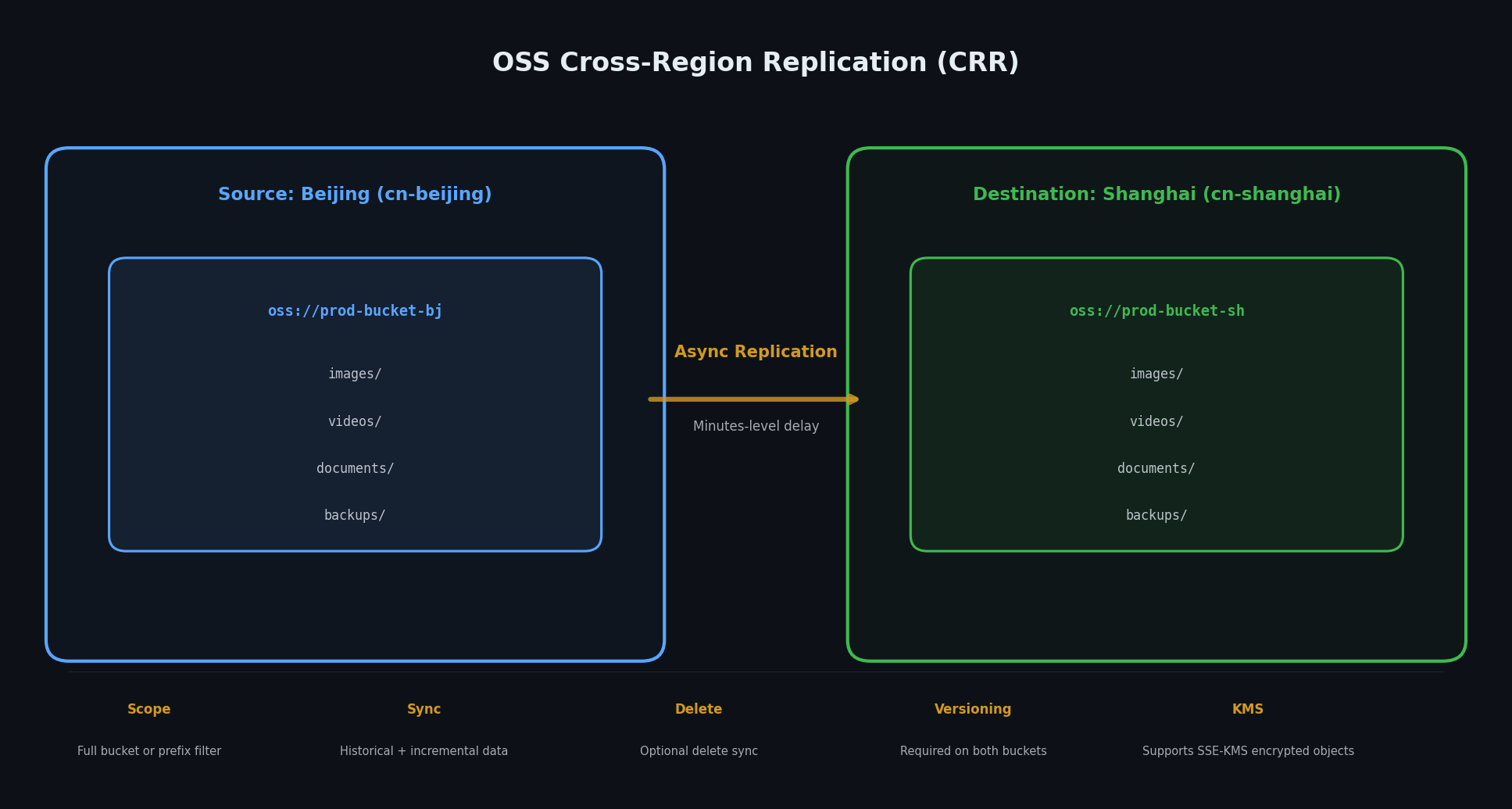

Cross-Region Replication (CRR)#

Cross-Region Replication asynchronously copies objects from a source bucket to a destination bucket in a different region. Two use cases:

Disaster recovery — If cn-beijing has a regional outage, your data exists in cn-shanghai
Compliance — Regulatory requirements to store copies in specific geographic locations

Setting up CRR#

1
2
3
4
5
# Step 1: Create the destination bucket in another region
ossutil mb oss://myapp-dr-media --region cn-shanghai

# Step 2: Enable CRR via the console or API
# (ossutil does not support CRR configuration directly -- use the console or SDK)

Via the SDK:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
import oss2
from oss2.models import ReplicationRule

auth = oss2.Auth('<ACCESS_KEY_ID>', '<ACCESS_KEY_SECRET>')
bucket = oss2.Bucket(auth, 'https://oss-cn-beijing.aliyuncs.com', 'myapp-prod-media')

rule = ReplicationRule(
    rule_id='replicate-to-shanghai',
    target_bucket_name='myapp-dr-media',
    target_bucket_location='oss-cn-shanghai',
    target_transfer_type='oss_acc',  # Use transfer acceleration
    prefix_list=['images/', 'documents/'],  # Only replicate these prefixes
    action_list=['ALL'],  # Replicate PUT, DELETE, and AbortMultipartUpload
    is_enable_historical_object_replication=True  # Replicate existing objects
)

bucket.put_bucket_replication(rule)

CRR details#

Aspect	Details
Replication lag	Usually < 10 minutes for most objects, can be longer for large objects
What is replicated	Object data, metadata, ACL (optionally)
What is NOT replicated	Lifecycle transitions, bucket policies, server-side encryption settings
Cost	You pay for storage in the destination + data transfer between regions
Direction	One-way by default. For bidirectional, set up two rules.
Delete replication	Optional. You can choose whether deletes propagate.

A warning: CRR is eventual consistency with no SLA on replication time. Do not use it as a real-time sync mechanism. If you need synchronous cross-region access, look at CEN + multi-region deployment instead.

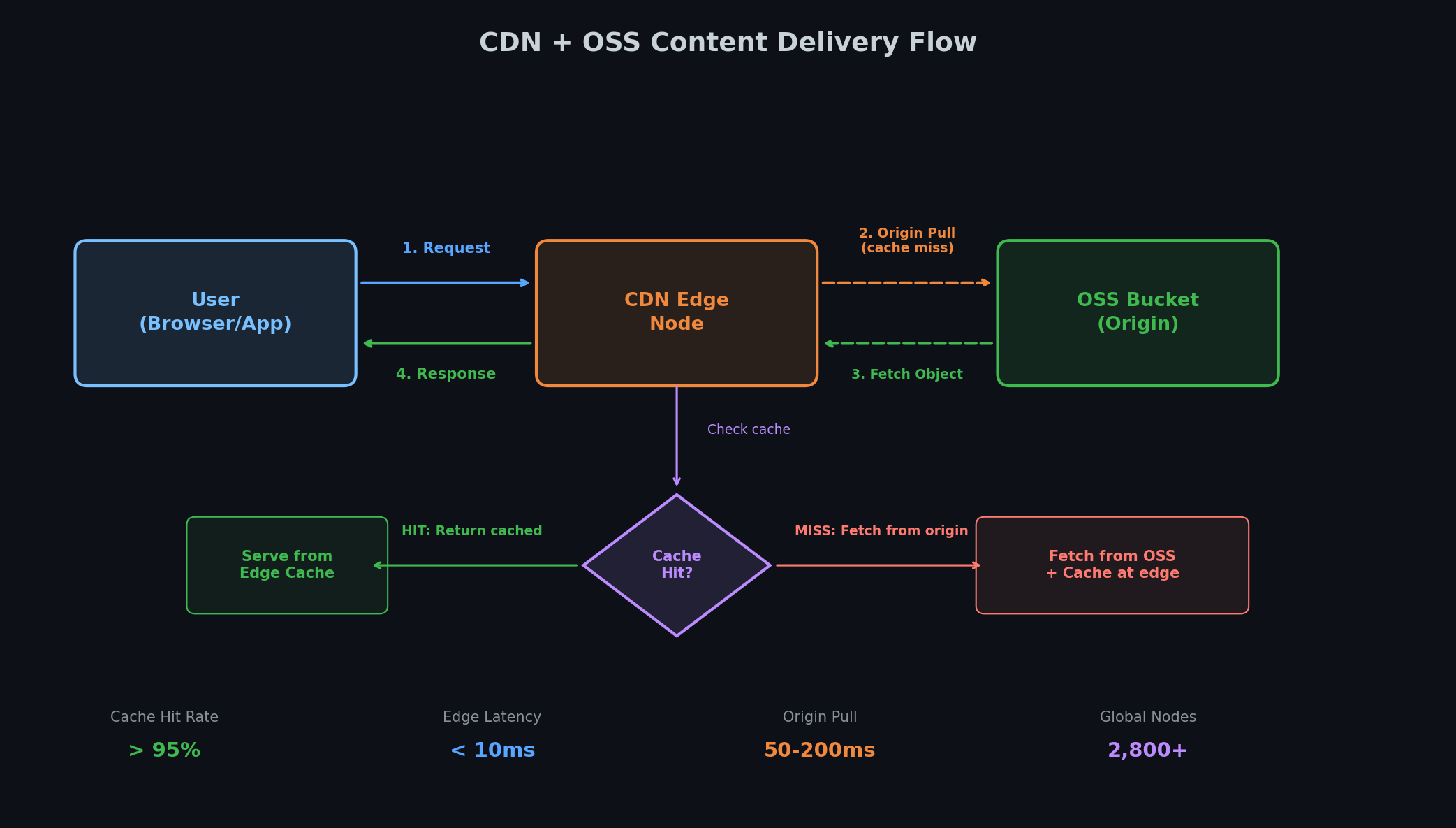

CDN Integration#

Alibaba Cloud CDN + OSS is one of the most common production patterns. CDN edge nodes cache your OSS objects close to users, reducing latency from hundreds of milliseconds to single digits. The origin (your OSS bucket) only gets hit on cache misses.

Why CDN + OSS instead of just OSS?#

Factor	OSS direct	CDN + OSS
Latency	50-200ms (varies by user location)	5-30ms (from nearest edge)
Cost per GB transfer	~0.12/GB (internet)	~0.04/GB (CDN is cheaper for high volume)
DDoS protection	Basic	Built-in at the CDN edge
HTTPS	Supported	Free certificate via CDN
Cache control	None	Configurable TTL, cache purge API
Custom domain	Supported but no free HTTPS	Full custom domain + free HTTPS

For any bucket serving user-facing content (images, CSS, JS, videos, downloads), CDN is strictly better. The only case where you would not use CDN is for private, API-only access (e.g., backend services reading files programmatically).

Complete CDN + OSS setup#

Step 1: Add a CDN domain#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# Using aliyun CLI
aliyun cdn AddCdnDomain \
  --CdnType web \
  --DomainName cdn.example.com \
  --Sources '[{
    "content": "myapp-prod-media.oss-cn-beijing.aliyuncs.com",
    "type": "oss",
    "priority": "20",
    "port": 443
  }]'

Step 2: Configure CNAME DNS#

After adding the CDN domain, Alibaba Cloud gives you a CNAME value like cdn.example.com.w.kunlunsl.com. Add a CNAME record in your DNS:

1
cdn.example.com  CNAME  cdn.example.com.w.kunlunsl.com

Step 3: Enable HTTPS with a free certificate#

1
2
3
4
aliyun cdn SetDomainServerCertificate \
  --DomainName cdn.example.com \
  --ServerCertificateStatus on \
  --CertType free

Alibaba Cloud CDN provides free DV (Domain Validated) certificates. They auto-renew. For production, you can upload your own certificate or use Certificate Management Service.

Step 4: Set cache rules#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Cache images for 30 days
aliyun cdn BatchSetCdnDomainConfig \
  --DomainNames cdn.example.com \
  --Functions '[{
    "functionName": "filetype_based_ttl_set",
    "functionArgs": [{
      "argName": "ttl", "argValue": "2592000"
    }, {
      "argName": "file_type", "argValue": "jpg,jpeg,png,gif,webp,svg,ico"
    }, {
      "argName": "weight", "argValue": "99"
    }]
  }]'

Step 5: Configure back-to-origin#

OSS as CDN origin works automatically, but configure these optimizations:

1
2
3
4
5
6
7
8
9
# Enable OSS private bucket access from CDN
aliyun cdn BatchSetCdnDomainConfig \
  --DomainNames cdn.example.com \
  --Functions '[{
    "functionName": "l2_oss_key",
    "functionArgs": [{
      "argName": "private_oss_auth", "argValue": "on"
    }]
  }]'

This lets CDN access a private bucket without making the bucket public. CDN authenticates to OSS using an internal authorization mechanism. Your bucket stays private, but CDN can fetch objects on cache misses.

Step 6: Verify the setup#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# Test CDN resolution
dig cdn.example.com

# Test content delivery
curl -I https://cdn.example.com/images/test.jpg

# Check response headers -- look for these:
# X-Cache: HIT or MISS (CDN cache status)
# Via: S.mix... (CDN edge node identifier)
# Age: 3600 (seconds since cached)

Cache purge#

When you update a file in OSS but CDN still serves the old version:

1
2
3
4
5
6
7
8
9
# Purge a specific URL
aliyun cdn RefreshObjectCaches \
  --ObjectPath "https://cdn.example.com/images/logo.png" \
  --ObjectType File

# Purge an entire directory
aliyun cdn RefreshObjectCaches \
  --ObjectPath "https://cdn.example.com/static/" \
  --ObjectType Directory

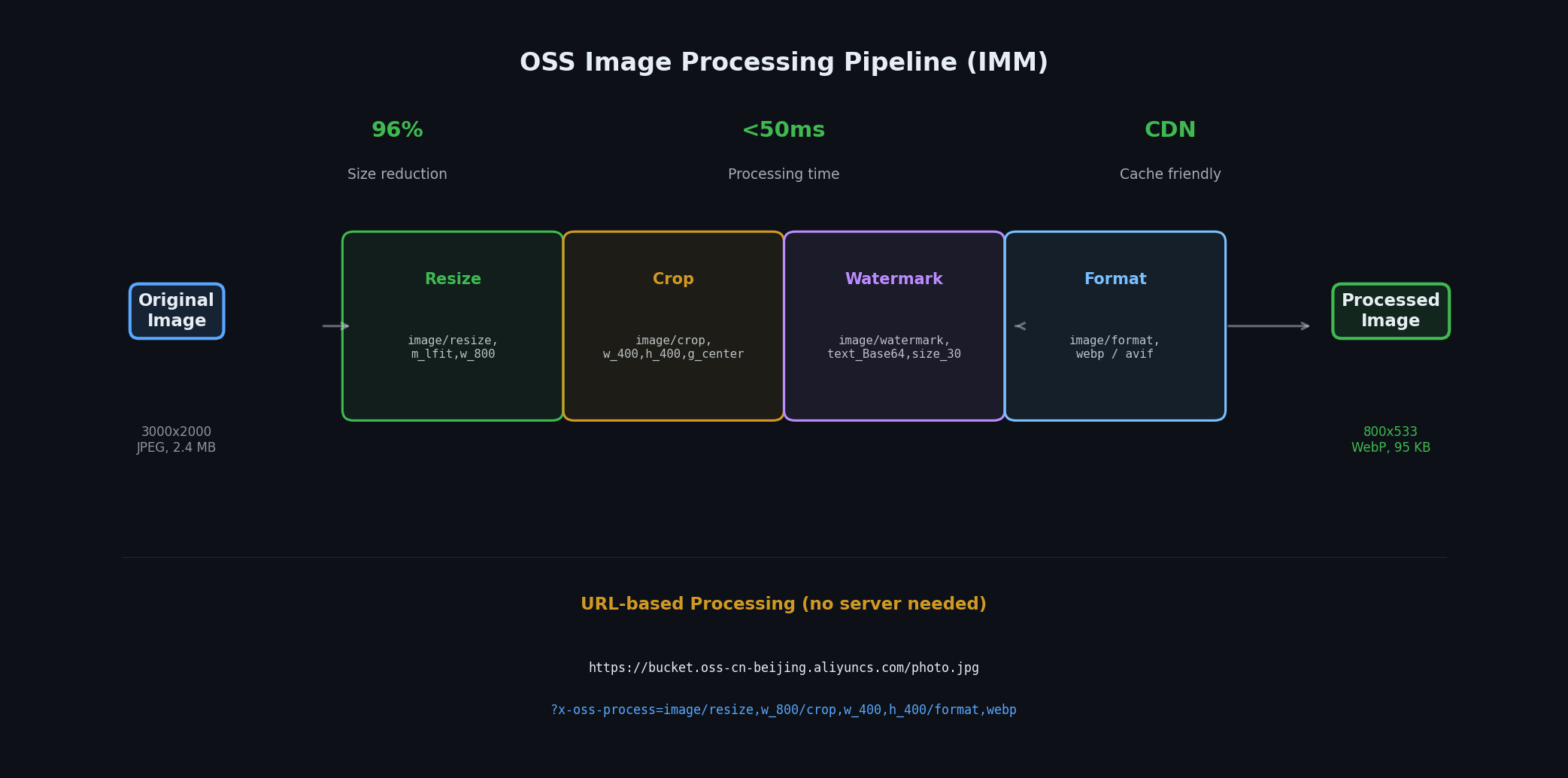

Image Processing (IMM)#

OSS has built-in image processing that transforms images on the fly via URL parameters. No separate service, no pre-processing pipeline — just append query parameters to the object URL.

Basic transformations#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
# Original image
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg

# Resize to 800px width, maintain aspect ratio
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/resize,w_800

# Resize to 200x200 with center crop
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/resize,m_fill,w_200,h_200

# Convert to WebP format (saves ~30% bandwidth)
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/format,webp

# Quality reduction (80%)
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/quality,q_80

# Chain operations: resize + webp + quality
https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/resize,w_800/format,webp/quality,q_80

Watermarking#

1
2
3
4
5
6
# Text watermark
?x-oss-process=image/watermark,text_Q2hlbmsgQmxvZw==,type_d3F5LXplbmhlaQ,size_30,color_FFFFFF,t_80,g_se,x_10,y_10

# The text is base64 encoded. "Chenk Blog" = Q2hlbmsgQmxvZw==
# g_se = southeast (bottom-right corner)
# t_80 = 80% transparency

Image info#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# Get image dimensions, format, file size
curl "https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/images/photo.jpg?x-oss-process=image/info"

# Response:
# {
#   "FileSize": {"value": "2458632"},
#   "Format": {"value": "jpg"},
#   "ImageHeight": {"value": "2048"},
#   "ImageWidth": {"value": "3072"}
# }

Using image processing with CDN#

When you access https://cdn.example.com/images/photo.jpg?x-oss-process=image/resize,w_800/format,webp, CDN caches the processed version. Subsequent requests for the same transformation hit the CDN cache, not OSS. This means you get on-the-fly processing with CDN-speed delivery.

The processed images are cached separately from the originals — the full URL including query parameters is the cache key. So photo.jpg, photo.jpg?x-oss-process=image/resize,w_800, and photo.jpg?x-oss-process=image/resize,w_400 are three separate cache entries.

Solution: Media Storage Backend#

Let us put everything together. We will build a complete media storage backend: OSS bucket with lifecycle rules, CDN with a custom domain, and a Python Flask API that generates presigned upload URLs and serves images through CDN with processing.

Step 1: Create and configure the bucket#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
# Create bucket
ossutil mb oss://myapp-prod-media --region cn-beijing

# Enable versioning
ossutil bucket-versioning --method put oss://myapp-prod-media enabled

# Set CORS for browser uploads
cat > /tmp/cors.json << 'CORS'
{
  "CORSRules": [
    {
      "AllowedOrigin": ["https://myapp.example.com"],
      "AllowedMethod": ["PUT", "GET", "HEAD"],
      "AllowedHeader": ["*"],
      "ExposeHeader": ["ETag", "x-oss-request-id"],
      "MaxAgeSeconds": 3600
    }
  ]
}
CORS

ossutil cors --method put oss://myapp-prod-media /tmp/cors.json

Step 2: Apply lifecycle rules#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
cat > /tmp/lifecycle.json << 'LIFECYCLE'
{
  "Rules": [
    {
      "ID": "user-uploads-archive",
      "Prefix": "uploads/",
      "Status": "Enabled",
      "Transitions": [
        {"Days": 30, "StorageClass": "IA"},
        {"Days": 90, "StorageClass": "Archive"}
      ],
      "NoncurrentVersionExpiration": {
        "NoncurrentDays": 30
      }
    },
    {
      "ID": "temp-cleanup",
      "Prefix": "temp/",
      "Status": "Enabled",
      "Expiration": {"Days": 1}
    },
    {
      "ID": "abort-incomplete-uploads",
      "Prefix": "",
      "Status": "Enabled",
      "AbortMultipartUpload": {"Days": 3}
    }
  ]
}
LIFECYCLE

ossutil lifecycle --method put oss://myapp-prod-media /tmp/lifecycle.json

Step 3: Set up CDN#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# Add CDN domain pointing to OSS
aliyun cdn AddCdnDomain \
  --CdnType web \
  --DomainName media.myapp.com \
  --Sources '[{
    "content": "myapp-prod-media.oss-cn-beijing.aliyuncs.com",
    "type": "oss",
    "priority": "20",
    "port": 443
  }]'

# Enable HTTPS
aliyun cdn SetDomainServerCertificate \
  --DomainName media.myapp.com \
  --ServerCertificateStatus on \
  --CertType free

# Enable private bucket origin access
aliyun cdn BatchSetCdnDomainConfig \
  --DomainNames media.myapp.com \
  --Functions '[{
    "functionName": "l2_oss_key",
    "functionArgs": [{"argName": "private_oss_auth", "argValue": "on"}]
  }]'

# Add CNAME record in your DNS provider:
# media.myapp.com  CNAME  media.myapp.com.w.kunlunsl.com

Step 4: The Flask API#

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
"""
Media storage API with presigned OSS uploads and CDN delivery.

Requirements:
    pip install flask oss2 alibabacloud-sts20150401
"""

import os
import uuid
import time
from flask import Flask, request, jsonify
import oss2
from alibabacloud_sts20150401.client import Client as StsClient
from alibabacloud_sts20150401.models import AssumeRoleRequest
from alibabacloud_tea_openapi.models import Config

app = Flask(__name__)

# Configuration
OSS_REGION = 'cn-beijing'
OSS_BUCKET_NAME = 'myapp-prod-media'
OSS_ENDPOINT = f'https://oss-{OSS_REGION}.aliyuncs.com'
OSS_INTERNAL_ENDPOINT = f'https://oss-{OSS_REGION}-internal.aliyuncs.com'
CDN_DOMAIN = 'https://media.myapp.com'
STS_ROLE_ARN = os.environ['STS_ROLE_ARN']
AK_ID = os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID']
AK_SECRET = os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']

# Use internal endpoint when running on ECS in same region (free transfer)
endpoint = OSS_INTERNAL_ENDPOINT if os.environ.get('ON_ECS') else OSS_ENDPOINT

auth = oss2.Auth(AK_ID, AK_SECRET)
bucket = oss2.Bucket(auth, endpoint, OSS_BUCKET_NAME)


ALLOWED_TYPES = {
    'image/jpeg': '.jpg',
    'image/png': '.png',
    'image/webp': '.webp',
    'image/gif': '.gif',
    'application/pdf': '.pdf',
    'video/mp4': '.mp4',
}
MAX_FILE_SIZE = 100 * 1024 * 1024  # 100 MB


@app.route('/api/upload/presign', methods=['POST'])
def get_upload_url():
    """Generate a presigned URL for direct browser-to-OSS upload."""
    data = request.json
    content_type = data.get('content_type')
    filename = data.get('filename', 'unnamed')
    user_id = data.get('user_id')

    if content_type not in ALLOWED_TYPES:
        return jsonify({'error': f'Unsupported file type: {content_type}'}), 400

    # Generate a unique object key
    ext = ALLOWED_TYPES[content_type]
    date_prefix = time.strftime('%Y/%m/%d')
    unique_id = uuid.uuid4().hex[:12]
    object_key = f'uploads/{user_id}/{date_prefix}/{unique_id}{ext}'

    # Generate presigned PUT URL (valid for 10 minutes)
    upload_url = bucket.sign_url(
        'PUT',
        object_key,
        600,
        headers={
            'Content-Type': content_type,
            'x-oss-forbid-overwrite': 'true'
        }
    )

    # CDN URL for accessing the file after upload
    cdn_url = f'{CDN_DOMAIN}/{object_key}'

    return jsonify({
        'upload_url': upload_url,
        'object_key': object_key,
        'cdn_url': cdn_url,
        'expires_in': 600
    })


@app.route('/api/image/<path:object_key>')
def get_image_url(object_key):
    """Return CDN URL with optional image processing parameters."""
    width = request.args.get('w', type=int)
    height = request.args.get('h', type=int)
    fmt = request.args.get('format', 'webp')
    quality = request.args.get('q', 80, type=int)

    url = f'{CDN_DOMAIN}/{object_key}'

    # Build image processing parameters
    processes = []
    if width and height:
        processes.append(f'image/resize,m_fill,w_{width},h_{height}')
    elif width:
        processes.append(f'image/resize,w_{width}')
    elif height:
        processes.append(f'image/resize,h_{height}')

    if fmt:
        processes.append(f'format,{fmt}')
    if quality and quality < 100:
        processes.append(f'quality,q_{quality}')

    if processes:
        process_string = '/'.join(processes)
        # Ensure "image/" prefix is only on the first operation
        if not process_string.startswith('image/'):
            process_string = 'image/' + process_string
        url += f'?x-oss-process={process_string}'

    return jsonify({'url': url})


@app.route('/api/upload/sts-token', methods=['POST'])
def get_sts_token():
    """Issue STS temporary credentials for mobile/SPA uploads."""
    user_id = request.json.get('user_id')

    sts_config = Config(
        access_key_id=AK_ID,
        access_key_secret=AK_SECRET,
        endpoint=f'sts.{OSS_REGION}.aliyuncs.com'
    )
    sts_client = StsClient(sts_config)

    # Scope credentials to this user's upload directory only
    policy = f'''{{
        "Version": "1",
        "Statement": [{{
            "Effect": "Allow",
            "Action": ["oss:PutObject"],
            "Resource": [
                "acs:oss:*:*:{OSS_BUCKET_NAME}/uploads/{user_id}/*"
            ]
        }}]
    }}'''

    resp = sts_client.assume_role(AssumeRoleRequest(
        role_arn=STS_ROLE_ARN,
        role_session_name=f'upload-{user_id}',
        duration_seconds=900,
        policy=policy
    ))

    creds = resp.body.credentials
    return jsonify({
        'access_key_id': creds.access_key_id,
        'access_key_secret': creds.access_key_secret,
        'security_token': creds.security_token,
        'expiration': creds.expiration,
        'bucket': OSS_BUCKET_NAME,
        'region': OSS_REGION,
        'endpoint': OSS_ENDPOINT
    })


if __name__ == '__main__':
    app.run(host='0.0.0.0', port=8080)

Step 5: Test the complete flow#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# 1. Request a presigned upload URL
curl -X POST http://localhost:8080/api/upload/presign \
  -H "Content-Type: application/json" \
  -d '{"content_type": "image/jpeg", "filename": "photo.jpg", "user_id": "u123"}'

# Response:
# {
#   "upload_url": "https://myapp-prod-media.oss-cn-beijing.aliyuncs.com/uploads/u123/2026/05/14/a1b2c3d4e5f6.jpg?OSSAccessKeyId=...&Signature=...&Expires=...",
#   "object_key": "uploads/u123/2026/05/14/a1b2c3d4e5f6.jpg",
#   "cdn_url": "https://media.myapp.com/uploads/u123/2026/05/14/a1b2c3d4e5f6.jpg",
#   "expires_in": 600
# }

# 2. Upload the file directly to OSS using the presigned URL
curl -X PUT "<presigned_upload_url>" \
  -H "Content-Type: image/jpeg" \
  -H "x-oss-forbid-overwrite: true" \
  --data-binary @photo.jpg

# 3. Access via CDN with image processing
curl -I "https://media.myapp.com/uploads/u123/2026/05/14/a1b2c3d4e5f6.jpg?x-oss-process=image/resize,w_400/format,webp/quality,q_80"

# 4. Get a processed image URL from the API
curl "http://localhost:8080/api/image/uploads/u123/2026/05/14/a1b2c3d4e5f6.jpg?w=400&format=webp&q=80"

Architecture summary#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
Browser                          Your Flask API                OSS Bucket
  │                                   │                           │
  │  1. POST /api/upload/presign      │                           │
  │──────────────────────────────────►│                           │
  │                                   │  (generates signed URL)   │
  │  2. {upload_url, cdn_url}         │                           │
  │◄──────────────────────────────────│                           │
  │                                                               │
  │  3. PUT (file bytes) ────────────────────────────────────────►│
  │                                                               │
  │  4. GET cdn_url ──────► CDN Edge ──── (cache miss) ─────────►│
  │  ◄── cached response ◄─── CDN ◄──── object data ◄───────────│
  │                                                               │
  │  5. GET cdn_url ──────► CDN Edge                              │
  │  ◄── cached response ◄─── CDN (cache HIT, no OSS request)    │

The beauty of this architecture: your application server handles zero file I/O. Upload bytes flow directly from the browser to OSS. Download bytes flow from CDN edge nodes. Your Flask API is just a coordinator that generates signed URLs and constructs CDN paths. It stays lightweight, easy to scale, and cheap to run.

Summary#

OSS is not a filesystem. It is a flat key-value store accessed over HTTP. Do not try to use it like a mounted disk. Do not store millions of tiny files where NAS or a database would be better. Use it for what it excels at: storing blobs of any size with extreme durability, served over HTTP.

Start private, loosen carefully. Every bucket should be private by default. Use signed URLs for temporary access, STS tokens for client uploads, and CDN with origin access for public content. The public-read-write ACL should never appear in your infrastructure.

Lifecycle rules are free money. Set them on every bucket. Even a simple “transition to IA after 30 days” rule saves 40% on data you are not actively reading. The rule costs nothing to configure and runs automatically.

Use the internal endpoint. When your ECS instances and OSS bucket are in the same region, use oss-{region}-internal.aliyuncs.com. Data transfer over the internal network is free. Over the public endpoint, you pay ~$0.12/GB. This adds up fast.

CDN is not optional for user-facing content. The combination of lower latency, lower cost, and built-in DDoS protection makes CDN + OSS strictly better than OSS alone for any public content. The setup takes 15 minutes.

Presigned URLs keep your server thin. Never proxy file uploads or downloads through your application server. Generate presigned URLs and let the client talk directly to OSS (or CDN). Your server handles metadata and authorization, not bytes.

For using OSS with infrastructure-as-code, see Terraform Part 5: Storage . We will use OSS as the backing store for our ML models in Part 11: PAI .

What’s Next#

Storage is where your data lives. With OSS configured — buckets, lifecycle rules, access control, CDN, and image processing in place — we have the persistence layer sorted. In the next article, we move to managed databases: RDS for relational data, Redis for caching, and the replication, backup, and failover strategies that keep your data alive when hardware inevitably fails.
