Aliyun PAI (1): Platform Overview and the Product Family Map

If your team trains or serves models on Alibaba Cloud, you’ll eventually use the PAI console. PAI is the umbrella; underneath it are the actual workhorses — a notebook product, a distributed training service, a model-serving service, and a few GUI/quick-deploy layers. After about eighteen months of running real LLM workloads on it for an AI marketing platform, this series is the field guide I wish I had before deploying my first endpoint.

This first article is the lay of the land. It is deliberately short on code — articles 2 to 5 are the deep dives. The goal is to help you understand what “DLC job” and “EAS endpoint” mean.

What PAI is, and what it isn’t#

Per the official docs, Platform for AI (PAI) is “Alibaba Cloud’s AI development platform covering the full lifecycle: data annotation, model development, training, and deployment”. The console at pai.console.aliyun.com is one entry point, but PAI itself is a family of related products that share an account model, an OSS-backed storage layer, and a single Python SDK.

The mental model that has worked best for me:

• PAI is the shop.
• DSW, DLC, EAS, Designer, Model Gallery are the workbenches inside.
• ECS, OSS, NAS, CPFS are where the actual silicon and bytes live. PAI just orchestrates them on your behalf.

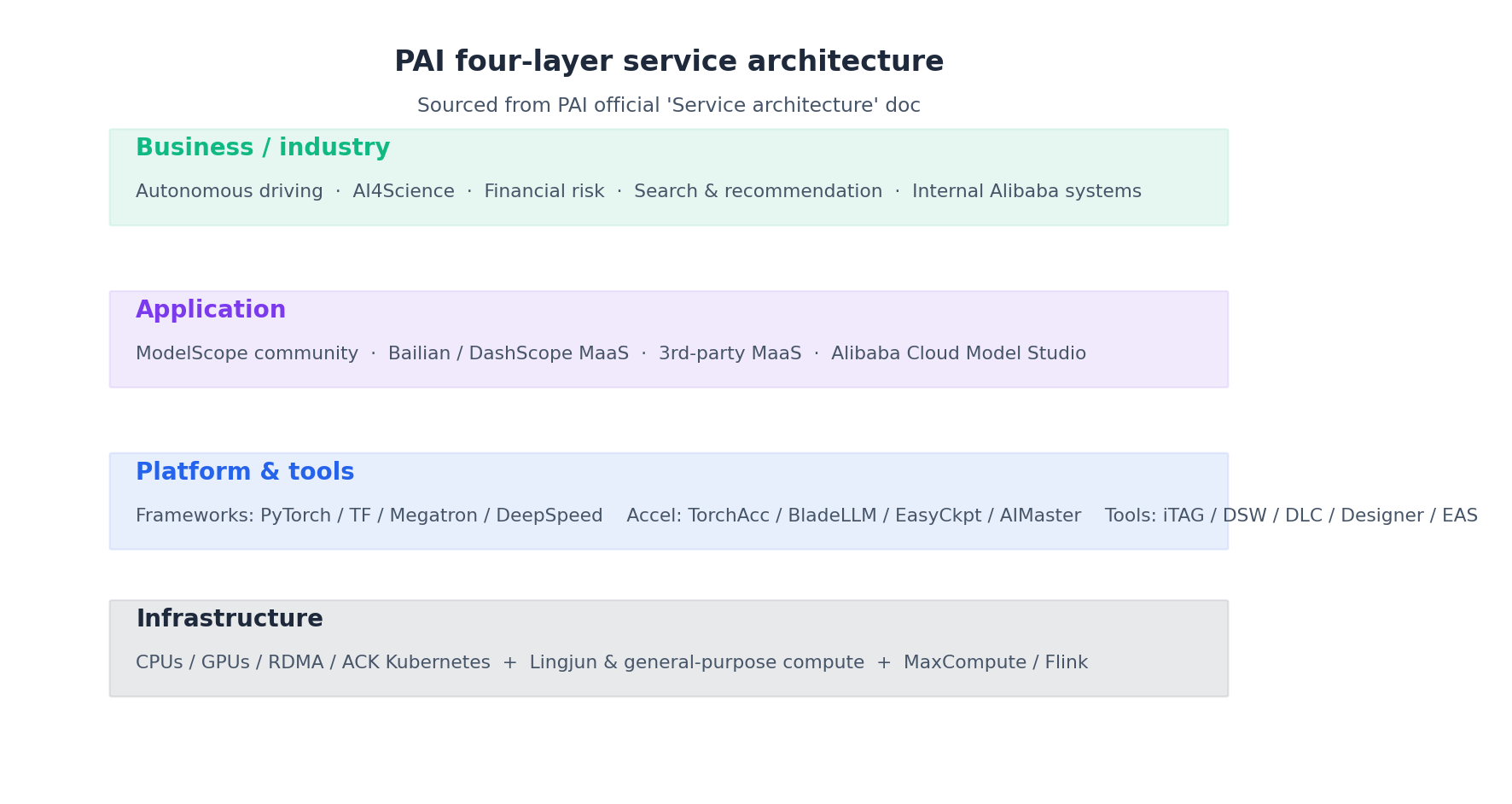

The official “Service architecture” topic spells it out as a four-layer stack:

Read it from the bottom up. The infrastructure layer includes CPUs, GPUs, RDMA fabric, and ACK Kubernetes. Above that, Lingjun (灵骏) provides high-density AI compute, while general-purpose compute offers everyday ECS-backed GPU pools. The platform-and-tools layer is where you spend most of your time: PyTorch, Megatron, DeepSpeed, PAI’s optimization tools (TorchAcc, BladeLLM, EasyCkpt, AIMaster), and the visible products (DSW, DLC, EAS, Designer, FeatureStore, iTAG). The application layer integrates PAI with Alibaba’s MaaS world (ModelScope, Bailian/DashScope, Model Studio). The business layer covers industry use cases.

Use PAI instead of raw ECS because it pre-configures CUDA and PyTorch images, mounts your OSS bucket, provides a metrics dashboard, and bills per second.

The five sub-products you actually touch#

After a year and a half of production work I have only ever paid for these, drawn straight from the official “Core components” table:

There’s also iTAG (data annotation), PAI-Lingjun for large clusters, PAI-Blade / BladeLLM for inference optimization, and FeatureStore. Unless you’re doing >1000-GPU pretraining or building a recommender system, you can initially ignore them.

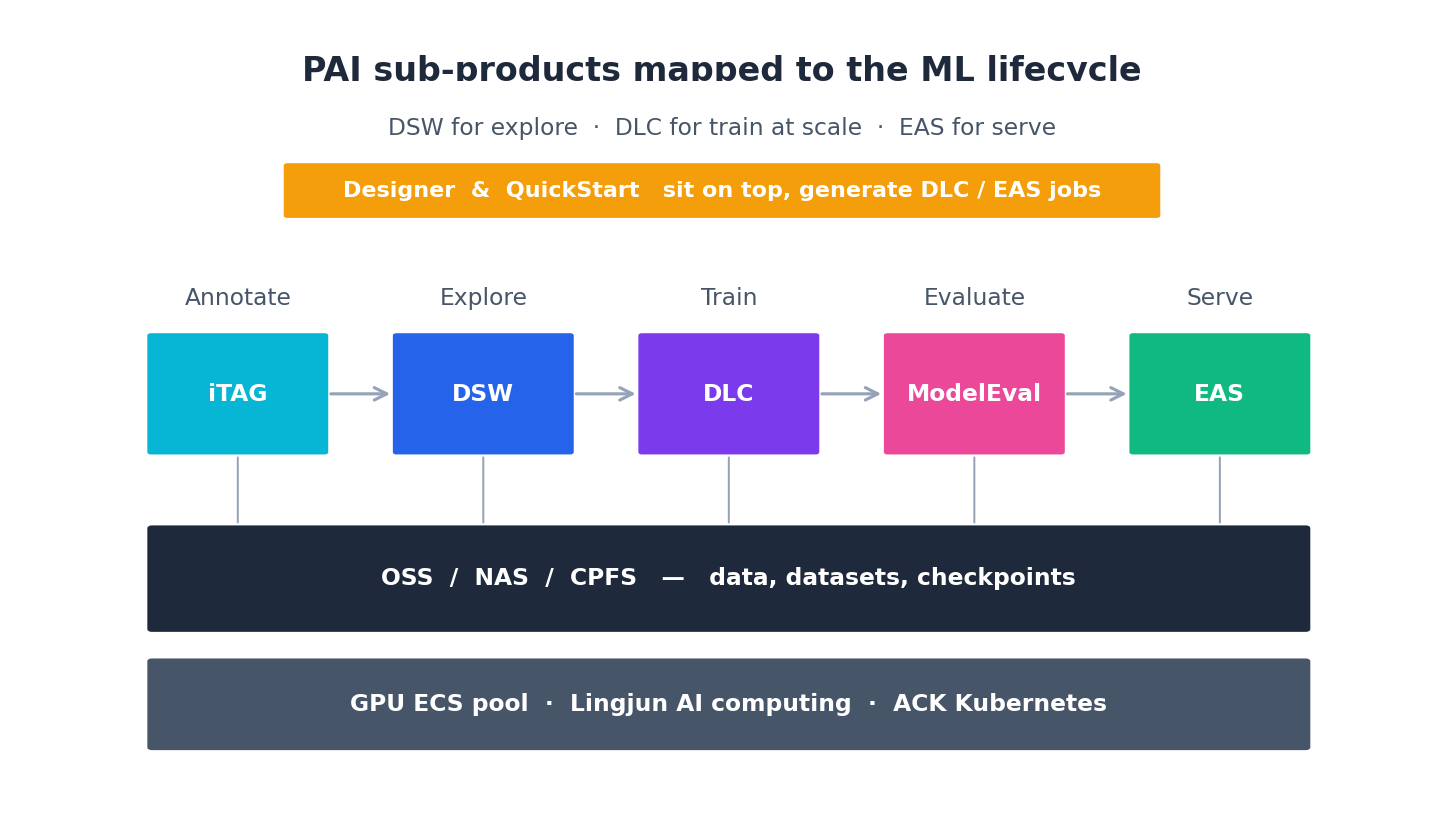

The product split maps cleanly onto the ML lifecycle:

Designer and Model Gallery are orthogonal — they sit on top, generating jobs that run on the same DLC / EAS substrate.

How PAI relates to ECS and OSS#

This trips up everyone who comes from a pure cloud-VM background. Three rules:

1. PAI never owns your data. Datasets, checkpoints, and model artifacts all live in OSS (or NAS for POSIX semantics, or CPFS for HPC-style throughput). When a DSW or DLC instance dies, anything you didn’t write to OSS is gone. There is a “system disk” but treat it as /tmp.
2. PAI does own the compute. You do not provision GPU ECS instances yourself for PAI workloads. PAI manages a pool, you ask for 1 * ecs.gn7i-c8g1.2xlarge and you get billed per second of allocation.
3. PAI shares your account but uses its own RAM roles. When you grant PAI access to OSS, you’re attaching a service-linked role (AliyunPAIAccessingOSSRole) so PAI’s compute can read your bucket without a long-lived AK pair. Do not skip this — without it your DLC jobs will fail at data_loader time with a 403.

Real-world tip: The single most common “PAI is broken” ticket is a permission issue between PAI and OSS. Before debugging your training script, run oss ls oss://your-bucket/ from inside a DSW terminal. If that fails, fix the role, not the code.

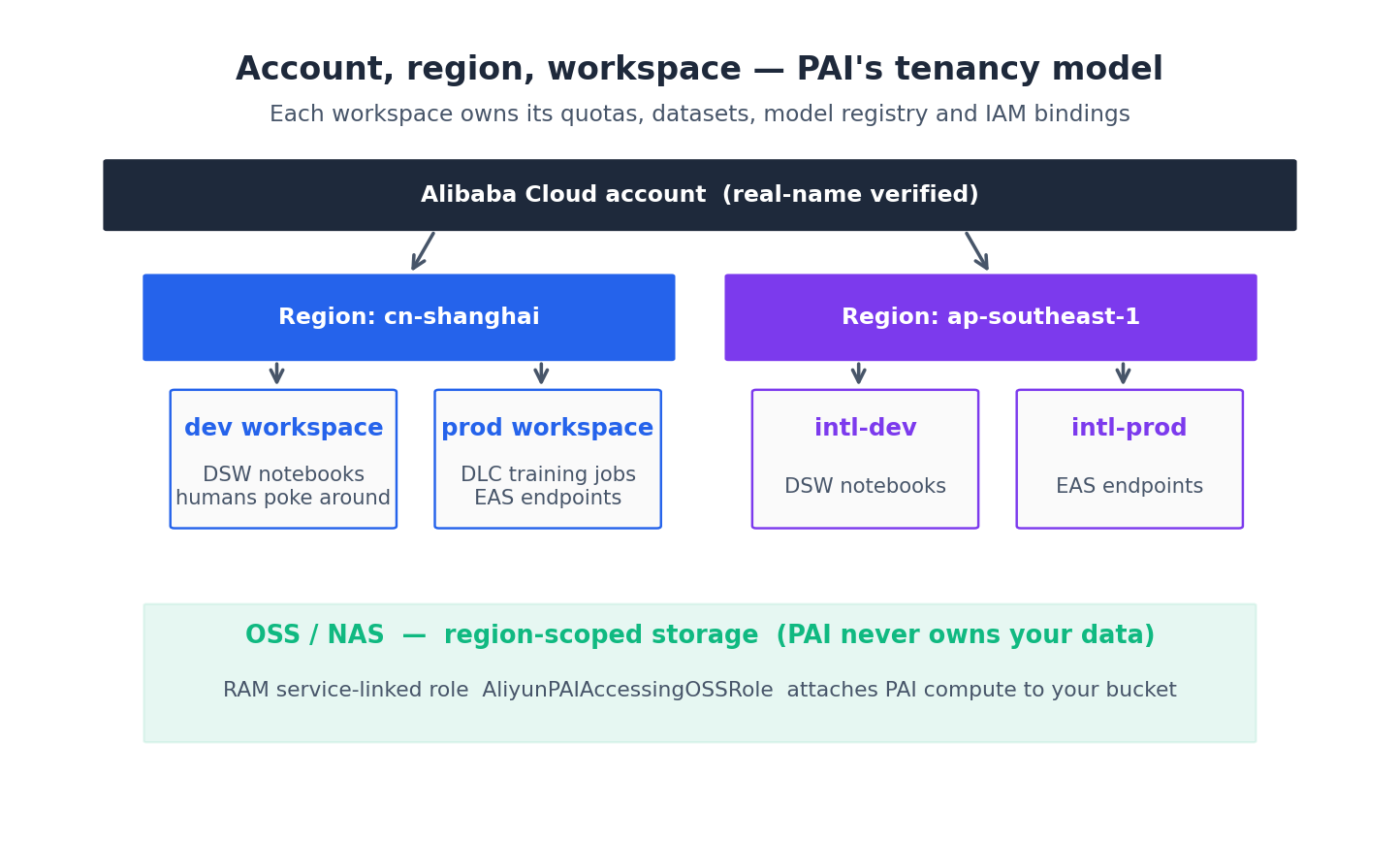

Account, region, workspace#

To get started you need three things in this order:

1. An aliyun.com account with real-name verification (实名认证) — required for any GPU resource. International accounts work for most regions but Hangzhou, Shanghai, and Beijing have the best GPU stock.
2. A region. Pick one and stick to it. PAI resources, OSS buckets, and ECS GPUs are all region-scoped, and cross-region traffic costs money and adds latency. For mainland production I default to cn-shanghai; for international, ap-southeast-1 (Singapore).
3. A workspace. Per the docs, the workspace is PAI’s tenancy primitive — it holds quotas, datasets, model registries, and IAM bindings. You almost always want at least two: a dev workspace where humans poke around in DSW, and a prod workspace where DLC jobs and EAS endpoints live. Cross-workspace permissioning is fiddly, but the isolation pays for itself the first time an intern accidentally restarts a serving endpoint.

Two paths: console vs SDK#

Like Bailian, PAI gives you two ways to do everything. The console is good for one-offs and inspecting state; the SDK is what you use in CI..

The Python SDK is one package:

1

pip install alibabacloud-pai-python-sdk

A “hello PAI” — list your workspaces:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

import os
from pai.session import setup_default_session

sess = setup_default_session(
    access_key_id=os.environ["ALIBABA_CLOUD_ACCESS_KEY_ID"],
    access_key_secret=os.environ["ALIBABA_CLOUD_ACCESS_KEY_SECRET"],
    region_id="cn-shanghai",
)

for ws in sess.workspace_api.list().items:
    print(ws.id, ws.name)

If that prints at least one workspace ID, your account, region, and credentials are wired correctly and you can move on to article 2.

Real-world tip: Use a sub-account with a scoped RAM policy for SDK work. Never use the root account access key — and if your AK pair shows up in any git history, rotate immediately. Aliyun’s leaked-key detection is OK but it’s not GitHub-grade fast.

Pricing model in one paragraph#

The docs list five billing methods: pay-as-you-go, subscription (monthly/yearly prepaid), resource plan (DSW prepaid quota), savings plan (commit for discount), and pay-by-inference-duration (EAS serverless — no idle replica cost). DSW is per-second-of-instance while running, DLC is per-second with a separate quota for spot/preemptible GPUs that’s roughly 30-50% cheaper if your job can checkpoint, EAS is per-second-of-replica plus a small per-million-requests charge with auto-scaled minimum replicas dominating the cost. Designer and Model Gallery have no charge themselves — they spawn DLC/EAS resources that bill normally. There’s a small free tier for new accounts that’s enough to follow this whole series end-to-end.

What a Designer workflow really looks like under the hood#

Designer feels like Lego on the canvas, but the export is a flat JSON document the platform can replay. The first time I had to debug a stuck pipeline I exported the JSON from the canvas (... menu → Export workflow) and it stopped looking like magic. Roughly the structure:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

{
  "workflowName": "user-segmentation-weekly",
  "workspaceId": "ws-1xxxx",
  "globalParams": {
    "outputProject": "marketing_dwd",
    "samplingRatio": 0.05
  },
  "nodes": [
    {
      "id": "n1",
      "type": "ReadODPSTable",
      "params": {"projectName": "marketing_dwd", "tableName": "user_features_p"},
      "position": {"x": 60, "y": 80}
    },
    {
      "id": "n2",
      "type": "Split",
      "params": {"trainRatio": 0.8},
      "inputs": [{"from": "n1", "port": "out"}]
    },
    {
      "id": "n3",
      "type": "KMeans",
      "params": {"k": 12, "maxIter": 50, "seed": 42},
      "inputs": [{"from": "n2", "port": "train"}],
      "compute": {"engine": "MaxCompute", "instanceQuota": "general"}
    }
  ],
  "edges": [
    {"from": "n1.out", "to": "n2.in"},
    {"from": "n2.train", "to": "n3.in"}
  ],
  "schedule": {"cron": "0 3 * * 1", "retries": 2, "timeoutMin": 60}
}

Three things matter here. First, every node has an explicit compute.engine — MaxCompute for SQL-shaped components, DLC for the Python / PyAlink ones, Flink if you’re streaming. Designer does not magically pick the cheapest one; it picks based on the component type, and any custom Python node defaults to a DLC pod that costs you whether the upstream MaxCompute step took 30 s or 30 min. Second, the JSON is idempotent and diffable — I keep ours in git next to the SQL it depends on, and code-review changes the same way I review a Terraform plan. Third, the same JSON can be submitted via the SDK (pai.designer.submit_workflow(json_path)), which is how I run pipelines from CI without ever opening the console.

The hidden upgrade path: once you have the JSON, “I want this in code” stops being a rewrite. You can generate it from a Python DAG, version it, lint it, and even unit-test individual nodes by mocking inputs. The canvas is a UI on top of that file, not a separate tool.

When Designer is actually faster than custom code, and when it isn’t#

I’ve watched teams burn a week building a custom DLC + PySpark pipeline for a job that would have been a 90-minute Designer canvas, and I’ve watched the opposite — a senior engineer try to do real-time feature engineering inside Designer and fight the platform for two weeks. The split is sharper than the marketing suggests:

A specific number from production: a recommendation feature pipeline I migrated to Designer ran in 22 min on MaxCompute spot and cost ~6 RMB per daily run; the previous PySpark-on-DLC version took 41 min on a 4-node cluster and cost ~38 RMB. Six times cheaper because the data never had to leave MaxCompute. The opposite migration also happened: a “use Designer for our Qwen LoRA” attempt that needed a custom training loop ended up as 600 lines of glue inside one Python node and was painful to debug because the canvas hides stack traces under a tiny view logs link. We rewrote it as a normal DLC submission in an afternoon and the team was happier.

The trap is treating Designer as either always the right answer (PMs do this) or always wrong (senior engineers do this). It is a tool for a specific class of problems — tabular ML at MaxCompute scale with a non-coder owner — and it is genuinely the best option in that class.

The DLC backend that Designer hides from you#

This took me longer to figure out than it should have. Click Run on a Designer canvas with a Python node and the platform spins up a DLC job behind the scenes — same one you’d see if you submitted via the SDK in chapter 3. The canvas does not show this clearly; you have to dig into Operations → Recent runs → View backend job to find it. Implications:

• You pay DLC prices for Python nodes, even if your canvas otherwise looks “MaxCompute-only”. One stray PyAlink step on a 1-node ecs.gn6i-c8g1.2xlarge is roughly 4-5 RMB/h while the canvas is running.
• Container image versions matter. Designer pins its Python nodes to a specific image (typically pai-designer:latest or a version tag in the workspace settings). If your custom Python imports vllm==0.8.2 but the image ships 0.6.0, the run fails at import time with a stack trace that doesn’t surface in the canvas — only in the underlying DLC log. I burned half a day on this once.
• Quotas leak across products. If your DLC quota is tight, a Designer run that needs a Python pod can starve a real DLC training job of resources, and vice versa. They share the same workspace quota pool. The fix: a separate “designer-only” resource quota in the workspace, capped at maybe 4 CPU + 16 GB so a runaway canvas can’t eat your training budget.

Once you know Designer is just a UI for emitting MaxCompute SQL + DLC pod submissions, the entire product becomes much less mysterious — and you can route around it cleanly when needed.

What’s Next#

Article 2 is PAI-DSW end-to-end: picking the right GPU instance, the image catalog, OSS-FUSE mounting, and a working MNIST notebook (the one straight out of the official Quick Start). Article 3 is PAI-DLC distributed training — a real multi-GPU job with AIMaster fault tolerance. Article 4 is PAI-EAS model serving, including the cold-start trap that has bitten me more than once. Article 5 is the honest comparison of Designer vs Model Gallery for the “I just want to ship something” cases.

If you only read one, read article 4 — EAS is where most of the production money is spent and where the docs are thinnest.
