Aliyun PAI (4): PAI-EAS — Model Serving, Cold Starts, and the TPS Lie

EAS is where the money goes. DSW costs a few hundred RMB a month for development. DLC costs spike. EAS bills 24/7 because someone might call your endpoint, and the “minimum replica count” in the autoscaler config is the most critical setting in the entire platform. This article covers what I wish I’d known before shipping our first production endpoint.

What EAS is, per the docs#

The official “EAS overview” describes it as: “deploy trained models as online inference services or AI web applications, with heterogeneous resources, automatic scaling, one-click stress testing, canary releases, and real-time monitoring”. The two key points are:

• It’s a container-runtime serving layer — your model is in OSS, your code is in a container image, EAS pulls the image, mounts OSS at startup, runs your start command, and listens on a port.
• It’s autoscaled by replica count — not a serverless function model (with one important exception, see below). Replicas are real GPU pods that take 30-120 seconds to start. Plan accordingly.

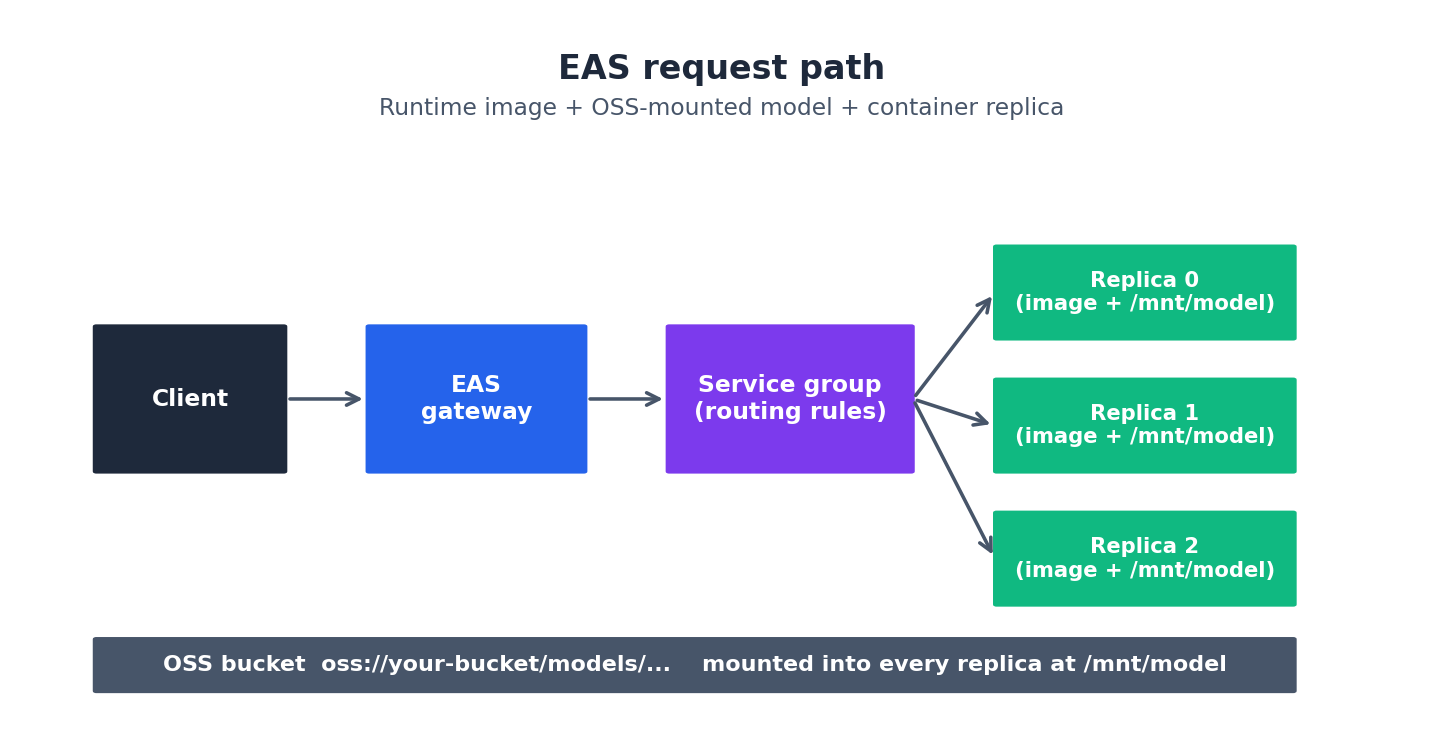

The request path#

The four components the docs highlight for runtime-image deployment:

1. Runtime image — read-only template with OS, CUDA, Python, deps. Use an official one (vllm:0.11.2-mows0.5.1, pytorch:...) or push your own to ACR.
2. Code and model — not in the image. They live in OSS/NAS. Decoupling them allows you to update weights without rebuilding the image.
3. Storage mounting — at startup, EAS FUSE-mounts the OSS path you specified to a directory inside the container, e.g. /mnt/data/.
4. Run command — the first command after the container starts. Typically launches your HTTP server (vllm serve /mnt/data/Qwen/Qwen3-0.6B).

Real-world tip: Bake /mnt/data/ into your code paths from day one. Do not let model paths get hardcoded to /workspace/models/. Switching from local-dev to EAS becomes a one-line config change instead of a code refactor.

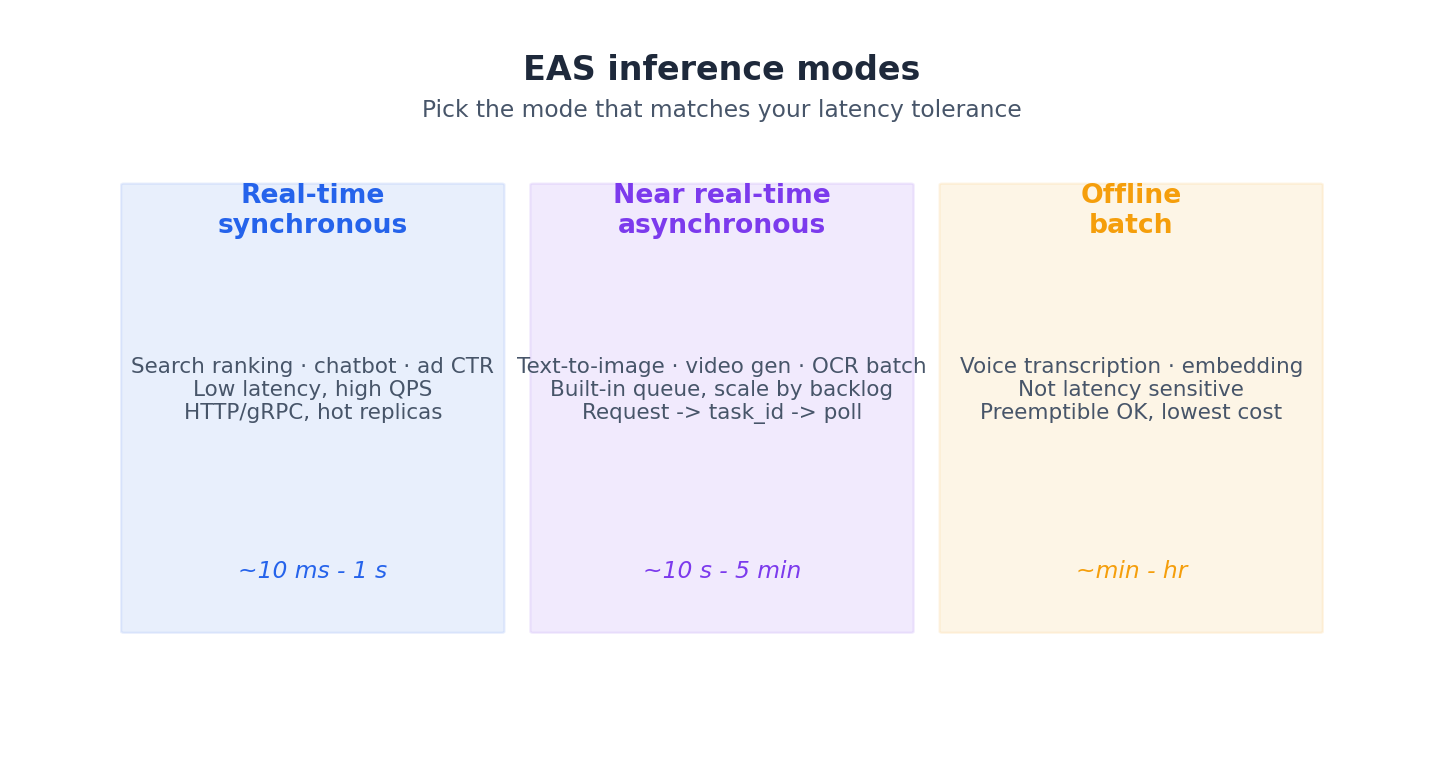

Three inference modes#

The docs list three. Choose carefully — the wrong mode wastes either money or latency.

A practical guideline:

• Real-time sync — chatbots, RAG retrieval, ad ranking, search. You care about p99 latency.
• Async — anything that takes 5+ seconds: image-gen, video-gen, OCR-on-PDF batches. The built-in queue scales replicas based on backlog, which is the right approach for these workloads.
• Batch — anything you can wait minutes for: nightly embeddings, voice transcription. Use preemptible instances and halve the cost.

The Quick Start, in real config#

The official Quick Start deploys Qwen3-0.6B with vLLM. The console process is:

1. Method: Image-based deployment.
2. Image: vllm:0.11.2-mows0.5.1 (official EAS image — vLLM ≥ 0.8.5 is required for OpenAI-compatible chat).
3. Model: OSS, oss://your-bucket/models/, mount path /mnt/data/.
4. Command: vllm serve /mnt/data/Qwen/Qwen3-0___6B.
5. Resource: ecs.gn7i-c16g1.4xlarge (1 × A10).
6. Click Deploy. ~5 minutes to Running.

You then get an OpenAI-compatible endpoint at the URL the console provides. Call it:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

import os
from openai import OpenAI

client = OpenAI(
    api_key=os.environ["EAS_TOKEN"],          # the token from "View Call Information"
    base_url="https://YOUR-ENDPOINT.cn-shanghai.pai-eas.aliyuncs.com/v1",
)

resp = client.chat.completions.create(
    model="Qwen3-0.6B",
    messages=[{"role": "user", "content": "What is EAS in one sentence?"}],
)
print(resp.choices[0].message.content)

If that returns a sentence, your endpoint is live, and you can return to your colleagues looking like a wizard.

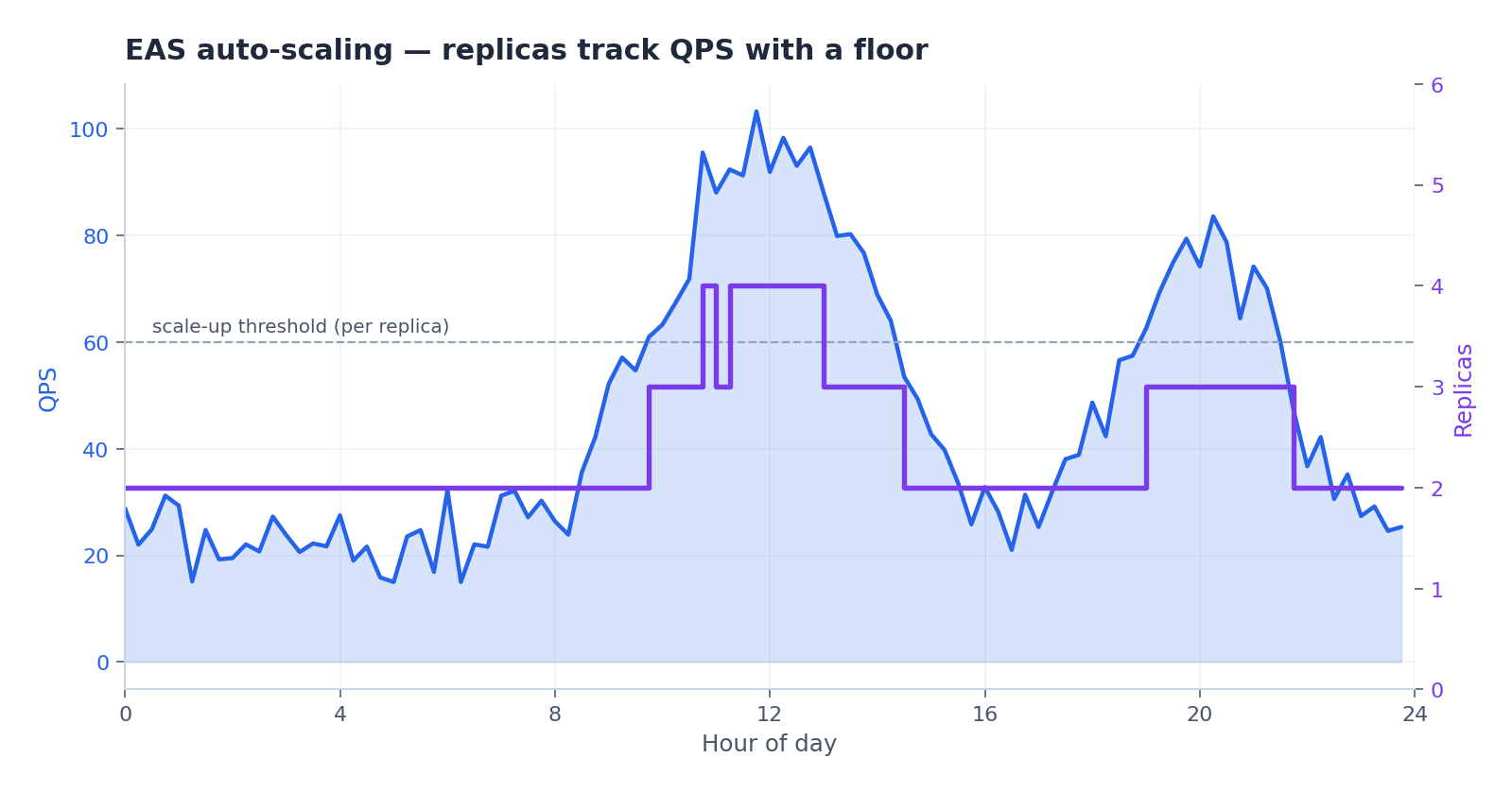

Auto-scaling done right#

This is the part the docs don’t emphasize. Default autoscaler behavior (scaling on request rate with a minimum of 1 replica) can lead to cold-start latency issues or unexpected bills.

The three settings that matter:

• min_replicas — never set to zero in production. A cold start on a 7B vLLM container is 60-120 seconds; the user gives up at 5. I default to 2 (one for HA, one for redundancy). For asynchronous services you can do 0 and rely on the queue.
• max_replicas — the budget brake. Calculate as: (p99_qps_per_replica) * 2. If you don’t know your per-replica QPS, run the one-click stress test. The docs cover this under “Service stress testing”.
• Scaling metric — by default it’s qps. For LLM serving, switch to concurrent_requests (or vLLM’s running metric). QPS is misleading because long generations don’t register as additional requests.

Real-world tip: The single biggest wasted spend I have ever seen on PAI was a max_replicas=50 autoscaler with min_replicas=10 on a service that got 0.5 QPS off-peak. 5 idle A10s, 24/7, for two months. Always look at the Saturday-night dashboard before you go on holiday.

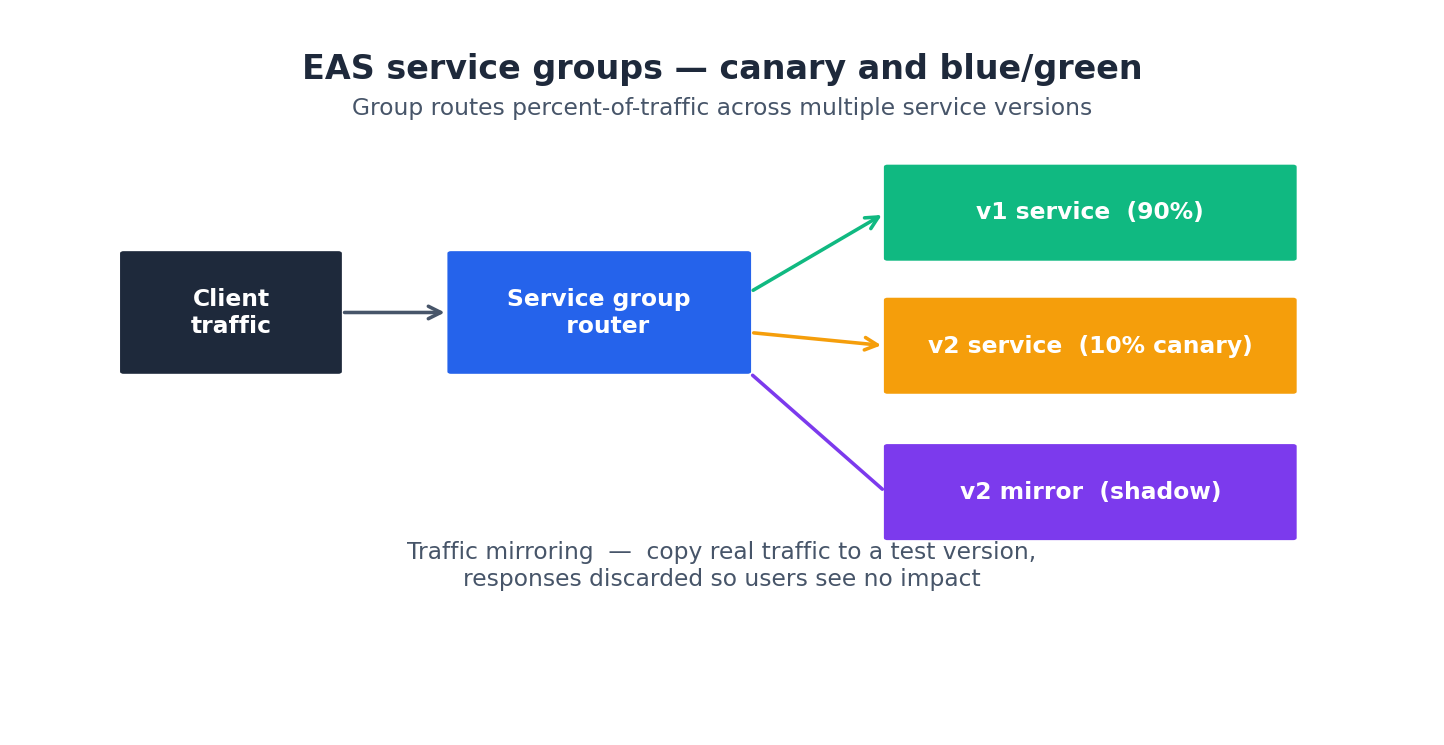

Canary, blue/green, and traffic mirroring#

EAS does this with service groups: a routing front-end that points to multiple service versions and splits traffic by percentage. The same primitive supports traffic mirroring — a copy of real traffic is sent to a candidate version, but the response is discarded so users see no impact. This is the safest way to test a new model on production traffic.

I use a 90/10 split for the first 24 hours of any model swap, then 50/50, and finally 0/100. If any step shows degradation in success rate or p99 metrics, rollback is immediate — service groups change traffic weights in seconds.

Stress testing — actually do this#

The docs have a whole section on the one-click stress tester. Use it. It auto-ramps QPS, charts replica scale-out, and tells you the per-replica saturation point. That number is what you build your autoscaler around. Deploying without one is the most common cause of “the model fell over at the 3pm peak” tickets.

The 180-day gotcha#

Buried in the docs: “If an EAS service remains in a non-Running state for 180 consecutive days, the system automatically deletes the service.” Set a calendar reminder. I lost a service config once because the team that owned it dissolved and no one paid the bill. Restoring took an afternoon of re-bisecting which vllm version was on which weights.

Cold start mitigation, in order of effectiveness#

Cold start is EAS’s biggest practical issue. A vLLM Qwen3-7B container takes 60-120 seconds from scheduler pick to first token served — model load alone takes 30-60 seconds. If your autoscaler needs to add a replica under load, the first user requests in that window will time out.

The mitigations I’ve actually shipped, ranked by impact:

1. Pre-built container with weights baked in (saves 30-60 s). The definitionault flow downloads the model from OSS at container start. Bake the model into the image instead — 14 GB for Qwen3-7B added to the layer is fine because EAS caches images per-node. First start on a fresh node is the same; second and subsequent starts on the same node skip the OSS pull entirely. Trade-off: image rebuild on every weight change (a Dockerfile + CI job, maybe 10 min build, 5 min push).

2. Warmup pings (saves 5-15 s of CUDA / kernel init). A vLLM container is “running” the moment the HTTP server is up, but the first real request triggers JIT compilation of CUDA kernels for that batch shape. Pre-warm with a synthetic request:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# In your container start script, after vllm serve is healthy:
import requests, time
def warmup():
    for _ in range(3):
        requests.post("http://localhost:8000/v1/chat/completions", json={
            "model": "Qwen3-7B",
            "messages": [{"role": "user", "content": "warmup"}],
            "max_tokens": 4,
        })
    print("warmup done")

# Run once before EAS health check passes
threading.Thread(target=warmup, daemon=True).start()

EAS won’t route real traffic to the replica until the health check returns 200, so structure your health check to return only after warmup completes. This adds 5-15 s to the visible cold start but eliminates the 5-15 s latency penalty on the first 1-3 real requests.

3. Pre-loaded weights via shared NAS (saves 20-40 s). Instead of downloading from OSS, mount a NAS volume that already has the weights. NAS read bandwidth is steadier than OSS-FUSE and the model load step (“loading model weights from /mnt/models/…”) drops from 30-60 s to 10-20 s. Only worth it if you’re managing many small replicas — for one big replica, the OSS-FUSE path is fine.

4. Always-warm minimum replicas (saves 100% of cold start, costs replica × 24 h). The bluntest tool. min_replicas=2 and your first user never sees a cold start. The math at A10 prices: ~5 RMB/h × 24 × 30 = ~3600 RMB/month per always-warm replica. For a service with revenue impact above that line, obvious. For a low-traffic internal tool, painful — use the next item.

5. Scheduled scaling (saves cold-start cost during predictable troughs). EAS supports time-window scaling rules:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

autoscaling:
  rules:
    - name: business-hours
      cron: "0 9 * * MON-FRI"
      min_replicas: 3
      max_replicas: 20
    - name: off-hours
      cron: "0 19 * * MON-FRI"
      min_replicas: 1
      max_replicas: 5
    - name: weekends
      cron: "0 0 * * SAT,SUN"
      min_replicas: 0
      max_replicas: 3

I use this pattern for B2B services with predictable traffic. Saves roughly 40% of replica-hours on a typical mainland China business-hours pattern, no user-visible latency impact.

6. Async inference mode (sidesteps the question). For workloads tolerant of seconds of queue time (image gen, long-form generation), use the async mode. The queue scales replicas based on backlog instead of QPS, so a cold start that takes 90 s during a surge just means the user sees a 90-s queue delay instead of a 5-s timeout. Same money, very different user experience.

What I actually deploy for production LLM serving: pre-built container with weights, warmup ping in the start script, min_replicas=2 during business hours dropping to 1 overnight, async mode for any inference that can take >3 s.

Auto-scaling policies: CPU vs request rate vs custom metric#

The default autoscaler scales on QPS. For LLM serving, that’s the wrong metric, and the docs don’t really explain why. A short detour through the math.

A vLLM replica processes requests with paged-attention batching. Throughput depends on the concurrent requests being served (more concurrent = better GPU utilization, up to the batch limit) and the generation length of each request (longer = each request occupies the GPU longer). QPS — requests started per second — is a poor proxy for either.

Three scaling metric options EAS exposes, and when each is right:

qps (default). Scales on request arrival rate. Right for: synchronous, fixed-cost endpoints (image classification, embedding). Wrong for: anything with variable generation length.

concurrent_requests. Scales on the number of in-flight requests at any moment. Right for: LLM chat, RAG endpoints, anything where you can specify a target concurrency per replica. The number to use: run the one-click stress test, find the concurrency level where p99 starts climbing, set the target to 70% of that.

Custom metric (CloudMonitor). Scales on whatever metric you publish. The two I’ve used:

• vllm_running_requests_avg — vLLM’s internal “actively decoding” count, more accurate than EAS-side concurrent_requests because it excludes queued-but-not-yet-decoding requests.
• gpu_memory_pct — when KV cache pressure is the bottleneck (long-context workloads). Scale up at 75% memory utilization.

A worked example for a Qwen3-7B chat service:

1
2
3
4
5
6
7

autoscaling:
  metric: concurrent_requests
  target: 12              # found via stress test: p99 spikes above 16
  min_replicas: 2
  max_replicas: 10
  scale_up_stabilization_window: 60s
  scale_down_stabilization_window: 600s   # slow scale-down

The asymmetric stabilization windows matter. Scale up fast (within 60 s of crossing the threshold) so you don’t queue users; scale down slow (10 min of sustained low load before removing a replica) so you don’t flap during traffic dips. The default is symmetric and produces too much churn.

The metric I do not recommend: CPU. EAS supports cpu as a metric, but vLLM is GPU-bound and CPU sits at 5-15% regardless of load. Scaling on CPU will either never trigger or trigger on a memory-allocation spike that has nothing to do with serving capacity.

Blue-green deployment + traffic shaping that actually works#

Service groups give you the primitives; using them right takes some discipline. The pattern I run for any model swap:

Step 0: Deploy the candidate as a new service with min_replicas=2. Same image, same hardware, same OSS path but pointing at the new weights. Don’t put it in the service group yet.

Step 1: Sanity check with private traffic. Hit the candidate’s direct endpoint (not via the service group) with a fixed eval set — 50-200 prompts you’ve golden-labeled. If this fails, you don’t waste service-group routing churn on a bad model.

Step 2: Mirror 5% of production traffic for 1 hour. Mirror copies real user requests to the candidate, discards the response, lets you compare candidate’s responses to baseline’s offline. EAS does this with a mirror_weight: 5 field on the service group route. Watch p99 latency, error rate, and (if you log responses) qualitative diff against baseline.

1
2
3
4
5
6
7
8

# Service group config (illustrative):
service_group = {
    "name": "qwen-chat-prod",
    "routes": [
        {"service": "qwen3-7b-v23", "weight": 100, "mirror_weight": 0},
        {"service": "qwen3-7b-v24", "weight": 0,   "mirror_weight": 5},
    ],
}

Step 3: Live shift, 5% / 25% / 50% / 100% over 24 h. Each step holds for at least 1 h with monitoring alerts on success rate, p99, and a per-route qualitative check. If anything wobbles, drop weight back to 0 — service groups update in <10 s.

Step 4: Decommission the old service. Don’t delete it for at least 48 h after 100% migration. If you need to roll back at hour 36, “set weight back to 100 on the old service” is the fastest possible recovery — much faster than re-deploying from OSS.

The traffic-shaping primitive can also do more interesting splits: route by user-agent (test on a single client first), by region (canary in cn-shanghai before cn-hangzhou), by request-header value (internal-tester vs public). All configured in the same service group routing rules. I’ve used the user-agent split to launch a new model to my team’s Cherry Studio sessions before any external user, which catches bugs the eval set misses.

The cost arithmetic, per inference#

The single most useful spreadsheet I keep for any EAS service. Per-inference cost is dominated by replica-hours, not per-request fees. A worked example for a Qwen3-7B chat endpoint serving roughly 5 QPS during business hours:

Three observations from this table that took me a while to internalize:

1. The min-replica line dominates. Cutting min_replicas from 2 to 1 in off-hours saves ~3,600 RMB/month. Going to 0 saves another ~3,600 RMB/month but introduces 60-120 s cold start. Pick the trade based on your SLA, not based on what feels safe.
2. Per-request fees are negligible for LLM workloads. They matter for high-QPS classification (1000+ QPS), where the per-million fee can dominate. For chat / generation, ignore.
3. Cold-start bandwidth is non-trivial at scale. 30 cold starts at 14 GB each is 420 GB of OSS read traffic — at 0.5 RMB/GB inter-region, that’s a real number. Bake weights into the image (see Cold Start section above) and this line goes to near zero.

The formula I use for any new service:

1
2
3
4

monthly_cost = min_replicas × replica_price_per_hour × 720
             + avg_burst_replicas × replica_price_per_hour × business_hours_month
             + total_requests × per_request_fee
             + cold_starts × model_size_gb × oss_read_price

Plug in numbers before deploying. The number of times a “small” deploy turned out to cost an unexpected $2k/month because someone defaulted min_replicas=10 is non-zero. The console shows you a price estimate when you click Deploy — read it.

What’s Next#

Article 5 closes the series with the honest pitch for Designer and Model Gallery — the two zero/low-code surfaces. They are not what most engineers reach for, but they earn their keep when used right, and there is a specific set of jobs where they are obviously the correct answer.
