Cloud Computing Fundamentals and Architecture

Every team building software in 2025 inherits the same buy-or-rent question their predecessors faced – only the answer has flipped. Twenty years ago you put hardware in a closet; today you describe the hardware in YAML and a global provider conjures it up in seconds, bills it by the second, and tears it down when you stop paying. Cloud computing is not just “someone else’s computer”. It is a programmable, metered, multi-tenant abstraction over compute, storage and networking that has fundamentally changed how businesses are built and how engineers spend their day.

This first instalment of the series is the conceptual ground floor. It deliberately moves slowly: by the end you should be able to read a cloud architecture diagram, ask the right questions in a vendor pitch, and reason about cost, reliability and lock-in without resorting to slogans.

What You Will Learn

• The seven dimensions every cloud decision turns on – and why “use the cloud” is not a single decision
• Service models from IaaS through PaaS, FaaS and SaaS, and the management boundary they imply
• Deployment topologies – public, private, hybrid, multi-cloud – with their cost and complexity trade-offs
• The economics: how CapEx and OpEx behave over a 36-month horizon, and where the break-even sits
• The shared responsibility model and why most cloud breaches are customer mis-configurations
• Regions, availability zones and the latency / blast-radius reasoning behind them
• A vendor-by-vendor service-catalogue map for AWS, Azure, GCP and Alibaba Cloud
• A practical, defensible framework for choosing services and avoiding regret later

Prerequisites

• A working mental model of “server”, “network” and “operating system”
• Familiarity with at least one programming language and the command line
• No prior cloud experience required

1. What Cloud Computing Actually Is

The most cited definition is the US National Institute of Standards and Technology’s, which lists five essential characteristics. They are useful precisely because they exclude things that look cloud-like but are not.

• On-demand self-service – a developer provisions resources through an API or a console without a ticket or a phone call
• Broad network access – resources are reachable over standard networks from heterogeneous clients
• Resource pooling – physical infrastructure is multi-tenant and the user has no visibility into the exact placement of their workload
• Rapid elasticity – capacity can grow and shrink in minutes, often automatically, and feels infinite to the consumer
• Measured service – consumption is metered and billed at fine granularity (per-second, per-request, per-GB-month)

A traditional data centre that rents you a rack misses three of these criteria. A SaaS application that you log into via a browser hits all five. The definition is what makes the boundary precise.

A short history – so the design decisions make sense

2. Service Models – Where the Management Boundary Lies

Think of cloud services as a stack: the higher you go, the less you manage and the less you control. The four widely deployed layers are IaaS, PaaS, FaaS and SaaS.

Infrastructure as a Service (IaaS)

You rent virtual machines, virtual disks and virtual networks. From the OS upward you own everything: kernel patches, runtime, app, data.

• AWS EC2 – 700+ instance types spanning general-purpose, memory-, compute-, storage- and GPU-optimised
• Google Compute Engine – sustained-use discounts, preemptible instances, custom-shaped VMs
• Azure Virtual Machines – deepest integration with Active Directory, .NET and Windows licensing
• Alibaba Cloud ECS – dominant in mainland China, with families tuned for Tongyi inference workloads

Choose IaaS when you are migrating an existing application without rewriting it, you need a specific OS or kernel module, or your workload is so high-performance (HPC, GPU training, low-latency trading) that any abstraction layer above the hypervisor would steal performance you cannot afford to lose.

Indicative cost. A 4-vCPU, 16 GB instance is around USD 0.20 / hour on-demand (~150 / month), about 30-50% cheaper on a 1-year reserved commitment, and 60-80% cheaper on spot if your workload tolerates interruption.

Platform as a Service (PaaS)

You hand over code and configuration; the provider runs the OS, the runtime, the load balancer and the autoscaler. You see logs and metrics, not servers.

• Heroku – the original git push deploy experience
• Google App Engine – scales from zero to many thousands of QPS without intervention
• AWS Elastic Beanstalk – upload, AWS provisions EC2, ELB, ASG, CloudWatch behind the scenes
• Vercel / Netlify – frontend-first PaaS, optimised for Next.js and similar frameworks

Choose PaaS when time-to-market dominates, your team is small, the application is reasonably standard (a web app, an API, a worker) and you accept the runtime constraints in exchange for not having a person on call for the OS.

Function as a Service (FaaS) / Serverless

You ship a function. It runs on demand, billed per invocation and per millisecond of execution. There is no instance to keep alive between requests.

• AWS Lambda – the canonical example; 15-minute max execution
• Azure Functions, Google Cloud Functions / Cloud Run – analogous offerings
• Alibaba Cloud Function Compute (FC)

Choose FaaS when workloads are bursty or event-driven (image upload triggers a thumbnail, a webhook fires a workflow), when traffic patterns are unpredictable, or for glue code that integrates managed services. Avoid FaaS when you need persistent connections, sub-50 ms cold-start guarantees without provisioned concurrency, or long-running compute – the unit economics flip against you above a certain steady-load threshold.

Software as a Service (SaaS)

You use the application. The provider owns everything down to the silicon.

• Examples – Gmail, Salesforce, Slack, Zoom, Microsoft 365, Notion, Figma, Datadog

Choose SaaS when the application is a commodity for your business (email, CRM, video calls, observability), and avoid it when it is your competitive moat – the very thing you should be building yourself.

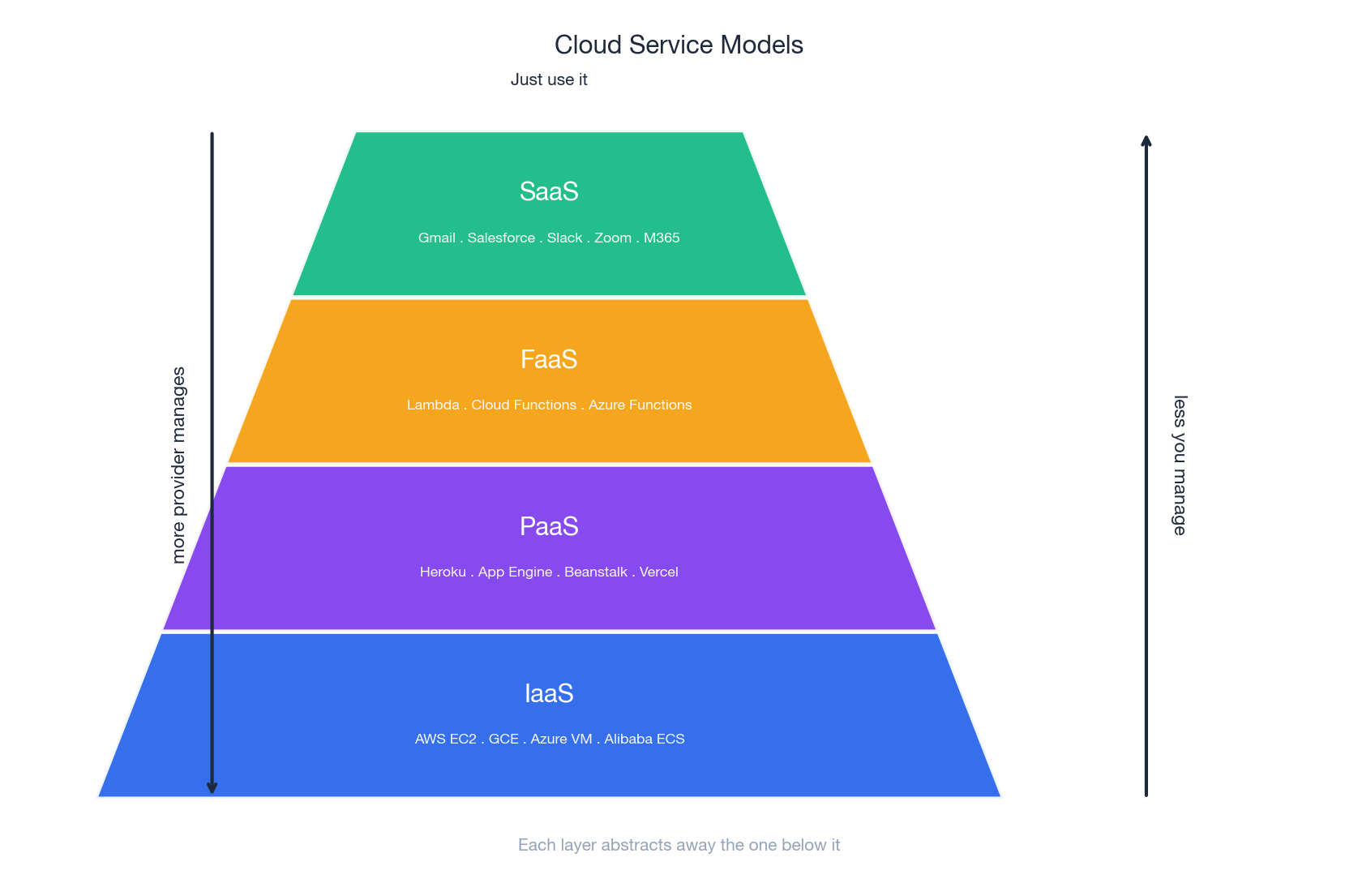

One picture: the management boundary

The cleanest mental rule: the boundary moves up the stack as you climb the pyramid; everything below the boundary is the provider’s problem, everything above is yours.

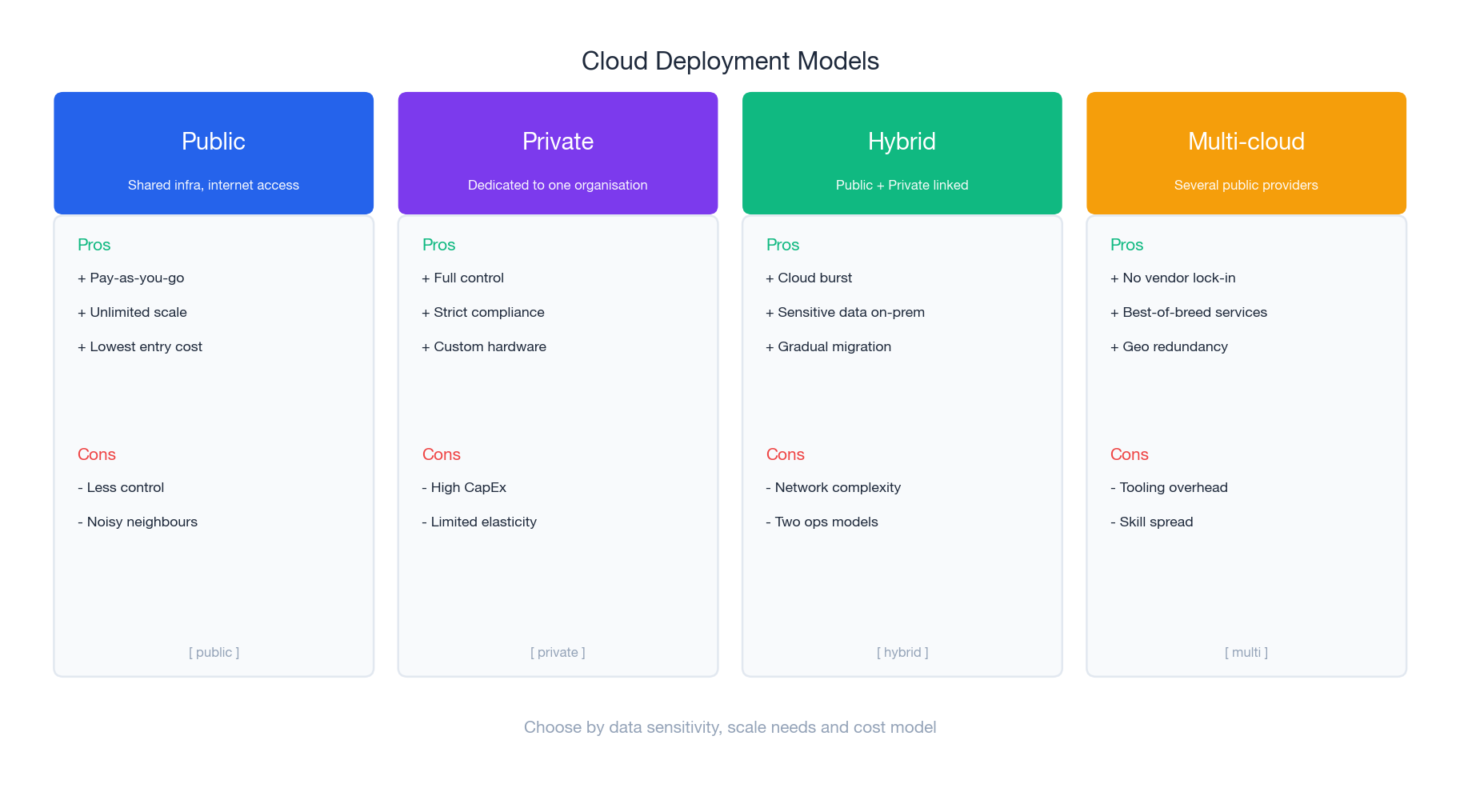

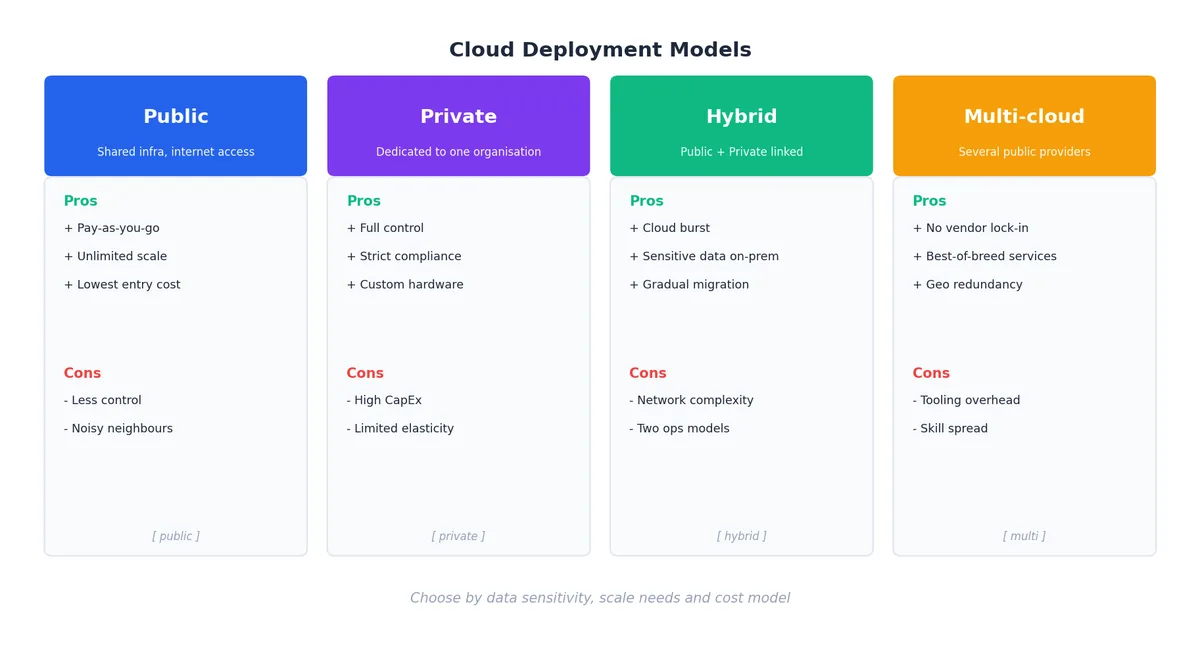

3. Deployment Models – Where the Workload Lives

Service models tell you what to rent. Deployment models tell you whose data centre it lives in and how the network gets to it.

Public cloud

A hyperscaler runs the data centres; you share the underlying hardware with strangers under cryptographic and hypervisor isolation. Best for the long tail of workloads – web apps, batch jobs, dev / test environments, almost everything a startup will ever build.

Private cloud

You (or a managed-services partner) operate dedicated infrastructure for a single tenant. Best when regulation, latency or data-residency rules forbid shared hardware – defence, certain healthcare and banking workloads, or factory-floor systems with sub-millisecond tolerance to the controller.

Hybrid cloud

Public and private operated as one logical estate, joined by a VPN or a dedicated link (AWS Direct Connect, Azure ExpressRoute, GCP Interconnect). The classic pattern: sensitive customer data lives on-prem, batch analytics and burst traffic spill into the public cloud. The dirty secret: you now operate two sets of tooling, two security postures and two on-call rotations.

Multi-cloud

Two or more public clouds used in production. Adopted to avoid vendor lock-in, to leverage best-of-breed services (BigQuery on GCP, Bedrock on AWS) or to satisfy customers that demand it. The cost is real: identity, networking, observability and CI/CD must all become cloud-agnostic.

Rule of thumb. Default to single-region public cloud. Add a second region when downtime starts costing real money. Add a second cloud only when a strategic reason – regulation, customer mandate, or a service that genuinely doesn’t exist on your primary – forces it.

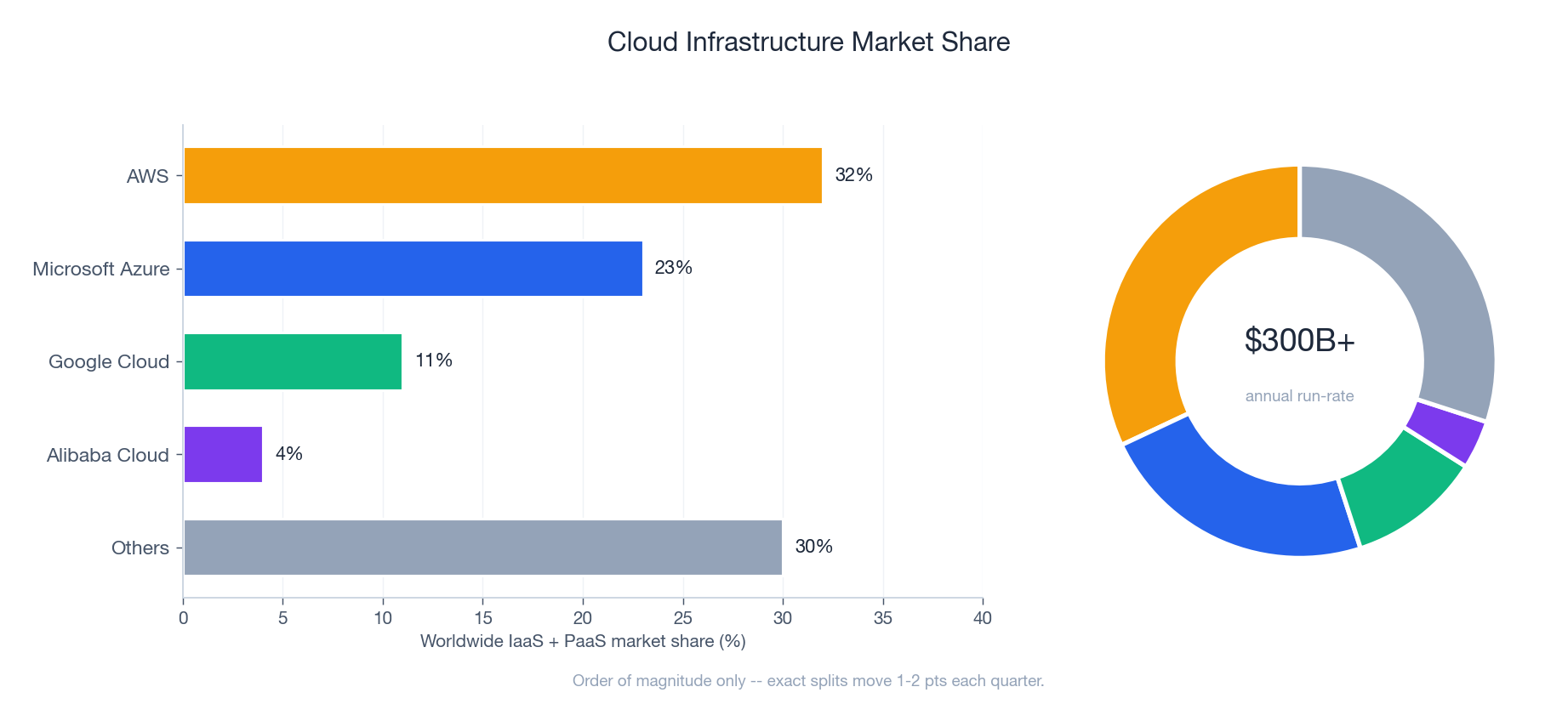

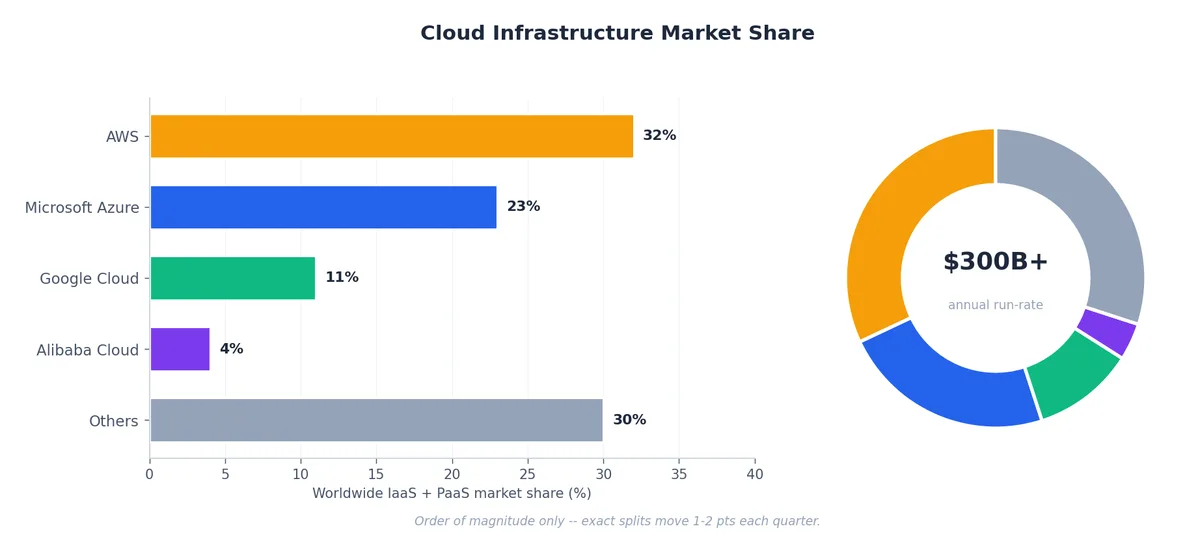

4. The Market and Why It Concentrates

Cloud is one of the most concentrated markets in modern infrastructure. Three vendors – AWS, Microsoft Azure, Google Cloud – account for roughly two-thirds of worldwide IaaS+PaaS spend; Alibaba Cloud leads in mainland China; the long tail of regional and specialty providers fills the remainder.

The concentration is not accidental. Cloud infrastructure is a CapEx-heavy business with strong economies of scale: every additional region or AZ unlocks more customers, every additional service compounds with the existing ones (S3 makes EC2 stickier, IAM makes both stickier still). Smaller providers compete on price, on a specific vertical (gaming, scientific computing) or on a specific region.

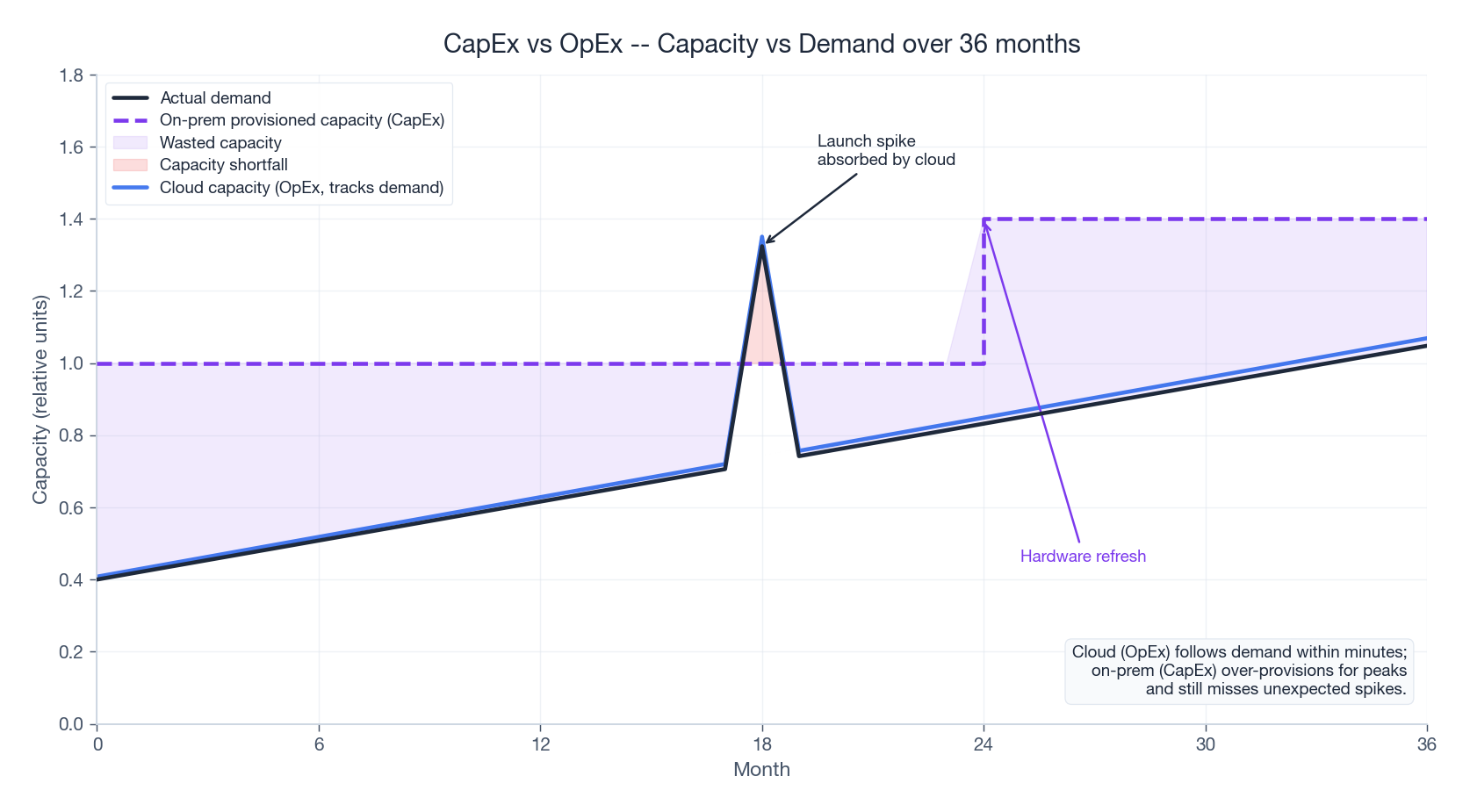

5. The Economics – CapEx vs OpEx Over Time

The single most important business case for cloud is the shape of the cost curve. On-prem buys capacity in chunks ahead of demand; cloud buys it by the second as demand arrives.

Two effects compound:

1. Wasted capacity. On-prem hardware sized for the peak sits idle for the average – typical utilisation across enterprise data centres hovers between 15% and 30%.
2. Capacity shortfall. When demand spikes beyond the provisioned ceiling (a launch, a marketing event, a viral moment), on-prem cannot stretch; cloud absorbs it in minutes.

For variable workloads – and most are variable – cloud wins on raw cost almost regardless of the discount you assume on hardware. The picture is less obvious for steady-state, high-utilisation workloads (a video transcoding farm running 24/7 at 80%+, a stable internal database fleet). At that profile, three-year reserved instances or a private-cloud build-out can beat on-demand cloud by 30-50%.

Hidden costs to model

The on-demand sticker price is rarely the full bill. Always add:

• Egress – moving data out of a cloud is priced; moving it between regions is also priced
• Inter-AZ traffic – charged on most providers; can dominate a chatty microservice bill
• Managed service premiums – RDS costs ~30% more than running PostgreSQL on EC2 yourself
• Support plans – typically 3-10% of monthly spend for Business or Enterprise tiers
• People – platform engineers, FinOps analysts, security engineers; the “cloud team” is real headcount

A defensible TCO model spans three years, includes refresh cycles for on-prem and reservations for cloud, and amortises people costs against both.

6. Architecture Building Blocks

A cloud is more than VMs. The handful of primitives below recur in every serious architecture.

Virtualisation – the substrate

A hypervisor lets many virtual machines share one physical server. Two flavours matter:

• Type 1 (bare-metal) – VMware ESXi, KVM, Hyper-V, Xen. Runs directly on hardware; this is what every public cloud uses
• Type 2 (hosted) – VirtualBox, VMware Workstation. Runs on top of a host OS; useful for development and testing

Containers are not a replacement for VMs at the substrate layer; they sit above them, sharing the kernel of the host VM. A typical EKS or AKS pod runs in a container, on a Linux VM, on a hypervisor, on a server. We dive deep into this in Part 2 (virtualisation) and Part 7 (cloud-native).

Storage – pick by access pattern, not by name

S3-style storage classes let you trade retrieval latency for cost. A typical pattern: hot data in Standard, warm in Standard-IA after 30 days, cold in Glacier after 180 days, deep archive after one year – driven by lifecycle policies, not by hand.

Networking – the part that bites you

• VPC (Virtual Private Cloud) – your isolated network in the cloud, with subnets per AZ, route tables, security groups, NACLs
• Load balancer – L4 (NLB, TCP) for raw throughput, L7 (ALB, HTTP) for routing by path / header
• CDN – caches static (and increasingly dynamic) content at edge POPs near users; CloudFront, Cloud CDN, Azure CDN, Cloudflare
• VPN / Direct Connect – IPSec tunnels for the cheap path, dedicated fibre for the predictable path (sub-2 ms typical, no internet path)

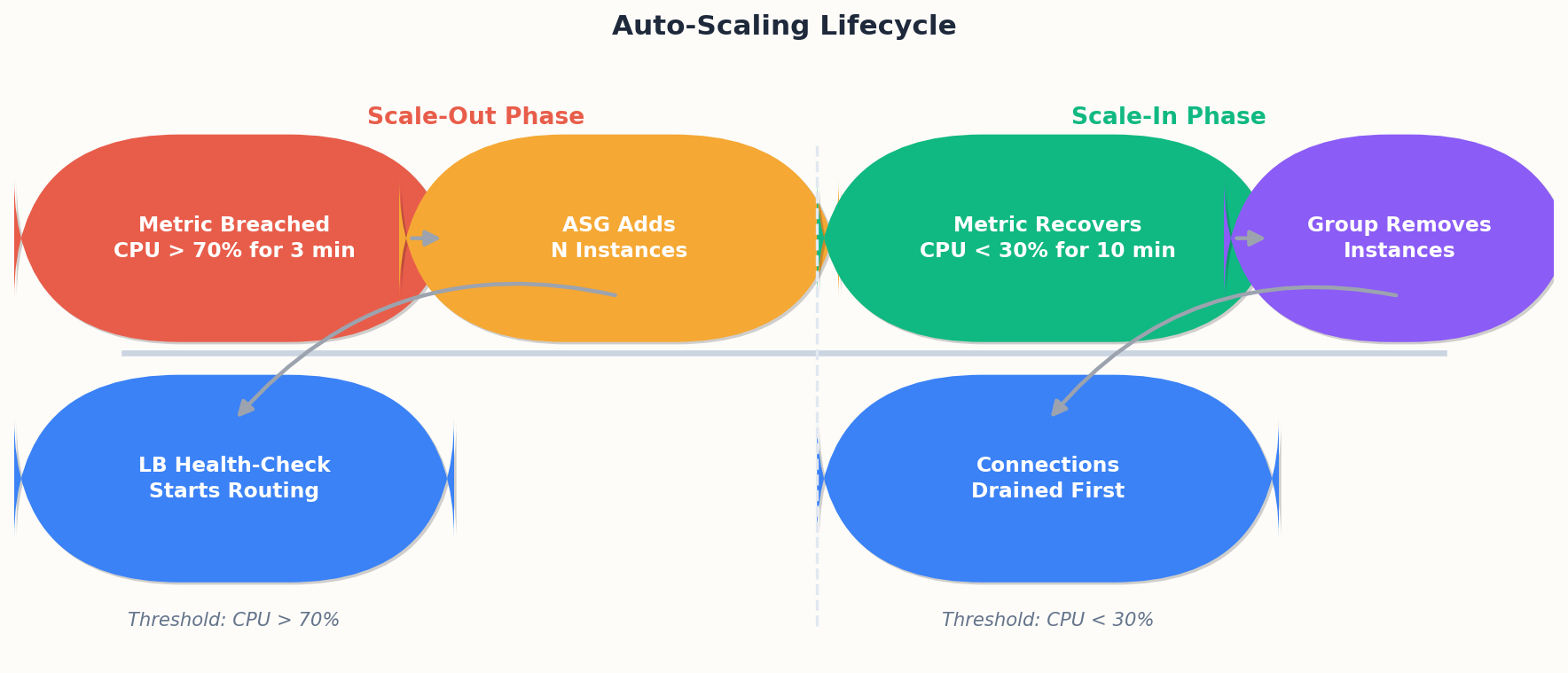

Auto-scaling – the elasticity engine

Metric breached (CPU > 70% for 3 minutes)
    -> Auto-scaling group adds N instances (scale out)
    -> Load balancer health-checks them, starts routing traffic
Metric recovers (CPU < 30% for 10 minutes)
    -> Group removes instances (scale in), draining connections first

Two axes:

• Horizontal (out / in) – add or remove instances; the cloud-native default
• Vertical (up / down) – resize an instance; usually requires a stop / start, so only used for stateful workloads like databases

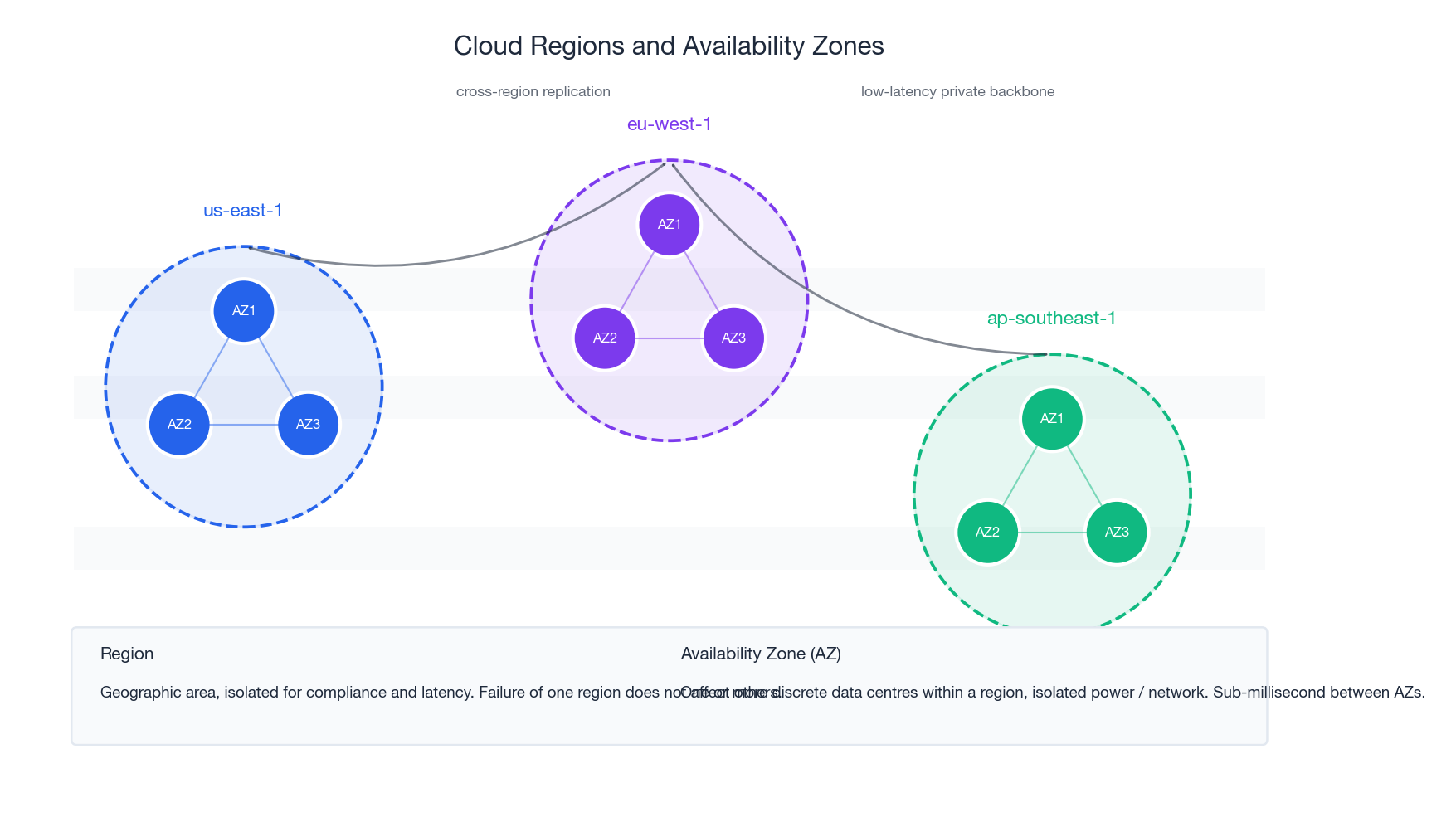

Regions and availability zones – the blast-radius story

A region is a geographic area (us-east-1, eu-west-1, ap-southeast-1, cn-hangzhou). Regions are isolated from each other – a region failure does not propagate. Each region contains multiple availability zones (AZs), which are physically separate data centres a few kilometres apart with independent power, cooling and network, but linked by sub-millisecond fibre.

The reasoning behind the structure:

• Multi-AZ inside a region is cheap and easy: replicas in different AZs, a load balancer that fails over automatically, no application changes needed
• Multi-region is much harder: data has to be replicated across long-haul links, eventual-consistency rears its head, and DNS or global load balancing has to redirect traffic on failure
• Edge / POP is for content delivery and DDoS absorption, not for stateful application logic

A pragmatic default: build everything multi-AZ from day one (the cost is marginal); add multi-region only when a minute of downtime costs more than a month of replication bandwidth.

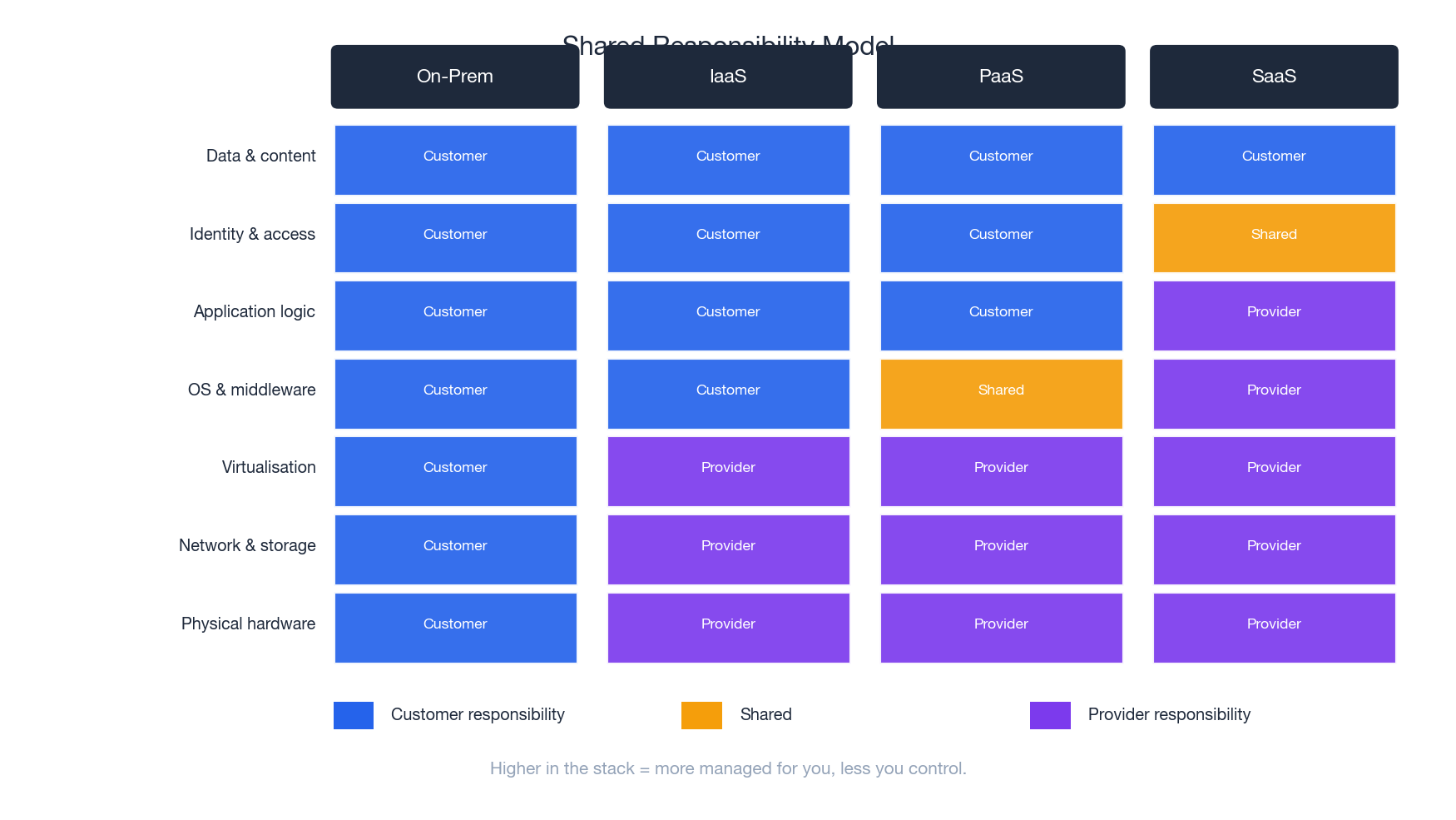

7. The Shared Responsibility Model

Almost every public cloud breach in the last decade has been a customer mis-configuration – a public S3 bucket, a leaked IAM key, a permissive security group. The shared responsibility model formalises why.

The provider always secures the substrate – physical access, hypervisor, the network plane between data centres. What changes by service model is where the boundary sits:

• IaaS – the customer is responsible for the OS, middleware, application, identity and data. The provider is responsible for everything below the VM
• PaaS – the OS and middleware shift to the provider; the customer keeps application code, identity and data
• SaaS – almost everything is the provider’s, except identity (who can log in) and data (what they can do)

Two practical consequences:

1. Identity is your problem on every model. Multi-factor authentication, least-privilege roles, key rotation, JIT access – none of this is automatic.
2. Data is your problem on every model. Encryption at rest is often on by default; encryption in transit is your responsibility to enforce; backups, retention and legal hold are entirely yours to design.

We go deep on this in Part 5 (security and privacy).

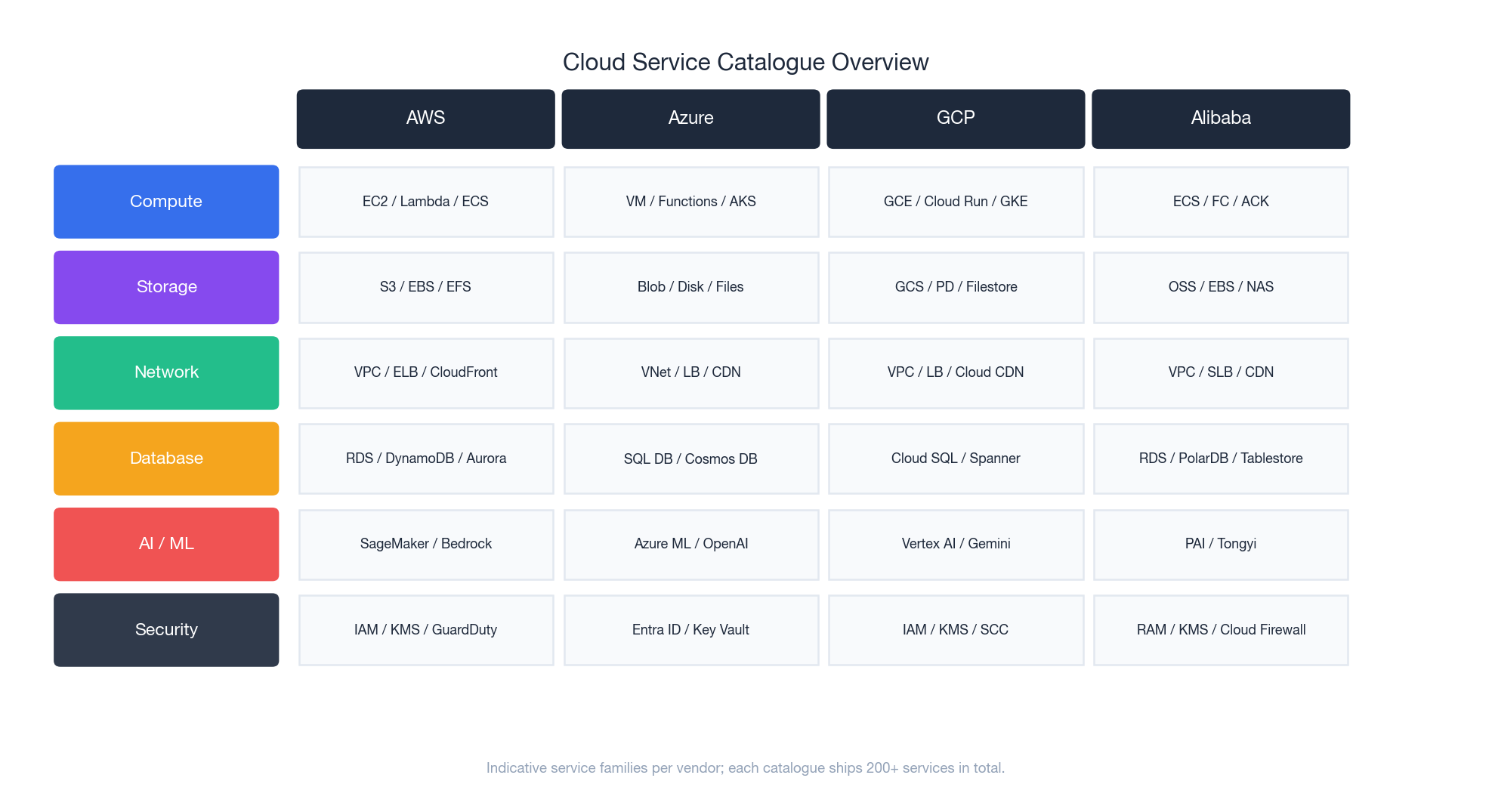

8. The Service Catalogue – Reading the Menu

Each major vendor ships hundreds of services, but they cluster into a small number of families. The map below is enough to find your way around any of them.

A few practical notes when navigating a catalogue:

• Names move, families don’t. Vendors rename and restructure; the underlying primitives (compute, object storage, managed SQL) stay stable
• Three concentric circles. The “core” – compute, storage, network, IAM, monitoring – is mature and broadly equivalent across vendors. The “managed” tier – databases, queues, container orchestration – is differentiated by ergonomics and price. The “frontier” tier – AI, data warehouse, custom silicon – is where vendors fight for mindshare and where lock-in is highest
• Quotas before architecture. Every account has soft and hard quotas (number of vCPUs, S3 buckets, API requests per second). Read them before designing for scale

9. Real-World Cases – Architecture in Anger

Netflix – streaming at planetary scale

Netflix shut its last data centre in 2016 and runs entirely on AWS, with a custom CDN (Open Connect) co-located inside ISPs for the actual video bytes. Hundreds of microservices, a self-built chaos-engineering toolchain (Chaos Monkey, Simian Army), and aggressive multi-AZ + multi-region failover. Outcome: 200M+ subscribers served at 99.99%-class availability, with the ability to absorb the launch of a single popular show that doubles peak traffic for a weekend.

Airbnb – startup to global platform

A monolith on AWS in a single region in 2009. By 2018, hundreds of services across multiple regions, with Aurora and Vitess for the data tier, a service mesh for east-west traffic, ElastiCache (Redis) and CloudFront for the read path. The migration was incremental – one bounded context at a time – and took years rather than a big-bang rewrite. Outcome: millions of listings, scalable through unpredictable seasonal peaks.

Capital One – regulated enterprise migration

Among the first US banks to commit “all-in” on a public cloud (AWS, announced 2015, completed 2020). The hard part was not technology but governance – proving SOC, PCI-DSS and bank-specific regulators that controls in code (Terraform, Cloud Custodian, Cloud Formation guardrails) were as auditable as physical controls. Outcome: all eight legacy data centres closed by 2020, infrastructure cost down 30-40%, software delivery cycles measured in days rather than quarters. (The 2019 incident – caused by a misconfigured WAF allowing SSRF – is a textbook example of why the shared-responsibility customer side matters.)

Spotify – multi-cloud by deliberate design

Spotify runs the streaming service primarily on GCP, with the data and ML platform leveraging BigQuery, Dataflow, and Pub/Sub. AWS is used in select areas for storage and some compute. Outcome: petabytes of listening data processed daily to power Discover Weekly and Wrapped, with vendor concentration consciously managed.

10. A Decision Framework You Can Defend

The hardest part of cloud is not picking the technology – it is justifying the choice in a year, when someone asks why. The seven-dimension framework below is the one I keep coming back to.

Best practices that age well

• Start small, scale gradually. A non-critical service in one region in one account is a fine first move
• Design for failure. Assume any component, including managed services, can fail at any time; multi-AZ from day one
• Prefer managed services for undifferentiated heavy lifting. Don’t run your own PostgreSQL unless you have a compelling reason
• Right-size and revisit. Most fleets are over-provisioned by 20-40%; weekly review is cheap and pays for itself
• Encrypt everything. Default-on encryption at rest is no longer optional; in-transit TLS 1.2+ is table stakes
• Treat infrastructure as code. Terraform, Pulumi or CloudFormation – never click in production
• Observe from day one. Logs, metrics, traces, and alerts wired up before traffic, not after

11. Common Questions

Is cloud always cheaper than on-prem? No. For variable workloads and most businesses, cloud wins. For very large, very steady-state workloads at 70%+ utilisation – think Dropbox’s storage tier, which famously moved off AWS to save hundreds of millions – a private build can win. Always model TCO over three years including refresh cycles, egress and people.

How secure is the cloud? The substrate is more secure than almost any organisation could build. The application and configuration on top are exactly as secure as you make them. The shared responsibility model is the line. Most breaches happen above it.

What happens during a provider outage? It happens; design for it. Multi-AZ handles the common case (data-centre failure within a region) cheaply. Multi-region handles the rare case (full-region failure) at significant cost. Multi-cloud handles the very rare case (provider-wide failure) at very significant cost. Match investment to your actual risk appetite, not headlines.

What skills should I learn first? A foundational certification on one provider (AWS Cloud Practitioner / Solutions Architect Associate, Azure Fundamentals, GCP ACE) is a fast on-ramp. Then Linux fundamentals, networking basics, infrastructure as code (Terraform), and containers (Docker, Kubernetes). The provider-specific knowledge transfers more than people think.

Should I learn AWS, Azure or GCP? Pick the one your employer or target employers use. They share enough conceptually that switching is a matter of weeks, not years. AWS has the broadest job market; Azure is dominant in enterprise IT; GCP is over-indexed in data and ML.

Summary

The rest of this series unpacks each of these layers. The next instalment goes deep on virtualisation – the hypervisor magic that makes the whole edifice possible, from KVM internals to lightweight VMs like Firecracker that power Lambda.
