Computer Fundamentals: CPU and the Computing Core

Understand data units (bits and bytes), CPU architecture, the 5-stage pipeline, cache hierarchy, branch prediction, out-of-order execution, multi-core and SMT, Intel vs AMD differences, and how to choose the right processor.

Why does your 100 Mbps internet only download at about 12 MB/s? Why does a “1 TB” hard drive show only 931 GB in Windows? Why does a 32-bit system top out around 3.2 GB of usable RAM? And what actually happens, cycle by cycle, when the CPU runs your code?

This is part 1 of the Computer Fundamentals series. We start from bits and bytes, then go down into the CPU itself: pipelines, caches, branch prediction, out-of-order execution, multiple cores, and SMT. By the end you should be able to read a CPU spec sheet — or a perf profile — and know what each number is paying for.

Series Navigation

Computer Fundamentals (6 parts):

  1. CPU and the Computing Coreyou are here
  2. Memory and the Cache Hierarchy
  3. Storage Systems (HDD, SSD, NVMe, RAID)
  4. Motherboard, GPU, and Expansion Buses
  5. Networking, Power, and Cooling
  6. Deep Dive: Putting it All Together

Three Real-World Puzzles

Puzzle 1 — the bandwidth mystery. Your ISP sells you “100 Mbps” service but Chrome’s download manager peaks at about 12 MB/s. Are you being shortchanged?

Puzzle 2 — the missing 69 GB. You buy a 1 TB drive. Windows says 931 GB. Defective?

Puzzle 3 — the FPS upset. Your friend’s 14-core i5-13600K runs CS2 at ~450 FPS. Your shiny 16-core R9 7950X gets ~420. More cores, fewer frames — why?

All three answers live in this article.

Part 1 — Data Units: The Metric System of Computing

Bit and Byte

A bit is a single binary digit: 0 or 1. Think of one switch: off or on. Eight switches together can encode 2^8 = 256 different patterns — exactly enough for the original ASCII alphabet of letters, digits and punctuation. That is why a byte is 8 bits.

The “Mbps vs MB/s” trap: ISPs sell bandwidth in bits per second (Mbps). Browsers display bytes per second (MB/s). To convert, divide by 8.

You seeMeaning
100 Mbps100 million bits / second
12.5 MB/s (theoretical max)12.5 million bytes / second
10–11 MB/s (typical actual)After TCP overhead and congestion

So a “100M” line really does deliver about 12 MB/s. No one is cheating you — the units are just different.

The 1024 vs 1000 Mismatch

Computers count in powers of two; the closest power of 2 to 1000 is 2^10 = 1024. So internally, 1 KB = 1024 B, 1 MB = 1024 KB, and so on. Disk manufacturers, however, use the SI prefixes where 1 KB = 1000 B. That single mismatch is the entire reason a “1 TB” disk shows up as 931 GB.

Unit (binary, computer)BytesUnit (decimal, vendor)Bytes
1 KiB1,0241 KB1,000
1 MiB1,048,5761 MB1,000,000
1 GiB1,073,741,8241 GB1,000,000,000
1 TiB1,099,511,627,7761 TB1,000,000,000,000

Quick estimate: actual capacity ≈ advertised capacity × 0.931.

AdvertisedActual usableApparent loss
256 GB238 GiB7.0%
1 TB931 GiB6.9%
2 TB1,863 GiB6.9%
4 TB3,726 GiB6.9%

RAM does not “shrink” because RAM modules are sized in binary units to begin with: an 8 GB stick is exactly 8 × 2^30 bytes.

Part 2 — Inside a CPU Core

What a CPU Actually Is

A CPU’s job is brutally simple to state and absurdly complicated to implement: fetch the next instruction, decode it, execute it, and write back the result, billions of times per second. Everything else — pipelines, caches, branch predictors — exists to make that loop run faster without changing what the program means.

A modern core has four kinds of hardware inside:

  • Front-end (control): fetch, decode, branch predictor.
  • Compute: integer ALUs, floating-point and SIMD units, load/store unit.
  • Register file: a tiny, fast scratchpad (16 general-purpose registers in x86-64, plus AVX-512 vectors).
  • Caches: L1 instruction + L1 data (per core), L2 (per core), L3 (shared).

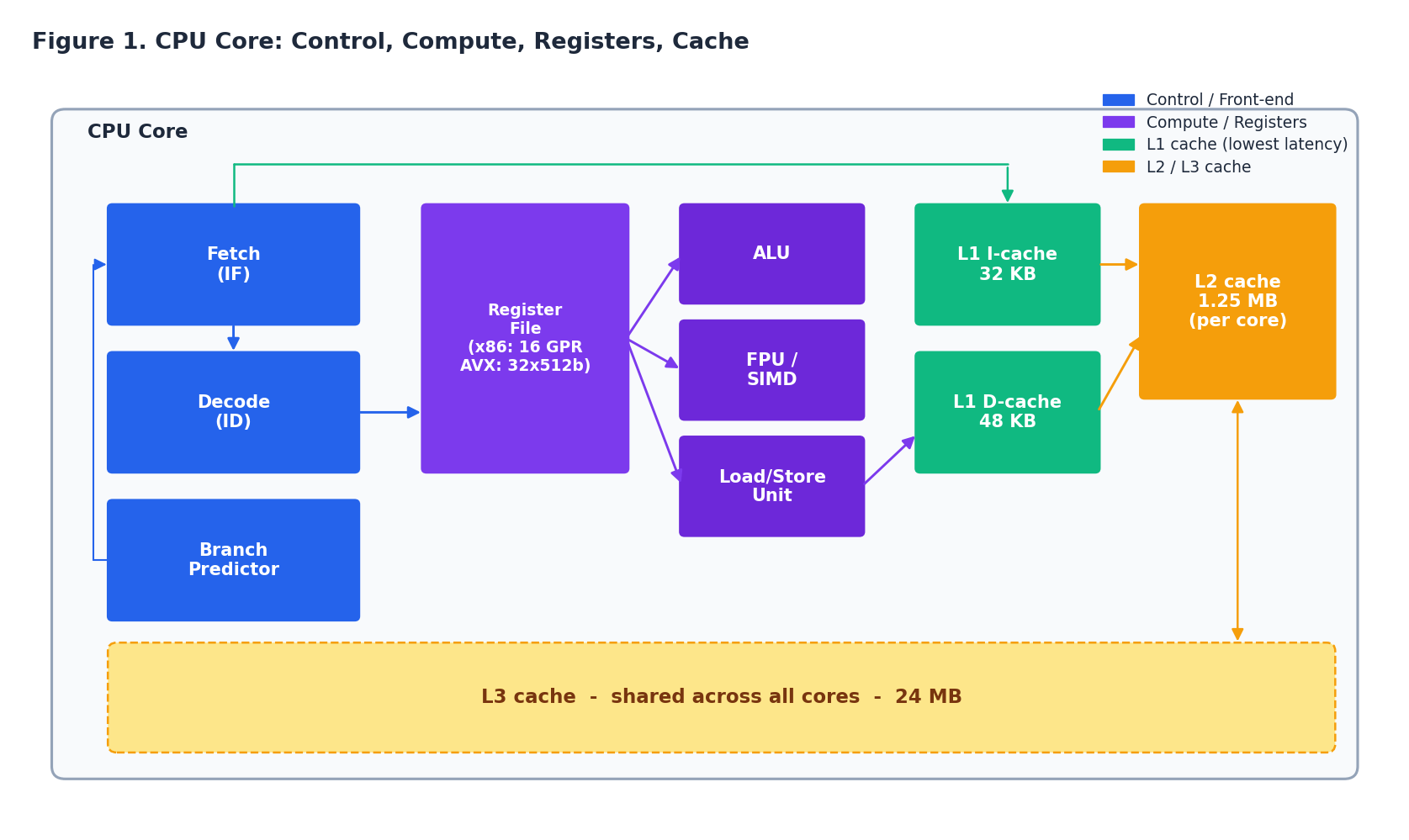

Figure 1. CPU core block diagram: front-end, compute, registers, and the cache hierarchy

The front-end prepares work; the compute units do the work; the register file holds the operands the compute units will read; the caches keep the working set close enough to feed the whole assembly line at full speed.

The 5-Stage Pipeline

The classic teaching pipeline has five stages:

  1. IF — Instruction Fetch (read the next instruction from L1I)
  2. ID — Instruction Decode (figure out what it is, read register operands)
  3. EX — Execute (run the ALU)
  4. MEM — Memory access (loads / stores)
  5. WB — Write Back (commit the result to a register)

Without overlap, each instruction would take 5 cycles, and 5 instructions would take 25 cycles. With pipelining, every cycle a new instruction enters IF while the previous one moves to ID, etc. After a 4-cycle warm-up the pipeline is full and one instruction completes every cycle — the ideal IPC (instructions per cycle) is 1.0.

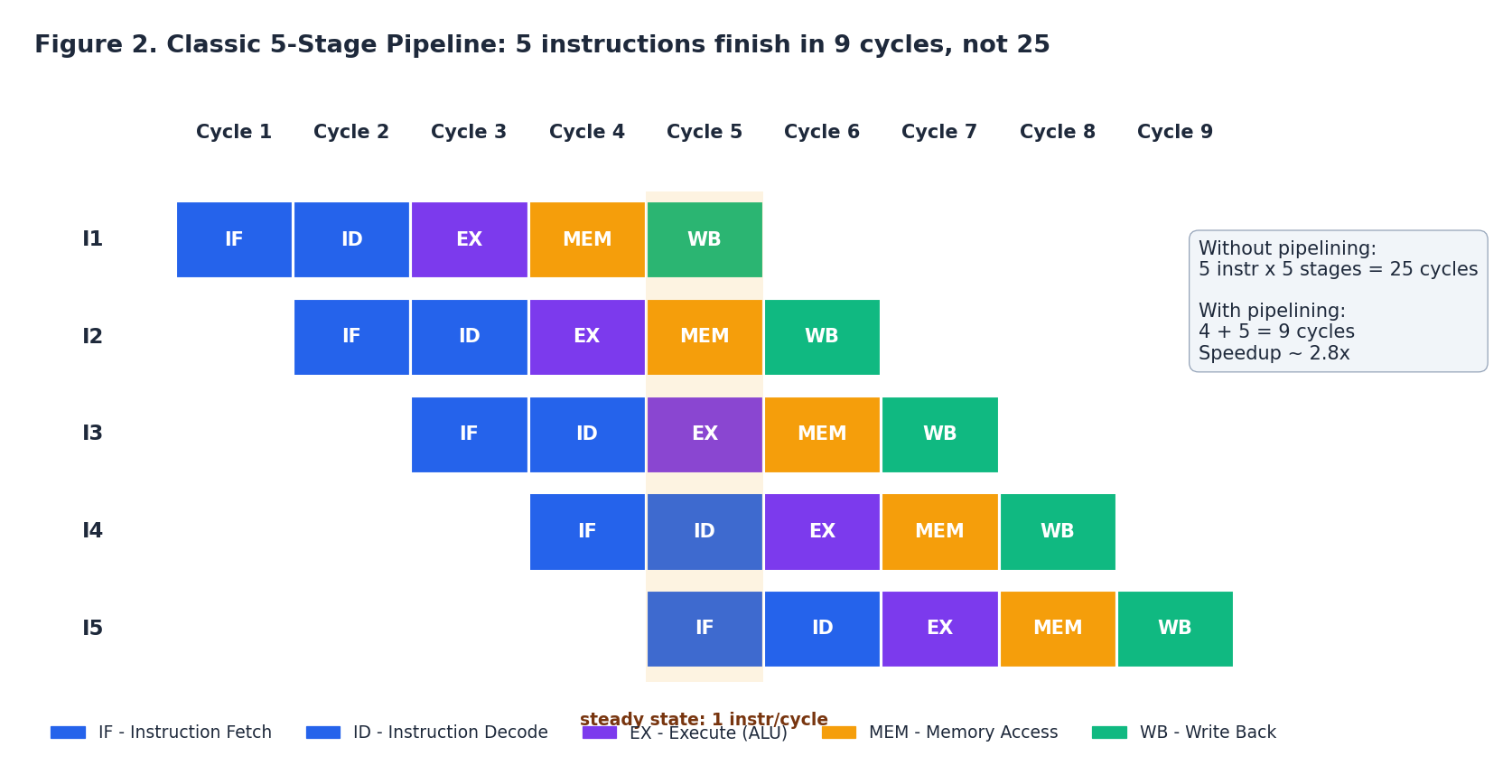

Figure 2. Five instructions overlap across nine cycles instead of running serially in twenty-five

Real x86 cores like Intel Golden Cove or AMD Zen 4 are far wider — 6 to 8 instructions decoded per cycle, with 10+ pipeline stages — but the idea is unchanged: keep every stage busy every cycle. Anything that creates a bubble (an empty stage) costs throughput. The next four sections are all about preventing or hiding those bubbles.

The Memory Hierarchy

If main memory were as fast as the registers, none of the caching machinery would exist. It is not. There are roughly eight orders of magnitude between a register access and a hard-disk seek.

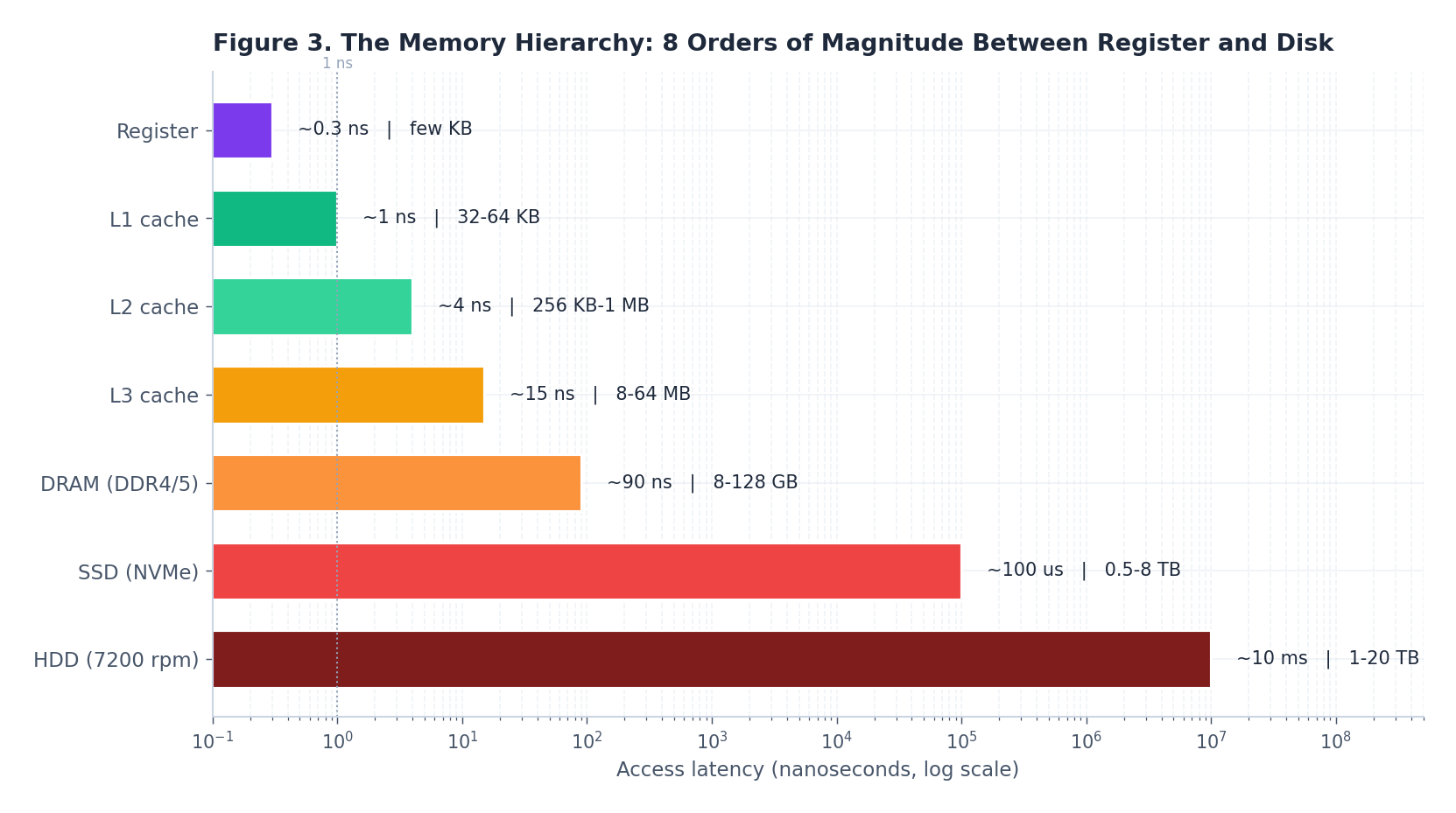

Figure 3. Memory hierarchy: latency in nanoseconds, log scale

LevelLatencyCapacityBuilt from
Register~0.3 nsbytesflip-flops in the core
L1 cache~1 ns32–64 KBSRAM, 6 transistors/bit
L2 cache~4 ns256 KB–1 MBSRAM (denser, slower)
L3 cache~15 ns8–64 MBSRAM (shared across cores)
DRAM (DDR4/5)~90 ns8–128 GB1 transistor + 1 capacitor / bit
SSD (NVMe)~100 µs0.5–8 TBNAND flash
HDD~10 ms1–20 TBspinning rust

A useful mental model. Scale CPU clock cycles up to “1 second of human thinking” (roughly 1 ns → 1 s):

  • L1 hit: instant, you remember it.
  • L3 hit: 15 seconds, walk to the next desk.
  • DRAM: 90 seconds, walk to the next room.
  • SSD: a day and a half.
  • HDD: 4 months.

This is why a single L3 miss costs a CPU dozens of wasted cycles, and why a cache-friendly inner loop can be 10× faster than a cache-hostile one even when both contain the same arithmetic.

The Three Kinds of Cache Miss

Caches are not magic; they fail in three distinct ways. Knowing which kind of miss you have tells you how to fix it.

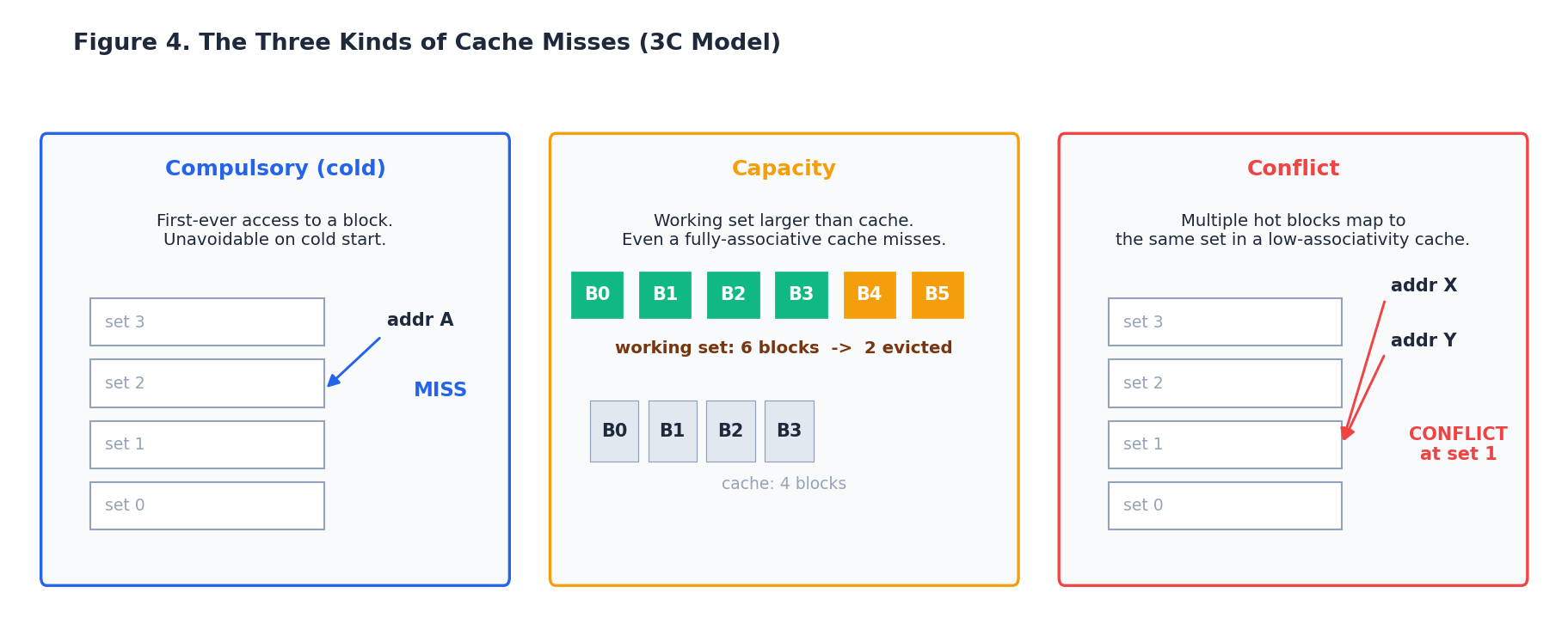

Figure 4. The 3C taxonomy: compulsory, capacity, conflict

  • Compulsory (cold) miss: the first time a block is touched, the cache has never seen it. Unavoidable on the first pass; prefetching can hide the latency.
  • Capacity miss: the working set is larger than the cache. A fully-associative, perfectly-managed cache would still miss. Fixes: shrink the working set (blocking / tiling), use a bigger cache level.
  • Conflict miss: a low-associativity cache has multiple hot blocks fighting for the same set. Two arrays whose addresses differ by exactly one cache-set’s worth of bytes will repeatedly evict each other. Fixes: change the data layout, pad arrays, or rely on higher-associativity caches.

Modern L1 caches are typically 8-way associative and L2/L3 even more, so pure conflict misses are less common than they were on early processors — but they still appear in tight loops over power-of-two-strided arrays.

Branch Prediction

Conditional branches are the pipeline’s nightmare: by the time if (x > 0) resolves in EX, three or four later instructions have already been fetched down one path. If the guess was wrong, all that in-flight work is squashed and refetched — a misprediction in a modern core costs 15–20 cycles.

The classic trick is the 2-bit saturating counter, one per branch in the predictor table:

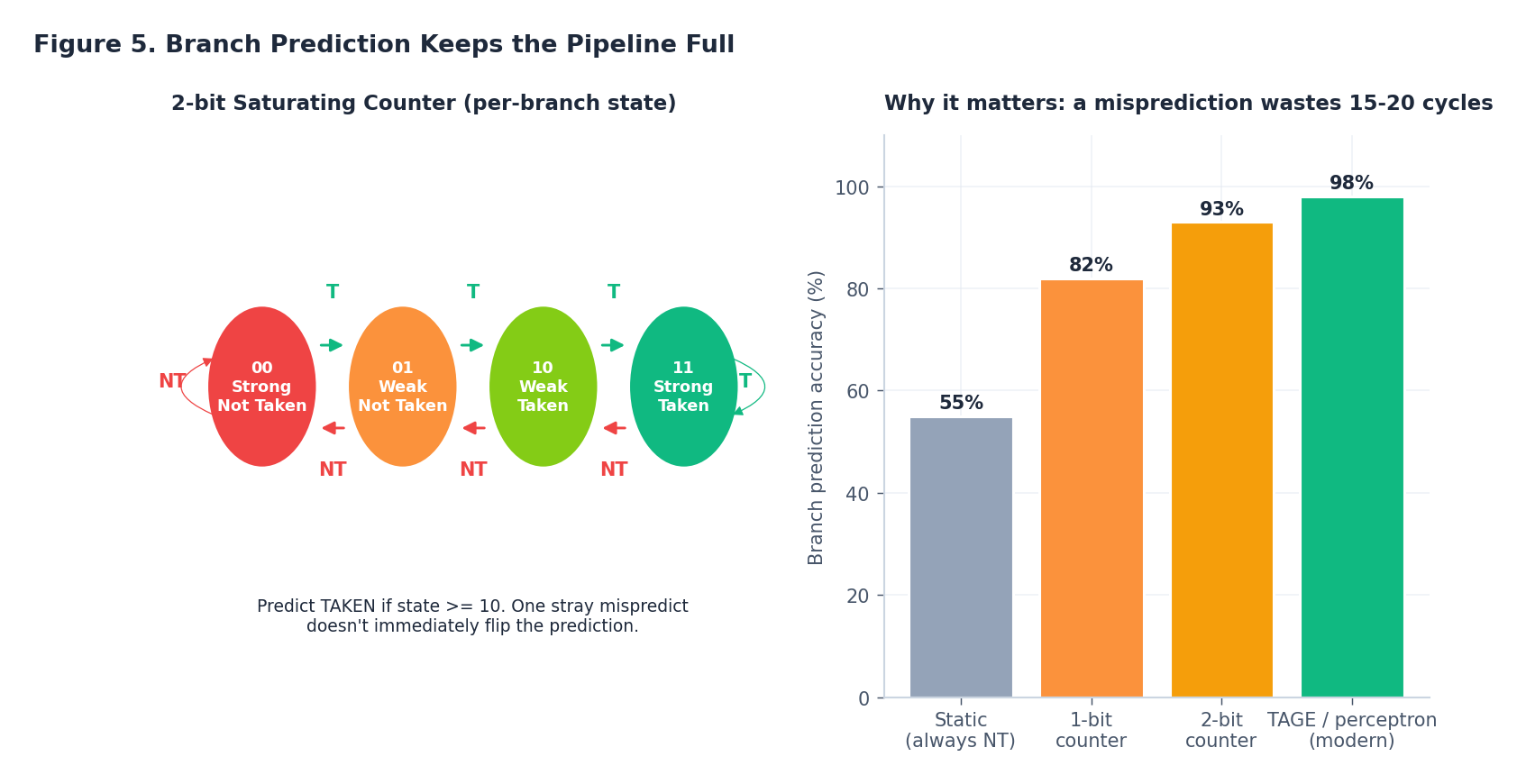

Figure 5. 2-bit predictor state machine, and prediction accuracy across predictor generations

The state machine has the nice property that one anomalous outcome doesn’t immediately flip the prediction — only two consecutive wrong outcomes do. That alone gets you to ~93% accuracy on typical workloads. Modern predictors (TAGE, perceptron-based) push this above 98% by also looking at the history of recent branches, which captures correlations like “if the outer loop took its branch, the inner loop usually does too.”

If you’ve ever seen [[likely]] / [[unlikely]] annotations in C++20 or __builtin_expect in GCC, that’s you helping the compiler help the predictor.

Out-of-Order Execution

Even with great branch prediction, the pipeline still stalls on data: a load from DRAM can’t deliver its value for ~90 ns (~300 cycles at 3 GHz), and any instruction that uses that value must wait. An in-order machine waits with it; everything behind also waits.

An out-of-order (OoO) core does something cleverer: it buffers dozens or hundreds of decoded instructions in a reorder buffer, and dispatches any instruction whose operands are ready, regardless of program order. As long as the visible result (architectural register state, memory) ends up the same, the hardware can shuffle execution however it wants.

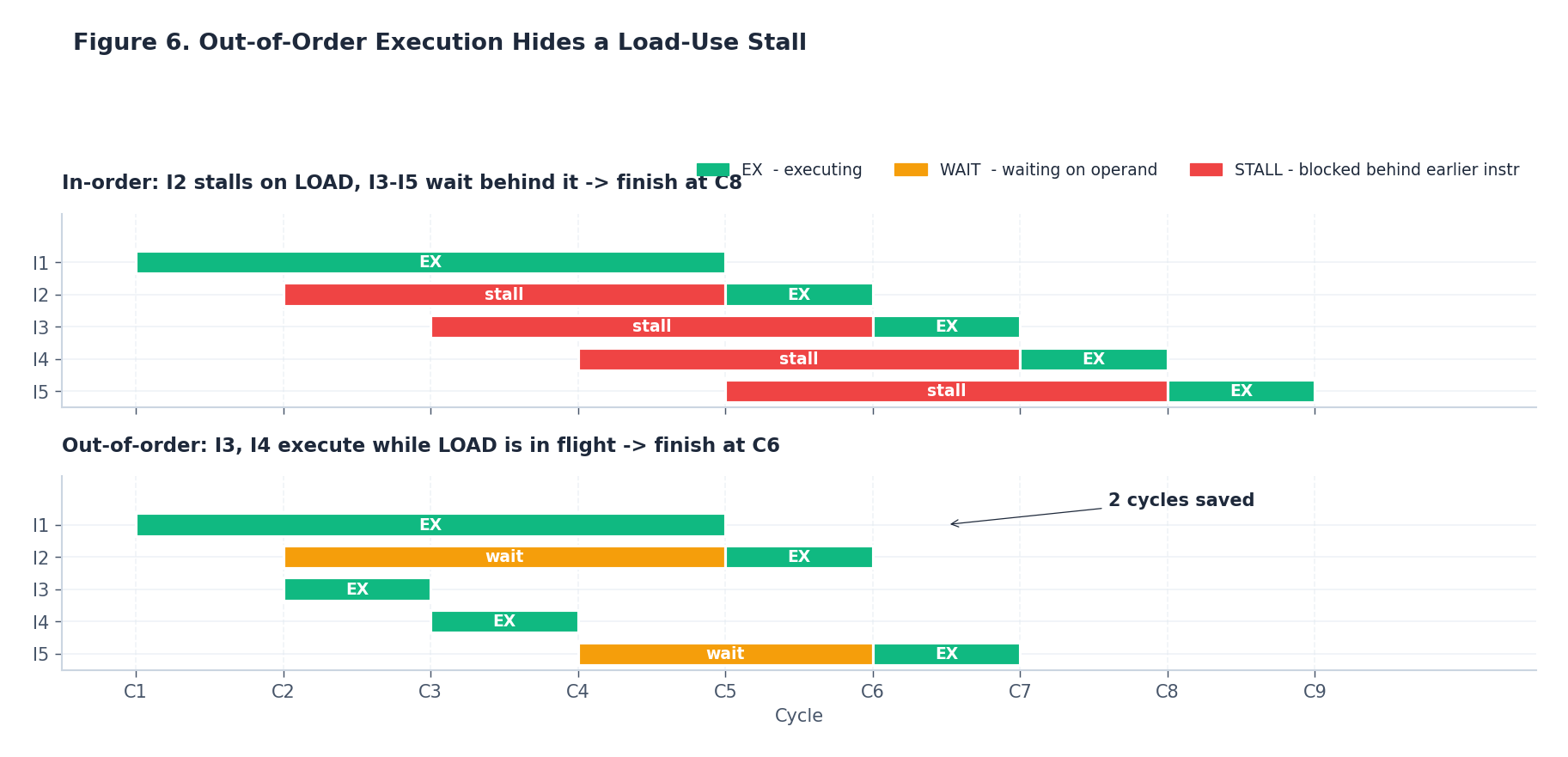

Figure 6. The same five-instruction stream, in-order vs out-of-order

In the example, instructions I3 and I4 are independent of the load. An in-order core stalls them behind I2; an OoO core slips them into the cycles where the load is in flight. The result: 6 cycles instead of 8, on a tiny example. On real workloads with large reorder windows (the Apple M3’s window is reportedly ~600 micro-ops), the savings are dramatic and automatic — no programmer effort.

OoO is also why micro-benchmarks lie: if your loop body has independent instructions, the CPU will execute them in parallel and your measurement is the throughput of the bottleneck unit, not the latency of any one operation.

Multi-Core and SMT (Hyperthreading)

There are two ways to add more parallelism without making each core faster:

  1. More cores. Replicate everything: front-end, ALUs, registers, L1, L2. Share only L3 and the memory controller.
  2. SMT (Intel calls it Hyperthreading). Within one physical core, keep two architectural register sets and let two software threads share the same execution units.

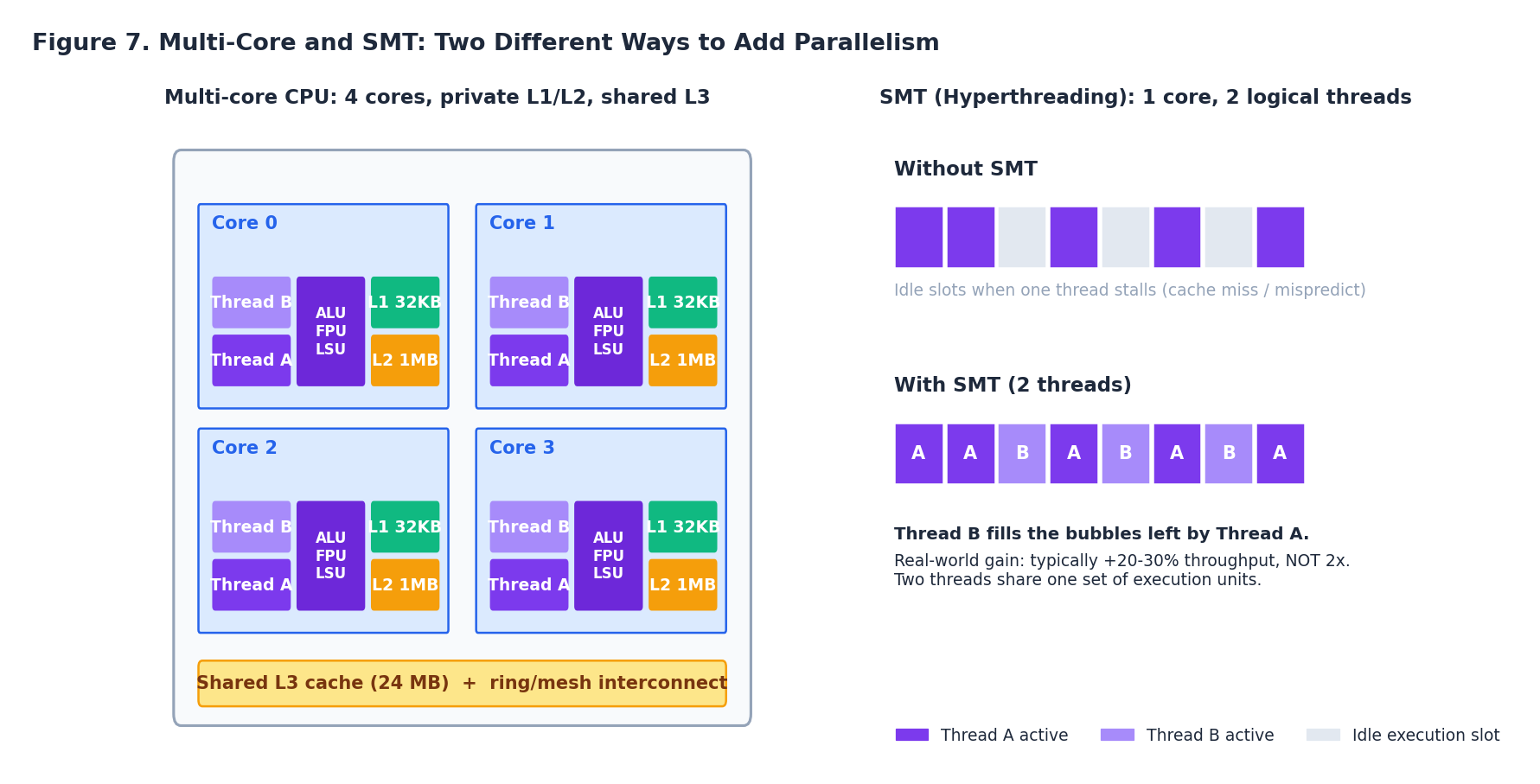

Figure 7. Multi-core layout (left) and how SMT fills idle execution slots (right)

Key intuition for SMT: when one thread stalls (cache miss, branch mispredict), its execution units sit idle. SMT lets a second thread immediately use those slots. The typical real-world gain is +20–30% throughput on a mixed workload — not 2×, because the two threads share one set of ALUs, one L1 cache, and one set of execution ports. On purely compute-bound code that already saturates the units (a tight matrix multiply, say), SMT can even slow you down by adding cache pressure, which is why HPC workloads often disable it.

This finally answers Puzzle 3 from the opening. CS2 at 450 FPS is not bottlenecked by core count — at that frame rate, the engine’s main thread is the long pole. The i5-13600K runs that thread at higher per-cycle performance than the R9 7950X (newer P-core, higher boost clock, larger L2 per core). The 7950X’s extra cores sit idle. More cores only helps if your work decomposes into more parallel threads.

Part 3 — Choosing a CPU

Intel vs AMD, Today

The headline trade-offs in the current generation:

AspectIntel (Core 13/14th gen)AMD (Ryzen 7000 / 9000)
Single-thread peakvery high (P-cores boost to ~6 GHz)very high (Zen 4/5 IPC)
Many-thread throughputE-cores add wide MThigh core count, all symmetric
Process nodeIntel 7 / Intel 4TSMC 5 nm / 4 nm
Platform longevityLGA 1700 (12/13/14)AM5 (promised through 2027+)
Power efficiencyweaker at top of stackgenerally better
Best atgaming, mixed workloadscontent creation, compilation

Picking by workload:

  • Gaming: single-thread matters most. A mid-tier Intel i5/i7 or a Ryzen 7 with high boost is the sweet spot.
  • Video editing, 3D rendering, large compiles: more cores win. Ryzen 9 or Threadripper.
  • Office, web, light dev: any modern 4–6 core CPU is overkill in the good way.
  • Servers: AMD EPYC (up to 96+ cores, 12-channel DDR5, more PCIe lanes) currently leads on density and price/perf; Intel Xeon still wins on certain accelerator-heavy workloads (AMX, QAT).

32-bit vs 64-bit and the 4 GB Wall

A 32-bit address bus can name 2^32 = 4 GiB of memory locations. A 32-bit OS, however, has to fit both RAM and memory-mapped I/O (graphics aperture, BIOS, PCIe device registers) into that same 4 GiB. The top ~0.5–1 GiB is reserved for MMIO, leaving ~3.0–3.5 GiB for actual RAM. This is the “I installed 4 GB and Windows shows 3.25 GB” phenomenon — and it is also why the only real fix is to move to a 64-bit OS, where the 2^64 ≈ 16 EiB address space ends the conversation forever.

ECC, Multi-Socket, and Why Server Clocks Are Lower

Server CPUs make different trade-offs because their workload is different:

  • ECC memory detects and corrects single-bit errors. At server scale (thousands of DIMMs running 24/7) bit flips happen often enough to matter; ECC is non-negotiable in finance, scientific computing, and anything safety-critical.
  • Multi-socket lets two or four CPUs share one coherent memory image — useful for very large databases and virtualization hosts.
  • More PCIe lanes (64–128 vs ~20 on desktop) feed many GPUs, NVMe drives, and 100 GbE NICs.
  • Lower clock speeds (all-core ~3 GHz instead of single-core 5.8 GHz) trade peak frequency for dramatically better power efficiency and reliability under sustained load. A desktop chip is a sprinter; a server chip is a marathon runner.

Quick-Reference Cheat Sheet

  • Bandwidth in bits, file size in bytes — divide by 8.
  • Disks use base 1000, OSes use base 1024 — multiply advertised TB by 0.931.
  • The CPU pipeline ideal is 1 instruction per cycle; everything fancy (caches, branch prediction, OoO) exists to defend that ideal.
  • Memory latency spans eight orders of magnitude. Cache locality is usually the single biggest performance lever.
  • A misprediction costs ~15–20 cycles. A DRAM miss costs ~300. Predictor and cache work hide them.
  • SMT typically buys +20–30%, not 2×.
  • More cores only helps work that parallelizes; gaming usually doesn’t.

What’s Next

Part 2 — Memory and the Cache Hierarchy — goes deeper:

  • DDR generations from DDR2 to DDR5: what actually got faster?
  • Dual-channel and quad-channel: real measured benchmarks.
  • Cache associativity, replacement policies, and how to measure cache misses with perf.
  • Memory troubleshooting: black screens, blue screens, MemTest86.

Thinking question for the gap: if the CPU already has L1/L2/L3 cache, why do we need DRAM at all? (Hint: capacity per dollar, and what SRAM costs to build.)
