Databases (7): Distributed Transactions — 2PC, Saga, and Why Consensus Is Hard

1
2
3
4
5
6

Order Service (DB-1)              Inventory Service (DB-2)
┌─────────────────────┐          ┌─────────────────────────┐
│ INSERT INTO orders   │          │ UPDATE products          │
│ (user_id, total)     │          │ SET stock = stock - 1    │
│ VALUES (1, 99.99)    │          │ WHERE product_id = 42    │
└─────────────────────┘          └─────────────────────────┘

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

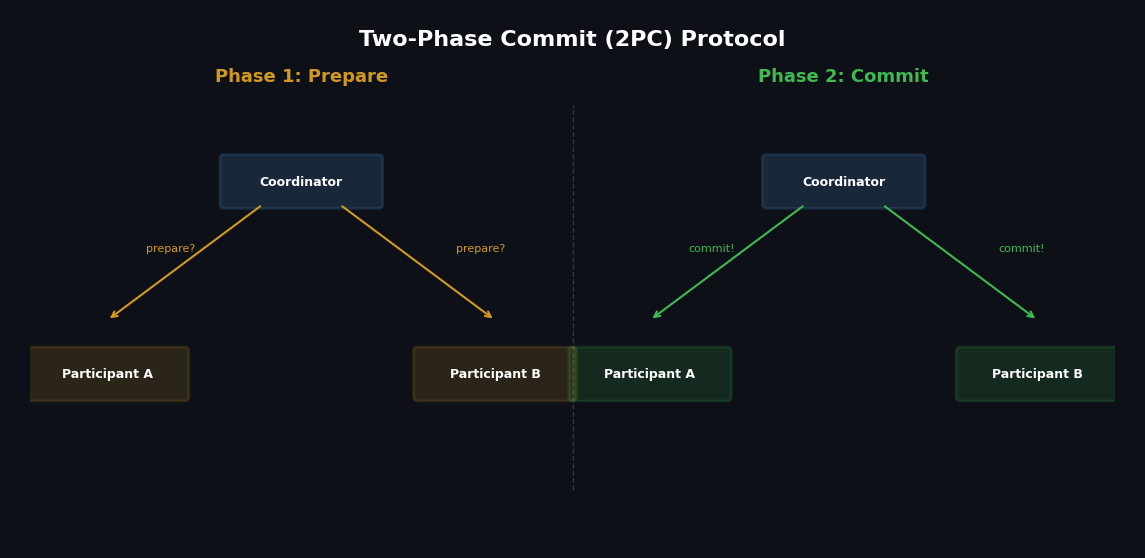

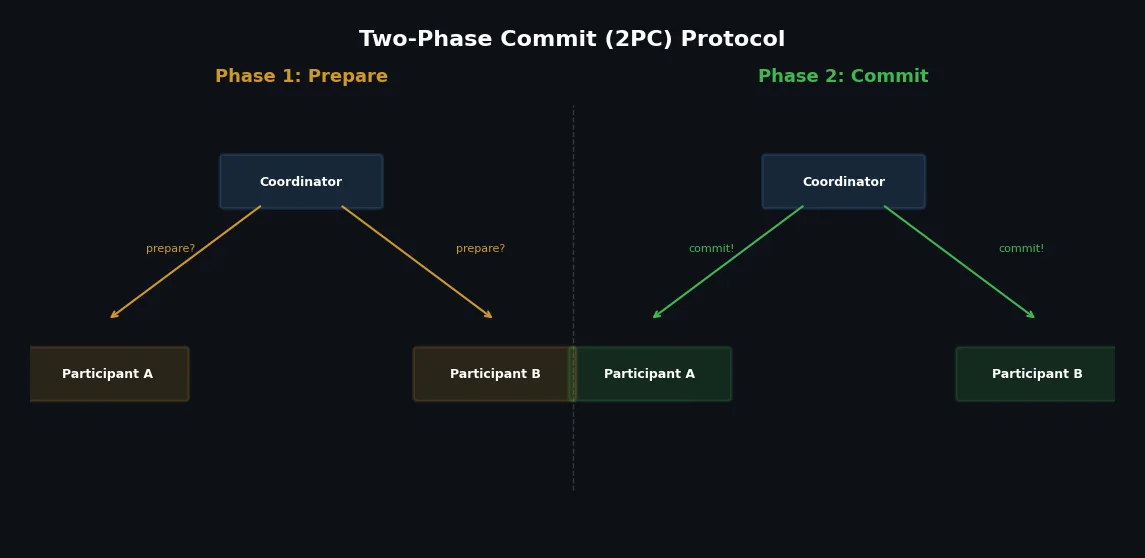

Phase 1: PREPARE (Voting Phase)
  Coordinator → Participant A: "Can you commit transaction T?"
  Coordinator → Participant B: "Can you commit transaction T?"
  Participant A → Coordinator: "Yes, I'm prepared" (locks held, WAL flushed)
  Participant B → Coordinator: "Yes, I'm prepared"

Phase 2: COMMIT (Decision Phase)
  Coordinator → Participant A: "COMMIT transaction T"
  Coordinator → Participant B: "COMMIT transaction T"
  Participant A → Coordinator: "Done"
  Participant B → Coordinator: "Done"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

Coordinator                   Participant A      Participant B
    │                              │                   │
    ├──── PREPARE ────────────────►│                   │
    ├──── PREPARE ───────────────────────────────────►│
    │                              │                   │
    │◄─── YES (prepared) ─────────┤                   │
    │◄─── YES (prepared) ──────────────────────────────┤
    │                              │                   │
    │  (writes COMMIT to own log)  │                   │
    │                              │                   │
    ├──── COMMIT ─────────────────►│                   │
    ├──── COMMIT ──────────────────────────────────►│
    │                              │                   │
    │◄─── ACK ────────────────────┤                   │
    │◄─── ACK ─────────────────────────────────────────┤
    │                              │                   │

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

Coordinator                   Participant A      Participant B
    │                              │                   │
    ├──── PREPARE ────────────────►│                   │
    ├──── PREPARE ───────────────────────────────────►│
    │                              │                   │
    │◄─── YES ────────────────────┤                   │
    │◄─── YES ─────────────────────────────────────────┤
    │                              │                   │
    ╳ CRASH                        │                   │
                                   │                   │
                               "I voted YES          "I voted YES
                                but don't know        but don't know
                                the decision.         the decision.
                                Can't commit.         Can't commit.
                                Can't rollback.       Can't rollback.
                                Locks held..."        Locks held..."

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

-- PostgreSQL: prepared transactions (2PC participant)
-- The application/coordinator calls these:

-- Phase 1: Prepare
BEGIN;
UPDATE accounts SET balance = balance - 100 WHERE id = 1;
PREPARE TRANSACTION 'transfer_001_debit';

-- Phase 2: Commit (if all participants prepared successfully)
COMMIT PREPARED 'transfer_001_debit';

-- Or rollback
ROLLBACK PREPARED 'transfer_001_debit';

-- Check for orphaned prepared transactions (stuck 2PC)
SELECT gid, prepared, owner, database
FROM pg_prepared_xacts;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

// Java XA transactions (JTA) — standard API for 2PC
UserTransaction ut = (UserTransaction) ctx.lookup("java:comp/UserTransaction");
ut.begin();

// Enlist two different databases in the same transaction
Connection conn1 = ds1.getConnection();  // Order database
Connection conn2 = ds2.getConnection();  // Inventory database

conn1.prepareStatement("INSERT INTO orders ...").execute();
conn2.prepareStatement("UPDATE inventory SET stock = stock - 1 ...").execute();

ut.commit();  // Transaction manager runs 2PC protocol

1
2
3
4
5
6

Phase 1: CAN-COMMIT?  → participants check if they can commit
Phase 2: PRE-COMMIT   → coordinator tells participants to prepare (but not commit yet)
Phase 3: DO-COMMIT    → final commit

If coordinator crashes after PRE-COMMIT:
  Participants can time out and commit (they know everyone was ready)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Phase 1: Prepare
  Proposer → Acceptors: "Prepare(proposal_number=5)"
  Acceptors → Proposer: "Promise: I won't accept proposals < 5"
                          + "Last accepted: (proposal=3, value='X')" if any

Phase 2: Accept
  Proposer → Acceptors: "Accept(proposal=5, value='Y')"
  Acceptors → Proposer: "Accepted" (if no higher proposal seen)

When a majority of acceptors accept → value is decided

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

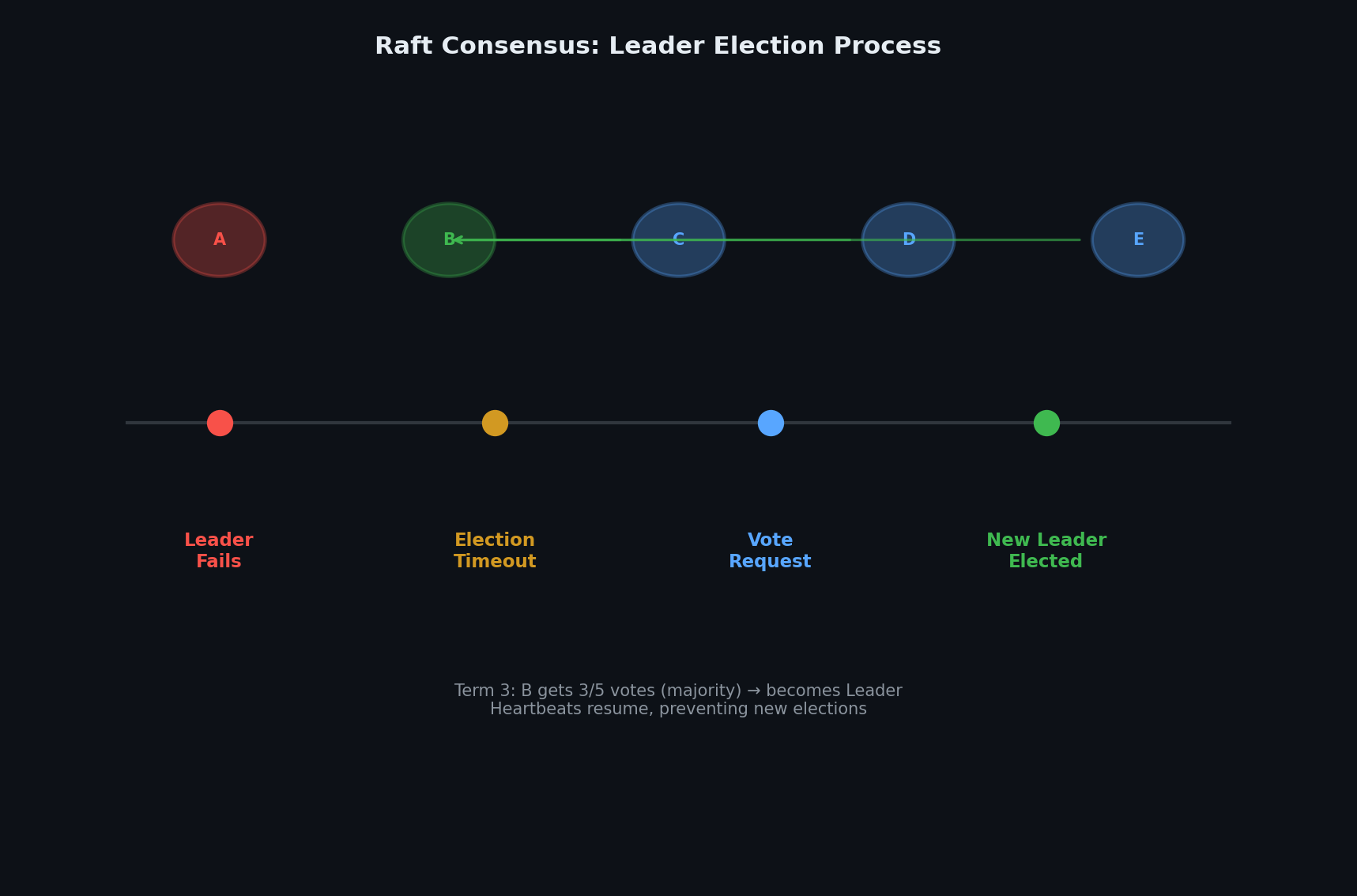

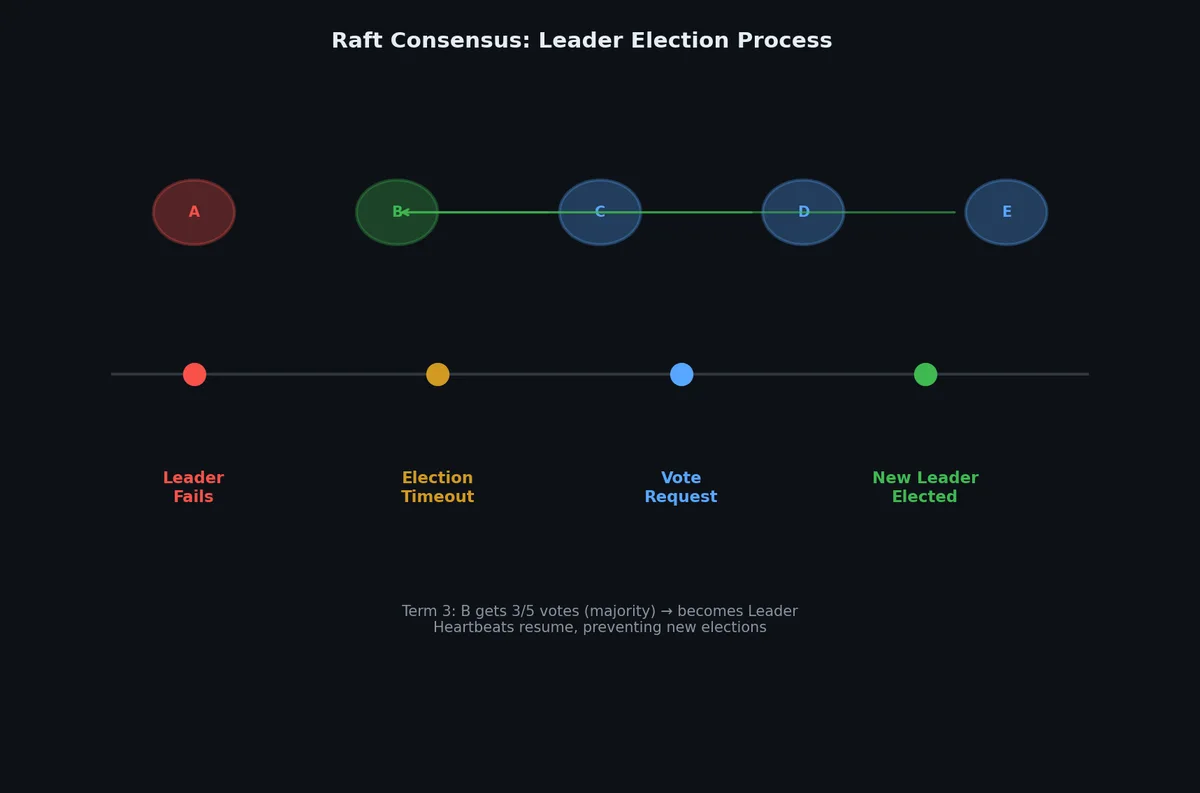

Node States:
  Follower  → times out, no heartbeat  → Candidate
  Candidate → receives majority votes  → Leader
  Candidate → discovers higher-term leader → Follower
  Leader    → discovers higher-term leader → Follower

Election Process:
  1. Candidate increments its term number
  2. Votes for itself
  3. Sends RequestVote RPCs to all other nodes
  4. If majority responds with vote: becomes Leader
  5. Starts sending periodic heartbeats to prevent new elections

1
2
3
4
5
6
7
8

Term 1: Node A is leader
         Node A ──heartbeat──► Node B
         Node A ──heartbeat──► Node C

Term 2: Node A crashes. Node B times out.
         Node B: "I'm a candidate for term 2. Vote for me."
         Node C: "OK, you have my vote for term 2."
         Node B: Now leader. Starts sending heartbeats.

1
2
3
4
5
6
7
8

Leader Log:   [term1:SET x=1] [term1:SET y=2] [term2:SET x=3]
                    │                │               │
                    ▼                ▼               ▼
Follower B:   [term1:SET x=1] [term1:SET y=2] [term2:SET x=3]  ✓ up to date
Follower C:   [term1:SET x=1] [term1:SET y=2]                  ✗ catching up

A log entry is "committed" when replicated to a majority of nodes.
The leader then applies the entry to its state machine and responds to the client.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

Client ─── "SET x=3" ──► Leader
                          │
                 1. Append to log
                 2. Send AppendEntries RPC to followers
                          │
                    ┌──────┼──────┐
                    ▼      ▼      ▼
                 Foll.B  Foll.C  Foll.D
                    │      │      │
                    └──────┼──────┘
                 3. Wait for majority acknowledgment
                          │
                 4. Commit entry
                 5. Apply to state machine
                 6. Respond to client: "OK"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Order Service              Inventory Service          Payment Service
     │                          │                          │
     │ OrderCreated event ──────►                          │
     │                          │                          │
     │                    InventoryReserved event ─────────►
     │                          │                          │
     │                          │              PaymentProcessed event
     │◄─────────────────────────────────────────────────────┤
     │                          │                          │
     │ OrderConfirmed           │                          │

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

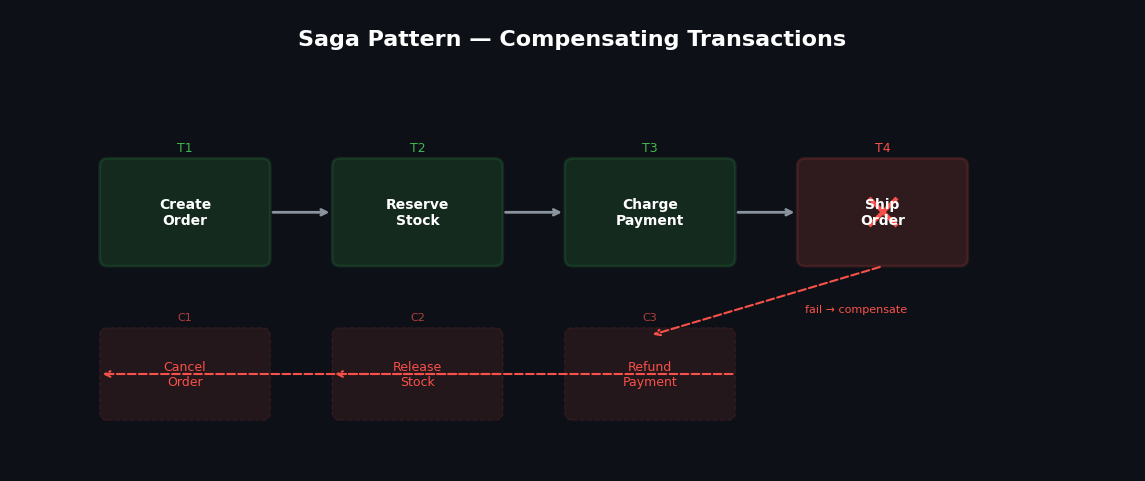

Saga Orchestrator
     │
     ├──── "Create order" ──────► Order Service
     │◄─── "Order created" ──────┤
     │
     ├──── "Reserve inventory" ──► Inventory Service
     │◄─── "Inventory reserved" ──┤
     │
     ├──── "Process payment" ────► Payment Service
     │◄─── "Payment failed!" ─────┤
     │
     │  COMPENSATION:
     ├──── "Release inventory" ──► Inventory Service
     │◄─── "Inventory released" ──┤
     │
     ├──── "Cancel order" ──────► Order Service
     │◄─── "Order cancelled" ─────┤

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

# Saga orchestrator pseudocode
class OrderSaga:
    steps = [
        SagaStep(
            action=lambda ctx: order_service.create_order(ctx.user_id, ctx.items),
            compensation=lambda ctx: order_service.cancel_order(ctx.order_id)
        ),
        SagaStep(
            action=lambda ctx: inventory_service.reserve(ctx.items),
            compensation=lambda ctx: inventory_service.release(ctx.items)
        ),
        SagaStep(
            action=lambda ctx: payment_service.charge(ctx.user_id, ctx.total),
            compensation=lambda ctx: payment_service.refund(ctx.payment_id)
        ),
    ]

    def execute(self, context):
        completed = []
        for step in self.steps:
            try:
                result = step.action(context)
                completed.append(step)
            except Exception as e:
                # Compensate in reverse order
                for completed_step in reversed(completed):
                    completed_step.compensation(context)
                raise SagaFailedError(f"Step failed: {e}")

1
2
3
4
5
6
7
8
9

Node A's clock: 14:00:00.000
Node B's clock: 14:00:00.003  (3ms ahead)
Node C's clock: 13:59:59.997  (3ms behind)

Transaction T1 commits on Node A at "14:00:00.001"
Transaction T2 commits on Node B at "14:00:00.002"

Did T1 happen before T2? We cannot know from timestamps alone.
If A's clock is slow, T2 might have actually committed first.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Lamport clock: single counter, incremented on every event
  - If event A causes event B → L(A) < L(B)
  - BUT: L(A) < L(B) does NOT mean A caused B (concurrent events get arbitrary order)

Vector clock: one counter per node, tracks causal history
  Node A: [3, 1, 2]  → "I've seen 3 of my events, 1 from B, 2 from C"
  Node B: [2, 4, 2]  → "I've seen 2 from A, 4 of my events, 2 from C"

  Comparing: if all elements of VA ≤ VB → A causally precedes B
             if some VA[i] > VB[i] and some VA[j] < VB[j] → concurrent

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

HLC = (physical_time, logical_counter)

Rules:
1. On local event: hlc.physical = max(hlc.physical, wall_clock); hlc.logical = 0
2. On send: include hlc in message
3. On receive: hlc.physical = max(local.physical, msg.physical, wall_clock)
   if physical times are equal: hlc.logical = max(local.logical, msg.logical) + 1

Result: HLC ≈ wall clock time, but with causal ordering guarantees
Bound: HLC is always within max_clock_offset of real time

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

// CockroachDB's uncertainty interval
// When reading, a transaction must consider values written by other nodes
// within the clock uncertainty window

type ReadTimestamp struct {
    ReadTS     hlc.Timestamp  // "I started reading at this time"
    MaxOffset  time.Duration  // "Clocks might be off by this much"
    // Uncertainty interval: [ReadTS, ReadTS + MaxOffset]
    // Values in this interval might have been written before us
}

// If a value is found with timestamp in the uncertainty interval:
// Option 1: Push read timestamp forward (restart transaction at higher ts)
// Option 2: If the writing transaction is still in-flight, wait for it

1
2
3
4
5
6
7

TrueTime API:
  TT.now() → returns an interval [earliest, latest]
  TT.after(t) → true if t is definitely in the past
  TT.before(t) → true if t is definitely in the future

Typical uncertainty: ε ≈ 1-7ms (average ~4ms)
  GPS + atomic clock synchronization keeps drift minimal

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Commit-wait protocol:
  1. Transaction T acquires all locks, performs writes
  2. Coordinator picks commit timestamp s = TT.now().latest
  3. Coordinator WAITS until TT.after(s) is true
     (waits at most 2ε ≈ 7ms for uncertainty to pass)
  4. Release locks, respond to client

Guarantee: if T1 commits before T2 starts (real time),
           then T1's timestamp < T2's timestamp
           → externally consistent (linearizable)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Why commit-wait works:

T1 commits at s1 = TT.now().latest at time t_commit
  → real commit time ≤ s1 (because s1 is the latest possible time)
  → waits until TT.after(s1): real time is now definitely > s1

T2 starts at time t_start > t_commit (real time)
  → T2 picks s2 = TT.now().latest at some point ≥ t_start
  → s2 ≥ real_time at t_start > s1 (because we waited)
  → s1 < s2 guaranteed!

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

-- CockroachDB: check clock offset health
SHOW CLUSTER SETTING server.clock.max_offset;  -- default 500ms

-- If clocks drift beyond max_offset, nodes self-terminate to protect correctness
-- Monitor NTP offset on all nodes:
-- $ chronyc tracking | grep "Last offset"

-- Spanner: no clock concerns for the user, but you pay for it
-- Read-only transactions can avoid commit-wait by reading at a snapshot:
SELECT * FROM orders
WHERE created_at > TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 1 HOUR)
-- Spanner picks a safe read timestamp automatically

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

Saga States:
┌─────────┐     ┌──────────┐     ┌────────────┐     ┌───────────┐
│ STARTED │────►│ RUNNING  │────►│ COMPLETING │────►│ COMPLETED │
└─────────┘     └──────────┘     └────────────┘     └───────────┘
                     │
                     ▼
               ┌──────────────┐     ┌────────────┐
               │ COMPENSATING │────►│  FAILED    │
               └──────────────┘     └────────────┘
                     │
                     ▼
               ┌──────────────┐
               │ COMP_FAILED  │  ← requires manual intervention
               └──────────────┘

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

CREATE TABLE sagas (
    saga_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    saga_type VARCHAR(100) NOT NULL,      -- 'order_creation', 'payment_refund'
    state VARCHAR(20) NOT NULL DEFAULT 'STARTED',
    context JSONB NOT NULL DEFAULT '{}',  -- shared data between steps
    current_step INT NOT NULL DEFAULT 0,
    created_at TIMESTAMPTZ NOT NULL DEFAULT NOW(),
    updated_at TIMESTAMPTZ NOT NULL DEFAULT NOW(),
    deadline_at TIMESTAMPTZ,              -- global timeout
    error_message TEXT
);

CREATE TABLE saga_steps (
    saga_id UUID REFERENCES sagas(saga_id),
    step_index INT NOT NULL,
    step_name VARCHAR(100) NOT NULL,
    state VARCHAR(20) NOT NULL DEFAULT 'PENDING',
    -- PENDING → EXECUTING → SUCCEEDED / FAILED
    -- COMPENSATING → COMPENSATED / COMP_FAILED
    request_payload JSONB,
    response_payload JSONB,
    attempts INT NOT NULL DEFAULT 0,
    max_attempts INT NOT NULL DEFAULT 3,
    last_attempted_at TIMESTAMPTZ,
    idempotency_key UUID NOT NULL DEFAULT gen_random_uuid(),
    PRIMARY KEY (saga_id, step_index)
);

CREATE INDEX idx_sagas_stuck ON sagas (state, updated_at)
    WHERE state IN ('RUNNING', 'COMPENSATING');

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116

import asyncio
import uuid
from datetime import datetime, timedelta
from dataclasses import dataclass
from enum import Enum
from typing import Callable, Any

class StepState(Enum):
    PENDING = "PENDING"
    EXECUTING = "EXECUTING"
    SUCCEEDED = "SUCCEEDED"
    FAILED = "FAILED"
    COMPENSATING = "COMPENSATING"
    COMPENSATED = "COMPENSATED"

@dataclass
class SagaStepDef:
    name: str
    action: Callable  # async (context, idempotency_key) -> result
    compensation: Callable  # async (context, idempotency_key) -> None
    max_attempts: int = 3
    timeout_seconds: int = 30

class SagaOrchestrator:
    def __init__(self, db_pool, steps: list[SagaStepDef]):
        self.db = db_pool
        self.steps = steps

    async def execute(self, saga_type: str, initial_context: dict) -> str:
        saga_id = str(uuid.uuid4())
        async with self.db.acquire() as conn:
            await conn.execute("""
                INSERT INTO sagas (saga_id, saga_type, state, context, deadline_at)
                VALUES ($1, $2, 'RUNNING', $3, $4)
            """, saga_id, saga_type, initial_context,
                datetime.utcnow() + timedelta(minutes=5))

            for i, step in enumerate(self.steps):
                await conn.execute("""
                    INSERT INTO saga_steps (saga_id, step_index, step_name, max_attempts)
                    VALUES ($1, $2, $3, $4)
                """, saga_id, i, step.name, step.max_attempts)

        await self._run_forward(saga_id)
        return saga_id

    async def _run_forward(self, saga_id: str):
        saga = await self._load_saga(saga_id)

        for i in range(saga["current_step"], len(self.steps)):
            step_def = self.steps[i]
            step_row = await self._load_step(saga_id, i)

            success = await self._execute_step_with_retry(
                saga_id, i, step_def, saga["context"], step_row["idempotency_key"]
            )

            if not success:
                await self._compensate(saga_id, i - 1)
                return

            await self._advance_step(saga_id, i + 1)

        await self._mark_completed(saga_id)

    async def _execute_step_with_retry(
        self, saga_id, step_index, step_def, context, idempotency_key
    ) -> bool:
        for attempt in range(step_def.max_attempts):
            try:
                await self._update_step_state(saga_id, step_index, "EXECUTING")
                result = await asyncio.wait_for(
                    step_def.action(context, idempotency_key),
                    timeout=step_def.timeout_seconds
                )
                context.update(result or {})
                await self._update_step_state(
                    saga_id, step_index, "SUCCEEDED", response=result
                )
                return True
            except asyncio.TimeoutError:
                await self._record_attempt(saga_id, step_index, "timeout")
            except Exception as e:
                await self._record_attempt(saga_id, step_index, str(e))
                if attempt < step_def.max_attempts - 1:
                    await asyncio.sleep(2 ** attempt)  # exponential backoff

        await self._update_step_state(saga_id, step_index, "FAILED")
        return False

    async def _compensate(self, saga_id: str, from_step: int):
        await self._update_saga_state(saga_id, "COMPENSATING")

        for i in range(from_step, -1, -1):
            step_def = self.steps[i]
            step_row = await self._load_step(saga_id, i)
            if step_row["state"] != "SUCCEEDED":
                continue

            try:
                await self._update_step_state(saga_id, i, "COMPENSATING")
                await asyncio.wait_for(
                    step_def.compensation(
                        await self._load_context(saga_id),
                        step_row["idempotency_key"]
                    ),
                    timeout=step_def.timeout_seconds
                )
                await self._update_step_state(saga_id, i, "COMPENSATED")
            except Exception as e:
                await self._update_step_state(saga_id, i, "COMP_FAILED")
                await self._update_saga_state(saga_id, "COMP_FAILED")
                await self._alert_manual_intervention(saga_id, i, e)
                return

        await self._update_saga_state(saga_id, "FAILED")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

async def sweep_stuck_sagas(db_pool, orchestrator, interval_seconds=60):
    """Background task that recovers stuck sagas."""
    while True:
        async with db_pool.acquire() as conn:
            stuck = await conn.fetch("""
                SELECT saga_id, state, current_step, saga_type
                FROM sagas
                WHERE state IN ('RUNNING', 'COMPENSATING')
                AND updated_at < NOW() - INTERVAL '2 minutes'
                FOR UPDATE SKIP LOCKED
                LIMIT 10
            """)
            for saga in stuck:
                if saga["state"] == "RUNNING":
                    await orchestrator._run_forward(saga["saga_id"])
                elif saga["state"] == "COMPENSATING":
                    await orchestrator._compensate(
                        saga["saga_id"], saga["current_step"]
                    )

            # Also handle deadline-exceeded sagas
            expired = await conn.fetch("""
                UPDATE sagas SET state = 'COMPENSATING'
                WHERE state = 'RUNNING' AND deadline_at < NOW()
                RETURNING saga_id, current_step
            """)
            for saga in expired:
                await orchestrator._compensate(
                    saga["saga_id"], saga["current_step"]
                )

        await asyncio.sleep(interval_seconds)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

async def charge_payment(context: dict, idempotency_key: str) -> dict:
    """Saga step: charge the customer. Idempotent via idempotency_key."""
    response = await payment_api.create_charge(
        amount=context["total"],
        customer_id=context["user_id"],
        idempotency_key=str(idempotency_key),  # payment provider deduplicates
    )
    return {"payment_id": response["id"], "charge_status": response["status"]}


async def refund_payment(context: dict, idempotency_key: str):
    """Compensation: refund the charge. Also idempotent."""
    if "payment_id" not in context:
        return  # charge never happened
    await payment_api.refund(
        payment_id=context["payment_id"],
        idempotency_key=f"refund-{idempotency_key}",
    )

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

-- Dashboard query: saga health overview
SELECT
    saga_type,
    state,
    count(*) AS count,
    avg(EXTRACT(EPOCH FROM (updated_at - created_at))) AS avg_duration_sec
FROM sagas
WHERE created_at > NOW() - INTERVAL '1 hour'
GROUP BY saga_type, state
ORDER BY saga_type, state;

-- Find stuck sagas requiring manual intervention
SELECT s.saga_id, s.saga_type, s.state, s.error_message,
       ss.step_name, ss.step_index, ss.state AS step_state
FROM sagas s
JOIN saga_steps ss ON s.saga_id = ss.saga_id
WHERE s.state = 'COMP_FAILED'
ORDER BY s.created_at;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

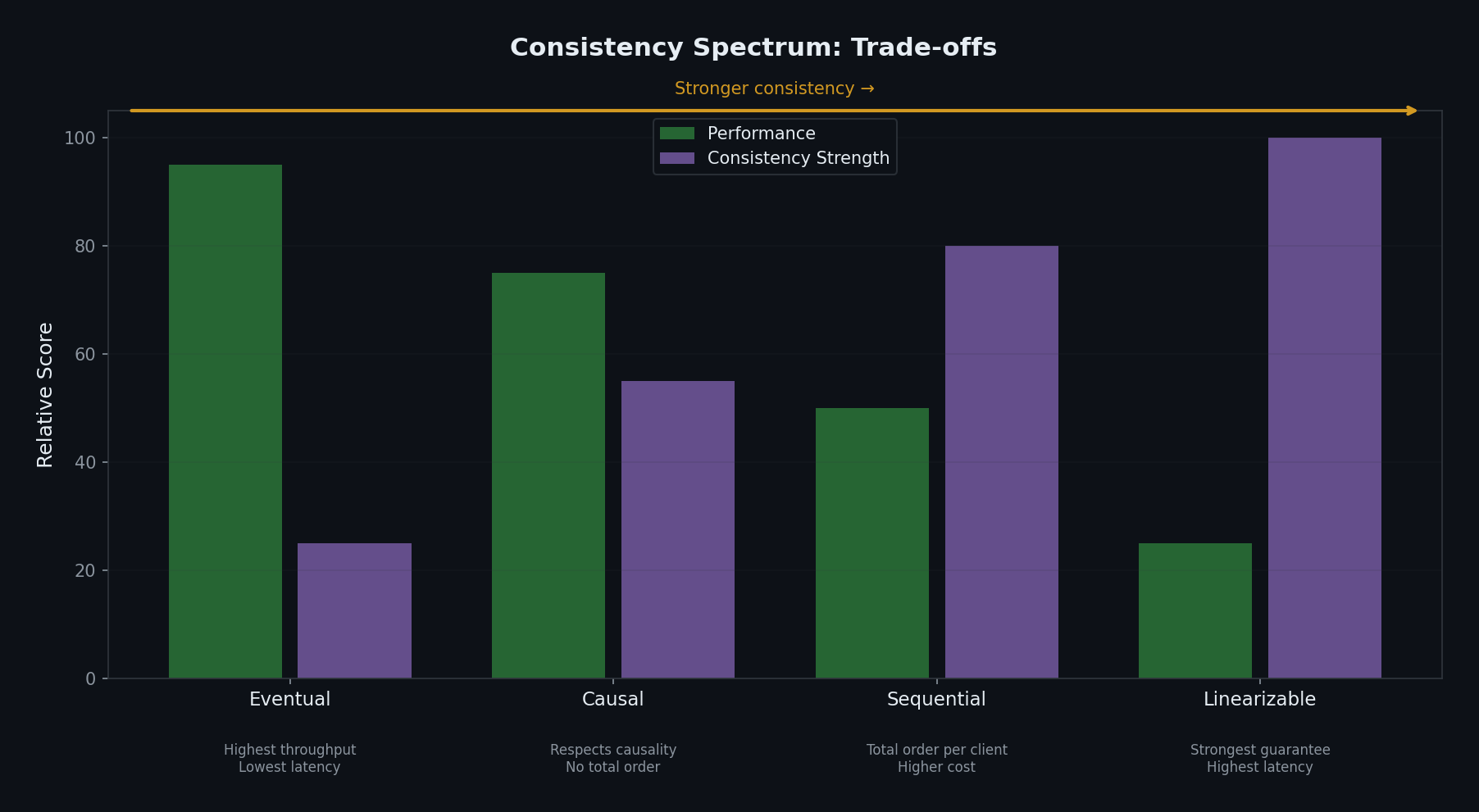

Linearizable system (register with value initially 0):

Client A: write(1)  ─────────────────► OK
                                        │ (from this point, all reads must return 1)
Client B:              read() ──────────► 1  ✓
Client C:                     read() ──► 1   ✓

Non-linearizable:
Client A: write(1)  ─────────────────► OK
Client B:              read() ──────────► 0  ✗ (stale!)
Client C:                     read() ──► 1   ✓

1
2
3
4

Write "x = 5" to Node A
  t=0ms:  Node A: x=5,  Node B: x=3,  Node C: x=3
  t=50ms: Node A: x=5,  Node B: x=5,  Node C: x=3
  t=100ms: Node A: x=5, Node B: x=5,  Node C: x=5  ← converged

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

-- Single database transaction (atomic!)
BEGIN;

-- Business logic
INSERT INTO orders (user_id, total, status)
VALUES (1, 99.99, 'created');

-- Outbox entry (same transaction, same database)
INSERT INTO outbox (
    aggregate_type,
    aggregate_id,
    event_type,
    payload,
    created_at
) VALUES (
    'Order',
    currval('orders_order_id_seq'),
    'OrderCreated',
    '{"user_id": 1, "total": 99.99}',
    NOW()
);

COMMIT;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

# Outbox publisher (runs continuously)
while True:
    rows = db.query("""
        SELECT id, event_type, payload
        FROM outbox
        WHERE published_at IS NULL
        ORDER BY created_at
        LIMIT 100
    """)

    for row in rows:
        kafka.produce(
            topic=f"events.{row.event_type}",
            value=row.payload
        )
        db.execute(
            "UPDATE outbox SET published_at = NOW() WHERE id = %s",
            row.id
        )

1
2
3
4

Database WAL/Binlog ──► CDC Tool (Debezium) ──► Kafka ──► Consumers

PostgreSQL WAL → Debezium → Kafka topic "db.public.orders"
MySQL Binlog   → Debezium → Kafka topic "db.inventory.products"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

// Debezium CDC event (from PostgreSQL)
{
  "before": null,
  "after": {
    "order_id": 1234,
    "user_id": 1,
    "total": 99.99,
    "status": "created"
  },
  "source": {
    "version": "2.4.0",
    "connector": "postgresql",
    "name": "orders-db",
    "ts_ms": 1702656000000,
    "db": "ecommerce",
    "schema": "public",
    "table": "orders"
  },
  "op": "c",  // c=create, u=update, d=delete, r=read (snapshot)
  "ts_ms": 1702656000123
}

1
2
3
4
5

-- Idempotent insert (PostgreSQL)
INSERT INTO processed_events (event_id, processed_at)
VALUES ('evt-123', NOW())
ON CONFLICT (event_id) DO NOTHING;
-- Safe to retry — duplicate inserts are silently ignored
