Databases (8): Databases in Practice — Migration, Monitoring, and War Stories

1
2
3
4
5
6
7
8
9

migrations/
├── 001_create_users.up.sql
├── 001_create_users.down.sql
├── 002_create_orders.up.sql
├── 002_create_orders.down.sql
├── 003_add_email_index.up.sql
├── 003_add_email_index.down.sql
├── 004_add_phone_to_users.up.sql
└── 004_add_phone_to_users.down.sql

1
2
3
4
5
6
7

-- 004_add_phone_to_users.up.sql
ALTER TABLE users ADD COLUMN phone VARCHAR(20);
CREATE INDEX idx_users_phone ON users (phone);

-- 004_add_phone_to_users.down.sql
DROP INDEX idx_users_phone;
ALTER TABLE users DROP COLUMN phone;

1
2
3
4
5
6
7
8
9

# golang-migrate example
# Apply all pending migrations
migrate -path ./migrations -database "postgresql://user:pass@localhost/mydb?sslmode=disable" up

# Roll back the last migration
migrate -path ./migrations -database "postgresql://user:pass@localhost/mydb?sslmode=disable" down 1

# Check current version
migrate -path ./migrations -database "postgresql://user:pass@localhost/mydb?sslmode=disable" version

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# Alembic (Python) example
# Generate migration from model changes
alembic revision --autogenerate -m "add phone to users"

# Apply migrations
alembic upgrade head

# Rollback one step
alembic downgrade -1

# Show current revision
alembic current

1
2
3
4
5

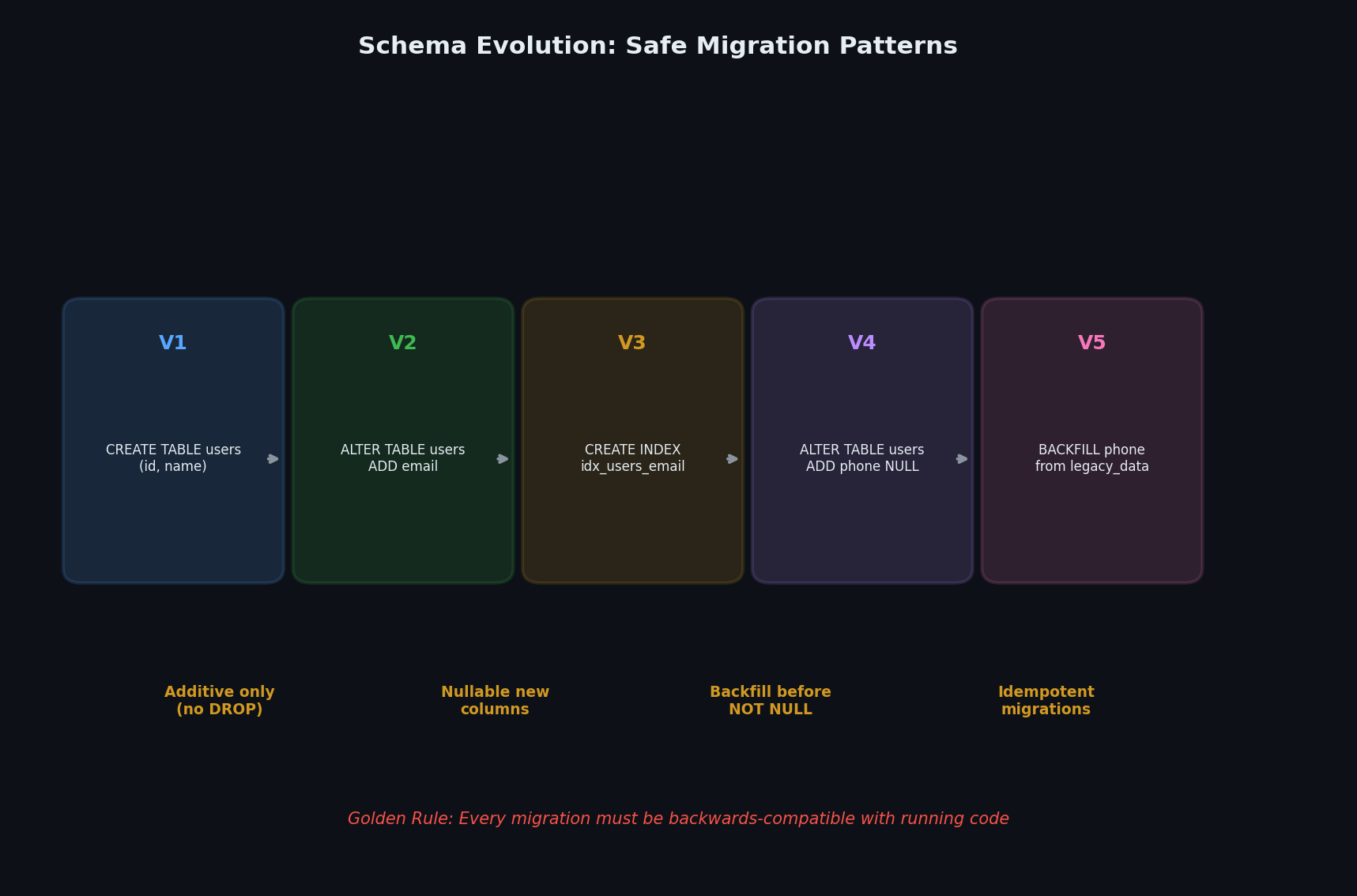

Deployment timeline:
  1. Run migration (add column, make nullable)
  2. Deploy new code (writes to new column)
  3. Backfill old rows
  4. Run second migration (add NOT NULL constraint)

1
2

-- This immediately breaks the old code that doesn't know about the column
ALTER TABLE users ADD COLUMN phone VARCHAR(20) NOT NULL;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

-- Step 1: Add nullable column (old code ignores it)
ALTER TABLE users ADD COLUMN phone VARCHAR(20);

-- Step 2: Deploy new code that writes phone

-- Step 3: Backfill existing rows
UPDATE users SET phone = 'unknown' WHERE phone IS NULL;

-- Step 4: Add NOT NULL constraint
ALTER TABLE users ALTER COLUMN phone SET NOT NULL;

1
2
3
4
5
6
7
8
9

-- Adding a nullable column: instant (no table rewrite)
ALTER TABLE users ADD COLUMN phone VARCHAR(20);

-- Adding a column with a constant default (PostgreSQL 11+): instant
ALTER TABLE users ADD COLUMN active BOOLEAN DEFAULT TRUE;

-- Creating an index concurrently: no table lock
CREATE INDEX CONCURRENTLY idx_users_email ON users (email);
-- Note: takes longer but doesn't block writes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

-- DANGEROUS: Changing column type rewrites the entire table
ALTER TABLE users ALTER COLUMN phone TYPE TEXT;

-- DANGEROUS in MySQL: Adding index without ALGORITHM=INPLACE
ALTER TABLE users ADD INDEX idx_email (email);
-- Use instead:
ALTER TABLE users ADD INDEX idx_email (email), ALGORITHM=INPLACE, LOCK=NONE;

-- DANGEROUS: Adding NOT NULL with default to existing column (older PG versions)
ALTER TABLE users ALTER COLUMN phone SET NOT NULL;
-- Safe approach: add a CHECK constraint first
ALTER TABLE users ADD CONSTRAINT users_phone_not_null
    CHECK (phone IS NOT NULL) NOT VALID;
ALTER TABLE users VALIDATE CONSTRAINT users_phone_not_null;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

# gh-ost: online schema change for MySQL
gh-ost \
  --host=localhost \
  --database=mydb \
  --table=users \
  --alter="ADD COLUMN phone VARCHAR(20)" \
  --execute

# What gh-ost does:
# 1. Creates _users_gho (ghost table) with new schema
# 2. Creates _users_ghc (changelog table)
# 3. Copies existing rows in batches
# 4. Captures ongoing changes via binlog
# 5. Atomically renames: users → _users_old, _users_gho → users

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

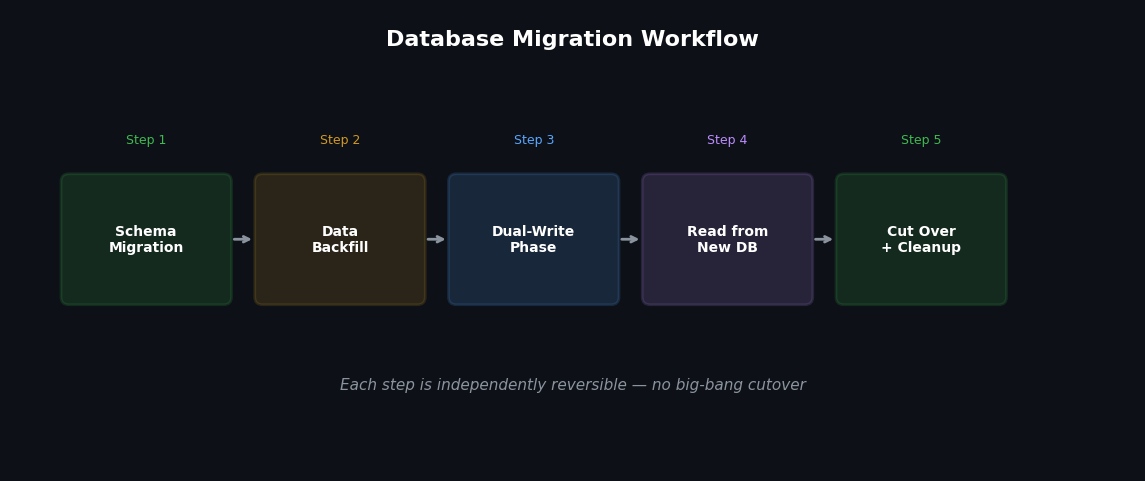

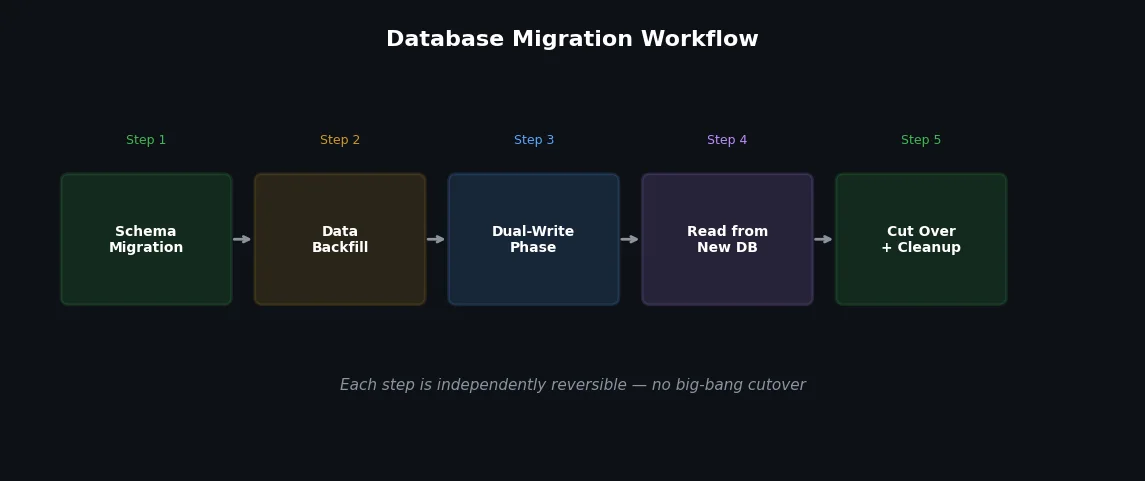

-- Step 1: Add new column
ALTER TABLE users ADD COLUMN full_name VARCHAR(200);

-- Step 2: Dual-write (application writes to both columns)
-- Deploy code that writes to both 'name' and 'full_name'

-- Step 3: Backfill
UPDATE users SET full_name = name WHERE full_name IS NULL;

-- Step 4: Switch reads to new column
-- Deploy code that reads from 'full_name'

-- Step 5: Stop writing to old column
-- Deploy code that only writes to 'full_name'

-- Step 6: Drop old column
ALTER TABLE users DROP COLUMN name;

1
2
3
4
5
6
7
8
9

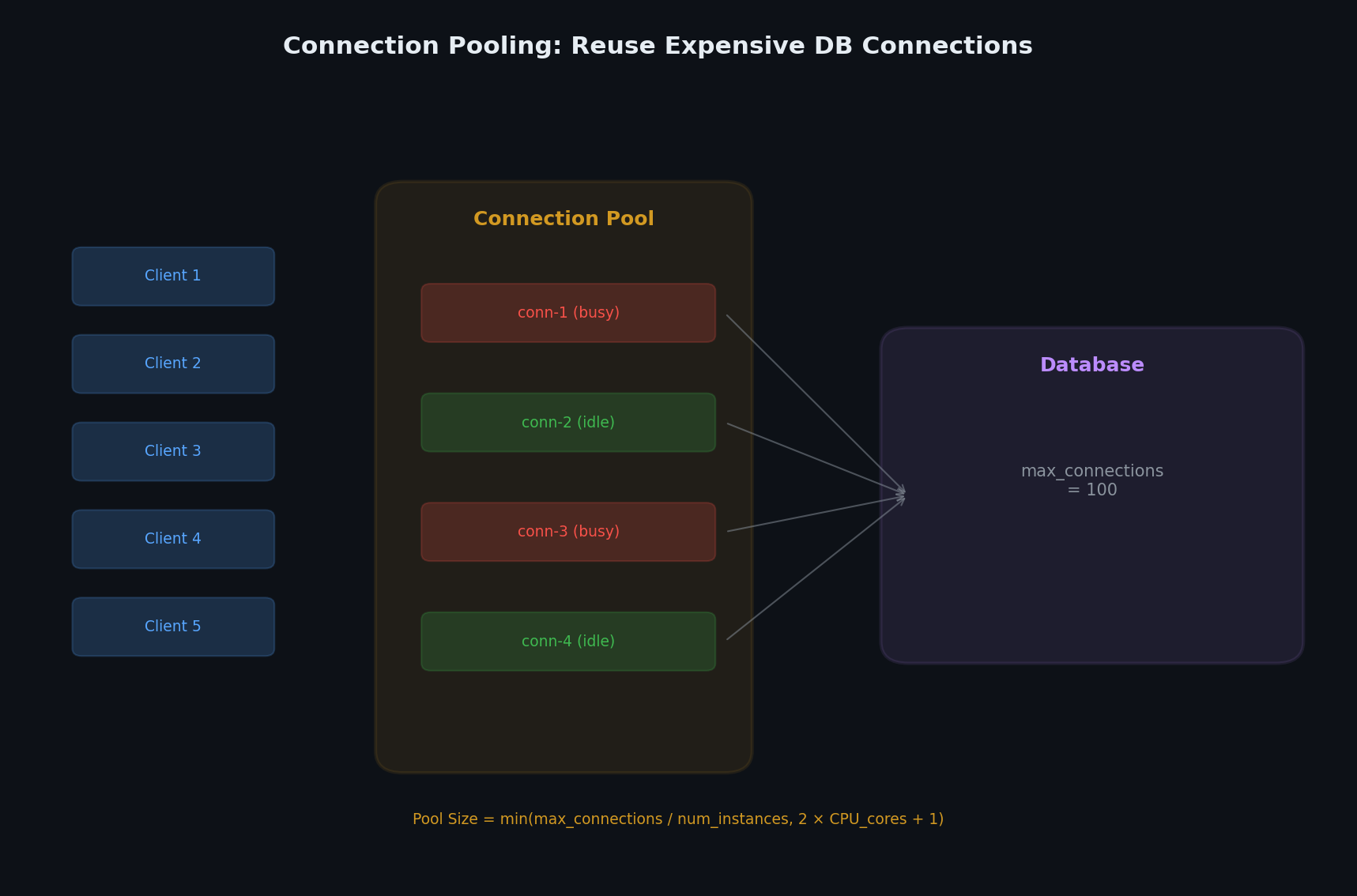

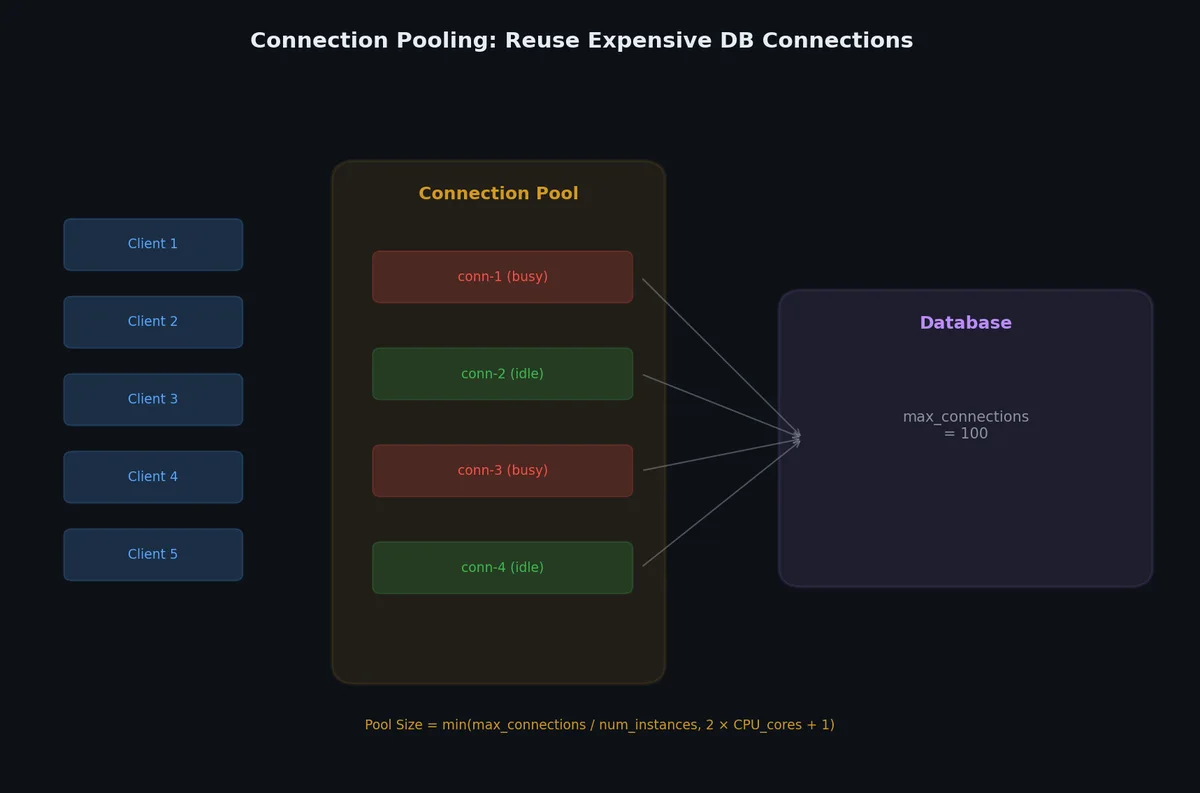

Without pooling:
  100 app servers × 20 threads each = 2,000 database connections
  PostgreSQL default max_connections = 100
  Result: connection refused errors, application crashes

With pooling:
  100 app servers × 20 threads each = 2,000 application connections
  PgBouncer maintains 50 actual database connections
  Multiplexing ratio: 40:1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

; pgbouncer.ini
[databases]
mydb = host=localhost port=5432 dbname=mydb

[pgbouncer]
listen_addr = 0.0.0.0
listen_port = 6432
auth_type = md5
auth_file = /etc/pgbouncer/userlist.txt

; Pool sizing
default_pool_size = 20        ; connections per user/db pair
max_client_conn = 1000        ; max client connections to pgbouncer
min_pool_size = 5             ; keep at least 5 connections ready
reserve_pool_size = 5         ; extra connections for burst

; Pool mode
pool_mode = transaction
; session    = connection held for entire client session (safest, least efficient)
; transaction = connection returned after each transaction (best balance)
; statement   = connection returned after each statement (most efficient, limited features)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

# Connect to PgBouncer admin console
psql -h localhost -p 6432 -U pgbouncer pgbouncer

# Show pool status
SHOW POOLS;
#  database |   user    | cl_active | cl_waiting | sv_active | sv_idle | sv_used
# ----------+-----------+-----------+------------+-----------+---------+--------
#  mydb     | app_user  |        45 |          0 |        18 |       2 |       0

# Show client connections
SHOW CLIENTS;

# Show server (database) connections
SHOW SERVERS;

# Show stats
SHOW STATS;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

-- ProxySQL admin interface (port 6032)
-- Configure backend servers
INSERT INTO mysql_servers (hostgroup_id, hostname, port, max_connections)
VALUES
  (10, 'mysql-leader', 3306, 100),    -- writer hostgroup
  (20, 'mysql-replica1', 3306, 100),  -- reader hostgroup
  (20, 'mysql-replica2', 3306, 100);  -- reader hostgroup

-- Configure query routing rules
INSERT INTO mysql_query_rules (rule_id, active, match_pattern, destination_hostgroup)
VALUES
  (1, 1, '^SELECT .* FOR UPDATE', 10),  -- SELECT FOR UPDATE → leader
  (2, 1, '^SELECT', 20),                -- all other SELECTs → replicas
  (3, 1, '.*', 10);                     -- everything else → leader

-- Apply configuration
LOAD MYSQL SERVERS TO RUNTIME;
LOAD MYSQL QUERY RULES TO RUNTIME;
SAVE MYSQL SERVERS TO DISK;
SAVE MYSQL QUERY RULES TO DISK;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# Python: SQLAlchemy connection pool
from sqlalchemy import create_engine

engine = create_engine(
    "postgresql://user:pass@localhost:5432/mydb",
    pool_size=20,           # number of persistent connections
    max_overflow=10,        # additional connections during burst
    pool_timeout=30,        # seconds to wait for a connection
    pool_recycle=3600,      # recycle connections after 1 hour
    pool_pre_ping=True,     # test connections before use
)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// Java: HikariCP (fastest JDBC pool)
HikariConfig config = new HikariConfig();
config.setJdbcUrl("jdbc:postgresql://localhost:5432/mydb");
config.setUsername("user");
config.setPassword("pass");
config.setMaximumPoolSize(20);
config.setMinimumIdle(5);
config.setConnectionTimeout(30000);  // 30 seconds
config.setIdleTimeout(600000);       // 10 minutes
config.setMaxLifetime(1800000);      // 30 minutes
config.setLeakDetectionThreshold(60000); // warn if connection held > 60s

HikariDataSource ds = new HikariDataSource(config);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

-- Current activity: what is running right now?
SELECT
    pid,
    usename,
    state,
    wait_event_type,
    wait_event,
    age(now(), query_start) AS query_duration,
    left(query, 80) AS query_preview
FROM pg_stat_activity
WHERE state != 'idle'
ORDER BY query_start;

-- Table statistics: which tables are hot?
SELECT
    schemaname,
    relname AS table_name,
    seq_scan,
    idx_scan,
    n_tup_ins AS inserts,
    n_tup_upd AS updates,
    n_tup_del AS deletes,
    n_live_tup AS live_rows,
    n_dead_tup AS dead_rows,
    ROUND(n_dead_tup::numeric / NULLIF(n_live_tup + n_dead_tup, 0) * 100, 1) AS dead_pct,
    last_autovacuum
FROM pg_stat_user_tables
ORDER BY n_dead_tup DESC
LIMIT 20;

-- Index usage: are your indexes being used?
SELECT
    schemaname,
    tablename,
    indexname,
    idx_scan AS scans,
    idx_tup_read AS tuples_read,
    idx_tup_fetch AS tuples_fetched,
    pg_size_pretty(pg_relation_size(indexrelid)) AS size
FROM pg_stat_user_indexes
ORDER BY idx_scan ASC
LIMIT 20;
-- Indexes with 0 scans are candidates for removal

-- Cache hit ratio
SELECT
    'index hit rate' AS name,
    ROUND(sum(idx_blks_hit)::numeric / NULLIF(sum(idx_blks_hit + idx_blks_read), 0), 4) AS ratio
FROM pg_statio_user_indexes
UNION ALL
SELECT
    'table hit rate',
    ROUND(sum(heap_blks_hit)::numeric / NULLIF(sum(heap_blks_hit + heap_blks_read), 0), 4)
FROM pg_statio_user_tables;
-- Both should be > 0.99

-- Database size
SELECT
    datname,
    pg_size_pretty(pg_database_size(datname)) AS size
FROM pg_database
ORDER BY pg_database_size(datname) DESC;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

-- Current processlist
SHOW PROCESSLIST;

-- InnoDB status (comprehensive)
SHOW ENGINE INNODB STATUS\G

-- Key InnoDB metrics
SELECT
    variable_name,
    variable_value
FROM performance_schema.global_status
WHERE variable_name IN (
    'Innodb_buffer_pool_read_requests',
    'Innodb_buffer_pool_reads',
    'Innodb_rows_read',
    'Innodb_rows_inserted',
    'Innodb_rows_updated',
    'Innodb_rows_deleted',
    'Innodb_deadlocks',
    'Innodb_row_lock_waits',
    'Innodb_row_lock_time_avg',
    'Threads_connected',
    'Threads_running',
    'Slow_queries',
    'Questions'
);

1
2
3
4
5

# PostgreSQL: postgresql.conf
log_min_duration_statement = 100  # log queries taking > 100ms
log_statement = 'none'            # don't log all statements (too noisy)
auto_explain.log_min_duration = '200ms'  # auto-explain for slow queries
auto_explain.log_analyze = on

1
2
3
4
5

# MySQL: my.cnf
slow_query_log = 1
slow_query_log_file = /var/log/mysql/slow.log
long_query_time = 0.1  # log queries taking > 100ms
log_queries_not_using_indexes = 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

Step 1: Find the slow query
  → slow query log, pg_stat_statements, or monitoring tool

Step 2: Run EXPLAIN ANALYZE
  → Understand the execution plan

Step 3: Identify bottleneck
  → Seq Scan? Missing index? Bad join order? Large sort?

Step 4: Test fix
  → Add index, rewrite query, or adjust configuration

Step 5: Verify with EXPLAIN ANALYZE again
  → Confirm improvement

Step 6: Monitor in production
  → Watch for regression

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

-- PostgreSQL: pg_stat_statements (top slow queries)
-- Enable: shared_preload_libraries = 'pg_stat_statements'

SELECT
    calls,
    ROUND(total_exec_time::numeric, 2) AS total_ms,
    ROUND(mean_exec_time::numeric, 2) AS avg_ms,
    ROUND((stddev_exec_time)::numeric, 2) AS stddev_ms,
    rows,
    left(query, 100) AS query_preview
FROM pg_stat_statements
ORDER BY mean_exec_time DESC
LIMIT 20;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

# PostgreSQL: pg_dump
# Single database, compressed
pg_dump -Fc -h localhost -U postgres mydb > mydb_$(date +%Y%m%d).dump

# Specific tables only
pg_dump -Fc -t users -t orders mydb > tables_$(date +%Y%m%d).dump

# Schema only (no data)
pg_dump -s mydb > schema.sql

# Restore
pg_restore -h localhost -U postgres -d mydb mydb_20231228.dump

# All databases
pg_dumpall -h localhost -U postgres > all_databases.sql

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# MySQL: mysqldump
# Single database, with consistent snapshot
mysqldump --single-transaction --routines --triggers \
  -h localhost -u root -p mydb > mydb_$(date +%Y%m%d).sql

# Compressed
mysqldump --single-transaction mydb | gzip > mydb_$(date +%Y%m%d).sql.gz

# Restore
mysql -h localhost -u root -p mydb < mydb_20231228.sql
# Or compressed:
gunzip < mydb_20231228.sql.gz | mysql -h localhost -u root -p mydb

1
2
3
4
5
6
7
8

# PostgreSQL: pg_basebackup
pg_basebackup -h localhost -U repl_user -D /backup/base \
  --checkpoint=fast --wal-method=stream -P

# This creates a complete copy of the data directory
# including WAL files needed for consistent recovery

# Restore: stop PostgreSQL, replace data directory, start

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# MySQL: Percona XtraBackup
# Full backup
xtrabackup --backup --target-dir=/backup/full \
  --user=root --password=xxx

# Prepare (apply redo logs)
xtrabackup --prepare --target-dir=/backup/full

# Restore: stop MySQL, copy files, fix permissions, start
xtrabackup --copy-back --target-dir=/backup/full
chown -R mysql:mysql /var/lib/mysql

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

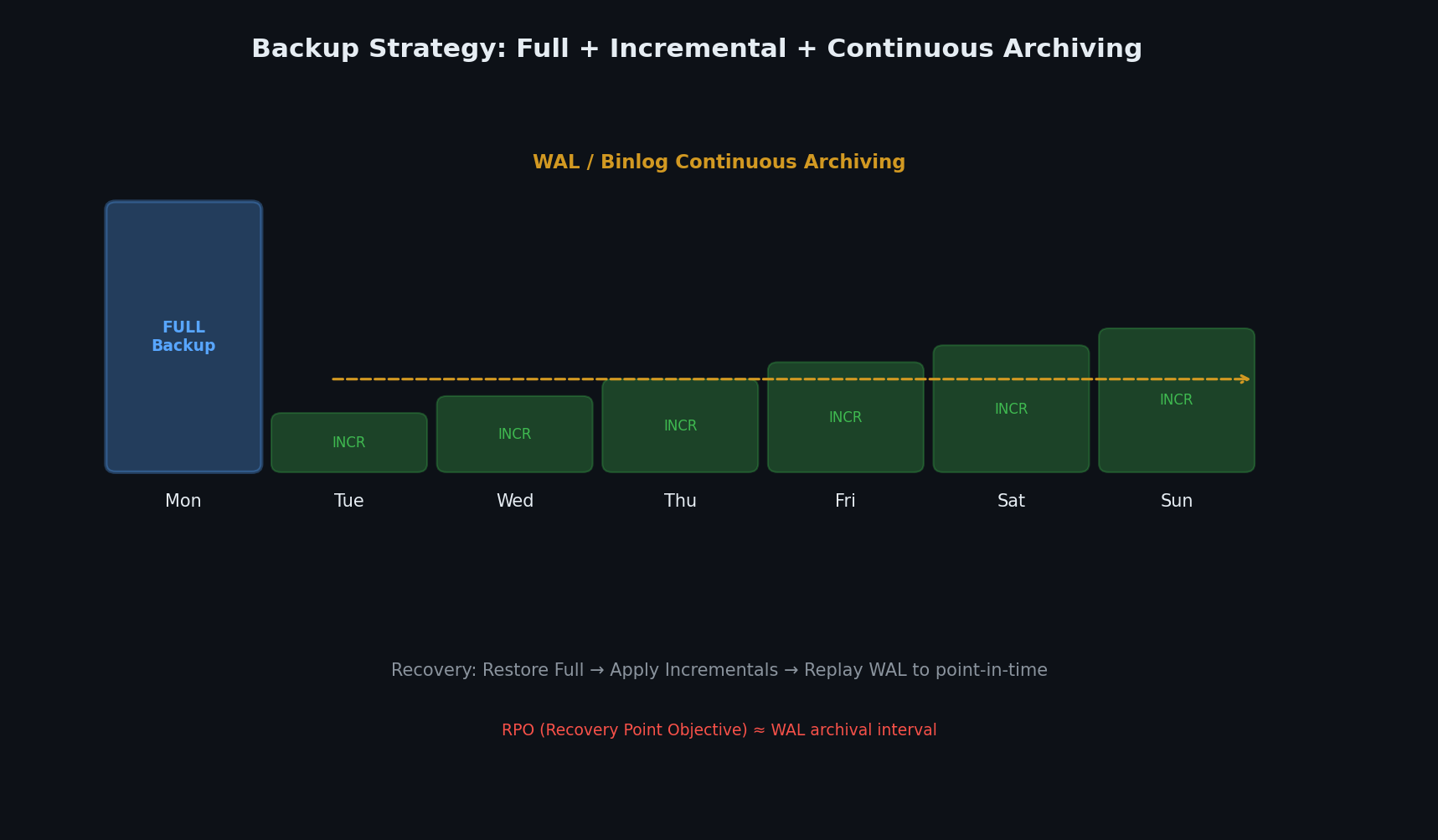

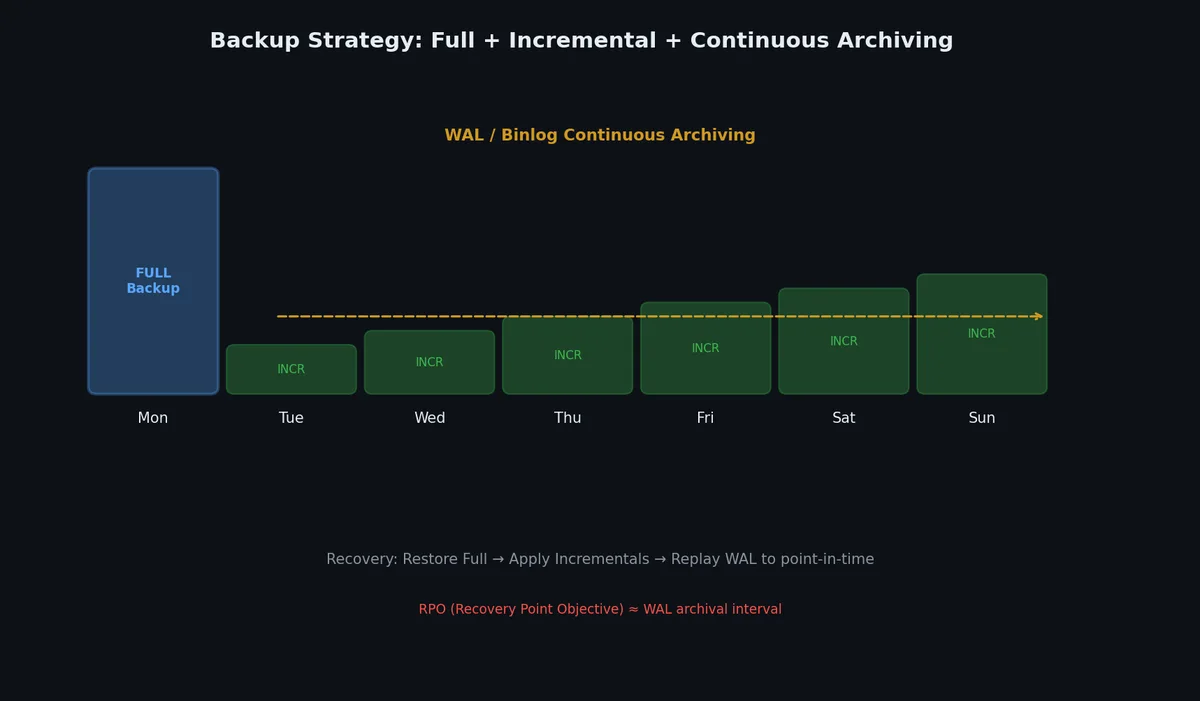

# PostgreSQL PITR
# 1. Take a base backup
pg_basebackup -D /backup/base --checkpoint=fast

# 2. Archive WAL segments continuously
# postgresql.conf:
# archive_mode = on
# archive_command = 'cp %p /backup/wal/%f'

# 3. To recover to a specific time:
# recovery.conf (or postgresql.conf in PG 12+):
# restore_command = 'cp /backup/wal/%f %p'
# recovery_target_time = '2023-12-28 14:30:00 UTC'
# recovery_target_action = 'promote'

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

#!/bin/bash
# Monthly backup restore test
set -e

echo "Starting backup restore test: $(date)"

# Create a test database
createdb restore_test

# Restore the latest backup
pg_restore -d restore_test /backup/latest/mydb.dump

# Run validation queries
psql -d restore_test -c "SELECT COUNT(*) FROM users;" | grep -q "[0-9]"
psql -d restore_test -c "SELECT COUNT(*) FROM orders;" | grep -q "[0-9]"

# Compare row counts with production
PROD_USERS=$(psql -d mydb -t -c "SELECT COUNT(*) FROM users;")
TEST_USERS=$(psql -d restore_test -t -c "SELECT COUNT(*) FROM users;")

if [ "$PROD_USERS" != "$TEST_USERS" ]; then
    echo "ALERT: Row count mismatch! Prod=$PROD_USERS, Restored=$TEST_USERS"
    exit 1
fi

# Clean up
dropdb restore_test

echo "Backup restore test passed: $(date)"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

Scale UP (vertical):
  More CPU, RAM, faster storage on the same server
  + Simpler (no application changes)
  + All features work (transactions, joins)
  - Has a ceiling (largest available instance)
  - Single point of failure without replication

Scale OUT (horizontal):
  Add more servers (replication + sharding)
  + No ceiling (add nodes as needed)
  + Built-in redundancy
  - Application complexity (query routing, distributed transactions)
  - Not all operations work across shards (cross-shard joins)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

Example: estimate database size for a SaaS application

Users: 1 million
Average row size: 200 bytes
Tables: users (1M rows), orders (10M), order_items (30M), products (100K), sessions (5M)

Data size:
  users:       1,000,000 × 200 B = 200 MB
  orders:     10,000,000 × 150 B = 1.5 GB
  order_items: 30,000,000 × 100 B = 3.0 GB
  products:       100,000 × 500 B = 50 MB
  sessions:    5,000,000 × 1 KB  = 5.0 GB
  Total data: ~10 GB

Index overhead: ~30-50% of data = 3-5 GB
WAL/binlog: ~2-5 GB rotating
Working set (hot data): maybe 20% = 2 GB

Recommendation:
  RAM: 16 GB (fits entire dataset in buffer pool)
  Storage: 50 GB SSD (room for growth + backups)
  CPU: 4 cores (for a few hundred QPS)

1
2
3

Step 1: EXPAND — add new structure alongside old
Step 2: MIGRATE — backfill data, switch writes to new structure
Step 3: CONTRACT — remove old structure (after verification)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

-- WRONG: locks table, breaks running queries
ALTER TABLE users RENAME COLUMN name TO full_name;

-- RIGHT: expand-contract pattern
-- Step 1: Add new column
ALTER TABLE users ADD COLUMN full_name VARCHAR(200);

-- Step 2: Backfill (in batches to avoid long locks)
UPDATE users SET full_name = name
WHERE full_name IS NULL
AND user_id BETWEEN 1 AND 100000;
-- ... repeat for all ranges

-- Step 3: Application reads from full_name, writes to both
-- Step 4: After all code deploys, drop old column
ALTER TABLE users DROP COLUMN name;

1
2
3
4
5

# Rebuild a table without exclusive locks (PostgreSQL)
$ pg_repack --table orders --no-superuser-check -d mydb

# Add a column with default (PostgreSQL 11+ is instant, but older versions lock)
ALTER TABLE orders ADD COLUMN status VARCHAR(20) DEFAULT 'pending';

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# Using gh-ost (GitHub Online Schema Migration) for MySQL
$ gh-ost \
  --host=replica.db \
  --database=production \
  --table=orders \
  --alter="ADD COLUMN priority INT DEFAULT 0" \
  --execute

# Using pgroll for PostgreSQL
$ pgroll start migration.json  # begin expand phase
$ pgroll complete              # contract after verification

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

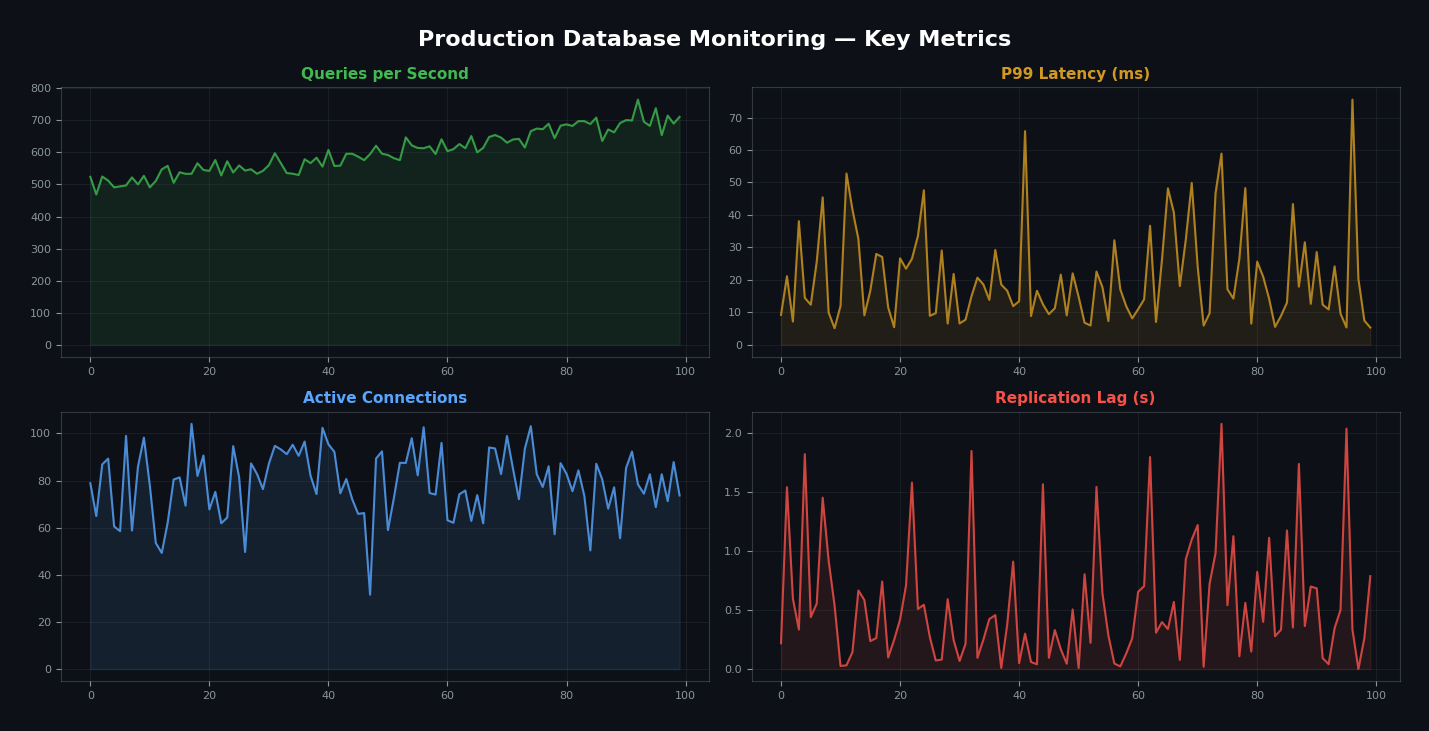

-- Active connections vs max
SELECT count(*) AS active, setting::int AS max_connections
FROM pg_stat_activity, pg_settings
WHERE pg_settings.name = 'max_connections'
GROUP BY setting;

-- Cache hit ratio (should be >99%)
SELECT
    sum(heap_blks_hit) / (sum(heap_blks_hit) + sum(heap_blks_read)) AS cache_hit_ratio
FROM pg_statio_user_tables;

-- Transaction rate
SELECT xact_commit + xact_rollback AS total_txn,
       xact_rollback AS rollbacks
FROM pg_stat_database WHERE datname = current_database();

-- Replication lag
SELECT extract(epoch FROM replay_lag) AS lag_seconds
FROM pg_stat_replication;

-- Table bloat candidates
SELECT relname, n_dead_tup, n_live_tup,
       round(n_dead_tup::numeric / greatest(n_live_tup, 1) * 100, 1) AS dead_pct
FROM pg_stat_user_tables
WHERE n_dead_tup > 10000
ORDER BY n_dead_tup DESC;

1
2
3
4
5
6
7

Formula: pool_size = (core_count * 2) + effective_spindle_count

For a 4-core server with SSD:
  pool_size = (4 * 2) + 1 = 9

Common mistake: setting pool size too high (100+)
Result: context switching overhead kills throughput

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# PgBouncer config for connection pooling
[databases]
mydb = host=127.0.0.1 port=5432 dbname=mydb

[pgbouncer]
pool_mode = transaction         # release connection after each transaction
max_client_conn = 1000          # accept many app connections
default_pool_size = 20          # but only 20 actual DB connections
reserve_pool_size = 5           # extra for bursts
reserve_pool_timeout = 3        # seconds before using reserve
server_idle_timeout = 300       # close idle server connections after 5min

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

# prometheus alerting rules
groups:
  - name: database
    rules:
      - alert: HighReplicationLag
        expr: pg_replication_lag_seconds > 30
        for: 5m
        labels:
          severity: critical

      - alert: ConnectionPoolExhausted
        expr: pgbouncer_pools_server_active / pgbouncer_pools_server_total > 0.9
        for: 2m
        labels:
          severity: warning

      - alert: HighDeadTupleRatio
        expr: pg_stat_user_tables_n_dead_tup / pg_stat_user_tables_n_live_tup > 0.2
        for: 30m
        labels:
          severity: warning

1
2
3
4

-- PostgreSQL: set safety timeouts
ALTER DATABASE mydb SET statement_timeout = '30s';
ALTER DATABASE mydb SET lock_timeout = '10s';
ALTER DATABASE mydb SET idle_in_transaction_session_timeout = '60s';
