Differential Geometry (5): The Gauss-Bonnet Theorem — Where Geometry Meets Topology

The Theorema Egregium of the previous chapter showed that Gaussian curvature is intrinsic — bend a surface without stretching and $K$ does not change. The Gauss-Bonnet theorem, which we develop here, says something equally remarkable in a different direction: integrate $K$ over a closed surface and you get a topological invariant. The total curvature of any sphere is $4\pi$ . The total curvature of any torus is $0$ . The total curvature of a double torus is $-4\pi$ . These facts are blind to the specific geometry — bend, twist, or smoosh the surface as you please, the total curvature does not change.

Stated this way, Gauss-Bonnet sounds almost too good to be true. A local differential-geometric quantity (curvature, defined pointwise by second derivatives of the metric) integrates to a global topological invariant (the Euler characteristic, defined combinatorially from a triangulation). Two completely different mathematical worlds — analysis of smooth metrics and combinatorics of cell complexes — meet in the middle. This is one of the most beautiful theorems in mathematics, and it is the conceptual ancestor of an entire industry of “index theorems” connecting analysis and topology, culminating in the Atiyah-Singer index theorem of the 1960s.

This chapter develops Gauss-Bonnet in two stages: the local version (for a region with boundary) is the computational engine; the global version (for a closed surface) is the topological punchline.

A word on the historical context. The local version — relating angle excess to curvature — was known in embryonic form to Gauss (1827) and was made precise by Bonnet (1848). The global version was also proved by Bonnet, building on Gauss’s local result. The insight that the Euler characteristic is the right topological quantity to appear on the right-hand side came from the combinatorial topology developed by Euler, Cauchy, and later Poincare. The theorem’s name honors both contributors: Gauss for the local differential-geometric content and Bonnet for the global topological extension.

What makes this theorem psychologically surprising is the vast gap between its two sides. The left side ($\int K\,dA$ ) is analytic — it requires the machinery of calculus, smooth functions, second derivatives of the metric. The right side ($2\pi\chi$ ) is combinatorial — it requires only a triangulation and the ability to count vertices, edges, and faces. That a smooth integral should equal an integer (times $2\pi$ ) is the kind of rigidity that signals deep structure. The phenomenon recurs throughout mathematics: the index of an elliptic operator is always an integer; the degree of a map between compact manifolds is always an integer; winding numbers are always integers. All of these are instances of the general principle that “continuous invariants of discrete type” arise from topological constraints.

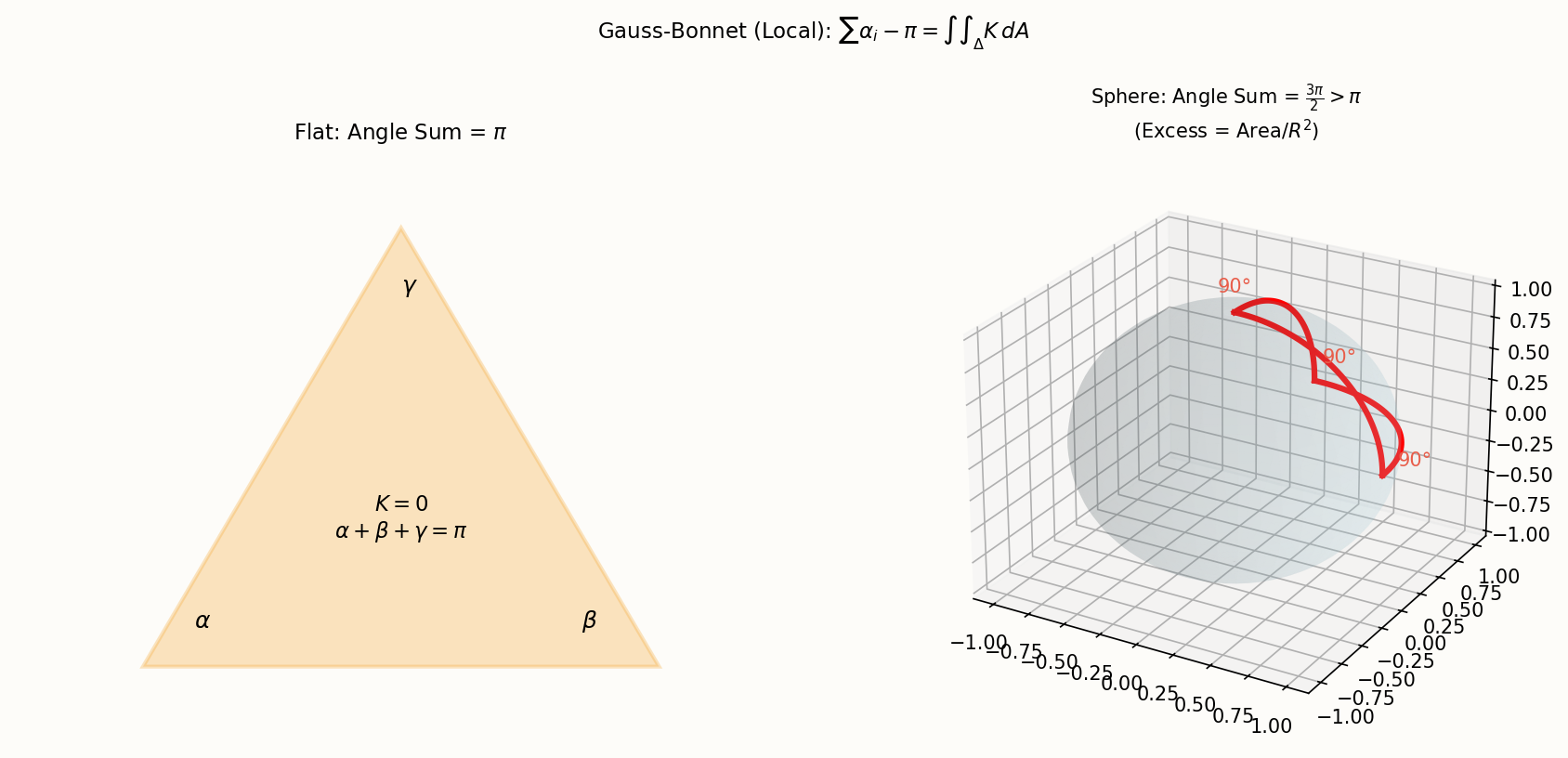

The Local Gauss-Bonnet Theorem#

The local version is about a region, not an entire surface. Set up: let $T \subset S$ be a region on an oriented surface, bounded by a simple closed piecewise-smooth curve $\partial T$ . The boundary consists of smooth arcs (each with a well-defined geodesic curvature $\kappa_g$ ) meeting at corners $p_1, \ldots, p_n$ where the tangent direction jumps by exterior angles $\theta_i$ (positive means turning left, in the chosen orientation).

In words: the total Gaussian curvature of the interior, plus the total geodesic curvature along the smooth boundary, plus the sum of exterior angles at corners, equals $2\pi$ . These three contributions partition one full rotation ($2\pi$ radians) among three sources — interior curvature, boundary turning, and corner angles.

Why should this be true? Start with the flat case ($K = 0$ everywhere). The formula reduces to $\int_{\partial T}\kappa_g\,ds + \sum\theta_i = 2\pi$ , which is simply the Hopf Umlaufsatz — the theorem that the tangent vector of a simple closed curve in the plane rotates through exactly $2\pi$ (one full turn). The smooth parts contribute $\int\kappa_g\,ds$ of turning, and the corners contribute $\sum\theta_i$ . Together they give one full revolution.

On a curved surface, the same total of $2\pi$ must be achieved, but some of the “turning budget” gets absorbed by the interior curvature. Positive curvature in the interior “uses up” turning, so the boundary has to turn less. Negative curvature in the interior “creates” a deficit, forcing the boundary to turn more. The three terms are fungible — redistributable among interior curvature, smooth boundary turning, and corner angles — but they always sum to $2\pi$ .

The proof uses parallel transport: carry a tangent vector around $\partial T$ and measure the total rotation. The smooth boundary contributes $\int\kappa_g\,ds$ of rotation, and the corners contribute $\sum\theta_i$ . But parallel transport around a closed loop also picks up holonomy of $\iint_T K\,dA$ (this is the local characterization of curvature from the previous chapter). Setting the total measured rotation equal to $2\pi$ (one full loop) gives the formula.

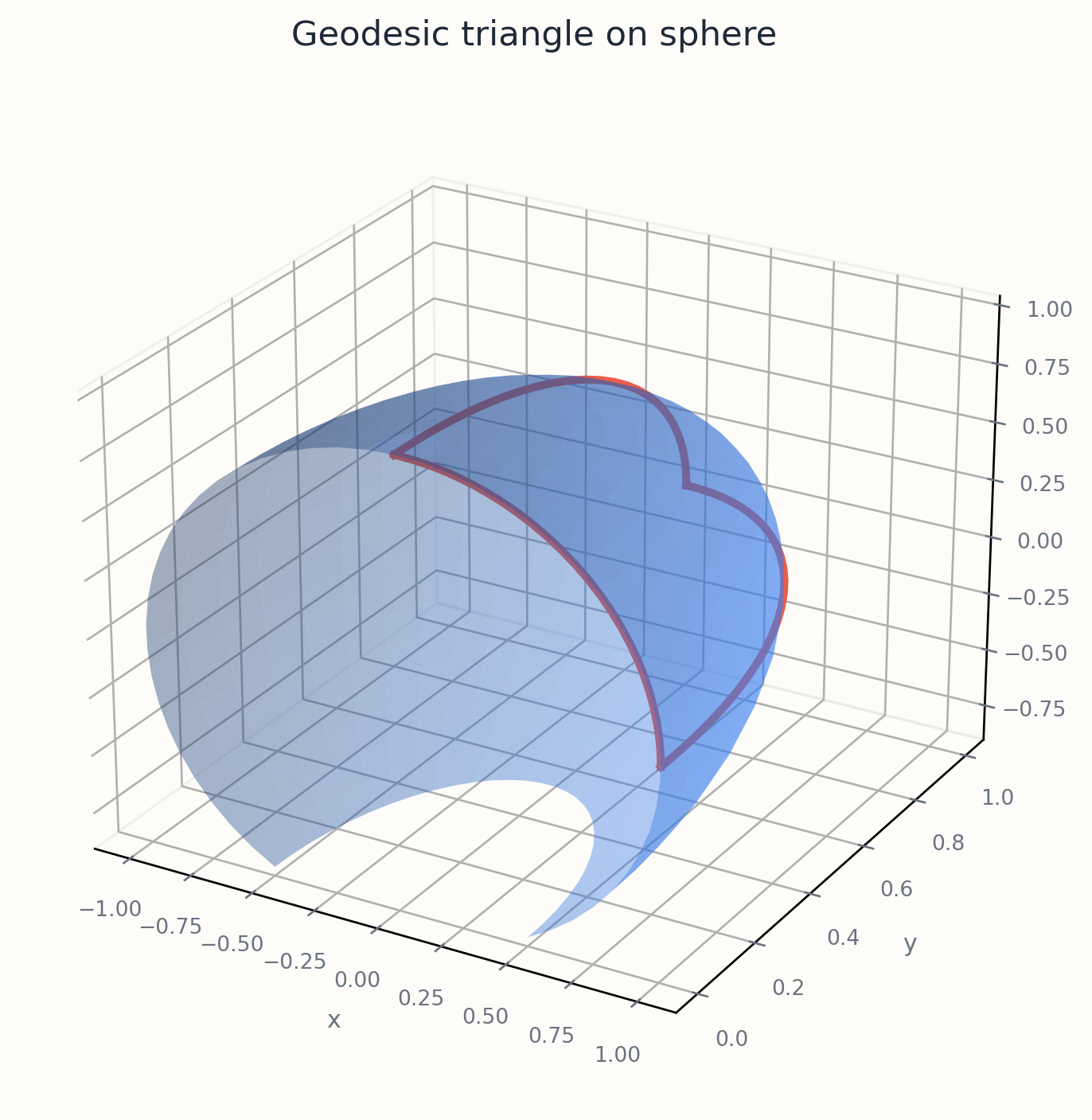

The integral of curvature over a geodesic triangle equals the angle excess (or deficit) beyond $\pi$ . In Euclidean geometry ($K = 0$ ), angles sum to $\pi$ exactly. In spherical geometry ($K > 0$ ), angles sum to more than $\pi$ . In hyperbolic geometry ($K < 0$ ), angles sum to less than $\pi$ . The “excess angle” is precisely the integrated curvature.

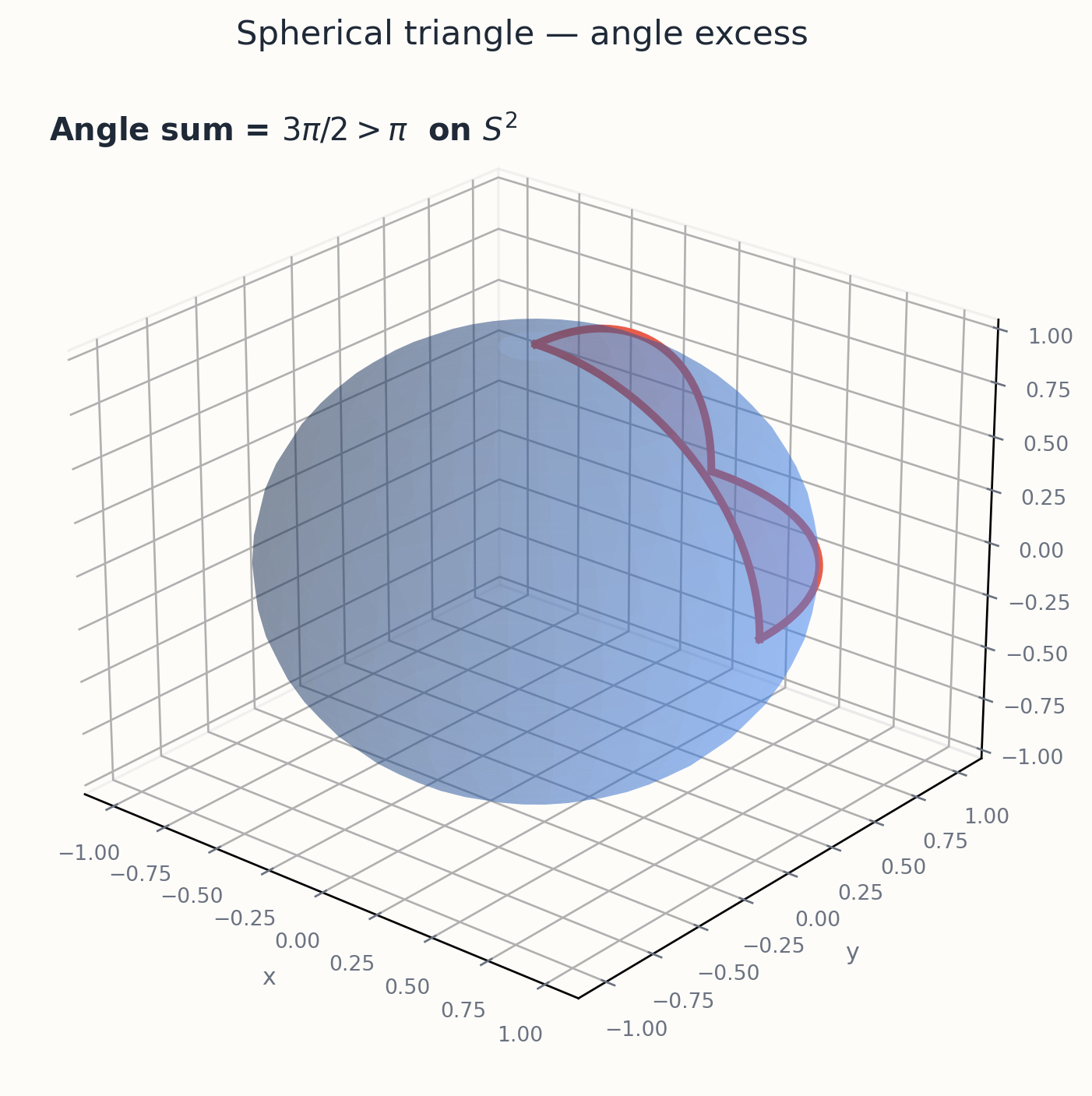

Worked example: one-eighth of the unit sphere. Take the geodesic triangle with vertices at the north pole $(0,0,1)$ and at two equatorial points $(1,0,0)$ and $(0,1,0)$ . All three sides are great-circle arcs (geodesics on the sphere). All three interior angles are $\pi/2$ (the meridians meet at the pole at $90°$ , and the equatorial arc meets each meridian at $90°$ ). So the angle sum is $3\pi/2$ , and the formula gives $\iint K\,dA = 3\pi/2 - \pi = \pi/2$ . Since $K = 1$ on the unit sphere, the area of this triangle is $\pi/2$ — one-eighth of $4\pi$ . Numerically consistent.

Worked example: ideal hyperbolic triangle. In the hyperbolic plane ($K = -1$ ), consider a triangle with all three vertices “at infinity” (in the Poincare disk model, three boundary points). All three interior angles are $0$ (the sides become tangent to the boundary, making zero angle at the vertices). The formula: $\iint K\,dA = 0 - \pi = -\pi$ . With $K = -1$ , the area is $\pi$ . Finite area, even though the vertices are infinitely far away. Every ideal triangle in the hyperbolic plane has area exactly $\pi$ , regardless of which three ideal points you choose. This remarkable rigidity has no Euclidean analog.

As a curvature detector. An ant on a surface can measure $K$ without any extrinsic information: draw a geodesic triangle, measure the three interior angles (using the intrinsic metric), compute the area (also intrinsic). If $A_1 + A_2 + A_3 > \pi$ , the average $K$ inside is positive. If less, negative. The excess per unit area gives the average Gaussian curvature. No ambient space required.

Another worked example: geodesic triangle on a torus. Consider the outer (positively curved) part of a torus, where $K > 0$ . Draw a small geodesic triangle there. The angle sum will slightly exceed $\pi$ , with the excess proportional to the area and the local value of $K$ . Now draw a geodesic triangle on the inner (negatively curved) part. The angle sum falls short of $\pi$ . If you draw a geodesic triangle large enough to straddle both regions, the positive and negative curvature contributions partially cancel in the integral, and the angle excess is determined by the net curvature enclosed. This is the local Gauss-Bonnet formula at work in a mixed-curvature setting.

The isoperimetric perspective. On a surface of positive curvature, geodesic disks (the set of points within geodesic distance $r$ of a center) have smaller area than flat disks of the same radius: $\mathrm{Area} \approx \pi r^2 - \frac{\pi K}{12}r^4 + \ldots$ for small $r$ . The positive curvature “pinches” the disk, reducing area. On a negatively curved surface, geodesic disks have more area than flat disks: the curvature “spreads” the disk. This area comparison is a reformulation of the local Gauss-Bonnet theorem: the difference between the actual area and the Euclidean expected area (for the same boundary length) is controlled by the integrated curvature.

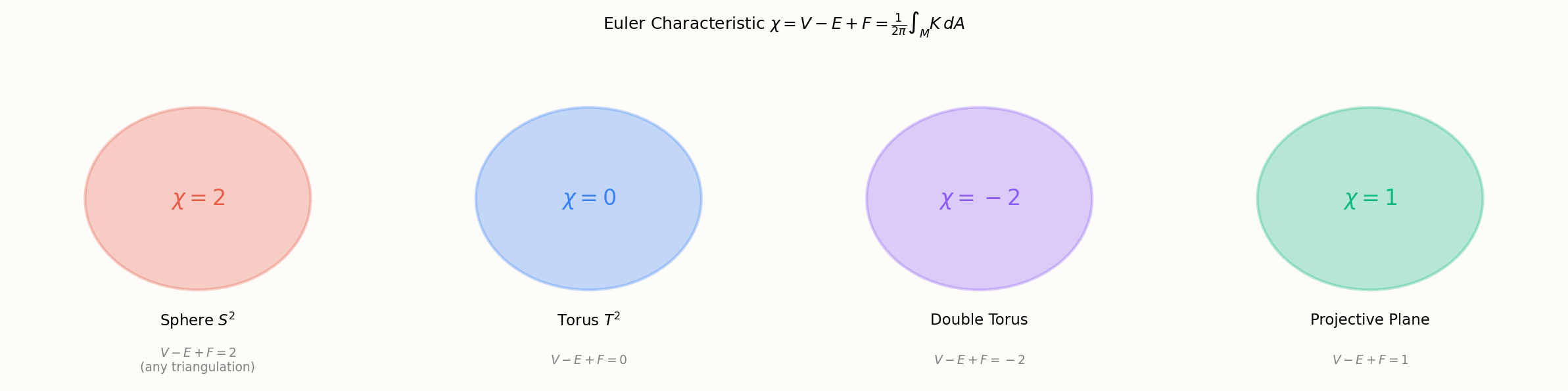

The Euler Characteristic and Triangulations#

To go from local to global, we need to tile the entire surface with triangles and sum. This requires the combinatorial machinery of triangulations and the Euler characteristic.

A triangulation of a closed surface $S$ is a decomposition into finitely many “curved triangles” (images of flat triangles under smooth maps) such that any two triangles either share nothing, share a single vertex, or share an entire edge. Every closed surface admits a triangulation (Rado, 1925). A given surface admits infinitely many triangulations.

where $V$ = number of vertices, $E$ = number of edges, $F$ = number of faces (triangles) in any triangulation. The fundamental theorem of topology says $\chi$ does not depend on the triangulation — it is an invariant of the surface’s topological type.

Standard values: $\chi(S^2) = 2$ (sphere — verify with an octahedron: $6 - 12 + 8 = 2$ ). $\chi(T^2) = 0$ (torus). $\chi(\Sigma_g) = 2 - 2g$ (genus-$g$ orientable surface, a sphere with $g$ handles). The Euler characteristic completely classifies closed orientable surfaces: two are homeomorphic if and only if they have the same $\chi$ .

An illustrative calculation: the icosahedron (a triangulation of $S^2$ ) has $V = 12$ , $E = 30$ , $F = 20$ , giving $\chi = 12 - 30 + 20 = 2$ . The cube (not a triangulation, since faces are squares, but can be triangulated by cutting each square into two triangles) gives $V = 8$ , $E = 18$ (12 original + 6 diagonals), $F = 12$ , and $\chi = 8 - 18 + 12 = 2$ . Always $2$ for the sphere, no matter the specific triangulation.

For the torus, a standard triangulation (obtained by taking a $3 \times 3$ grid of squares on the fundamental domain $[0,1]^2$ and cutting each into two triangles, then identifying opposite edges) gives $V = 9$ , $E = 27$ , $F = 18$ : $\chi = 9 - 27 + 18 = 0$ .

The connection to Gauss-Bonnet: the theorem says $\iint_S K\,dA = 2\pi\chi(S)$ . An integral of a smooth quantity (curvature) equals an integer (Euler characteristic) times $2\pi$ . Local analysis meets global combinatorics.

The Global Gauss-Bonnet Theorem and Its Proof#

where $A_i^{(j)}$ are the interior angles of triangle $T_j$ .

The individual angles — the local geometric data — cancel telescopically, leaving only the topological invariant. This is the mathematical miracle: the sum of all angles at all vertices ($2\pi V$ ) subtracts against the count of all faces ($\pi F$ ), and what survives is purely combinatorial. No metric information remains in the final answer.

A closer look at the telescoping: what happens to the boundary integrals when we triangulate? Each interior edge appears as the boundary of two adjacent triangles, traversed in opposite directions. So the line integrals $\int\kappa_g\,ds$ along shared edges cancel in pairs — and since we chose geodesic edges ($\kappa_g = 0$ ), the cancellation is automatic. At each interior vertex, the angles fill a full circle ($2\pi$ ). The “turning budget” of $2\pi$ per triangle gets redistributed between vertex angles and the face count. After all cancellations, only topology remains. This telescoping mechanism generalizes to higher dimensions: Chern’s proof of the Chern-Gauss-Bonnet theorem uses an analogous cancellation of curvature forms over a simplicial decomposition.

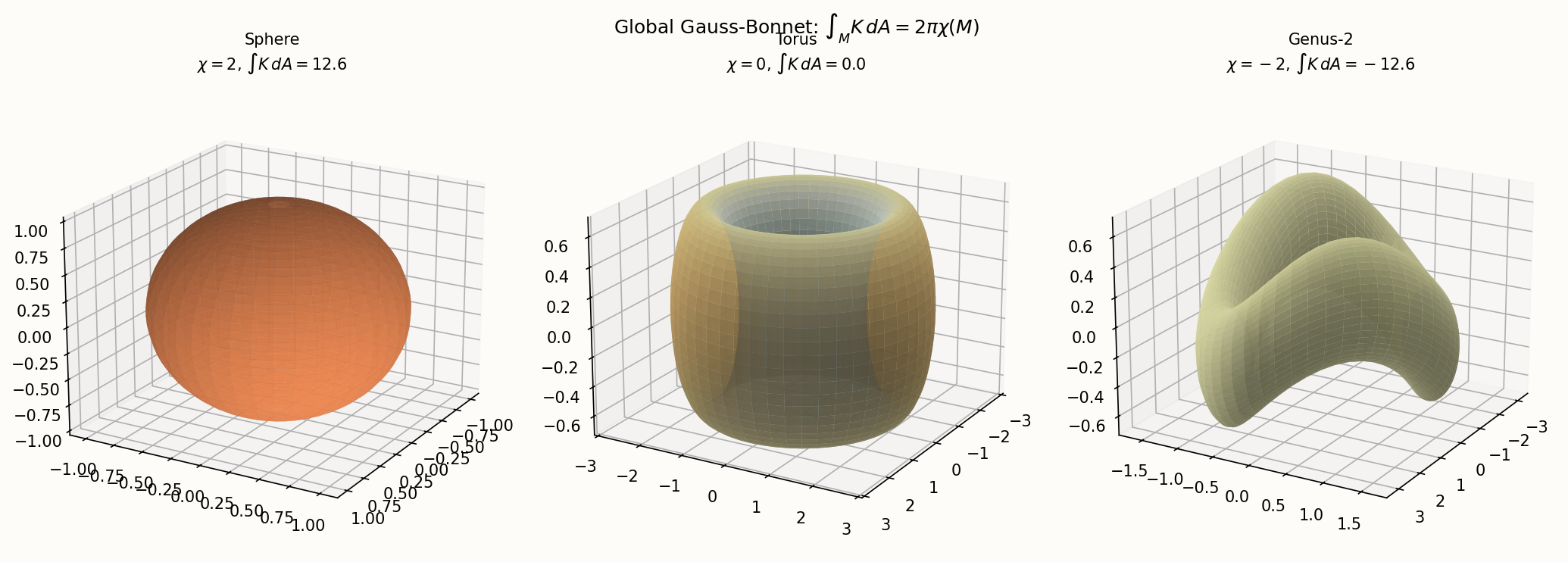

What the theorem says, physically. Consider any closed surface — a sphere, an egg, a pretzel, a coffee cup. No matter what metric you put on it (smooth it, dent it, stretch it asymmetrically), the total Gaussian curvature is fixed:

• Sphere (genus 0): total curvature $4\pi$ .
• Torus (genus 1): total curvature $0$ .
• Double torus (genus 2): total curvature $-4\pi$ .
• Genus-$g$ surface: total curvature $2\pi(2 - 2g)$ .

You can redistribute the curvature (make some regions more curved at the expense of others), but you cannot change the total. Topology constrains geometry absolutely.

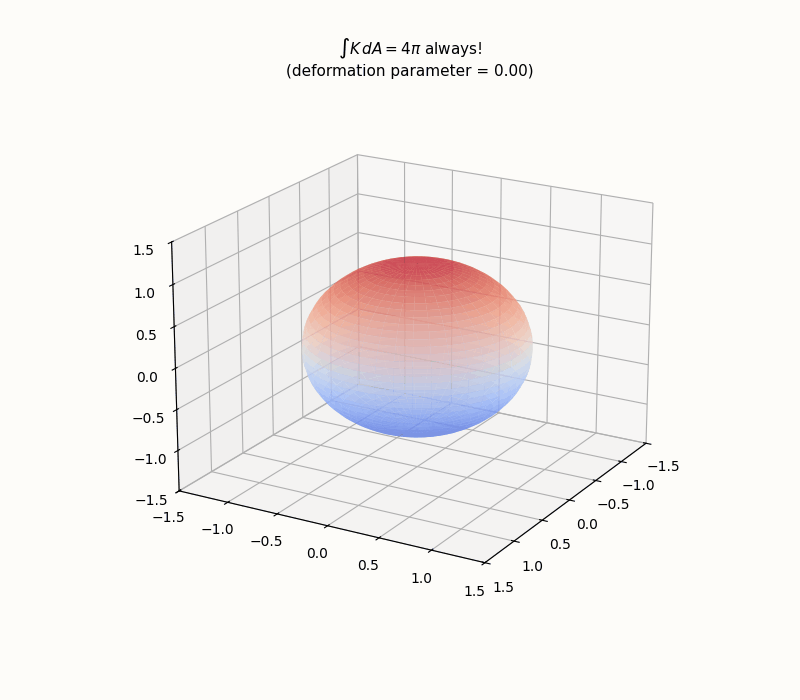

Imagine inflating a sphere into an elongated ellipsoid: curvature concentrates at the tips and thins out at the waist, but the integral stays at $4\pi$ . Imagine denting the sphere to create a dimple: you create a small region of negative curvature (inside the concavity) compensated by extra positive curvature at the rim of the dimple. The total never budges from $4\pi$ . Imagine continuously deforming a sphere into any other closed genus-0 surface — say, the shape of a kidney, or a lumpy asteroid. Every deformation merely redistributes curvature; the total is locked.

For the torus, the constraint is equally rigid: the positive curvature of the outer rim (where the torus bows outward) exactly cancels the negative curvature of the inner rim (where it bows inward). Change the proportions of the torus (fatter or thinner tube, larger or smaller hole) and you change the distribution of curvature but not the total. The cancellation is perfect, always, for any torus, as forced by $\chi = 0$ .

Consequences: Topology Constrains Geometry#

The Gauss-Bonnet theorem has immediate and powerful consequences.

No positive-curvature torus. If a metric on the torus had $K > 0$ everywhere, then $\iint K\,dA > 0$ . But Gauss-Bonnet says $\iint K\,dA = 0$ for the torus ($\chi = 0$ ). Contradiction. So every metric on the torus must have some region of zero or negative curvature. Similarly, no metric on the sphere can have $K \leq 0$ everywhere (since $\chi(S^2) = 2 > 0$ , the total curvature must be positive).

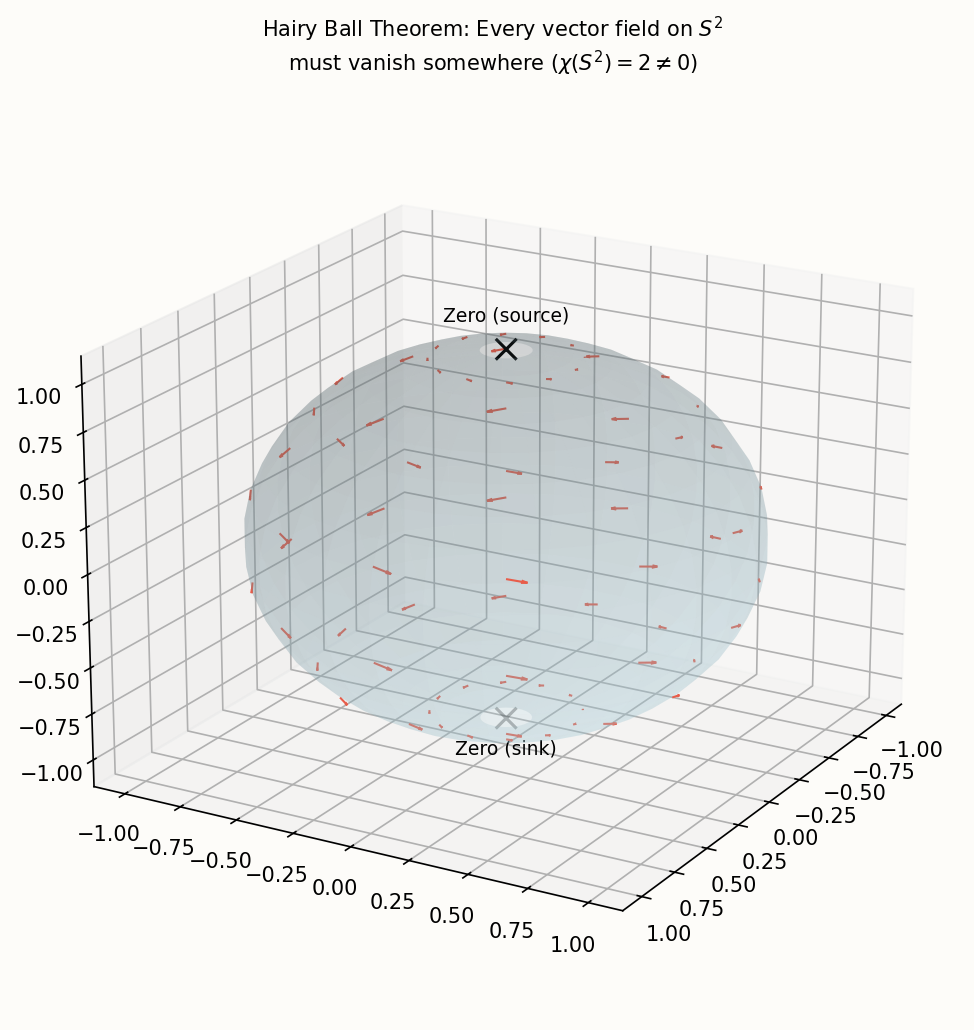

The hairy ball theorem. Every continuous tangent vector field on $S^2$ must vanish somewhere. The proof uses the Poincare-Hopf index theorem: the sum of indices of zeros of any tangent vector field equals $\chi(S)$ . For $S^2$ , $\chi = 2 \neq 0$ , so zeros exist. On a torus ($\chi = 0$ ), you can have nowhere-vanishing vector fields — the “barber pole” field on a donut has no zeros.

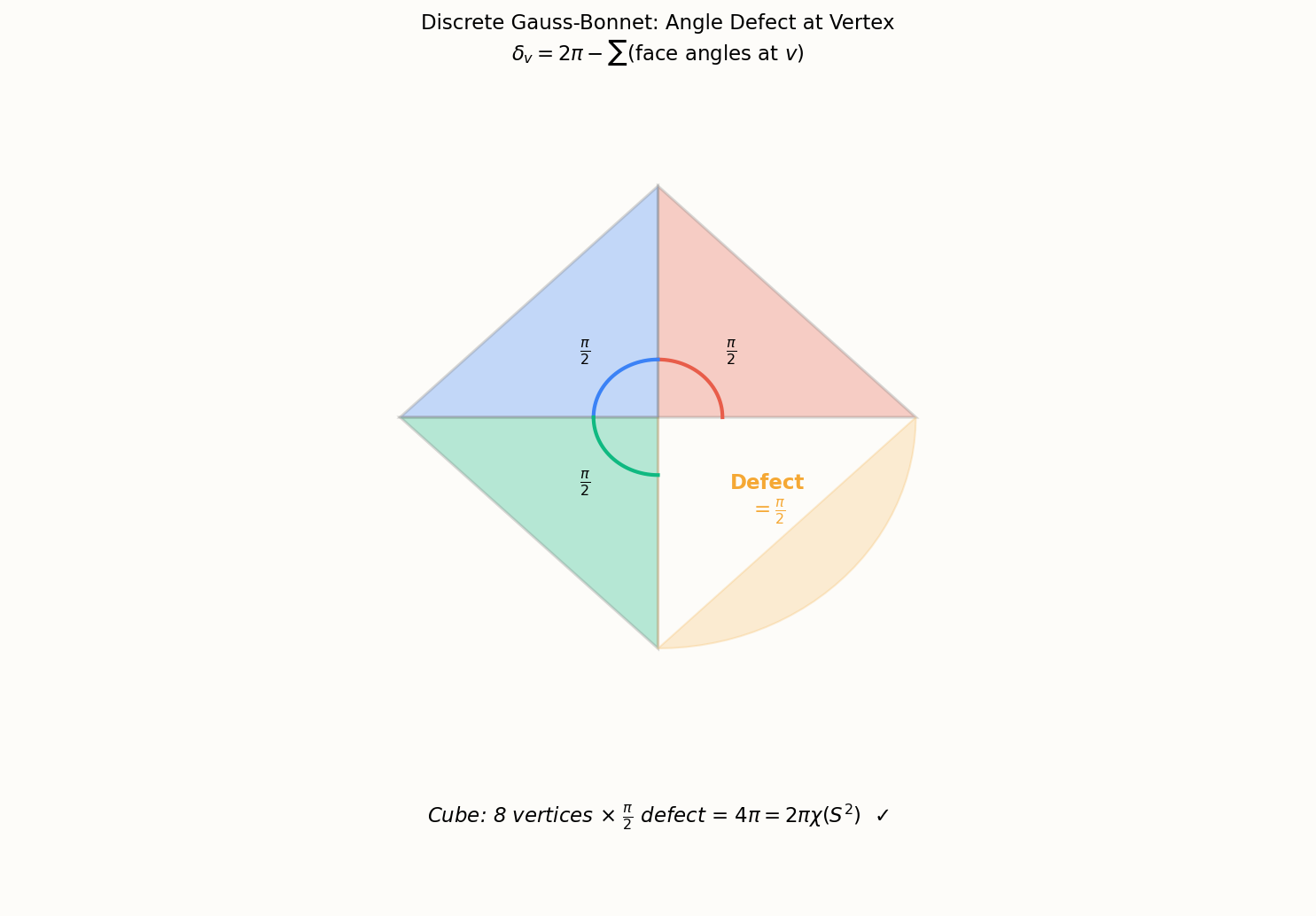

Descartes’ theorem for polyhedra (1630s). For a convex polyhedron, the angle defect at each vertex $v$ is $\delta_v = 2\pi - \sum(\text{face angles at }v)$ . Descartes proved $\sum_v \delta_v = 4\pi$ for any convex polyhedron. This is Gauss-Bonnet for polyhedra: curvature is concentrated at vertices (flat faces have $K = 0$ ), and the angle defect is the discrete analog of $\int K\,dA$ near a vertex.

Verification: a cube has 8 vertices, each with three $\pi/2$ face angles, giving defect $2\pi - 3\pi/2 = \pi/2$ . Total: $8 \times \pi/2 = 4\pi$ . A tetrahedron has 4 vertices, each with three $\pi/3$ face angles, defect $2\pi - \pi = \pi$ . Total: $4\pi$ . A dodecahedron has 20 vertices, each with three $108° = 3\pi/5$ face angles, defect $2\pi - 9\pi/5 = \pi/5$ . Total: $20 \times \pi/5 = 4\pi$ . Always $4\pi$ — topology ($\chi = 2$ ) is destiny.

The uniformization theorem (geometric version). Every closed orientable surface admits a metric of constant Gaussian curvature, and the sign of that curvature is forced by Gauss-Bonnet:

• Genus 0 ($\chi = 2 > 0$ ): constant positive curvature. The round sphere is the model.
• Genus 1 ($\chi = 0$ ): constant zero curvature. The flat torus (square with opposite sides identified) is the model.
• Genus $\geq 2$ ($\chi < 0$ ): constant negative curvature. Quotients of the hyperbolic plane are the models.

Gauss-Bonnet forces the sign; the uniformization theorem (deep, proved by Koebe and Poincare around 1907) provides existence. Together they classify all closed surface geometries into three types: spherical, Euclidean, and hyperbolic. This trichotomy is the 2-dimensional ancestor of Thurston’s geometrization conjecture (8 model geometries in 3D), which Perelman proved in 2003.

Ricci flow on surfaces. Hamilton (1988) proved that the Ricci flow $\partial g/\partial t = (r - K)g$ on a closed surface (where $r$ is the average curvature) drives any initial metric toward a constant-curvature metric. The constant value is $2\pi\chi/\text{Area}$ , forced by Gauss-Bonnet. The flow “smooths out” curvature: high-$K$ bumps spread out, low-$K$ valleys fill in, and the surface relaxes to uniform curvature. For the sphere, any metric evolves to a round metric; for the torus, to a flat metric; for higher-genus surfaces, to a hyperbolic metric. This 2D Ricci flow is the conceptual prototype of Perelman’s 3D work that proved the Poincare conjecture.

A counting argument for the minimum number of critical points. Combine Gauss-Bonnet with Morse theory: a smooth function $f: S \to \mathbb{R}$ on a closed surface has critical points (maxima, minima, saddle points). Morse theory says: the number of maxima minus the number of saddles plus the number of minima equals $\chi$ . For a sphere, $\chi = 2$ , so any Morse function must have at least two more extrema than saddles. The simplest case: one maximum, one minimum, no saddles — the height function on a sphere. For a torus, $\chi = 0$ : extrema and saddles must balance. The simplest case: one maximum, one minimum, two saddles. For a genus-2 surface, $\chi = -2$ : at least two more saddles than extrema. Topology forces the existence of critical points, and Gauss-Bonnet (via $\chi$ ) is the underlying mechanism.

The Gauss Map Degree and an Alternative Proof#

For surfaces embedded in $\mathbb{R}^3$ , there is an alternative perspective on Gauss-Bonnet using the Gauss map $N: S \to S^2$ .

where $\deg(N)$ is the topological degree of the Gauss map — the signed count of how many times $N$ covers $S^2$ .

For a convex surface (sphere, ellipsoid), $N$ is a diffeomorphism onto $S^2$ , so $\deg(N) = 1$ and $\iint K = 4\pi$ . For the torus, the normal sweeps through $S^2$ covering some parts in the positive orientation (outer rim, where $K > 0$ ) and the same parts in the negative orientation (inner rim, where $K < 0$ ). The cancellation gives $\deg(N) = 0$ and $\iint K = 0$ .

For a genus-$g$ surface, $\deg(N) = 1 - g$ , giving $\iint K = 4\pi(1-g) = 2\pi(2-2g) = 2\pi\chi$ . The Gauss-Bonnet theorem becomes: the degree of the Gauss map equals half the Euler characteristic.

This viewpoint makes the topological invariance geometrically vivid: the degree of a continuous map between compact oriented surfaces is a homotopy invariant (it can only change by integer jumps, and it varies continuously with the surface, so it cannot change at all under smooth deformations). The total curvature, being $4\pi$ times the degree, inherits this invariance. No triangulation needed — just the observation that degree is a topological invariant.

It also gives a direct, calculation-free proof for the sphere: the Gauss map of a convex surface is a diffeomorphism $S \to S^2$ (every direction is hit exactly once), so its degree is $1$ , and $\int K = 4\pi$ regardless of the specific convex shape.

A concrete visualization helps here. Imagine a closed convex surface slowly developing a dent (becoming non-convex). Before the dent forms, the Gauss map covers $S^2$ once with positive orientation everywhere. As the surface bends inward, the normal vectors in the dented region reverse, creating a patch where the Gauss map has negative Jacobian. But the degree does not change: the new “negative” patch is compensated by the fact that other parts of $S^2$ are now covered one extra time with positive orientation. The integral $\int K\,dA$ remains $4\pi$ throughout the deformation — curvature redistributes (positive at the rim of the dent, negative inside), but the total is locked by topology.

For a genus-$g$ surface, each “handle” contributes a region where the Gauss map folds back on $S^2$ with wrong orientation, reducing the degree by 1. A torus ($g = 1$ ) has $\deg(N) = 0$ : the positive covering from the outer rim exactly cancels the negative covering from the inner rim. A genus-2 surface has $\deg(N) = -1$ : the map covers $S^2$ once “backwards” overall, reflecting the dominance of negative curvature from the two handles.

Beyond Dimension Two: The Chern-Gauss-Bonnet Theorem#

The 2-dimensional Gauss-Bonnet theorem is the first case of a profound generalization to even-dimensional manifolds.

where $\Omega$ is the curvature 2-form of the Levi-Civita connection and $\mathrm{Pf}$ denotes the Pfaffian (a specific polynomial in the curvature).

For $n = 1$ (surfaces), the Pfaffian is simply $K\,dA/(2\pi)$ , recovering our theorem. For $n = 2$ (4-manifolds), the integrand involves a specific combination of the Riemann curvature tensor: $(1/(8\pi^2))(|W|^2 - |\mathrm{Ric}_0|^2/2 + R^2/24)\,dV$ in one formulation — a curvature polynomial that integrates to the Euler characteristic.

The general pattern — integrating curvature polynomials to obtain topological invariants — is the foundation of characteristic class theory. The Euler class (via Pfaffian), Pontryagin classes (via symmetric curvature polynomials), and Chern classes (in the complex case) are all constructed this way. They provide obstructions to triviality of vector bundles, which in turn constrain what geometric structures a manifold can support.

The Atiyah-Singer index theorem (1963) is the ultimate generalization. It relates the analytical index of an elliptic differential operator $D$ on a manifold (the dimension of its kernel minus the dimension of its cokernel) to a topological index computed from characteristic classes of the manifold and the operator’s symbol. Gauss-Bonnet is the special case where $D$ is the de Rham operator (exterior derivative plus its adjoint) on a surface. The Riemann-Roch theorem for algebraic curves, the Hirzebruch signature theorem, and the Gauss-Bonnet theorem are all subsumed as special cases.

The historical arc: Gauss proved the surface case (1827). Bonnet extended it to surfaces with boundary (1848). Allendoerfer and Weil generalized to higher-dimensional submanifolds of Euclidean space (1943). Chern proved the intrinsic version for abstract Riemannian manifolds (1944). Atiyah and Singer unified this with a vast family of similar theorems (1963). The basic insight — local curvature data integrates to global topological invariants — remained the central thread throughout 140 years of development.

Completeness, Boundaries, and What the Theorem Does Not Say#

Several caveats keep the theorem honest.

Compactness is essential. For non-compact surfaces (the plane, a paraboloid extending to infinity), the integral $\int K\,dA$ may converge or diverge, and the simple formula $2\pi\chi$ does not directly apply. There exist “Gauss-Bonnet at infinity” theorems (Cohn-Vossen’s inequality: $\int K\,dA \leq 2\pi\chi$ for complete surfaces with $K$ integrable), but they require additional boundary behavior analysis.

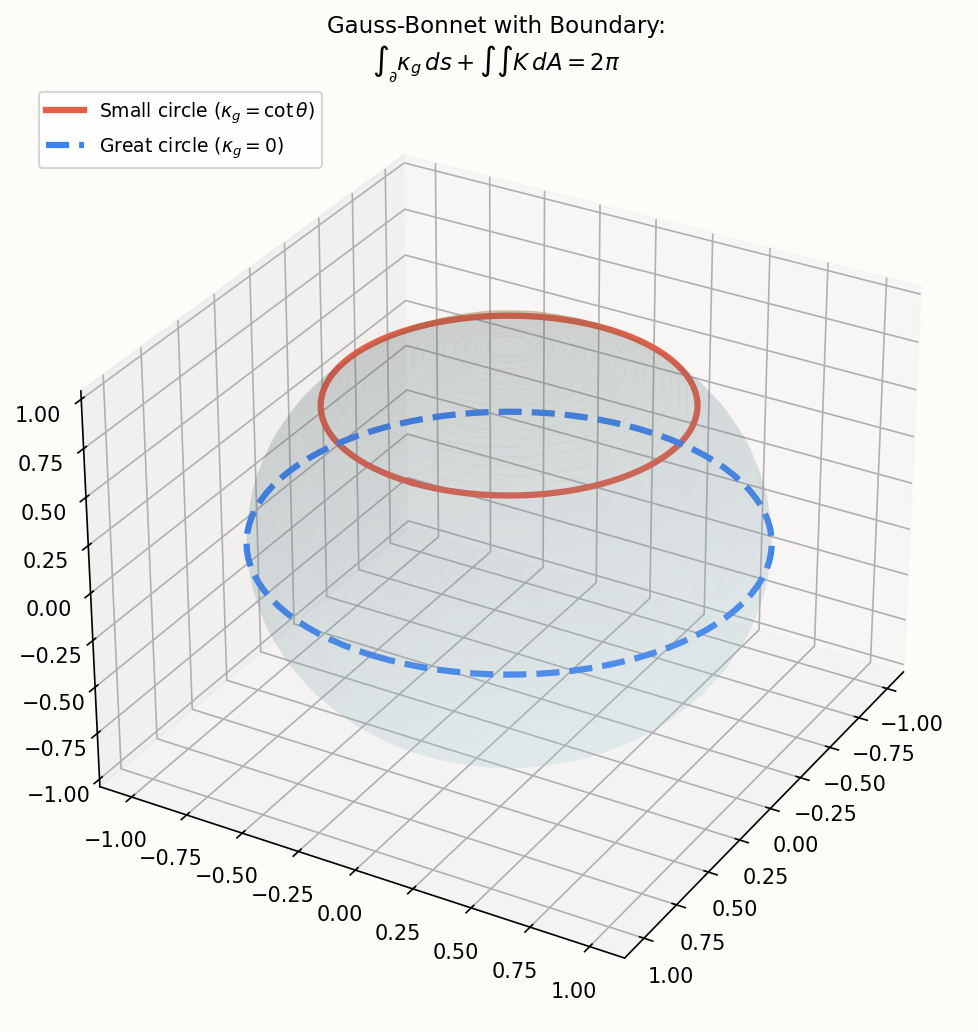

The boundary version. For a compact surface $S$ with smooth boundary $\partial S$ , the Gauss-Bonnet formula gains a boundary term: $\iint_S K\,dA + \int_{\partial S}\kappa_g\,ds = 2\pi\chi(S)$ . The geodesic curvature of the boundary contributes to the total. For a disk ($\chi = 1$ ): $\iint K\,dA + \int_{\partial}\kappa_g\,ds = 2\pi$ .

Non-orientable surfaces. For the Mobius strip, Klein bottle, or projective plane, one must be careful with orientation. The projective plane $\mathbb{RP}^2$ has $\chi = 1$ ; with its natural constant positive curvature metric (quotient of $S^2$ by the antipodal map), $K = 1$ , area $= 2\pi$ , total $= 2\pi = 2\pi\chi$ . Consistent.

Smoothness. The theorem works for $C^2$ metrics (enough regularity to define $K$ ). For piecewise-smooth surfaces, the polyhedral version (Descartes’ theorem) applies. For Lipschitz surfaces, distributional curvature formulations exist. The result is robust across regularity levels.

A philosophical remark on what Gauss-Bonnet “explains.” Why does the total curvature of a sphere not depend on the specific metric? The deep answer: because $\int K\,dA$ is a characteristic number — it equals $2\pi$ times the Euler class of the tangent bundle evaluated on the fundamental class. The Euler class is a topological invariant of the tangent bundle, and the tangent bundle depends only on the topology of $M$ , not on the metric. Changing the metric changes $K$ pointwise but cannot change the global integral. This explanation becomes fully precise in the language of characteristic classes (chapter 12), but the conceptual content is already here: the integral is “cohomologically rigid” — it cannot be deformed by smooth changes in the metric.

Why the 2D case is special. In dimension 2, the curvature is a single function $K$ (since the tangent plane is 2-dimensional, there is only one “plane” to measure curvature in). In higher dimensions, the Riemann curvature tensor has many independent components, and identifying the correct integrand for a Gauss-Bonnet theorem is non-obvious. Chern’s genius (1944) was recognizing that the Pfaffian of the curvature form is the right generalization. In 2D, the Pfaffian reduces to $K\,dA/(2\pi)$ , recovering our formula. The 2D theorem is both the simplest case and the historical seed of a vast generalization.

Numerical verification. For any metric on the unit sphere: $\int K\,dA = 4\pi$ exactly. For a sphere of radius $r$ : $K = 1/r^2$ , area $= 4\pi r^2$ , total $= 4\pi$ . For an ellipsoid with semi-axes $a, b, c$ : $K$ varies drastically (much larger near sharp tips, much smaller at the waist), but the integral is still $4\pi$ . Try computing it numerically for a specific ellipsoid — the answer converges to $4\pi$ to whatever precision your method supports. This is topology enforcing its will on geometry: the integral cannot be anything other than $4\pi$ for a topological sphere.

For a torus with major radius $R = 3$ and minor radius $r = 1$ : the curvature $K(\theta, v) = \cos v/(1\cdot(3 + \cos v))$ ranges from $+1/4$ (outer rim) to $-1/2$ (inner rim). The area element is $(3 + \cos v)\,d\theta\,dv$ , so $\int_0^{2\pi}\int_0^{2\pi}\cos v\,d\theta\,dv = 2\pi\int_0^{2\pi}\cos v\,dv = 0$ . Zero, as Gauss-Bonnet demands for a torus. The outer positive-curvature region exactly cancels the inner negative-curvature region — and it does so for any $R, r$ with $R > r$ . Change the radii, deform the torus into a lumpy doughnut, put any metric on it — the total curvature remains zero.

Deeper Examples and Common Pitfalls#

The earlier sections introduced the local and global Gauss-Bonnet theorems, the Euler characteristic, the Gauss-map degree, and the road to higher dimensions. This section computes specific cases in detail, points out where beginners go wrong, and connects Gauss-Bonnet to applications outside pure mathematics.

A worked numerical example: the sphere and the torus, integrated explicitly#

For the unit sphere, $K = 1$ everywhere and the area is $4\pi$ . So $\int_{S^2} K\, dA = 4\pi$ . Gauss-Bonnet says this equals $2\pi \chi(S^2) = 2\pi \cdot 2 = 4\pi$ . Verified. The Euler characteristic $\chi(S^2) = 2$ comes from any triangulation: the tetrahedral triangulation gives $V = 4, E = 6, F = 4$ , so $V - E + F = 2$ .

Gauss-Bonnet says this should equal $2\pi \chi(T^2) = 0$ . Verified — the cancellation between the elliptic outer half ($K > 0$ ) and the hyperbolic inner half ($K < 0$ ) is forced by topology.

A worked numerical example: a polygon on a sphere#

Take a spherical polygon: the triangle on the unit sphere with vertices at the north pole, the equator at $\theta = 0$ , and the equator at $\theta = \pi/3$ . The interior angles are $\pi/3$ at the north pole (the angle between the two meridians) and $\pi/2$ at each of the two equator vertices (meridians meet the equator at right angles). Sum of interior angles: $\pi/3 + \pi/2 + \pi/2 = 4\pi/3$ . Excess over $\pi$ : $4\pi/3 - \pi = \pi/3$ .

Area of the triangle: a quick way is the spherical excess formula $A = R^2 \cdot E$ where $E$ is the excess and $R = 1$ . So $A = \pi/3$ . Verify by direct integration: the triangle covers $\theta \in [0, \pi/3]$ over the upper hemisphere, $A = \int_0^{\pi/3} \int_0^{\pi/2} \sin\phi\, d\phi\, d\theta = \int_0^{\pi/3} 1\, d\theta = \pi/3$ . Match.

Gauss-Bonnet for this polygon: $\int K\, dA + \sum (\pi - \alpha_i) = 2\pi$ , where $\alpha_i$ are interior angles. Compute: $\int K\, dA = 1 \cdot \pi/3 = \pi/3$ . Sum of exterior angles: $(\pi - \pi/3) + (\pi - \pi/2) + (\pi - \pi/2) = 2\pi/3 + \pi/2 + \pi/2 = 5\pi/3$ . Total: $\pi/3 + 5\pi/3 = 2\pi$ . Verified.

Intuition + counterexample: why $\chi$ is so robust#

The Euler characteristic looks like a fragile combinatorial gadget — count vertices, edges, faces. But changing the triangulation by adding or removing simplices preserves $V - E + F$ : each subdivision adds equal numbers of $V$ and $F$ and corresponding edges in a way that exactly cancels. This combinatorial invariance is what lets Gauss-Bonnet work. Without it, the right side of the theorem would depend on a choice of triangulation, which the left side (a smooth integral) cannot see.

Counterexample to fragile-looking robustness: a non-orientable surface. The Klein bottle has $\chi = 0$ , like the torus, but no global integral of $K$ matches it because the Klein bottle does not embed in $\mathbb{R}^3$ . The right setup for Gauss-Bonnet on non-orientable surfaces is via the orientation double cover. The integral on the cover divided by 2 gives $2\pi \chi$ , but you cannot pull the integral down to the Klein bottle directly. This is the cleanest counterexample to “Gauss-Bonnet works on any compact surface as stated” — orientability is silently assumed.

A third worked example: a square pillow as a piecewise surface#

Take a square cushion — four flat triangles glued into a closed surface. There is no smooth Riemannian metric (the corners are singular), but Gauss-Bonnet still works in the discrete sense. Each face has $K = 0$ (flat), so the smooth-curvature integral over the smooth part is 0. The angle defects are concentrated at the vertices: at each vertex of the cushion (four of them), the surrounding angles in adjacent triangles sum to less than $2\pi$ . For a tetrahedron made of four equilateral triangles, each vertex has three triangles meeting, contributing total angle $3 \cdot \pi/3 = \pi$ , so the defect is $2\pi - \pi = \pi$ per vertex. Total: $4 \pi$ . By discrete Gauss-Bonnet, $4\pi = 2\pi \chi$ , so $\chi = 2$ . Match: the tetrahedron is topologically a sphere. The same calculation for a cube: each of 8 vertices has three squares meeting, total angle $3 \pi/2$ , defect $\pi/2$ . Total: $8 \cdot \pi/2 = 4\pi$ . Match again.

This is how 3D mesh software computes the topology of a model in O(V) time, no triangulation refinement needed: sum the angle defects, divide by $2\pi$ , get $\chi$ , derive the genus. A bug-detection workflow that takes microseconds.

A fourth worked example: angle excess on the sphere as a function of triangle size#

Take spherical triangles of varying size on the unit sphere, all centered at the north pole, with three meridians evenly spaced at $2\pi/3$ apart cut at colatitude $\phi_0$ . The interior angles at the equatorward vertices are $\pi/2$ each (angle between meridian and parallel circle is not $\pi/2$ unless the parallel is a great circle, but we’re working with great-circle arcs from those vertices to each other; for small $\phi_0$ the geometry is nearly flat). For a tiny triangle ($\phi_0$ small), the angle excess is small, scaling like the triangle’s area, since $K = 1$ on the unit sphere. For a triangle covering the entire upper hemisphere ($\phi_0 = \pi/2$ ), angle excess equals $2\pi$ — a full great-circle “wedge” with three right angles plus an apex angle that approaches $2\pi/3$ , so total $2\pi/3 + 3\pi/2 - \pi = 2\pi/3 + \pi/2$ , area is $2\pi$ (full hemisphere), and Gauss-Bonnet checks out. The exercise of plotting “angle excess vs area” gives a perfect line of slope $K = 1$ , and this is how astronomers historically measured the Earth’s curvature without ever leaving its surface.

Common pitfall for beginners#

Beginners frequently misapply Gauss-Bonnet to surfaces with boundary or to surfaces that are not closed. The full statement is: $\int_M K\, dA + \int_{\partial M} \kappa_g\, ds + \sum (\pi - \alpha_i) = 2\pi \chi(M)$ , where the sum is over corner points of the boundary. Skipping the geodesic-curvature term or the corner term gives the wrong answer.

A specific trap: a hemisphere of the unit sphere. The boundary is the equator, a geodesic, so $\kappa_g = 0$ . No corners. Compute: $\int K\, dA = 2\pi$ (area $2\pi$ , $K = 1$ ). $\chi$ (hemisphere) $= 1$ (it deformation-retracts to a point). Gauss-Bonnet: $2\pi + 0 + 0 = 2\pi \cdot 1$ . Match. If you forgot $\chi = 1$ and used $\chi = 2$ (sphere), the equation would fail.

A second trap: the boundary geodesic-curvature integral has a sign that depends on orientation. The convention is that the boundary is traversed so that $M$ lies to the left. Reversing the orientation flips the sign of the integral and breaks Gauss-Bonnet. This is the most common bug in computational implementations.

Where this matters in physics, computing, and engineering#

In discrete differential geometry, Gauss-Bonnet survives the move to triangle meshes via angle defect: at each vertex of a polyhedral surface, the angle defect is $2\pi - \sum \alpha_i$ over the angles meeting at that vertex. Summing over all vertices reproduces $2\pi \chi$ . Mesh processing software (libigl, OpenMesh) uses this to detect topology-changing edits (handle-creation, hole-filling) by tracking the global angle defect.

In general relativity, the four-dimensional analog of Gauss-Bonnet (the Chern-Gauss-Bonnet theorem in dimension 4) connects the integral of a specific curvature scalar (the Pfaffian) to the Euler characteristic of spacetime. In black-hole entropy calculations, this term appears as a topological correction to the Bekenstein-Hawking formula in higher-derivative gravity. The “Gauss-Bonnet term” in modified gravity literature is exactly this.

In computer graphics, the genus of a 3D-printed model is computed via Gauss-Bonnet on the discretized mesh: $\chi = \sum$ angle defects $/ 2\pi$ , then $g = (2 - \chi)/2$ . Slicing software uses this to detect models with unintended handles before printing — a real-world QA check that costs essentially nothing.

In molecular biology, the genus of a protein’s surface (defined via solvent-accessible surface) correlates with binding-site complexity. Computational biology pipelines compute genus via Gauss-Bonnet on triangulated isosurfaces of electron density.

Revisiting “what’s next” with sharper questions#

Article 6 introduces smooth manifolds, the abstract framework that lets us do calculus without an embedding. To prepare:

(1) Articles 1-5 worked with surfaces in $\mathbb{R}^3$ . The Gauss-Bonnet theorem and the Theorema Egregium suggest that intrinsic geometry is the real subject. What is the right abstract setting to formulate “intrinsic geometry” without ever mentioning an ambient $\mathbb{R}^N$ ? (2) Tangent vectors so far were arrows in $\mathbb{R}^3$ . On an abstract manifold, there is no ambient space, so what is a tangent vector? The answer (a derivation of smooth functions) is one of the deepest reframings in this series. (3) The Whitney embedding theorem says every $n$ -manifold embeds in $\mathbb{R}^{2n}$ . So abstract manifolds are not strictly more general than embedded ones — but the abstract viewpoint is much cleaner. Why bother with abstraction if everything embeds anyway?

You now have a complete classical theory of surfaces. Article 6 is the conceptual hinge of the series: the move from “surface in $\mathbb{R}^3$ ” to “manifold.” Read it asking “what is the cleanest definition that recovers all of the above without ever using an embedding?” The answer — charts, atlases, smooth structures — is one of the great mathematical inventions of the 20th century.

One last worked example: Gauss-Bonnet on a square pillow#

A “pillow” is two unit squares glued along their boundaries to form a closed polyhedral surface — topologically a sphere, four corners. Each square contributes flat interior ($K = 0$ ), so the smooth-curvature integral is $0$ . The four corners each have angle defect: at each corner, two squares meet, contributing total interior angle $2 \cdot \pi/2 = \pi$ , so defect $2\pi - \pi = \pi$ per corner. Total angle defect: $4\pi$ .

Discrete Gauss-Bonnet: total angle defect = $2\pi \chi$ . So $4\pi = 2\pi \chi$ , giving $\chi = 2$ . Confirmed: the pillow is topologically $S^2$ ($\chi = 2$ ), as you would guess from the gluing pattern.

Compare to a tetrahedron: 4 vertices, each with three equilateral triangles meeting, total interior angle $3 \cdot \pi/3 = \pi$ , defect $\pi$ . Total: $4\pi$ . Same answer — both are spheres. Now a cube: 8 vertices, three squares meeting, interior angle $3 \cdot \pi/2 = 3\pi/2$ , defect $\pi/2$ . Total: $8 \cdot \pi/2 = 4\pi$ . All three closed convex polyhedra (pillow, tetrahedron, cube) yield the same total angle defect $4\pi$ , as Gauss-Bonnet demands. This is Descartes’ theorem on total angular defect, which predates Euler’s formula by over a century — Descartes proved it directly without going through $V - E + F$ , an alternative path to the same topological invariant. Numerical check on a soccer ball (truncated icosahedron): 60 vertices, each with two pentagons + one hexagon meeting, angles $2(108°) + 120° = 336°$ , defect $24°$ . Total: $60 \cdot 24° = 1440° = 4\pi$ radians. Match.

One more topological example: surfaces of higher genus#

Beyond sphere ($\chi = 2$ ) and torus ($\chi = 0$ ), the genus-$g$ closed orientable surface has $\chi = 2 - 2g$ . Numerically: genus 2 (double torus) has $\chi = -2$ , genus 3 has $\chi = -4$ , etc. Gauss-Bonnet $\int K\, dA = 2\pi(2 - 2g)$ implies that any genus-$\geq 2$ surface admits no constant-positive-curvature metric (the integral would be positive but $\chi < 0$ ). It also forbids constant-zero-curvature metrics for $g \geq 2$ (would require $\chi = 0$ , only the torus). What remains is constant-negative-curvature: every closed orientable surface of genus $\geq 2$ admits a hyperbolic metric ($K = -1$ ), unique up to isometry by the Poincaré uniformization theorem.

So Gauss-Bonnet, combined with uniformization, gives a complete classification: spheres are positively curved, tori are flat, higher-genus surfaces are hyperbolic. Three model geometries, three kinds of topology. This is the simplest non-trivial example of the Thurston geometrization program, which generalizes the picture to 3-manifolds (eight model geometries instead of three; resolved by Perelman in 2003).

Verify Gauss-Bonnet on a genus-2 hyperbolic surface: total area is $\int dA = -2\pi \chi/K = -2\pi(-2)/(-1) = 4\pi$ . So every genus-2 hyperbolic surface has area exactly $4\pi$ — independent of which hyperbolic metric you choose. The topology fixes the area.

What’s next#

With the classical theory of surfaces complete — first form, second form, intrinsic curvature, Gauss-Bonnet — we shift gears entirely. Chapter 6 introduces smooth manifolds: abstract spaces that locally resemble $\mathbb{R}^n$ but need not embed in any ambient space. This is where modern differential geometry begins, and it is the framework for everything from general relativity to gauge theory.
