Differential Geometry (12): Fiber Bundles, Characteristic Classes, and Physics

Throughout this series, we have built differential geometry from the ground up: manifolds, tangent spaces, differential forms, integration, Riemannian metrics, connections, and curvature. A recurring theme has been the tangent bundle $TM$ — the collection of all tangent spaces glued together into a single geometric object. The Levi-Civita connection is a rule for differentiating sections of $TM$ (i.e., vector fields), and the Riemann curvature tensor measures the non-commutativity of this differentiation.

But the tangent bundle is just one example of a much more general construction: a fiber bundle. And the Levi-Civita connection is just one example of a connection on a vector bundle. This generalization is not merely aesthetic — it is the mathematical language of gauge theory, the framework underlying all of modern particle physics. Electromagnetism, the weak force, the strong force, and even gravity can all be described as connections on appropriate bundles, with their dynamics governed by curvature.

In this final article, we introduce fiber bundles, principal bundles, connections, characteristic classes (Chern, Pontryagin, Euler), and Yang-Mills theory. The treatment is necessarily brief — each topic deserves a textbook — but the goal is to show how everything we have built (forms, exterior derivative, connections, curvature, Stokes’ theorem, integration) comes together to describe the geometry of gauge fields. The dictionary at the end summarizes the physics-mathematics correspondence, which is one of the great translation tables of 20th-century science.

The plan: vector bundles and sections, principal bundles and structure groups, connections and curvature 2-forms, characteristic classes via Chern-Weil theory, Yang-Mills functional, and the gauge theory dictionary. By the end you should see why a physicist’s Lagrangian and a mathematician’s connection are the same object, and why the topology of bundles places hard constraints on what the physics can do.

A historical anchor before we dive in. Yang and Mills wrote down their non-abelian gauge theory in 1954 motivated entirely by particle physics: they wanted to extend QED’s $U(1)$ symmetry to an isospin $SU(2)$ symmetry of nuclear physics. They derived the field-strength formula $F = dA + A\wedge A$ from physical reasoning about gauge invariance, and were unaware that Cartan had developed the same equation in the 1920s as the curvature of a non-abelian connection. The two communities did not realise they were doing the same subject until the 1970s, when Wu, Yang, and others began to translate. By the 1980s the dictionary was complete, and by the 1990s it had become impossible to do serious mathematical physics without speaking both languages. The arc from “two unrelated subjects” to “two formulations of one subject” is one of the great convergences of 20th-century thought, and the dictionary at the end of this article is the explicit translation table.

Fiber Bundles#

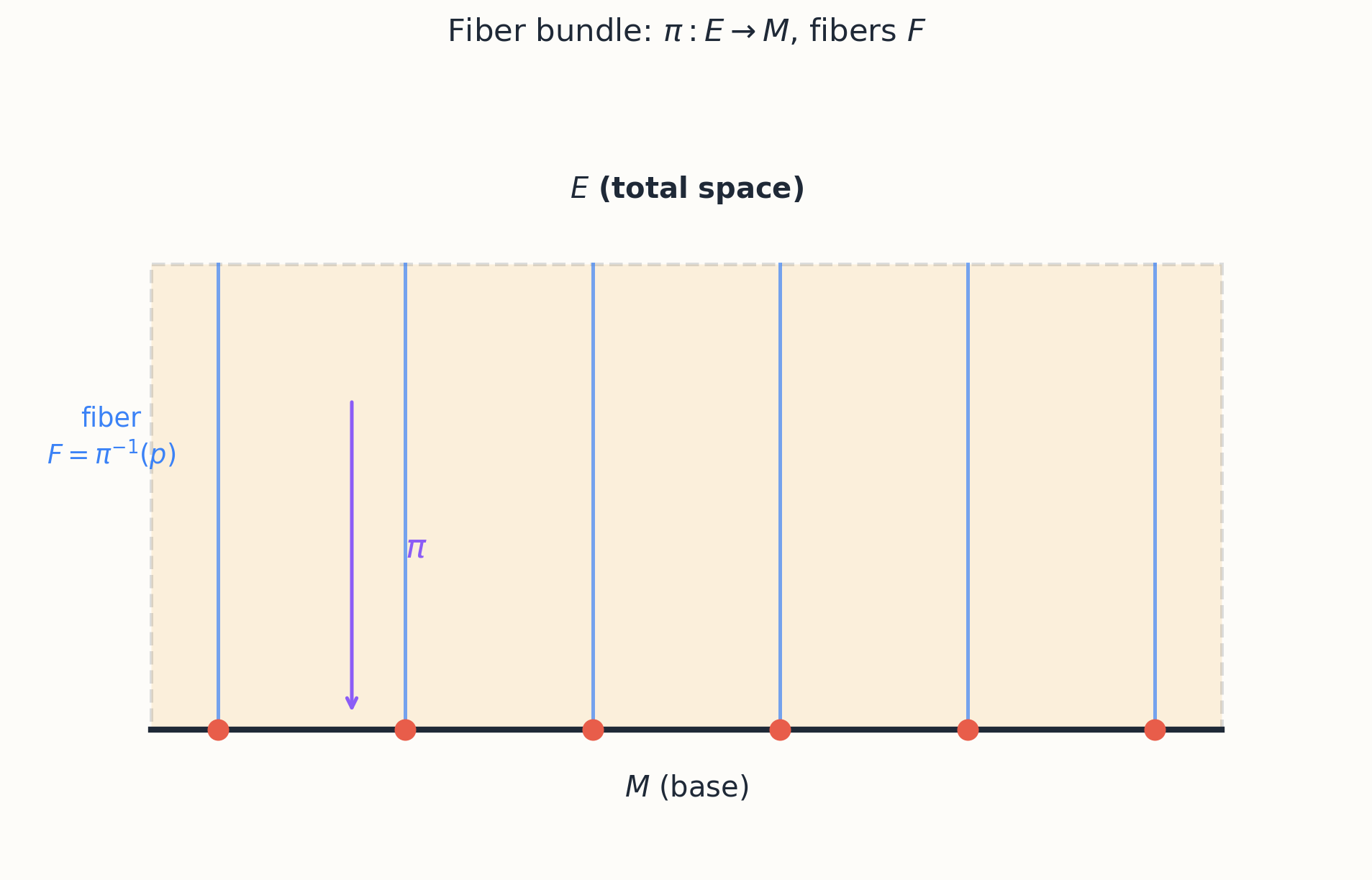

A fiber bundle is a smooth surjection $\pi: E \to B$ of manifolds satisfying a local triviality condition: every point $b \in B$ has a neighborhood $U$ such that $\pi^{-1}(U) \cong U \times F$ as smooth manifolds, with the projection corresponding to the first factor. Here $F$ is the typical fiber, $B$ is the base, $E$ is the total space.

Locally, a fiber bundle is just a product. Globally, it can twist: as you move around in $B$ , the fibers might glue back together with non-trivial transition functions, producing topologically interesting total spaces.

Examples.

1. Trivial bundle: $E = B \times F$ , the simplest example. Globally a product.
2. Mobius strip: $\pi: M \to S^1$ with fiber $\mathbb{R}$ (or interval $(-1, 1)$ ). The total space twists once as you go around the base. Topologically distinct from $S^1 \times \mathbb{R}$ .
3. Tangent bundle $TM \to M$ : fiber $\mathbb{R}^n$ at each point. For $M = S^2$ , this bundle is non-trivial — it is not $S^2 \times \mathbb{R}^2$ (Hairy Ball Theorem).
4. Hopf bundle $S^3 \to S^2$ : fiber $S^1$ . The total space is a 3-sphere fibered over the 2-sphere by circles. This is the prototype of a non-trivial $S^1$ -bundle.
5. Frame bundle $\mathrm{Fr}(M) \to M$ : fiber is the set of ordered bases of $T_p M$ , which is $\mathrm{GL}(n)$ as a manifold.

Vector bundles. A vector bundle is a fiber bundle whose fiber is a vector space (typically $\mathbb{R}^k$ or $\mathbb{C}^k$ ), and whose transition functions are linear isomorphisms (elements of $\mathrm{GL}(k)$ ). The tangent bundle is a vector bundle with fiber $\mathbb{R}^n$ . Sections of a vector bundle are vector fields generalized to arbitrary fiber.

Sections. A section of $\pi: E \to B$ is a smooth map $s: B \to E$ with $\pi \circ s = \mathrm{id}_B$ . So $s$ assigns to each base point a fiber point. Sections of $TM$ are vector fields. Sections of $T^*M$ are 1-forms. Sections of a trivial bundle $B \times F$ are smooth maps $B \to F$ . Sections of a non-trivial bundle may not exist globally — the bundle’s twisting is detectable from the failure of section-existence.

Why this matters. Fiber bundles are the natural framework for “fields valued in something other than scalars or tangent vectors.” A complex scalar field on spacetime is a section of a complex line bundle. A spinor field is a section of a spinor bundle. A connection (gauge potential) is a section of the bundle of “Lie-algebra-valued 1-forms.” Without bundles, you have no language for fields with topology; with bundles, the language is universal.

Transition functions. Local triviality means that $E$ can be reconstructed from a cover $\{U_\alpha\}$ of $B$ together with transition functions $g_{\alpha\beta}: U_\alpha \cap U_\beta \to \mathrm{Diff}(F)$ (or some smaller group, depending on context). These satisfy $g_{\alpha\beta}g_{\beta\gamma} = g_{\alpha\gamma}$ on triple overlaps (the cocycle condition). For vector bundles, the transition functions land in $\mathrm{GL}(k)$ ; for principal $G$ -bundles, in $G$ . Two bundles are isomorphic iff their transition functions differ by a coboundary. The classification of bundles is thus a Cech cohomology computation.

Numerical example: Mobius vs trivial $S^1 \times \mathbb{R}$ . Cover $S^1$ by two arcs $U_1, U_2$ overlapping in two intervals. On the trivial bundle, transition functions are both 1 on both overlaps. On the Mobius strip, they are $+1$ on one overlap and $-1$ on the other (a sign flip). The latter cocycle is non-trivial in $H^1(S^1; \mathbb{Z}/2)$ , distinguishing the Mobius strip from the trivial bundle topologically.

Principal Bundles#

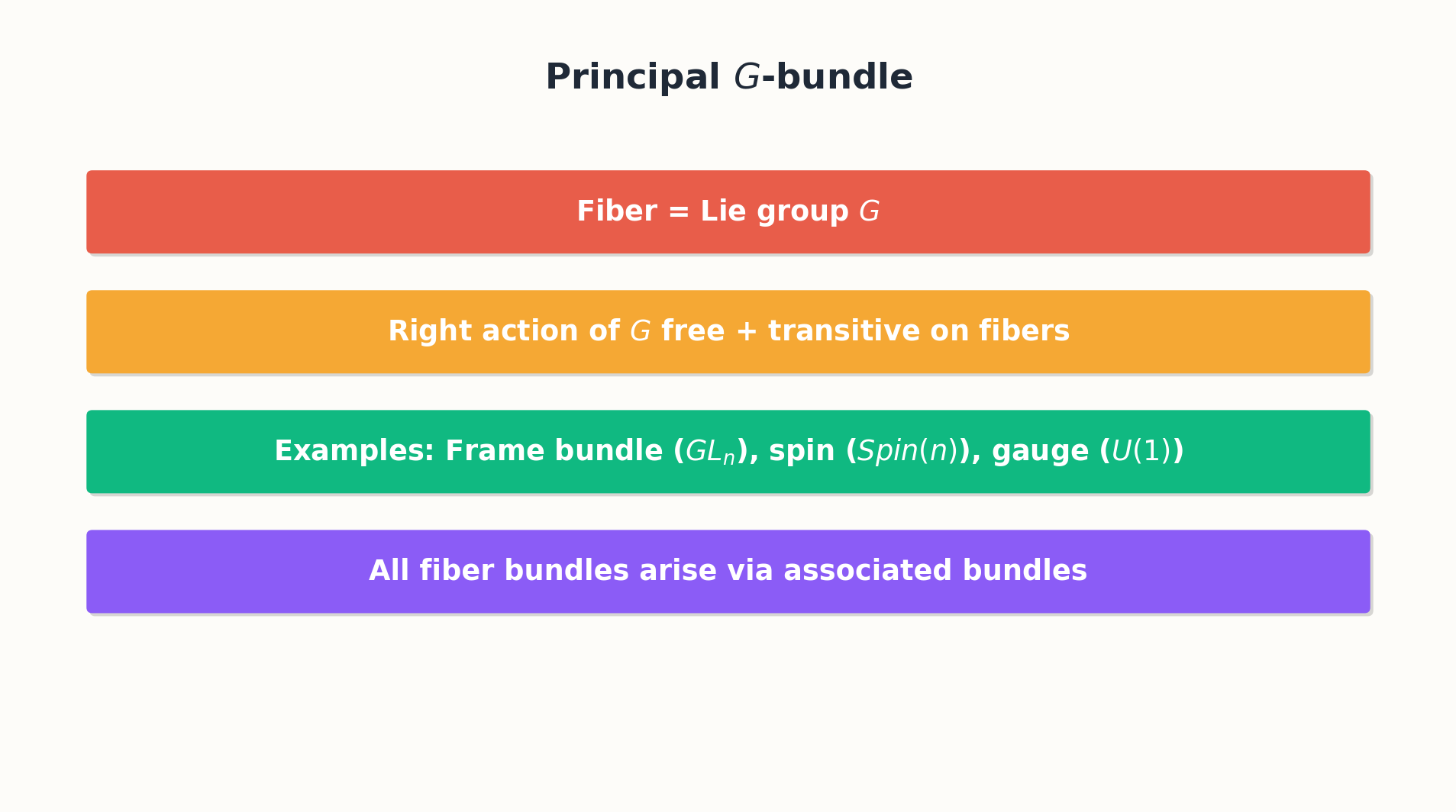

A principal $G$ -bundle $\pi: P \to B$ is a fiber bundle whose fiber is a Lie group $G$ , equipped with a free right action $P \times G \to P$ that preserves fibers and acts transitively on each fiber. In other words: each fiber is a copy of $G$ , and the group $G$ acts on the fibers by right multiplication.

Examples.

• Frame bundle $\mathrm{Fr}(M)$ : principal $\mathrm{GL}(n)$ -bundle. The fiber over $p$ is the set of ordered bases of $T_pM$ , which is acted on by $\mathrm{GL}(n)$ from the right.
• Orthonormal frame bundle $\mathrm{Fr}^O(M)$ : for a Riemannian manifold, this is a principal $\mathrm{O}(n)$ -bundle. Fiber is orthonormal frames.
• Hopf bundle: $S^3 \to S^2$ is a principal $S^1 = \mathrm{U}(1)$ -bundle. Right action is by phase rotations on $S^3$ .
• Trivial bundle $B \times G$ : the trivial principal $G$ -bundle. All non-trivial principal bundles arise from non-trivial transition functions valued in $G$ .

Associated vector bundles. Given a principal $G$ -bundle $P$ and a representation $\rho: G \to \mathrm{GL}(V)$ , the associated vector bundle $P \times_\rho V$ is the quotient $(P \times V)/G$ where $G$ acts by $(p, v) \cdot g = (pg, \rho(g^{-1})v)$ . Sections of this associated bundle are equivalent to $G$ -equivariant maps $P \to V$ .

Examples of associations.

• $\mathrm{Fr}^O(M) \times_{\mathrm{std}}\mathbb{R}^n = TM$ : the standard representation of $\mathrm{O}(n)$ on $\mathbb{R}^n$ recovers the tangent bundle.
• $\mathrm{Fr}^{\mathrm{Spin}}(M) \times_{\mathrm{spin}} \Sigma$ : spinor bundle on a spin manifold (a representation of the spin group).
• For a $\mathrm{U}(1)$ -bundle, complex line bundles arise as associated bundles via the standard $\mathrm{U}(1)$ -representation on $\mathbb{C}$ .

Why principal bundles? All vector bundles arise as associated bundles of principal bundles, and the principal-bundle perspective is more flexible and computational. Connections and curvature are most naturally defined on principal bundles and then transported to associated vector bundles. The structure group $G$ is the “symmetry group” of the bundle, and gauge theory is the geometry of these symmetries.

Reduction of structure group. A Riemannian metric on $M$ is equivalent to a reduction of the frame bundle from $\mathrm{GL}(n)$ to $\mathrm{O}(n)$ : the orthonormal frame bundle is a sub-bundle of the full frame bundle. An orientation reduces $\mathrm{O}(n)$ to $\mathrm{SO}(n)$ . A spin structure reduces to $\mathrm{Spin}(n) \to \mathrm{SO}(n)$ (a 2-fold cover). Each reduction adds geometric data: metric, orientation, spin structure. Obstructions to reductions are characteristic classes — for example, a manifold admits a spin structure iff its second Stiefel-Whitney class vanishes.

Examples of structure groups in physics.

• $\mathrm{U}(1)$ : electromagnetism. Magnetic charge is the first Chern number of the bundle.
• $\mathrm{SU}(2)$ : weak isospin (broken by Higgs mechanism to $\mathrm{U}(1)_{\mathrm{em}}$ ).
• $\mathrm{SU}(3)$ : strong color charge.
• $\mathrm{Spin}(3,1) = \mathrm{SL}(2,\mathbb{C})$ : spinor bundle in physics, the gauge group of local Lorentz transformations in general relativity.
• $E_8$ and exceptional groups: appear in heterotic string theory and grand unified theories.

Connections on Principal Bundles#

A connection on a principal $G$ -bundle $P \to B$ is a 1-form $A$ on $P$ valued in the Lie algebra $\mathfrak{g}$ , satisfying:

1. Equivariance: $R_g^* A = \mathrm{Ad}(g^{-1}) A$ for all $g \in G$ , where $R_g$ is right translation.
2. Vertical condition: $A(\xi_X) = X$ for the fundamental vector field $\xi_X$ generated by $X \in \mathfrak{g}$ .

Equivalently, a connection is a smooth distribution of horizontal subspaces $H_p \subset T_pP$ such that $T_pP = H_p \oplus V_p$ (with $V_p = \ker d\pi_p$ the vertical subspace) and the distribution is $G$ -equivariant.

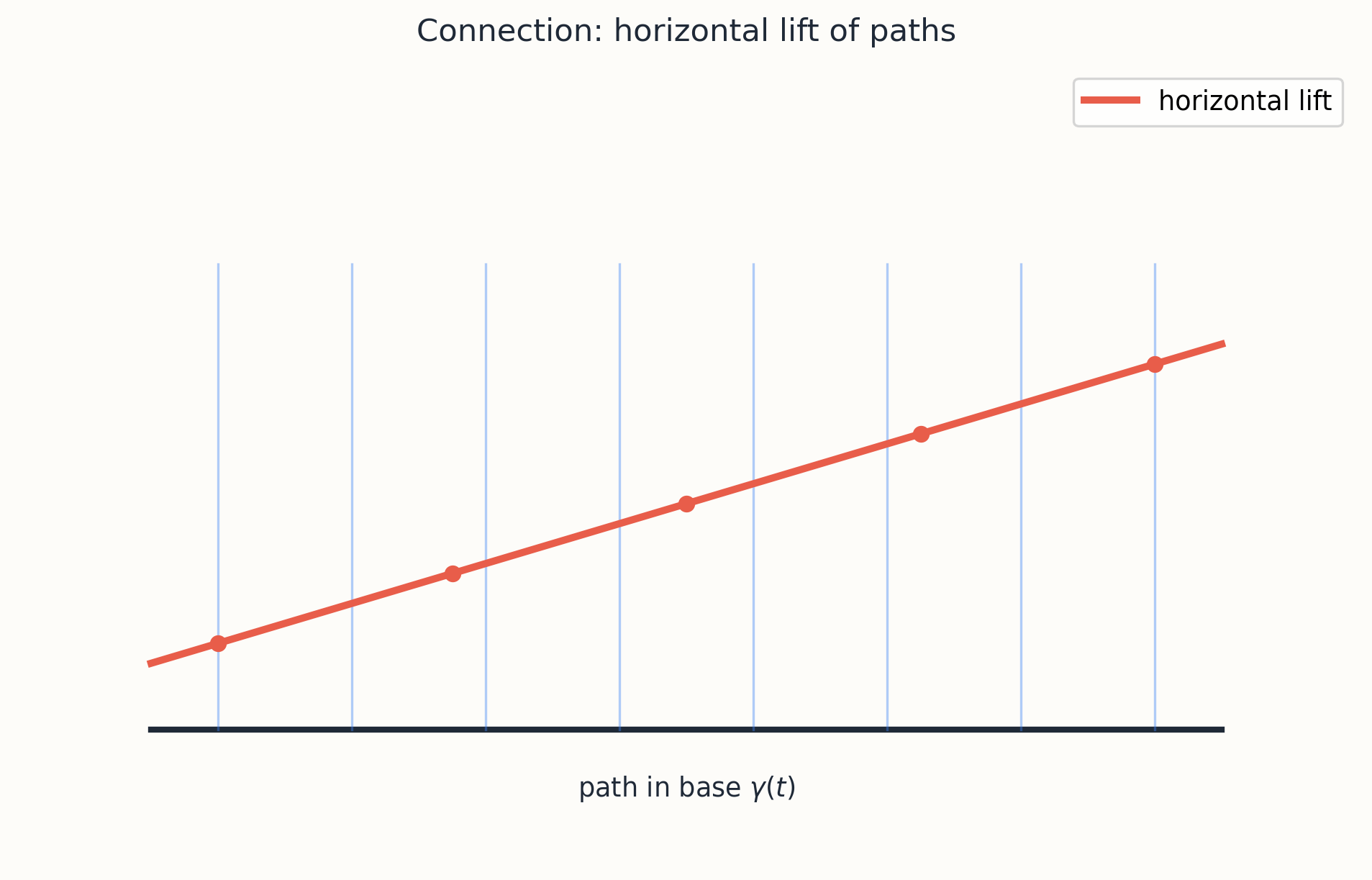

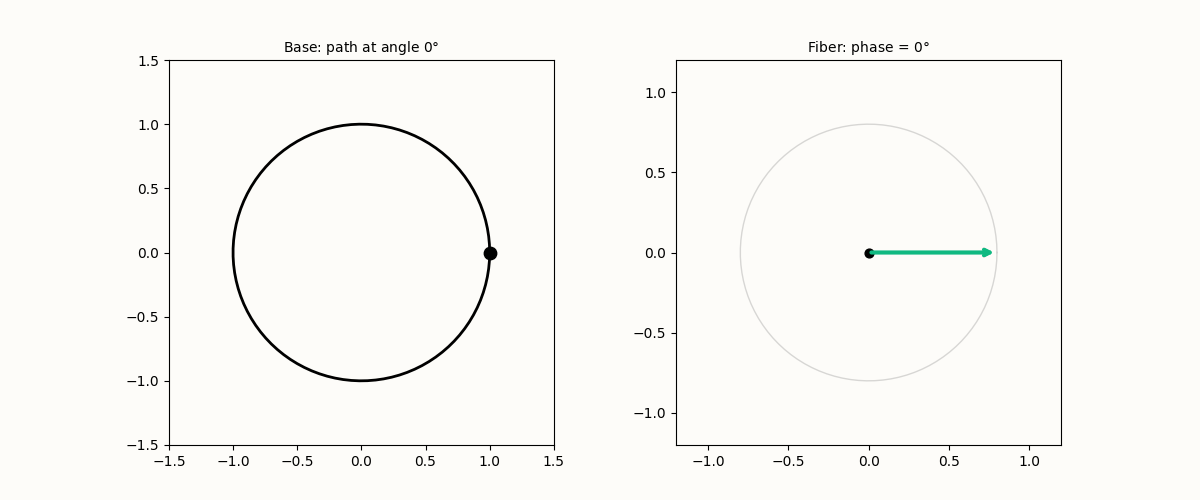

Horizontal lift. Given a curve $\gamma$ in $B$ and a starting point $p \in P$ above $\gamma(0)$ , there is a unique horizontal lift $\tilde\gamma$ to $P$ with $\tilde\gamma(0) = p$ and $\dot{\tilde\gamma}(t) \in H_{\tilde\gamma(t)}$ . The endpoint of the lift, projected back to the fiber over $\gamma(1)$ , gives a parallel transport map. This is the abstract setting that includes Levi-Civita parallel transport as a special case (when $G = \mathrm{O}(n)$ and $P = \mathrm{Fr}^O(M)$ ).

Local connection 1-form. A choice of local section $s: U \to P$ pulls $A$ back to a $\mathfrak{g}$ -valued 1-form $A_s = s^*A$ on $U$ . Different sections give different local 1-forms, related by gauge transformations $A_{s'} = g^{-1} A_s g + g^{-1}dg$ , where $g$ is the transition function. So the local 1-form is not gauge-invariant, but its essential geometric content is.

Physics dictionary. In gauge theory, the local connection 1-form $A_s$ is exactly the gauge potential of physics (denoted $A_\mu$ in field theory). Different gauges (sections) give different $A_\mu$ , related by gauge transformations. The U(1) version is the electromagnetic vector potential $A_\mu$ of Maxwell theory. The non-Abelian versions (for $G = \mathrm{SU}(2), \mathrm{SU}(3)$ ) are the gauge potentials of weak and strong interactions.

Levi-Civita as a special case. The Levi-Civita connection from articles 10-11 is a connection on the orthonormal frame bundle $\mathrm{Fr}^O(M) \to M$ , with structure group $\mathrm{O}(n)$ . The Christoffel symbols and the local connection 1-form $A_s$ encode the same information in different formats. Parallel transport on $TM$ via Levi-Civita equals horizontal lift in $\mathrm{Fr}^O(M)$ followed by projection. So everything we did with Riemannian connections in articles 10-11 fits seamlessly into the principal-bundle framework — just specialized to a particular structure group.

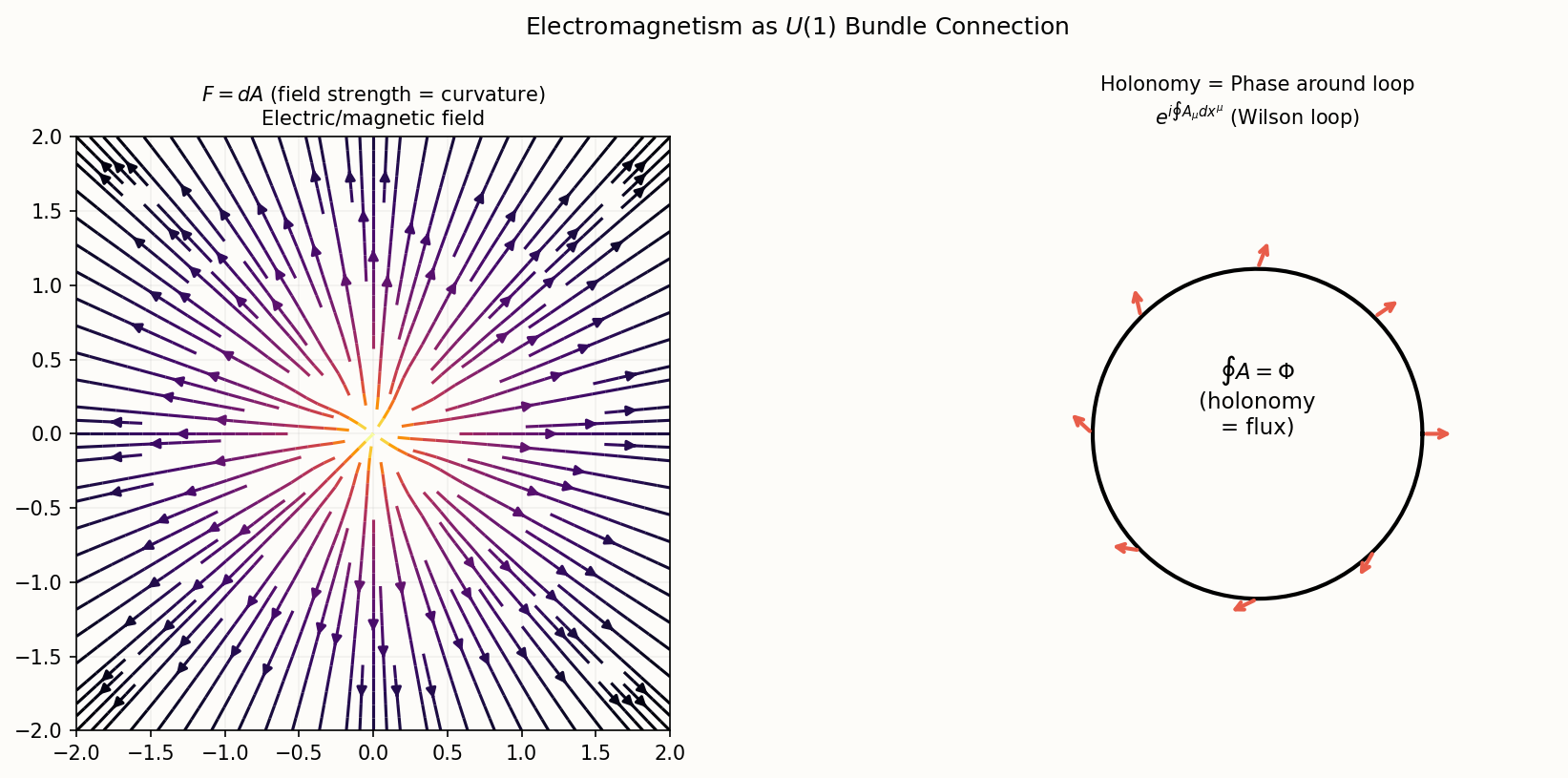

Physical example: electromagnetic vector potential. The vector potential $A_\mu$ of electromagnetism is a $\mathrm{U}(1)$ -connection. Its gauge transformation is $A_\mu \to A_\mu + \partial_\mu \chi$ for a scalar function $\chi$ (the abelian special case of the formula above). This is exactly the freedom physicists call “gauge invariance,” and the field-strength tensor $F_{\mu\nu} = \partial_\mu A_\nu - \partial_\nu A_\mu$ is invariant. Mathematicians have known this from the start as “the curvature 2-form of a $\mathrm{U}(1)$ -connection is gauge-invariant under the connection’s automorphism group.”

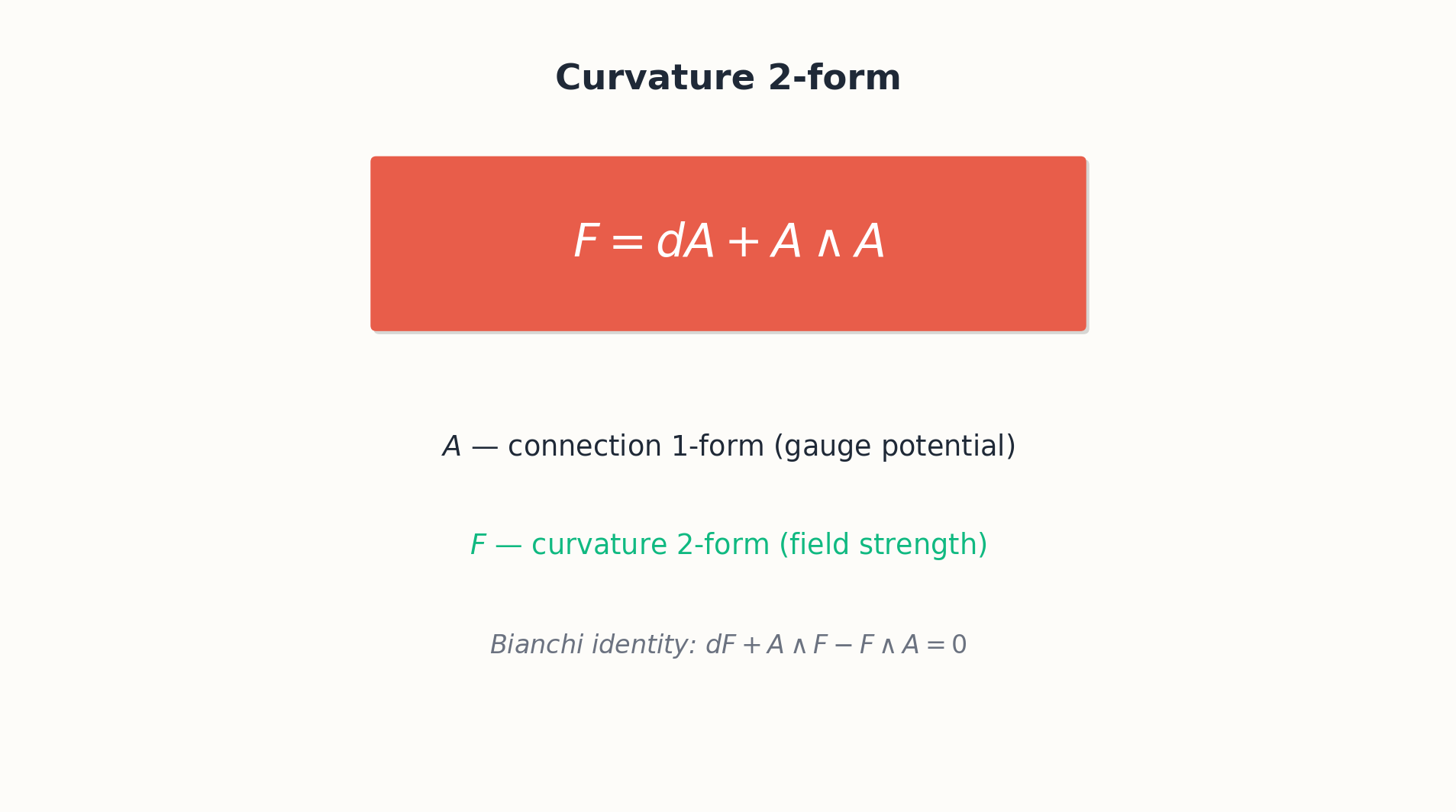

Curvature 2-Form#

on the principal bundle (where $A \wedge A$ is the wedge product combined with the Lie bracket on $\mathfrak{g}$ ). For abelian $G = \mathrm{U}(1)$ , the bracket is trivial and $F = dA$ , the ordinary exterior derivative of the gauge potential. For non-abelian $G$ , the second term is essential and produces the self-interaction of gauge fields.

Bianchi identity. $dF + [A, F] = 0$ . This is the gauge-theory analog of the second Bianchi identity for the Riemann tensor, and it is automatic from the definition of $F$ — it is the algebraic identity $d(dA + A\wedge A) + [A, dA + A\wedge A] = 0$ .

Why “Bianchi” again? In Riemannian geometry, the second Bianchi identity is $\nabla_{[a}R_{bc]de} = 0$ — a differential identity satisfied by the Riemann tensor that is automatic from the existence of a torsion-free metric connection. In gauge theory, $dF + [A, F] = 0$ plays the same role: it is automatic from $F = dA + A\wedge A$ , and it constrains the dynamics by reducing the number of independent equations. In each setting, Bianchi is the geometric identity that makes the field equations consistent — it is the differential-geometric analog of “div curl = 0.”

Numerical check on Maxwell. For abelian $G = \mathrm{U}(1)$ , $[A, F] = 0$ trivially, so Bianchi reduces to $dF = 0$ . With $F = dA$ for some 1-form $A$ , $dF = d^2A = 0$ — automatic. So the abelian Bianchi is just “$d^2 = 0$ .” The non-abelian generalization $dF + [A, F] = 0$ is what allows curvature to encode self-interaction while still satisfying a consistency identity.

The first two terms are the Maxwell-like exterior derivative; the last is the non-abelian self-interaction.

Numerical check for $\mathrm{SU}(2)$ . $\mathrm{SU}(2)$ has structure constants $f^{abc} = \epsilon^{abc}$ (Levi-Civita symbol). So $F^1_{\mu\nu} = \partial_\mu A^1_\nu - \partial_\nu A^1_\mu + (A^2_\mu A^3_\nu - A^3_\mu A^2_\nu)$ , and cyclic permutations. The cross-term $A^2 A^3$ is the source of the non-linearity. In Yang-Mills theory, this cross-term is what produces gluon-gluon interactions in QCD (gluons carrying color charge themselves) and W-W-Z and Z-Z-W vertices in electroweak theory.

Maxwell as the abelian case. For $G = \mathrm{U}(1)$ with $\mathfrak{u}(1) = i\mathbb{R}$ , the connection is $A = iA_\mu\,dx^\mu$ and $F = dA = i(\partial_\mu A_\nu - \partial_\nu A_\mu)dx^\mu\wedge dx^\nu$ . The components $F_{\mu\nu} = \partial_\mu A_\nu - \partial_\nu A_\mu$ are exactly the components of the electromagnetic field strength tensor — the same matrix that contains $E$ and $B$ .

Maxwell’s equations from Bianchi. $dF = 0$ in this abelian case is the Bianchi identity, and it packages two of Maxwell’s equations: no magnetic monopoles ($\nabla\cdot B = 0$ ) and Faraday’s law ($\nabla\times E + \partial_t B = 0$ ). The other two come from the Yang-Mills equation $d{*}F = J$ : Gauss’s law and Ampere’s law with displacement current. The whole of classical electrodynamics fits in three lines: $F = dA$ , $dF = 0$ , $d{*}F = J$ .

Yang-Mills. For $G = \mathrm{SU}(2)$ (weak isospin), $\mathrm{SU}(3)$ (color), or larger non-abelian groups, the curvature has nonlinear terms in $A$ . This is the source of “self-interaction” of gauge bosons — gauge fields that couple to themselves because their group is non-abelian. Photons (abelian gauge bosons) do not self-interact; gluons do, which is why quantum chromodynamics is so different from quantum electrodynamics in its low-energy behavior (confinement, mass gap).

Curvature on associated vector bundles. For an associated vector bundle $E = P\times_\rho V$ , the curvature $F$ acts on $V$ via $\rho_*: \mathfrak{g} \to \mathfrak{gl}(V)$ , producing an $\mathrm{End}(E)$ -valued 2-form. This is the abstract Riemann tensor when $E = TM$ : the Riemann tensor of article 11 is exactly the curvature of the Levi-Civita connection on $\mathrm{Fr}^O(M)$ , transported to $TM$ via the standard representation.

Why “curvature” is the right name. The curvature $F$ of a connection measures the failure of parallel transport to be path-independent — the same way the Riemann tensor measures path-dependence in Riemannian geometry. Specifically, parallel transport around an infinitesimal loop $\partial(\delta x \wedge \delta y)$ in the base produces a fiber transformation given by $F(\delta x, \delta y) \in G$ , to leading order. So $F$ is the infinitesimal holonomy. Physically: gluons (Yang-Mills curvature in the strong force) detect the topology of the gauge bundle by accumulating phases as they propagate.

Numerical example: $\mathrm{U}(1)$ on $S^2$ . Take the Hopf bundle on $S^2$ . The natural connection has curvature $F = (i/2)\sin\theta\,d\theta\wedge d\phi$ (proportional to the area form on $S^2$ ). Integrating $iF/(2\pi)$ over $S^2$ : $\frac{1}{2\pi}\cdot\frac{1}{2}\int\sin\theta\,d\theta\,d\phi = \frac{1}{2\pi}\cdot\frac{1}{2}\cdot 4\pi = 1$ . So $\int_{S^2} c_1 = 1$ — the integer that classifies the Hopf bundle. The integrand is exactly the magnetic field of a Dirac monopole of unit charge.

A sanity check on dimensions. Why $iF/(2\pi)$ rather than $F$ or $iF$ ? The conventional normalisation is chosen so that $c_1$ takes integer values when integrated over a closed 2-manifold. The factor $1/(2\pi)$ is the inverse of the “area” of $\mathrm{U}(1)$ as a 1-manifold, in the sense that a $2\pi$ -rotation in $\mathrm{U}(1)$ is the identity. This is exactly the same factor that appears in Dirac’s quantisation of magnetic charge: a Dirac monopole of strength $g$ requires $eg/(2\pi\hbar) \in \mathbb{Z}$ . Topology and physics agree on the normalisation because they are doing the same calculation.

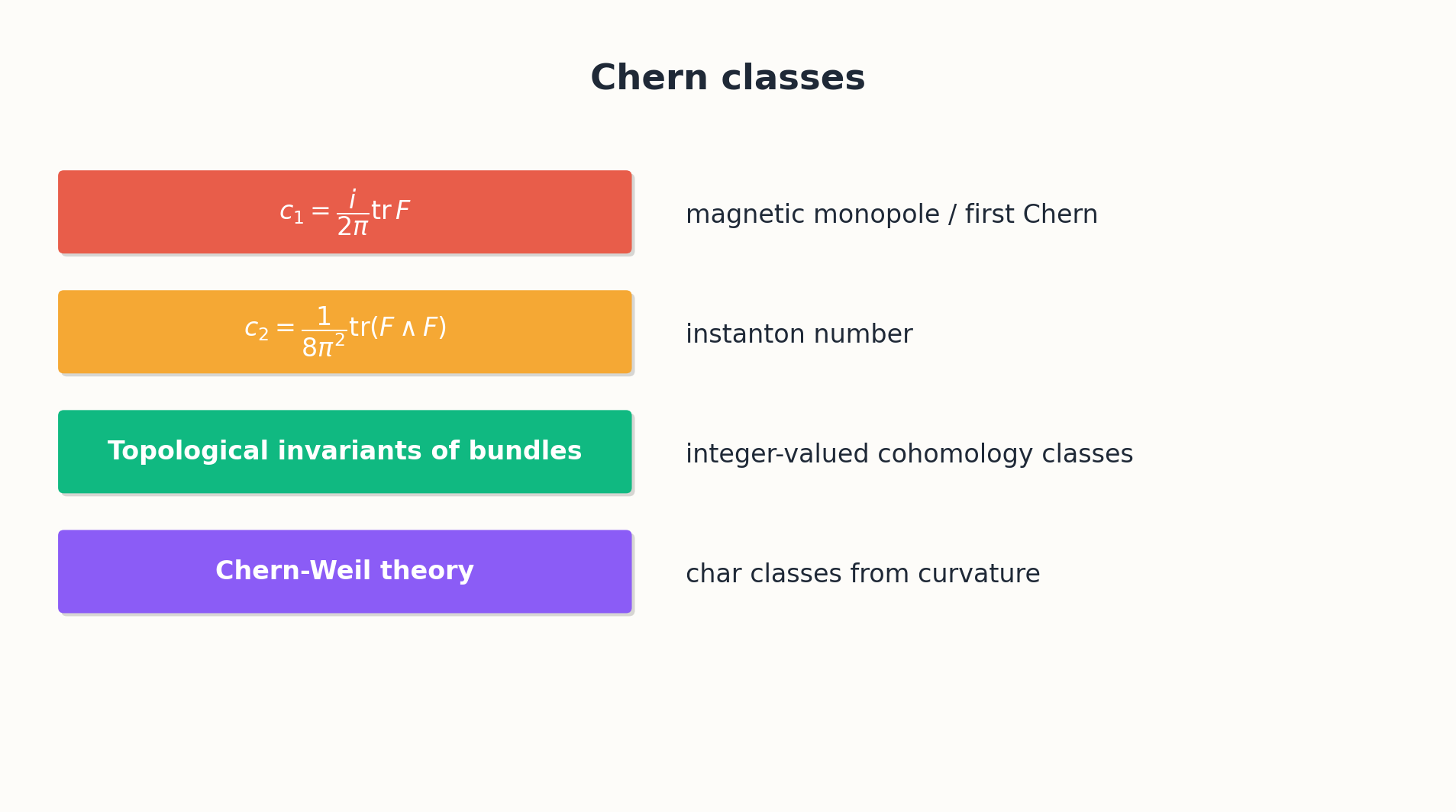

Chern-Weil Theory and Characteristic Classes#

Given a curvature 2-form $F$ on a principal $G$ -bundle and a $G$ -invariant polynomial $P$ on $\mathfrak{g}$ , the form $P(F)$ is a closed differential form on the base $B$ , and its de Rham class $[P(F)] \in H^*(B; \mathbb{R})$ is independent of the choice of connection. This is the Chern-Weil construction, and it produces topological invariants of bundles.

where $c_k(E) \in H^{2k}(B; \mathbb{R})$ are the Chern classes. The first Chern class $c_1 = \mathrm{tr}(iF/2\pi)$ is the simplest and most ubiquitous.

Pontryagin classes (real vector bundles). For an $\mathrm{O}(n)$ -bundle, Pontryagin classes $p_k \in H^{4k}(B; \mathbb{R})$ are defined similarly using $F$ directly (skipping odd-degree classes which would vanish by symmetry).

Stiefel-Whitney classes. Real vector bundles also have $\mathbb{Z}/2$ -coefficient classes $w_k \in H^k(B; \mathbb{Z}/2)$ , called Stiefel-Whitney classes. These are not detectable by Chern-Weil theory directly (they are torsion), but they are still characteristic classes. The first Stiefel-Whitney class $w_1$ is the obstruction to orientability: $w_1 = 0$ iff the bundle is orientable. The second, $w_2$ , is the obstruction to a spin structure. These are subtle topological invariants that complement the de-Rham-detectable classes.

Euler class (oriented real vector bundles). An oriented rank-$n$ real bundle has an Euler class $e \in H^n(B; \mathbb{R})$ . For the tangent bundle of an oriented $n$ -manifold, $\int_M e(TM) = \chi(M)$ , the Euler characteristic. This is the Chern-Gauss-Bonnet theorem, generalizing the article-5 result to higher dimensions.

Numerical example: first Chern class of the Hopf bundle. The Hopf bundle $S^3 \to S^2$ is a non-trivial $\mathrm{U}(1)$ -bundle. Choose a connection (e.g., the natural one descended from the round metric on $S^3$ ); compute its curvature $F$ . Integrating $c_1 = iF/2\pi$ over $S^2$ gives 1 — the integer that distinguishes the Hopf bundle from the trivial $S^1$ -bundle $S^2 \times S^1$ . This is exactly the magnetic charge of the Dirac monopole: a $\mathrm{U}(1)$ -bundle on $S^2$ enclosing a magnetic monopole of integer charge $n$ has $c_1$ pairing to $n$ on $S^2$ .

Independence of connection — the key property. The integrality of $\int c_1$ is the key to charge quantization. For any connection on the bundle, $\int_{S^2}c_1$ is the same integer — this is what makes $c_1$ a topological invariant, computable analytically from any choice of connection but independent of the choice. In physics, this means: magnetic monopoles, if they exist, must carry integer-quantized magnetic charge. Topology dictates physics.

Universal classes and classifying spaces. Every characteristic class arises from the cohomology of a classifying space $BG$ — a topological space such that principal $G$ -bundles over $X$ are classified by homotopy classes of maps $X \to BG$ . Chern classes are pullbacks of universal classes in $H^*(BU(n); \mathbb{Z})$ . Pontryagin classes are pullbacks from $H^*(BO(n))$ . Euler classes from $H^*(BSO(n))$ . This abstract perspective unifies all characteristic classes: they are the cohomology of classifying spaces. For mathematicians, this is the cleanest framework; for physicists, it is the reason the same classes keep showing up across diverse theories.

where $\mathrm{ch}$ is the Chern character of the principal symbol $\sigma$ and $\mathrm{Td}$ is the Todd class. Both $\mathrm{ch}$ and $\mathrm{Td}$ are characteristic-class expressions built from Chern-Weil theory. So index theorems are Chern-Weil computations: they say the analytic data (kernel and cokernel of $D$ ) equals a topological integral. This is one of the most striking demonstrations of how characteristic classes connect analysis, geometry, and topology.

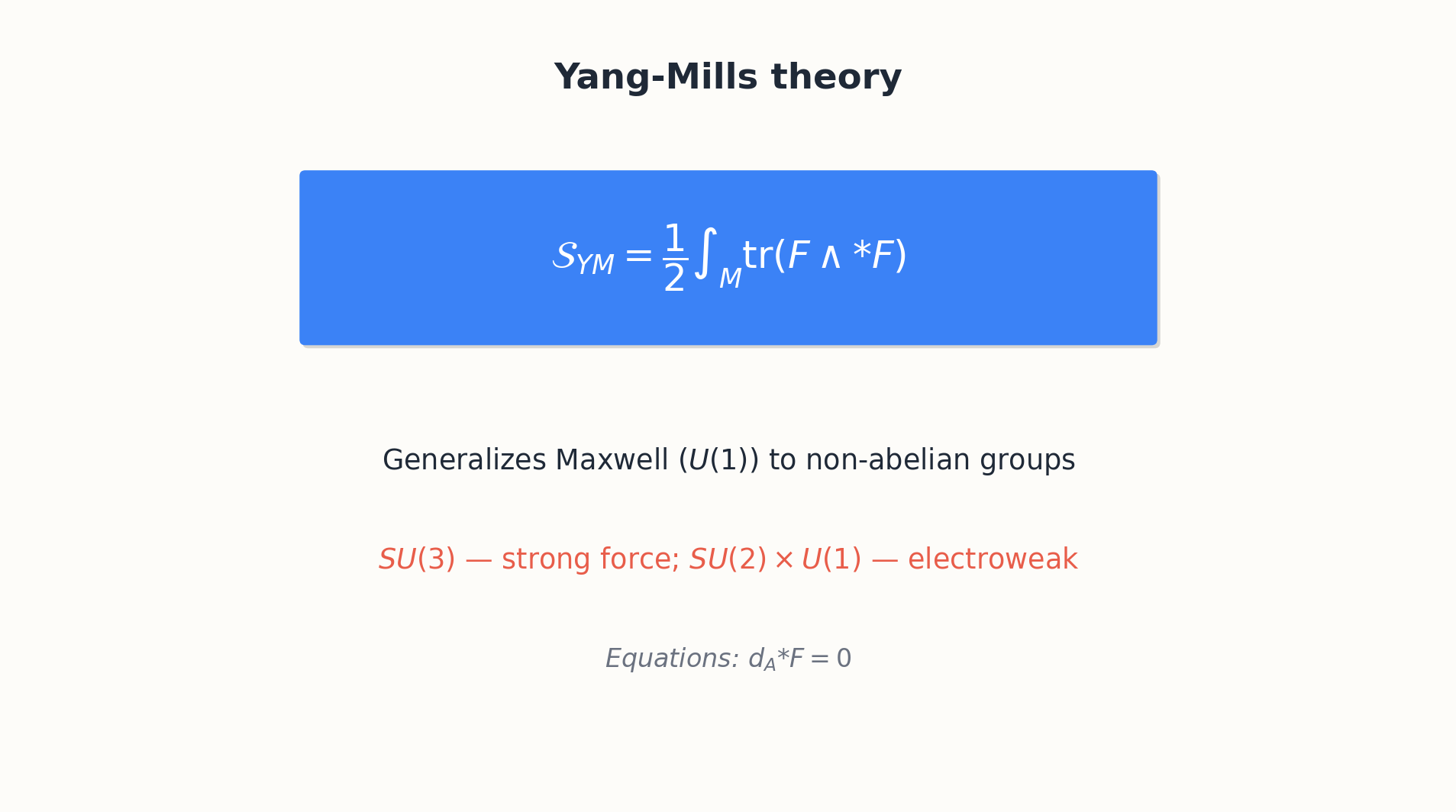

Yang-Mills Theory#

where $d_A = d + [A, \cdot]$ is the covariant exterior derivative.

Maxwell’s equations as abelian Yang-Mills. For $G = \mathrm{U}(1)$ , the Yang-Mills equation reduces to $d*F = 0$ . Combined with the automatic Bianchi $dF = 0$ , this gives the source-free Maxwell equations. With matter (charged particles), $d*F = J$ where $J$ is the current 3-form. So Maxwell theory is a special case of Yang-Mills.

Self-dual instantons. In Euclidean 4-dimensional Yang-Mills, connections satisfying $F = *F$ (self-dual) or $F = -*F$ (anti-self-dual) automatically solve the Yang-Mills equation — they are absolute minimizers of the action in a fixed topological sector. The instanton number $k = \int_M c_2(E)$ is the second Chern number of the bundle, and self-dual connections with $k$ instanton number form a $(8k - 3)$ -dimensional moduli space (for $\mathrm{SU}(2)$ ). Donaldson’s theory of 4-manifolds was built by studying these moduli spaces.

Why self-duality? The Yang-Mills action is $\frac{1}{2}\int F\wedge *F$ , which equals $\frac{1}{4}\int (F + *F)\wedge *(F + *F) + \frac{1}{4}\int(F - *F)\wedge *(F - *F) \pm \int F\wedge F$ — depending on orientation. In each topological sector (fixed $\int F\wedge F = $ instanton number), the action is bounded below by the instanton number, with equality iff $F = \pm *F$ . So self-dual connections are absolute minimizers; anti-self-dual ones are minimizers in the opposite sector. This is one of the rare PDEs in physics where you can solve the Euler-Lagrange equation by solving a first-order equation (self-duality) instead of a second-order one. The trick generalizes to monopole equations, vortex equations, and the entire BPS framework.

Donaldson and Seiberg-Witten. In the 1980s, Donaldson used the moduli space of $\mathrm{SU}(2)$ instantons on a 4-manifold to define new topological invariants that distinguish smooth structures on 4-manifolds even when their topological structure is the same. Seiberg-Witten theory in the 1990s gave a different, much simpler framework using $\mathrm{U}(1)$ rather than $\mathrm{SU}(2)$ , and produced equivalent invariants. The fact that 4-dimensional smooth topology is captured by gauge-theoretic differential geometry — and is fundamentally different from topology in any other dimension — is one of the great surprises of modern mathematics.

where the sum is over the three gauge groups. Differential geometry of bundles is the language of the Standard Model, not just a way to describe it.

This is a gauge-invariant observable. In lattice gauge theory, Wilson loops are the basic measurable; in the AdS/CFT correspondence, they have a deep dual meaning as minimal surfaces in anti-de Sitter space. The mathematics is differential geometry; the physics ranges from confinement of quarks to the holographic principle.

Anomalies and characteristic classes. Quantum field theory often suffers from anomalies: classical symmetries that fail to survive quantization. The mathematical content of an anomaly is a non-trivial cohomology class in the bundle of physical observables. The Adler-Bell-Jackiw chiral anomaly in QCD is computed as $\int F\wedge F$ over spacetime — a Pontryagin-class integral. The cancellation of gauge anomalies in the Standard Model (a precise relation between the hypercharges of quarks and leptons) is a topological constraint: differential geometry tells you which combinations of representations are anomaly-free.

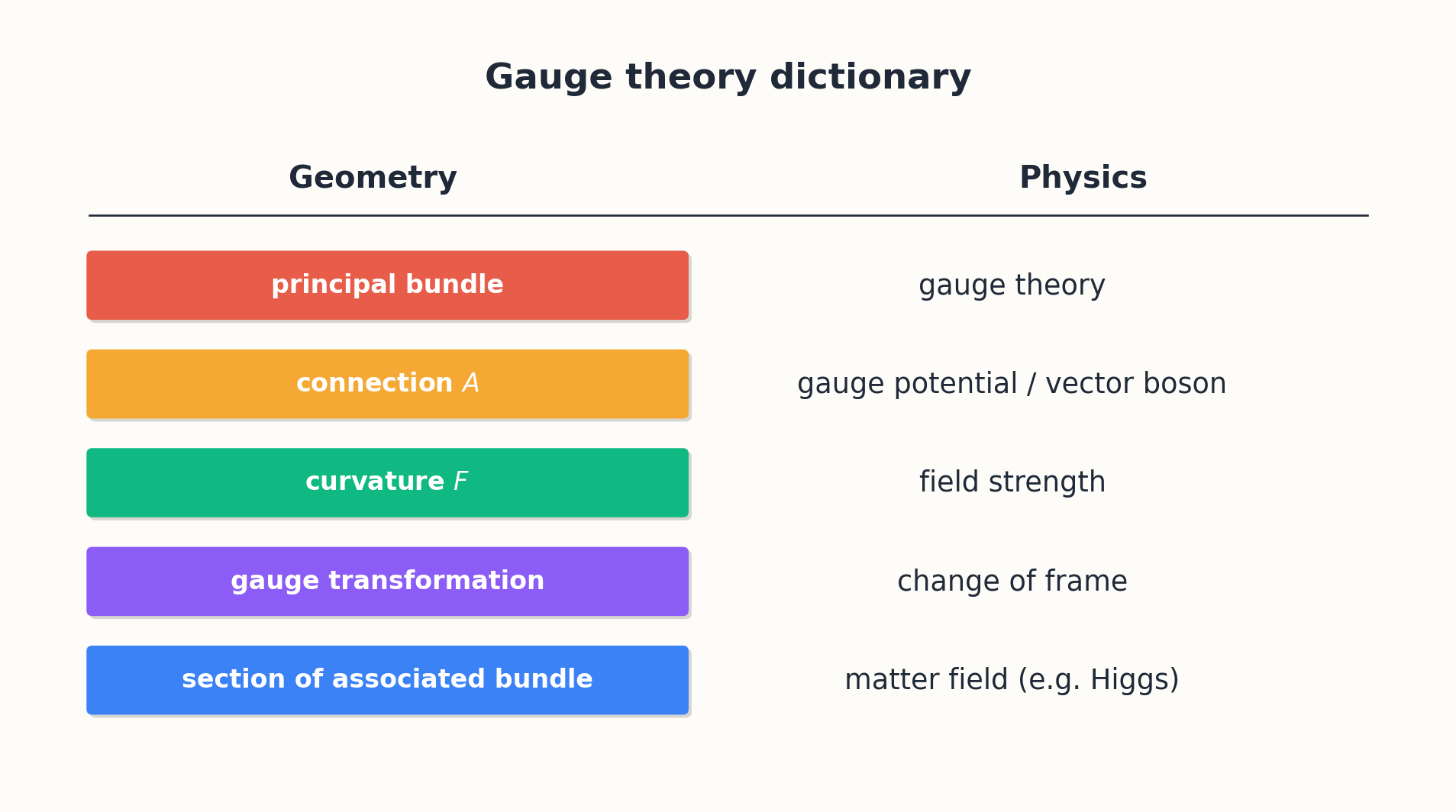

Gauge Theory Dictionary#

The translation table between physics terminology and mathematics is one of the great unifications of 20th-century science.

Gravity as gauge theory. General relativity is a gauge theory of the local Lorentz group on the orthonormal frame bundle. The Levi-Civita connection is the gauge potential, the Riemann tensor is the field strength, and the Einstein-Hilbert action $\int R\,\mathrm{vol}_g$ is a (highly non-Yang-Mills) gauge action. So gravity and the other forces share a unified geometric framework — albeit with different specific Lagrangians and structure groups.

Cartan formulation. Cartan reformulated general relativity using the orthonormal frame bundle and a connection 1-form. In this formulation, the metric is encoded by a “tetrad” or “vielbein” $e^a$ — an $\mathrm{O}(n)$ -frame at each point — and the connection is an $\mathfrak{so}(n)$ -valued 1-form. The Riemann tensor becomes a Lie-algebra-valued 2-form, exactly parallel to the Yang-Mills field strength. This formulation makes the gauge structure of gravity explicit and is essential for coupling spinors to gravity (since spinors require a frame, not just a metric). It is also the natural setting for loop quantum gravity and other gauge-theoretic quantization programs.

Why this dictionary is profound. Concepts that physicists invented for empirical reasons (gauge invariance, quantization of charge, instantons) turn out to be already-known geometric objects (transition functions, characteristic classes, special connections). And mathematical objects pure mathematicians studied for their own beauty (Chern classes, K-theory, motives) acquire physical meaning in particle physics. The two-way traffic is one of the most fertile areas of contemporary research.

A historical note. Yang and Mills wrote down their non-abelian gauge theory in 1954 without knowing about Cartan’s theory of connections (which had existed for decades). When mathematicians and physicists finally connected the two, in the 1970s, both communities realized they had been working on the same subject — using completely different language. The translation effort, much of it carried out by Atiyah, Singer, Bott, Witten, and Donaldson, was one of the foundational activities of late-20th-century mathematical physics. We now consider this dictionary “obvious,” but it was hard-won.

Mirror symmetry and beyond. Modern mathematical physics has gone deeper than this dictionary: mirror symmetry pairs different Calabi-Yau manifolds in physically equivalent ways, predicting non-trivial relationships between symplectic and complex geometry. Geometric Langlands relates representation theory to the geometry of the moduli space of bundles on a curve. The AdS/CFT correspondence relates gauge theory to gravity. Each of these is a generalization of the basic gauge-theory dictionary, and each requires the differential geometry we have built.

Why the differential geometric framing matters in practice. When physicists in the 1950s wrote down Yang-Mills theory, they had to invent gauge invariance, derive the field equations, and deal with the non-linearity from scratch. When mathematicians in the 1970s reformulated the same content as connections on principal bundles, the entire structure became automatic: gauge invariance is the connection’s automorphism group, field equations are the Yang-Mills variational equations, non-linearity is in the wedge product $A\wedge A$ . What looked like physics-motivated patches became geometric necessities. The same structural insight has paid off again and again: the topological constraints on the Standard Model (anomaly cancellation, charge quantisation, the Higgs sector’s Yukawa couplings) are easier to derive from the bundle perspective than from any other. Mathematical structure, properly formulated, makes the physics simpler.

Deeper Examples and Common Pitfalls#

The earlier sections introduced fiber bundles, principal bundles, connections, the curvature 2-form, Chern-Weil theory, Yang-Mills theory, and the gauge-theory dictionary. This section computes specific bundles and connections in detail, points out where beginners stumble, and connects these abstract objects to concrete physics.

A worked numerical example: the Hopf bundle as a $U(1)$ principal bundle#

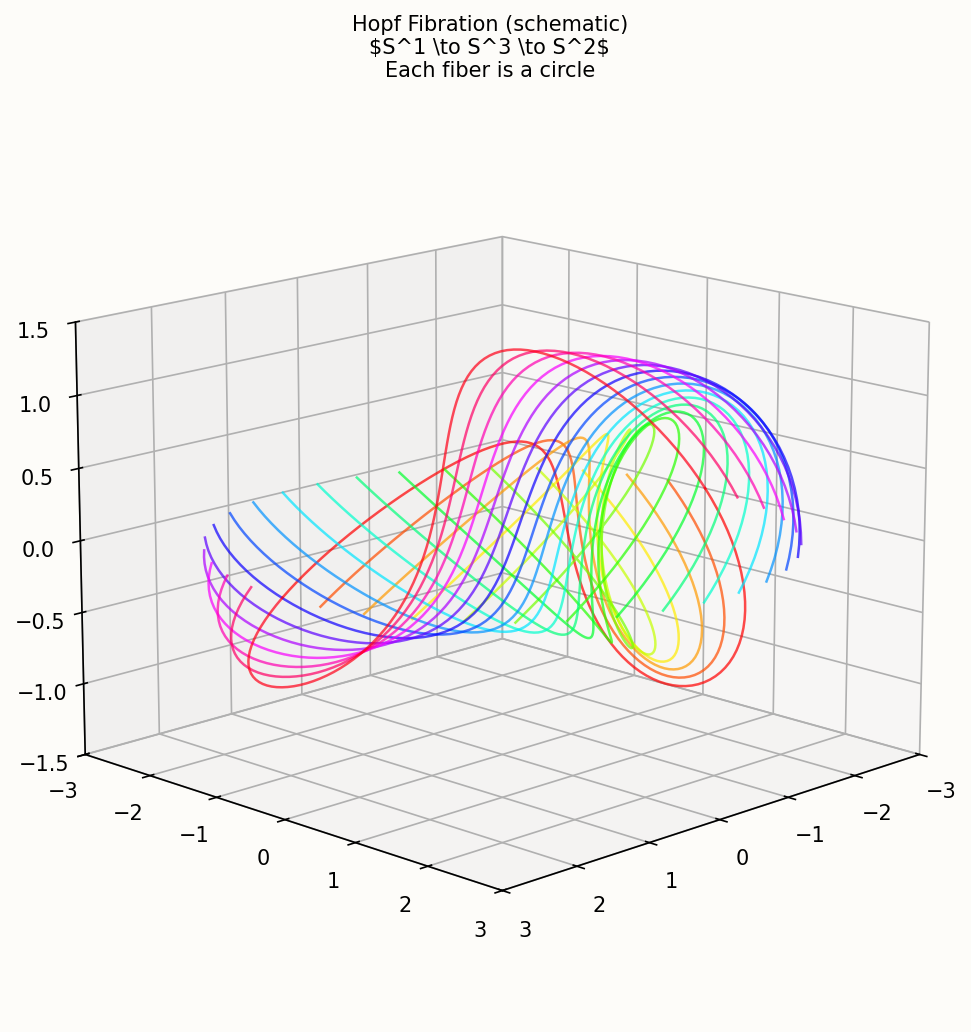

The Hopf fibration $S^3 \to S^2$ is the simplest non-trivial principal $U(1)$ bundle. Realize $S^3 \subset \mathbb{C}^2$ as $\{(z_1, z_2) : |z_1|^2 + |z_2|^2 = 1\}$ . The $U(1)$ action: $e^{i\alpha} \cdot (z_1, z_2) = (e^{i\alpha} z_1, e^{i\alpha} z_2)$ . The quotient $S^3 / U(1) = S^2$ via the projection $(z_1, z_2) \mapsto (2z_1\bar z_2, |z_1|^2 - |z_2|^2)$ landing in $\mathbb{R}^3$ on the unit sphere.

A connection on this bundle is a 1-form on $S^3$ valued in the Lie algebra $\mathfrak{u}(1) = i\mathbb{R}$ . The standard one: $A = i(\bar z_1 dz_1 - z_1 d\bar z_1 + \bar z_2 dz_2 - z_2 d\bar z_2)/2$ . Its curvature is the 2-form $F = dA$ on $S^3$ , which descends (because of equivariance) to a 2-form on $S^2$ . Compute the descent: the curvature on $S^2$ is the standard area form, $F = -\sin\phi\, d\phi\wedge d\theta$ in spherical coordinates.

The integral $\int_{S^2} F = -4\pi$ (with sign depending on orientation choice). Up to factors of $2\pi$ , this is the first Chern number of the bundle, an integer that classifies $U(1)$ -bundles over $S^2$ . The Hopf bundle has Chern number $\pm 1$ (sign depending on orientation), and Chern-Weil theory tells us that this integer is a topological invariant — no smooth deformation of the connection changes it.

A worked numerical example: magnetic monopole as a connection#

A magnetic monopole at the origin gives a magnetic field $B = g \hat r / r^2$ where $g$ is the monopole charge. As a 2-form on $\mathbb{R}^3 \setminus \{0\}$ , this is $F = g \sin\phi\, d\phi \wedge d\theta$ in spherical coordinates. Restrict to a sphere of radius $r$ (where the monopole field is well-defined): $\int_{S^2_r} F = g \cdot 4\pi$ .

Dirac quantization: $g$ must be a half-integer multiple of $1/(2 q_e)$ , where $q_e$ is the electron charge. Why? Because the magnetic field cannot be derived from a globally defined gauge potential $A$ (there must be a Dirac string), and the requirement that the wavefunction is single-valued forces the integral $\int F$ to be a multiple of $2\pi/q_e$ .

In the language of bundles: the gauge potential $A$ is a connection on a $U(1)$ bundle over $\mathbb{R}^3 \setminus \{0\}$ . This space deformation-retracts to $S^2$ , so $U(1)$ bundles over it are classified by $\pi_1(U(1)) = \mathbb{Z}$ — exactly the integer Chern number, exactly the integer monopole charge in units of $1/q_e$ . Dirac quantization is the topological statement that bundles are classified by integers.

Intuition + counterexample: why curvature is Lie-algebra-valued#

A connection 1-form $A$ on a principal $G$ -bundle takes values in the Lie algebra $\mathfrak{g}$ . Its curvature is $F = dA + A \wedge A$ , also $\mathfrak{g}$ -valued. The wedge product of $\mathfrak{g}$ -valued forms uses the Lie bracket: $[A \wedge A]^a = f^a_{bc} A^b \wedge A^c$ where $f^a_{bc}$ are structure constants.

Why $\mathfrak{g}$ -valued? Because the curvature measures the holonomy around an infinitesimal loop, and holonomy lies in $G$ . Differentiating to first order gives $\mathfrak{g}$ . The non-linear $A \wedge A$ term distinguishes non-abelian gauge theory from abelian: for $U(1)$ (abelian), $A \wedge A = 0$ and $F = dA$ is just the exterior derivative. For $SU(N)$ , the bracket term is essential.

Counterexample to “F = dA is the right formula”: for $SU(2)$ Yang-Mills, the gauge field $A$ has three components ($A^1, A^2, A^3$ ), and $F^a = dA^a + \epsilon^{abc} A^b \wedge A^c$ . The bracket term gives a self-interaction of the gauge field — gluons in QCD interact with each other (unlike photons in QED). The non-abelian structure encodes nonlinear physics that abelian gauge theory does not have.

A third worked example: tangent bundle as a vector bundle#

The tangent bundle $TM$ of a manifold $M$ is the canonical example of a vector bundle. Fiber: the tangent space $T_p M$ , an $n$ -dimensional vector space. Local triviality: every chart $\varphi: U \to \mathbb{R}^n$ gives a trivialization $TU \cong U \times \mathbb{R}^n$ via $(p, v) \mapsto (\varphi(p), d\varphi(v))$ .

Transition functions: where two charts $\varphi_\alpha$ and $\varphi_\beta$ overlap, the transition function on $TM$ is $g_{\alpha\beta}: U_\alpha \cap U_\beta \to GL(n, \mathbb{R})$ , $g_{\alpha\beta}(p) = d(\varphi_\beta \circ \varphi_\alpha^{-1})|_{\varphi_\alpha(p)}$ — the Jacobian of the chart change. So $TM$ is naturally a $GL(n, \mathbb{R})$ -bundle, or equivalently (by reduction of structure group via a Riemannian metric) an $O(n)$ -bundle, or (with orientation) an $SO(n)$ -bundle.

Concrete computation: on $S^2$ with stereographic charts, the transition Jacobian is the differential of $z \mapsto 1/\bar z$ in complex notation. At a point at distance $r$ from the origin in the chart, the Jacobian acts as multiplication by $-1/r^2$ together with complex conjugation — a reflection composed with a scaling. So the tangent bundle of $S^2$ has nontrivial transition functions; it cannot be globally trivialized (consistent with the hairy-ball theorem, which says $TS^2$ has no global non-vanishing section).

The Euler class of $TS^2$ , computed via Chern-Weil, equals $\chi(S^2) = 2$ . This is the Euler-class-equals-Euler-characteristic theorem for the tangent bundle, a special case of the Atiyah-Singer index theorem.

A second counterexample: not every Lie-algebra-valued 2-form is a curvature#

Given an arbitrary $\mathfrak{g}$ -valued 2-form $F$ on a manifold, is there a connection $A$ with $F = dA + A \wedge A$ ? Not always. The integrability condition is the second Bianchi identity $dF + [A, F] = 0$ , which $F$ must satisfy with respect to some connection. For arbitrary $F$ , this need not hold.

A specific counterexample: on $\mathbb{R}^4$ with $\mathfrak{su}(2)$ , take $F = x^2 \sigma_1 dx_1 \wedge dx_2 + \sigma_2 dx_3 \wedge dx_4$ . Compute $dF = 2x \sigma_1 dx_1 \wedge dx_1 \wedge dx_2 + ... = 0$ . Without the bracket term, this looks closed. But the Bianchi identity says we also need $[A, F] = 0$ for some connection $A$ , which constrains $F$ in non-abelian gauge theory in a way that abelian intuition misses. Yang-Mills physicists rediscover this constraint when they try to write down arbitrary “field configurations” and find that not all are realizable.

Common pitfall for beginners#

Beginners often confuse the connection 1-form $A$ on the principal bundle with a 1-form on the base space. They are different objects: $A$ lives on the total space $P$ (the principal bundle), and only after choosing a local section (a local gauge) does $A$ pull back to a 1-form on the base. The pulled-back form depends on the gauge choice; gauge transformations are exactly changes of section, and they transform $A$ by $A \mapsto g^{-1} A g + g^{-1} dg$ .

A specific trap: students compute $F$ in one gauge and then transform it as if it were a tensor under gauge changes. The correct transformation is $F \mapsto g^{-1} F g$ — homogeneous, with no $g^{-1} dg$ term. Beginners apply the connection-transformation formula to $F$ and get inconsistent results.

A second pitfall: forgetting that gauge transformations change $A$ but leave physics invariant. Computing physical quantities (like Wilson loops $\text{tr}(\mathcal{P}\exp \oint A)$ ) requires gauge-invariant constructions. Picking the wrong gauge can hide physics; picking the right gauge (’t Hooft gauge for instantons, axial gauge for QCD perturbation theory) is part of the working toolkit of theoretical physicists.

Where this matters in physics, computing, and engineering#

In the Standard Model of particle physics, the gauge group is $SU(3) \times SU(2) \times U(1)$ . The connection 1-form decomposes into the gluon field (8 components, $\mathfrak{su}(3)$ ), the weak-force fields ($W^\pm, Z$ ), and the electromagnetic field. The Yang-Mills Lagrangian $\mathcal{L} = -\tfrac{1}{4} \text{tr}(F \wedge \star F)$ is the same in every sector — only the gauge group changes. The entire theory of fundamental forces (excluding gravity and Higgs) is contained in this language.

In condensed matter, topological insulators are characterized by the Chern numbers of the Bloch bundle — a vector bundle over the Brillouin zone (a torus). The integer Chern number determines the integer-quantized Hall conductance. The Berry phase, accumulated as a quantum state is adiabatically transported around a loop in parameter space, is the holonomy of a $U(1)$ connection on the bundle of ground states. Topological materials are classified by these connection-curvature invariants.

In machine learning, modern interpretability methods use the Berry-phase-like curvature of representation manifolds to detect hidden structure in trained networks. The Riemannian metric of the parameter space, combined with a connection (often induced from the data), gives curvature 2-forms whose integrals are diagnostics of trained-model behavior. Geometric deep learning makes this the first-class object.

In lattice gauge theory, computer simulations of quark interactions discretize the connection by attaching $SU(3)$ -valued group elements to lattice edges. Wilson loops are products around closed loops, gauge-invariant by construction. The continuum limit recovers Yang-Mills theory; the lattice limit makes it computable. Modern QCD predictions of hadron masses come out of this machinery to within a percent.

Revisiting “where to go from here” with sharper questions#

The series ends here, but the road continues. Three directions to consider:

(1) Spin geometry and the Dirac operator: spinors, spin connections, and the Atiyah-Singer index theorem connect bundle topology to differential operators. The spin connection is the natural generalization of the Levi-Civita connection to spinor fields, and the Dirac operator is its central object. Index theory is the deepest payoff of bundle theory.

(2) Symplectic and Poisson geometry: the geometry of phase space, where the metric is replaced by a closed non-degenerate 2-form. Hamiltonian dynamics, geometric quantization, and integrable systems all live here.

(3) Algebraic and complex geometry: when manifolds carry a complex structure or are defined as zero sets of polynomials, the differential-geometric tools of this series merge with algebra. Calabi-Yau manifolds, moduli spaces, Hodge theory — all sit at this junction.

You now have a working command of differential geometry from curves through gauge theory. The 12 articles cover what every working geometer or theoretical physicist must know. The next steps depend on direction: pure geometers go to spin and index theory, applied physicists go to gauge theory and field theory, applied mathematicians go to symplectic geometry and dynamical systems. The shared toolkit is what you have learned. Read each next-direction text asking “where do my 12 articles fit into this larger picture?” — the answer is always: they are the foundation.

One last worked example: Wilson loop in a $U(1)$ gauge theory#

A Wilson loop is the quantity $W(\gamma) = \exp(i \oint_\gamma A)$ for a loop $\gamma$ and a $U(1)$ connection $A$ . It is gauge-invariant and physical: in QED, $W(\gamma)$ is the quantum-mechanical phase acquired by a charged particle traveling around $\gamma$ .

Concretely, take $A = -y\, dx + x\, dy$ on $\mathbb{R}^2$ — the gauge potential of a constant magnetic field $B = dA = 2\, dx\wedge dy$ pointing out of the page. Compute the Wilson loop on the unit circle $\gamma(t) = (\cos t, \sin t)$ : $\oint_\gamma A = \int_0^{2\pi} (-\sin t \cdot (-\sin t) + \cos t \cdot \cos t)\, dt = \int_0^{2\pi} 1\, dt = 2\pi$ . So $W(\gamma) = e^{2\pi i} = 1$ — the loop encloses flux $2$ (Stokes’: $\int_D 2\, dA = 2\pi \cdot 1 = 2\pi$ , matching), but $e^{i\cdot 2\pi} = 1$ trivially.

For a smaller loop with flux $\Phi = \pi$ (half the unit-circle flux), $W = e^{i\pi} = -1$ — the particle picks up a sign. This is the Aharonov-Bohm effect: even regions where $B = 0$ can have $A \neq 0$ , and a charged particle passing through such a region picks up a measurable phase. The mathematical content is that the Wilson loop depends on $A$ , not just on $B$ , but only through gauge-invariant data (the integral around a closed loop). This is the cleanest physical demonstration that the gauge potential, not just the field strength, is fundamental in quantum mechanics.

For non-abelian gauge theory ($SU(N)$ ), the Wilson loop is a path-ordered exponential $W(\gamma) = \text{tr}(\mathcal{P}\exp i\oint A)$ , and the path ordering matters because matrices don’t commute. Confinement in QCD is conjectured to be tied to an area-law decay of large Wilson loops — quark-antiquark separation costs energy proportional to the area of the swept-out worldsheet, a hallmark of color confinement.

One more dictionary example: gauge groups and forces#

To anchor the gauge-theory dictionary in numbers, compare the strengths and structure constants of the Standard Model gauge groups.

$U(1)$ electromagnetism: structure constants zero (abelian). Coupling at low energy: $\alpha = 1/137.036$ . Single gauge boson (photon). Generators: 1.

$SU(2)$ weak isospin: 3 generators, structure constants $\epsilon_{abc}$ (Levi-Civita). Coupling at $M_Z$ : $\alpha_w \approx 1/30$ . Three gauge bosons ($W^+, W^-, Z$ ). Self-interaction: yes, via $[A^a, A^b] = i\epsilon^{abc} A^c$ in the field-strength formula.

$SU(3)$ color: 8 generators (the Gell-Mann matrices), structure constants $f^{abc}$ with specific nonzero values like $f^{123} = 1$ , $f^{147} = 1/2$ , $f^{458} = \sqrt{3}/2$ . Coupling at $M_Z$ : $\alpha_s \approx 0.118$ , runs strong at low energy ($\sim 1$ at hadronic scales). Eight gauge bosons (gluons). Strong self-interaction.

The curvature 2-form $F = dA + A \wedge A$ has its second piece grow with the coupling — abelian theories have linear field equations, non-abelian have nonlinear. QCD’s confinement is conjecturally a consequence of the nonlinearity becoming non-perturbative at low energy.

Quantitative test of the gauge-theory dictionary: the running of the couplings $\alpha_1, \alpha_2, \alpha_3$ with energy scale, computed from the Lie-algebra structure of each group, predicts approximate unification at $\sim 10^{16}$ GeV. This is the empirical seed of grand unified theories — the curvatures of the three Standard Model bundles, extrapolated, almost meet. The “almost” is one of the open problems of theoretical physics.

Where to Go from Here#

This series ends here, but differential geometry stretches far beyond. Some directions:

• Riemannian geometry (deepening): comparison theorems, geometric flows (Ricci flow, mean curvature flow), Hodge theory, Yamabe problem.
• Symplectic geometry: Hamiltonian dynamics, moment maps, Lagrangian submanifolds, Floer homology, mirror symmetry.
• Complex and Kahler geometry: holomorphic vector bundles, Calabi-Yau manifolds, Hodge structures, the Hitchin equations.
• Index theory: the Atiyah-Singer theorem, the heat-kernel proof, the Dirac operator, K-theory and elliptic operators.
• Gauge theory in low dimensions: Donaldson invariants in 4D, Seiberg-Witten theory, Floer-Donaldson theory in 3D.
• Geometric analysis: Ricci flow with surgery (Perelman), minimal surfaces, harmonic maps, the Yamabe problem.
• Mathematical physics: classical field theory, BV-BRST formalism, perturbative QFT and its geometric structure, string theory and Calabi-Yau compactification.

Suggested further reading.

• Lee, Smooth Manifolds (and Riemannian Manifolds): the standard graduate textbook for everything in articles 1-11.
• Bott and Tu, Differential Forms in Algebraic Topology: the geometric topologist’s introduction to characteristic classes.
• Milnor and Stasheff, Characteristic Classes: the classic treatment, presupposing basic algebraic topology.
• Nakahara, Geometry, Topology and Physics: written for physicists who want to understand the mathematics of gauge theory; starts from scratch and reaches advanced topics.
• Kobayashi and Nomizu, Foundations of Differential Geometry: the comprehensive reference for connections, curvature, and bundles in full generality. Dense but complete.
• Frankel, The Geometry of Physics: an excellent bridge text that develops differential geometry alongside its physical applications.
• Eguchi, Gilkey, Hanson, Gravitation, Gauge Theories and Differential Geometry: a classic physics-paper-style review of the differential-geometric structure of fundamental physics.

Summary of the key ideas.

1. A fiber bundle is locally a product but globally can twist; sections may not exist if twisting is non-trivial.
2. A principal $G$ -bundle has fiber $G$ acted on by right translation; associated bundles combine principal bundles with representations.
3. A connection on a principal bundle is a Lie-algebra-valued 1-form, with horizontal lifts giving parallel transport.
4. The curvature $F = dA + A\wedge A$ is a Lie-algebra-valued 2-form satisfying Bianchi $dF + [A, F] = 0$ .
5. Chern-Weil theory turns invariant polynomials of $F$ into closed forms whose cohomology classes are independent of connection — the characteristic classes.
6. Yang-Mills theory is the variational problem for connections, with Maxwell as the abelian case and the Standard Model as the physical realization.
7. The physics-mathematics dictionary identifies gauge theory with the differential geometry of principal bundles.

This is where local geometry, global topology, and physical theory come together. The goal of this entire series has been to make that confluence intelligible, computationally accessible, and physically motivated. From smooth charts to Yang-Mills connections, the journey is one continuous arc — and you now have the tools to walk it in either direction.

A final personal note. Twelve articles is a strange unit. It is too few to be a textbook and too many to be a summary. What I have aimed for is the conceptual spine of the subject: enough machinery that the next textbook makes sense without having to back-fill, but not so much detail that the reader loses sight of the underlying ideas. Whether I have succeeded depends on the reader. If after reading these articles you can pick up Lee’s Riemannian Manifolds, Nakahara’s Geometry, Topology and Physics, or Eguchi-Gilkey-Hanson and read with comprehension and pleasure, then the articles have done their job. If the path forward feels obvious, I have done well; if the path forward feels open and inviting, I have done very well; if you find yourself wanting to write your own articles in the gaps, I have done extraordinarily well. The latter has been my own experience reading the masters of this field, and I hope I have managed to pass it on.
