Docker and Containers (4): Networking and Volumes — How Containers Talk and Persist

Containers are deliberately isolated. That’s the point. But useful applications need to accept connections from the outside world, talk to databases, and store data that survives container restarts. Docker provides two mechanisms for this: networks (for communication) and volumes (for persistent storage). Getting these right makes the difference between a demo and a deployment.

Docker Networking#

When Docker starts, it creates a virtual network infrastructure on the host. Each container gets its own network namespace (with its own IP address, routing table, and network interfaces), and Docker manages the traffic flow between containers and the outside world.

Network Drivers#

Docker supports several network drivers, each suited to different use cases:

Driver	Description	Use Case	Container Communication
`bridge`	Default. Containers on a private virtual network.	Single-host applications	Via IP or DNS (custom bridge only)
`host`	Container shares the host’s network namespace	Performance-critical, single container	Container uses host’s IP directly

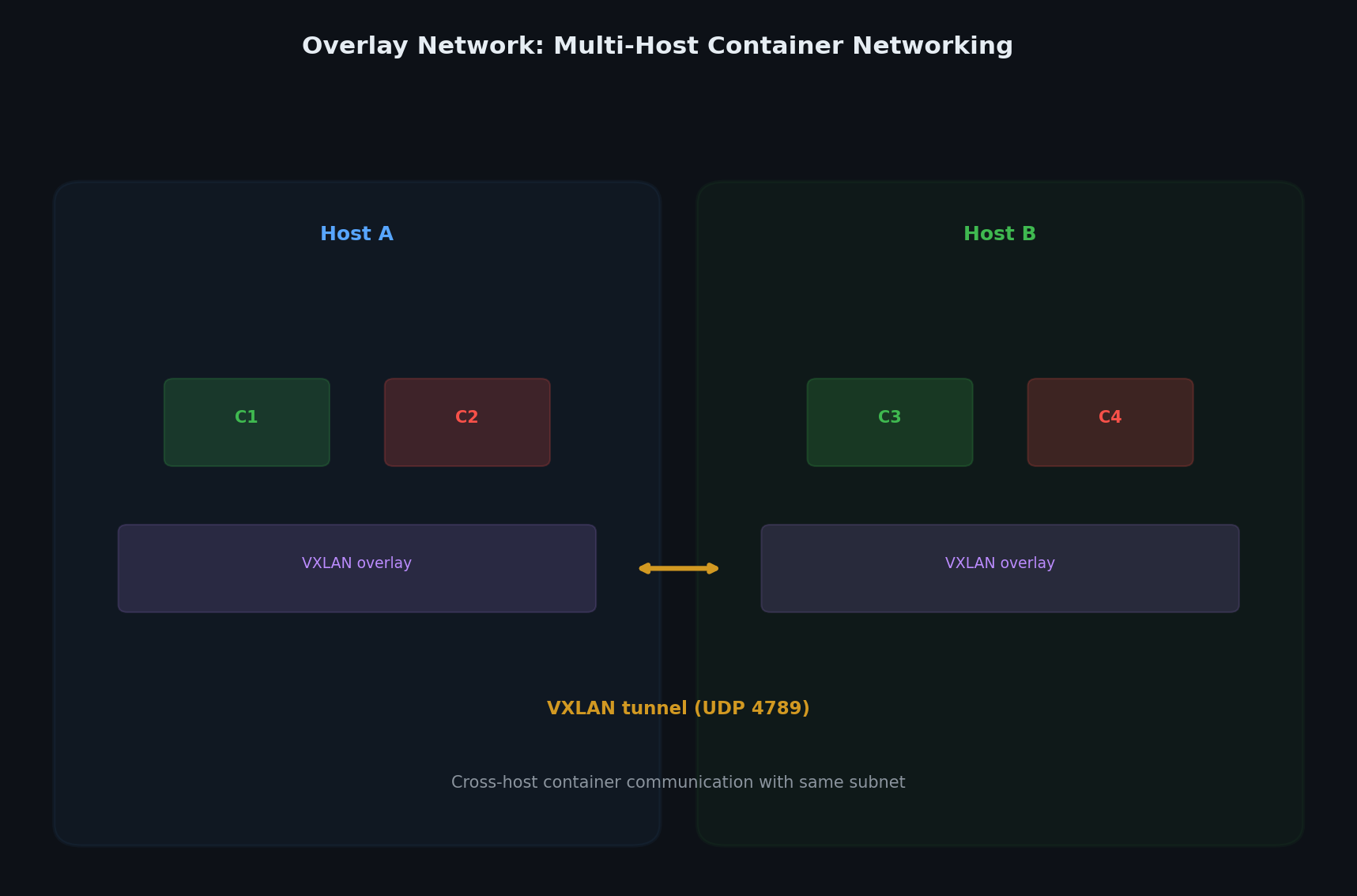

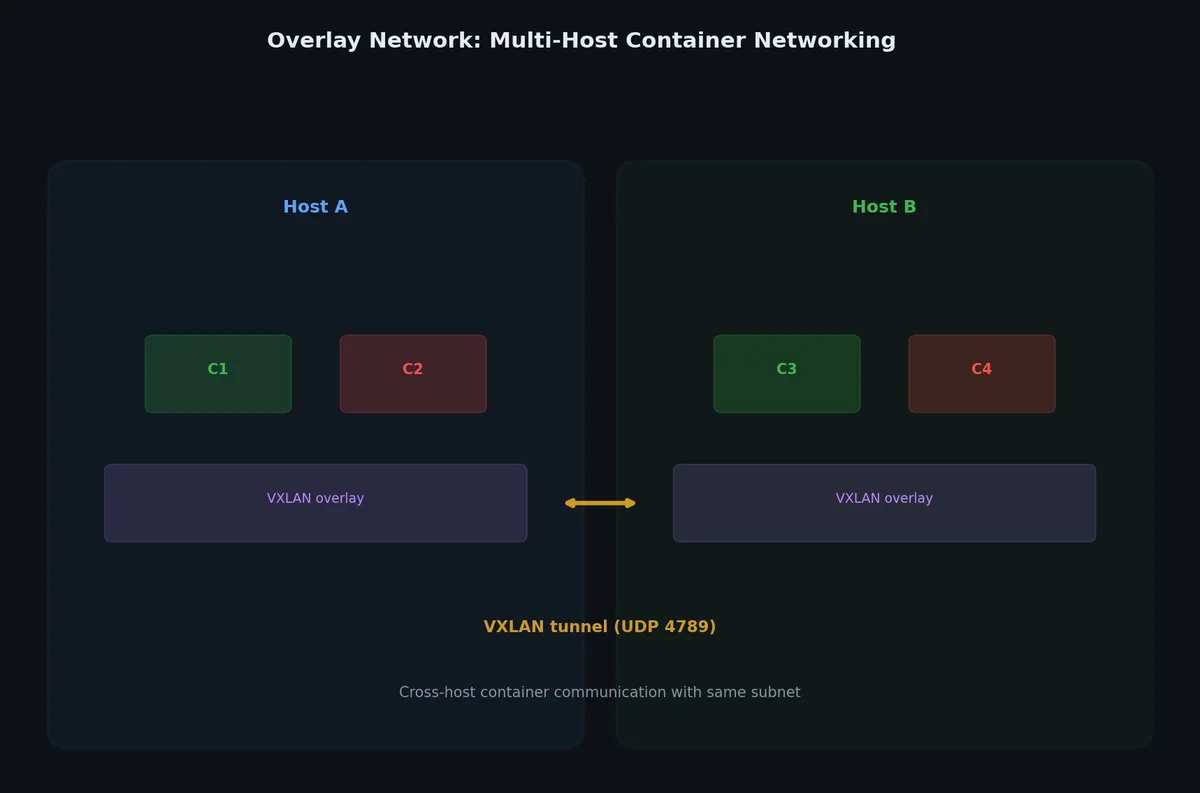

`overlay`	Multi-host networking via VXLAN	Docker Swarm, multi-node clusters	Across physical hosts
`none`	No networking at all	Batch processing, security isolation	None
`macvlan`	Container gets a MAC address on the physical network	Legacy apps that need to appear as physical hosts	Directly on LAN
`ipvlan`	Like macvlan but shares host’s MAC address	Similar to macvlan, fewer switch issues	Directly on LAN

For most single-host use cases, you’ll use bridge networks. Let’s explore the relevant drivers.

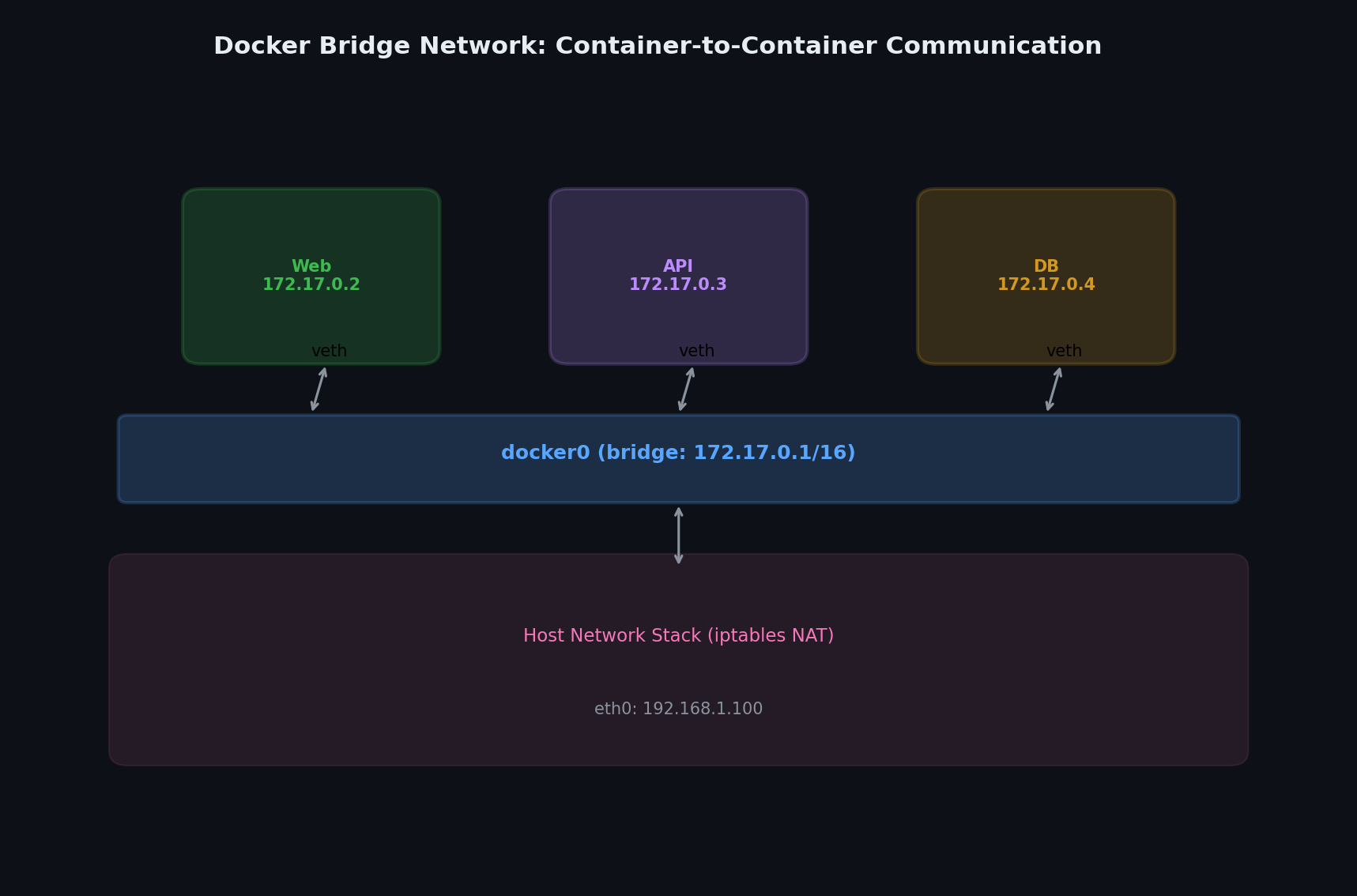

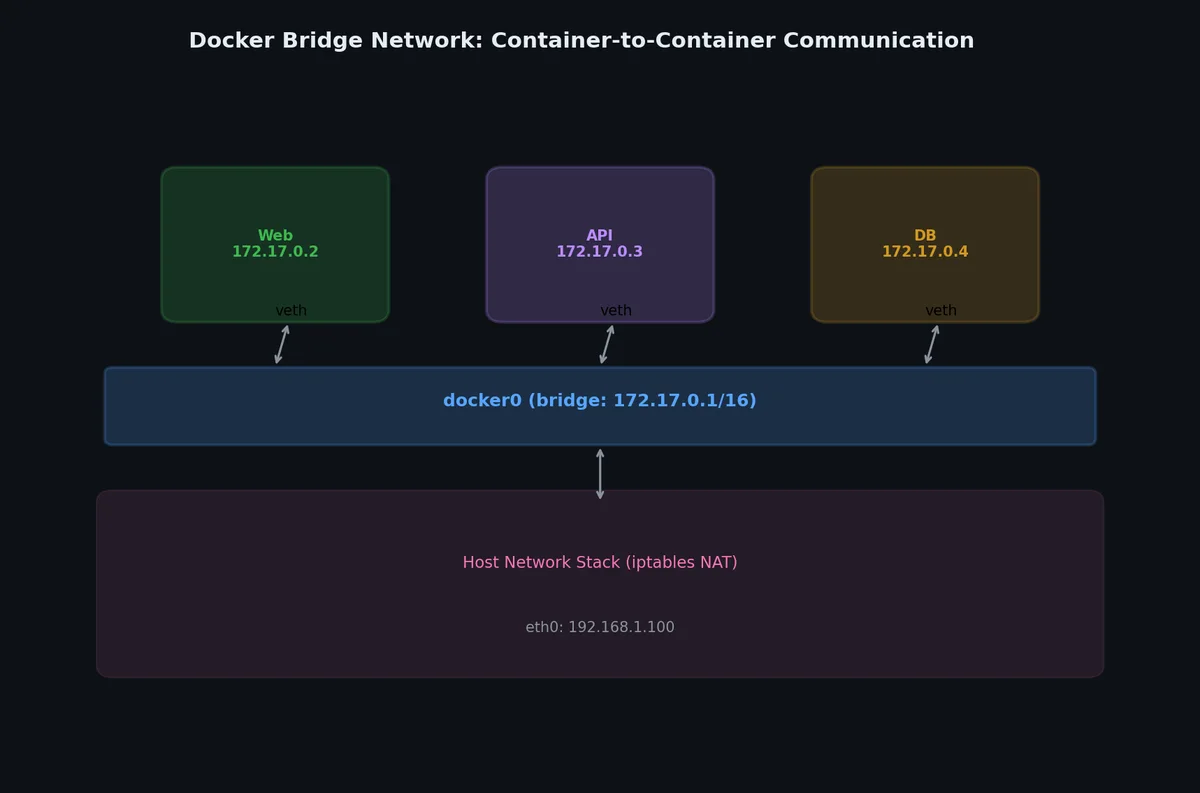

The Default Bridge Network#

When you install Docker, it creates a network called bridge (backed by a Linux bridge device called docker0):

1
docker network ls

1
2
3
4
NETWORK ID     NAME      DRIVER    SCOPE
a1b2c3d4e5f6   bridge    bridge    local
b2c3d4e5f6a7   host      host      local
c3d4e5f6a7b8   none      null      local

1
docker network inspect bridge --format '{{range .IPAM.Config}}{{.Subnet}}{{end}}'

1
172.17.0.0/16

Every container that doesn’t specify a network joins the default bridge. Let’s see it in action:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Run two containers on the default bridge
docker run -d --name container-a alpine sleep 3600
docker run -d --name container-b alpine sleep 3600

# Check their IP addresses
docker inspect container-a --format '{{.NetworkSettings.IPAddress}}'
# Output: 172.17.0.2

docker inspect container-b --format '{{.NetworkSettings.IPAddress}}'
# Output: 172.17.0.3

# They can reach each other by IP
docker exec container-a ping -c 2 172.17.0.3

1
2
3
PING 172.17.0.3 (172.17.0.3): 56 data bytes
64 bytes from 172.17.0.3: seq=0 ttl=64 time=0.108 ms
64 bytes from 172.17.0.3: seq=1 ttl=64 time=0.090 ms

But DNS doesn’t work on the default bridge:

1
2
docker exec container-a ping -c 2 container-b
# Output: ping: bad address 'container-b'

This is a deliberate limitation of the default bridge. For service discovery, you need a custom bridge network.

1
2
# Clean up
docker rm -f container-a container-b

Custom Bridge Networks#

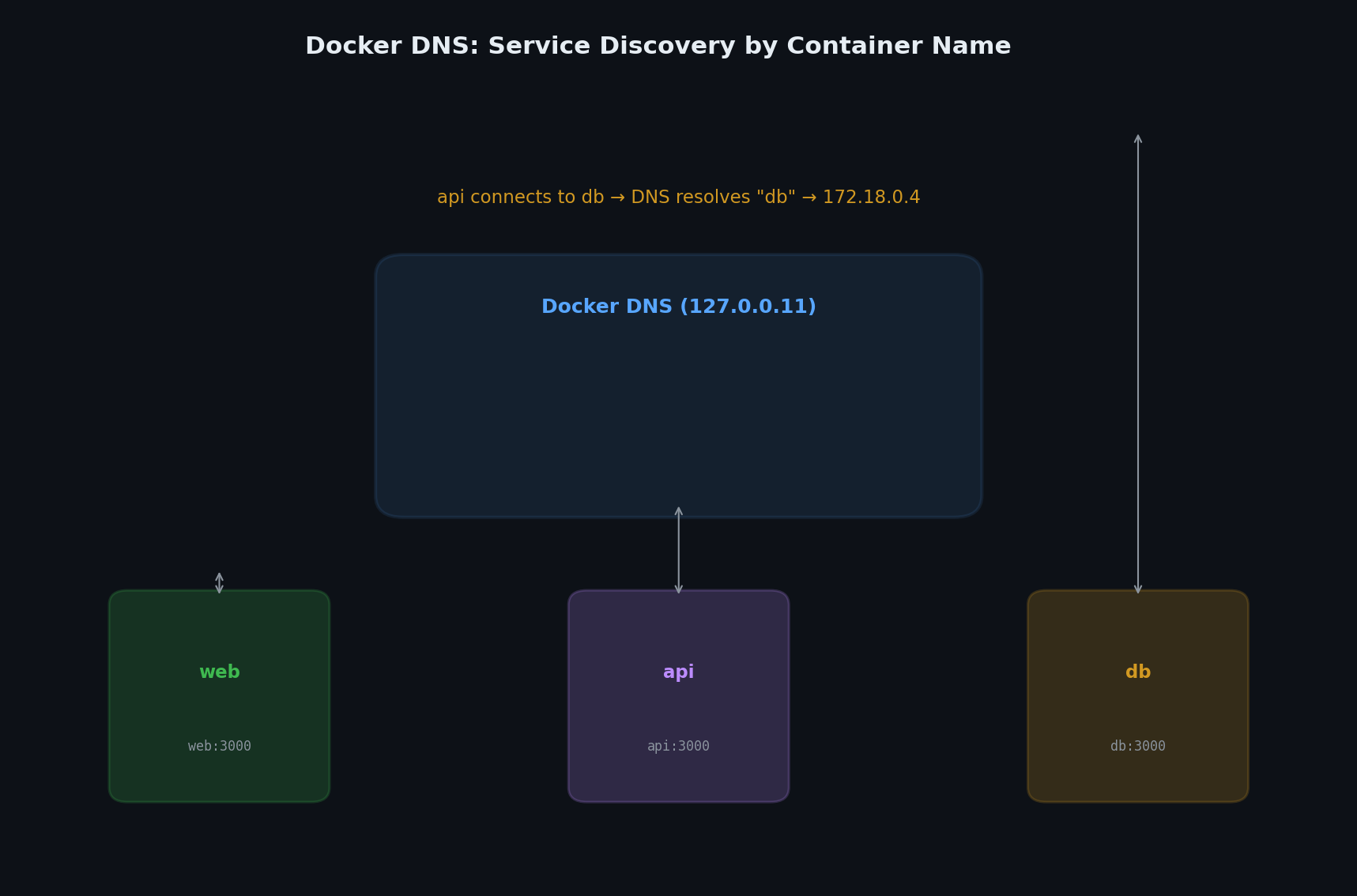

Custom bridge networks provide automatic DNS resolution between containers — this is what you should use for applications.

1
2
3
4
5
6
7
8
9
# Create a custom network
docker network create my-app-network

# Run containers on it
docker run -d --name web --network my-app-network nginx
docker run -d --name api --network my-app-network alpine sleep 3600

# DNS resolution works
docker exec api ping -c 2 web

1
2
3
PING web (172.18.0.2): 56 data bytes
64 bytes from 172.18.0.2: seq=0 ttl=64 time=0.065 ms
64 bytes from 172.18.0.2: seq=1 ttl=64 time=0.078 ms

The container name web resolves to its IP address. This is Docker’s built-in DNS server at work. Docker runs an embedded DNS server at 127.0.0.11 inside each container on a custom network.

Custom networks also provide isolation — containers on different networks can’t communicate unless explicitly connected.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Create another network
docker network create other-network
docker run -d --name isolated --network other-network alpine sleep 3600

# This will fail — different networks
docker exec isolated ping -c 2 web
# Output: ping: bad address 'web'

# Connect a container to multiple networks
docker network connect my-app-network isolated

# Now it works
docker exec isolated ping -c 2 web

1
2
PING web (172.18.0.2): 56 data bytes
64 bytes from 172.18.0.2: seq=0 ttl=64 time=0.089 ms

1
2
3
# Clean up
docker rm -f web api isolated
docker network rm my-app-network other-network

Comparison: Default Bridge vs Custom Bridge#

Feature	Default Bridge	Custom Bridge
DNS resolution	No (IP only)	Yes (by container name)
Automatic isolation	All containers connected	Only explicitly connected containers
Connect/disconnect at runtime	Requires container restart	Live connect/disconnect
Environment variable linking	Legacy `--link`	Not needed (use DNS)
Creation	Automatic	`docker network create`

Bottom line: Always create custom bridge networks for your applications. The default bridge is for backward compatibility.

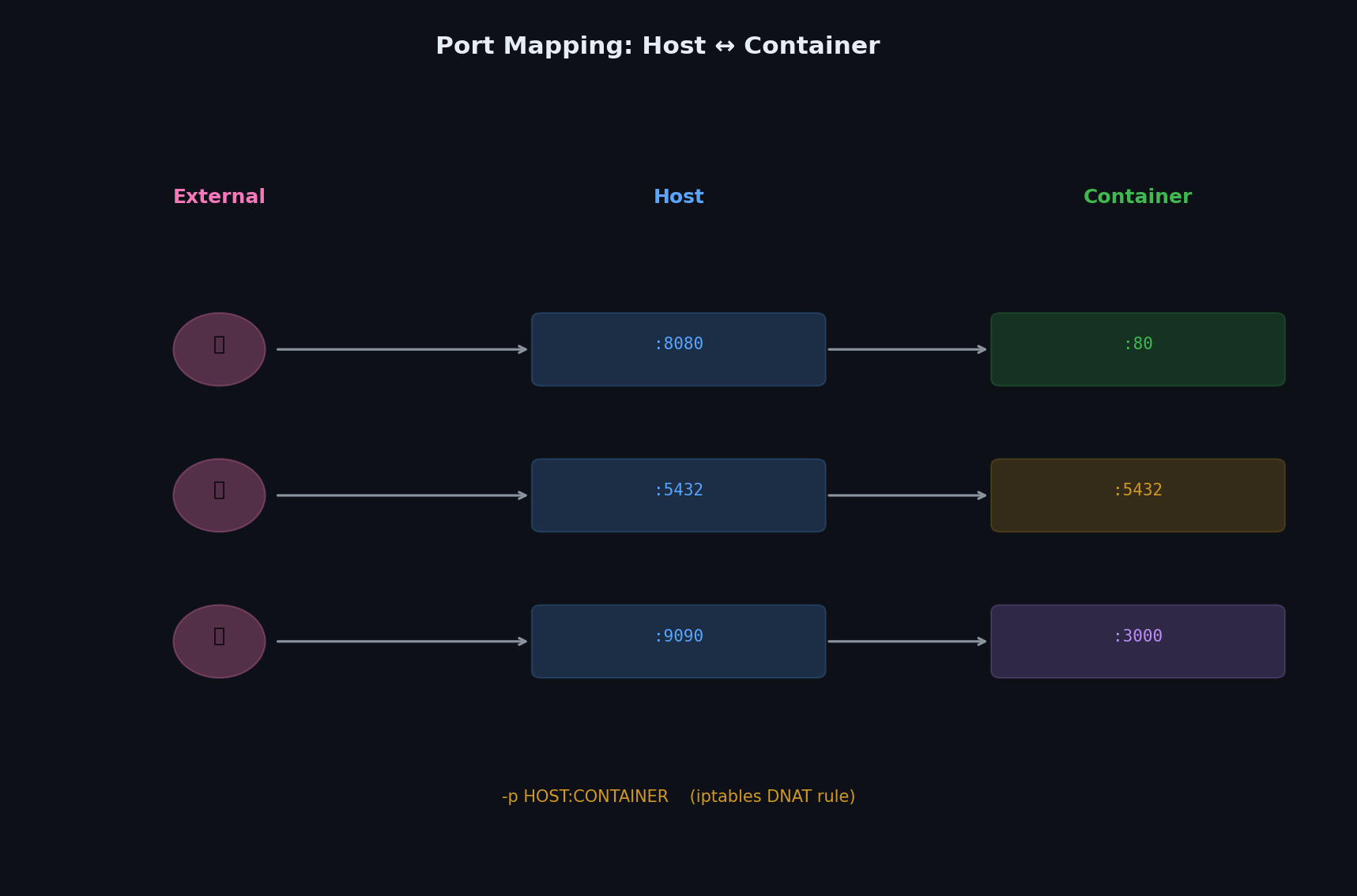

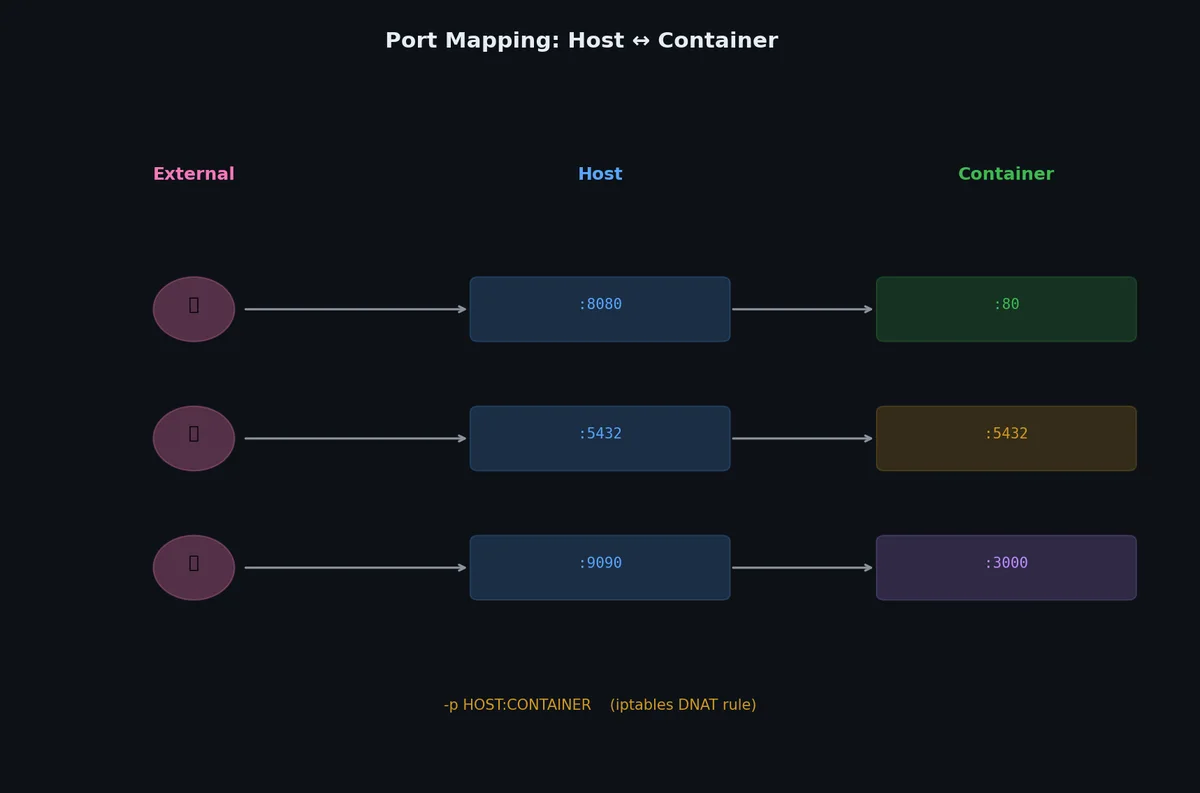

Port Mapping#

Containers have their own network namespace. To expose a container’s port to the host (and thus the outside world), you map ports.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# Map host port 8080 to container port 80
docker run -d -p 8080:80 --name web nginx

# Map host port 3307 to container port 3306
docker run -d -p 3307:3306 --name db mysql:8

# Map to a specific host interface
docker run -d -p 127.0.0.1:8080:80 --name local-only nginx

# Map a range of ports
docker run -d -p 8000-8010:8000-8010 --name range-app myapp

# Let Docker choose a random host port
docker run -d -p 80 --name random-port nginx

# Check what port was assigned
docker port random-port
# Output: 80/tcp -> 0.0.0.0:32768

The format is always HOST:CONTAINER. Read it as “host port 8080 forwards to container port 80.”

EXPOSE vs -p:

Feature	`EXPOSE 80` (Dockerfile)	`-p 8080:80` (docker run)
Effect	Documentation only	Actually publishes the port
Network access	None	Host can reach container on port 8080
Required for networking?	No	Yes (for external access)
Container-to-container	Not needed (use DNS on custom network)	Not needed

Host Network Mode#

The host network mode removes network isolation entirely — the container uses the host’s network stack directly:

1
2
3
4
docker run -d --network host --name web nginx

# nginx is now directly on port 80 of the host — no port mapping needed
curl http://localhost:80

This eliminates the overhead of port mapping and NAT, providing slightly better network performance. The tradeoff: you lose port isolation (two containers can’t both listen on port 80), and the container can see all host network interfaces.

Use host networking when:

You need maximum network performance
Your application binds to many ports dynamically
You’re running monitoring tools that need to see host network traffic

Network Management Commands#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# List all networks
docker network ls

# Create a network with options
docker network create \
    --driver bridge \
    --subnet 172.20.0.0/16 \
    --gateway 172.20.0.1 \
    --ip-range 172.20.240.0/20 \
    my-custom-net

# Inspect a network (see connected containers, configuration)
docker network inspect my-custom-net

# Connect a running container to a network
docker network connect my-custom-net my-container

# Disconnect a container from a network
docker network disconnect my-custom-net my-container

# Remove a network (must have no connected containers)
docker network rm my-custom-net

# Remove all unused networks
docker network prune

Docker Volumes#

By default, all data written inside a container is stored in its writable layer. When the container is deleted, that data is gone. Volumes provide persistent storage that exists independently of the container lifecycle.

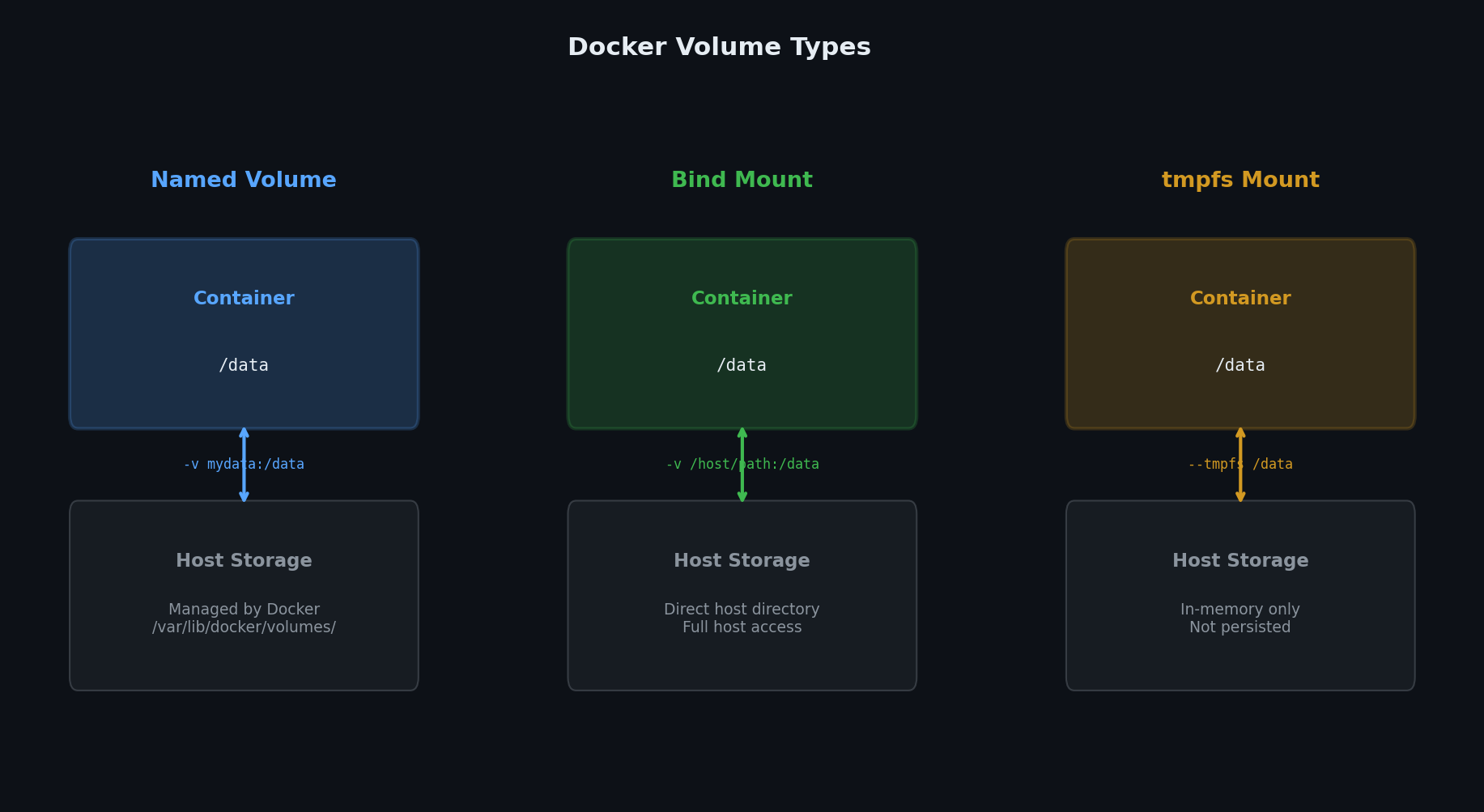

Three Types of Mounts#

Docker supports three ways to mount storage into a container.

Type	Syntax	Managed By	Location on Host	Use Case
Named volume	`-v mydata:/data`	Docker	`/var/lib/docker/volumes/mydata/`	Databases, persistent app data
Bind mount	`-v /host/path:/container/path`	You	Anywhere you specify	Development (live code reload)
tmpfs	`--tmpfs /tmp`	Kernel	RAM only	Sensitive data, caches

Named Volumes#

Named volumes are the recommended way to persist data. Docker manages the storage location, and volumes can be shared between containers.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
# Create a named volume
docker volume create app-data

# Run a container with the volume
docker run -d \
    --name writer \
    -v app-data:/data \
    alpine sh -c "echo 'persistent data' > /data/message.txt && sleep 3600"

# Verify the data exists
docker exec writer cat /data/message.txt
# Output: persistent data

# Remove the container
docker rm -f writer

# The data survives — run a new container with the same volume
docker run --rm \
    -v app-data:/data \
    alpine cat /data/message.txt
# Output: persistent data

Volume lifecycle commands:

1
2
# List all volumes
docker volume ls

1
2
3
4
DRIVER    VOLUME NAME
local     app-data
local     postgres-data
local     redis-data

1
2
# Inspect a volume
docker volume inspect app-data

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
[
    {
        "CreatedAt": "2023-09-22T10:00:00Z",
        "Driver": "local",
        "Labels": {},
        "Mountpoint": "/var/lib/docker/volumes/app-data/_data",
        "Name": "app-data",
        "Options": {},
        "Scope": "local"
    }
]

1
2
3
4
5
# Remove a volume (must not be in use by any container)
docker volume rm app-data

# Remove all unused volumes (DANGEROUS — irreversible)
docker volume prune

Bind Mounts#

Bind mounts map a specific host directory into the container. They’re essential for development workflows.

1
2
3
4
5
6
7
# Mount current directory into the container
docker run -d \
    --name dev-server \
    -v $(pwd):/app \
    -p 5000:5000 \
    python:3.11-slim \
    bash -c "cd /app && pip install flask && python app.py"

Any changes to files on the host are immediately visible in the container (and vice versa). This enables live development without rebuilding the image.

Bind mount vs named volume comparison:

1
2
3
4
5
6
7
8
# Named volume (Docker manages location)
docker run -v mydata:/app/data myapp

# Bind mount (you specify the exact path)
docker run -v /home/user/project/data:/app/data myapp

# Bind mount with read-only flag
docker run -v /home/user/config:/app/config:ro myapp

Feature	Named Volume	Bind Mount
Created by	`docker volume create` or auto-created	Pre-existing host directory
Location	`/var/lib/docker/volumes/...`	Anywhere on host
Managed by	Docker CLI (`docker volume ...`)	Host filesystem tools
Pre-populated	Yes (container contents copied to volume on first use)	No (host contents override container)
Permission	Docker handles ownership	Must manage manually
Performance on macOS	Better (uses gRPC FUSE/VirtioFS)	Can be slow for large trees
Backup	`docker run --rm -v mydata:/data -v $(pwd):/backup alpine tar czf /backup/data.tar.gz /data`	Standard host backup tools
Use case	Production data persistence	Development (live reload)

tmpfs Mounts#

tmpfs mounts exist only in memory and are never written to the host filesystem:

1
2
3
4
5
docker run -d \
    --name secure-app \
    --tmpfs /tmp:size=100m,mode=1777 \
    --tmpfs /run/secrets:size=1m,mode=0700 \
    myapp

Use tmpfs for:

Temporary files that shouldn’t persist
Sensitive data (keys, tokens) that shouldn’t touch disk
Write-heavy caches where disk I/O would be a bottleneck

Real-World Example: MySQL with Persistent Data#

Docker network bridge connecting containers like islands con

This example demonstrates why volumes matter. Without a volume, deleting the MySQL container destroys all your data.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# Create a network and volume
docker network create db-network
docker volume create mysql-data

# Run MySQL with persistent storage
docker run -d \
    --name mysql-server \
    --network db-network \
    -v mysql-data:/var/lib/mysql \
    -e MYSQL_ROOT_PASSWORD=rootpass \
    -e MYSQL_DATABASE=myapp \
    -e MYSQL_USER=appuser \
    -e MYSQL_PASSWORD=apppass \
    -p 3306:3306 \
    mysql:8.0

# Wait for MySQL to start (check logs)
docker logs -f mysql-server 2>&1 | grep -m 1 "ready for connections"

1
2023-09-22T10:05:23.456789Z 0 [System] [MY-010931] [Server] /usr/sbin/mysqld: ready for connections. Version: '8.0.34'  socket: '/var/run/mysqld/mysqld.sock'  port: 3306  MySQL Community Server - GPL.

1
2
3
4
5
6
# Connect and create some data
docker exec -it mysql-server mysql -u appuser -papppass myapp -e "
CREATE TABLE users (id INT AUTO_INCREMENT PRIMARY KEY, name VARCHAR(100));
INSERT INTO users (name) VALUES ('Alice'), ('Bob'), ('Charlie');
SELECT * FROM users;
"

1
2
3
4
5
6
7
+----+---------+
| id | name    |
+----+---------+
|  1 | Alice   |
|  2 | Bob     |
|  3 | Charlie |
+----+---------+

Now, simulate a disaster — delete and recreate the container:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# Remove the container (data lives in the volume, not the container)
docker rm -f mysql-server

# Recreate with the same volume
docker run -d \
    --name mysql-server \
    --network db-network \
    -v mysql-data:/var/lib/mysql \
    -e MYSQL_ROOT_PASSWORD=rootpass \
    -p 3306:3306 \
    mysql:8.0

# Wait for startup, then check data
docker exec -it mysql-server mysql -u appuser -papppass myapp -e "SELECT * FROM users;"

1
2
3
4
5
6
7
+----+---------+
| id | name    |
+----+---------+
|  1 | Alice   |
|  2 | Bob     |
|  3 | Charlie |
+----+---------+

Data survived. The volume (mysql-data) exists independently of the container. You can delete and recreate containers freely as long as you mount the same volume.

Volume Backup and Restore#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# Backup: run a temporary container that mounts the volume and creates a tar
docker run --rm \
    -v mysql-data:/source:ro \
    -v $(pwd):/backup \
    alpine tar czf /backup/mysql-backup-$(date +%Y%m%d).tar.gz -C /source .

# Check the backup
ls -lh mysql-backup-*.tar.gz
# Output: -rw-r--r-- 1 user user 45M Sep 22 11:00 mysql-backup-20230922.tar.gz

# Restore: create a new volume and extract the backup
docker volume create mysql-restored
docker run --rm \
    -v mysql-restored:/target \
    -v $(pwd):/backup \
    alpine tar xzf /backup/mysql-backup-20230922.tar.gz -C /target

Volume Permissions#

A common source of frustration: the container process runs as a specific user, but the volume files are owned by a different user.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# Problem: Container runs as UID 1000, but volume files are owned by root
docker run -v mydata:/data myapp
# Error: Permission denied writing to /data

# Solution 1: Set ownership in Dockerfile
RUN mkdir /data && chown 1000:1000 /data
VOLUME /data

# Solution 2: Run with matching UID
docker run --user 1000:1000 -v mydata:/data myapp

# Solution 3: Use an init script that fixes permissions
# (common pattern in official database images)

Data Patterns: When to Use What#

Scenario	Storage Type	Example
Database files	Named volume	`-v postgres-data:/var/lib/postgresql/data`
Application logs	Named volume or bind mount	`-v app-logs:/var/log/app`
Configuration files	Bind mount (read-only)	`-v ./config:/app/config:ro`
Source code (development)	Bind mount	`-v $(pwd):/app`
Uploaded files	Named volume	`-v uploads:/app/uploads`
Temporary/scratch files	tmpfs	`--tmpfs /tmp`
Secrets	tmpfs or Docker secrets	`--tmpfs /run/secrets`
Shared data between containers	Named volume	Two containers mount same volume
Build cache	Named volume	`-v build-cache:/root/.cache`

Putting It Together: Networked App with Persistence#

Docker volumes as floating storage crystals connected to con

Here’s a complete example — a Python app that connects to Redis, with both on a custom network and Redis data persisted:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# Create infrastructure
docker network create app-net
docker volume create redis-data

# Run Redis with persistence
docker run -d \
    --name redis \
    --network app-net \
    -v redis-data:/data \
    redis:7 \
    redis-server --appendonly yes

# Run the app
docker run -d \
    --name app \
    --network app-net \
    -p 8080:5000 \
    -e REDIS_HOST=redis \
    my-flask-app

# The app can reach Redis by name "redis" (DNS on custom network)
# The outside world reaches the app on port 8080
# Redis data survives container restarts

This manual setup works but is verbose and error-prone. Imagine managing 5 services this way. That’s exactly the problem Docker Compose solves.

1
2
3
4
# Clean up everything
docker rm -f redis app
docker network rm app-net
docker volume rm redis-data mysql-data

Inspecting Network and Volume State#

1
2
# See all port mappings for a container
docker port my-container

1
2
80/tcp -> 0.0.0.0:8080
443/tcp -> 0.0.0.0:8443

1
2
# See network settings for a container
docker inspect my-container --format '{{json .NetworkSettings.Networks}}' | python3 -m json.tool

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
{
    "my-app-network": {
        "IPAMConfig": null,
        "Links": null,
        "Aliases": ["my-container", "a1b2c3d4e5f6"],
        "NetworkID": "abc123...",
        "EndpointID": "def456...",
        "Gateway": "172.18.0.1",
        "IPAddress": "172.18.0.2",
        "IPPrefixLen": 16,
        "MacAddress": "02:42:ac:12:00:02"
    }
}

1
2
# See mount details for a container
docker inspect my-container --format '{{json .Mounts}}' | python3 -m json.tool

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
[
    {
        "Type": "volume",
        "Name": "app-data",
        "Source": "/var/lib/docker/volumes/app-data/_data",
        "Destination": "/data",
        "Driver": "local",
        "Mode": "z",
        "RW": true,
        "Propagation": ""
    }
]

What’s Next#

You now know how to connect containers to each other and to the outside world with networks, and how to persist data with volumes. But running docker run with 10 flags for each of 5 services is tedious, error-prone, and impossible to share with teammates. The next article introduces Docker Compose — a declarative way to define and run multi-container applications with a single YAML file. Everything we covered in this article (networks, volumes, port mappings) gets expressed in a docker-compose.yml that serves as both documentation and executable infrastructure.
