Docker and Containers (8): Beyond Docker — Kubernetes, Swarm, and What Comes Next

So far, this series has focused on single-host Docker: one machine running containers. This setup works well for development, small projects, and applications with modest traffic. However, when you need your service to survive server failures, handle traffic spikes, or deploy updates without downtime, single-host Docker falls short. Container orchestration addresses these issues, and Kubernetes has become the go-to solution.

Why Single-Host Docker Isn’t Enough#

Consider what happens when your Docker host fails:

Problem	Single-Host Docker	With Orchestration
Server crashes	All containers die, manual restart	Containers automatically rescheduled to healthy nodes
Traffic spike	Scale up manually with `--scale`	Auto-scaling based on metrics
Deployment	`docker compose down && up` (downtime)	Rolling update with zero downtime
Service discovery	Custom network DNS (single host only)	Cluster-wide DNS, load balancing
Secret rotation	Restart containers with new env vars	Rolling secret rotation, no restart
Resource allocation	Hope you have enough RAM	Scheduler places containers optimally
Monitoring	`docker stats` on one host	Cluster-wide metrics, alerting
Storage	Local volumes (lost if host dies)	Persistent volumes with replication

These are operational problems, not Docker problems. Docker does exactly what it’s designed to do: run containers on a single host. Orchestrators add the multi-host coordination layer.

Docker Swarm: The Simple Path#

Docker Swarm is Docker’s built-in orchestration. If you know docker compose, you already know 80% of Swarm. It uses the same YAML format and similar commands.

Initializing a Swarm#

1
2
# On the first node (becomes the manager)
docker swarm init --advertise-addr 192.168.1.10

1
2
3
4
5
6
7
8
9
Swarm initialized: current node (abc123def456) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join --token SWMTKN-1-0123456789abcdef-worker-token 192.168.1.10:2377

To add a manager to this swarm, run:

    docker swarm join-token manager

1
2
# On other nodes (join as workers)
docker swarm join --token SWMTKN-1-0123456789abcdef-worker-token 192.168.1.10:2377

1
This node joined a swarm as a worker.

1
2
# Check the cluster
docker node ls

1
2
3
4
ID                           HOSTNAME   STATUS   AVAILABILITY   MANAGER STATUS   ENGINE VERSION
abc123def456 *               manager1   Ready    Active         Leader           24.0.6
def456abc789                 worker1    Ready    Active                          24.0.6
ghi789def012                 worker2    Ready    Active                          24.0.6

Three-node cluster in four commands. That’s Swarm’s appeal.

Deploying Services#

Swarm uses the concept of “services” — a service is a definition of how to run containers, and Swarm manages the desired number of replicas:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# Create a service with 3 replicas
docker service create \
    --name web \
    --replicas 3 \
    --publish 80:80 \
    --update-delay 10s \
    --update-parallelism 1 \
    nginx:alpine

# Check the service
docker service ls

1
2
ID             NAME   MODE         REPLICAS   IMAGE          PORTS
a1b2c3d4e5f6   web    replicated   3/3        nginx:alpine   *:80->80/tcp

1
2
# See where replicas are placed
docker service ps web

1
2
3
4
ID             NAME    IMAGE          NODE       DESIRED STATE   CURRENT STATE
b2c3d4e5f6a7   web.1   nginx:alpine   manager1   Running         Running 30 seconds ago
c3d4e5f6a7b8   web.2   nginx:alpine   worker1    Running         Running 30 seconds ago
d4e5f6a7b8c9   web.3   nginx:alpine   worker2    Running         Running 30 seconds ago

Swarm distributes the three replicas across all three nodes. It also provides built-in load balancing: any node in the swarm can accept traffic on port 80, and Swarm routes it to a container running the service.

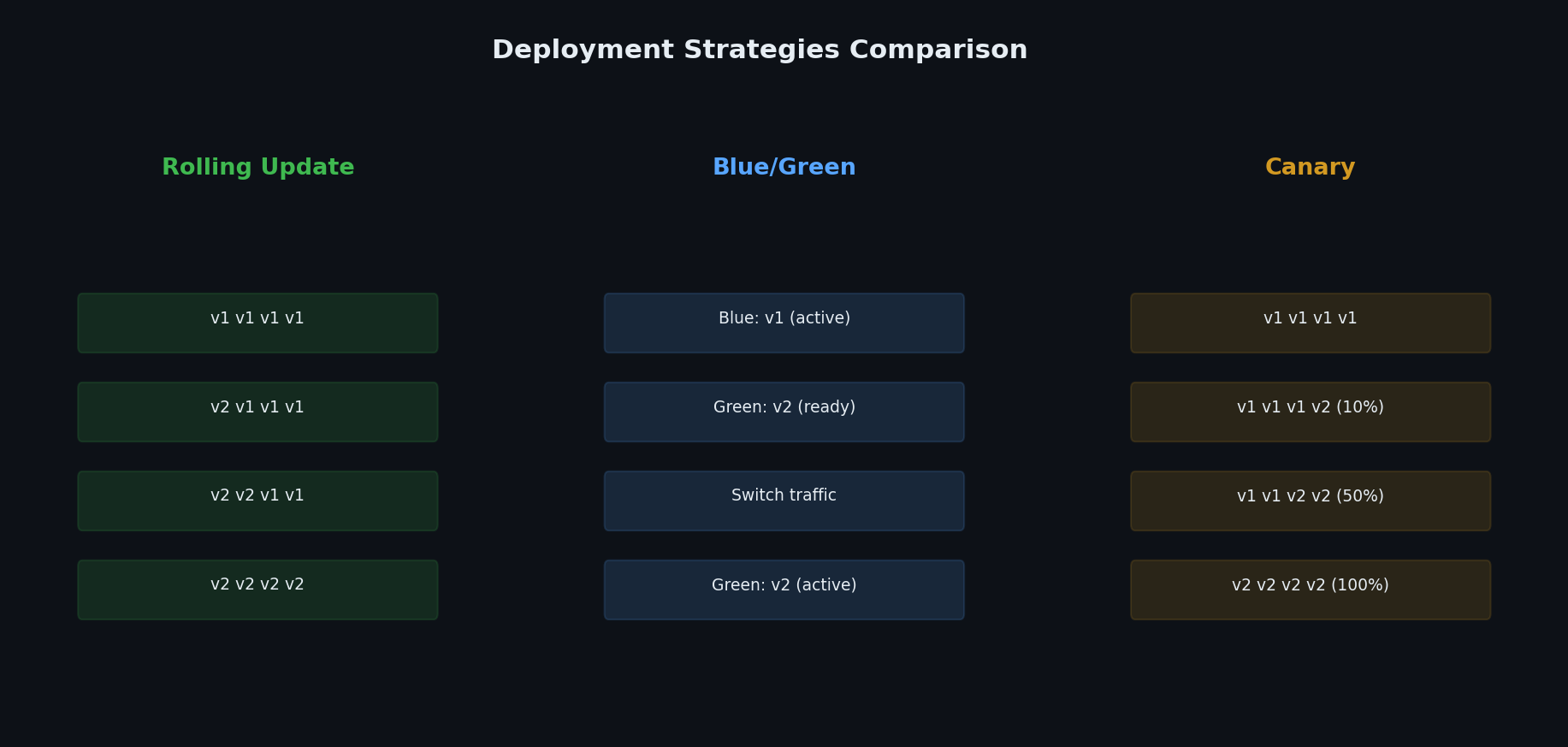

Rolling Updates#

1
2
# Update the image (rolling update with 10s delay between containers)
docker service update --image nginx:1.25-alpine web

1
2
3
4
5
6
web
overall progress: 3 out of 3 tasks
1/3: running   [==================================================>]
2/3: running   [==================================================>]
3/3: running   [==================================================>]
verify: Service converged

Swarm updates one container at a time, waiting 10 seconds between each. If a new container fails its health check, Swarm rolls back automatically.

Deploying a Stack (Compose in Swarm)#

You can deploy a compose file directly to Swarm:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
# docker-compose.yml
services:
  web:
    image: myapp:latest
    deploy:
      replicas: 3
      update_config:
        parallelism: 1
        delay: 10s
        failure_action: rollback
      restart_policy:
        condition: on-failure
        delay: 5s
        max_attempts: 3
    ports:
      - "8080:8080"
    networks:
      - app-net

  redis:
    image: redis:7-alpine
    deploy:
      replicas: 1
      placement:
        constraints:
          - node.role == manager
    volumes:
      - redis-data:/data
    networks:
      - app-net

networks:
  app-net:
    driver: overlay

volumes:
  redis-data:

1
2
3
4
5
# Deploy the stack
docker stack deploy -c docker-compose.yml myapp

# Check stack services
docker stack services myapp

1
2
3
ID             NAME           MODE         REPLICAS   IMAGE             PORTS
a1b2c3d4e5f6   myapp_web      replicated   3/3        myapp:latest      *:8080->8080/tcp
b2c3d4e5f6a7   myapp_redis    replicated   1/1        redis:7-alpine

1
2
# Remove the stack
docker stack rm myapp

Swarm Secrets and Configs#

Swarm has native support for secrets and config files:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Create a secret
echo "supersecret" | docker secret create db_password -

# Create a config
docker config create nginx_conf ./nginx.conf

# Use them in a service
docker service create \
    --name api \
    --secret db_password \
    --config source=nginx_conf,target=/etc/nginx/nginx.conf \
    myapp

Inside the container, secrets appear as files in /run/secrets/:

1
2
cat /run/secrets/db_password
# Output: supersecret

When Swarm Makes Sense#

Swarm is a good choice when:

You have a small team (< 5 engineers)
You have a small cluster (< 10 nodes)
You want orchestration without the Kubernetes learning curve
You’re already using Docker Compose and want a smooth migration
You don’t need auto-scaling, custom schedulers, or the CNCF ecosystem

Kubernetes: The Industry Standard#

Container orchestration evolution from docker compose to kub

Kubernetes (K8s) is the dominant container orchestration platform. It’s more complex than Swarm but much more capable. Most cloud providers offer managed Kubernetes services (EKS, GKE, AKS, ACK), eliminating the operational burden of managing the control plane.

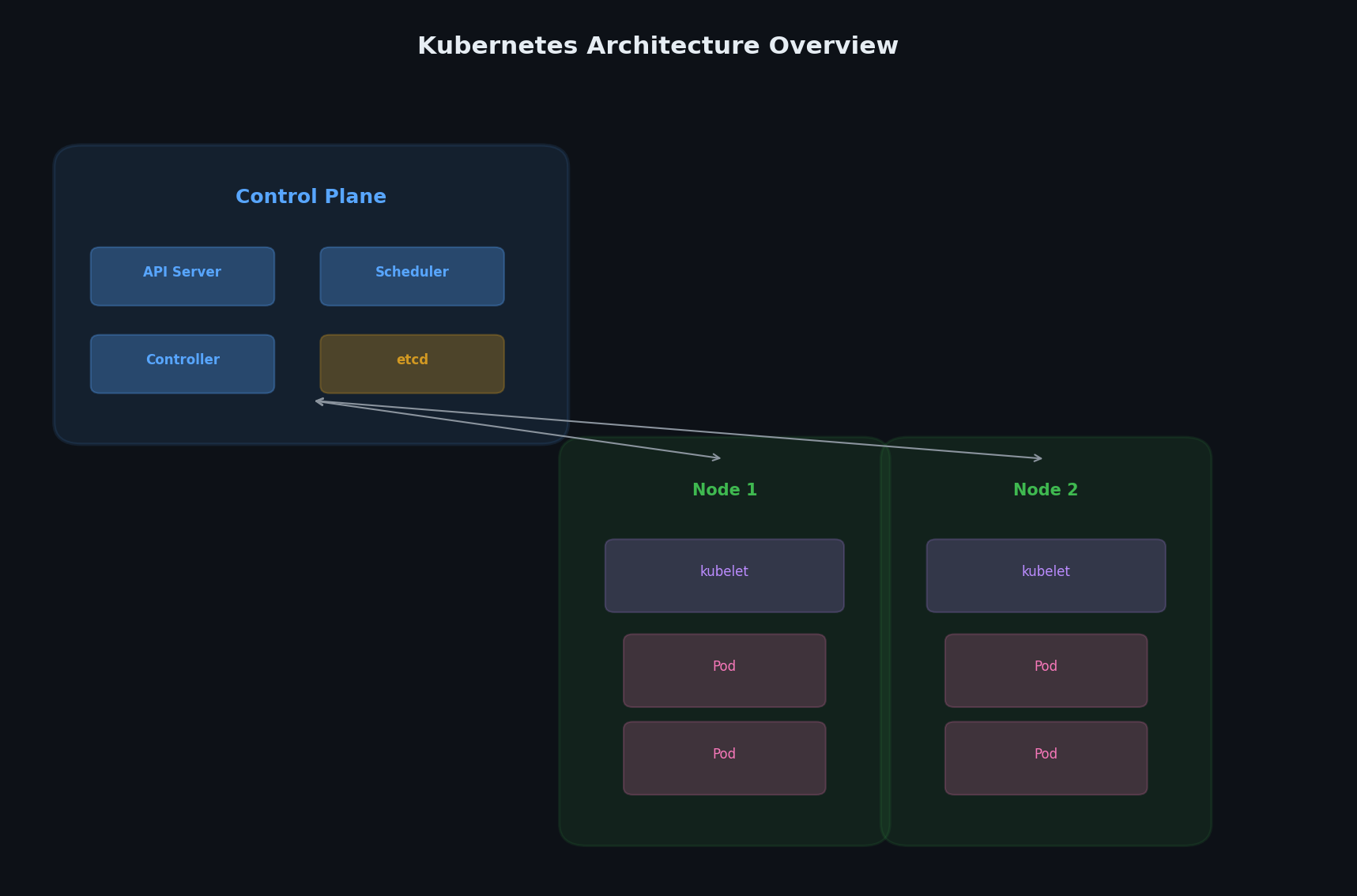

Architecture#

Kubernetes clusters have two types of nodes:

Control Plane (master) components:

Component	Role
`kube-apiserver`	REST API that all components and users interact with
`etcd`	Distributed key-value store for all cluster state
`kube-scheduler`	Decides which node to place new pods on
`kube-controller-manager`	Runs controllers (deployment, replicaset, node, etc.)
`cloud-controller-manager`	Integrates with cloud provider APIs (optional)

Worker node components:

Component	Role
`kubelet`	Agent that manages pods on the node, communicates with API server
`kube-proxy`	Network proxy for service routing
Container runtime	Runs containers (containerd, CRI-O — not Docker daemon)

The architecture looks like this (described, not drawn):

1
2
3
4
5
6
7
8
9
Control Plane:
  API Server ←→ etcd (cluster state)
      ↑
  Scheduler + Controller Manager (watch API, make decisions)

Worker Nodes (N):
  kubelet ←→ API Server (reports status, receives instructions)
  kube-proxy (manages iptables/IPVS rules for service routing)
  containerd (runs containers)

Core Kubernetes Objects#

Everything in Kubernetes is a declarative object — you describe the desired state, and Kubernetes works to make it real.

Pod#

The smallest deployable unit. A pod contains one or more containers that share network and storage:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  containers:
    - name: app
      image: myapp:v1.0
      ports:
        - containerPort: 8080
      resources:
        requests:
          memory: "128Mi"
          cpu: "250m"
        limits:
          memory: "256Mi"
          cpu: "500m"
      livenessProbe:
        httpGet:
          path: /health
          port: 8080
        initialDelaySeconds: 10
        periodSeconds: 30
      readinessProbe:
        httpGet:
          path: /ready
          port: 8080
        initialDelaySeconds: 5
        periodSeconds: 10

You rarely create pods directly. Instead, you use higher-level objects.

Deployment#

A Deployment manages a set of identical pods and handles rolling updates:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-app
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
        - name: app
          image: myapp:v1.0
          ports:
            - containerPort: 8080
          env:
            - name: DATABASE_URL
              valueFrom:
                secretKeyRef:
                  name: db-credentials
                  key: url
          resources:
            requests:
              memory: "128Mi"
              cpu: "250m"
            limits:
              memory: "256Mi"
              cpu: "500m"

1
2
3
4
5
# Apply the deployment
kubectl apply -f deployment.yaml

# Check the deployment
kubectl get deployments

1
2
NAME     READY   UP-TO-DATE   AVAILABLE   AGE
my-app   3/3     3            3           60s

1
2
3
4
5
6
7
8
# Scale the deployment
kubectl scale deployment my-app --replicas=5

# Update the image (triggers rolling update)
kubectl set image deployment/my-app app=myapp:v2.0

# Watch the rollout
kubectl rollout status deployment/my-app

1
2
3
Waiting for deployment "my-app" rollout to finish: 2 out of 3 new replicas have been updated...
Waiting for deployment "my-app" rollout to finish: 1 old replicas are pending termination...
deployment "my-app" successfully rolled out

1
2
# Rollback if something goes wrong
kubectl rollout undo deployment/my-app

Service#

A Service provides a stable endpoint (DNS name and IP) for a set of pods:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
# service.yaml
apiVersion: v1
kind: Service
metadata:
  name: my-app
spec:
  selector:
    app: my-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP

Service types:

Type	Accessibility	Use Case
`ClusterIP`	Internal cluster only	Internal microservices
`NodePort`	External via `<NodeIP>:<NodePort>`	Development, simple exposure
`LoadBalancer`	External via cloud load balancer	Production web services
`ExternalName`	DNS CNAME to external service	Accessing external databases

ConfigMap and Secret#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  LOG_LEVEL: "info"
  MAX_CONNECTIONS: "100"
  config.yaml: |
    server:
      port: 8080
      timeout: 30s

---
# secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: db-credentials
type: Opaque
data:
  # base64 encoded values
  url: cG9zdGdyZXNxbDovL3VzZXI6cGFzc0Bob3N0OjU0MzIvZGI=
  password: c3VwZXJzZWNyZXQ=

Use them in a pod:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
spec:
  containers:
    - name: app
      env:
        - name: LOG_LEVEL
          valueFrom:
            configMapKeyRef:
              name: app-config
              key: LOG_LEVEL
        - name: DB_PASSWORD
          valueFrom:
            secretKeyRef:
              name: db-credentials
              key: password
      volumeMounts:
        - name: config
          mountPath: /app/config
  volumes:
    - name: config
      configMap:
        name: app-config

Essential kubectl Commands#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# Get resources
kubectl get pods                    # List pods
kubectl get pods -o wide            # More details (node, IP)
kubectl get deployments             # List deployments
kubectl get services                # List services
kubectl get all                     # List everything

# Describe (detailed info + events)
kubectl describe pod my-app-abc123
kubectl describe deployment my-app

# Logs
kubectl logs my-app-abc123              # Pod logs
kubectl logs my-app-abc123 -f           # Follow logs
kubectl logs my-app-abc123 -c sidecar   # Specific container in multi-container pod
kubectl logs -l app=my-app              # Logs from all pods with a label

# Execute commands
kubectl exec -it my-app-abc123 -- bash
kubectl exec my-app-abc123 -- cat /app/config.yaml

# Port forwarding (access a pod locally without a service)
kubectl port-forward my-app-abc123 8080:8080

# Apply/delete configurations
kubectl apply -f deployment.yaml
kubectl delete -f deployment.yaml

# Debug
kubectl get events --sort-by=.metadata.creationTimestamp
kubectl top pods                        # Resource usage (requires metrics-server)
kubectl top nodes

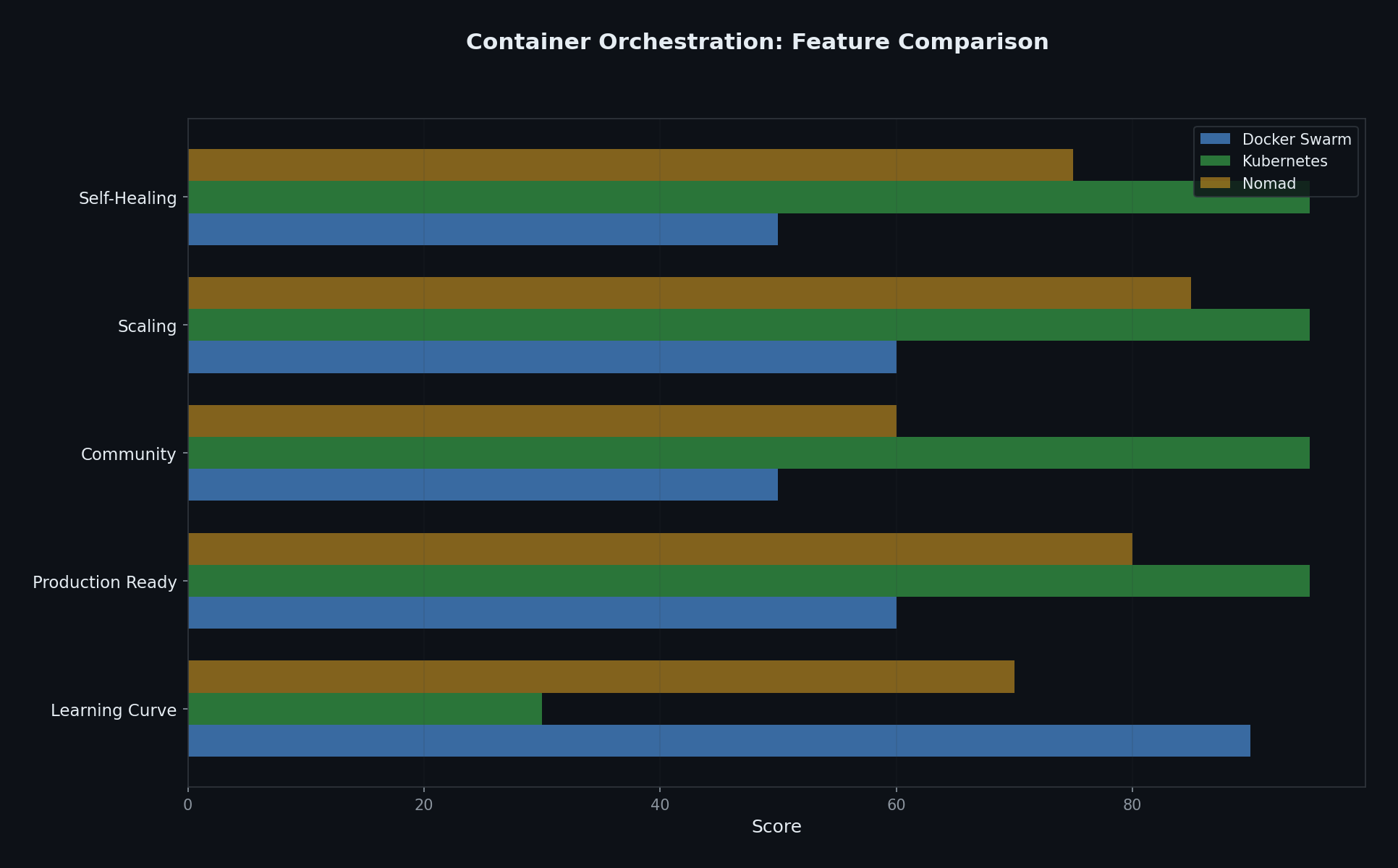

Kubernetes vs Docker Swarm#

Feature	Docker Swarm	Kubernetes
Setup complexity	Minutes	Hours (managed services simplify this)
Learning curve	Low (Docker CLI knowledge transfers)	Steep (new concepts, YAML-heavy)
Scaling	Manual (`docker service scale`)	Manual + Horizontal Pod Autoscaler
Rolling updates	Built-in, simple	Built-in, highly configurable
Service discovery	Docker DNS	CoreDNS, Services
Load balancing	Built-in (routing mesh)	Services, Ingress controllers
Secret management	Docker secrets	Kubernetes Secrets (+ external integrations)
Storage	Docker volumes	PersistentVolumes, StorageClasses, CSI drivers
Networking	Overlay networks	CNI plugins (Calico, Cilium, Flannel, etc.)
Health checks	HEALTHCHECK instruction	Liveness, readiness, startup probes
Package management	None	Helm charts
Community/ecosystem	Small, declining	Massive, CNCF ecosystem
Managed offerings	Few	EKS, GKE, AKS, ACK, and many more
Best for	Small teams, simple deployments	Production at scale, microservices

When You DON’T Need Orchestration#

Not every application needs Kubernetes. Be honest about your requirements:

Your Situation	Recommendation
Single server, few services	Docker Compose
Small team, < 5 services	Docker Compose or Swarm
Need zero-downtime deploys on single host	Docker Compose with rolling restart
Serverless workloads	Cloud Functions (Lambda, Cloud Run)
Batch processing	Docker Compose or single-host scheduler
Multi-region, high availability	Kubernetes (managed)
Microservices architecture	Kubernetes
Compliance requires orchestration	Kubernetes
Team > 10 engineers	Kubernetes

A common mistake is adopting Kubernetes for a three-service application that runs on a single $20/month VPS. The operational overhead of Kubernetes (even managed) exceeds the benefit until you’re at a certain scale.

If you’re running on a single host and want better deployment workflows, look at tools like:

Docker Compose with a simple CI/CD pipeline
Kamal (from Basecamp) — zero-downtime deploys to bare servers
Dokku — a self-hosted PaaS (like a private Heroku)
Coolify — an open source and self-hostable alternative to Heroku/Netlify/Vercel

The Cloud-Native Ecosystem#

Kubernetes cluster as a space station with pods as modules

Kubernetes spawned an ecosystem of tools. Here’s a map of the most important ones:

Package Management: Helm#

Helm is the package manager for Kubernetes. A Helm “chart” bundles all the YAML files for an application:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Install a Helm chart (e.g., PostgreSQL)
helm repo add bitnami https://charts.bitnami.com/bitnami
helm install my-postgres bitnami/postgresql --set auth.postgresPassword=secret

# List installed releases
helm list

# Upgrade a release
helm upgrade my-postgres bitnami/postgresql --set auth.postgresPassword=newsecret

# Uninstall
helm uninstall my-postgres

Helm charts are like Docker images for entire application stacks — pre-packaged, versioned, and shareable.

Service Mesh: Istio and Linkerd#

A service mesh adds observability, security, and traffic management between microservices:

Feature	Without Service Mesh	With Service Mesh
mTLS between services	Manual certificate management	Automatic, transparent
Traffic splitting	Application-level	Declarative (80/20 canary)
Retry policies	Code in each service	Configurable per-route
Observability	Each service adds instrumentation	Automatic tracing, metrics
Access control	Application-level auth	Policy-based (YAML)

Istio is feature-rich but complex. Linkerd is simpler and lighter. Neither is needed unless you have many (10+) communicating services and need fine-grained traffic control.

GitOps: ArgoCD and Flux#

GitOps treats your Git repository as the source of truth for cluster state:

You push a change to Git (e.g., update an image tag in a Deployment YAML)
ArgoCD detects the change and syncs the cluster to match
The cluster converges to the desired state

1
2
3
4
5
6
# ArgoCD watches a Git repo and applies changes automatically
argocd app create my-app \
    --repo https://github.com/myorg/myapp-k8s.git \
    --path kubernetes/ \
    --dest-server https://kubernetes.default.svc \
    --dest-namespace production

Benefits:

Every change is auditable (Git history)
Rollback = git revert
No manual kubectl apply in production
Cluster state is always reproducible from Git

Monitoring and Observability#

Tool	Purpose	Collects
Prometheus	Metrics collection and alerting	CPU, memory, request rates, custom metrics
Grafana	Visualization and dashboards	Displays Prometheus data (and others)
Jaeger / Zipkin	Distributed tracing	Request paths across microservices
Fluentd / Fluent Bit	Log aggregation	Container logs → central storage
Elasticsearch + Kibana	Log storage and search	Searchable log index

The “standard” open-source observability stack for Kubernetes is Prometheus + Grafana + Fluentd (or Fluent Bit) + Jaeger, though many alternatives exist.

Container Security in Kubernetes#

Tool	Purpose
Trivy	Image vulnerability scanning
Falco	Runtime security monitoring (detect anomalous container behavior)
OPA/Gatekeeper	Policy enforcement (e.g., “no containers may run as root”)
cert-manager	Automatic TLS certificate management (Let’s Encrypt)
Kyverno	Kubernetes-native policy engine

From Docker to Production: A Typical Path#

Here’s a realistic progression for a team growing from a side project to a production service:

Stage	Infrastructure	Deployment
1. Local development	Docker Compose on laptop	`docker compose up`
2. Single server	Docker Compose on VPS	`git pull && docker compose up -d`
3. CI/CD pipeline	Docker Compose + GitHub Actions	Auto-deploy on push to main
4. Multi-server	Docker Swarm or managed K8s	`docker stack deploy` or `kubectl apply`
5. Production at scale	Managed Kubernetes (EKS/GKE/AKS/ACK)	Helm + ArgoCD
6. Multi-region	Managed K8s + service mesh	GitOps + traffic management

Most teams never need to go past stage 3 or 4. Don’t jump to stage 5 because it sounds impressive — jump when the problems at your current stage justify the complexity.

Key Takeaways from This Series#

Looking back across all eight articles, here are the principles that matter most:

Containers are processes, not VMs. They share the host kernel and use namespaces + cgroups for isolation. Understanding this shapes how you think about security, performance, and debugging.

Images are layers. Layer caching drives build performance. Instruction order matters. Multi-stage builds separate build-time dependencies from runtime.

Networks and volumes are the connective tissue. Custom bridge networks provide DNS-based service discovery. Named volumes persist data independently of container lifecycle.

Compose is the developer’s interface. A single YAML file replaces dozens of docker run commands. It’s version-controlled, shareable, and deterministic.

Security is opt-in. Docker’s defaults favor convenience. Running as non-root, dropping capabilities, using read-only filesystems, and scanning images are all things you must explicitly do.

Orchestration is a spectrum. Docker Compose for single-host, Swarm for simple multi-host, Kubernetes for production at scale. Choose the simplest tool that solves your actual problems.

The container ecosystem moves fast, but the fundamentals in this series are stable. Namespaces haven’t changed since 2013. The OCI image format is settled. Kubernetes API objects have been stable for years. Learn these foundations, and the tools built on top of them will make sense.
