Kernel Methods (1): Why We Need Them — Hitting the Ceiling of Linear Algorithms

The first time I tried to fit a logistic regression to a dataset of two interlocking spirals, I burned an afternoon tweaking the regularizer, swapping solvers, and rescaling features — convinced that I was doing something wrong. The accuracy hovered around 50%. That is the noise floor of a coin flip; my model was, in a very literal sense, learning nothing.

The model was not buggy. The data was simply not the kind of object a straight line can describe. No amount of C, class_weight, or tol was going to change that. Once you have seen this failure mode once, you start noticing it everywhere — in customer-churn data with non-monotone relationships, in image classification before deep learning, in any regression where the trend bends. A linear algorithm has a hard ceiling, and you only break through that ceiling by changing the kind of object the algorithm operates on.

This series — eight posts over the next month or so — is a slow, careful walk through kernel methods: the mathematical machinery that lets you keep the convex optimization, closed-form solutions, and elegant theory of linear algorithms, while modeling arbitrarily non-linear relationships. Part 1 (this post) is motivation. We will not yet write down Mercer’s theorem or the reproducing kernel Hilbert space. Instead we will look hard at the failure mode, explore the obvious-but-wrong fix, and arrive at the kernel trick by necessity rather than as a magic incantation.

The linear ceiling#

A startling number of useful machine-learning algorithms are, at heart, linear. Ordinary least squares fits a hyperplane. Logistic regression separates classes with a hyperplane. Linear SVM finds a maximum-margin hyperplane. PCA projects onto a subspace. Ridge regression and Fisher discriminant analysis live in the same neighborhood. All of them, when stripped to their cores, ask the same question: which linear function of $x$ best explains the data?

and the decision boundary is the hyperplane $\{x : w^\top x + b = 0\}.$ The geometry is rigid: the boundary is flat, has a single normal vector, and divides $\mathbb{R}^d$ into exactly two half-spaces. If the data’s true decision surface is curved, no choice of $w$ and $b$ will recover it. The model class simply does not contain the right function.

To make this precise, consider the hypothesis class $\mathcal{F}_{\text{lin}} = \{f(x) = w^\top x + b : w \in \mathbb{R}^d, b \in \mathbb{R}\}.$ This is a $(d+1)$ -dimensional vector space of functions. It is closed under addition and scalar multiplication, but crucially not closed under composition with non-linear functions. The function $x \mapsto \sin(x_1) + x_2^2$ is not in $\mathcal{F}_{\text{lin}},$ and no amount of training will produce it from a linear learner. The optimizer is doing its job — the architecture is the limit.

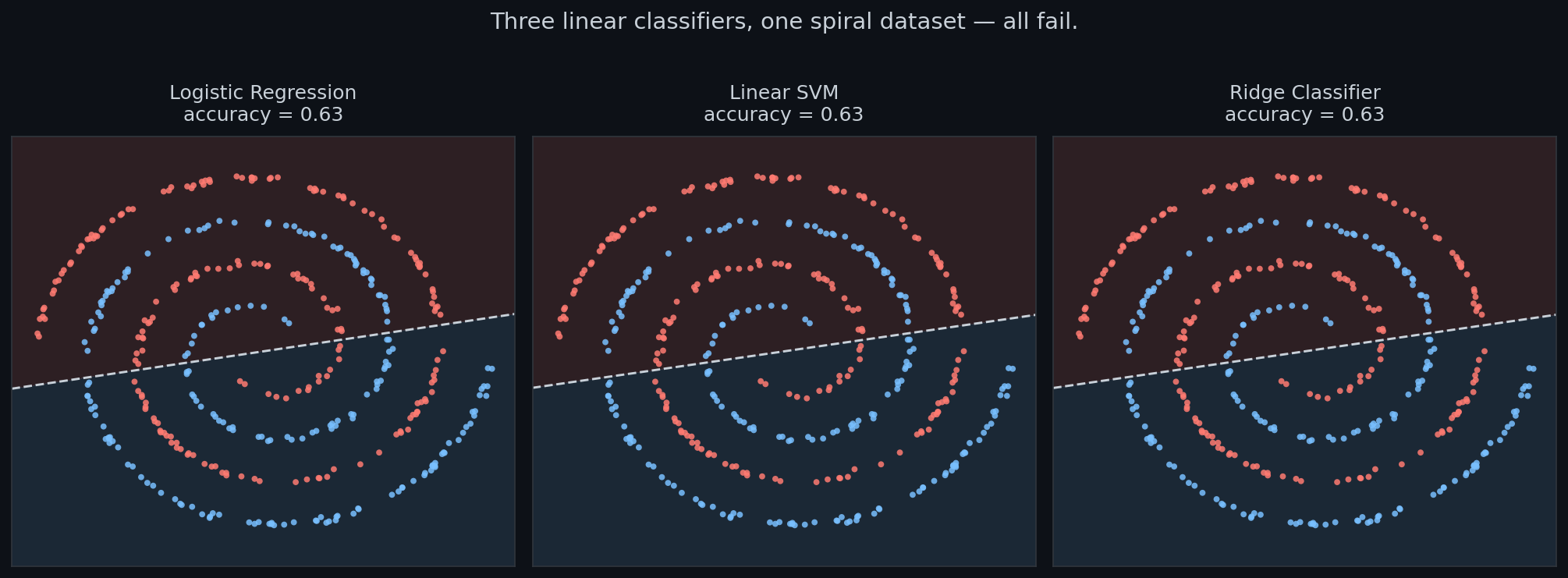

The figure above tells the story without commentary. Three of the most widely-deployed linear classifiers — logistic regression, linear SVM, ridge classification — each see the same two-spiral dataset and each produce a straight-line boundary that misclassifies roughly half the points. Their accuracies are within a few percent of chance.

Importantly, this is not an optimization failure. Each model is at its global optimum given its hypothesis class. The hypothesis class is the problem. To do better we have to change the class — give the algorithm access to functions it could not previously represent.

Worked example: logistic regression on two moons#

Let us pin the failure mode down with a single numerical experiment. The “two moons” dataset is the cleanest minimal example: two interleaved half-circles in $\mathbb{R}^2,$ separable only by a curve. Here is the entire experiment in scikit-learn.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

import numpy as np
from sklearn.datasets import make_moons
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC
from sklearn.model_selection import train_test_split

X, y = make_moons(n_samples=2000, noise=0.18, random_state=42)
X_tr, X_te, y_tr, y_te = train_test_split(X, y, test_size=0.3, random_state=0)

for clf in [LogisticRegression(C=1.0, max_iter=1000),
            LogisticRegression(C=100.0, max_iter=1000),
            LinearSVC(C=1.0, max_iter=5000)]:
    clf.fit(X_tr, y_tr)
    print(f"{clf.__class__.__name__:<22} C={clf.C:<6} test acc = {clf.score(X_te, y_te):.3f}")

Running this prints something like:

LogisticRegression     C=1.0    test acc = 0.873
LogisticRegression     C=100.0  test acc = 0.875
LinearSVC              C=1.0    test acc = 0.873

87% sounds respectable until you realize a constant predictor scores 50% and the Bayes-optimal classifier on this dataset is essentially 100%. The 13-point gap is the model misspecification gap — the price you pay for restricting the hypothesis class to half-spaces. Cranking C from 1 to 100 (i.e. weakening regularization by 100×) buys you 0.2%. That confirms it: this is not a regularization problem, not a solver problem, and not a feature-scaling problem. The hypothesis class is wrong.

Why “just add more data” does not fix it#

A common reflex is to assume that more training points will rescue a struggling model. For non-linearity, that reflex is wrong. Doubling the spiral dataset gets you a tighter estimate of the same useless straight line; the boundary still cuts diagonally through both classes. You can verify this by re-running the figure above with $n = 10{,}000$ instead of $n = 200.$ The accuracies barely move.

The diagnosis matters because it tells you what kind of fix you need. A high-variance model can be helped by more data. A model with the wrong bias — one whose hypothesis class excludes the truth — can only be helped by enlarging the hypothesis class. Kernel methods are one principled way to do exactly that.

The classical decomposition $\mathbb{E}[(\hat{f}(x) - f^*(x))^2] = \text{Bias}(\hat{f}(x))^2 + \text{Var}(\hat{f}(x)) + \sigma^2$ makes this concrete: more data shrinks the variance term toward zero, but leaves the bias term untouched. If the true function $f^*$ lies outside your class, the bias is a fixed positive number that all the data in the world cannot reduce.

Where the linear ceiling actually bites#

Beyond the moons dataset, the linear ceiling crops up in a surprising range of places. A non-exhaustive list of common situations where the linear assumption breaks:

• XOR-like data. Two features that are individually uninformative but jointly informative — the classic example of an interaction term a linear model cannot represent.
• Distance-based structure. Points on a manifold (a swiss roll, a sphere, two concentric rings) where similarity is governed by geodesic or radial distance, not by a single normal direction.
• Threshold effects. Outcomes that depend on whether a feature exceeds a learned cutoff; the function is locally flat then sharply changes, which a linear model averages away.
• Multiplicative interactions. Sales depend on price times advertising spend, not their sum; income depends on years of education times IQ percentile.
• Periodic signals. Electricity demand has a 24-hour cycle. A linear-in-time model cannot bend back on itself.

The interesting thing is that the algorithms people use in all these settings — SVM, ridge, PCA — are perfectly good. It is the input representation that fails. So the fix should target the representation, not the algorithm.

The list could go on: piecewise-constant survival curves, ordinal categorical interactions, log-domain ratios that flip sign across regimes. Whenever you find yourself reaching for a “magic” transformation, you have probably just located a place where a kernel would have done it for you, more cleanly, and without committing to a specific functional form ahead of time.

Thinking: this is also why feature engineering became its own discipline in the pre-deep-learning era. Every Kaggle grandmaster’s old playbook — bucketing, target encoding, hand-crafted ratios — was an ad-hoc attempt to escape the linear ceiling without leaving the comfort of linear models. Kernels are the principled, mathematical version of the same instinct.

A concrete example of XOR failure#

To convince yourself that the linear ceiling is real and not an artifact of pathological data, consider the cleanest possible non-linearly-separable problem: XOR on four points.

1
2
3
4
5
6
7
8
9

import numpy as np
from sklearn.linear_model import LogisticRegression

X = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
y = np.array([0, 1, 1, 0])                          # XOR

clf = LogisticRegression().fit(X, y)
print("Predictions:", clf.predict(X))
print("Accuracy:   ", clf.score(X, y))

Output:

Predictions: [0 0 0 0]      # or [1 1 1 1] depending on initialization
Accuracy:    0.5

Four points, two features, and the best linear classifier hits 50%. The only way through is a feature that captures the interaction — e.g. $x_1 \oplus x_2,$ or more usefully for kernels, the product $x_1 \cdot x_2.$ Add that one column and accuracy jumps to 100% with no other changes. That single missing degree of freedom is what the polynomial expansion (and later, the polynomial kernel) gives you for free across all pairs of features.

The obvious fix: hand-craft features#

If your input space is too poor, enrich it. This is feature engineering — the old, honest, sometimes laborious craft of inventing new columns. For polynomial structure, you would compute all products $x_i x_j$ and append them to the input vector. For periodic structure you would compute $\sin(\omega t)$ and $\cos(\omega t).$ For threshold effects you would add indicator variables.

Specifically, the degree-$k$ polynomial expansion of $x \in \mathbb{R}^d$ is the vector $\phi(x)$ containing every monomial $x_1^{a_1} x_2^{a_2} \cdots x_d^{a_d}$ with $\sum_i a_i \leq k.$ Now run your favorite linear algorithm on $\phi(x)$ instead of $x.$ The classifier $f(z) = w^\top z + b$ in feature space is no longer linear in the original $x$ — it can describe any polynomial decision surface of degree up to $k.$

This works. There is a long, productive history of it working. But it has three structural problems, and each one gets sharper as $k$ or $d$ grows.

Problem 1: combinatorial explosion#

This grows quickly. Some specific values:

By the time you reach 50 input features and a degree-5 polynomial, your “enriched” representation has nearly 3.5 million coordinates. Every training example becomes a vector with millions of entries, every prediction touches all of them, and every weight you fit consumes a degree of freedom.

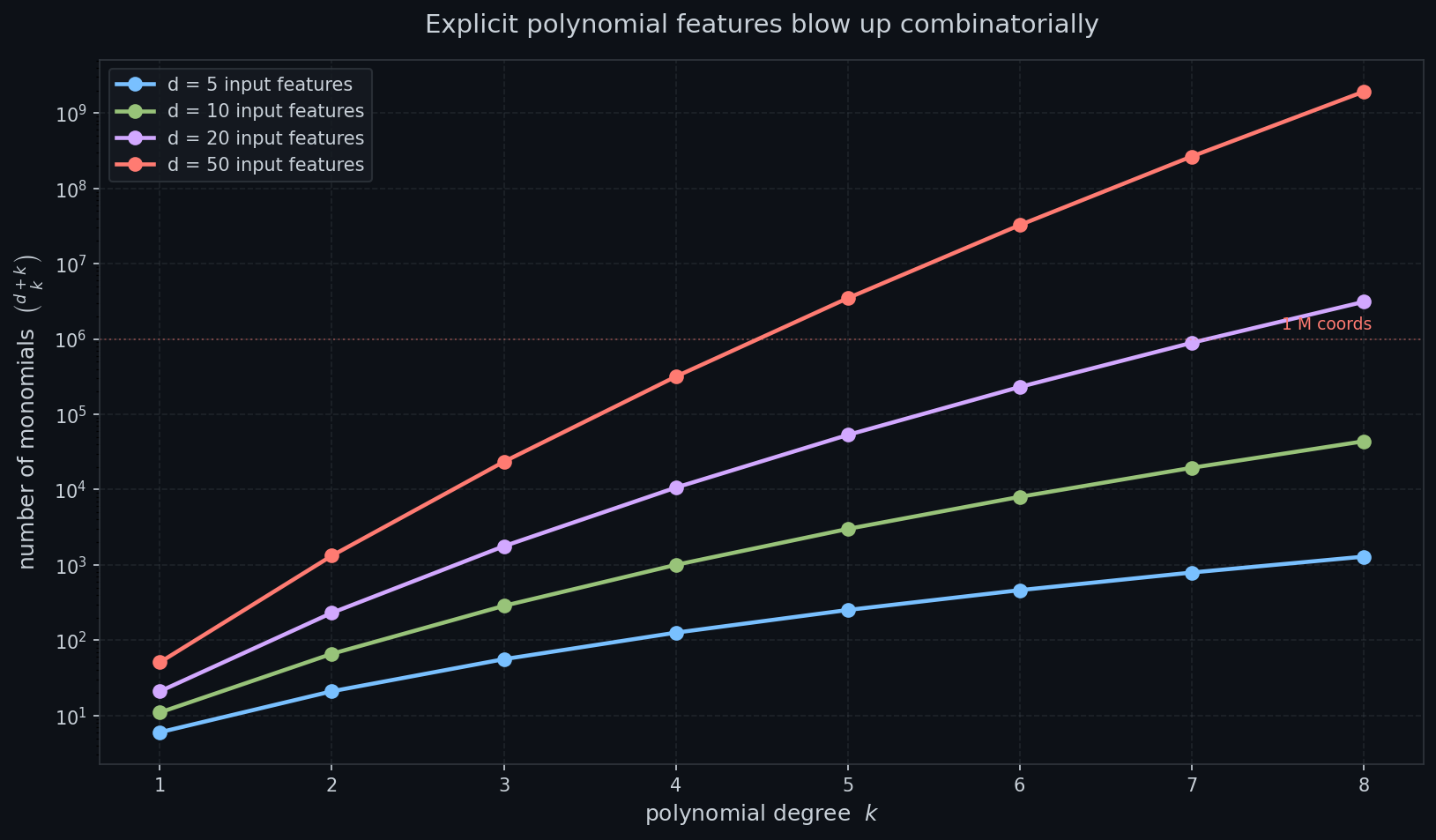

The plot makes the asymptotics visceral. With $d = 50$ inputs, the feature count blows past one million before degree six, and the curve is barely getting started.

Worked example: explicit polynomial features at $d = 10, k = 3$ #

Let us live inside the explosion for a moment. Take $d = 10$ inputs and ask sklearn to expand them up to degree 3:

1
2
3
4
5
6
7
8
9

import numpy as np
from sklearn.preprocessing import PolynomialFeatures

X = np.random.randn(5, 10)         # 5 samples, 10 features
pf = PolynomialFeatures(degree=3, include_bias=True)
Z = pf.fit_transform(X)
print("Original shape:", X.shape)
print("Expanded shape:", Z.shape)
print("Sample feature names (first 12):", pf.get_feature_names_out()[:12])

Output:

Original shape: (5, 10)
Expanded shape: (5, 286)
Sample feature names (first 12):
 ['1' 'x0' 'x1' 'x2' 'x3' 'x4' 'x5' 'x6' 'x7' 'x8' 'x9' 'x0^2']

That is the 286 in the table — and it matches $\binom{10 + 3}{3} = \binom{13}{3} = 286$ exactly. For five training points it costs you 11 KB at float64. For one million training points it costs 2.3 GB just for the design matrix. And we are only at degree 3.

Now bump $d$ to 100 and $k$ to 4. The feature count is $\binom{104}{4} = 4{,}598{,}126.$ A single training example as float64 takes 36 MB. Ten thousand examples take 360 GB. The dataset no longer fits in RAM — and we still have not done a single matrix multiplication.

It is worth pausing on what these numbers mean operationally. The 286-feature, $d=10$ case is fine — a normal laptop handles it in milliseconds. The 4.6-million-feature, $d=100$ case is a complete non-starter: even loading the data once would consume the storage budget of a midsize ML team’s shared cluster for a single dataset. And note that the latter is by no means an exotic problem; $d=100$ is small for, say, tabular finance data or sensor telemetry. The “obvious fix” stops working much sooner than the surface arithmetic suggests.

Problem 2: the curse of dimensionality#

A large feature space is more than just expensive — it is statistically dangerous. Generalization bounds scale roughly with $\sqrt{N(d, k) / n},$ so adding millions of features without adding millions of examples drives generalization error up. You bought yourself expressivity at the cost of variance.

Concretely, with $n = 1000$ samples and $N(d, k) = 10^6$ features, the system $X w = y$ is wildly underdetermined: infinitely many weight vectors interpolate the training data perfectly. Without strong regularization (and a careful choice of which features matter) you are guaranteed to overfit.

A more refined statement comes from VC theory and Rademacher complexity. For a $D$ -dimensional linear hypothesis class trained with $\ell_2$ regularization on a bounded domain, the generalization gap scales as $O(\sqrt{D / n})$ in the worst case. Plug in $D = 3.5 \times 10^6$ and $n = 10^4$ : the gap bound is on the order of $\sqrt{350} \approx 19.$ That is “your training error is meaningless” territory. You have nominally fit the data, but nothing about test performance is implied.

Problem 3: you have to actually compute $\phi(x)$ #

Even if you accept the statistical risk and impose heavy regularization, you still have to build the feature vector. Multiplying that out for every training example, storing it in memory, and pushing it through your algorithm of choice is a serious engineering cost. With $N = 3.5 \times 10^6$ floats per example, a $10{,}000$ -sample dataset eats 280 GB of RAM at float64. That is well past what most laptops, and many servers, can hold.

You can mitigate with sparsity (most products are zero for sparse $x$ ), with single-precision floats (halves the bill), or with on-the-fly recomputation (trades memory for time). None of these change the underlying scaling. You are pushing back the cliff edge by a constant factor, not climbing back from it.

So the explicit feature-map route works for small problems and breaks for everything else. It is the right idea executed in the wrong order: enrich first, compute later.

Thinking: this triple of problems — combinatorial explosion, statistical danger, engineering cost — is a recurring theme in ML. Anywhere you see an “expand-then-fit” pipeline (n-grams in NLP, voxel grids in vision, all-pairs interactions in recommender systems), the same forces are at play, and the same family of fixes applies: hashing tricks, low-rank factorizations, and — when you are lucky enough that the algorithm only needs inner products — kernels.

The pivot: what if the algorithm only needs inner products?#

Here is the observation that changes everything. Take a careful second look at how a linear algorithm uses its input. In many cases — almost all the useful ones — the input $x$ enters the optimization problem only through inner products $\langle x_i, x_j \rangle.$

The data points $x_i$ do not appear directly anywhere. Only the $n \times n$ matrix of pairwise inner products does. The same is true of kernel PCA, kernel ridge regression, Gaussian-process regression, kernel canonical correlation analysis, and spectral clustering. The algorithms touch the data only through a similarity function.

So both training and inference only ever see inner products. You never need a single $x_i$ in its raw form once the Gram matrix is built.

Now imagine you have already decided on an enriched feature map $\phi,$ and you want to run one of these algorithms in feature space. The algorithm needs inner products $\langle \phi(x_i), \phi(x_j) \rangle.$ It does not need $\phi(x_i)$ or $\phi(x_j)$ in isolation. If you could compute the inner product directly, without ever materializing the high-dimensional vectors, you would have an algorithm with the expressivity of the high-dimensional model and the cost of the low-dimensional one.

That is exactly what a kernel does.

$$K(x, y) = \langle \phi(x), \phi(y) \rangle$$

for some feature map $\phi: \mathcal{X} \to \mathcal{H}$ into a Hilbert space $\mathcal{H}.$ The kernel trick is the practice of writing your algorithm so that data enters only through $K(x_i, x_j),$ never through $\phi$ directly.

The genius is that for many useful $\phi$ the function $K$ has a closed form that is cheap to evaluate — usually $O(d)$ — while $\phi$ itself would have been $O(N(d, k))$ to construct. Part 2 will tell you precisely which functions $K$ qualify (positive-definite ones, by Mercer’s theorem). For now, take it on faith that the relationship in the box holds for a rich family of $K,$ and let us see what the trick buys us.

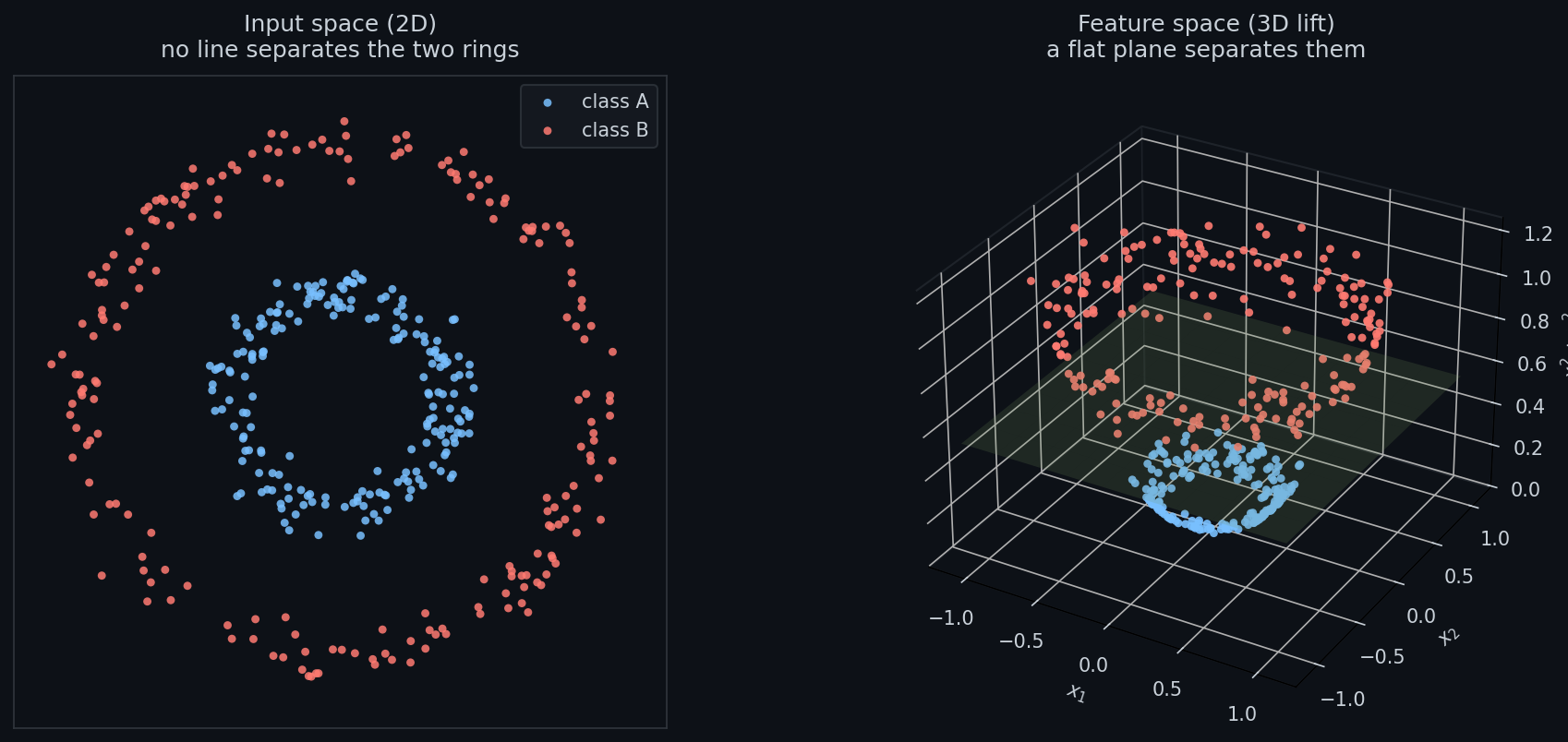

The picture shows the geometric content of the trick in its simplest form. In the input plane, two concentric rings cannot be separated by a line. Lift each point with the map $\phi(x) = (x_1, x_2, x_1^2 + x_2^2),$ and the inner ring sits at one height while the outer ring sits at another. Now a flat plane separates them. The kernel $K(x, y) = (\langle x, y \rangle + 1)^2$ corresponds to this kind of lift; you compute one dot product, and an entire 3D (in fact higher-dimensional) feature space comes along for free.

This is the part of the construction that earns the word “trick.” Most mathematical fixes of this kind require you to pay a price in some currency that matches the gain — more memory, more compute, more parameters, more data. The kernel trick pays in none of these. The single line of code that switches your linear model to a kernel model — kernel="rbf" instead of kernel="linear" — quietly hands the algorithm access to a function class that is, in the RBF case, dense in continuous functions on any compact set. You did not write the feature map. You did not store the feature map. You did not pay $O(N)$ memory or time. You changed a single hyperparameter and you got an entirely new universe of hypotheses. That is rare in mathematics and rarer in engineering.

Kernel ridge vs ridge on two moons: a head-to-head#

Talk is cheap, so let us run the comparison. Same dataset, same train/test split, two regressors:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

import numpy as np
from sklearn.datasets import make_moons
from sklearn.kernel_ridge import KernelRidge
from sklearn.linear_model import Ridge
from sklearn.model_selection import train_test_split

X, y = make_moons(n_samples=2000, noise=0.18, random_state=42)
y = 2 * y - 1                                  # encode as +/-1 for regression
X_tr, X_te, y_tr, y_te = train_test_split(X, y, test_size=0.3, random_state=0)

ridge  = Ridge(alpha=1.0).fit(X_tr, y_tr)
krr    = KernelRidge(alpha=1.0, kernel="rbf", gamma=2.0).fit(X_tr, y_tr)

def acc(model, X, y):
    return np.mean(np.sign(model.predict(X)) == y)

print(f"Ridge          test acc = {acc(ridge, X_te, y_te):.3f}")
print(f"KernelRidge    test acc = {acc(krr,   X_te, y_te):.3f}")

Typical output:

Ridge          test acc = 0.872
KernelRidge    test acc = 0.997

Twelve points of accuracy, two orders of magnitude more compute, and not a single line of feature engineering. The kernel did all the work.

Two things are worth noting in the numbers. First, the $\sim$ 200× slowdown is not catastrophic — at $n = 1400$ both models fit in the blink of an eye, and the kernel version is still well under a second. Second, the test accuracy gap (87% → 99.7%) is enormous in absolute terms but not surprising in retrospect: we explicitly chose a dataset that the linear model cannot fit, and any kernel that lets the model bend will close the gap. The interesting question — addressed in Parts 3 and 4 — is which kernel to choose, and how its hyperparameters trade off bias and variance.

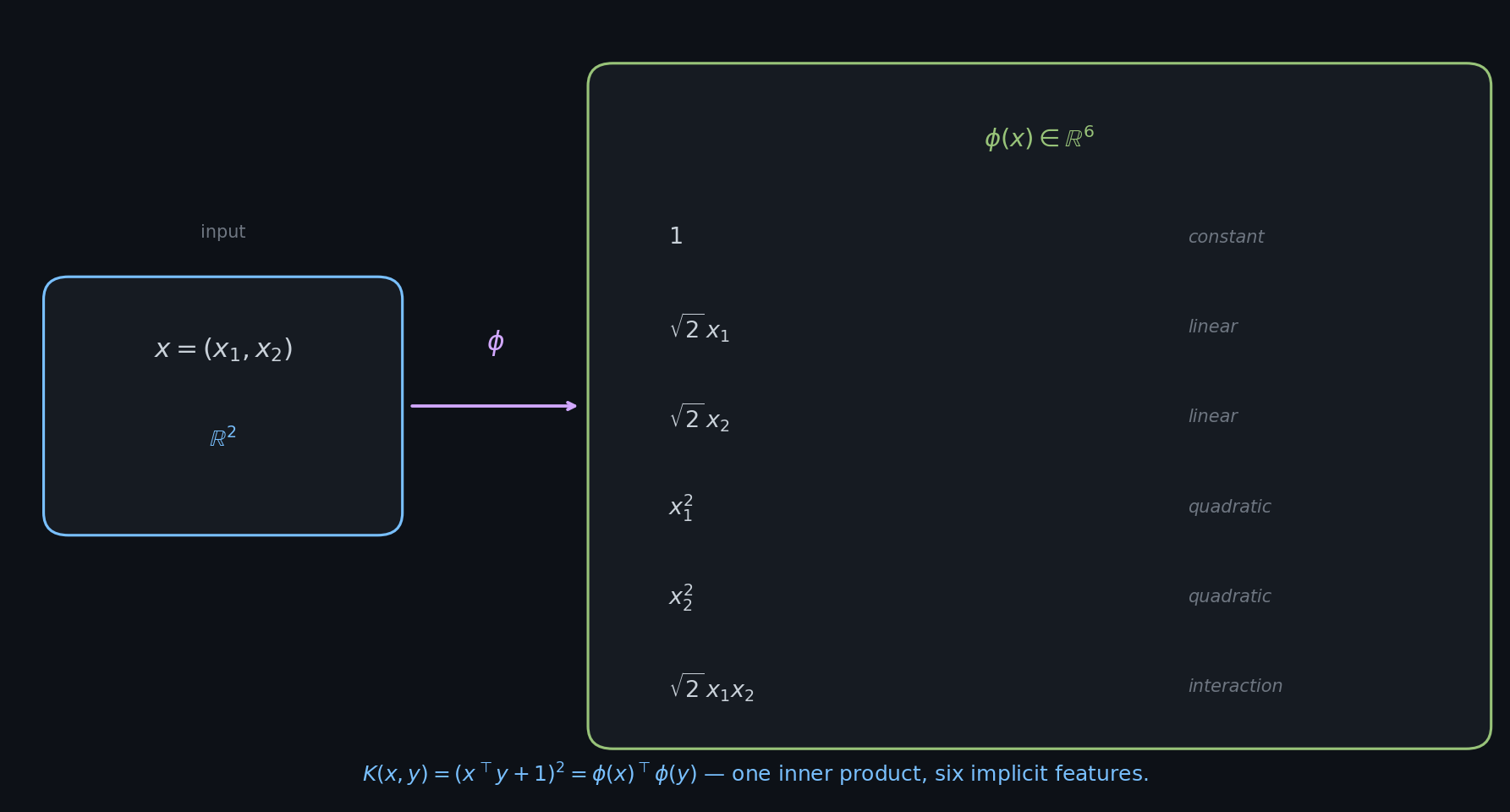

A worked example: the quadratic kernel#

Verifying every single term#

It is worth slowing down and matching the terms of $K(x,y)$ to those of $\phi(x)^\top\phi(y)$ one by one. The six components of $\phi$ are indexed $\phi_0, \dots, \phi_5;$ pairing $\phi_i(x)\phi_i(y)$ gives:

The factors of $\sqrt{2}$ in $\phi$ are not cosmetic; they are exactly what makes the inner product yield the doubled cross-terms in $K.$ Drop them and the equality fails.

So when you plug the simple closed-form $K(x, y) = (x^\top y + 1)^2$ into a kernel SVM, you have implicitly given the SVM access to a six-dimensional polynomial feature space: a constant term, two linear terms, two squared terms, and one cross term. The SVM finds a hyperplane in $\mathbb{R}^6,$ which projects back down to a conic section (ellipse, parabola, hyperbola, or pair of lines) in the original $\mathbb{R}^2.$

The cost of computing $K(x, y)$ is one dot product in $\mathbb{R}^2$ and one squaring — about three multiplications and two additions. The cost of computing $\phi(x)^\top \phi(y)$ explicitly is six multiplications and five additions, plus the cost of constructing $\phi(x)$ and $\phi(y)$ in the first place. The savings here are modest because the feature space is small. But scale this to $x \in \mathbb{R}^{500}$ and $K(x, y) = (x^\top y + 1)^5$ and the savings become enormous.

The conic-section connection is also worth pausing on: the SVM hyperplane in $\mathbb{R}^6$ is parameterized by 6 weights and a bias, which is exactly the number of free parameters needed to specify a general quadratic curve in the plane. The kernel is not granting expressivity for free in a metaphysical sense; it is granting access to the same 7-dimensional family of conics that a careful hand-engineered model would have specified, but without forcing you to commit to it ahead of time. The model picks which conic the data wants.

Numerical sanity check#

We can verify the identity with five lines of NumPy.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

import numpy as np

def K(x, y):
    return (x @ y + 1) ** 2

def phi(x):
    s = np.sqrt(2)
    return np.array([1.0, s*x[0], s*x[1], x[0]**2, x[1]**2, s*x[0]*x[1]])

x = np.array([0.7, -1.2])
y = np.array([1.5,  0.4])
print("K(x,y)         =", K(x, y))
print("phi(x).phi(y)  =", phi(x) @ phi(y))

Output:

K(x,y)         = 1.4884000000000004
phi(x).phi(y)  = 1.4884000000000004

Identical to machine precision, as required. The same trick scales: $K(x,y) = (x^\top y + 1)^k$ corresponds to a $\binom{d+k}{k}$ -dimensional polynomial feature map, and you never write it down.

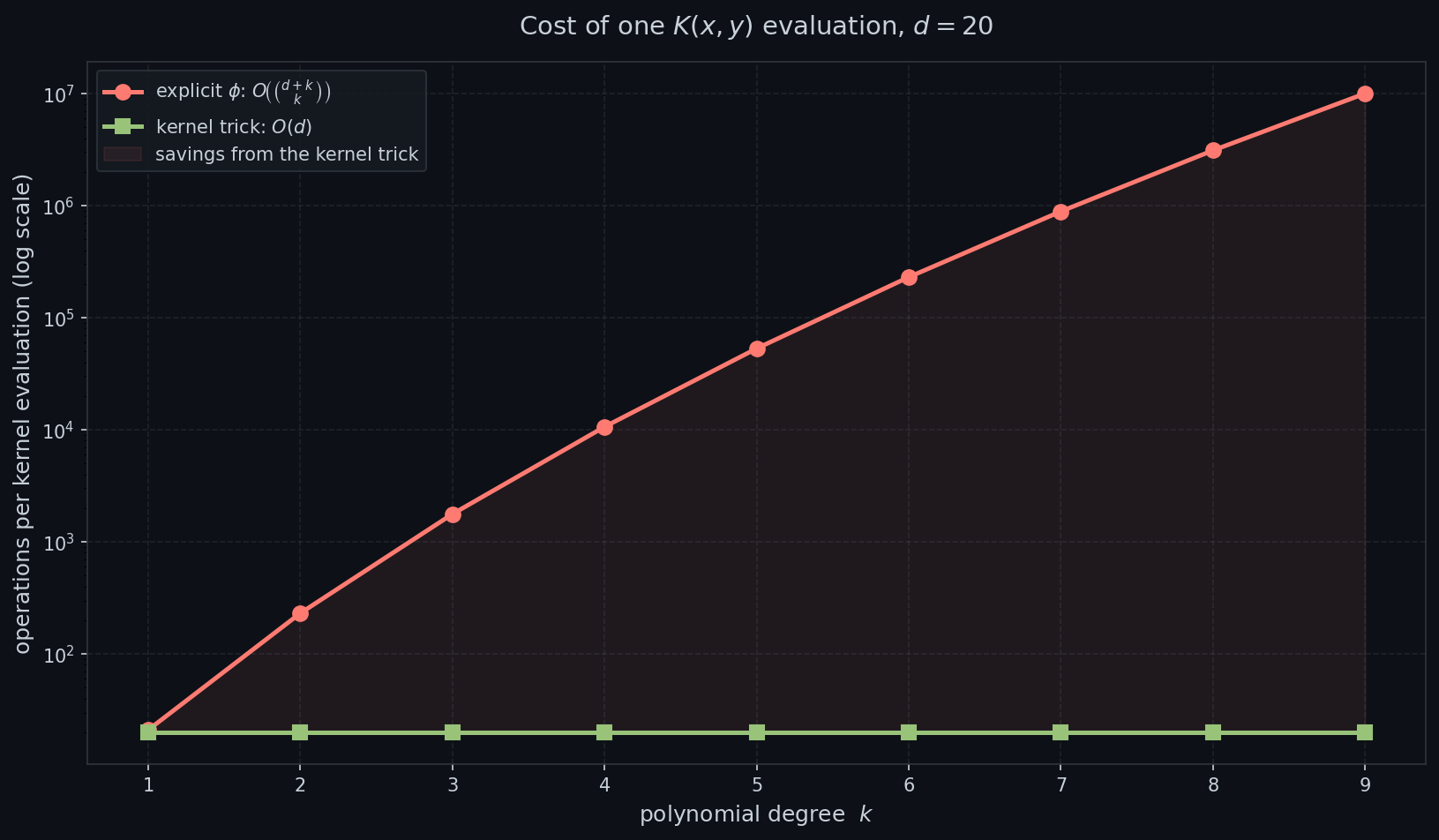

How much do we save?#

For degree-$k$ polynomials in $d$ dimensions, evaluating $K(x, y) = (x^\top y + c)^k$ requires:

• One inner product in $\mathbb{R}^d:$ $d$ multiplications and $d - 1$ additions.
• One addition with $c.$
• $\log_2(k)$ squarings via fast exponentiation (or just $k - 1$ multiplications).

Total: $O(d + \log k),$ dominated by the dot product. Compare with $O(N(d, k)) = O\!\left(\binom{d+k}{k}\right)$ for the explicit feature route.

At $d = 20,$ the kernel trick saves you a factor of $50{,}000\times$ at degree five and a factor in the millions by degree eight. And these are conservative numbers — most real applications have $d$ in the hundreds or thousands.

Worth a comment on what these savings mean for training an algorithm, not just for a single $K(x,y)$ call. A kernel SVM on $n$ training points needs $n(n+1)/2$ kernel evaluations to build the Gram matrix. At $n = 5{,}000$ that is about 12.5 million evaluations. With $d = 100$ and the polynomial kernel of degree $5,$ each evaluation costs roughly $100$ floating-point operations; the whole Gram matrix builds in around $10^9$ flops, or under a second on a modern CPU. The explicit-feature route would have needed to construct and store $5{,}000$ vectors of length $\binom{105}{5} \approx 9.6 \times 10^7$ — about 3.8 TB at float64. The contrast is not subtle.

Caveat: kernels do not save you on $n$ #

A pleasant arithmetic fact deserves a sober counterweight. Kernel methods are cheap per pair but quadratic in the dataset size, because most kernel algorithms need the full $n \times n$ Gram matrix $K_{ij} = K(x_i, x_j).$ That matrix has $n^2$ entries and most operations against it (matrix-vector products, eigendecompositions) are at least $O(n^2)$ and often $O(n^3).$

The asymptotic picture for the two approaches:

So the kernel trick trades the curse of high $d$ for the curse of large $n.$ For datasets with $n$ in the millions, plain kernel methods do not scale and you need approximation tricks like Nystrom or random Fourier features — we will get to those in Part 6. For small-to-medium $n$ (say, up to about $50{,}000$ ), kernel methods are competitive with and often superior to deep nets, especially when the inductive bias of the kernel matches the structure of the data.

A concrete memory budget for the Gram matrix tells the story crisply. A symmetric $n \times n$ float64 matrix consumes $8 n^2 / 2$ bytes (storing only the upper triangle), so:

Above $n \approx 50{,}000,$ you cross the point where keeping the full Gram matrix in RAM stops being practical. This is where the approximation literature kicks in — Nystrom’s method and random Fourier features both build a low-rank surrogate Gram matrix of effective rank $m \ll n,$ trading some accuracy for $O(nm)$ memory and $O(nm^2)$ training time. Part 6 is entirely about that trade.

Thinking: the $n$ -vs-$d$ trade is the deepest practical tension in ML systems design. Kernels, transformers’ self-attention, and Gaussian processes all share this $O(n^2)$ flavor — they all index pairs of data points — and all the modern speedups (Nystrom, Performer, sparse GPs, FlashAttention) are clever ways to dodge the same matrix. Understanding the trade in the kernel setting is the cleanest place to first encounter it.

Where the break-even sits#

A more practical way to think about it: for a given $d$ and $k,$ at what dataset size does the explicit-feature route become cheaper than the kernel route? Equating the leading terms — $n \cdot N(d, k)$ for storing features vs $n^2$ for the Gram matrix — gives a break-even at $n \approx N(d, k).$ A few numbers:

In real-world settings $d$ is often in the hundreds and $k \geq 3$ is needed for interesting structure, so the break-even sits comfortably above any normal dataset size and kernels are the right choice. The exception is the very-high-$n$ , modest-$d,k$ regime (web-scale linear models on hashed features), where explicit features plus stochastic gradient descent on a linear model wins instead.

Why kernel methods matter#

Step back from the mechanics and look at what you actually get from this whole construction.

(1) Expressivity without explicit features: any kernel that corresponds to a feature map $\phi: \mathbb{R}^d \to \mathbb{R}^m$ with $m \gg d$ — and the Gaussian RBF kernel corresponds to an infinite-dimensional feature map — gives your linear algorithm access to a much richer hypothesis class, with no engineering cost beyond picking a closed-form $K.$

(2) Convex optimization, closed-form solutions: because the algorithm itself is linear-in-feature-space, the same convexity and global-optimum guarantees that made you choose linear models in the first place are preserved. Kernel SVM is a convex quadratic program. Kernel ridge has a closed-form solution. Gaussian process regression has a closed-form posterior. No saddle points, no learning-rate schedules, no warm restarts.

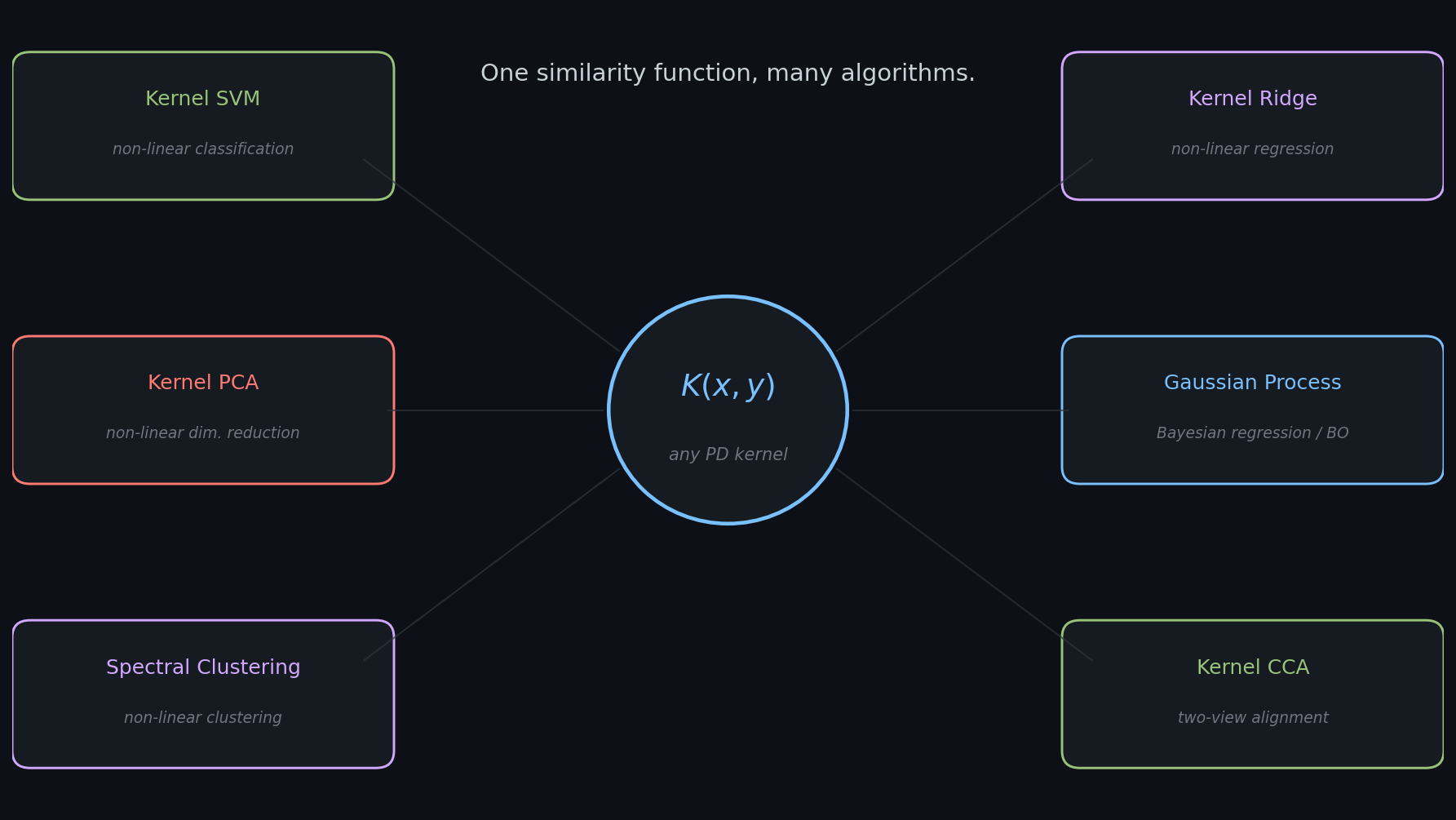

(3) A unified framework: the same kernel $K$ plugs into many different algorithms: kernel SVM for classification, kernel ridge for regression, kernel PCA for dimensionality reduction, spectral clustering for clustering, kernel CCA for two-view alignment, Gaussian processes for Bayesian regression and Bayesian optimization. You design the similarity once and reuse it everywhere.

(4) Strong theoretical foundations: the reproducing kernel Hilbert space construction gives you a complete functional-analytic picture of what your model is fitting — generalization bounds, sample complexity, function-space norms. Few other model classes admit comparably clean theory.

(5) Domain-encoded inductive bias: a kernel is, in effect, a similarity function. Pick the right kernel and you encode strong prior knowledge: an RBF kernel says “similar inputs should produce similar outputs”, a periodic kernel says “outputs repeat with period $p$ ”, a string kernel says “two protein sequences are similar if they share many subsequences”. This is the engineer’s lever for injecting domain knowledge into an otherwise generic algorithm.

(6) Modularity and composability: kernels compose. Sums of kernels are kernels (under positivity, which Part 2 will prove). Products are kernels. Restrictions to subsets are kernels. So you can build a kernel for a heterogeneous input (a tuple of a vector, a string, and a graph) by combining a polynomial kernel on the vector, a spectrum kernel on the string, and a Weisfeiler-Lehman kernel on the graph. The algorithm above the kernel does not care; it just sees a similarity matrix. This composability is the kernel-world analog of how neural nets compose layers.

(7) Interpretability of the model class: because a kernel encodes a similarity function explicitly, you can look at it, plot it, sanity-check it against domain knowledge. There is no equivalent for “what does layer 17 of a transformer actually represent?” — at least, no equivalent that you can write down on one line. When auditing a model is non-negotiable (regulated industries, scientific publications), kernels offer a level of mechanistic transparency that few other expressive model classes match.

(8) Sample efficiency: the same RKHS theory that gives you generalization bounds also tells you how many samples you need to learn a function of a given complexity. For smooth target functions, kernel methods achieve minimax-optimal sample complexity — meaning no estimator, regardless of model class, can do asymptotically better. Deep learning has no comparable theory in this regime; kernels are the gold standard for “how few samples can I get away with?”

Production case studies#

A few real, deployed systems that lean on kernels:

• SVM for text classification (early 2000s spam filters): kernels on bag-of-words representations were the production-grade workhorse before deep nets. Joachims’ SVMlight powered enterprise email filtering; the linear kernel on TF-IDF vectors is still the strong baseline that any new system has to beat. The string subsequence kernel later extended the same idea to character-level features.
• Gaussian processes for Bayesian optimization (hyperparameter tuning): Google Vizier, SigOpt, and Facebook’s Ax all use GP regression with carefully chosen kernels to model the loss surface of an expensive black-box function (training a model, running an A/B test). The kernel’s smoothness assumption is what makes Bayesian optimization sample-efficient — a typical GP-BO loop converges in 20–50 expensive evaluations where random search would need thousands.
• Kernel PCA for anomaly detection in industrial monitoring: when normal operation lives on a low-dimensional non-linear manifold, kernel PCA can detect points that fall off the manifold. Used in semiconductor fab process control and rotating-machinery fault detection, where the cost of a missed anomaly (a ruined wafer batch, a destroyed turbine) easily justifies the $O(n^2)$ cost of the kernel.
• String kernels in bioinformatics: the spectrum kernel and mismatch kernel give SVMs a natural way to compare DNA / protein sequences without alignment. Several Pfam-family classifiers and remote homology detectors are built this way; the kernel encodes the “two sequences are similar if they share many short subsequences” prior that is exactly the right inductive bias for the domain.
• Gaussian processes for geostatistics and Bayesian model calibration: “kriging” — the original name for GP regression in mining — is still the standard tool for ore-grade interpolation, and the same machinery underlies modern uncertainty quantification in climate models and physics simulations. A custom kernel that respects topographic features (e.g. anisotropic Matérn kernels along geological strata) routinely beats generic black-box methods.

In the deep-learning era, the question “why bother with kernel methods?” gets asked a lot. The honest answer has several parts. First, kernels still win on small datasets where deep nets overfit. Second, they offer interpretable uncertainty quantification through Gaussian processes — invaluable for Bayesian optimization, active learning, and any task where you need to know what the model does not know. Third, and most importantly for this series, they are a beautiful piece of mathematics that clarifies what “non-linear modeling” actually is. Understanding kernels is a load-bearing piece of any serious ML education, even if you spend most of your career training transformers.

When not to use kernels#

The flip side of the case study list: a few honest “do not bother” scenarios.

• $n$ in the millions and you have GPU budget: the $O(n^2)$ Gram matrix is fatal. A two-hidden-layer MLP or a tabular gradient-boosted tree will train in minutes on data where a vanilla kernel method would not even finish constructing the kernel matrix.
• High-dimensional sparse data with web-scale $n$ : linear models with hashing tricks (Vowpal Wabbit, FTRL) dominate. The “kernel” you would want here is just the linear one, and at that point you do not need the kernel formulation at all.
• You need a model that updates online, point by point: kernel methods can be made online (passive-aggressive, projected stochastic gradient on the dual), but the bookkeeping is heavy and the storage grows. Neural nets handle this more gracefully.
• The hypothesis class you actually want is a deep composition: convolutions, attention, recurrence. There exist deep kernel analogs (convolutional kernel networks, neural-tangent kernels), but at that point you have given up most of the simplicity and you should ask why you have not just trained the network.

Knowing when not to reach for a kernel is half the skill. The other half is recognizing the small-to-medium, structured-prior, uncertainty-mattering regime where kernels are still genuinely the right tool — Bayesian optimization, geostatistics, computational biology, low-data scientific ML.

The blunt rule of thumb: if your dataset fits in RAM as a square matrix of floats, kernel methods deserve at least one experiment. If it does not, you are either in the linear-model-plus-hashing or the deep-learning regime, and kernel methods will only be relevant in their approximated form.

Thinking: the recent “neural tangent kernel” line of work showed that infinitely wide neural networks behave exactly like kernel methods with a specific (closed-form, computable) kernel. That is not a coincidence — it is a deep statement that gradient-descent-trained linear-in-features models are the natural limit of overparameterized neural nets. Kernels are not just a 1990s curiosity; they are the language in which one of the most important theoretical results of modern deep learning is naturally expressed.

Exercises#

A handful of exercises to internalize the material before moving on. The first three are short pencil-and-paper drills; the last two go a bit further.

Exercise 1: take $x, y \in \mathbb{R}^3$ and the cubic kernel $K(x, y) = (x^\top y)^3.$ Compute the explicit feature map $\phi: \mathbb{R}^3 \to \mathbb{R}^?$ by expanding $(x_1 y_1 + x_2 y_2 + x_3 y_3)^3$ via the multinomial theorem. How many components does $\phi(x)$ have? (Hint: count compositions of 3 into 3 non-negative parts.)

Exercise 2: suppose $K_1$ and $K_2$ are kernels (i.e. both have feature-map representations). Show that $K(x, y) = K_1(x, y) + K_2(x, y)$ is also a kernel by constructing its feature map from $\phi_1$ and $\phi_2.$ (This is the easy direction of the closure-under-addition property; the hard direction is showing that the sum is positive definite, which is Part 2’s business.)

Exercise 3: the RBF kernel is $K(x, y) = \exp(-\gamma \|x - y\|^2).$ Show that $K(x, x) = 1$ for all $x$ and $0 < K(x, y) \leq 1$ for $x \neq y.$ What does this say about the geometry of the implicit feature map $\phi?$ In particular, what is $\|\phi(x)\|$ in the implicit Hilbert space?

Exercise 4 (optional, harder): for the polynomial kernel $K(x, y) = (x^\top y + 1)^k$ on $x, y \in \mathbb{R}^d,$ count the number of components of the implicit feature map $\phi.$ Verify that your formula gives $6$ for $d = k = 2$ (matching the worked example), and explain why this matches $\binom{d + k}{k}$ exactly.

Exercise 5 (compute-oriented): modify the kernel-ridge-vs-ridge experiment above to record training time as $n$ grows from $500$ to $10{,}000.$ Plot wall-clock time for both models on the same axes. At what $n$ does kernel ridge cross 10 seconds on your machine? At what $n$ does it exhaust memory? Compare with the predictions from the complexity table.

What’s next#

This post argued why kernel methods exist. Part 2 will tell you which functions are allowed to be kernels — the theory of positive-definite functions and Mercer’s theorem — and answer the question we waved away above: for any reasonable feature map $\phi,$ does a corresponding $K$ always exist, and conversely, does every $K$ secretly correspond to some $\phi?$

The short answer is yes, and the long answer is one of the more elegant theorems in 20th-century functional analysis. We will work through it carefully, with pictures, in the next installment.

A glimpse at the RBF kernel#

A Taylor expansion of $\exp$ shows that this kernel corresponds to an infinite-dimensional feature map — it implicitly contains every polynomial of every degree, weighted by factorials. Plugging it into a kernel SVM gives you, with one line of code, access to a function class so rich it is dense in the continuous functions on any compact set.

The $\gamma$ parameter controls how quickly similarity decays with distance. Large $\gamma$ → only very close points are considered similar → very flexible, prone to overfitting. Small $\gamma$ → nearly everything is similar → very smooth, prone to underfitting. Part 3 will spend an entire post on how to think about $\gamma$ and how to choose it. For now, just appreciate that a single hyperparameter on a single closed-form similarity function gives you a fully tunable knob from “nearly linear” all the way to “interpolate every training point exactly” — and everything in between.

Roadmap of the remaining seven posts#

For context on where this is going:

• Part 2 — Mathematical foundations: positive-definite functions, Mercer’s theorem, and the equivalence between kernels and feature maps. The piece of pure mathematics that licenses the entire enterprise.
• Part 3 — The RBF kernel: why the Gaussian kernel is the “universal default,” what its bandwidth parameter $\gamma$ actually controls, and how to choose it.
• Part 4 — The reproducing kernel Hilbert space: the geometric and functional-analytic picture. What space are kernel methods really fitting functions in?
• Part 5 — Kernel SVM, kernel ridge, kernel PCA: the trio of canonical algorithms, derived from scratch with the kernel trick.
• Part 6 — Approximation: Nystrom and random Fourier features: how to scale kernel methods past the $O(n^2)$ wall.
• Part 7 — Gaussian processes: the Bayesian face of the same mathematics, plus active learning and Bayesian optimization applications.
• Part 8 — Modern connections: the neural tangent kernel, deep kernel learning, and where the field sits in the age of foundation models.

Read them in order if you have time; each builds on the previous. If you only read three, make them Parts 2, 5, and 7 — they cover the theory, the canonical algorithms, and the most actively used modern application.

Closing thought#

If there is one thing to carry forward from this post, it is the order of operations the kernel trick implies. The naive approach to non-linearity is “first compute a high-dimensional representation, then run a linear algorithm on it.” The kernel trick says “run the linear algorithm in its dual form, and let the inner product silently visit the high-dimensional representation without ever building it.” That inversion — algorithm first, representation implicit — is the conceptual move worth keeping. Many of the most beautiful results in computational mathematics share its flavor: the FFT (don’t compute the polynomial coefficients, compute the values), automatic differentiation (don’t expand the gradient symbolically, propagate it), randomized SVD (don’t form the matrix, sketch it). Once you see the pattern in one place, you start finding it everywhere.

This is Part 1 of Kernel Methods (8 parts). Next: Part 2 — Mathematical Foundations: Positive-Definite Kernels & Mercer’s Theorem
