Matrix Norms and Condition Numbers -- Is Your Linear System Healthy?

The Question That Haunts Engineers

The equations are right. The algorithm is right. So why is the computed answer completely wrong?

The culprit is usually a single number called the condition number. It measures how sensitive a linear system is — whether a tiny wobble in the input gets amplified into a catastrophic error in the output. To talk about condition numbers we first need a way to measure the “size” of vectors and matrices. That is what norms do.

What you will learn

• Vector norms ($L^1$, $L^2$, $L^\infty$) and the geometry of their unit balls.
• Matrix norms: Frobenius, induced, and the all-important spectral norm.
• The condition number $\kappa(A) = \sigma_{\max}/\sigma_{\min}$ and what it really means.
• Why ill-conditioned matrices (e.g. the Hilbert matrix) destroy double-precision arithmetic.
• How condition numbers bound the amplification of input error.
• Spectral radius and convergence of iterative methods.
• Preconditioning: how to tame an ill-conditioned system.

Prerequisites

• Singular values and SVD (Chapter 9).
• Matrix multiplication and inverses (Chapter 3).
• Eigenvalues (Chapter 6).

Vector Norms: Measuring Size

What is a norm?

A norm on a vector space is a function $\|\cdot\|$ obeying three axioms:

1. Non-negativity. $\|\vec{x}\| \geq 0$, with equality iff $\vec{x} = \vec{0}$.
2. Absolute homogeneity. $\|c\vec{x}\| = |c|\,\|\vec{x}\|$.
3. Triangle inequality. $\|\vec{x} + \vec{y}\| \leq \|\vec{x}\| + \|\vec{y}\|$.

These match our everyday sense of “size”. Nothing has negative size; doubling something doubles its size; a detour is never shorter than the direct path.

The three norms you must know

For $\vec{x}\in\mathbb{R}^n$:

$L^1$ norm — Manhattan distance. $\|\vec{x}\|_1 = |x_1| + |x_2| + \cdots + |x_n|.$ A taxi in midtown can only drive along the grid; reaching $(3,4)$ from the origin costs $3+4=7$ blocks.

$L^2$ norm — Euclidean distance. $\|\vec{x}\|_2 = \sqrt{x_1^2 + x_2^2 + \cdots + x_n^2}.$ The straight line “as the crow flies”: a crow reaches $(3,4)$ in $\sqrt{9+16}=5$.

$L^\infty$ norm — Chebyshev distance. $\|\vec{x}\|_\infty = \max_i|x_i|.$ A chess king moves one square in any of eight directions; reaching $(3,4)$ costs $\max(3,4)=4$ moves because the king can travel diagonally and orthogonally simultaneously.

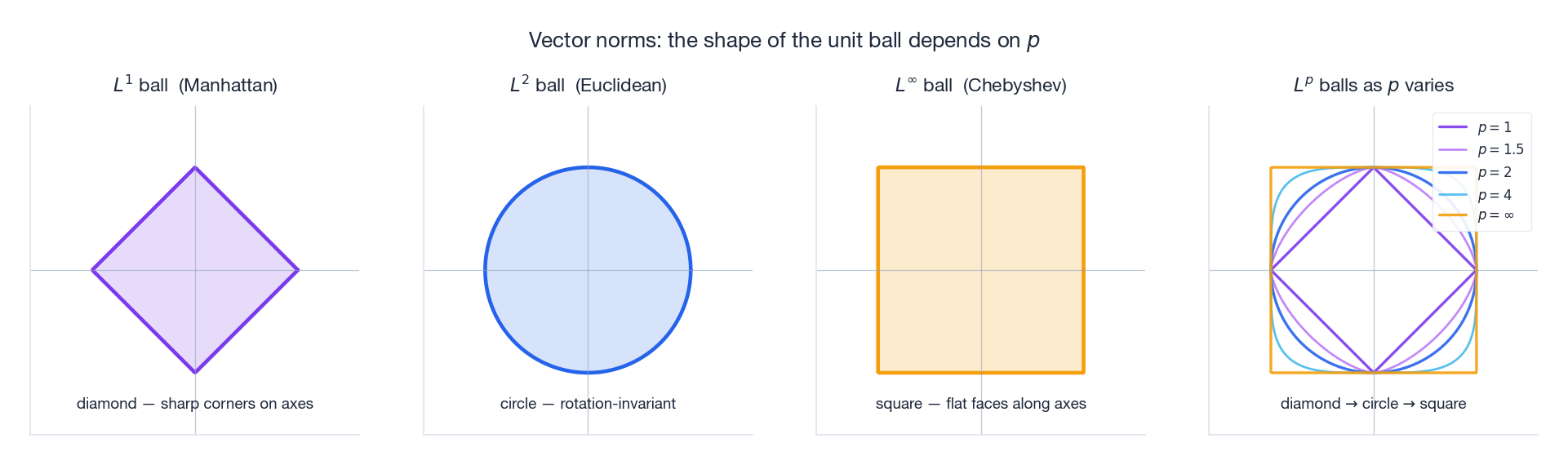

The geometry of unit balls

Each norm carves out its own unit ball $\{\vec{x} : \|\vec{x}\| \leq 1\}$:

• $L^1$: diamond in 2D, octahedron in 3D — sharp corners on the axes.
• $L^2$: circle in 2D, sphere in 3D — perfectly rotation-invariant.
• $L^\infty$: square in 2D, cube in 3D — flat faces aligned with the axes.

As $p$ grows from $1$ to $\infty$, the unit ball morphs from diamond to circle to square. Those sharp corners on the $L^1$ ball are exactly why LASSO regression produces sparse solutions: the level sets of the loss tend to touch the $L^1$ constraint at a corner — a corner that lies on a coordinate axis, meaning some coordinates are forced to zero.

Norm equivalence

Different norms are different rulers measuring the same vector. If a sequence converges in one norm, it converges in all of them. The choice is purely a matter of convenience or physical meaning — until we get to the speed of convergence, where the choice of norm starts to matter again.

Matrix Norms: How Strong is the Transformation?

Frobenius norm — treat the matrix as one long vector

Just flatten every entry into a single long vector and compute its $L^2$ norm.

Image analogy. Picture $A$ as a grayscale image, each entry a pixel intensity. The Frobenius norm is the image’s total energy. It is the standard yardstick for “how different are these two matrices?” in everything from image-compression error to weight-update norms in neural networks.

So Frobenius is a root-sum-of-squares over all singular values — it cares about every direction $A$ stretches.

Induced norms — the maximum amplification

Think of $A$ as a magnifying lens: the induced norm asks what is the biggest zoom this lens can apply? If $\|A\|_2 = 3$, there exists some input direction whose length triples after applying $A$.

The three induced norms you will see most often:

Memory trick: $1$ → column sum, $\infty$ → row sum.

The spectral norm — the star player

The spectral norm $\|A\|_2 = \sigma_1$ is the most useful matrix norm:

• It equals the largest singular value.

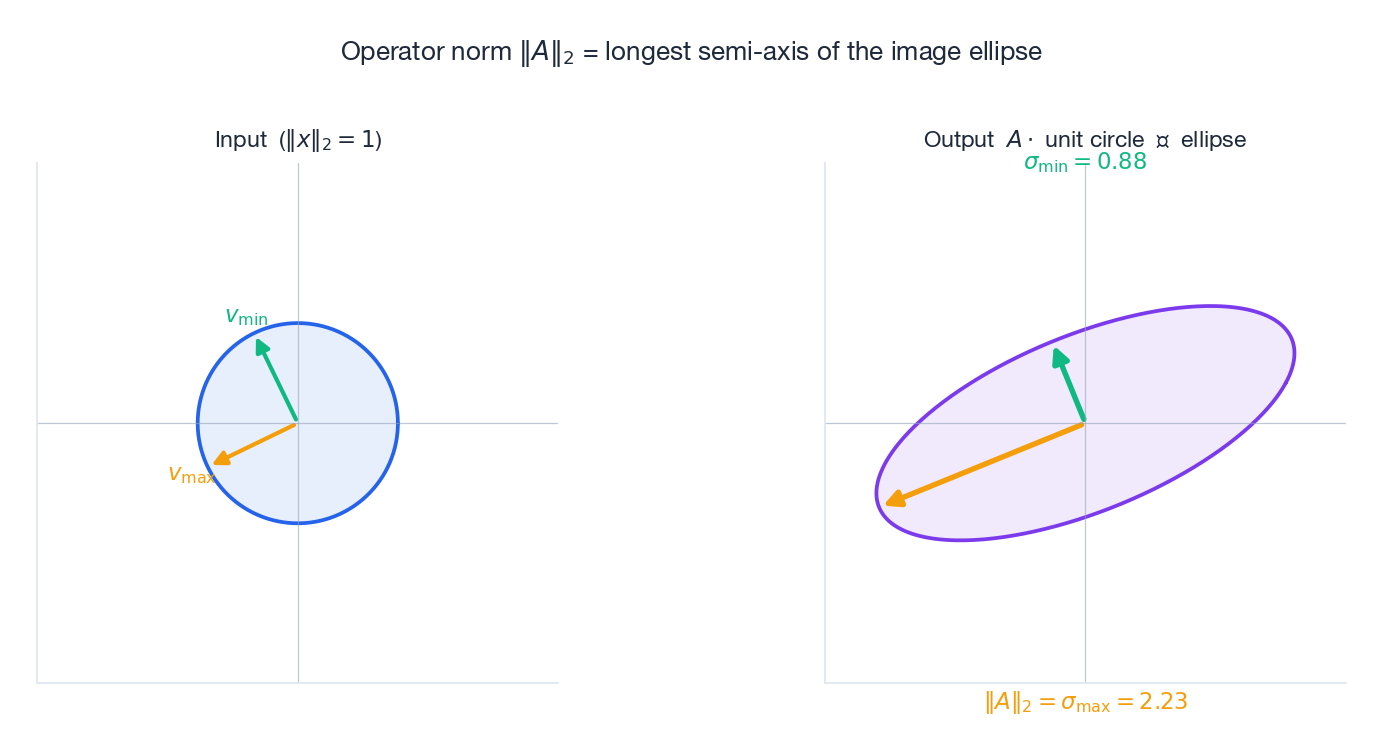

• Geometrically, $A$ maps the unit sphere to an ellipsoid; $\|A\|_2$ is the length of the longest semi-axis.
• It captures the maximum amplification factor of $A$.

The two pictures above tell the whole story. On the left, the unit circle and two extremal directions $v_{\max}$ and $v_{\min}$. On the right, $A$ has rotated and stretched the circle into an ellipse; the orange arrow lands on the longest semi-axis with length $\sigma_{\max} = \|A\|_2$, while the green arrow shrinks to length $\sigma_{\min}$.

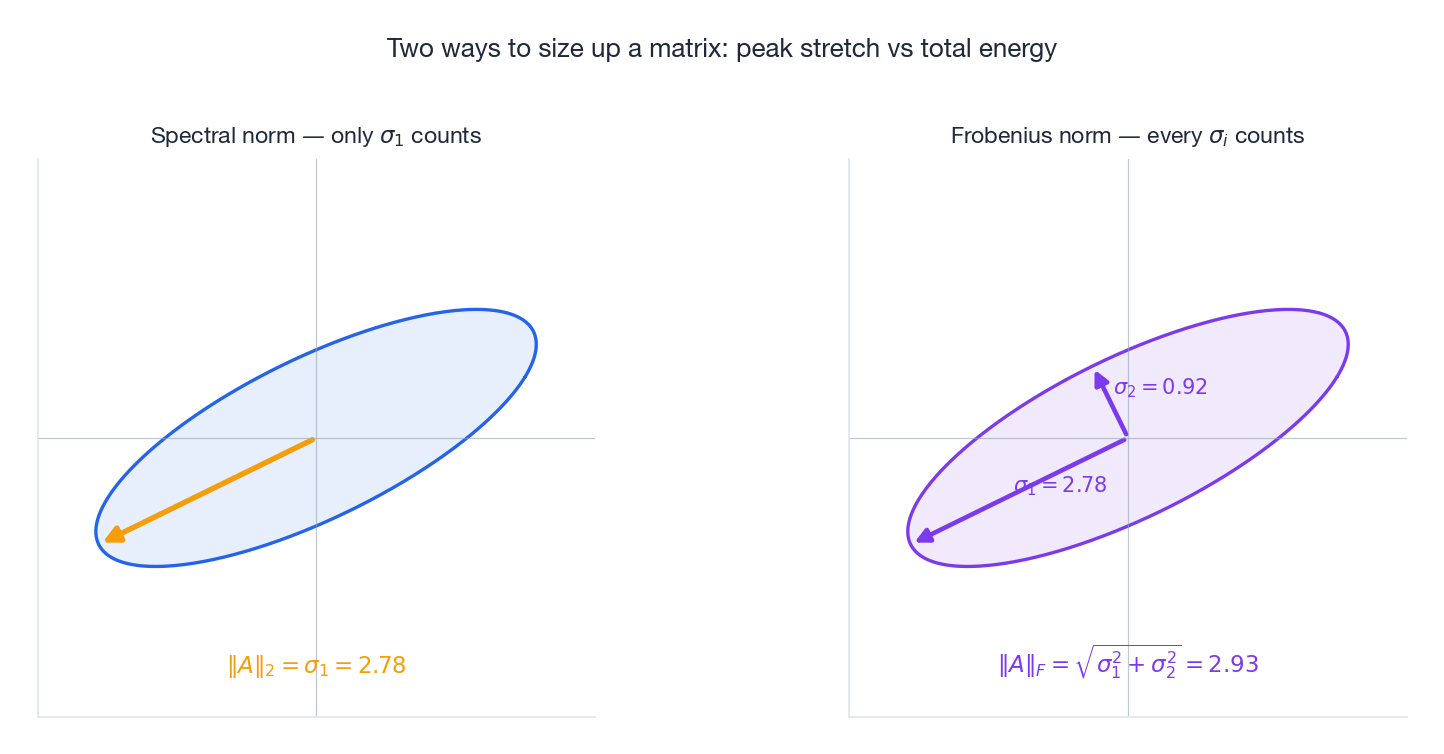

Frobenius vs spectral: two answers to “how big?”

These two norms answer different questions about the same matrix. The spectral norm is the peak stretch — useful when you fear the worst direction. The Frobenius norm is the aggregate stretch — useful when you care about average behaviour.

For the matrix shown, $\|A\|_2 = \sigma_1 \approx 2.78$ but $\|A\|_F \approx 2.93$. They are close because $\sigma_2$ is small relative to $\sigma_1$; for a matrix with many comparable singular values they would diverge.

Submultiplicativity

Two transformations applied in sequence cannot amplify a vector by more than the product of their individual amplifications. This single inequality is what lets us prove convergence of iterative algorithms — and what controls the worst-case error of repeated multiplication in deep networks.

The Condition Number: a Health Report

Definition

The ratio of the largest to smallest singular value.

Allergy analogy.

• $\kappa \approx 1$: a healthy immune system. A draft does nothing.
• $\kappa \approx 10^{10}$: a severe allergy. A speck of pollen triggers anaphylaxis.

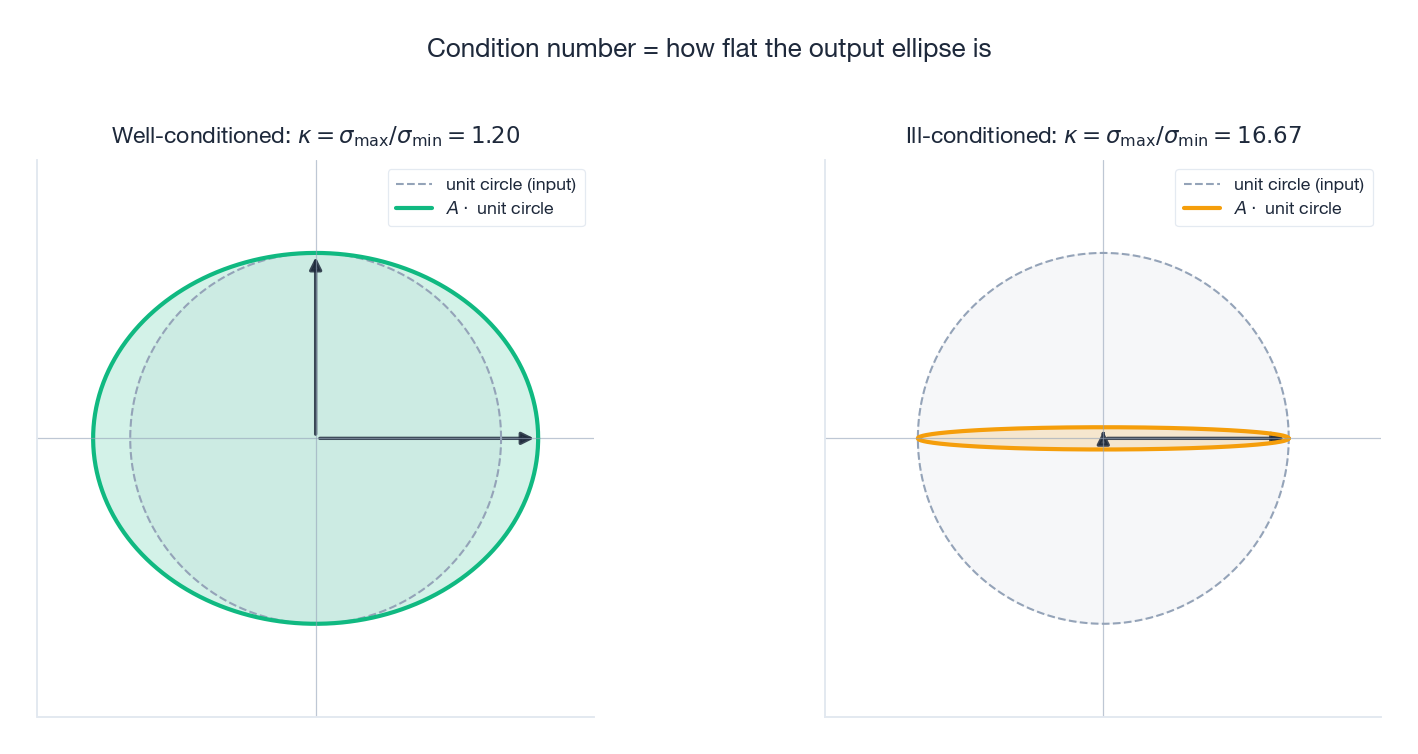

The well-conditioned matrix maps the input circle to a near-circle (the dashed grey baseline overlaps the green ellipse almost everywhere). The ill-conditioned matrix flattens the same circle into a needle: there are directions in input space along which the matrix barely registers, so to invert we have to amplify those tiny outputs back up — and any noise rides along with the signal.

Key properties

• Lower bound: $\kappa(A) \geq 1$. Equality holds only for scalar multiples of orthogonal matrices.
• Orthogonal invariance: $\kappa(QA) = \kappa(A)$ when $Q$ is orthogonal — rotations and reflections cost nothing.
• Scale invariance: $\kappa(\alpha A) = \kappa(A)$ — the shape of the ellipse, not its size, decides health.
• Inverse symmetry: $\kappa(A^{-1}) = \kappa(A)$ — solving and inverting are equally hard.

Geometric meaning in one line

$\kappa = 1$ means the ellipse is a circle; $\kappa = \infty$ means it has collapsed to a line segment (the matrix is singular).

Quick example. $A = I$ has $\kappa = 1$. $B = \begin{pmatrix} 1 & 0 \\ 0 & 10^{-5} \end{pmatrix}$ has $\kappa = 10^5$ — it crushes one direction by a factor of $10^5$.

Ill-Conditioned Matrices: The Nightmare

The Hilbert matrix

Its condition number grows terrifyingly fast.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

import numpy as np
from scipy.linalg import hilbert

n = 12
H = hilbert(n)
x_true = np.ones(n)
b = H @ x_true
x_hat = np.linalg.solve(H, b)

print(f"kappa(H_{n})    = {np.linalg.cond(H):.2e}")
print(f"relative error = {np.linalg.norm(x_true - x_hat) / np.linalg.norm(x_true):.2e}")

By size 12, the relative error is of order 1: the answer can be 100% wrong even though the algorithm is “correct”.

Visualising the explosion

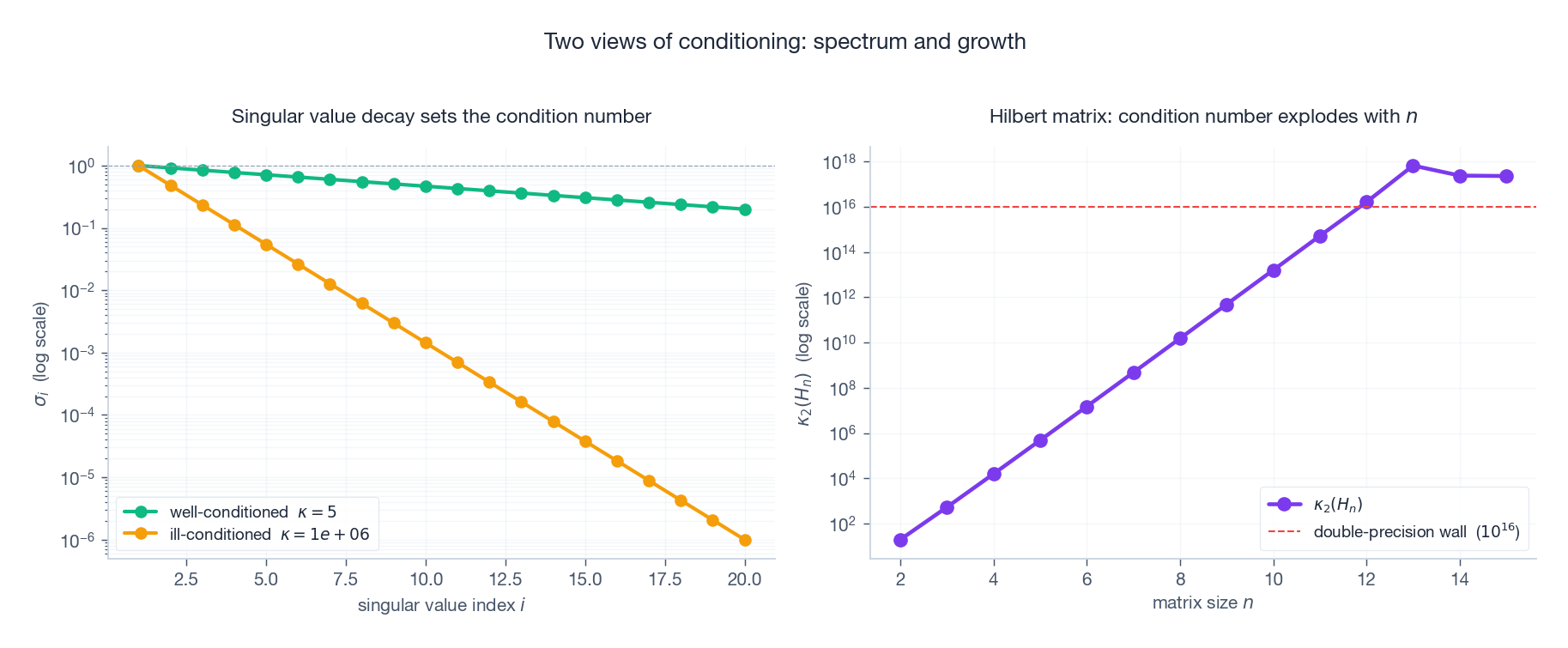

The left panel shows two 20×20 matrices: a benign one with a flat singular spectrum, and a pathological one whose singular values plunge over six orders of magnitude. The right panel plots $\kappa_2(H_n)$: on a log axis it is essentially a straight line, doubling about every two rows. The dashed red line is the double-precision wall at $10^{16}$ — past it, no algorithm executed in IEEE 754 double precision can save you.

Where ill-conditioning comes from

• Polynomial fitting. High-degree fits produce Vandermonde matrices whose condition number grows exponentially in the degree.
• Fine meshes. Refining a finite-element mesh by a factor of $h$ multiplies $\kappa$ by roughly $h^{-2}$.
• Normal equations. $\kappa(A^TA) = \kappa(A)^2$ — taking a least-squares problem and squaring the condition number is sometimes called the original sin of numerical linear algebra.
• Near singularity. Two rows or columns that are almost linearly dependent.

Error Analysis: How Condition Numbers Amplify Errors

Right-hand side perturbation

Suppose we solve $A\vec{x} = \vec{b}$ but the right-hand side is contaminated by a small $\delta\vec{b}$. How much does the solution change?

The condition number is the maximum amplification factor for relative error.

Concretely:

• $\kappa = 10$: a 1% input error gives at most a 10% output error.
• $\kappa = 10^{10}$: a 1% input error can produce a $10^{8}$% output error — your answer is noise.
• $\kappa = 10^{16}$: even machine-precision rounding (≈ $10^{-16}$) is enough to destroy the answer.

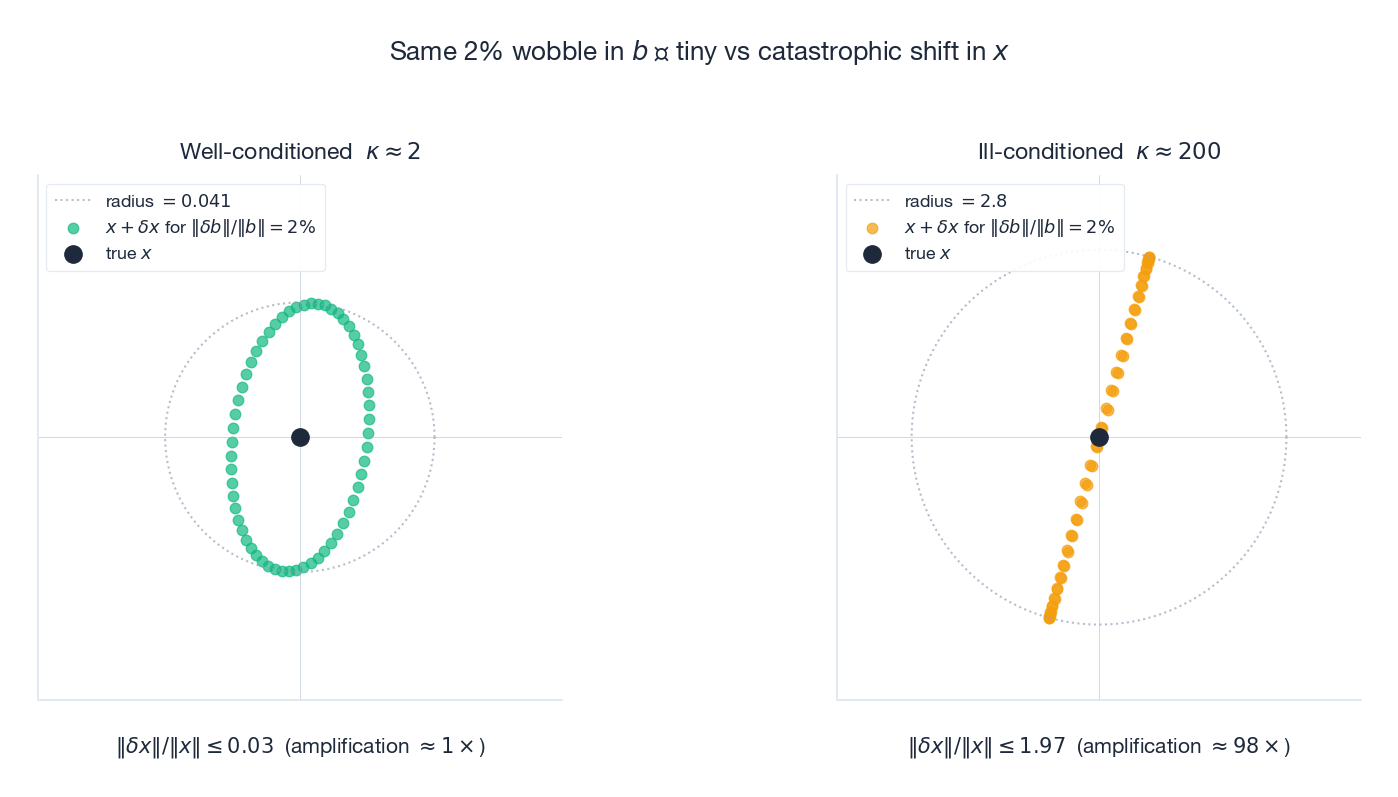

We can see this happen experimentally. The figure below applies the same 2% wobble to $b$ in many different directions and plots the resulting cloud of solutions $x + \delta x$.

For $\kappa \approx 2$, the cloud is a tiny ring centred on the true $x$ — amplification factor ≈ 1. For $\kappa \approx 200$, the same relative wobble in $b$ sends the solution sliding along a long diagonal needle — the worst-case amplification is roughly $\kappa$ itself.

Matrix perturbation

Same condition number, same penalty: errors in the matrix entries get amplified by $\kappa(A)$ too.

Rule of thumb: lost digits

If $\kappa(A) \approx 10^k$, solving $A\vec{x} = \vec{b}$ in double precision loses roughly $k$ significant digits.

Spectral Radius and Iterative Convergence

Definition

It is bounded above by every matrix norm: $\rho(A) \leq \|A\|$ for any $\|\cdot\|$.

The convergence criterion

The fixed-point iteration $\vec{x}_{k+1} = B\vec{x}_k + \vec{c}$ converges from any starting point if and only if $\rho(B) < 1$.

Shower analogy. Think of trying to reach the perfect water temperature. If the system is stable ($\rho < 1$) every adjustment moves you closer; if unstable ($\rho \geq 1$) the temperature oscillates between ice water and scalding.

Convergence speed. Each iteration shrinks the error by roughly $\rho(B)$, so to reach error $\epsilon$ takes about $\log\epsilon / \log\rho(B)$ iterations. Smaller $\rho$ means dramatically faster convergence.

The Neumann series

the matrix analogue of $\frac{1}{1-x} = 1 + x + x^2 + \cdots$. Useful in perturbation analysis and for cheap inverse approximations when $A$ is small.

Numerical Stability: Choosing the Right Algorithm

Why normal equations are dangerous

If $A$ has $\kappa = 10^{6}$, the normal equations have $\kappa = 10^{12}$ — you have manufactured your own catastrophe.

QR: the stable alternative

Form $A = QR$ and solve $R\hat{\vec{x}} = Q^T\vec{b}$. Because $Q$ is orthogonal, the condition number of the system stays at $\kappa(A)$ — not squared. This is the default in essentially every modern least-squares routine.

SVD: most stable, most expensive

Solve via the pseudoinverse $\hat{\vec{x}} = V\Sigma^+U^T\vec{b}$. SVD gracefully handles rank deficiency, returns the minimum-norm solution, and gives you the singular values for free. The cost is roughly 2–3× a QR solve.

Seeing the difference

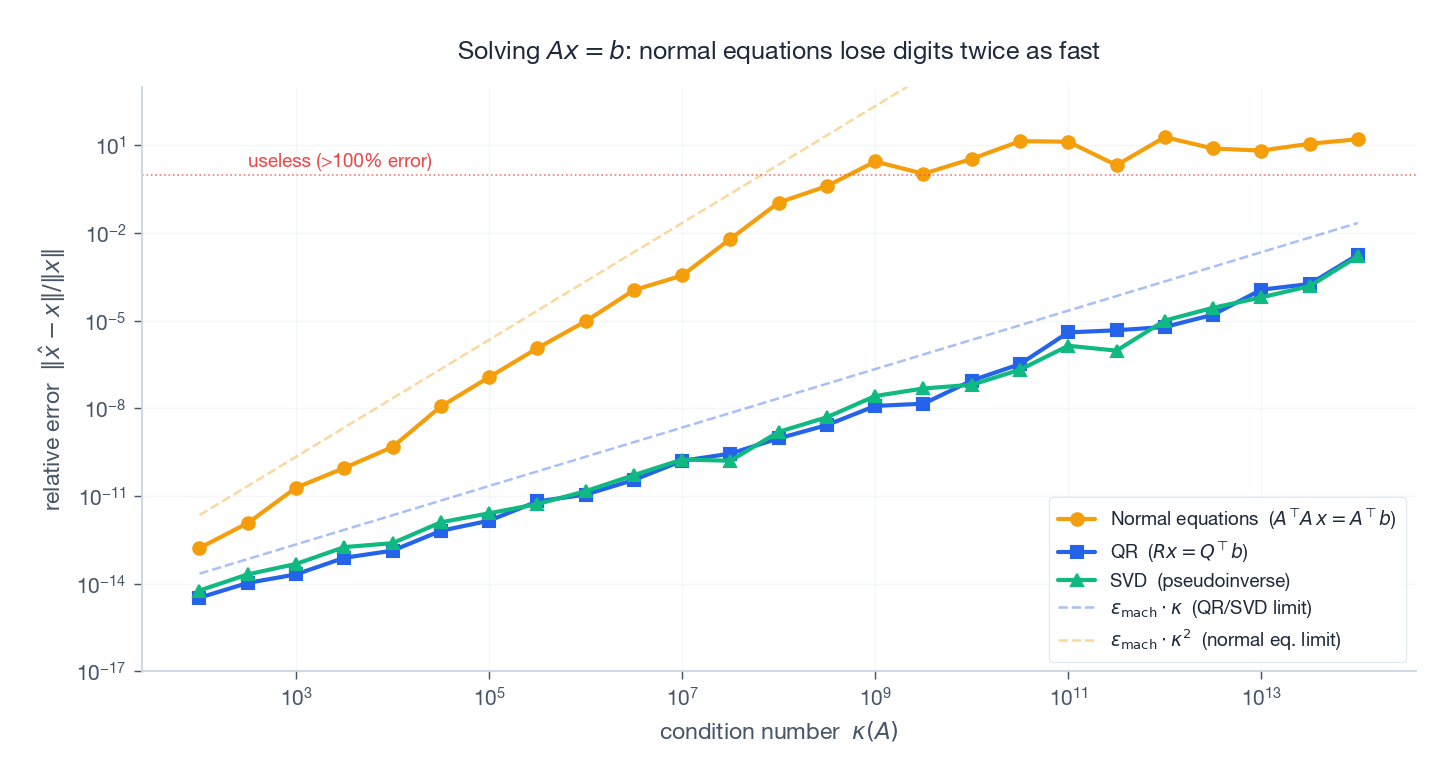

The plot below solves the same $50\times 50$ system $Ax = b$ with all three methods as we crank the condition number from $10^2$ up to $10^{14}$:

Three things to notice. (1) QR and SVD track each other; they ride the $\varepsilon_{\text{mach}}\cdot\kappa$ line all the way up. (2) The normal-equations curve is twice as steep on a log–log plot — that is the $\kappa^2$ tax. (3) Around $\kappa \approx 10^{8}$ the normal equations cross the “useless” line while QR/SVD still have eight reliable digits. Pick your algorithm before the data hits.

Preconditioning: Taming Ill-Conditioned Systems

The idea

If $M \approx A$, then $M^{-1}A \approx I$ and $\kappa(M^{-1}A) \approx 1$.

Analogy. Trying to weigh an elephant on a kitchen scale is hopeless — but if you know the elephant’s weight to within a kilogram, you only need the scale to measure the deviation. Preconditioning takes a problem that lives at the wrong scale and shifts it to one your tools can handle.

Common preconditioners

The trade-off is universal: a stronger preconditioner cuts the iteration count but costs more per iteration. Optimal preconditioners often exploit problem structure (geometric multigrid for PDEs, domain-decomposition for parallel solvers, …).

Applications

Finite element analysis

The stiffness matrix $K$ in structural mechanics has $\kappa(K) \propto h^{-2}$ where $h$ is the mesh size. Refining the mesh to capture geometric detail makes the matrix harder to solve. Highly non-uniform meshes or large material-property contrasts (think reinforced concrete, where steel and concrete differ by orders of magnitude in stiffness) make things worse — preconditioning is mandatory.

Image deblurring

The regularisation parameter $\lambda$ trades fidelity for stability and effectively replaces $\sigma_{\min}$ with $\sqrt{\sigma_{\min}^2 + \lambda}$ inside the condition number — even a small $\lambda$ can rescue the problem.

Deep learning: vanishing and exploding gradients

The spectral norm of weight matrices controls signal propagation:

• $\|W\|_2 > 1$ in many layers → forward signals (and backward gradients) blow up exponentially.
• $\|W\|_2 < 1$ in many layers → signals decay exponentially; gradients vanish.

The fixes — Batch Normalization, careful initialisation (Xavier, He), residual connections, gradient clipping — can all be read as ways of keeping the effective spectral norm of the network’s Jacobian close to 1.

Regularisation in machine learning

Even a modest $\lambda$ can cut the condition number by orders of magnitude. The same idea (Levenberg–Marquardt, trust regions, weight decay) reappears all over optimisation.

Python Examples

Computing norms and condition numbers

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

import numpy as np

A = np.array([[1, 2],
              [3, 4]], dtype=float)

print(f"Frobenius norm : {np.linalg.norm(A, 'fro'):.4f}")
print(f"Spectral norm  : {np.linalg.norm(A, 2):.4f}")
print(f"1-norm         : {np.linalg.norm(A, 1):.4f}")
print(f"inf-norm       : {np.linalg.norm(A, np.inf):.4f}")
print(f"Condition #    : {np.linalg.cond(A):.4f}")

Hilbert matrix experiment

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

from scipy.linalg import hilbert
import matplotlib.pyplot as plt

sizes = range(2, 16)
conds = [np.linalg.cond(hilbert(n)) for n in sizes]

plt.semilogy(list(sizes), conds, "o-")
plt.xlabel("Matrix size n")
plt.ylabel("Condition number")
plt.axhline(1e16, ls="--")  # double precision wall
plt.title("Hilbert matrix: condition number explodes with n")
plt.show()

Comparing least-squares methods

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

def compare_methods(cond_target=1e8, n=50, seed=0):
    rng = np.random.default_rng(seed)
    Q1, _ = np.linalg.qr(rng.standard_normal((n, n)))
    Q2, _ = np.linalg.qr(rng.standard_normal((n, n)))
    s = np.logspace(0, -np.log10(cond_target), n)
    A = Q1 @ np.diag(s) @ Q2

    x_true = rng.standard_normal(n)
    b = A @ x_true

    x_normal = np.linalg.solve(A.T @ A, A.T @ b)        # the dangerous one
    Q, R = np.linalg.qr(A); x_qr = np.linalg.solve(R, Q.T @ b)
    x_svd = np.linalg.lstsq(A, b, rcond=None)[0]

    print(f"kappa(A)        : {np.linalg.cond(A):.2e}")
    print(f"normal eq error : {np.linalg.norm(x_normal - x_true):.2e}")
    print(f"QR error        : {np.linalg.norm(x_qr - x_true):.2e}")
    print(f"SVD error       : {np.linalg.norm(x_svd - x_true):.2e}")

compare_methods()

Exercises

Warm-up

1. Compute $\|\vec{x}\|_1$, $\|\vec{x}\|_2$, $\|\vec{x}\|_\infty$ for $\vec{x} = (3, -4, 0, 1)$.
2. Compute the Frobenius norm and spectral norm of $A = \begin{pmatrix} 1 & 2 \\ 3 & 4 \end{pmatrix}$.
3. For a diagonal matrix $D = \text{diag}(d_1, \ldots, d_n)$, prove $\kappa_2(D) = \max|d_i| / \min|d_i|$.

Going deeper

4. Prove $\rho(A) \leq \|A\|$ for any matrix norm.
5. Show that if $\|A\| < 1$ (induced norm), then $I - A$ is invertible.
6. Prove that for an orthogonal matrix $Q$, $\kappa_2(Q) = 1$.
7. Using np.linalg.cond, estimate $\kappa(H_n)$ for $n = 2, \ldots, 15$ and fit a line on a log scale. What is the empirical growth rate?

Coding challenges

8. Implement $\|A\|_1$, $\|A\|_2$, $\|A\|_\infty$ from scratch (no np.linalg.norm).
9. Reproduce the stability plot in this chapter: error vs condition number for normal equations, QR, and SVD on a least-squares problem.
10. Implement Jacobi iteration with and without diagonal preconditioning. Plot iterations-to-convergence vs the spectral radius of the iteration matrix.

Practical Guidelines

Chapter Summary

Series Navigation

Previous: Chapter 9 – Singular Value Decomposition

Next: Chapter 11 – Matrix Calculus and Optimization

This is Chapter 10 of the 18-part “Essence of Linear Algebra” series.

References

• Golub, G. H. & Van Loan, C. F. (2013). Matrix Computations, 4th ed.
• Trefethen, L. N. & Bau, D. (1997). Numerical Linear Algebra.
• Higham, N. J. (2002). Accuracy and Stability of Numerical Algorithms, 2nd ed.
• Demmel, J. W. (1997). Applied Numerical Linear Algebra.
• Saad, Y. (2003). Iterative Methods for Sparse Linear Systems, 2nd ed.
