Hook. In 1886 Francis Galton noticed something strange about heredity: children of unusually tall (or short) parents tended to be closer to the average than their parents were. He called this drift toward the mean regression, and the name stuck. The statistical curiosity grew up into the most consequential model in machine learning – not because linear regression is powerful on its own, but because almost every other algorithm (logistic regression, neural networks, kernel methods) is some twist on the same idea: fit a line, but in the right space.

This chapter develops linear regression from three independent starting points – algebra, geometry, and probability – and shows that they all land on the same equation. Then we look at what happens when the assumptions break, and how Ridge, Lasso, and robust losses repair them.

What This Article Covers

1. Setup – how to write the model in matrix form so the math becomes one line.
2. Algebra – minimize a quadratic, get the normal equation $w^\* = (X^\top X)^{-1} X^\top y$.
3. Geometry – the same answer falls out of orthogonally projecting $y$ onto $\operatorname{Col}(X)$.
4. Probability – under Gaussian noise, least squares is exactly maximum likelihood.
5. Regularization – Ridge (L2) makes the system stable, Lasso (L1) makes it sparse.
6. Optimization – when $X^\top X$ is too big to invert, gradient descent steps in.
7. Diagnostics – residuals, multicollinearity, outliers, and how to fix each.

Setup: Putting Linear Regression in Matrix Form

Problem Statement

Given a training set $\{(x_i, y_i)\}_{i=1}^{m}$ where $x_i \in \mathbb{R}^d$ and $y_i \in \mathbb{R}$, we want a function

$$f(x) = w^\top x + b$$

whose predictions are as close as possible (in a sense we’ll make precise) to the observed targets.

Notation trick. Carrying the bias $b$ around separately is annoying. We absorb it into the weights by appending a constant 1 to every input:

$$\tilde x = \begin{pmatrix} x \\\\ 1 \end{pmatrix}, \qquad \tilde w = \begin{pmatrix} w \\\\ b \end{pmatrix}, \qquad f(x) = \tilde w^\top \tilde x.$$

From now on we drop the tilde and just write $w^\top x$, with the understanding that the last component of $x$ is 1.

Matrix Form

Stack everything:

$$X = \begin{bmatrix} x_1^\top \\\\ x_2^\top \\\\ \vdots \\\\ x_m^\top \end{bmatrix} \in \mathbb{R}^{m \times (d+1)}, \qquad y = \begin{bmatrix} y_1 \\\\ y_2 \\\\ \vdots \\\\ y_m \end{bmatrix} \in \mathbb{R}^{m}.$$

The vector of all predictions is then simply $\hat y = Xw$. Our job is to choose $w$ so that $\hat y$ is as close to $y$ as possible.

Perspective 1 – Algebra: The Normal Equation

The Squared-Error Loss

Pick the squared-error loss:

$$L(w) = \tfrac{1}{2}\,\|y - Xw\|_2^2 = \tfrac{1}{2}\,(y - Xw)^\top (y - Xw).$$

The factor $\tfrac{1}{2}$ exists only to cancel a 2 when we differentiate; it changes nothing else.

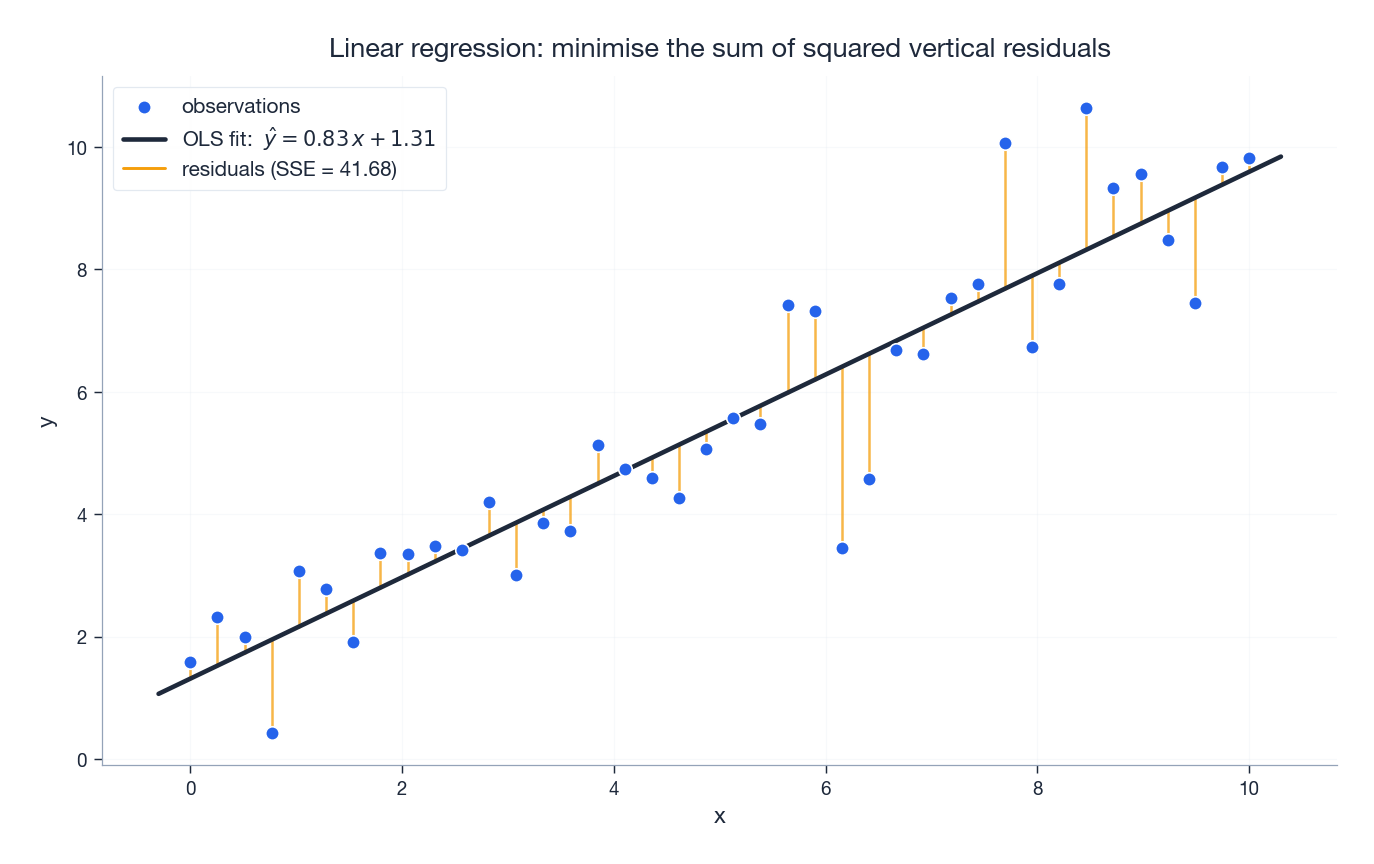

The picture below shows what the loss is actually summing: the squared lengths of the vertical lines from each data point to the fitted line.

Computing the Gradient

Expand the loss:

$$L(w) = \tfrac{1}{2}\bigl(y^\top y - 2\,y^\top X w + w^\top X^\top X\,w\bigr).$$

Each term is easy to differentiate (matrix calculus identities $\nabla_w (a^\top w) = a$ and $\nabla_w (w^\top A w) = 2 A w$ for symmetric $A$):

$$\nabla_w L = -X^\top y + X^\top X\, w = X^\top (Xw - y).$$

The Normal Equation

Setting $\nabla_w L = 0$:

$$\boxed{\,X^\top X\, w = X^\top y\,}.$$

This is the normal equation – so named because, geometrically, it asserts that the residual is normal (perpendicular) to every column of $X$. We’ll see that geometry in a moment.

Theorem 1 (Closed-form least-squares solution). If $X^\top X$ is invertible, the unique minimiser of $L$ is

$$w^\* = (X^\top X)^{-1} X^\top y.$$

Proof. The first-order condition $\nabla L = 0$ yields the normal equation. The Hessian is $\nabla^2 L = X^\top X$, which is positive definite whenever $X$ has full column rank: for any $v \neq 0$,

$$v^\top X^\top X\, v = \|Xv\|_2^2 > 0$$

(strict because full column rank means $Xv \neq 0$). A convex quadratic with positive-definite Hessian and zero gradient is at its global minimum. $\square$

When does $X^\top X$ fail to be invertible?

• $m < d+1$ – fewer samples than features (the system is underdetermined),
• columns of $X$ are linearly dependent (perfect multicollinearity).

In both cases the pseudoinverse gives the minimum-norm solution: $w^\* = X^{+} y$, computed via SVD ($X = U \Sigma V^\top \Rightarrow X^+ = V \Sigma^+ U^\top$, where $\Sigma^+$ inverts the nonzero singular values and leaves zeros alone).

Perspective 2 – Geometry: Orthogonal Projection

The Same Answer, A Different Story

Forget calculus for a moment. The columns of $X$ span a subspace $\operatorname{Col}(X) \subseteq \mathbb{R}^m$. The vector $\hat y = Xw$ lives somewhere inside that subspace, no matter what $w$ is. We want to find the point in $\operatorname{Col}(X)$ closest to $y$ (in Euclidean distance).

Geometry tells us that point exactly: it is the orthogonal projection of $y$ onto $\operatorname{Col}(X)$, and it is characterised by the residual $y - \hat y$ being perpendicular to every column of $X$:

$$X^\top (y - X w^\*) = 0 \quad\Longleftrightarrow\quad X^\top X\, w^\* = X^\top y.$$

That’s the normal equation again – this time derived without taking a single derivative.

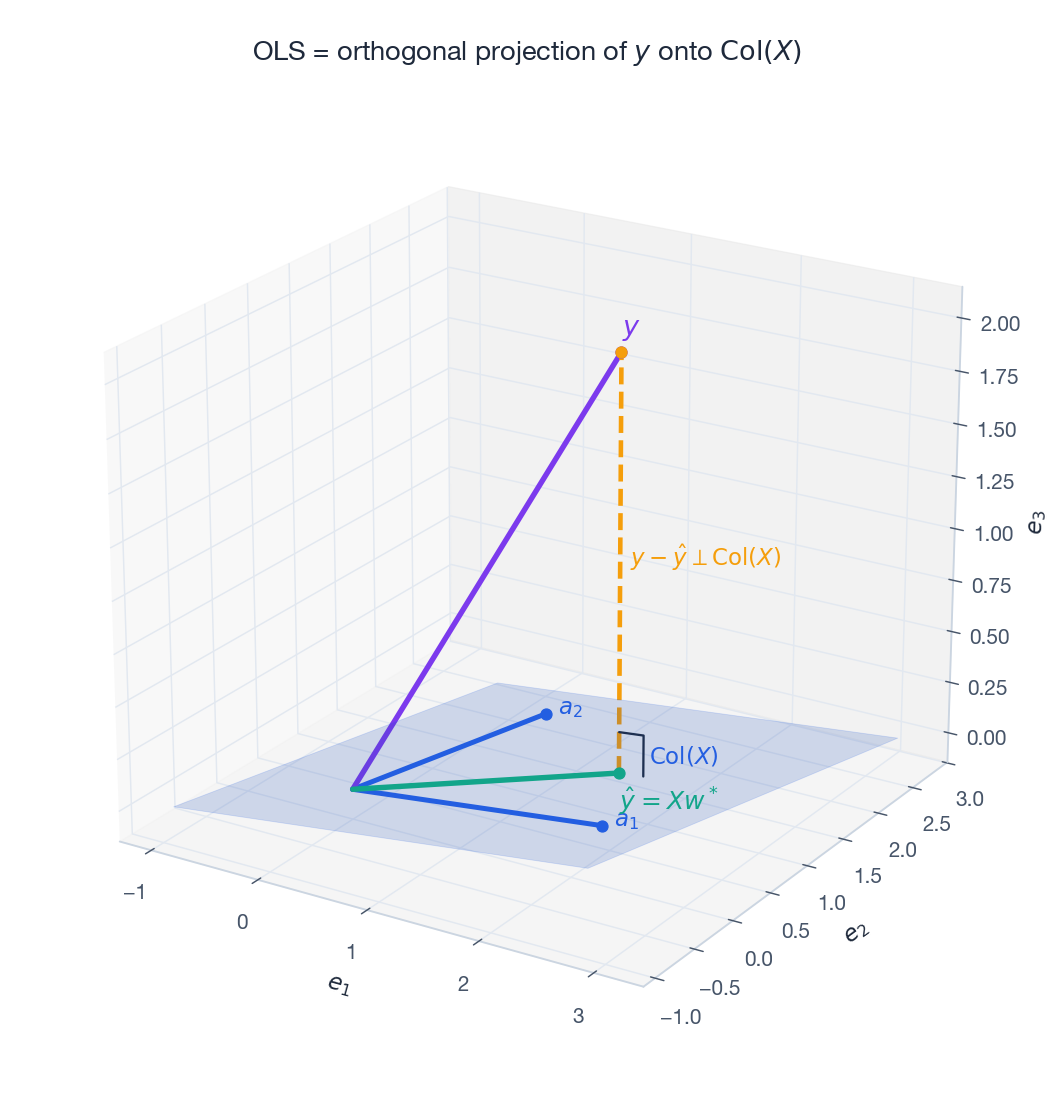

The figure makes three things visible simultaneously: the columns of $X$ spanning a plane (purple/blue), the target vector $y$ floating above that plane, the projection $\hat y$ on the plane, and the residual $y - \hat y$ shooting straight up at a right angle to the plane. Right angle = optimum.

The Projection Matrix

The projection itself is a linear map – the hat matrix:

$$H = X(X^\top X)^{-1} X^\top, \qquad \hat y = H y.$$

It satisfies the two defining properties of an orthogonal projector:

• Idempotent: $H^2 = H$. Projecting twice does nothing extra.
• Symmetric: $H^\top = H$. Equivalent to “the projection is orthogonal.”

The residual maker $M = I - H$ projects onto the orthogonal complement; $M y$ is the residual vector. It satisfies $MX = 0$, formalising “residuals are orthogonal to every feature.”

Perspective 3 – Probability: Maximum Likelihood

The Linear-Gaussian Model

Assume the data is generated by

$$y_i = w^\top x_i + \epsilon_i, \qquad \epsilon_i \overset{\text{i.i.d.}}{\sim} \mathcal{N}(0, \sigma^2).$$

Equivalently, conditional on $x_i$, the target $y_i$ is Gaussian with mean $w^\top x_i$ and variance $\sigma^2$.

Likelihood and Log-Likelihood

The joint likelihood factorises by independence:

$$p(y \mid X, w, \sigma^2) = \prod_{i=1}^{m} \frac{1}{\sqrt{2\pi}\,\sigma}\,\exp\!\left(-\frac{(y_i - w^\top x_i)^2}{2\sigma^2}\right).$$

Take logs:

$$\log p = -\frac{m}{2}\log(2\pi\sigma^2) - \frac{1}{2\sigma^2}\sum_{i=1}^{m}(y_i - w^\top x_i)^2.$$

Maximising over $w$ (with $\sigma^2$ fixed) is the same as minimising the sum of squared residuals. So:

Theorem 2. Under the Gaussian-noise model, the MLE for $w$ is exactly the OLS solution: $\hat w_{\text{MLE}} = (X^\top X)^{-1} X^\top y$.

Differentiating with respect to $\sigma^2$ yields $\hat\sigma^2_{\text{MLE}} = \tfrac{1}{m}\|y - X\hat w\|_2^2$ – the mean residual sum of squares. (This estimator is biased; the unbiased version divides by $m - d - 1$.)

Bayesian Step: Where Ridge Comes From

Now place a prior $w \sim \mathcal{N}(0, \tau^2 I)$. The MAP estimate maximises the posterior, equivalently minimises

$$\sum_i (y_i - w^\top x_i)^2 + \frac{\sigma^2}{\tau^2}\|w\|_2^2.$$

That is Ridge regression, and we just identified its regularisation strength: $\lambda = \sigma^2 / \tau^2$. A weaker prior (large $\tau$) means smaller $\lambda$.

Regularization: Ridge, Lasso, Elastic Net

Why Regularize at All

When features are nearly collinear, $X^\top X$ becomes nearly singular and $(X^\top X)^{-1}$ contains huge entries. A tiny perturbation in $y$ then sends $\hat w$ flying. Regularization tames this by penalising large $w$:

$$L_{\text{reg}}(w) = \tfrac{1}{2}\|y - Xw\|_2^2 + \lambda \cdot \mathcal{P}(w).$$

Ridge Regression (L2)

Take $\mathcal{P}(w) = \tfrac{1}{2}\|w\|_2^2$. The closed form drops out by the same gradient calculation as before:

$$\boxed{\;\hat w_{\text{Ridge}} = (X^\top X + \lambda I)^{-1} X^\top y.\;}$$

The added $\lambda I$ shifts every eigenvalue of $X^\top X$ up by $\lambda$, so the matrix is always invertible for $\lambda > 0$ – even when $X^\top X$ alone is singular. This is what people mean by “Ridge stabilises the inverse.”

Lasso Regression (L1)

Take $\mathcal{P}(w) = \|w\|_1$. There is no closed form – $|\cdot|$ is not differentiable at zero – but the optimisation is still convex and is solved efficiently by coordinate descent or proximal gradient. The remarkable property:

Lasso produces exactly-zero coefficients, performing variable selection automatically.

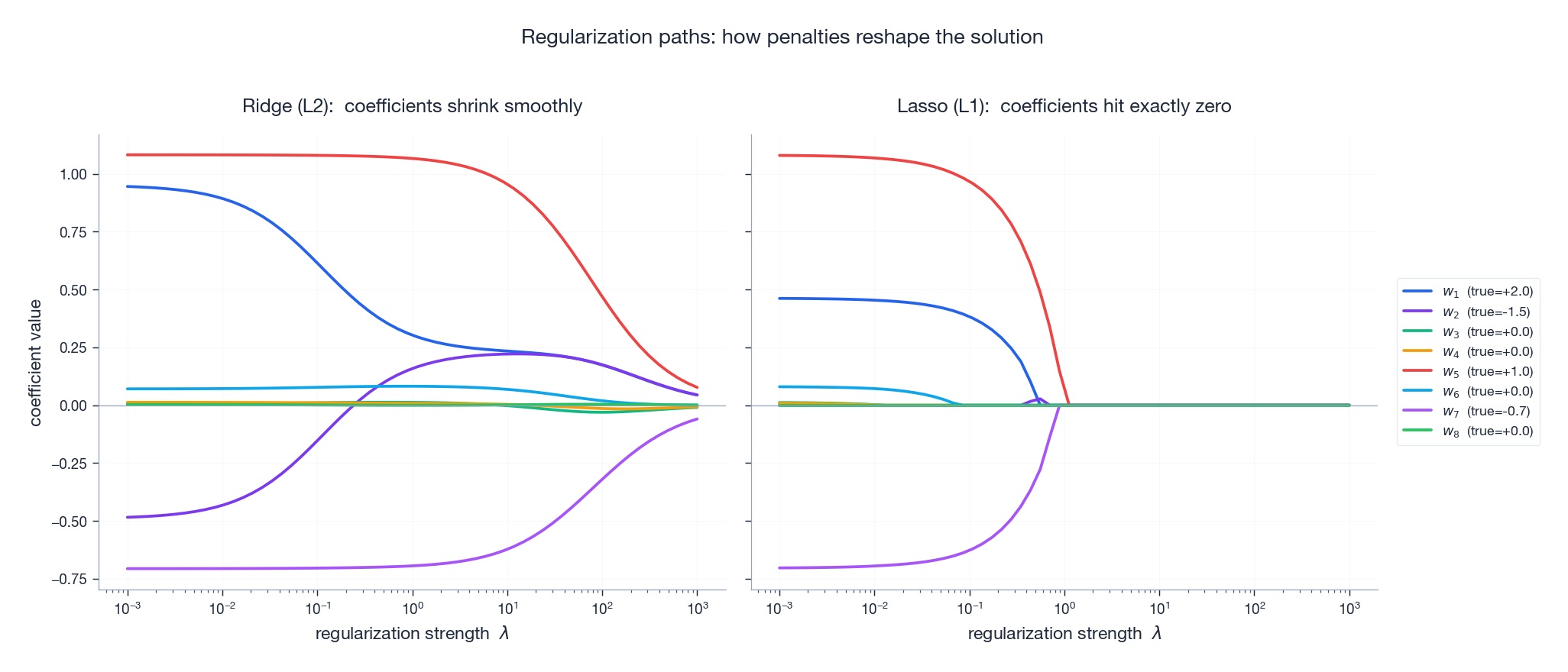

The figure below shows the coefficient paths – how each $w_j$ evolves as $\lambda$ slides from very small (left, equals OLS) to very large (right, every coefficient crushed to zero):

In Ridge, each curve approaches zero asymptotically – it gets small, but never zero. In Lasso, curves hit the axis and stay there. That binary “in or out” behaviour is what makes Lasso a feature selector.

Why Lasso is Sparse: A Geometric Argument

Rewrite both penalties in constrained form:

• Ridge: minimise $\|y - Xw\|^2$ subject to $\|w\|_2 \le t$.
• Lasso: minimise $\|y - Xw\|^2$ subject to $\|w\|_1 \le t$.

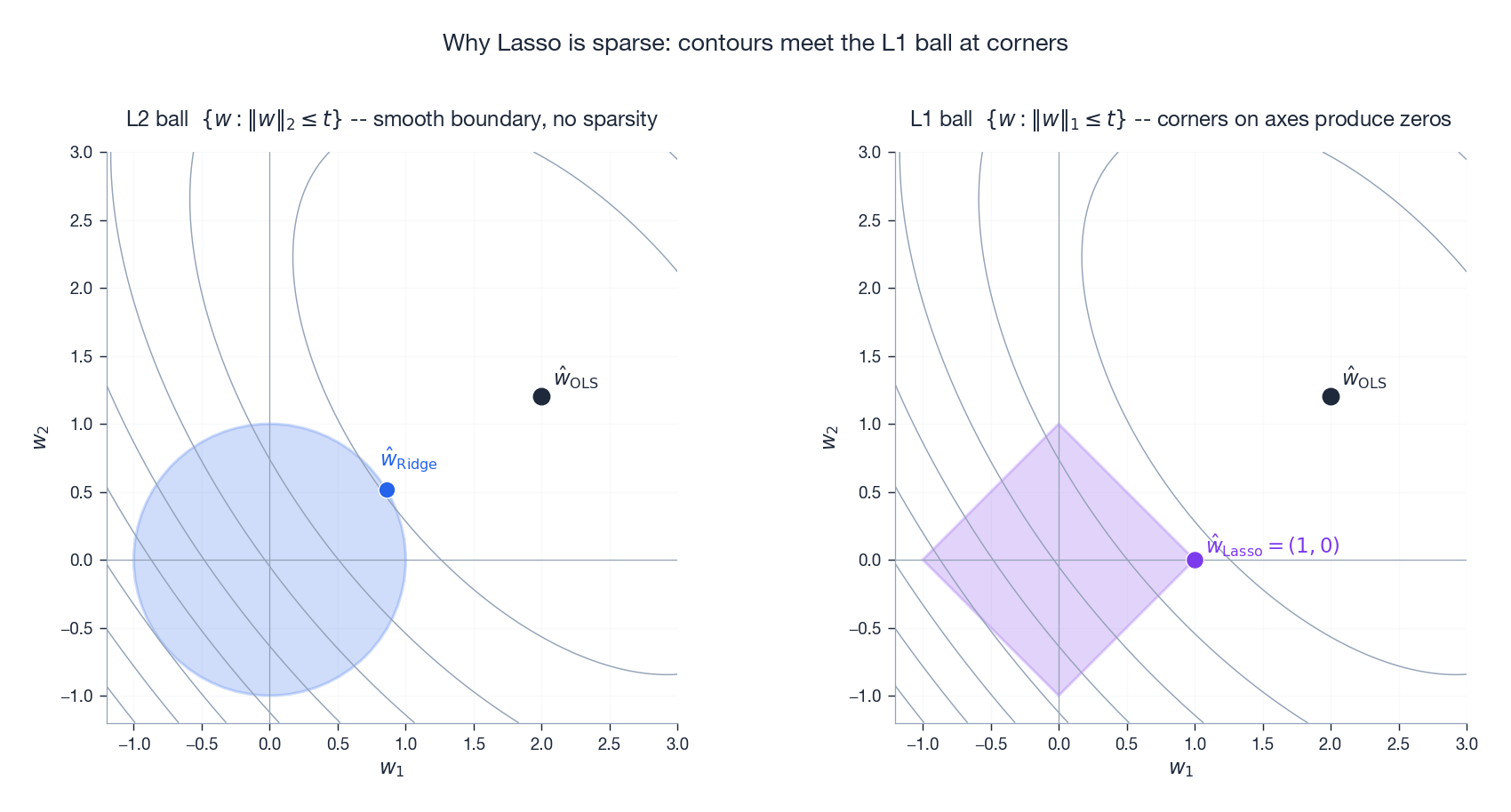

The level sets of the loss are ellipsoids around $\hat w_{\text{OLS}}$. The constraint regions are very different shapes:

The L2 disk has a smooth boundary, so the loss ellipse generally touches it at an interior point of the boundary – both coordinates non-zero. The L1 diamond has corners on the axes, and ellipses tilted in generic directions almost always touch a corner first – giving sparse solutions. The higher the dimension, the more corners and edges the diamond grows, and the more aggressively Lasso zeroes things out.

Elastic Net

A convex combination of both:

$$\mathcal{P}_{\text{EN}}(w) = \alpha \|w\|_1 + \tfrac{1-\alpha}{2}\|w\|_2^2.$$

Keeps the sparsity from L1 and the stability from L2, particularly useful when groups of correlated features would otherwise cause Lasso to pick one arbitrarily.

Optimization: When Closed Form Isn’t Practical

Computing $(X^\top X)^{-1}$ costs $\mathcal{O}(d^3)$ time and $\mathcal{O}(d^2)$ memory. For $d = 10^6$, that’s a non-starter. Iterative methods are then the only option.

Batch Gradient Descent (BGD)

$$w^{(t+1)} = w^{(t)} - \eta \cdot \frac{1}{m} X^\top (X w^{(t)} - y).$$

Per-iteration cost: $\mathcal{O}(md)$. Converges linearly for strongly convex $L$:

$$L(w^{(t)}) - L(w^\*) \le \left(\frac{\kappa - 1}{\kappa + 1}\right)^{2t} \bigl(L(w^{(0)}) - L(w^\*)\bigr),$$

where $\kappa = \lambda_{\max}(X^\top X) / \lambda_{\min}(X^\top X)$ is the condition number. Ill-conditioned problems (large $\kappa$) crawl; this is why people standardise features before running gradient descent.

Stochastic Gradient Descent (SGD)

Each step uses a single sample $(x_i, y_i)$:

$$w^{(t+1)} = w^{(t)} - \eta \cdot (w^{(t)\top} x_i - y_i)\, x_i.$$

• Pros: $\mathcal{O}(d)$ per step, supports streaming/online learning, mild noise can help escape bad regions in non-convex settings.
• Cons: noisy updates require a decreasing learning rate $\eta_t$ (e.g. $\eta_t = \eta_0 / (1 + t)$) for almost-sure convergence.

Mini-batch GD

The pragmatic middle ground: average the gradient over a batch of $B \in [32, 512]$ samples. Combines vectorised speed with SGD’s variance reduction. This is the version used in essentially every deep-learning library.

Model Evaluation and Diagnostics

Metrics

For predictions $\hat y_i$ on a test set:

• MSE $= \frac{1}{n}\sum (y_i - \hat y_i)^2$ – penalises large errors quadratically.
• RMSE $= \sqrt{\text{MSE}}$ – in the original units of $y$.
• MAE $= \frac{1}{n}\sum |y_i - \hat y_i|$ – more robust to outliers.
• $R^2$ $= 1 - \dfrac{\sum(y_i - \hat y_i)^2}{\sum(y_i - \bar y)^2}$ – fraction of variance explained.

A subtle warning about $R^2$: it never decreases when you add features. Use adjusted $R^2$ when comparing models of different sizes:

$$R^2_{\text{adj}} = 1 - (1 - R^2)\,\frac{n - 1}{n - d - 1}.$$

Cross-Validation: Picking Model Capacity

There is no single “best” polynomial degree, no single “best” $\lambda$. Cross-validation finds the choice that generalises best by holding out folds of data:

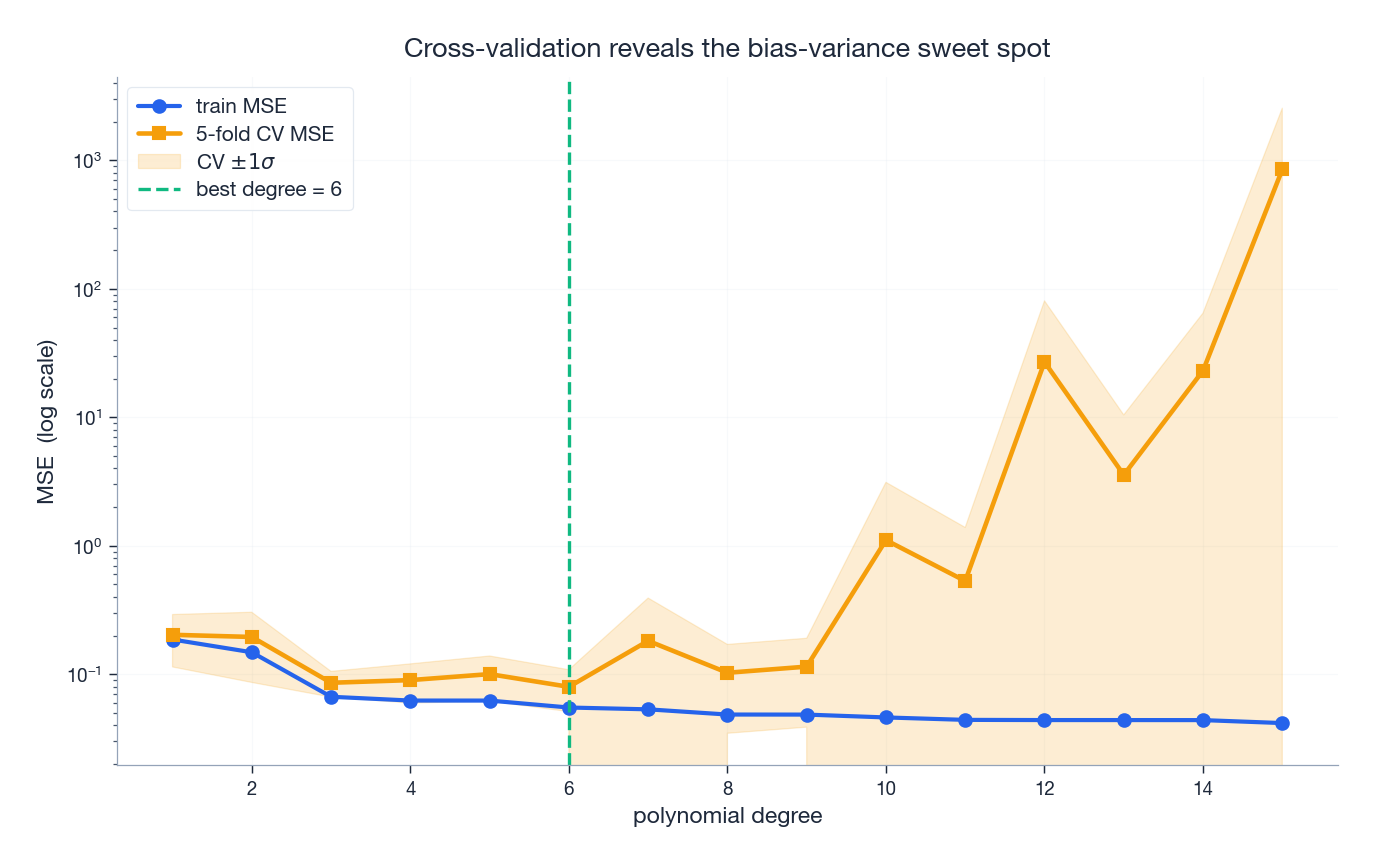

The training error keeps falling as we add capacity (more polynomial terms, smaller $\lambda$). The CV error follows a U-shape: too little capacity is biased (underfit), too much is variance-dominated (overfit). The minimum of the CV curve is your model.

Polynomial Regression: Bias and Variance Made Visible

Linear regression is “linear in the parameters”, not “linear in the inputs”. Adding polynomial features lets us fit curves while still solving a linear system. The risk is overfitting:

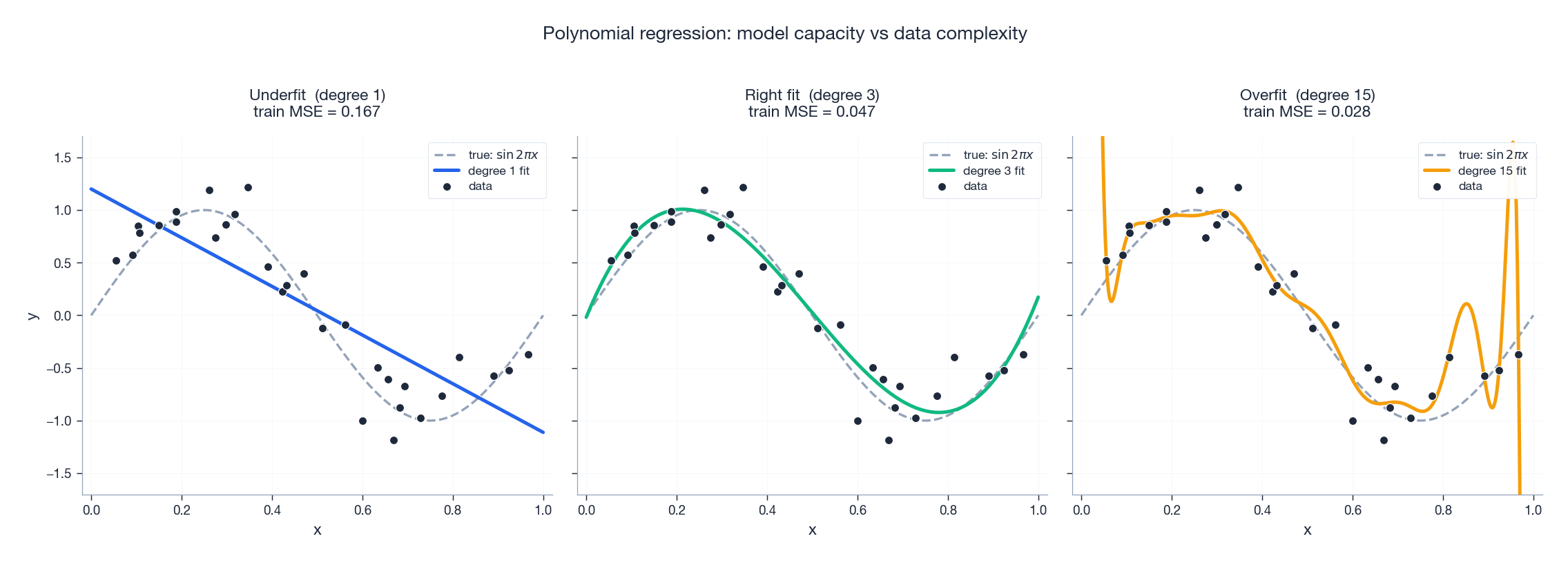

A degree-1 model is too rigid to capture the sine wave (high bias). A degree-3 polynomial nails it. A degree-15 polynomial passes through almost every point but oscillates wildly between them – a classic overfit. Compare the training MSE in each panel: it monotonically decreases. The training error tells you nothing about overfitting; only held-out data does.

Outlier Sensitivity and Robust Alternatives

Squared loss has a known weakness: a single outlier with a large residual contributes its squared error to the total, so the model bends to accommodate it. The picture is striking:

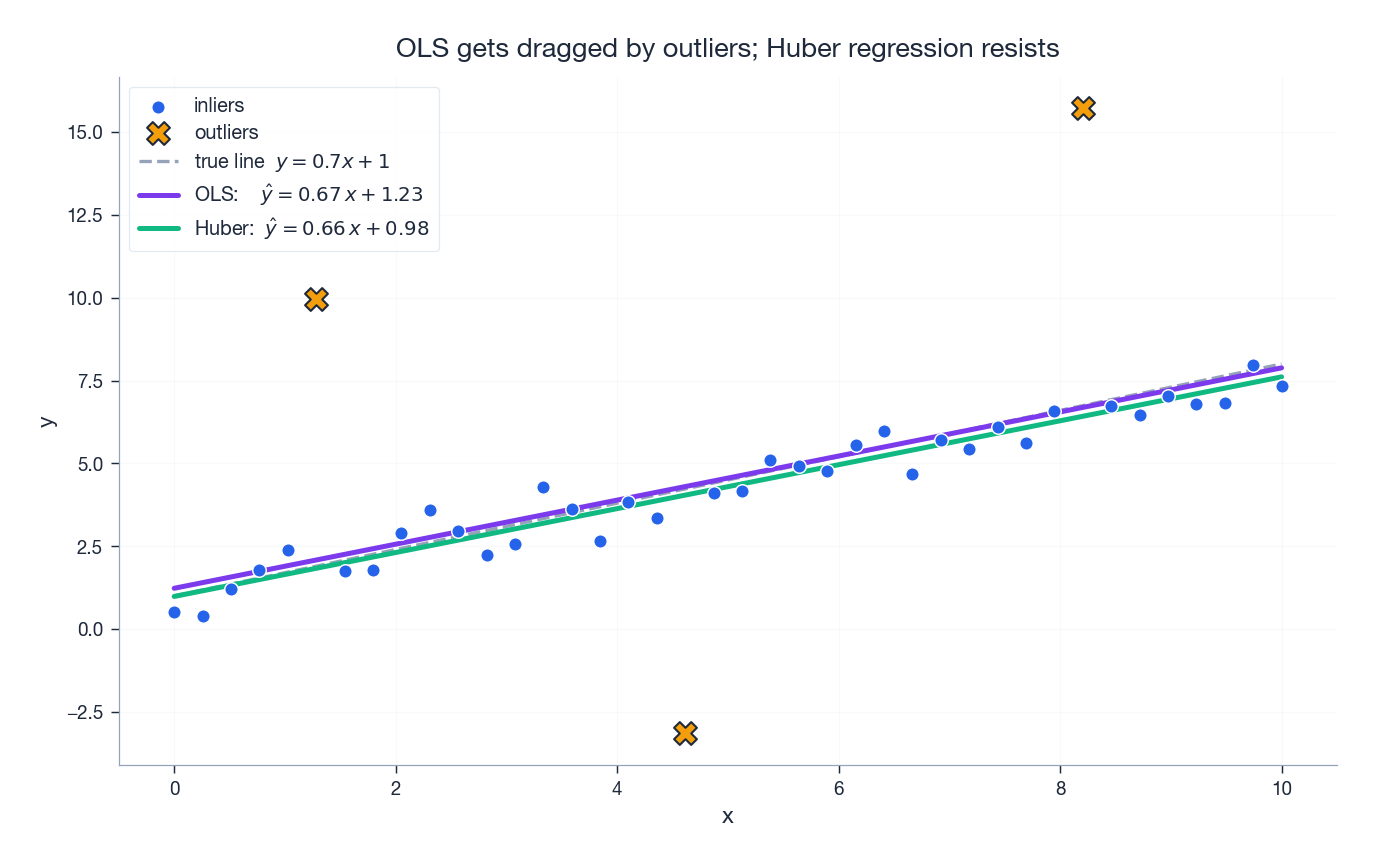

The dashed grey line is the truth. OLS (purple) tilts visibly toward the three outliers. The Huber loss – quadratic for small residuals, linear for large ones – treats outliers gently:

$$\rho_\delta(r) = \begin{cases} \tfrac{1}{2} r^2, & |r| \le \delta, \\\\ \delta\,(|r| - \tfrac{1}{2}\delta), & |r| > \delta. \end{cases}$$

The Huber fit (green) almost overlaps the truth despite the same outliers. Other options exist (RANSAC, M-estimators, quantile regression), but Huber is the workhorse: differentiable everywhere, convex, robust.

Q&A: Common Sticking Points

Q1: Why squared loss instead of absolute loss?

Loss	Differentiable?	Closed form?	Robust to outliers?	Implied noise
Squared (L2)	everywhere	yes	weak	Gaussian
Absolute (L1)	not at 0	no (LP)	strong	Laplace
Huber	everywhere	no	medium	mixed

Three reasons squared loss dominates: (i) it’s smooth, (ii) it has a closed-form solution, (iii) it corresponds to MLE under the most common noise model. Use Huber when robustness matters.

Q2: Normal equation or gradient descent?

Use the normal equation when $d \lesssim 10^4$ and $X^\top X$ fits in memory – it’s exact and one-shot.

Use gradient descent when $d$ is large, when you need online updates, or when you’ve added a non-smooth penalty (Lasso) that has no closed form.

Q3: Why does Ridge always have a solution?

Because $X^\top X + \lambda I$ is positive definite for any $\lambda > 0$:

$$v^\top (X^\top X + \lambda I) v = \|Xv\|^2 + \lambda\|v\|^2 \ge \lambda\|v\|^2 > 0 \quad (v \ne 0).$$

Even if $X v = 0$, the $\lambda \|v\|^2$ term keeps the form strictly positive. Geometrically: Ridge says “in directions the data can’t pin down, prefer 0.”

Q4: How do I pick $\lambda$?

Cross-validation. Almost always cross-validation. RidgeCV and LassoCV in scikit-learn do this in one line. Search log-uniformly in $[10^{-3}, 10^{3}]$, then refine.

Q5: Why standardise features?

Two reasons:

1. Conditioning. Different scales make $X^\top X$ ill-conditioned (huge $\kappa$), which slows gradient descent dramatically.
2. Fair regularization. $\|w\|_2^2$ penalises every coordinate the same way; a feature measured in millimetres has weight 1000x larger than the same feature in metres, and Ridge would crush it harder for no good reason.

Use StandardScaler: subtract the (training) mean, divide by the (training) std.

Q6: How does multicollinearity affect things?

Two correlated features $x_1 \approx x_2$ make $X^\top X$ nearly singular. Symptoms: huge standard errors on $\hat w_1$ and $\hat w_2$, signs that flip on tiny perturbations, but the predictions $\hat y = X \hat w$ remain accurate.

Diagnose with the Variance Inflation Factor: $\text{VIF}_j = 1 / (1 - R_j^2)$ where $R_j^2$ is from regressing feature $j$ on the others. Rule of thumb: VIF $> 10$ is severe.

Fix with Ridge regression, by dropping redundant features, or by replacing them with PCA components.

Q7: What are the classical assumptions and what breaks if they fail?

Assumption	Diagnostic	Fix when violated
Linearity in $w$	residual plot has no pattern	polynomial features, basis expansion, kernel methods
Independent errors	Durbin–Watson $\approx 2$	autoregressive models, GLS
Homoscedasticity	residuals uniform across $\hat y$	weighted LS, log-transform $y$
Normal errors	Q–Q plot near diagonal	Box–Cox, GLM, robust loss

For inference (p-values, confidence intervals) all four matter. For prediction you can usually get away with violating normality.

Q8: How do I encode categorical features?

Never as integers (that fakes an ordering). Use one-hot encoding (pd.get_dummies or OneHotEncoder). For a $k$-level category, create $k$ indicators – and drop one to avoid the multicollinearity caused by the columns summing to 1 (drop='first').

Q9: Can linear regression model nonlinear relationships?

Yes – linear refers to the parameters, not the inputs. Replace $x$ with $\phi(x)$ (polynomial, log, sin, ReLU, you name it), then fit a linear model in $\phi$. This is exactly what kernel methods and neural networks generalise.

Q10: How do I interpret coefficients?

After standardising features, $\hat w_j$ is the change in $\hat y$ (in standard deviations) per one-standard-deviation increase in $x_j$, holding the other features fixed. Two large warnings:

• Multicollinearity makes individual $\hat w_j$ unstable even when predictions are fine – don’t read a single $\hat w_j$ in isolation.
• Correlation is not causation. A regression coefficient is a conditional association in your data, full stop. Causal claims need experimental design or special identification strategies.

Verifying the Code

Every figure in this article was generated by scripts/figures/ml-math-derivations/05-linear-regression.py, which cross-checks each claim against scikit-learn (e.g. the manually computed slope and intercept in fig1 are asserted to match LinearRegression’s fit exactly, the projection in fig2 verifies orthogonality of the residual numerically). The file is the single source of truth for the visuals; reproducing them takes one command.

Summary

We approached linear regression from three independent directions and arrived at the same equation:

• Algebra. Minimise a quadratic. Set the gradient to zero. Get $w^\* = (X^\top X)^{-1} X^\top y$.
• Geometry. Project $y$ orthogonally onto $\operatorname{Col}(X)$. The condition that the residual is perpendicular to the columns is the normal equation.
• Probability. Under Gaussian noise, MLE for $w$ minimises squared residuals. Under a Gaussian prior on $w$, MAP gives Ridge.

Then we addressed three failures of vanilla OLS: instability under collinearity (Ridge), failure to select features (Lasso), and oversensitivity to outliers (Huber). The optimisation toolkit – BGD, SGD, mini-batch – handles the case where $X^\top X$ is too big to invert. And cross-validation tells us, empirically, what model capacity to choose.

Next chapter. We’ll generalise to classification – the output space becomes discrete. The sigmoid function, cross-entropy loss, and the geometric meaning of decision boundaries all fall out of asking “what’s the linear-Gaussian model for binary outputs?”

References

• Hastie, T., Tibshirani, R., & Friedman, J. (2009). The Elements of Statistical Learning (2nd ed.). Springer.
• Bishop, C. M. (2006). Pattern Recognition and Machine Learning. Springer.
• Murphy, K. P. (2012). Machine Learning: A Probabilistic Perspective. MIT Press.
• James, G., Witten, D., Hastie, T., & Tibshirani, R. (2013). An Introduction to Statistical Learning. Springer.
• Tibshirani, R. (1996). Regression shrinkage and selection via the Lasso. JRSS-B, 58(1), 267–288.
• Hoerl, A. E., & Kennard, R. W. (1970). Ridge regression: biased estimation for nonorthogonal problems. Technometrics, 12(1), 55–67.
• Zou, H., & Hastie, T. (2005). Regularization and variable selection via the elastic net. JRSS-B, 67(2), 301–320.
• Huber, P. J. (1964). Robust estimation of a location parameter. Annals of Math. Stat., 35(1), 73–101.
• Goodfellow, I., Bengio, Y., & Courville, A. (2016). Deep Learning. MIT Press.
• Shalev-Shwartz, S., & Ben-David, S. (2014). Understanding Machine Learning. Cambridge University Press.
