ML Math Derivations (7): Decision Trees

Hook. A decision tree mimics how humans actually decide things: ask a question, branch on the answer, ask the next question. The math under that intuition is surprisingly rich — entropy from information theory tells us which question to ask first, the Gini index gives a cheaper proxy that lands on essentially the same trees, and cost-complexity pruning gives a principled way to stop the tree from memorising noise. Almost every modern boosted ensemble (XGBoost, LightGBM, CatBoost) is just a clever sum of these objects, so getting the foundations right pays off many times over.

What You Will Learn#

• Why a decision tree is mathematically a piecewise-constant function on a recursive partition of the feature space.
• The information-theoretic motivation for entropy, conditional entropy, and information gain — and why gain ratio was invented.
• Why Gini and entropy almost always pick the same split (a one-line Taylor argument).
• How CART handles continuous features, missing values, and categorical features without breaking its greedy framework.
• Pre-pruning vs post-pruning, and the exact derivation of the cost-complexity threshold $\alpha$ .
• How feature importance is defined (not just printed by sklearn) and where it can be misleading.

Decision Tree Fundamentals#

Model Representation#

The tree itself is a hierarchical structure of:

• Root node: contains all training samples.
• Internal nodes: each tests one feature against a threshold (or one categorical value).
• Branches: outcomes of the test.
• Leaf nodes: terminal regions storing the prediction.

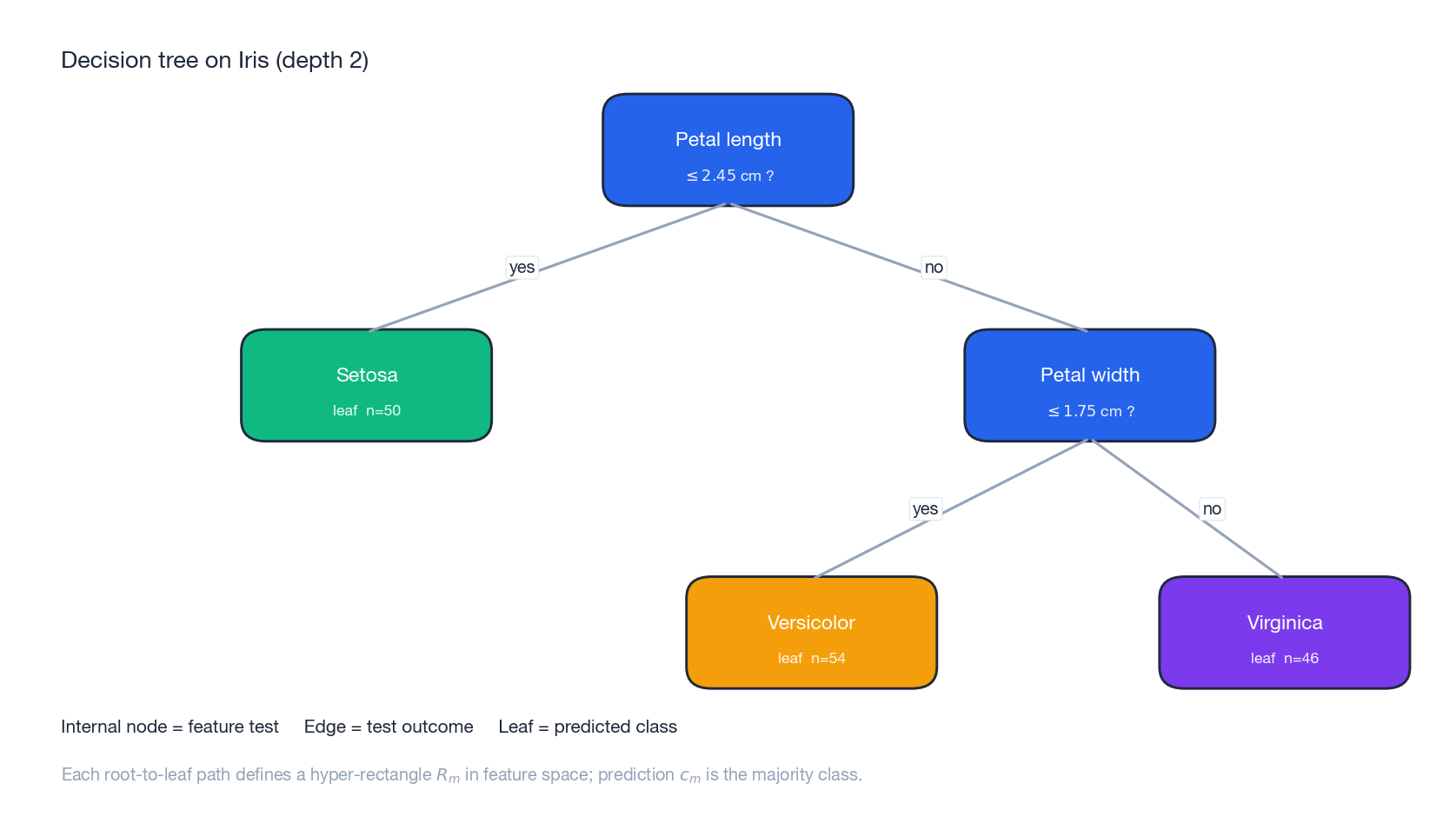

The figure above shows a depth-2 CART trained on Iris. Two questions about petal dimensions are enough to separate three species — every root-to-leaf path corresponds to one rectangle in feature space.

Why Trees Are Useful — and Where They Fail#

The variance problem is exactly what bagging (random forests) and boosting (GBDT, XGBoost) were designed to fix.

Information-Theoretic Foundations#

Entropy: Uncertainty as a Function of a Distribution#

In bits, $H$ measures the average number of yes/no questions needed to identify $Y$ .

Three properties we will use repeatedly.

1. Non-negativity. $H(Y) \geq 0$ with equality iff some $p_k = 1$ (no uncertainty).
2. Maximum at the uniform distribution. Maximising $-\sum_k p_k \log p_k$ subject to $\sum_k p_k = 1$ via Lagrange multipliers yields $p_k = 1/K$ and $H_{\max} = \log_2 K$ .
3. Concavity. $H$ is strictly concave on the probability simplex, so mixing distributions never decreases entropy.

Conditional Entropy and Information Gain#

Non-negativity follows from concavity of $H$ (Jensen’s inequality), and $IG = 0$ iff $X$ is independent of $Y$ .

ID3 chooses the feature with the largest $IG$ at every node.

Gain Ratio: Penalising Many-Valued Features#

Information gain has a well-known pathology: a feature with one unique value per sample (e.g. an ID column) sends every sample into its own bucket, makes every child entropy zero, and so wins every split — yet it has zero generalisation value.

Many-valued features have large $IV$ and so are penalised. C4.5’s actual heuristic is to first restrict to features whose $IG$ is above the average, then pick the highest gain ratio inside that pool — this avoids favouring under-informative features whose tiny $IV$ artificially inflates $GR$ .

Splitting Criteria#

Gini Index#

where $p_k$ is the proportion of class $k$ in node $S$ . It is the probability that two samples drawn at random from $S$ belong to different classes. Like entropy, it is zero for a pure node and maximal at the uniform distribution.

CART picks the split that maximises $\Delta G$ .

Why Gini and Entropy Behave Almost Identically#

After the constant scaling $H_\mathrm{nat}/(2 \ln 2)$ , the two functions have the same leading-order shape near $p = \tfrac{1}{2}$ . In practice CART trained with Gini and with entropy almost always splits the same way.

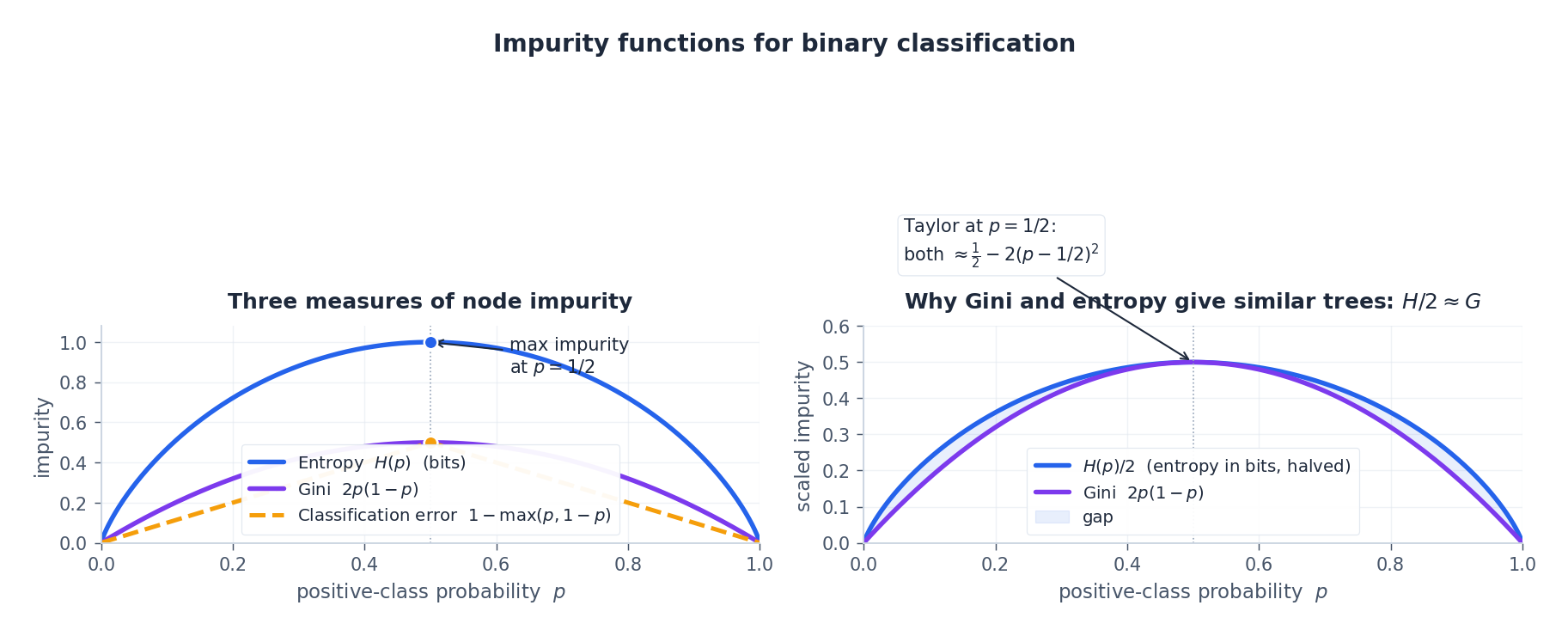

The left panel compares all three: Gini, entropy, and the classification error rate $1 - \max(p, 1-p)$ . The right panel overlays $H/2$ on $G$ — they agree to second order around $p = 1/2$ and differ only near the corners. Classification error, by contrast, is piecewise linear and not strictly concave, which is exactly why it makes a bad splitting criterion: a split that improves both children’s purity may leave the weighted error unchanged, so the search gets stuck.

Mean Squared Error for Regression Trees#

Decision Tree Algorithms#

ID3, C4.5, CART at a Glance#

The descriptions below follow CART because that is what scikit-learn implements.

Greedy Recursive Construction#

1
2
3
4
5

def build_tree(S, depth):
    if stop(S, depth): return Leaf(predict(S))
    j*, tau* = argmax_{j, tau} delta_impurity(S, j, tau)
    S_L, S_R = split(S, j*, tau*)
    return Node(j*, tau*, build_tree(S_L, depth+1), build_tree(S_R, depth+1))

stop typically combines: a class is pure, no informative split exists, depth limit reached, or fewer than min_samples_split samples remain. The greedy choice is locally optimal — finding the globally optimal tree is NP-hard, even for binary features.

Continuous Features and Missing Values#

Continuous Features by Threshold Search#

Sort the values of feature $j$ as $x_{(1)} < \dots < x_{(n)}$ . Candidate thresholds sit at the midpoints $\tau_i = (x_{(i)} + x_{(i+1)})/2$ . For each $\tau_i$ we evaluate the split criterion. Naively this is $O(n^2)$ per feature; pre-sorting once and updating impurity counts incrementally as samples cross the threshold brings it down to $O(n \log n)$ .

A well-known property: the optimal threshold always lies between two adjacent samples whose labels differ. This shrinks the candidate set substantially for skewed labels.

Missing Values#

C4.5 and CART handle missing values without imputation.

so features with many missing values are automatically discounted.

CART additionally stores surrogate splits at each node — backup features that approximate the primary split — and uses the best surrogate when the primary feature is missing at prediction time.

Categorical Features#

For an unordered feature with $K$ categories, an exhaustive binary split requires testing $2^{K-1} - 1$ subsets. For binary classification (or regression with squared loss) there is a remarkable shortcut: sort categories by their mean response (Fisher 1958, Breiman 1984), and the optimal binary split is along that ordering. This brings the search from exponential to linear in $K$ .

Splits as Information#

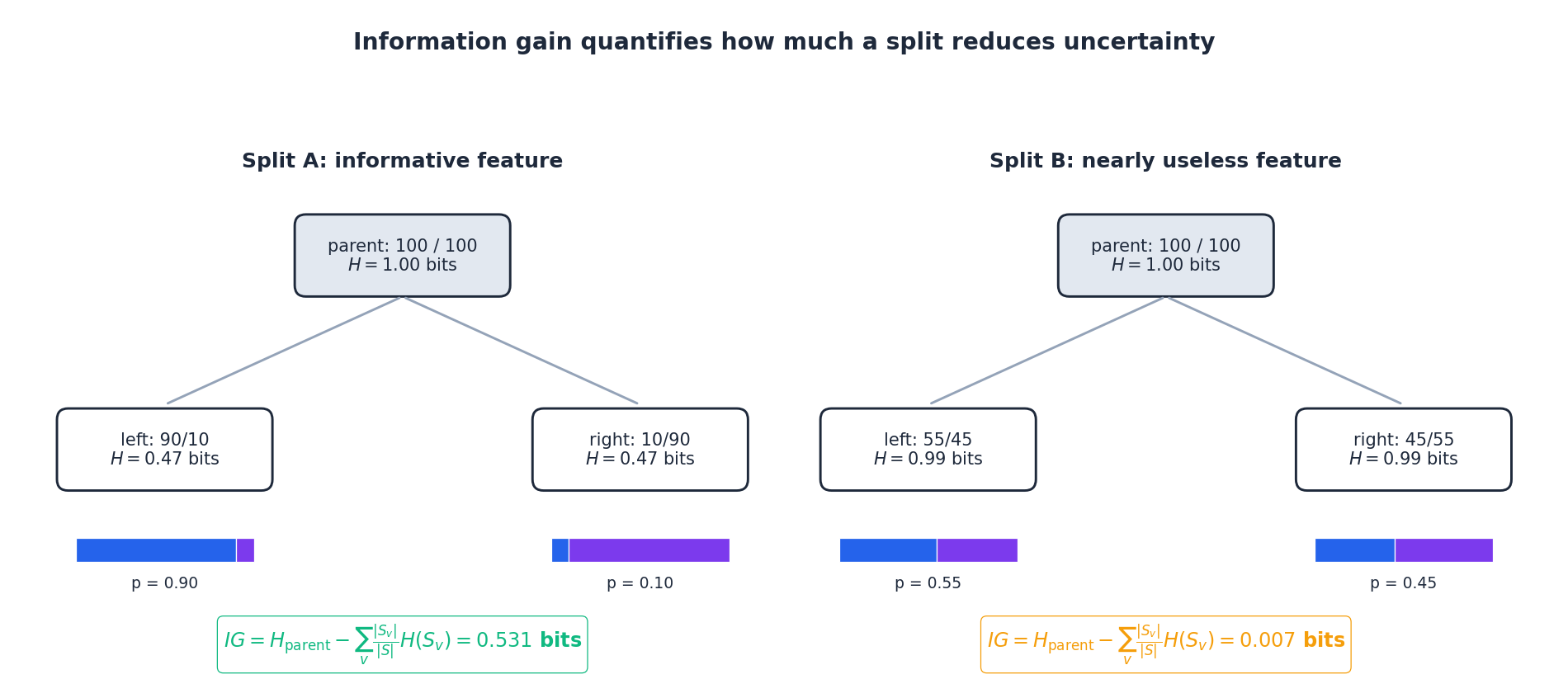

The figure illustrates the gain calculation on two synthetic splits of the same parent ($H = 1$ bit). The informative feature on the left drives both children near purity, recovering most of the parent’s entropy. The uninformative feature on the right barely moves the needle — its weighted child entropy is almost as high as the parent’s, so $IG$ is near zero. CART picks the feature/threshold pair with the largest such bar.

Decision Boundaries in 2D#

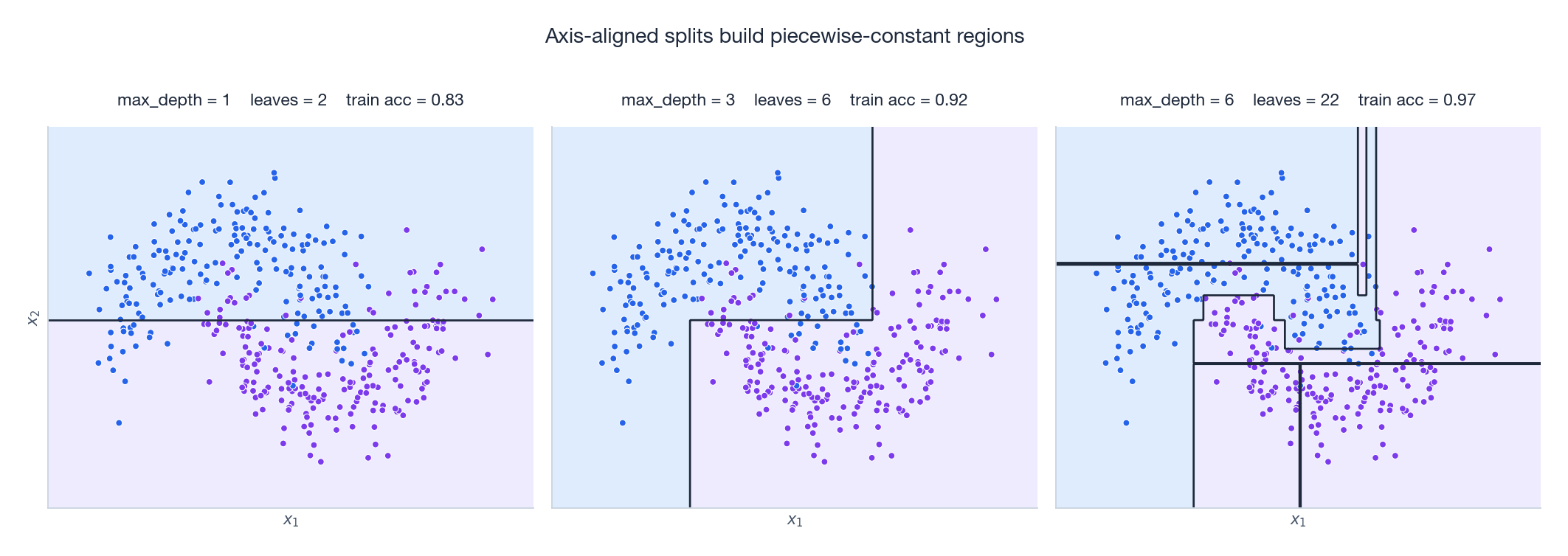

These boundaries make the piecewise-constant nature of trees visceral. At depth 1 we have a single vertical or horizontal cut — the tree behaves like a one-dimensional threshold. By depth 3 the tree carves the moons out roughly. At depth 6 the boundary becomes ragged: each tiny rectangle is chasing one or two training points, the classic signature of overfitting on a noisy dataset.

Pruning: Controlling Variance#

Why Unpruned Trees Overfit#

A fully grown tree has zero training error: every leaf contains samples of one class (or one sample). The model has effectively memorised the training set, including its noise. Two structural causes:

• Depth. Deep trees express ever finer feature interactions, eventually fitting noise.
• Tiny leaves. Class proportions in a 3-sample leaf are statistically meaningless.

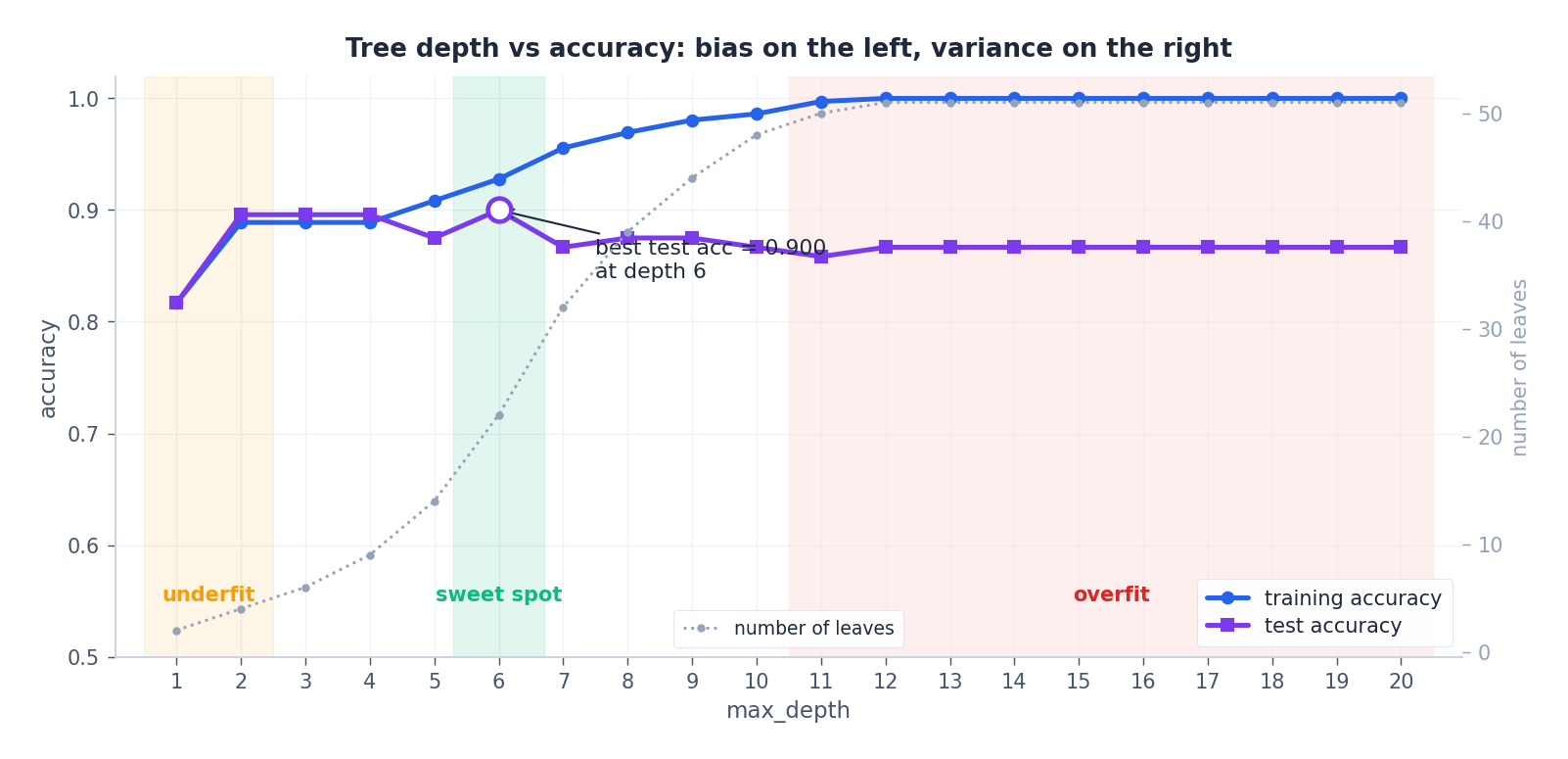

This is the canonical decision-tree overfitting curve, computed on a noisy moons dataset with depth ranging from 1 to 20. Training accuracy rises monotonically toward 1.0, while test accuracy peaks at a moderate depth and then drifts downward. The grey dotted curve on the secondary axis tracks the number of leaves — its near-exponential growth past the sweet spot is the variance the test curve is paying for.

Pre-Pruning#

Stop growing early. Standard knobs:

• max_depth
• min_samples_split (don’t split nodes with fewer samples)
• min_samples_leaf (every leaf must have at least this many samples)
• min_impurity_decrease (require a minimum gain)
• max_leaf_nodes (cap leaves and split greedily by best gain)

Pre-pruning is fast — it avoids ever building the full tree — but myopic. A split that looks weak now might enable two great splits below; pre-pruning forecloses on it.

Post-Pruning: Cost-Complexity#

where $R(T)$ is the training risk (sum of leaf impurities weighted by leaf size) and $|T|$ is the number of leaves. Larger $\alpha$ favours simpler trees.

For $\alpha$ above this threshold, collapsing the subtree strictly improves $R_\alpha$ . Sweeping $\alpha$ from $0$ upward and repeatedly collapsing the weakest link (smallest $\alpha_\text{eff}$ ) produces a finite, nested sequence of trees $T_0 \supset T_1 \supset \dots \supset T_\text{root}$ . The corresponding $\alpha$ values are exactly what scikit-learn returns from cost_complexity_pruning_path.

The final $\alpha$ is selected by cross-validation on the training set.

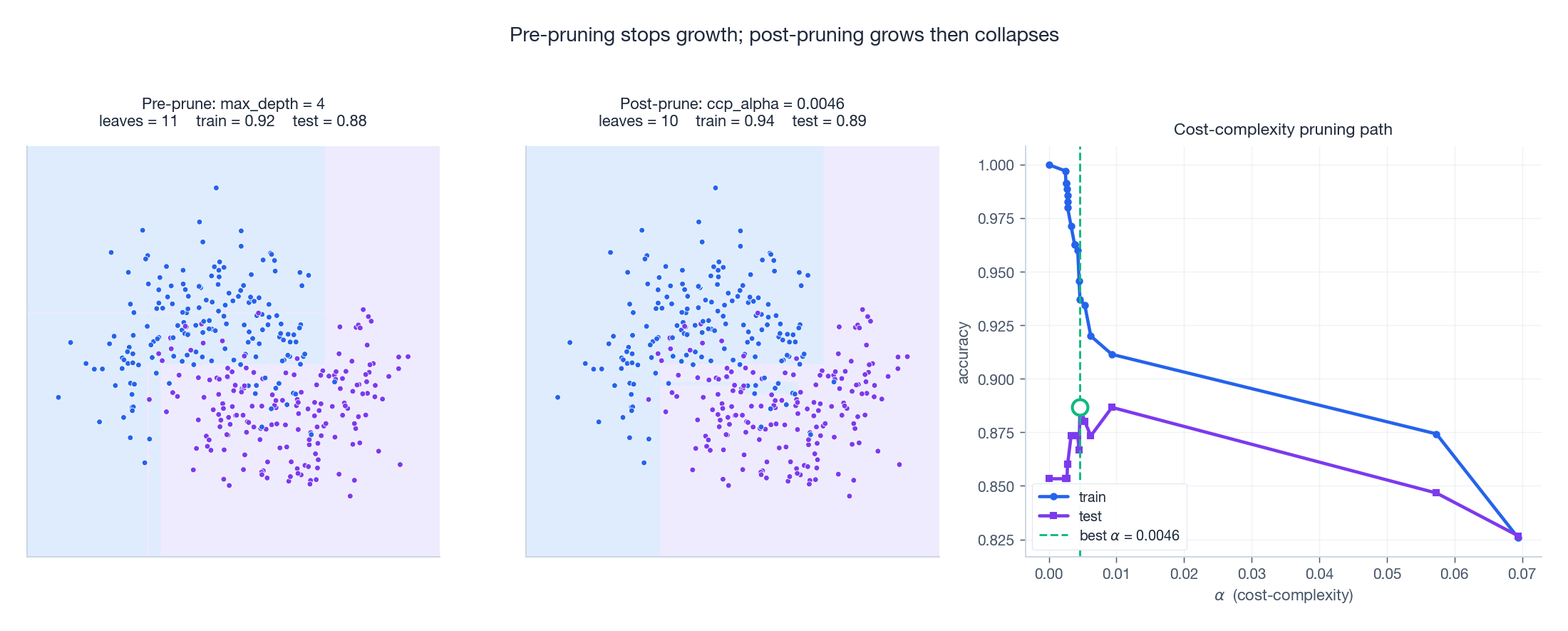

The left and middle panels show the resulting decision regions — pre-pruning at max_depth=4 produces neat large blocks; post-pruning grows fully and then collapses the weakest links, ending with a tree that often has fewer leaves than the depth-bounded one yet generalises better on this dataset. The right panel is the pruning path: as $\alpha$ grows, training accuracy decays smoothly while test accuracy rises, peaks, and then collapses when the tree shrinks too far.

Decision-Tree Theory#

VC Dimension#

The leaf count $L$ is the natural complexity term — exactly what cost-complexity pruning is regularising.

Why Trees Are Unstable#

If two features have nearly equal information gain at the root, an arbitrarily small perturbation can flip the choice and cascade into a completely different tree below. Formally, let the gains be $g_1, g_2$ with $g_1 - g_2 = \epsilon$ ; any data perturbation that changes a single child impurity by more than $\epsilon$ may invert the order. This high variance is exactly why bagging multiple bootstrap-sampled trees — i.e. random forests — works so well: averaging predictions from many trees with decorrelated errors cuts the variance roughly in proportion to the number of trees.

Feature Interactions and Tree Depth#

So a depth-$d$ tree expresses interactions of order at most $d$ . This is why even shallow trees beat linear models on data where two features only become predictive together.

Implementation: A Minimal CART#

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104

import numpy as np
from sklearn.datasets import load_iris, fetch_california_housing
from sklearn.metrics import accuracy_score, mean_squared_error
from sklearn.model_selection import train_test_split

class Node:
    def __init__(self, feature=None, threshold=None,
                 left=None, right=None, value=None):
        self.feature, self.threshold = feature, threshold
        self.left, self.right = left, right
        self.value = value           # not None => leaf

class CARTBase:
    def __init__(self, max_depth=None, min_samples_split=2,
                 min_samples_leaf=1):
        self.max_depth = max_depth
        self.min_samples_split = min_samples_split
        self.min_samples_leaf = min_samples_leaf
        self.root = None

    def _impurity(self, y):
        raise NotImplementedError

    def _leaf_value(self, y):
        raise NotImplementedError

    def _best_split(self, X, y):
        n, d = X.shape
        if n < self.min_samples_split:
            return None, None, 0.0
        parent = self._impurity(y)
        best_gain, best_j, best_t = 0.0, None, None
        for j in range(d):
            xs = X[:, j]
            order = np.argsort(xs)
            xs_sorted, ys_sorted = xs[order], y[order]
            for i in range(1, n):
                if xs_sorted[i] == xs_sorted[i - 1]:
                    continue
                if i < self.min_samples_leaf or n - i < self.min_samples_leaf:
                    continue
                t = 0.5 * (xs_sorted[i] + xs_sorted[i - 1])
                left, right = ys_sorted[:i], ys_sorted[i:]
                gain = parent - (i * self._impurity(left)
                                 + (n - i) * self._impurity(right)) / n
                if gain > best_gain:
                    best_gain, best_j, best_t = gain, j, t
        return best_j, best_t, best_gain

    def _build(self, X, y, depth):
        if (self.max_depth is not None and depth >= self.max_depth) \
                or len(y) < self.min_samples_split:
            return Node(value=self._leaf_value(y))
        j, t, gain = self._best_split(X, y)
        if j is None or gain <= 0:
            return Node(value=self._leaf_value(y))
        mask = X[:, j] <= t
        return Node(j, t,
                    self._build(X[mask], y[mask], depth + 1),
                    self._build(X[~mask], y[~mask], depth + 1))

    def fit(self, X, y):
        self.root = self._build(np.asarray(X), np.asarray(y), 0)
        return self

    def _predict_one(self, x, node):
        if node.value is not None:
            return node.value
        nxt = node.left if x[node.feature] <= node.threshold else node.right
        return self._predict_one(x, nxt)

    def predict(self, X):
        return np.array([self._predict_one(x, self.root) for x in X])

class CARTClassifier(CARTBase):
    def _impurity(self, y):           # Gini
        if len(y) == 0:
            return 0.0
        _, c = np.unique(y, return_counts=True)
        p = c / len(y)
        return 1.0 - np.sum(p ** 2)

    def _leaf_value(self, y):
        return int(np.bincount(y).argmax())

class CARTRegressor(CARTBase):
    def _impurity(self, y):           # variance
        return float(np.var(y)) if len(y) else 0.0

    def _leaf_value(self, y):
        return float(np.mean(y))

if __name__ == "__main__":
    X, y = load_iris(return_X_y=True)
    Xtr, Xte, ytr, yte = train_test_split(X, y, test_size=0.2,
                                          random_state=42, stratify=y)
    clf = CARTClassifier(max_depth=4).fit(Xtr, ytr)
    print(f"Iris  accuracy: {accuracy_score(yte, clf.predict(Xte)):.3f}")

    Xb, yb = fetch_california_housing(return_X_y=True)
    Xtr, Xte, ytr, yte = train_test_split(Xb[:2000], yb[:2000],
                                          test_size=0.2, random_state=42)
    reg = CARTRegressor(max_depth=6).fit(Xtr, ytr)
    print(f"Housing MSE:  {mean_squared_error(yte, reg.predict(Xte)):.3f}")

Feature Importance#

The importance of feature $j$ is the sum of $\Delta I(t)$ over all nodes that split on $j$ , normalised so the importances sum to one.

On Iris, petal-length and petal-width dominate, in agreement with the depth-2 tree we drew earlier — those two features alone separate the three species. The figure was produced by sklearn’s feature_importances_ and the formula in the caption matches one-to-one.

Caveats.

• MDI is biased toward continuous and high-cardinality features — they get more chances to be selected as split candidates.
• Importances on a single tree are unstable. Aggregating across a random forest (or using permutation importance) gives more trustworthy rankings.
• Importance is not causality. A feature can be highly important because it correlates with the true cause.

Multivariate Decision Trees#

a hyperplane in the feature space. They can represent diagonal boundaries with one node instead of dozens of axis-aligned steps. The trade-off:

• Finding the optimal $w$ at each node is NP-hard in general (heuristics: linear discriminant, perceptron, soft optimisation).
• Interpretability drops: each node is now a small linear model rather than a single threshold.

Q&A Highlights#

Why can decision trees model non-linear relationships?#

Each individual split is linear, but the composition of axis-aligned splits is a piecewise-constant function on a recursive partition. Any continuous function can be approximated arbitrarily well in $L^1$ by such piecewise constants — so trees are universal approximators for bounded, integrable functions.

Why does information gain favour many-valued features?#

Because finer partitions are mechanically more pure: in the limit of one sample per child, every child entropy is zero and the gain equals the parent entropy. This says nothing about generalisation. C4.5’s gain ratio divides by $IV(X)$ — itself an entropy term — to normalise away this artefact.

Gini or entropy — does it matter?#

Almost never. Their second-order Taylor expansions around $p = 1/2$ agree, and empirically the resulting trees differ in only a small minority of splits. Gini is slightly faster (no log) and is the default in scikit-learn’s CART.

How are categorical features handled?#

Three options: (i) one-hot encode and let the tree split each indicator; (ii) multi-way split with one branch per category (ID3/C4.5); (iii) optimal binary split — for binary classification this reduces to sorting categories by their mean response and choosing the best ordered cut, an $O(K)$ rather than $O(2^K)$ search.

Multi-output trees?#

Yes. For multi-output regression, leaves store mean vectors and impurity is the trace of the within-leaf covariance. For multi-label classification, leaves store class-probability vectors and impurity is the average per-label Gini. sklearn supports both natively.

Pre-pruning or post-pruning?#

Pre-pruning is fast and good for prototyping. Post-pruning (cost-complexity) is more accurate because it sees the fully grown tree before deciding what to remove, but it is more expensive. In practice many people just tune max_depth and min_samples_leaf because trees are usually inside an ensemble that absorbs the rest of the variance.

Why are trees scale-invariant?#

Splits compare $x_j \leq \tau$ — only the ordering of values matters. Any monotone transform of a feature leaves the tree unchanged. This is also why one-hot encoding categorical variables works without further preprocessing.

How do I visualise a tree?#

1
2
3
4
5

from sklearn.tree import plot_tree
import matplotlib.pyplot as plt
plt.figure(figsize=(20, 10))
plot_tree(clf, feature_names=iris.feature_names,
          class_names=iris.target_names, filled=True, rounded=True)

Can a tree do feature selection?#

Yes — sort by feature_importances_ and threshold. But the rankings are unstable on a single tree. Use a random forest or permutation importance for production feature selection.

Can tree training be parallelised?#

A single tree’s growth is sequential by node. Within a node, candidate splits across features are embarrassingly parallel; across trees in a forest, the trees themselves are independent. XGBoost and LightGBM additionally pipeline split-finding by histograms over feature buckets.

What is a sensible search range for max_depth?#

A practical default is $3 \leq d \leq 12$ for tabular data with $n$ in the thousands. Cross-validate. For ensembles, use shallower trees — depth 4–8 is typical for boosting.

Do trees scale to high-dimensional data?#

Naively, yes — but split-finding cost is $O(d \cdot n \log n)$ per node, and with sparse signals most features add noise. In high $d$ , prefer regularised linear models, or random forests with feature subsampling at each split (controlled by max_features).

Variants and Extensions#

• Cost-sensitive trees. Replace classification error by an asymmetric loss $L(y, \hat{y})$ — useful when false negatives cost more than false positives (medical diagnosis, fraud detection).
• Fuzzy / soft trees. Each split sends a fraction of a sample left and right, allowing differentiable training with gradient descent.
• Incremental trees. Hoeffding trees (Domingos & Hulten, 2000) use the Hoeffding bound to decide when enough samples have arrived to split with high confidence, enabling streaming training.
• Oblique trees. Linear-combination splits as discussed above (CART-LC, OC1).

Exercises#

Exercise 1. Information gain by hand. A 14-sample dataset has 9 positives and 5 negatives. Feature $X$ has two values: $X = a$ holds for 8 samples (6+, 2−), $X = b$ holds for 6 samples (3+, 3−). Compute $H(Y)$ , $H(Y \mid X)$ , $IG$ , $IV(X)$ , and $GR$ .

Solution. $H(Y) = -\tfrac{9}{14}\log_2 \tfrac{9}{14} - \tfrac{5}{14}\log_2\tfrac{5}{14} \approx 0.940$ . Conditional entropies: $H(Y \mid X=a) = -\tfrac{6}{8}\log_2\tfrac{6}{8} - \tfrac{2}{8}\log_2\tfrac{2}{8} \approx 0.811$ , $H(Y \mid X=b) = 1.000$ . Then $H(Y \mid X) = \tfrac{8}{14}(0.811) + \tfrac{6}{14}(1.000) \approx 0.892$ . So $IG \approx 0.048$ . $IV(X) = -\tfrac{8}{14}\log_2\tfrac{8}{14} - \tfrac{6}{14}\log_2\tfrac{6}{14} \approx 0.985$ , hence $GR \approx 0.049$ .

Exercise 2. Gini ≈ Entropy / 2. Show that for binary classification with natural log, $H_\mathrm{nat}(p) \approx 2\,G(p) \cdot \ln 2$ to second order around $p = \tfrac{1}{2}$ .

Solution. Expand $H_\mathrm{nat}(p) = -p \ln p - (1-p)\ln(1-p)$ around $p_0 = \tfrac{1}{2}$ . The first derivative vanishes at $p_0$ (maximum), and the second derivative is $-1/p_0 - 1/(1-p_0) = -4$ . Hence $H_\mathrm{nat}(p) \approx \ln 2 - 2(p - \tfrac{1}{2})^2$ . Similarly $G(p) = 2p(1-p) = \tfrac{1}{2} - 2(p - \tfrac{1}{2})^2$ . Both share the same quadratic shape; the constants differ by exactly the factor $\ln 2$ that converts nats to bits.

Exercise 3. The critical alpha. A subtree $T_t$ has 4 leaves and training error $0.10$ ; collapsing it to a leaf gives error $0.25$ . Compute $\alpha_\text{eff}(t)$ and decide whether to prune at $\alpha = 0.06$ .

At $\alpha = 0.06 > 0.05$ , the cost of keeping the subtree exceeds the benefit, so we prune: $R_\alpha(\text{leaf}) = 0.25 + 0.06 = 0.31$ vs $R_\alpha(T_t) = 0.10 + 4(0.06) = 0.34$ .

Exercise 4. Missing-value penalty. A dataset has 100 samples; feature $X$ is missing in 20 of them. On the 80 observed samples $H(Y) = 0.94$ and $H(Y \mid X) = 0.60$ . Compute the adjusted information gain.

Solution. The observed-fraction weight is $80/100 = 0.8$ , so $IG_\text{adj} = 0.8 \cdot (0.94 - 0.60) = 0.272$ bits. A feature with twice the missingness would receive half the credit at the same observed gain.

Exercise 5. Steps to approximate a diagonal. On $[0, 1]^2$ , how many axis-aligned splits does a binary tree need to approximate the line $y = x$ to within $\epsilon$ in $L^\infty$ ?

Solution. A staircase of $n$ rectangles each of width $1/n$ has step height $1/n$ , giving error $\Theta(1/n)$ . Setting $1/n \leq \epsilon$ yields $n = \lceil 1/\epsilon \rceil$ rectangles, so $\Theta(1/\epsilon)$ leaves. An oblique tree with the single split $y - x \leq 0$ achieves zero error with one node — illustrating the cost of axis alignment for diagonal structure.

What’s next#

Decision trees take “axis-aligned splits + information gain” to its limit on tabular data, but they have two hard weaknesses: a single tree overfits (high variance), and the boundary is forever staircase-shaped — no depth lets it draw a diagonal. Two ways forward: switch to a different inductive bias, or ensemble the tree itself. The next chapter takes the first road — support vector machines.

SVM’s core idea is almost the opposite of a tree: it does not slice the space, it finds a max-margin hyperplane; it is not greedy, it solves a quadratic program; it does not use depth for expressivity, it uses the kernel trick to lift data into a higher-dimensional space where the originally non-separable problem becomes linearly separable. I run hard margin → soft margin → dual → kernels → SMO end to end — it is the first time after chapter four that KKT conditions actually do load-bearing work. By the end you should have a concrete sense of when SVM beats trees, and when it doesn’t.

References#

• Quinlan, J. R. (1986). Induction of decision trees. Machine Learning, 1(1), 81–106.
• Quinlan, J. R. (1993). C4.5: Programs for Machine Learning. Morgan Kaufmann.
• Breiman, L., Friedman, J., Stone, C. J., & Olshen, R. A. (1984). Classification and Regression Trees. Wadsworth.
• Hastie, T., Tibshirani, R., & Friedman, J. (2009). The Elements of Statistical Learning (2nd ed.). Springer. Chapter 9.
• Mitchell, T. M. (1997). Machine Learning. McGraw-Hill. Chapter 3.
• Breiman, L. (2001). Random forests. Machine Learning, 45(1), 5–32.
• Loh, W. Y. (2011). Classification and regression trees. WIREs Data Mining and Knowledge Discovery, 1(1), 14–23.
• Domingos, P., & Hulten, G. (2000). Mining high-speed data streams. KDD.

Decision trees are the building blocks of the most successful tabular learners we have. Understanding entropy, the Gini index, and cost-complexity pruning is a prerequisite for understanding random forests, GBDT, XGBoost, and LightGBM — the next chapters build directly on the machinery developed here.
