Machine Learning Mathematical Derivations (13): EM Algorithm and GMM

When data carries hidden structure – a cluster label you never observed, a missing feature, a topic you cannot directly see – maximum likelihood becomes painful. The log of a sum has no closed form, and gradient methods get tangled in the latent variables. The EM algorithm sidesteps the difficulty with a deceptively simple idea: alternate between guessing the hidden variables under a posterior (E-step) and fitting the parameters as if those guesses were true (M-step). Each iteration is mathematically guaranteed to push the likelihood up. This post derives EM from first principles, proves the monotone-ascent property via Jensen’s inequality, and works through its most famous application: Gaussian Mixture Models (GMM) – the soft, elliptical generalisation of K-means.

What you will learn

• Why latent variables make MLE hard (the log-of-a-sum problem)
• How Jensen’s inequality builds the Evidence Lower Bound (ELBO)
• The EM algorithm as alternating maximisation of the ELBO in $(q, \boldsymbol{\theta})$
• A clean proof that $\ell(\boldsymbol{\theta}^{(t+1)}) \geq \ell(\boldsymbol{\theta}^{(t)})$
• Complete E-step / M-step formulas for GMM with full covariance
• How K-means is the hard, spherical limit of GMM
• Picking $K$ with BIC and AIC

Prerequisites

• Maximum likelihood estimation
• Multivariate Gaussian density
• Jensen’s inequality and KL divergence
• K-means clustering

1. Latent variables and incomplete-data likelihood

1.1 Setup

We model observations $\mathbf{x}_1,\dots,\mathbf{x}_N$ together with hidden variables $z_1,\dots,z_N$ via a joint $p(\mathbf{x}, z \mid \boldsymbol{\theta})$. We see $\mathbf{X}$, never $\mathbf{Z}$. The incomplete-data log-likelihood is

The summation inside the logarithm is the source of all the trouble. The log no longer factors over components, so the gradient does not split into per-component pieces and there is no closed-form maximiser.

1.2 The mixture example

For a Gaussian mixture with $K$ components,

If we knew which component each point came from, fitting would reduce to $K$ independent weighted-Gaussian MLEs – trivial. We do not know, and that is exactly what EM patches up.

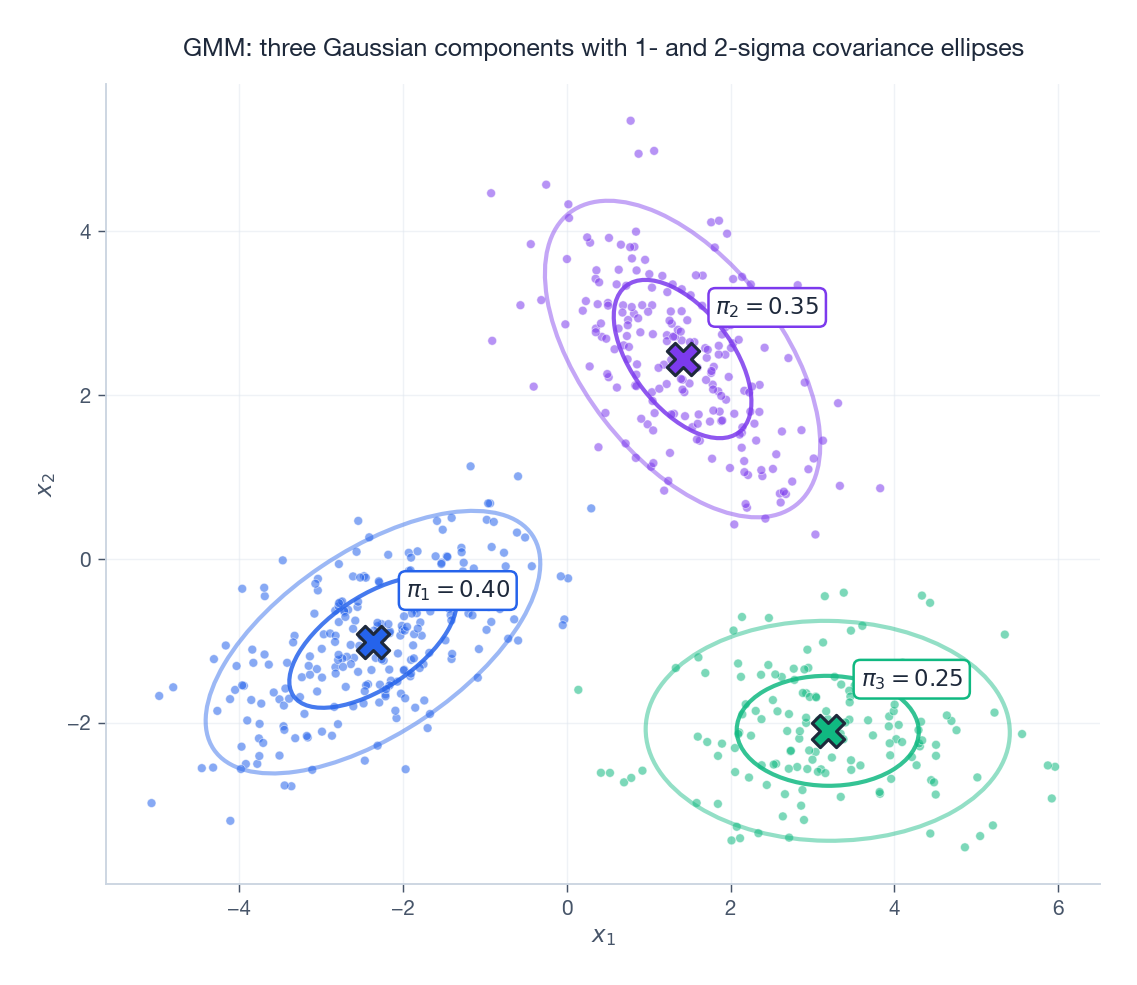

The figure above shows three Gaussian clusters fit by sklearn.mixture.GaussianMixture: each cross is a mean $\boldsymbol{\mu}_k$, the inner ellipse is the 1-sigma contour, the outer is 2-sigma, and $\pi_k$ is the mixing weight.

2. The ELBO and Jensen’s inequality

2.1 Introducing an auxiliary distribution $q$

Pick any distribution $q(z)$ over the latent variable. Multiply and divide:

Because $\log$ is concave, Jensen’s inequality gives

This $\mathcal{L}$ is the Evidence Lower Bound (ELBO). It depends on both the variational distribution $q$ and the parameters $\boldsymbol{\theta}$.

2.2 The exact decomposition

A direct manipulation – no inequality needed – yields the equality

Two consequences are immediate:

1. The ELBO is always $\leq \log p(\mathbf{x}\mid\boldsymbol{\theta})$ because $\mathrm{KL}\geq 0$.
2. The bound becomes tight, $\mathcal{L} = \log p$, iff $q(z) = p(z \mid \mathbf{x}, \boldsymbol{\theta})$ – the posterior.

This single identity is the entire engine of EM.

3. EM as coordinate ascent on the ELBO

EM repeatedly raises $\mathcal{L}$ by alternating in its two arguments.

3.1 The two steps

E-step. Hold $\boldsymbol{\theta}^{(t)}$ fixed. Maximise $\mathcal{L}(q, \boldsymbol{\theta}^{(t)})$ over $q$. The maximiser is the posterior:

After this step the bound is tight: $\mathcal{L}(q^{(t)},\boldsymbol{\theta}^{(t)}) = \log p(\mathbf{x}\mid \boldsymbol{\theta}^{(t)})$.

M-step. Hold $q^{(t)}$ fixed. Maximise $\mathcal{L}(q^{(t)}, \boldsymbol{\theta})$ over $\boldsymbol{\theta}$. Dropping the entropy of $q^{(t)}$ (constant in $\boldsymbol{\theta}$), this is the same as maximising the Q-function

3.2 The monotone-ascent proof

Chain three inequalities:

(a) holds because the E-step makes the bound tight; (b) by definition of the M-step; (c) because the ELBO is always $\leq \log p$. Therefore

at every iteration, with equality only at fixed points. EM converges to a stationary point of $\ell$ – typically a local maximum, occasionally a saddle point. It is not guaranteed to reach the global maximum, which is why multiple random restarts matter.

3.3 Visualising the two views

The ELBO view makes the dynamics very concrete. After every E-step the KL gap closes; the M-step then raises both the log-likelihood and the ELBO together, and the gap re-opens until the next E-step.

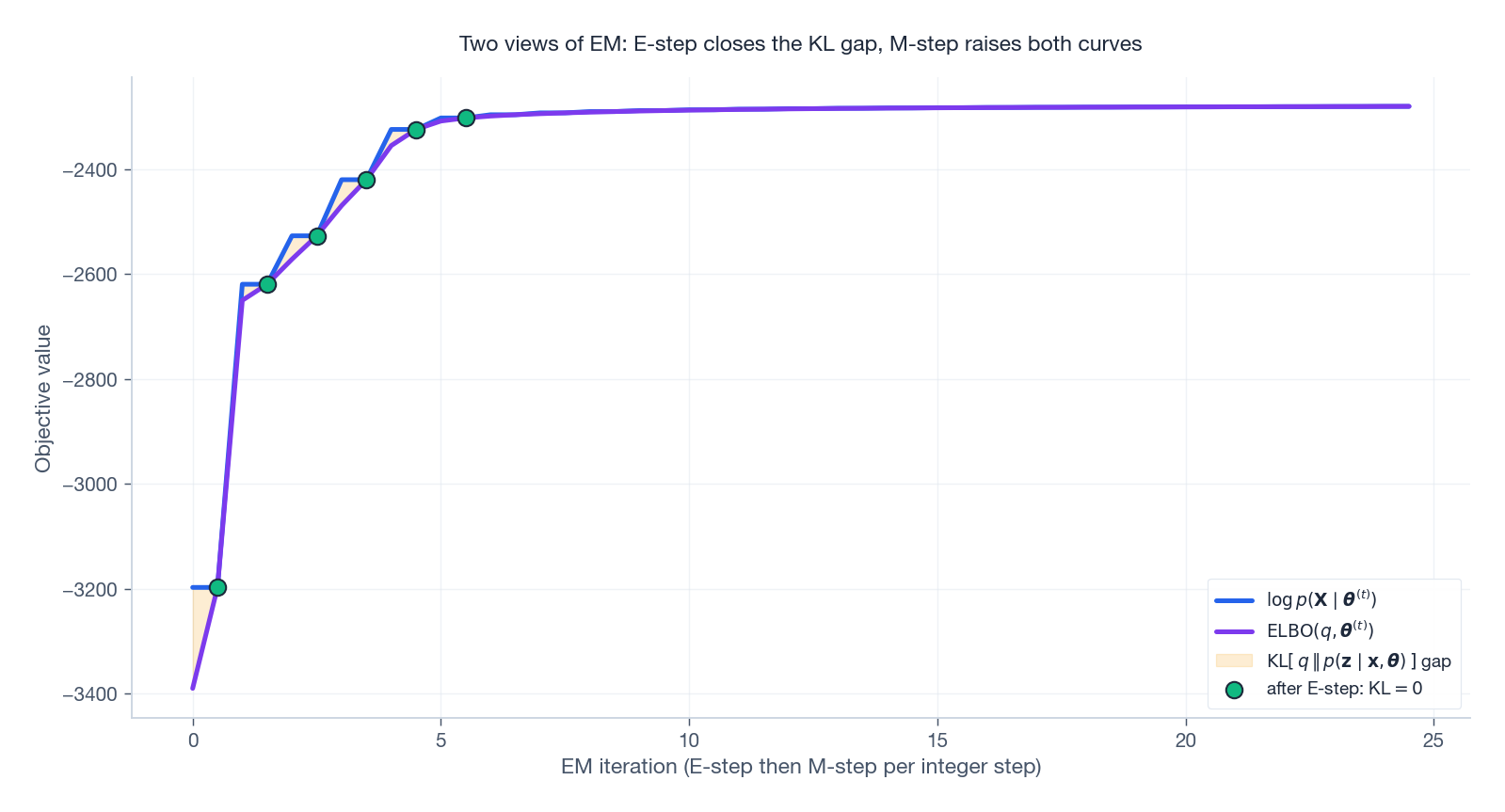

The shaded amber band is exactly the KL divergence $\mathrm{KL}\bigl[q\,\Vert\, p(z\mid\mathbf{x},\boldsymbol{\theta})\bigr]$. Green dots mark the post-E-step instants where the gap is zero by construction.

4. EM for Gaussian Mixture Models

4.1 The model

Generative process for one observation:

1. Sample a component label $z_i \sim \mathrm{Categorical}(\pi_1,\dots,\pi_K)$.
2. Sample $\mathbf{x}_i \mid z_i = k \;\sim\; \mathcal{N}(\boldsymbol{\mu}_k, \boldsymbol{\Sigma}_k)$.

The parameters are $\boldsymbol{\theta} = \{\pi_k, \boldsymbol{\mu}_k, \boldsymbol{\Sigma}_k\}_{k=1}^{K}$, with $\sum_k \pi_k = 1$ and each $\boldsymbol{\Sigma}_k \succ 0$.

4.2 The E-step: responsibilities

The latent posterior is just Bayes’ rule on a finite alphabet. Define the responsibility of component $k$ for sample $i$:

Each row $(\gamma_{i1},\dots,\gamma_{iK})$ sums to 1 – the soft cluster membership.

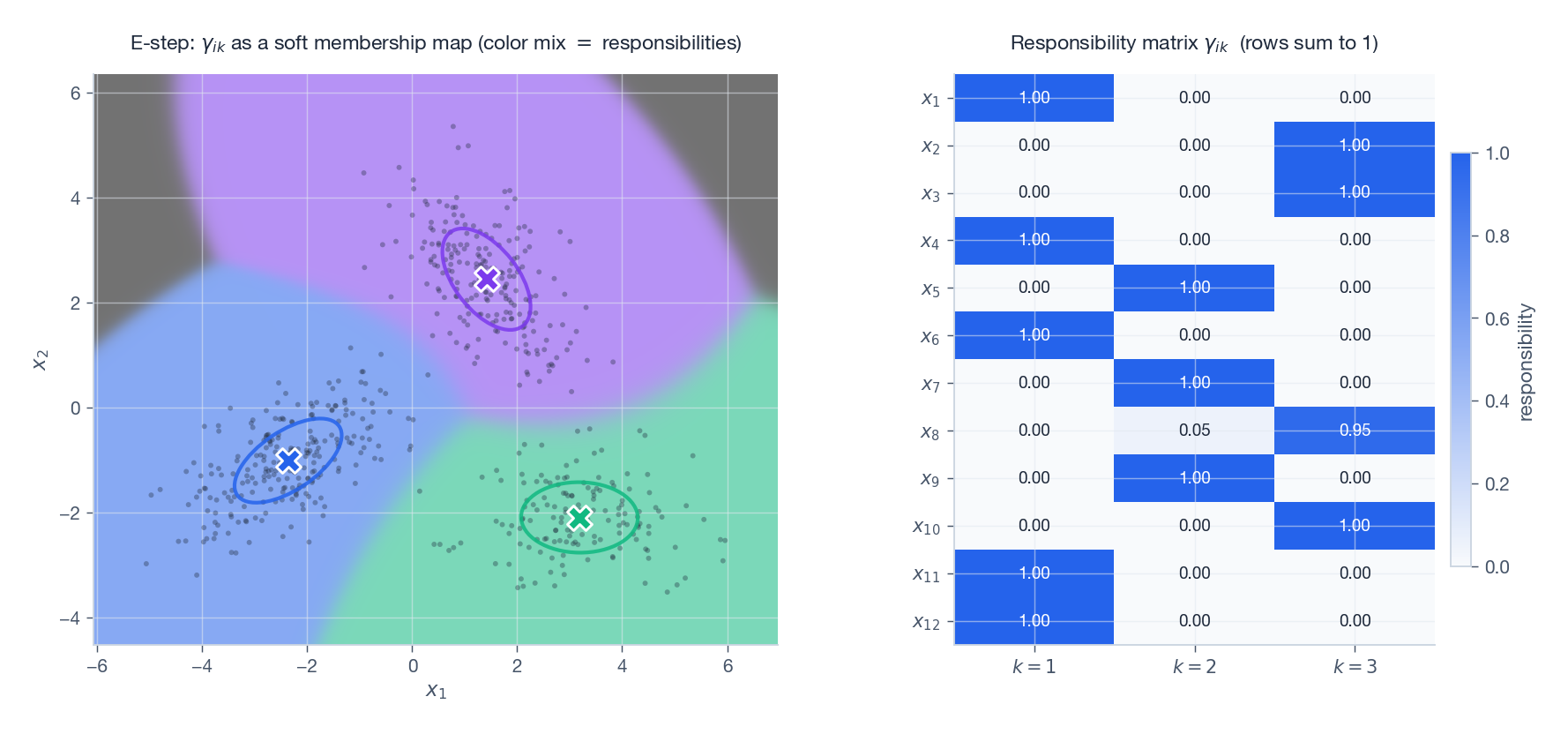

On the left every grid point is coloured by mixing the three component colours according to $\gamma_{ik}$: pure colour where one component dominates, blended colours along the boundaries. On the right, the responsibility matrix $\gamma_{ik}$ for twelve sample points – rows sum to 1.

4.3 The M-step: weighted MLE

Plugging the Gaussian density into $Q(\boldsymbol{\theta}\mid \boldsymbol{\theta}^{(t)})$ and maximising (with a Lagrange multiplier for $\sum_k \pi_k = 1$) gives the closed-form updates. Let $N_k = \sum_{i=1}^{N} \gamma_{ik}$ be the effective sample size of component $k$:

These are exactly the standard Gaussian MLE formulas, but with each sample re-weighted by its responsibility.

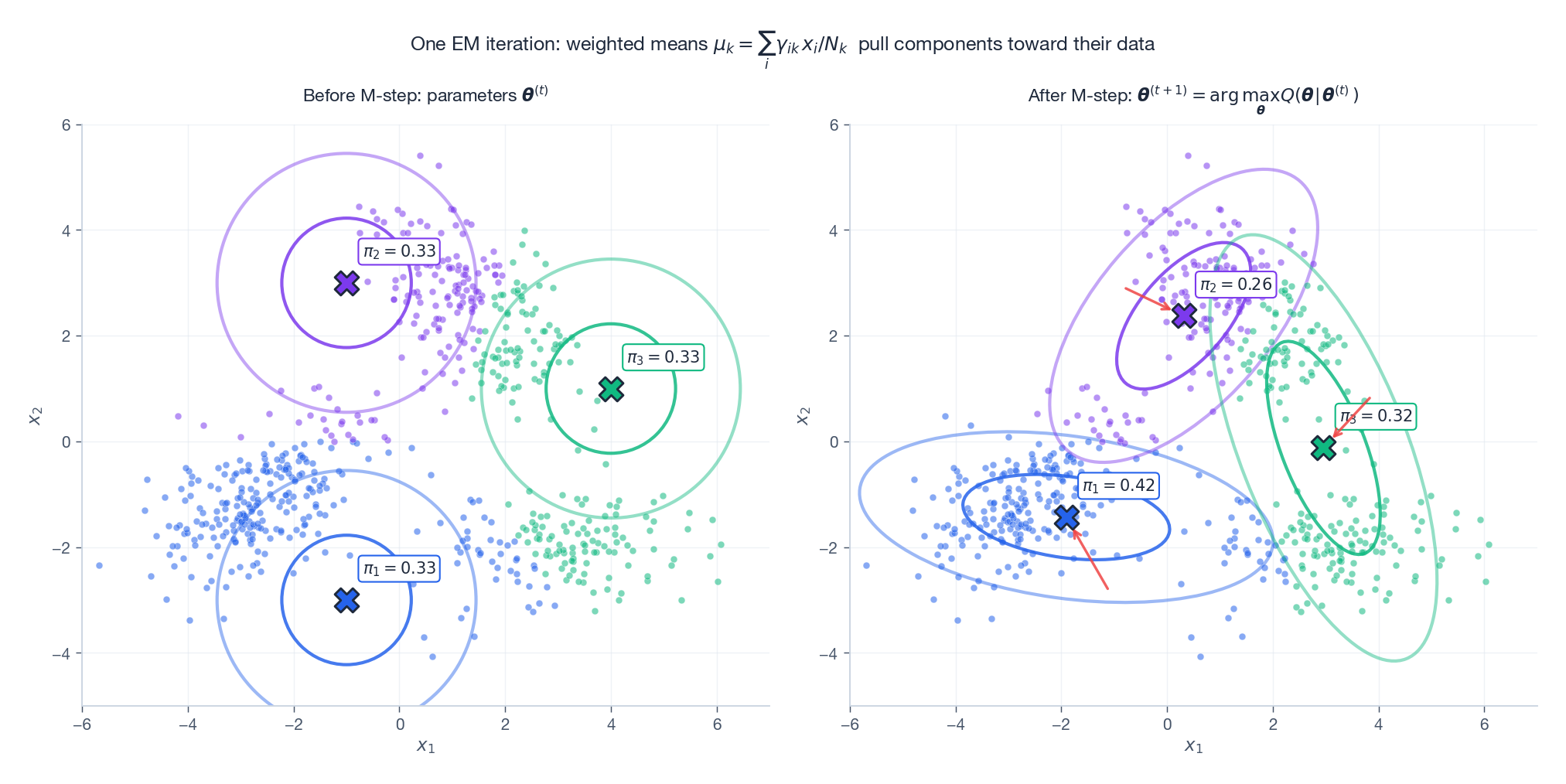

Starting from a deliberately bad initialisation, a single M-step pulls the means (red arrows) onto the data and stretches the covariance ellipses to match the observed scatter. After only a handful of E-M cycles the fit is essentially correct.

4.4 Convergence in practice

Run EM for several random restarts and watch the log-likelihood:

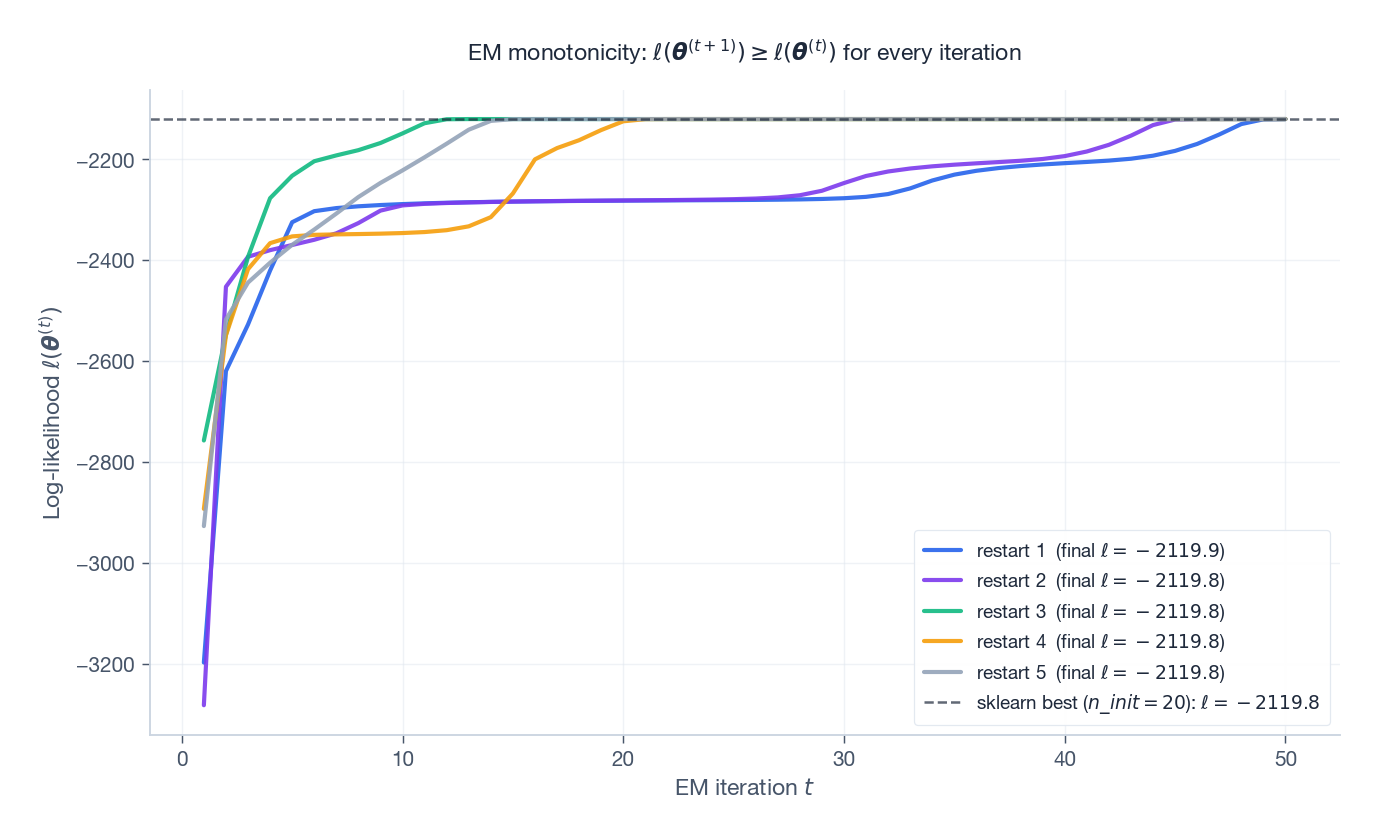

Every restart curve is non-decreasing – this is the algorithmic guarantee. Different restarts plateau at different basins; the dashed line is the best value found by sklearn.mixture.GaussianMixture with n_init=20. Use multiple random or K-means initialisations and keep the best.

5. K-means is the hard, spherical limit of GMM

Let $\boldsymbol{\Sigma}_k = \epsilon \mathbf{I}$ for all $k$ and let $\epsilon \to 0$. The Gaussian density becomes infinitely peaked; the responsibility for the closest mean tends to 1 and the others to 0. The E-step degenerates to hard assignment and the M-step to averaging the assigned points – exactly K-means.

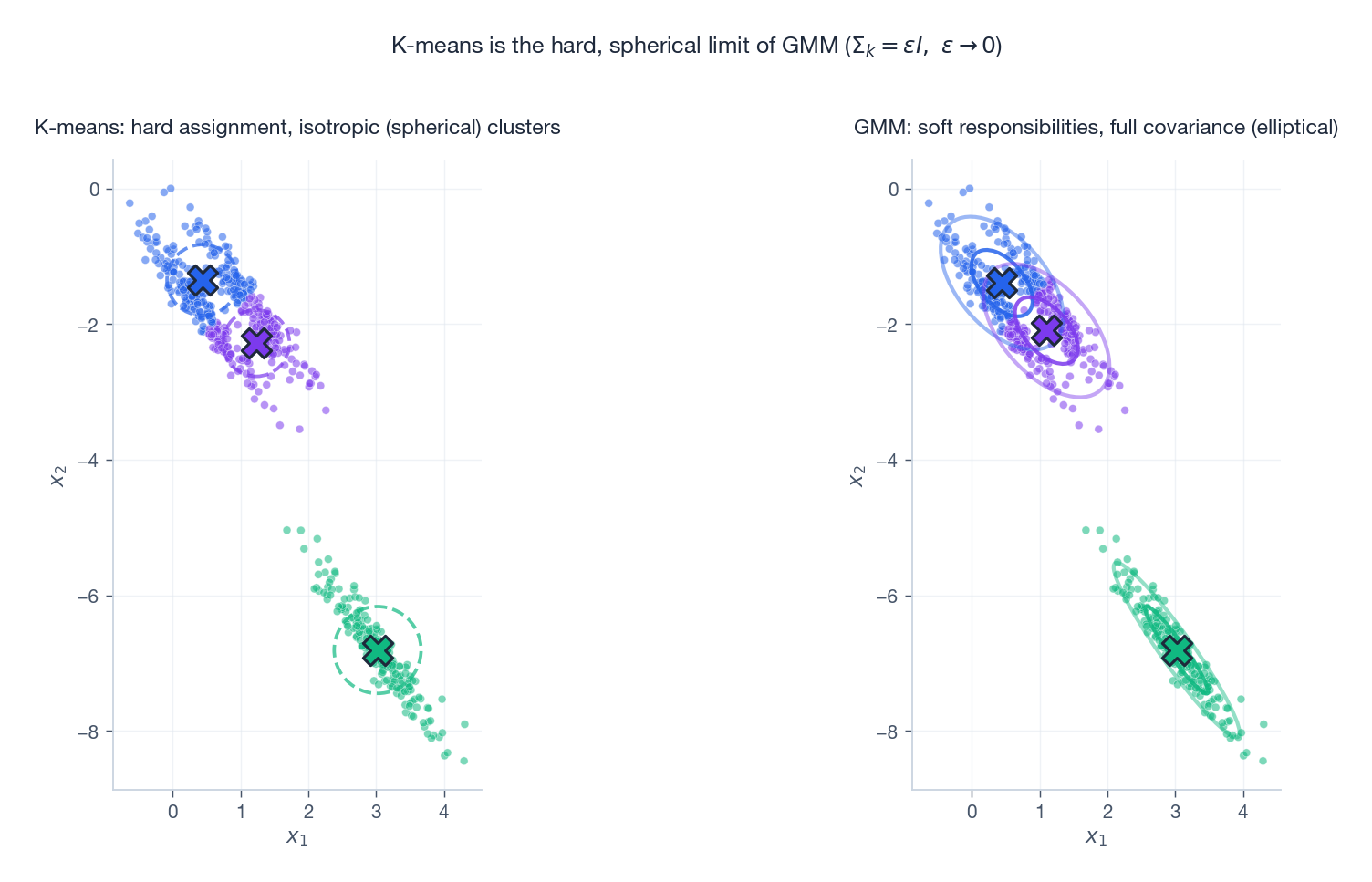

On anisotropic data the difference is stark: K-means (left) imposes spherical Voronoi cells and slices the elongated cluster awkwardly; GMM (right) fits an ellipse along the actual axis of variation. GMM should be your default whenever clusters are not isotropic or you want soft membership probabilities.

6. Choosing the number of components

The likelihood always increases with $K$ (more flexibility), so $\ell$ alone cannot pick $K$. Use a complexity-penalised criterion:

where $p_K$ is the parameter count: for full-covariance GMM in $d$ dimensions, $p_K = (K-1) + Kd + K\frac{d(d+1)}{2}$.

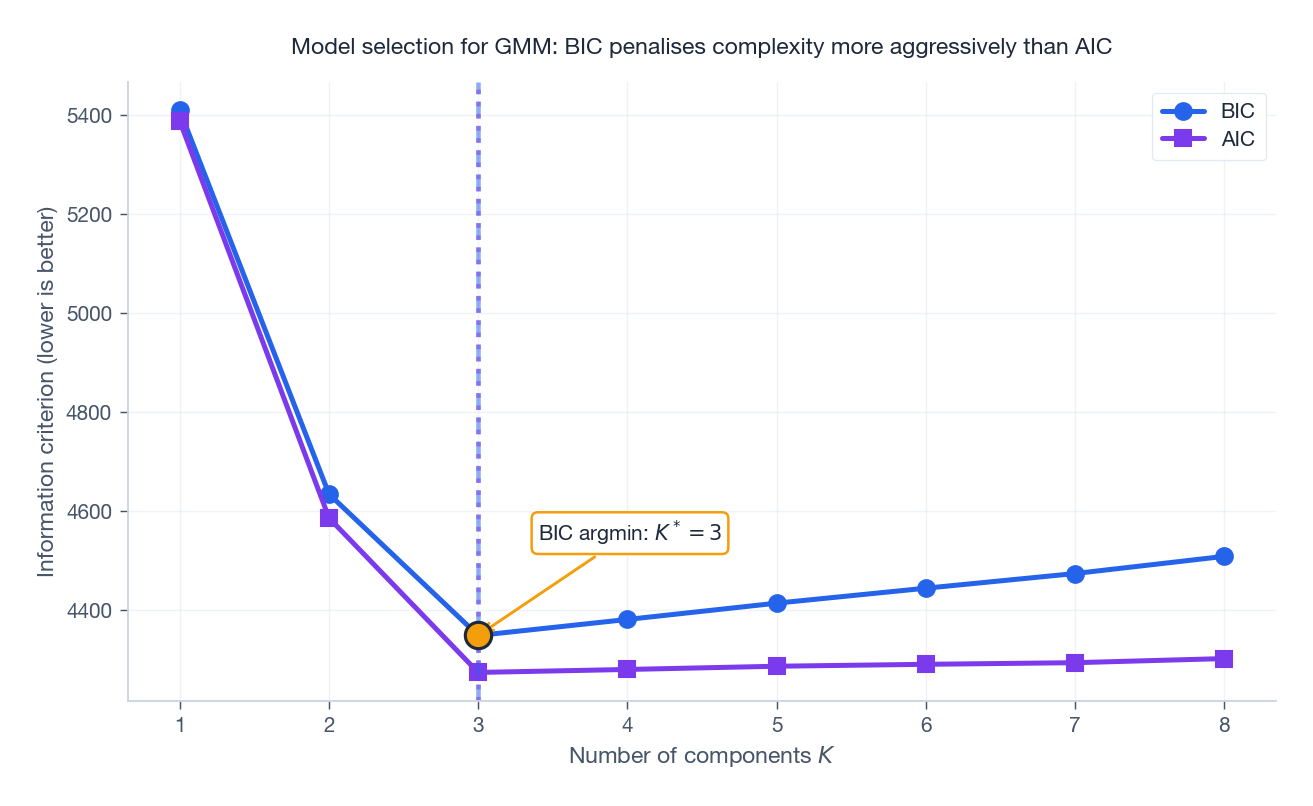

Both curves drop sharply going from $K=1$ to the true $K=3$ and then flatten or rise. BIC penalises complexity more aggressively (an extra $\log N$ factor), so it tends to prefer smaller $K$ than AIC. Either gives the right answer here.

7. Reference implementation

A minimal NumPy implementation that mirrors the formulas above. The actual experiments and figures use sklearn.mixture.GaussianMixture for verification.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

import numpy as np
from scipy.stats import multivariate_normal


class GMM:
    """Full-covariance Gaussian Mixture Model trained by EM."""

    def __init__(self, n_components=3, max_iter=100, tol=1e-4, reg=1e-6):
        self.K = n_components
        self.max_iter = max_iter
        self.tol = tol
        self.reg = reg

    # ----- E-step: responsibilities -----
    def _e_step(self, X):
        comp = np.column_stack([
            self.weights[k] * multivariate_normal.pdf(
                X, self.means[k], self.covs[k])
            for k in range(self.K)
        ])
        ll = np.log(comp.sum(axis=1) + 1e-300).sum()
        return comp / (comp.sum(axis=1, keepdims=True) + 1e-300), ll

    # ----- M-step: weighted MLE -----
    def _m_step(self, X, gamma):
        N_k = gamma.sum(axis=0)
        self.weights = N_k / X.shape[0]
        self.means = (gamma.T @ X) / N_k[:, None]
        d = X.shape[1]
        for k in range(self.K):
            diff = X - self.means[k]
            self.covs[k] = (gamma[:, k, None] * diff).T @ diff / N_k[k]
            self.covs[k] += self.reg * np.eye(d)

    def fit(self, X):
        N, d = X.shape
        rng = np.random.default_rng(0)
        idx = rng.choice(N, self.K, replace=False)
        self.means = X[idx].copy()
        self.weights = np.full(self.K, 1.0 / self.K)
        self.covs = np.array([np.cov(X.T) + self.reg * np.eye(d)] * self.K)

        prev = -np.inf
        for it in range(self.max_iter):
            gamma, ll = self._e_step(X)
            self._m_step(X, gamma)
            if abs(ll - prev) < self.tol:
                break
            prev = ll
        return self

    def predict(self, X):
        return np.argmax(self._e_step(X)[0], axis=1)

Q&A

Does EM reach the global optimum?

No. Monotone ascent guarantees only a stationary point – typically a local maximum, sometimes a saddle. Defend yourself with multiple restarts (random or K-means seeded) and keep the run with the highest final log-likelihood.

GMM vs K-means – when does it actually matter?

Use GMM when (i) clusters are clearly elliptical / anisotropic, (ii) you want soft membership probabilities for downstream calibration, or (iii) you need a generative density model for sampling or anomaly scoring. K-means is faster and fine for roughly spherical, well-separated clusters.

Singular covariance / collapsed component?

Add a ridge $\boldsymbol{\Sigma}_k + \epsilon \mathbf{I}$ (the reference implementation does this), tie covariances across components, restrict to diagonal covariance, or restart on detection.

Why does the E-step “make the bound tight”?

Because $\log p = \mathcal{L}(q,\boldsymbol{\theta}) + \mathrm{KL}[q\Vert p(z\mid\mathbf{x},\boldsymbol{\theta})]$ and the KL is zero exactly when $q$ equals the posterior.

What is generalised EM?

Replace the M-step’s full maximisation with any update that increases $Q$ (e.g. one gradient step). The monotone ascent argument still goes through.

How is EM related to variational inference?

Variational EM relaxes the E-step from the exact posterior to a tractable family $q \in \mathcal{Q}$. The decomposition $\log p = \mathcal{L} + \mathrm{KL}$ is identical; the algorithm now alternately minimises KL inside $\mathcal{Q}$ (E) and maximises $\mathcal{L}$ in $\boldsymbol{\theta}$ (M). See Part 14.

Exercises

E1 (E-step). Consider a 1D GMM with $K=2$, equal priors $\pi_1 = \pi_2 = 1/2$, $\mu_1 = 0,\, \mu_2 = 3,\, \sigma^2 = 1$. Compute $\gamma_{i1}$ for $x_i = 1.5$.

Solution. By symmetry the two component densities at $x=1.5$ are equal, so $\gamma_{i1} = 1/2$.

E2 (M-step). Two samples $x_1 = 1,\; x_2 = 4$ with responsibilities $\gamma_{11} = 0.8,\; \gamma_{21} = 0.3$. Compute $\mu_1$ after the M-step.

Solution. $N_1 = 0.8 + 0.3 = 1.1$, so $\mu_1 = (0.8 \cdot 1 + 0.3 \cdot 4) / 1.1 = 2.0 / 1.1 \approx 1.82$.

E3 (Monotonicity). Where in the chain $\log p(\boldsymbol{\theta}^{(t)}) = \mathcal{L}(q^{(t)},\boldsymbol{\theta}^{(t)}) \leq \mathcal{L}(q^{(t)},\boldsymbol{\theta}^{(t+1)}) \leq \log p(\boldsymbol{\theta}^{(t+1)})$ does the M-step’s optimality enter, and where does the ELBO inequality enter?

Solution. The middle $\leq$ is by the M-step (definition of $\boldsymbol{\theta}^{(t+1)}$); the right $\leq$ is the ELBO inequality applied at the new parameters.

E4 (Singular limit). Show that if you fix $\boldsymbol{\Sigma}_k = \epsilon \mathbf{I}$ for all $k$ and let $\epsilon \to 0^+$, the EM updates for the means converge to the K-means updates.

Sketch. Write $\mathcal{N}(\mathbf{x}\mid\boldsymbol{\mu}_k, \epsilon\mathbf{I}) \propto \exp(-\Vert \mathbf{x} - \boldsymbol{\mu}_k\Vert^2 / (2\epsilon))$. As $\epsilon \to 0$ the soft-max over $-\Vert\mathbf{x}-\boldsymbol{\mu}_k\Vert^2$ becomes a hard argmin, $\gamma_{ik}\in\{0,1\}$, and the M-step mean reduces to the cluster-mean update of K-means.

E5 (Missing data). Suppose feature $j$ of $\mathbf{x}_i$ is missing. Outline an EM scheme that treats the missing value as an additional latent variable and updates parameters and missing entries jointly.

Sketch. Add the missing entry $x_{ij}$ to $z$. The E-step computes $\mathbb{E}[x_{ij} \mid \text{observed},\boldsymbol{\theta}^{(t)}]$ (and second moments). The M-step uses these expectations as plug-ins in the weighted-MLE updates above.

References

• Dempster, A. P., Laird, N. M., & Rubin, D. B. (1977). Maximum likelihood from incomplete data via the EM algorithm. Journal of the Royal Statistical Society: Series B, 39(1), 1-22.
• Bishop, C. M. (2006). Pattern Recognition and Machine Learning. Springer. Chapter 9.
• Murphy, K. P. (2012). Machine Learning: A Probabilistic Perspective. MIT Press. Chapter 11.
• McLachlan, G., & Krishnan, T. (2007). The EM Algorithm and Extensions (2nd ed.). Wiley.
• Neal, R. M., & Hinton, G. E. (1998). A view of the EM algorithm that justifies incremental, sparse, and other variants. Learning in Graphical Models, 89, 355-368.
