Machine Learning Mathematical Derivations (14): Variational Inference and Variational EM

When the posterior $p(\mathbf{z}\mid\mathbf{x})$ is intractable, you have two roads. Sampling (MCMC) walks a Markov chain whose stationary distribution is the posterior — eventually exact, but slow and hard to diagnose. Variational inference (VI) instead picks a simple family $\mathcal{Q}$ of distributions and finds the member $q^\star\in\mathcal{Q}$ that lies closest to the true posterior. Inference becomes optimization, and the same machinery that fits a neural network now fits a Bayesian model.

This post derives VI from a single identity, builds the mean-field algorithm and CAVI from that identity, connects EM and variational EM as special cases, and ends with the reparameterization trick that turns the ELBO into a stochastic objective compatible with autodiff — the engine inside every VAE.

What You Will Learn

• Why VI turns inference into optimization through the ELBO identity
• The mean-field assumption and the closed-form coordinate-ascent updates it produces
• How variational EM extends classical EM by replacing the exact E-step with optimization over $q$
• The reparameterization trick: a low-variance gradient estimator that backpropagates through samples
• When VI is the right tool — and when it silently lies to you (mode-seeking, under-dispersion)

Prerequisites

• The EM algorithm and the ELBO from Part 13
• KL divergence and Jensen’s inequality
• Multivariate calculus and the exponential family
• Comfort with stochastic gradient estimation

1. The Posterior Bottleneck

Bayesian inference with observations $\mathbf{x}$, latent variables $\mathbf{z}$ and parameters $\boldsymbol{\theta}$ produces the posterior

The numerator is cheap — it is just the model’s joint density. The denominator, the evidence $p(\mathbf{x})$, is the integral of the joint over the entire latent space. For anything but conjugate exponential-family pairs, that integral is intractable.

Two strategies dominate the literature:

VI’s bias is the price you pay for its speed. The rest of this post quantifies that trade-off and shows how to manage it.

2. The ELBO Identity

Pick any distribution $q(\mathbf{z})$ over the latent variables. Then

The derivation takes one line. Multiply and divide the joint by $q(\mathbf{z})$, take logs, and split:

Because $\log p(\mathbf{x})$ does not depend on $q$, maximizing the ELBO with respect to $q$ is exactly the same as minimizing the KL divergence to the true posterior.

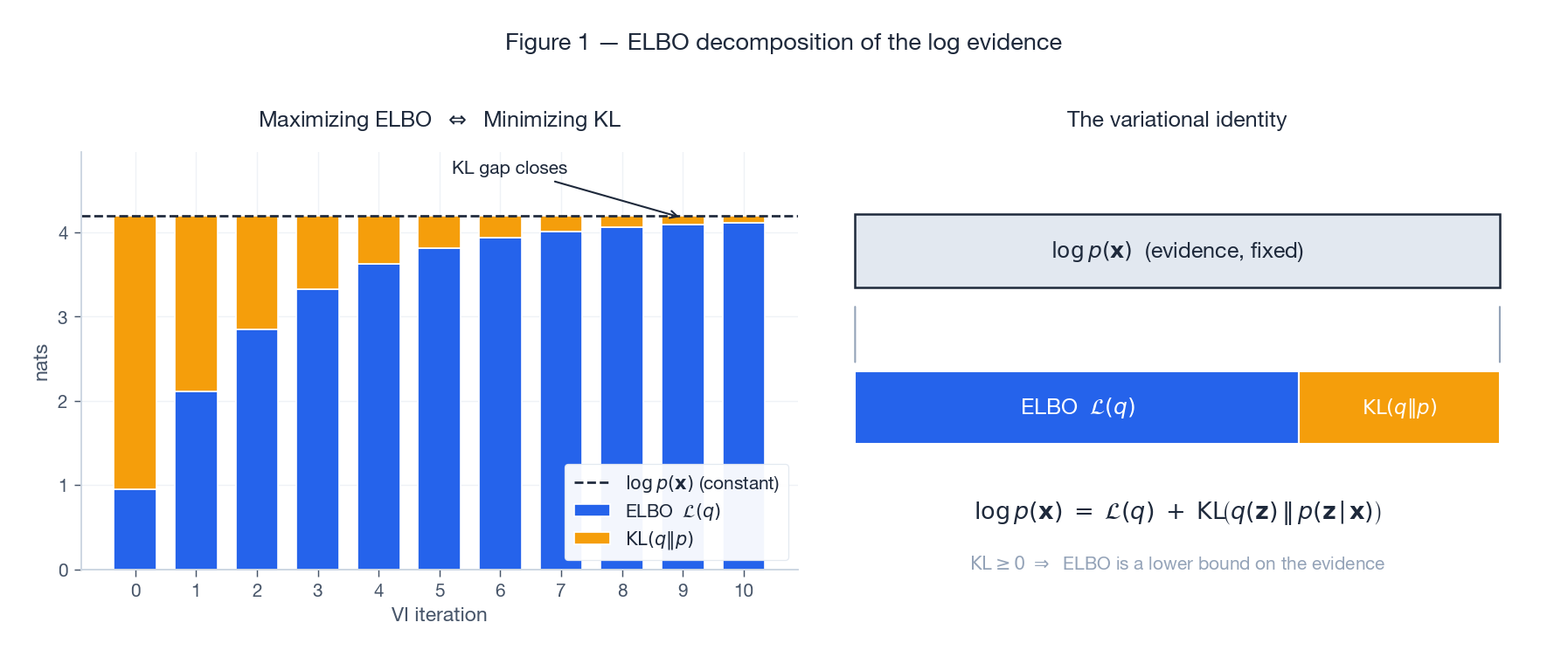

Figure 1. The log-evidence is fixed once the data and model are chosen. Every increase in the ELBO is matched by an equal decrease in the KL gap; perfect inference would close the gap entirely. Because KL is non-negative, the ELBO is also a certified lower bound on the marginal likelihood — useful for model comparison.

It is worth pausing on what we have done. We replaced an intractable integral (the evidence) with an optimization problem over a function space (find the best $q$). All of variational inference is the engineering that follows from this swap.

3. Mean-Field Approximation

The optimization is still infinite-dimensional. The simplest restriction — and the one Jordan, Ghahramani, Jaakkola and Saul popularized in the 90s — is the mean-field assumption: $q$ factorizes across coordinates,

Each factor lives in its own family. We make no further parametric commitment.

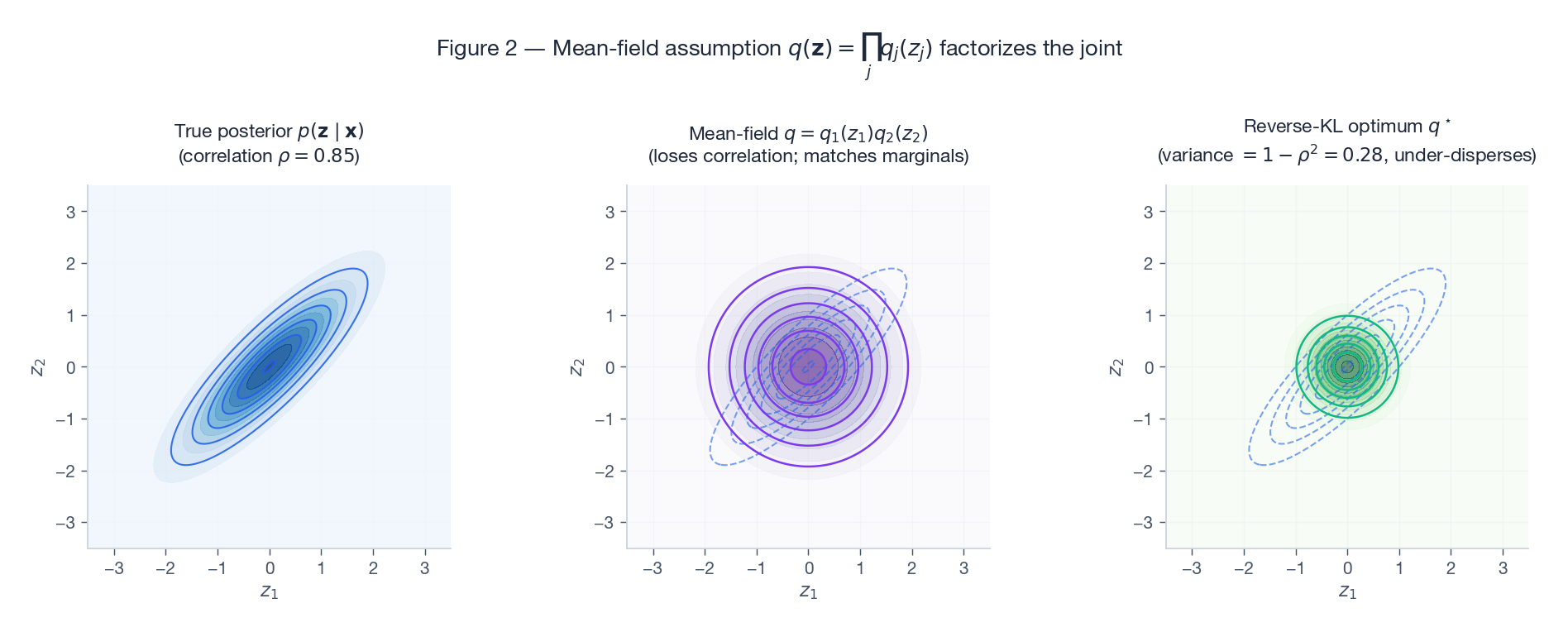

Figure 2. The middle panel matches the marginals of the true posterior (left) but loses every off-diagonal entry. The right panel shows the global optimum of $\mathrm{KL}(q\|p)$: variance shrinks by a factor of $1-\rho^2$, so the surrogate is under-dispersed along both axes. This systematic under-estimation of uncertainty is the most common failure mode of mean-field VI.

3.1 The optimal factor

Plug the factorization into the ELBO and isolate one factor $q_j$. Treating the others as fixed,

The bracketed expectation is a function of $z_j$ alone — call it $\log\tilde{p}(z_j)$. Maximizing over $q_j$ subject to $\int q_j = 1$ is a textbook variational calculus problem; the optimum is

This is the central formula of mean-field VI. The optimal factor for coordinate $j$ is the geometric average of the joint with respect to all other factors, normalized.

3.2 Coordinate-Ascent Variational Inference (CAVI)

Because each factor’s optimum depends on the others, we solve cyclically:

initialize q_1, ..., q_M
repeat
    for j = 1, ..., M:
        log q_j(z_j) <- E_{q_{-j}}[log p(x, z)] + const
        normalize q_j
until ELBO change < tolerance

Every update is a coordinate ascent step on a concave-in-each-coordinate objective, so the ELBO never decreases. Convergence to a local optimum is guaranteed; reaching the global optimum is not.

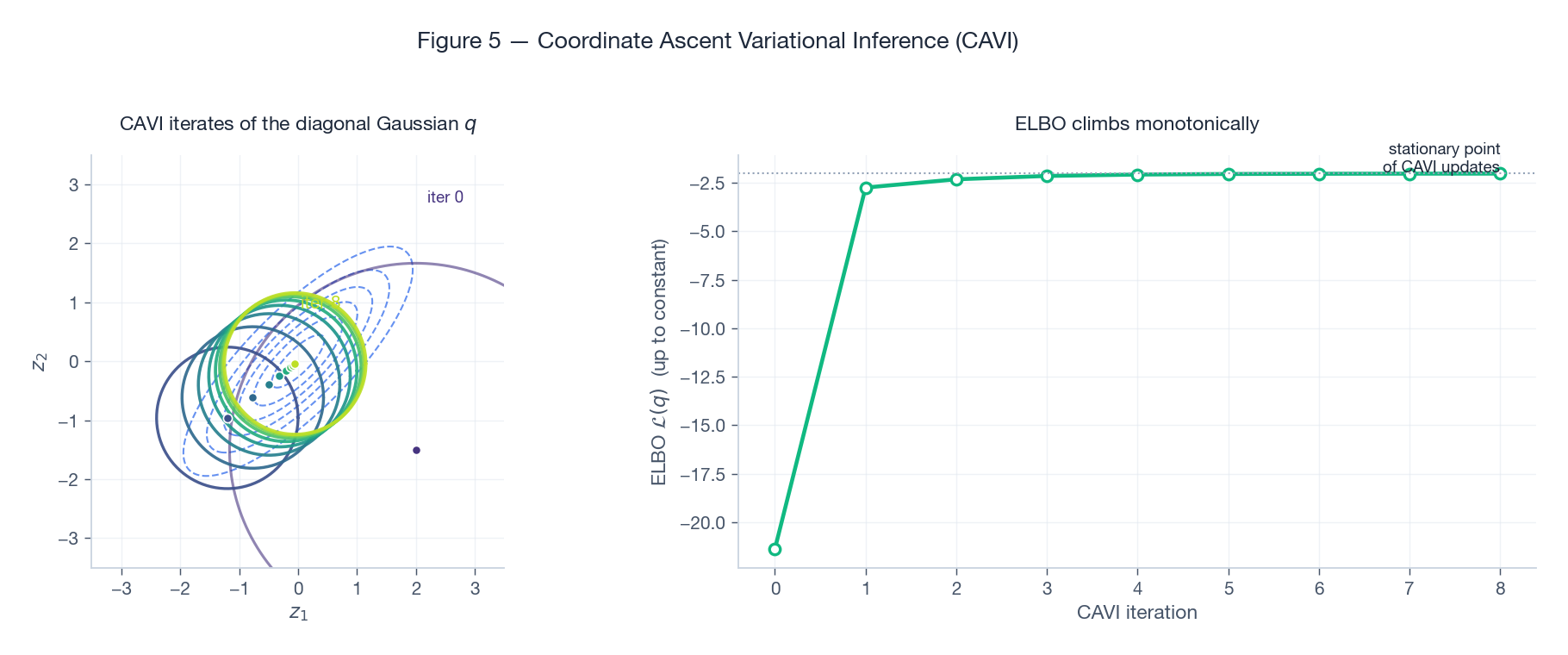

Figure 5. Eight CAVI sweeps on a correlated bivariate Gaussian. The diagonal $q$ both relocates and shrinks: its mean is dragged to the origin in two steps, and its variance collapses to $1/\text{precision}_{ii}$. The right panel shows the monotone ELBO trajectory — a useful convergence diagnostic in any VI implementation.

3.3 Conjugate exponential families

When the model is a conjugate exponential family — every conditional $p(z_j\mid \mathbf{z}_{-j},\mathbf{x})$ lies in an exponential family — the CAVI update has a closed form. The optimal $q_j$ is in the same exponential family as the conditional, and updating it amounts to averaging natural parameters under $q_{-j}$. This covers Bayesian Gaussian mixtures, LDA, Bayesian linear regression, hidden Markov models with Dirichlet priors, and many others. For non-conjugate models, we need the black-box approach of Section 6.

4. The Variational Family as Approximator

It pays to look at VI without the mean-field crutch. Pick any parametric family $q_\phi(\mathbf{z})$ — a Gaussian with learnable mean and covariance, a normalizing flow, an amortized inference network — and minimize $\mathrm{KL}(q_\phi\,\|\,p(\cdot\mid\mathbf{x}))$ over $\phi$.

Figure 3. On a bimodal target, the reverse-KL optimum (purple) locks onto a single mode — it is mode-seeking because $\mathrm{KL}(q\|p) = \int q\log(q/p)$ pays an infinite price wherever $q>0$ but $p\approx 0$. The forward-KL optimum (amber, used by expectation propagation) instead matches moments and covers both modes, even at the cost of placing density in low-probability valleys. VI uses reverse KL because we can compute it from samples of $q$ alone — but the asymmetry has real consequences for downstream uncertainty estimates.

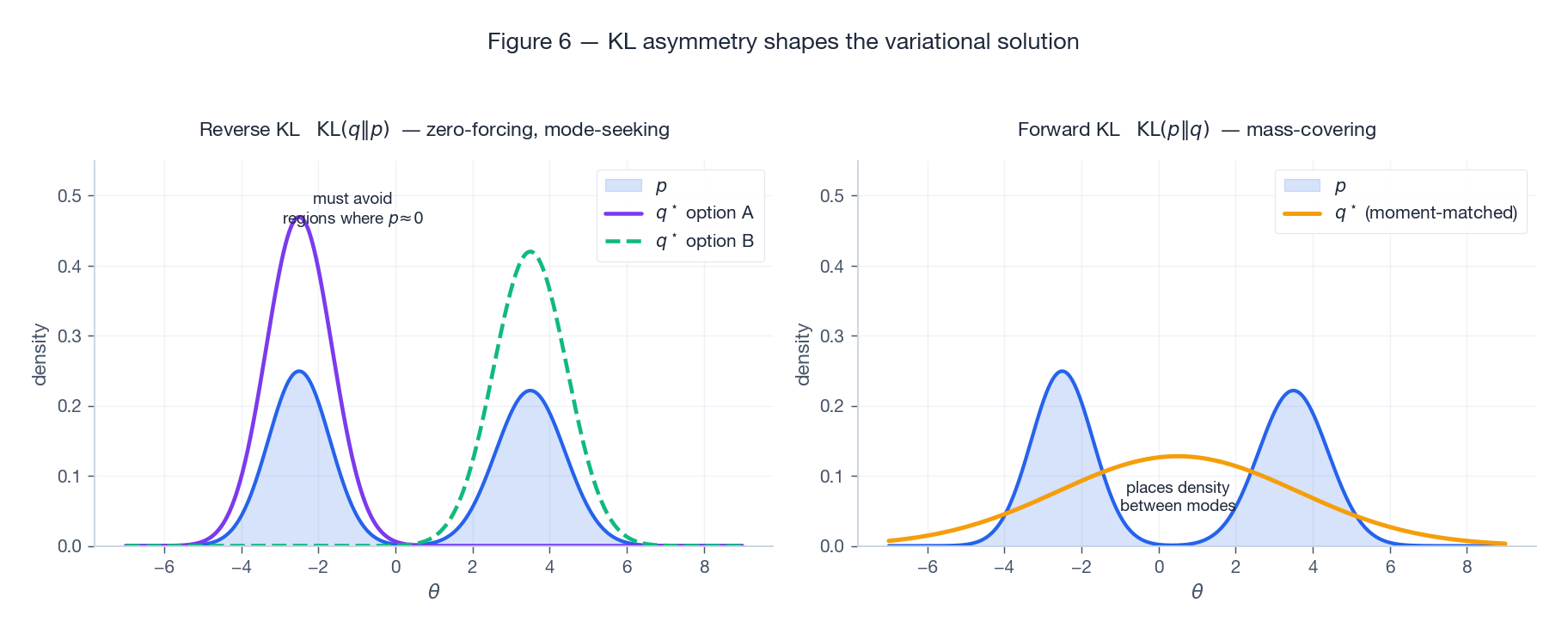

Figure 6. The same story on a symmetric mixture. Reverse KL has multiple local optima, each centered on one mode. Forward KL produces a single, broad solution centered between the modes. Knowing which behavior your application can tolerate is half the battle when designing a VI system.

When mean-field bites

The under-dispersion in Figure 2 is not a bug; it follows from the geometry of reverse KL applied to a factorized family. Whenever your downstream task uses the posterior variance — Bayesian model averaging, calibrated prediction, decision theory — mean-field VI will under-state uncertainty. Three escape hatches:

1. Structured VI: keep some dependencies (e.g., a tree-structured $q$).
2. Normalizing flows: a sequence of invertible transformations gives $q$ enough flexibility to model correlations.
3. Amortized inference with a flexible neural network (the encoder in a VAE).

5. Variational EM

Section 2 of Part 13 showed that the EM algorithm itself rests on the ELBO identity. EM alternates:

• E-step: choose $q(\mathbf{z}) = p(\mathbf{z}\mid\mathbf{x};\boldsymbol{\theta}^{(t)})$, the exact posterior — the KL gap goes to zero, so the ELBO touches $\log p(\mathbf{x};\boldsymbol{\theta}^{(t)})$.
• M-step: hold $q$ fixed, maximize the ELBO with respect to $\boldsymbol{\theta}$, which reduces to maximizing $\mathbb{E}_q[\log p(\mathbf{x},\mathbf{z};\boldsymbol{\theta})]$.

When the exact posterior is intractable, the E-step breaks. Variational EM simply replaces it with a VI sub-routine:

In Variational EM the ELBO is no longer tight after the E-step (the KL gap is non-zero), so the algorithm maximizes a lower bound on $\log p(\mathbf{x};\boldsymbol{\theta})$ rather than the likelihood itself. It still monotonically increases that lower bound — a useful guarantee in practice.

Variational Bayes EM (VBEM) goes further and treats $\boldsymbol{\theta}$ as a random variable with its own variational factor, producing a full posterior over both $\mathbf{z}$ and $\boldsymbol{\theta}$. This is what the variational Bayesian Gaussian mixture and variational LDA solve.

6. Black-Box VI and the Reparameterization Trick

Outside conjugate models, neither the closed-form CAVI updates nor the variational E-step are available. Black-box VI (BBVI) parameterizes $q_\phi$ with a neural network and optimizes the ELBO with stochastic gradients:

The expectation is over $q_\phi$, whose distribution depends on $\phi$ — the gradient does not move inside the expectation for free.

Score-function (REINFORCE) estimator. Differentiate the density:

Unbiased, but high variance — needs control variates and large sample sizes to be practical.

Reparameterization trick. Whenever we can write $\mathbf{z}$ as a deterministic transform of a parameter-free noise variable,

the expectation moves to a fixed measure and the gradient slides inside:

For a diagonal Gaussian $q_\phi(\mathbf{z}) = \mathcal{N}(\boldsymbol{\mu}_\phi,\,\mathrm{diag}(\boldsymbol{\sigma}_\phi^2))$, the transform is $g_\phi(\boldsymbol{\epsilon}) = \boldsymbol{\mu}_\phi + \boldsymbol{\sigma}_\phi\odot\boldsymbol{\epsilon}$ with $\boldsymbol{\epsilon}\sim\mathcal{N}(\mathbf{0},\mathbf{I})$. The whole computation graph is differentiable, autodiff handles the rest, and the resulting gradient has dramatically lower variance than REINFORCE. This is the engine inside the variational autoencoder and almost every modern continuous-latent variational model.

For discrete latent variables the trick fails (you cannot write $z\in\{0,1\}$ as a smooth function of $\epsilon$). The standard remedies are REINFORCE with control variates, the Gumbel-Softmax / Concrete relaxation, or a continuous relaxation followed by straight-through estimation.

When to choose what

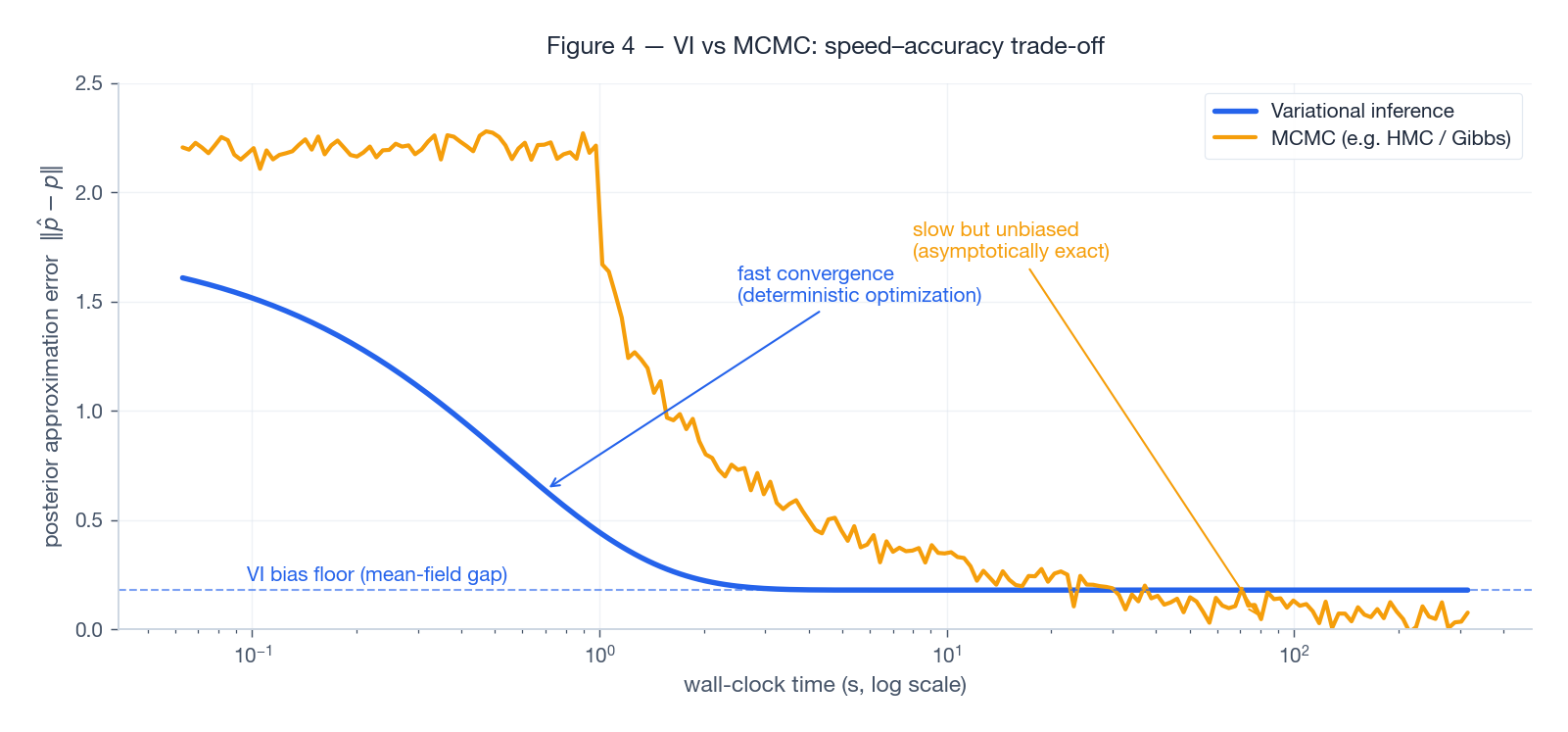

Figure 4. Wall-clock vs error on a representative benchmark. VI hits a small error fast and then plateaus at its bias floor (the gap between the true posterior and the best member of $\mathcal{Q}$). MCMC starts after a burn-in and grinds down toward zero error at the classic $1/\sqrt{T}$ rate. The decision matrix is short:

• Use VI for large datasets, online learning, exploratory modeling, and inside neural networks.
• Use MCMC when the posterior really matters — drug-dose response, scientific inference, anything published.
• Use both: warm-start an HMC chain from a VI mean. You get fast initialization plus eventual unbiasedness.

7. Application: VI for LDA

Latent Dirichlet Allocation (Blei, Ng, Jordan 2003) is the canonical large-scale VI success story. The model has per-document topic proportions $\theta_d$ and per-topic word distributions $\beta_k$, both Dirichlet-distributed. The posterior is intractable, but the model is conjugate-exponential, so mean-field CAVI gives closed-form updates:

with Dirichlet variational factors for $\theta_d$ and $\beta_k$, and categorical factors for the per-word topic assignments.

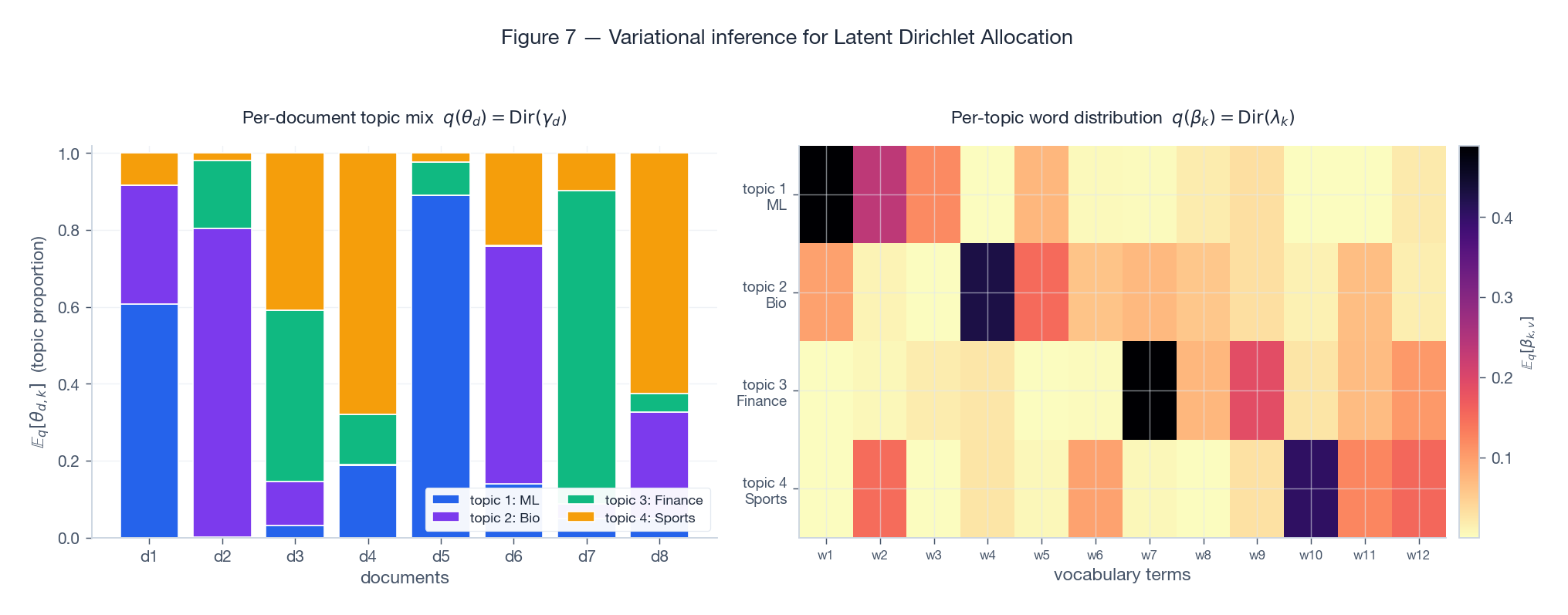

Figure 7. The two outputs of variational LDA. Left: the posterior mean topic proportions $\mathbb{E}_q[\theta_d]$ for eight documents. Each document is a soft mixture of four topics; documents 1 and 5 are dominantly “ML”, document 3 is dominantly “Finance”, and so on. Right: the posterior mean word distributions $\mathbb{E}_q[\beta_k]$. Each topic concentrates mass on a few characteristic vocabulary terms — exactly the interpretable structure that made LDA a workhorse for the 2000s and 2010s.

Stochastic VI (Hoffman et al. 2013) scales the same updates to billions of documents by sampling mini-batches and applying natural-gradient steps to $\lambda_k$ — a clean example of the speed advantage in Figure 4.

8. Implementation: Variational Bayesian GMM

A compact CAVI implementation of the conjugate Bayesian GMM. The math behind the updates is in Bishop PRML §10.2; here we focus on a clean reading of the loop.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72

import numpy as np
from scipy.special import digamma


class VariationalGMM:
    """Mean-field variational Bayes Gaussian mixture (CAVI)."""

    def __init__(self, K=3, max_iter=100, tol=1e-3):
        self.K = K
        self.max_iter = max_iter
        self.tol = tol

    def fit(self, X):
        N, d = X.shape
        # Vague conjugate priors
        alpha0, beta0, nu0 = 1.0, 1.0, float(d)
        m0, W0 = X.mean(0), np.eye(d)

        # Variational parameters initialized to the prior + uniform mass
        self.alpha = np.full(self.K, alpha0 + N / self.K)
        self.beta = np.full(self.K, beta0 + N / self.K)
        self.nu = np.full(self.K, nu0 + N / self.K)
        self.m = np.array([m0 + 0.1 * np.random.randn(d) for _ in range(self.K)])
        self.W = np.array([W0.copy() for _ in range(self.K)])

        r = np.random.dirichlet([1] * self.K, N)
        for _ in range(self.max_iter):
            r_old = r.copy()

            # ---- E-step: variational responsibilities  q(z_n) ----
            r = self._update_r(X, N, d)

            # ---- M-step: closed-form updates of the Dirichlet & NW factors ----
            N_k = r.sum(0)
            x_bar = (r.T @ X) / N_k[:, None]
            self.alpha = alpha0 + N_k
            self.beta = beta0 + N_k
            self.nu = nu0 + N_k
            self.m = (beta0 * m0 + N_k[:, None] * x_bar) / self.beta[:, None]
            for k in range(self.K):
                diff = X - x_bar[k]
                S = (r[:, k, None] * diff).T @ diff / N_k[k]
                dm = x_bar[k] - m0
                self.W[k] = np.linalg.inv(
                    np.linalg.inv(W0)
                    + N_k[k] * S
                    + beta0 * N_k[k] / (beta0 + N_k[k]) * np.outer(dm, dm)
                )

            if np.max(np.abs(r - r_old)) < self.tol:
                break
        return self

    def _update_r(self, X, N, d):
        """Compute  rho_{nk} = exp( E_q[log pi_k] + 0.5 E_q[log|Lambda_k|]
                                    - 0.5 E_q[(x-mu_k)^T Lambda_k (x-mu_k)] )"""
        r = np.zeros((N, self.K))
        for k in range(self.K):
            E_lp = digamma(self.alpha[k]) - digamma(self.alpha.sum())
            E_ld = sum(digamma((self.nu[k] + 1 - i) / 2) for i in range(1, d + 1))
            E_ld += d * np.log(2) + np.log(max(np.linalg.det(self.W[k]), 1e-10))
            for n in range(N):
                diff = X[n] - self.m[k]
                r[n, k] = (E_lp
                           + 0.5 * E_ld
                           - 0.5 * (self.nu[k] * diff @ self.W[k] @ diff
                                    + d / self.beta[k]))
        r = np.exp(r - r.max(1, keepdims=True))
        return r / r.sum(1, keepdims=True)

    def predict(self, X):
        return np.argmax(self._update_r(X, len(X), X.shape[1]), axis=1)

The algorithmic shape mirrors the EM-GMM from Part 13 — alternate responsibilities and component statistics — but every quantity is a posterior moment under $q$, not a point estimate. A side benefit is automatic component pruning: $\alpha_k$ shrinks toward $\alpha_0$ for empty components, so unused topics quietly fade out instead of fitting noise.

9. Q&A

Q1: Why reverse KL and not forward KL? Reverse $\mathrm{KL}(q\|p)$ only requires expectations under $q$, which we control. Forward $\mathrm{KL}(p\|q)$ requires expectations under the intractable $p$. The price is mode-seeking behavior — see Figure 6.

Q2: My ELBO is going down — is something broken? Yes. CAVI’s ELBO is monotone non-decreasing by construction. A drop means a bug, usually in (i) the responsibility normalization, (ii) a sign in the entropy term, or (iii) a stale variational parameter being read before it is updated.

Q3: How tight is the ELBO bound? $\log p(\mathbf{x}) - \mathcal{L}(q^\star) = \mathrm{KL}(q^\star\|p(\cdot\mid\mathbf{x})) \geq 0$. The gap is exactly the modeling error of the variational family. Bayesian model comparison via ELBO is fair only when the gaps across models are comparable.

Q4: When does mean-field fail catastrophically? Strong posterior correlations (Figure 2) and multimodality (Figure 6). Symptoms: drastically under-estimated posterior variance, overconfident predictions, sensitivity to initialization. Fix with structured VI, normalizing flows, or full-covariance amortized inference.

Q5: Reparameterization vs REINFORCE — which one? Reparameterization for continuous, differentiable $q$ (Gaussians, Logistic, mixtures via Gumbel-Softmax). REINFORCE for discrete latent variables. Reparameterization typically has 100–1000× lower gradient variance when both apply.

Q6: Variational EM vs full Variational Bayes — when do I need VBEM? If you need uncertainty in $\boldsymbol{\theta}$ (small data, model selection, decision theory), use VBEM. If you only need a good point estimate (large data, predictive accuracy), Variational EM is faster and simpler.

10. Exercises

E1. Prove $\mathcal{L}(q) \leq \log p(\mathbf{x})$ from scratch. Sketch. $\log p(\mathbf{x}) = \mathcal{L}(q) + \mathrm{KL}(q\|p(\cdot\mid\mathbf{x}))$ and KL is non-negative by Jensen.

E2. For a two-variable mean-field $q(z_1,z_2) = q_1(z_1)q_2(z_2)$, write the optimal $q_1^\star$. Answer. $\log q_1^\star(z_1) = \mathbb{E}_{q_2}[\log p(\mathbf{x},z_1,z_2)] + \text{const}$.

E3. Derive the closed-form CAVI update for a bivariate Gaussian target with precision matrix $\Lambda$ and zero mean. Show that at convergence, $\mathrm{Var}_q[z_j] = 1/\Lambda_{jj}$ — the inverse of the diagonal of the precision, not the diagonal of the covariance. Hint. Reproduce the trajectory in Figure 5.

E4. Show that the Variational EM ELBO is non-decreasing across iterations even though the E-step is no longer exact. Sketch. The E-step increases the ELBO (improves $q$); the M-step increases the ELBO (improves $\boldsymbol{\theta}$). Monotonicity follows from the alternating structure.

E5. Why does direct Monte-Carlo gradient estimation $\nabla_\phi \mathbb{E}_{q_\phi}[f(\mathbf{z})] \approx \frac{1}{S}\sum_s \nabla_\phi f(\mathbf{z}^{(s)})$ with $\mathbf{z}^{(s)}\sim q_\phi$ give the wrong answer? Answer. The samples themselves depend on $\phi$; the naive gradient ignores that dependency. REINFORCE and reparameterization are the two principled fixes.

References

• Jordan, M. I., Ghahramani, Z., Jaakkola, T. S., & Saul, L. K. (1999). An introduction to variational methods for graphical models. Machine Learning, 37(2), 183–233.
• Blei, D. M., Kucukelbir, A., & McAuliffe, J. D. (2017). Variational inference: A review for statisticians. JASA, 112(518), 859–877.
• Hoffman, M. D., Blei, D. M., Wang, C., & Paisley, J. (2013). Stochastic variational inference. JMLR, 14, 1303–1347.
• Kingma, D. P., & Welling, M. (2014). Auto-encoding variational Bayes. ICLR.
• Ranganath, R., Gerrish, S., & Blei, D. M. (2014). Black box variational inference. AISTATS.
• Bishop, C. M. (2006). Pattern Recognition and Machine Learning, Chapter 10. Springer.
