ML Math Derivations (16): Conditional Random Fields

What This Article Covers

Named entity recognition, POS tagging, information extraction – every one of these tasks asks you to label each element of a sequence. HMMs (Part 15 ) attack this problem generatively by modelling the joint distribution $P(\mathbf{X},\mathbf{Y})$, but to make the joint factorise they pay a steep price: each observation is assumed independent of everything except its own hidden label. In real text, whether bank is a noun or a verb depends on the preceding word, the following word, the suffix, capitalisation, dictionary lookups – all of these features at once.

Conditional Random Fields (CRFs) drop the generative ambition entirely and model $P(\mathbf{Y}\mid\mathbf{X})$ directly. Once you no longer need a generative story for $\mathbf{X}$, you can pile on as many overlapping features of $\mathbf{X}$ as you like.

What you will learn:

1. Why CRF’s discriminative formulation beats HMM’s generative one for labeling tasks
2. How transition and state feature functions define CRF’s scoring mechanism
3. The forward-backward algorithm – now used to compute $Z(\mathbf{X})$ and marginals
4. How the gradient of the log-likelihood reduces to empirical minus expected feature counts
5. Viterbi decoding for finding the highest-scoring label sequence

Prerequisites: Probability basics (conditional probability, Bayes’ rule), familiarity with HMMs (Part 15 ), and comfort with matrix notation.

1. From HMM to CRF: Generative vs Discriminative

1.1 What HMM forces you to assume

HMM models the joint probability of observations $\mathbf{X}$ and labels $\mathbf{Y}$:

To predict labels you go via Bayes’ rule: $\mathbf{Y}^* = \arg\max_{\mathbf{Y}} P(\mathbf{Y}\mid\mathbf{X})$. Two assumptions make the joint tractable but also restrictive:

• Observation independence: $P(x_t \mid y_{1:T}, x_{\setminus t}) = P(x_t \mid y_t)$. Each token sees only its own label.
• First-order Markov: $P(y_t \mid y_{1:t-1}) = P(y_t \mid y_{t-1})$. Each label sees only the previous label.

The Markov assumption is mostly fine. The observation independence assumption is the killer: it forbids any feature that looks at neighbouring tokens, suffixes, or gazetteers conditionally on the current label.

1.2 The CRF idea: model $P(\mathbf{Y}\mid\mathbf{X})$ directly

A linear-chain CRF defines

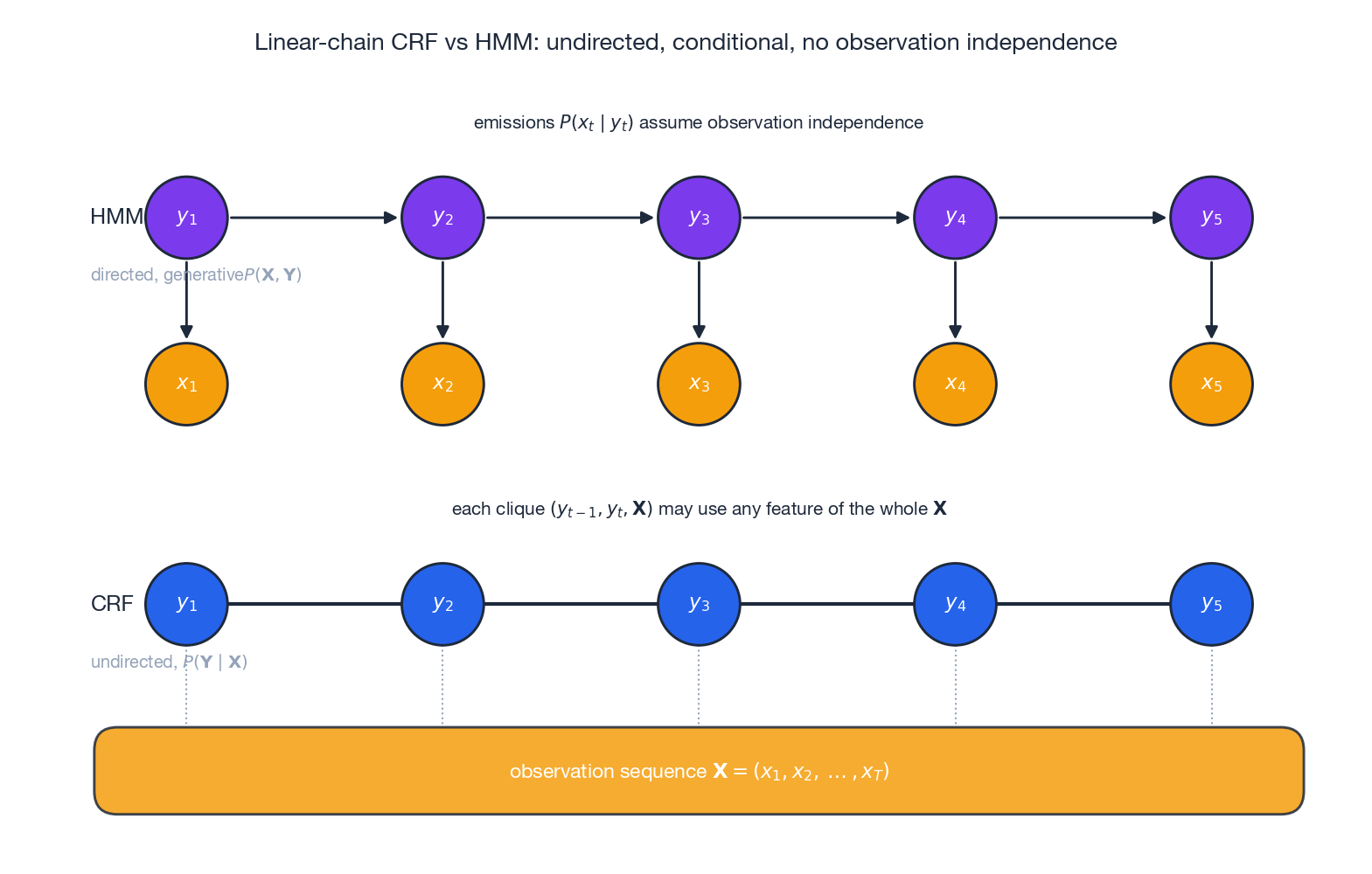

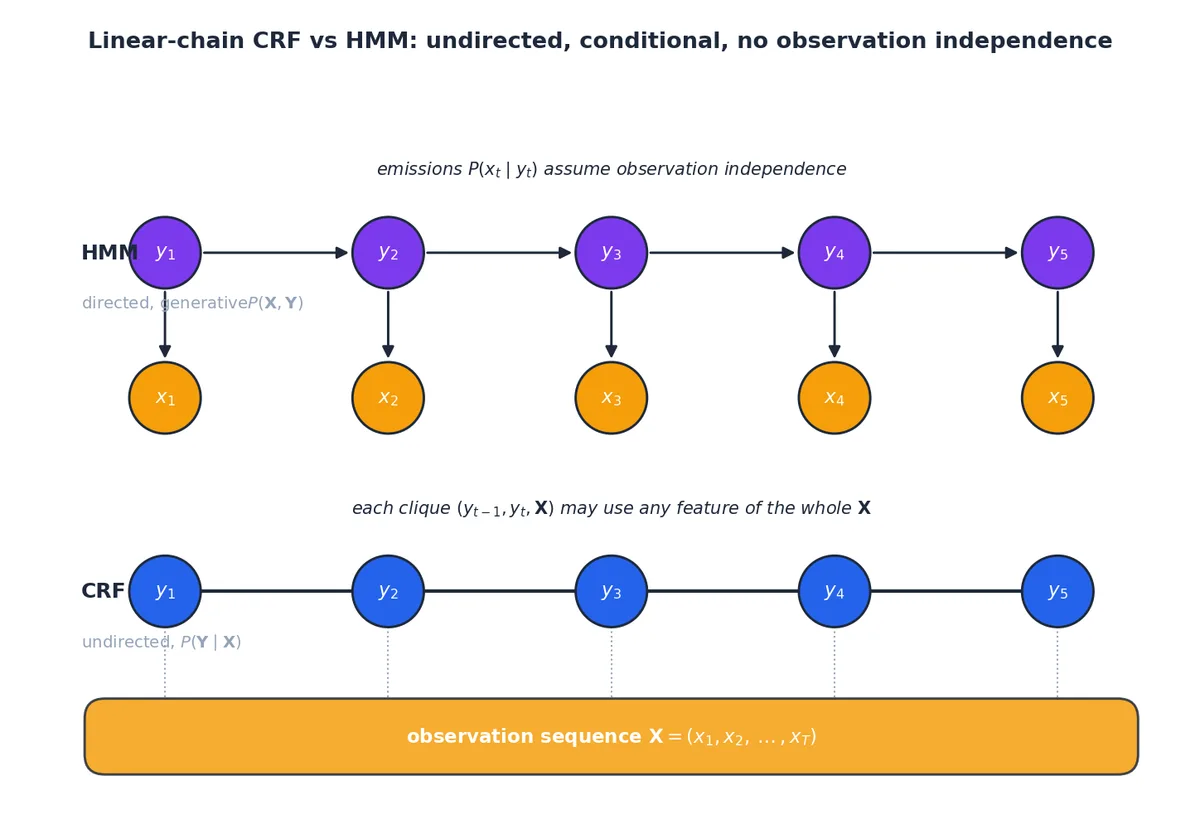

The figure above shows the structural difference. In HMM (top) every $x_t$ is a child of $y_t$, so the model has to explain the observations – and to keep the joint factorisable each $x_t$ may depend only on $y_t$. In CRF (bottom) the entire observation sequence $\mathbf{X}$ sits in a shared “context strip”; every clique $(y_{t-1}, y_t, \mathbf{X})$ is allowed to inspect any function of the whole $\mathbf{X}$. We never write down $P(\mathbf{X})$, so we never have to assume anything about how observations were generated.

What you gain:

• Arbitrary, overlapping features. Word identity, suffix, prefix, capitalisation, neighbour words, gazetteer matches – all simultaneously, without double counting penalties.
• Flexible feature engineering. Global features are first-class.
• Stronger empirical performance. On standard sequence-labeling benchmarks, CRF typically beats HMM by 5–10 F1 points.

What you pay: the partition function $Z(\mathbf{X})$ is a sum over all $L^T$ label sequences, and you have to compute it (and its gradients) every training iteration. The forward-backward algorithm does exactly this in $O(TL^2)$.

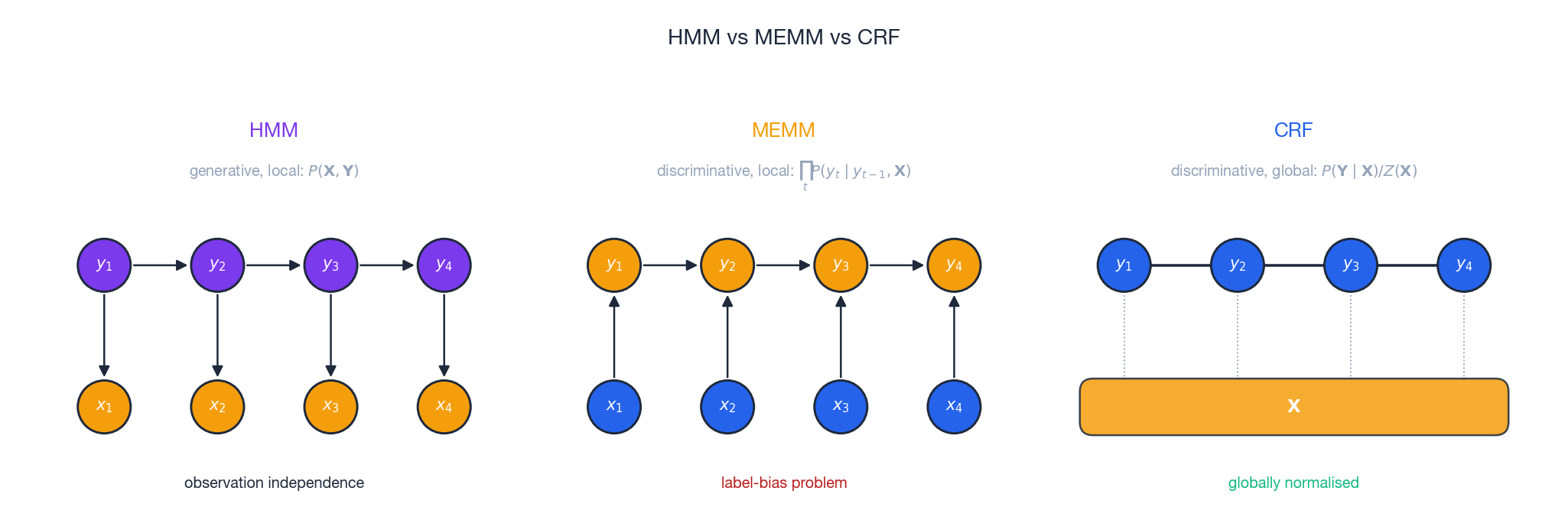

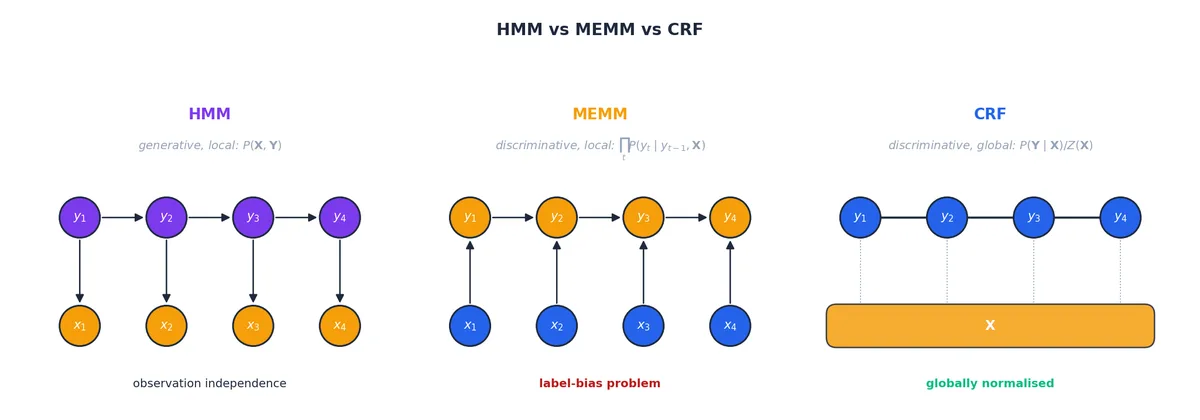

1.3 The path from HMM through MEMM to CRF

The Maximum Entropy Markov Model (MEMM) was the natural intermediate step between HMM and CRF:

MEMM is discriminative and allows arbitrary features of $\mathbf{X}$, but it normalises locally at each position. This causes the label-bias problem: states with few outgoing transitions concentrate probability mass simply because their per-position softmax has fewer competitors – regardless of whether the observation supports them.

CRF fixes this with global normalisation: the single $Z(\mathbf{X})$ in the denominator forces all paths through the trellis to compete on the same playing field. Bottom line:

• HMM – generative, locally normalised, observation-independent.
• MEMM – discriminative, locally normalised, label-biased.
• CRF – discriminative, globally normalised, no label bias.

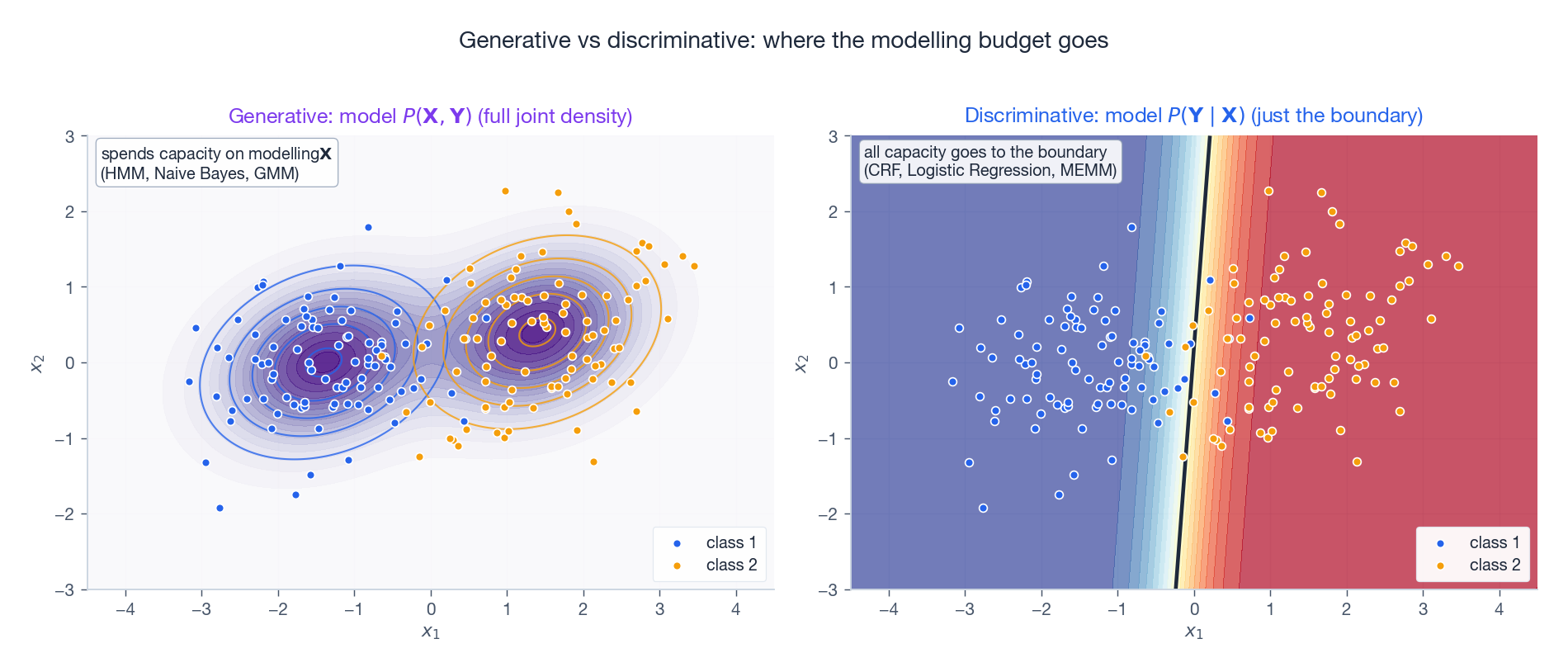

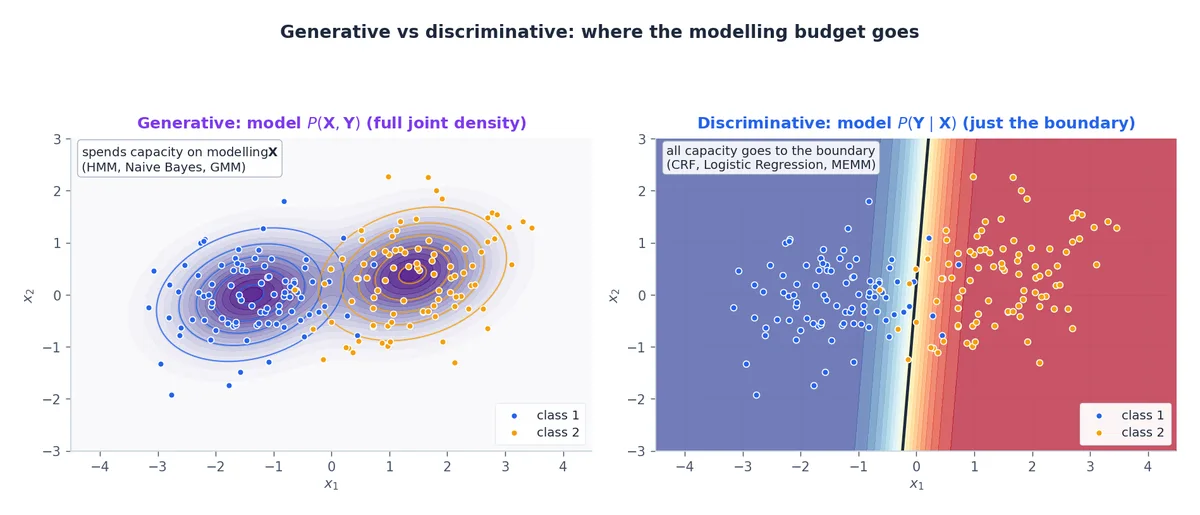

1.4 Generative vs discriminative more broadly

Even outside sequence problems the same trade-off applies. A generative model spends parameters on $P(\mathbf{X})$ – the smooth purple density on the left – which is wasted capacity if all you care about is the boundary. A discriminative model spends every parameter directly on the conditional decision boundary – the sharp diagonal contour on the right. Naive Bayes vs Logistic Regression and HMM vs CRF are exactly the same trade-off lifted to two scales.

2. Mathematical Framework of Linear-Chain CRF

2.1 Basic definitions

Input: observation sequence $\mathbf{X} = (x_1, x_2, \dots, x_T)$. Output: label sequence $\mathbf{Y} = (y_1, y_2, \dots, y_T)$ with each $y_t \in \mathcal{Y} = \{1, 2, \dots, L\}$.

The conditional probability is

where

• $\Psi_t(y_{t-1}, y_t, \mathbf{X}) > 0$ is the potential at position $t$,
• $Z(\mathbf{X}) = \sum_{\mathbf{Y}'} \prod_{t} \Psi_t(y'_{t-1}, y'_t, \mathbf{X})$ is the partition function that normalises across all label sequences.

By convention $y_0$ is a special START symbol so the first transition is well defined.

2.2 Feature function decomposition

CRF parameterises the potential through two flavours of feature function:

Transition features depend on the previous and current label:

Example: $t_1 = \mathbb{1}[y_{t-1}=\text{B-PER},\, y_t=\text{I-PER}]$ – “person name continues”.

State features (emission-style features) depend on the current label and observations:

Example: $s_1 = \mathbb{1}[y_t=\text{B-LOC},\, x_t \text{ is capitalized}]$.

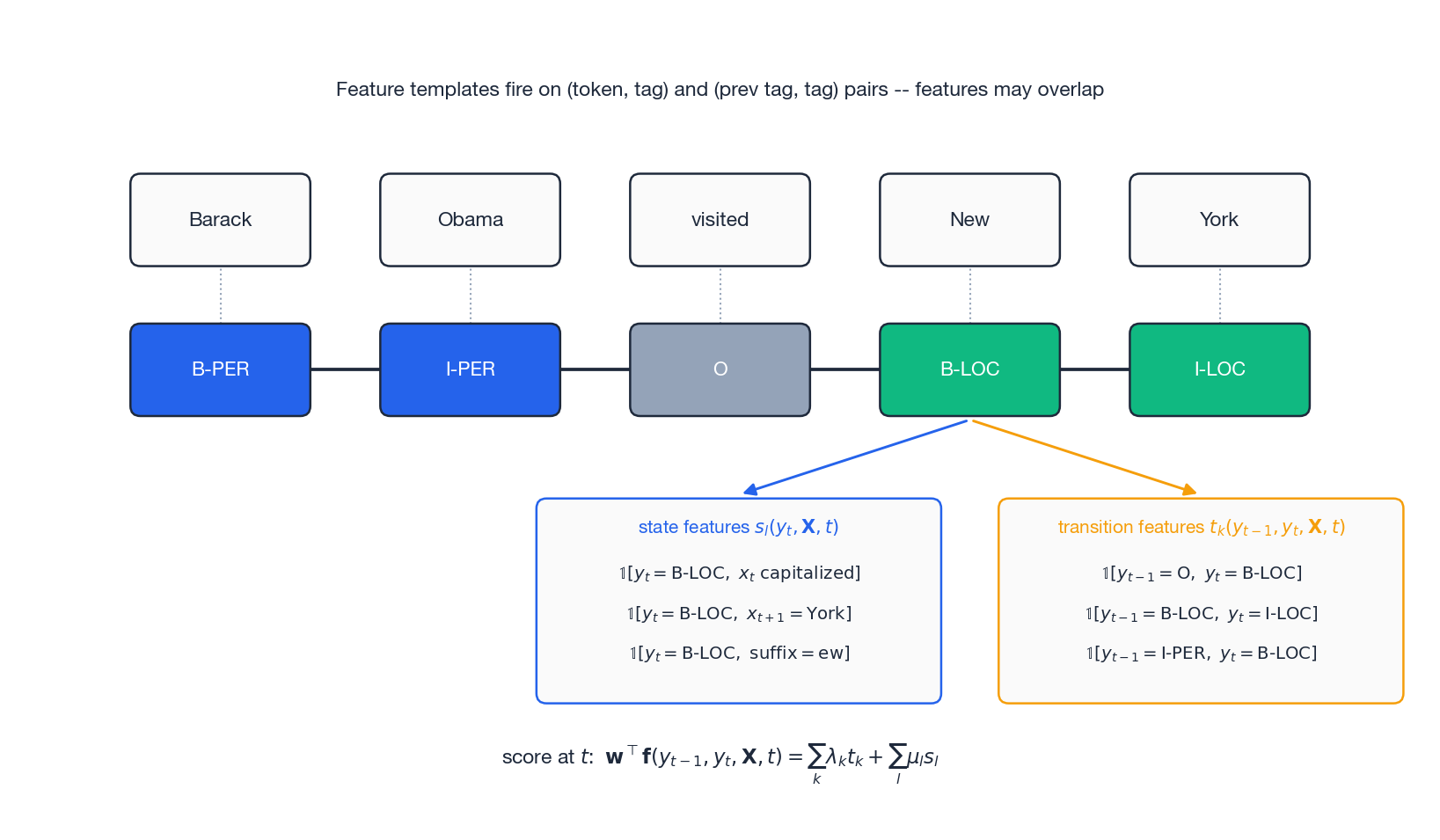

The figure shows what this looks like at one position on the sentence “Barack Obama visited New York”. For position $t=4$ (“New” $\to$ B-LOC), the state-feature panel collects every property of $\mathbf{X}$ that fires on label B-LOC at that position (capitalisation, the next word being “York”, the suffix ew), and the transition-feature panel records every (prev tag, current tag) configuration consistent with that decision. Crucially, these features can overlap freely.

The potential bundles them with weights $\lambda_k$ and $\mu_l$:

2.3 Unified parameterisation

Stack all feature functions into one vector $\mathbf{f}$ and all weights into $\mathbf{w}$:

Then

Define the global feature vector as the sum over positions:

The model collapses to a clean log-linear form:

2.4 Matrix form

For each position $t$ define an $L \times L$ score matrix

Then the unnormalised path score factors as a matrix product, and

This is exactly $T$ multiplications of $L\times L$ matrices, hence $O(TL^2)$ – the same shape as forward-backward.

3. Forward-Backward for CRF

3.1 Forward recursion

Define the forward variable $\alpha_t(j)$ as the unnormalised total score of all partial paths ending in label $j$ at position $t$.

Initialisation ($t = 1$):

Recursion ($t = 2, \dots, T$):

Termination:

Intuitively, $\alpha_t(j)$ accumulates the (unnormalised) probability mass of every partial sequence of length $t$ that lands on label $j$. The recursion just says: to land on $j$ at time $t$, you must have come from some label $i$ at time $t-1$.

Complexity: $O(TL^2)$ – at each of $T$ steps you sum over $L \times L$ transitions. Compared to the brute-force $O(L^T)$, this is the difference between practical and impossible.

3.2 Backward recursion

Symmetrically, $\beta_t(i)$ is the unnormalised total score of all partial paths starting in label $i$ at position $t$ and going to the end. The recursion runs from $t = T$ backwards to $t = 1$, with the same $O(TL^2)$ cost.

3.3 Marginals from $\alpha$ and $\beta$

Once you have both passes, marginal probabilities fall out for free:

Single-label marginal:

Adjacent-pair marginal:

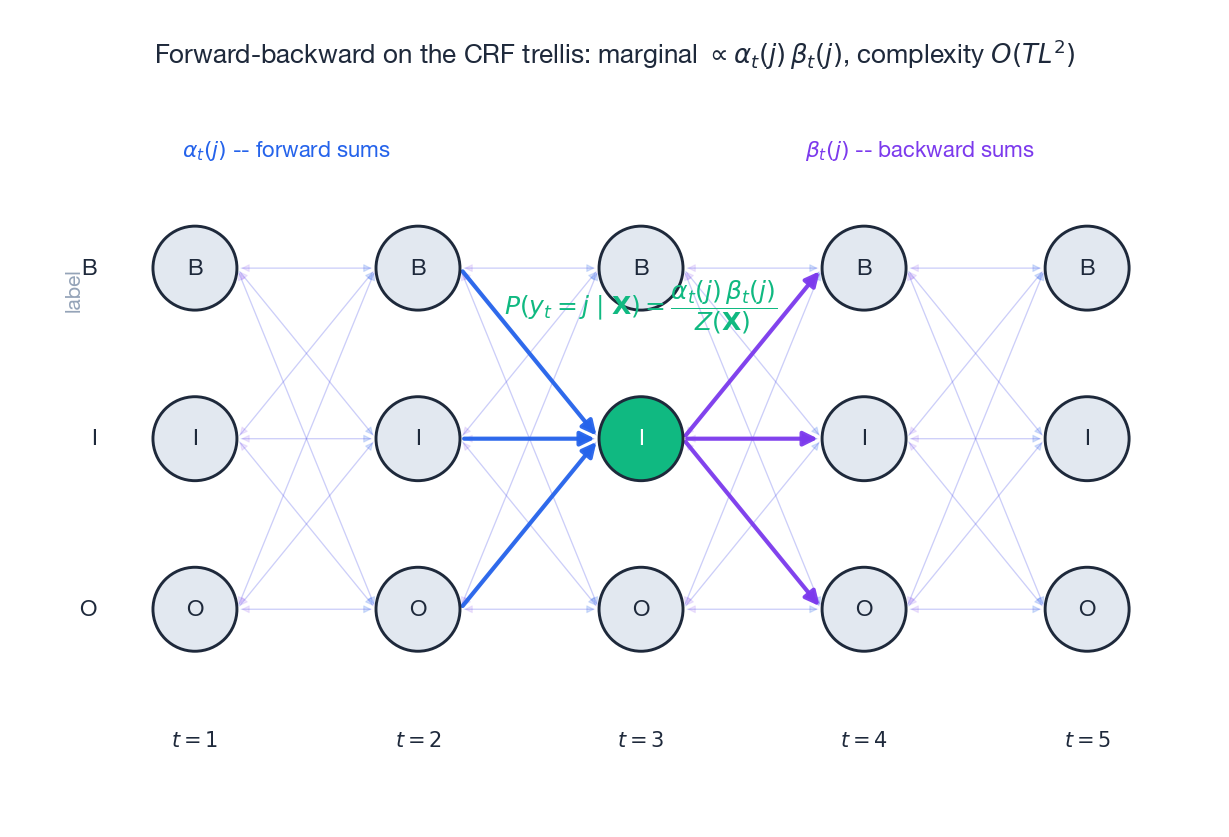

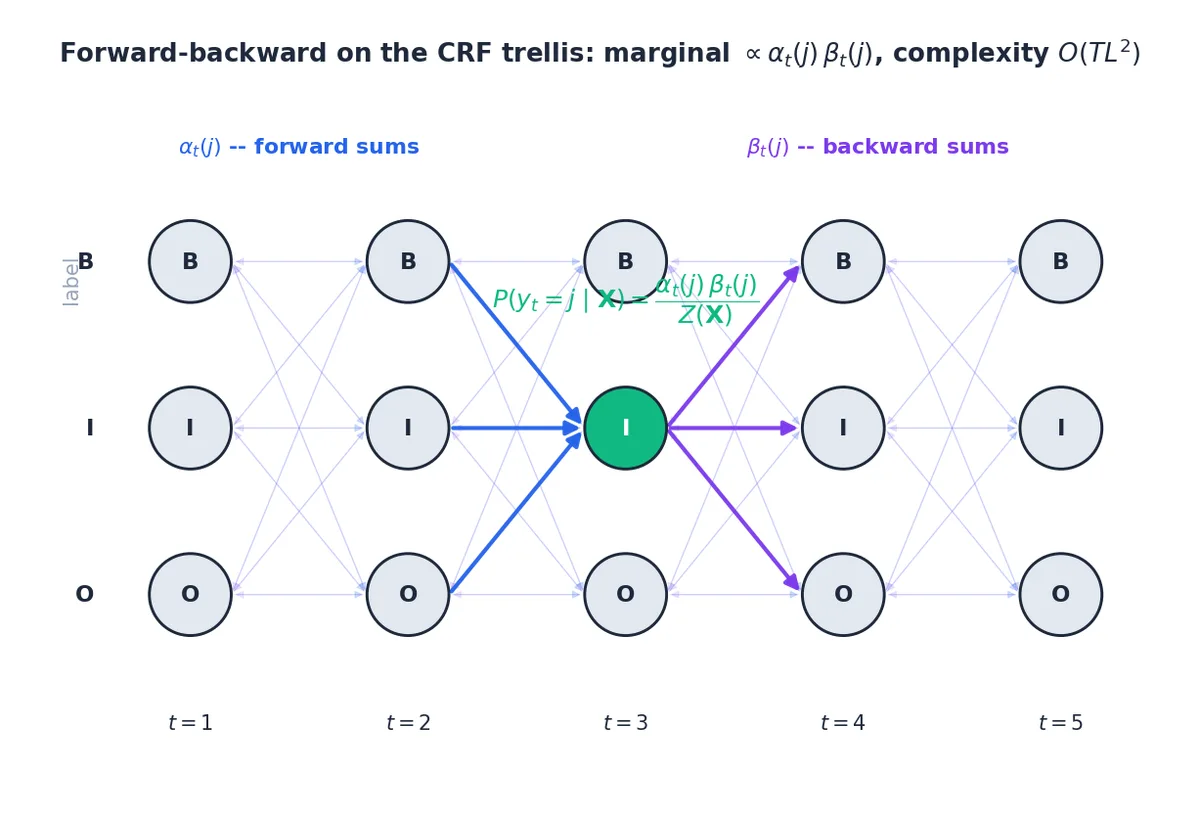

The trellis figure shows the geometry: every cell $(t, j)$ collects forward arrows from the left (blue) and backward arrows from the right (purple). Their product, normalised by $Z(\mathbf{X})$, is the per-position marginal that we are about to plug into the gradient.

3.4 Numerical stability: log-space

Multiplying many positive numbers underflows quickly, so all of forward-backward is done in log space using logsumexp:

This is the same trick that makes softmax stable.

4. Parameter Learning: Maximum Likelihood

4.1 Objective

Given training data $\mathcal{D} = \{(\mathbf{X}^{(n)}, \mathbf{Y}^{(n)})\}_{n=1}^N$, maximise the log-likelihood

The first term is linear in $\mathbf{w}$ and trivial; all the difficulty is in $\log Z$.

In practice we add L2 regularisation (which, importantly, also keeps the objective strictly concave so optimisation has a unique global maximum):

4.2 Gradient: empirical minus expected

Differentiating (6) gives the standard log-linear gradient:

This is the same shape as the gradient of any maximum-entropy model: how often the feature actually fired in the data, minus how often the current model thinks it should fire. Training pushes the model’s expectations onto the empirical ones; at convergence they match exactly (the maximum-entropy condition).

4.3 Computing the expectation in $O(TL^2)$

The expectation in (7) looks intractable – it’s a sum over $L^T$ sequences – but linearity plus the chain structure save us. Substituting the per-position decomposition of $\mathbf{F}$ and exchanging sums,

The pair-marginals on the right are exactly the ones we computed in (5), at $O(TL^2)$ cost. So one sweep of forward-backward gives us $\log Z$ and every gradient component at once.

4.4 Optimisation: L-BFGS

The objective is concave (and strictly concave once you add L2), so any first-order method converges to the global optimum. In practice L-BFGS is the standard CRF optimiser:

• Quasi-Newton, so it approximates the inverse Hessian and has near-quadratic convergence.
• The “limited-memory” flavour stores only the last $m$ gradient differences – crucial when the feature space has $10^6$+ dimensions.
• Typically converges in 50–200 iterations, where each iteration is one forward-backward pass per training sequence.

scipy.optimize.fmin_l_bfgs_b is the canonical implementation.

5. Viterbi Decoding

5.1 The decoding problem

Given a trained CRF and a new $\mathbf{X}$, find

The denominator $Z(\mathbf{X})$ doesn’t depend on $\mathbf{Y}$, so we never need to compute it for decoding.

5.2 Dynamic programming

Define $\delta_t(j)$ as the score of the best partial path ending in label $j$ at position $t$. The recursion is forward-backward with $\sum$ replaced by $\max$:

Store the back-pointer

so that after reaching position $T$, $y_T^* = \arg\max_j \delta_T(j)$, and tracing back $y_{t-1}^* = \psi_t(y_t^*)$ recovers the full best sequence.

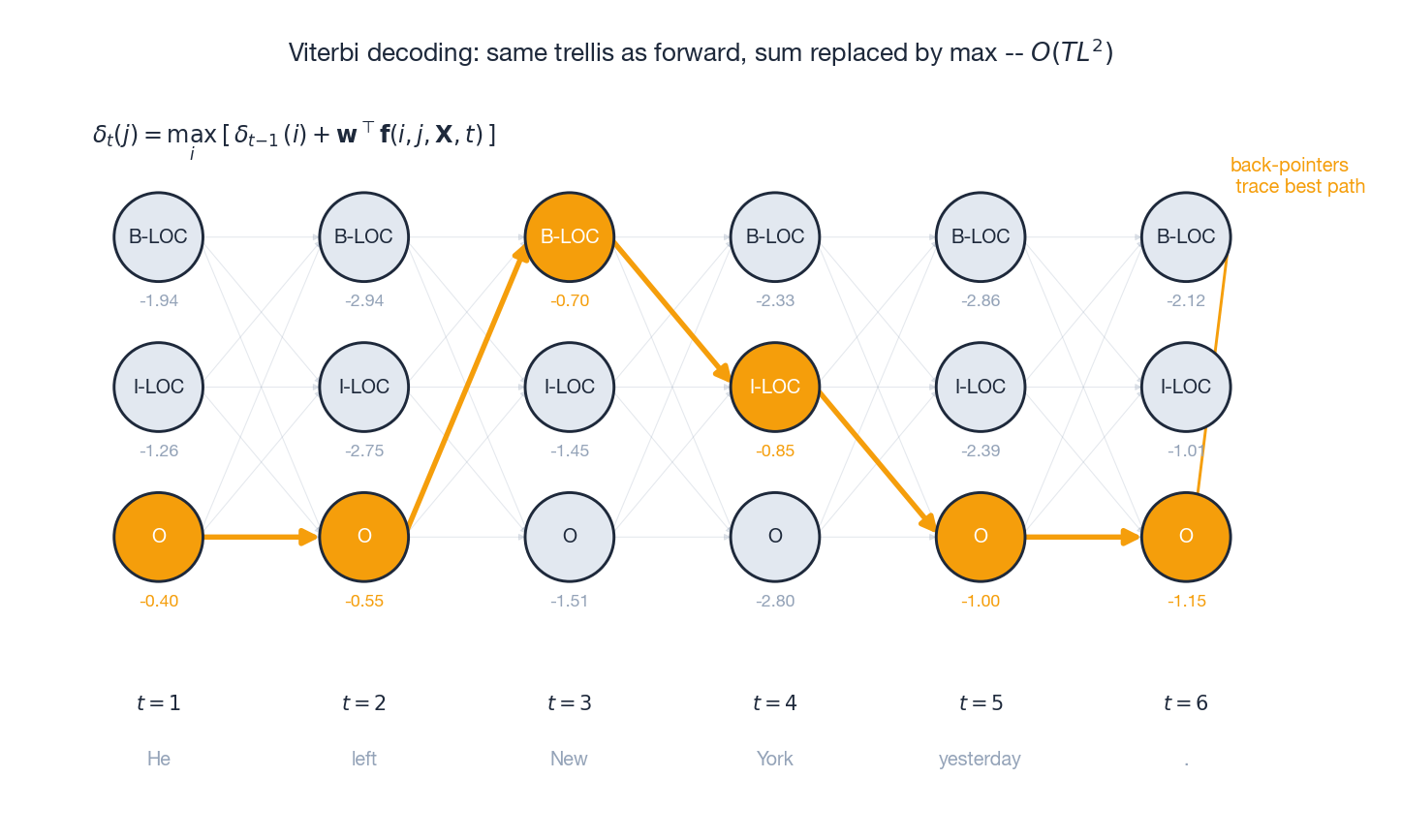

The trellis above shows it visually: faint grey arrows are all candidate transitions; orange arrows mark the surviving max at each step; the highlighted nodes form the back-pointer trace and decode to O O B-LOC I-LOC O O for the toy sentence “He left New York yesterday .”. Same $O(TL^2)$ cost as forward.

6. CRF in the Deep Learning Era: BiLSTM-CRF

Modern sequence labelling typically pairs a neural feature extractor with a CRF output layer:

• BiLSTM (or a Transformer encoder) learns a contextual representation of every token, replacing handcrafted state features with learned ones.
• CRF layer keeps a learnable transition matrix $A_{ij}$ over labels. This matters because constraints like “I-PER must follow B-PER, never O” are sequential and a token-wise softmax cannot enforce them.
• Training jointly optimises both halves end-to-end via the same negative log-likelihood objective.
• Inference still uses Viterbi.

A minimal PyTorch sketch:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

import torch
import torch.nn as nn


class BiLSTM_CRF(nn.Module):
    def __init__(self, vocab_size, tag_size, embed_dim, hidden_dim):
        super().__init__()
        self.embedding = nn.Embedding(vocab_size, embed_dim)
        self.lstm = nn.LSTM(embed_dim, hidden_dim // 2,
                            bidirectional=True, batch_first=True)
        self.hidden2tag = nn.Linear(hidden_dim, tag_size)
        # CRF transition matrix: transitions[i, j] = score j -> i
        self.transitions = nn.Parameter(torch.randn(tag_size, tag_size))

    def forward_score(self, emissions):
        """log Z(X) via the forward algorithm in log space."""
        T, L = emissions.shape
        alpha = emissions[0]  # (L,)
        for t in range(1, T):
            # alpha[i] + transitions[j, i] + emissions[t, j]
            scores = (alpha.unsqueeze(0)
                      + self.transitions
                      + emissions[t].unsqueeze(1))
            alpha = torch.logsumexp(scores, dim=1)
        return torch.logsumexp(alpha, dim=0)

    def gold_score(self, emissions, tags):
        """Score of the gold label sequence."""
        score = emissions[0, tags[0]]
        for t in range(1, len(tags)):
            score += (self.transitions[tags[t], tags[t - 1]]
                      + emissions[t, tags[t]])
        return score

    def neg_log_likelihood(self, sentence, tags):
        emissions = self.hidden2tag(
            self.lstm(self.embedding(sentence))[0].squeeze(0)
        )
        return self.forward_score(emissions) - self.gold_score(emissions, tags)

The loss is exactly $\log Z(\mathbf{X}) - \text{score}(\mathbf{Y}_{\text{gold}}, \mathbf{X})$, i.e. the negative of equation (6) for one example. Backpropagation through the forward algorithm computes the same “empirical minus expected” gradient automatically – the chain rule rediscovers (7).

End-to-end NER with confidence

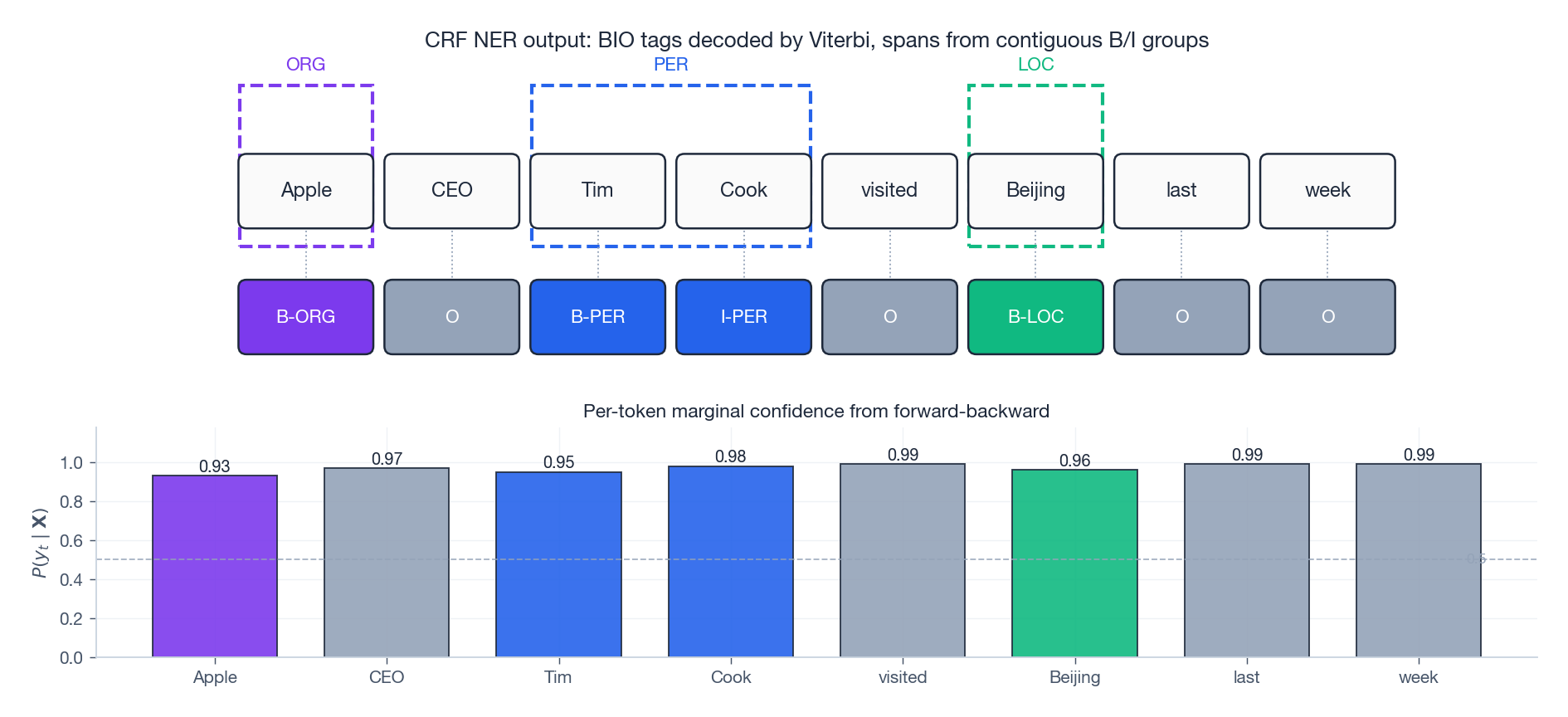

The figure above shows what a trained CRF actually outputs at inference time on the sentence “Apple CEO Tim Cook visited Beijing last week”:

• Top: the Viterbi-decoded BIO tags. Three contiguous B/I groups are decoded as spans (ORG, PER, LOC). The dashed boxes around groups are the entity spans you would emit to a downstream consumer.
• Bottom: the per-token marginal $P(y_t \mid \mathbf{X})$ from forward-backward, which acts as a calibrated confidence score. These marginals are not the same as the decoded path probability; they are computed independently per position and are useful for active learning, abstention, or downstream Bayesian aggregation.

7. Exercises

Exercise 1: CRF vs HMM features. In a POS-tagging task, explain why CRF can use the feature “the next word is a verb” but HMM cannot.

Solution: HMM’s observation-independence assumption means $P(x_t \mid y_t)$ may only inspect $x_t$ itself. CRF has no such restriction – its feature functions $\mathbf{f}(y_{t-1}, y_t, \mathbf{X}, t)$ take the entire observation sequence $\mathbf{X}$ as input, so a feature that fires when $x_{t+1}$ is a verb is perfectly legal.

Exercise 2: Designing feature templates. Design three feature functions for named entity recognition.

Solution: (1) Transition: $\mathbb{1}[y_{t-1} = \text{B-ORG},\, y_t = \text{I-ORG}]$ (organisation continuation). (2) State (capitalisation): $\mathbb{1}[y_t = \text{B-LOC},\, x_t \text{ is capitalized}]$. (3) Context: $\mathbb{1}[y_t = \text{B-PER},\, x_{t-1} = \text{Mr.}]$ (previous word is a personal title).

Exercise 3: Forward-algorithm complexity. A CRF has $T = 100$ and $L = 50$. How many operations does the forward algorithm need? Compare with brute force.

Solution: At each of $T$ positions you compute $L$ forward values, each summing over $L$ predecessors: $O(TL^2) = O(100 \cdot 50^2) = O(2.5 \times 10^5)$. Brute force enumerates all paths: $O(L^T) = O(50^{100}) \approx 10^{170}$. Dynamic programming wins by roughly 165 orders of magnitude.

Exercise 4: Gradient interpretation. State in words what $\nabla_\mathbf{w}\ell = \mathbf{F}_{\text{empirical}} - \mathbb{E}_{\text{model}}[\mathbf{F}]$ means and what holds at convergence.

Solution: If a feature fires more often in the training data than the current model expects, its weight is pushed up; if the model over-predicts a feature, the weight is pushed down. At convergence (gradient = 0), empirical and expected feature counts match exactly. This is the maximum-entropy condition: among all distributions consistent with the empirical feature averages, the CRF picks the one with maximum entropy.

Exercise 5: CRF Viterbi vs HMM Viterbi. Both use Viterbi. What is the only real difference?

Solution: The trellis and the $O(TL^2)$ DP recursion are identical. The difference is the per-edge score: HMM uses local probabilities $\log P(x_t \mid y_t) + \log P(y_t \mid y_{t-1})$; CRF uses an inner product $\mathbf{w}^\top \mathbf{f}(y_{t-1}, y_t, \mathbf{X}, t)$ where the feature vector may inspect any function of the whole $\mathbf{X}$.

Exercise 6: Why label bias bites MEMM but not CRF. Show with a tiny two-state example why local normalisation can ignore the observation, and explain why global normalisation does not.

Solution: Suppose state $A$ has only one outgoing transition (to $B$) while state $C$ has 50. After local softmax, the $A \to B$ probability is 1 regardless of the observation – the model has nothing to be uncertain about. CRF’s single denominator $Z(\mathbf{X})$ sums over whole paths, so a high-scoring path through $A$ must out-score all whole paths through $C$ – and observation evidence does enter that comparison.

References

[1] Lafferty, J., McCallum, A., & Pereira, F. C. (2001). Conditional random fields: Probabilistic models for segmenting and labeling sequence data. ICML.

[2] Sutton, C., & McCallum, A. (2012). An introduction to conditional random fields. Foundations and Trends in Machine Learning, 4(4), 267-373.

[3] Huang, Z., Xu, W., & Yu, K. (2015). Bidirectional LSTM-CRF models for sequence tagging. arXiv:1508.01991.

[4] Lample, G., Ballesteros, M., Subramanian, S., Kawakami, K., & Dyer, C. (2016). Neural architectures for named entity recognition. NAACL-HLT.

[5] Ma, X., & Hovy, E. (2016). End-to-end sequence labeling via bi-directional LSTM-CNNs-CRF. ACL.

This is Part 16 of the ML Mathematical Derivations series. Next: Part 17 – Dimensionality Reduction and PCA . Previous: Part 15 – Hidden Markov Models .
