ODE Chapter 6: Linear Systems and the Matrix Exponential

One equation describes one quantity. The world is rarely that obliging. Predator and prey populations push each other up and down. Currents and voltages in an RLC network oscillate together. Chemical species in a reaction network feed into one another. The moment two unknowns share an equation, you have a system, and a single $y'=ay$ is no longer enough.

The miracle of the linear case is this: the scalar formula $y(t)=e^{at}y_0$ generalizes verbatim once you learn what $e^{At}$ means for a matrix $A$. Linear algebra and ODEs fuse into one object — the matrix exponential — and its eigenstructure tells you everything about the long-term behavior, the geometry of the flow, and the physics of normal modes and beats.

What You Will Learn

Writing ODE systems in matrix form $\mathbf{x}'=A\mathbf{x}$ and why this is more than notation
The matrix exponential $e^{At}$: its definition, its properties, and three ways to compute it
The eigenvalue method, complex eigenvalues, and what to do when eigenvectors run out
The full classification of 2D phase portraits and the trace–determinant stability map
Non-homogeneous systems and Duhamel’s formula
Coupled oscillators: normal modes, beats, and energy transfer

Prerequisites

Linear algebra: eigenvalues, eigenvectors, change of basis
Chapter 3: second-order linear ODEs (every such equation becomes a 2D system)

1. From Two Coupled Equations to One Vector Equation

Consider a deliberately simple ecology model: $x(t)$ is a rabbit population in suitable units, $y(t)$ a wolf population. Rabbits multiply on their own and are eaten by wolves; wolves grow only when rabbits are present:

$$x' = 2x - y, \qquad y' = x + 0.5\,y.$$

Stack the unknowns into a vector $\mathbf{x}=(x,y)^\top$ and the coefficients into a matrix:

$$\mathbf{x}' = A\mathbf{x}, \qquad A = \begin{pmatrix} 2 & -1 \\ 1 & 0.5 \end{pmatrix}.$$

This is not just notation. It is a change of viewpoint: a single trajectory $\mathbf{x}(t)$ in the plane replaces two coupled time series. Geometry takes over from algebra.

The scalar ODE $y'=ay$ has solution $y=e^{at}y_0$. Brute analogy suggests

$$\mathbf{x}(t) = e^{At}\,\mathbf{x}_0,$$

but this is only meaningful once we say what the exponential of a matrix is. That is the central object of the chapter.

2. The Matrix Exponential

2.1 Definition by power series

Mimicking $e^x = \sum x^k/k!$:

$$e^{At} \;=\; I + At + \frac{(At)^2}{2!} + \frac{(At)^3}{3!} + \cdots \;=\; \sum_{k=0}^{\infty} \frac{(At)^k}{k!}.$$

This series converges in operator norm for every square matrix $A$ and every $t\in\mathbb{R}$, because $\|(At)^k/k!\| \le (\|A\|t)^k/k!$ and the scalar series converges.

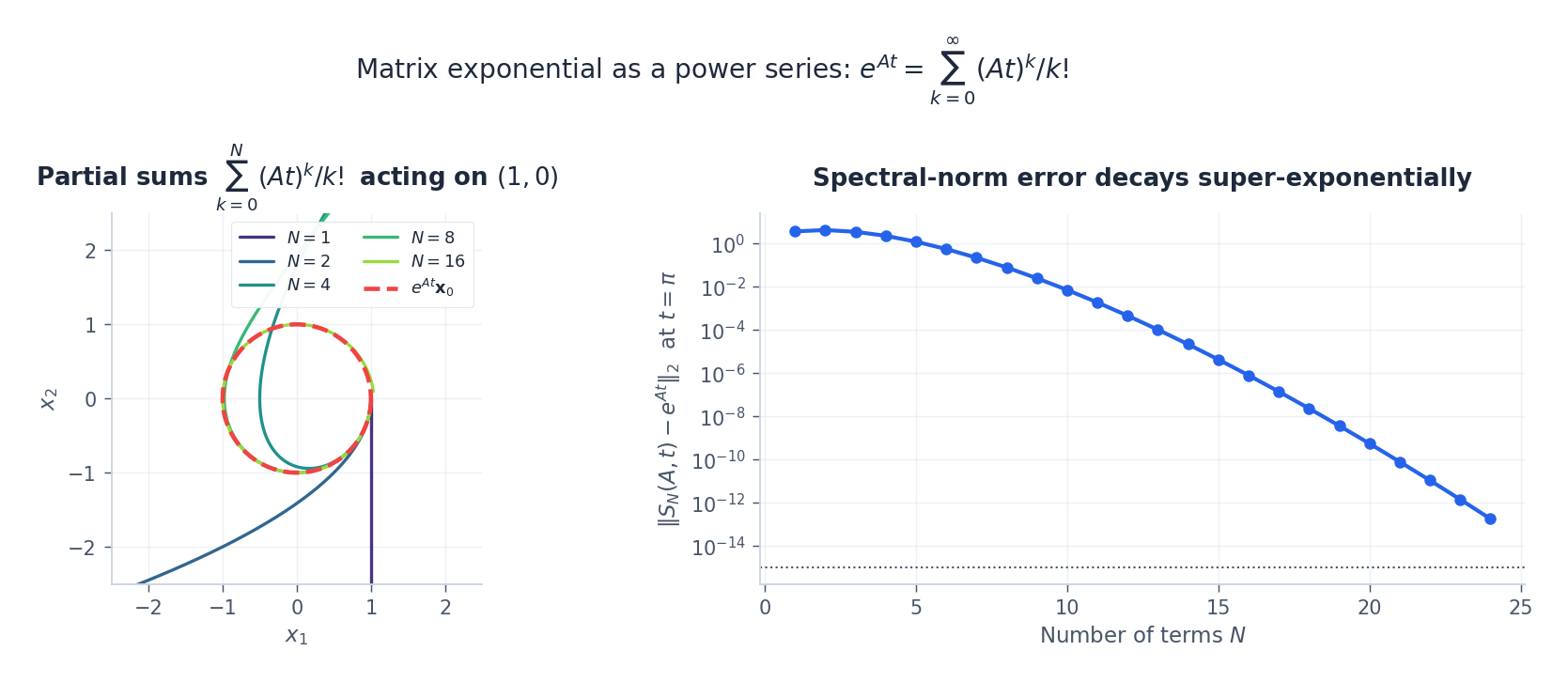

Partial sums of the matrix exponential applied to a vector, converging to the true rotation; the spectral-norm error decays super-exponentially in the number of terms.

Figure 1. Left: partial sums $\sum_{k=0}^N (At)^k/k!\;\mathbf{x}_0$ for $A$ a rotation generator, converging to the unit circle. Right: spectral-norm error decays super-exponentially with the number of terms — this is why low-degree polynomial approximants like Padé work so well.

2.2 The three properties you actually use

Once the series is in hand, three facts do almost all the work:

Property	Why it matters
$e^{A\cdot 0} = I$	Initial condition is satisfied automatically
$\dfrac{d}{dt}e^{At} = Ae^{At}$	This is exactly what makes $\mathbf{x}(t)=e^{At}\mathbf{x}_0$ solve $\mathbf{x}'=A\mathbf{x}$
$e^{At}e^{As}=e^{A(t+s)}$	The flow is a one-parameter group; in particular $(e^{At})^{-1}=e^{-At}$

A subtle warning: $e^{A+B} = e^A e^B$ holds only when $AB=BA$. This is the matrix version of the fact that $\sin(x+y)\ne \sin x+\sin y$ — non-commutativity has consequences.

2.3 Three ways to compute it in practice

Power series, truncated. Cheap conceptually, terrible numerically when $\|At\|$ is large.
Eigendecomposition. If $A$ is diagonalizable as $A=PDP^{-1}$ with $D=\mathrm{diag}(\lambda_i)$, then $$e^{At} = P\,\mathrm{diag}(e^{\lambda_1 t},\dots,e^{\lambda_n t})\,P^{-1}.$$ This is the structural formula every theoretical argument leans on.
Padé with scaling and squaring. The industrial method — used by scipy.linalg.expm, MATLAB’s expm, etc. Compute $e^{At/2^s}$ from a Padé rational approximant, then square $s$ times. Robust for large $\|At\|$.

In code:

1
2
3
4
5
6
7
8
9
import numpy as np
from scipy.linalg import expm

A = np.array([[2.0, -1.0], [1.0, 0.5]])
print(expm(A * 0.5))        # exp((0.5)A) -- uses scaling-and-squaring Padé

vals, P = np.linalg.eig(A)
expm_via_eig = P @ np.diag(np.exp(vals * 0.5)) @ np.linalg.inv(P)
print(expm_via_eig.real)    # same matrix (modulo floating-point noise)

3. The Eigenvalue Method

The eigendecomposition formula has a clean re-statement that avoids matrix exponentials altogether.

Theorem. If $A$ has eigenpairs $(\lambda_i,\mathbf{v}_i)$ with linearly independent $\mathbf{v}_i$, the general solution of $\mathbf{x}'=A\mathbf{x}$ is $\mathbf{x}(t) = c_1 e^{\lambda_1 t}\mathbf{v}_1 + c_2 e^{\lambda_2 t}\mathbf{v}_2 + \cdots + c_n e^{\lambda_n t}\mathbf{v}_n.$

The proof is a one-liner: for each eigenpair, $\frac{d}{dt}\bigl(e^{\lambda t}\mathbf{v}\bigr)=\lambda e^{\lambda t}\mathbf{v}=A\bigl(e^{\lambda t}\mathbf{v}\bigr)$. Linearity finishes the job.

3.1 Geometry: eigenvectors are the natural axes

The decomposition $A=PDP^{-1}$ has a simple geometric reading. Apply $A$ to a vector by:

$P^{-1}$: re-express the vector in the eigenbasis;
$D$: stretch along each eigen-axis by the corresponding $\lambda_i$;
$P$: re-express the stretched vector in the original basis.

The flow $e^{At}$ does the same thing but with $e^{\lambda_i t}$ stretches.

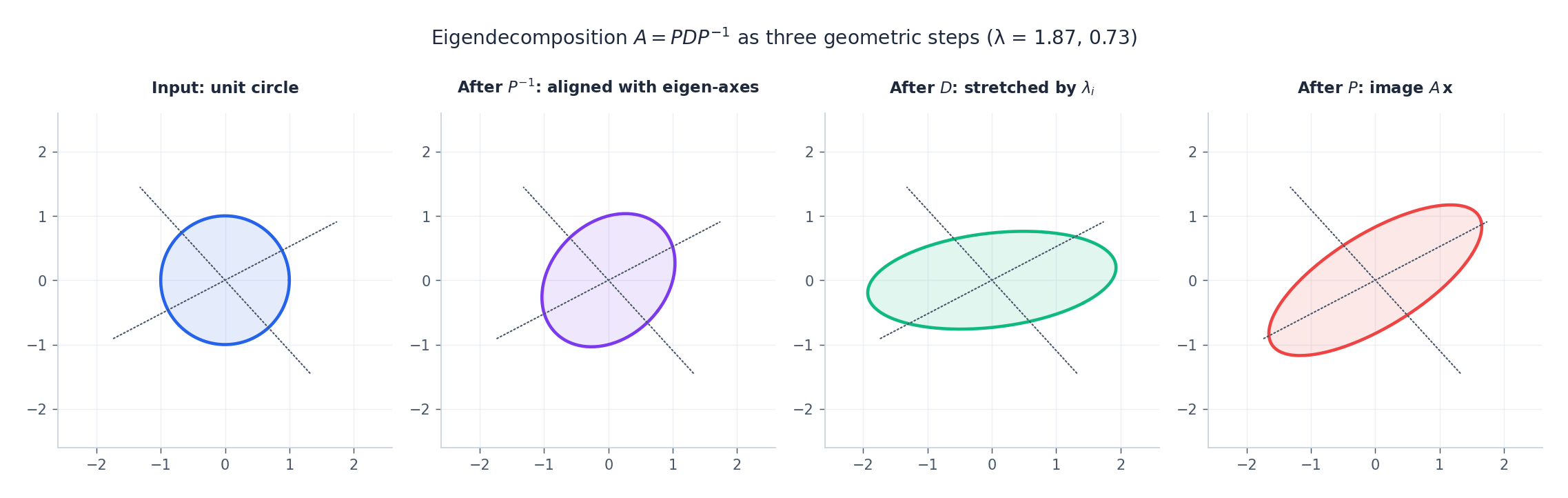

Geometric eigendecomposition: the unit circle goes to its image under A by rotating into the eigenbasis, scaling along each eigenvector, then rotating back.

Figure 2. The factorization $A=PDP^{-1}$ as three geometric steps. Eigenvectors are the natural axes in which a linear map (and its flow) is just diagonal scaling.

3.2 Complex eigenvalues give rotations

Real matrices can have complex eigenvalues, and they always come in conjugate pairs $\lambda = \alpha\pm\beta i$ with conjugate eigenvectors $\mathbf{v}=\mathbf{a}\pm i\mathbf{b}$. Taking real and imaginary parts of $e^{\lambda t}\mathbf{v}$ produces two real solutions:

$$\mathbf{x}_1(t) = e^{\alpha t}(\mathbf{a}\cos\beta t - \mathbf{b}\sin\beta t), \qquad \mathbf{x}_2(t) = e^{\alpha t}(\mathbf{a}\sin\beta t + \mathbf{b}\cos\beta t).$$

Read this geometrically: $\beta$ is the angular frequency of rotation in the $(\mathbf a,\mathbf b)$-plane, and $\alpha$ controls whether the orbit spirals outward ($\alpha>0$), inward ($\alpha<0$), or stays on a closed curve ($\alpha=0$).

4. Phase Portraits in 2D

For $\mathbf{x}'=A\mathbf{x}$ on the plane, the eigenvalues $\lambda_1,\lambda_2$ determine everything about the local geometry near the origin. The taxonomy is short and worth memorizing.

Eigenvalues	Portrait	Stability
$\lambda_1<\lambda_2<0$ (real)	Stable node — all orbits enter the origin	Asymptotically stable
$0<\lambda_1<\lambda_2$ (real)	Unstable node — all orbits flee	Unstable
$\lambda_1<0<\lambda_2$ (real)	Saddle — two stable, two unstable directions	Unstable
$\alpha\pm\beta i$, $\alpha<0$	Stable spiral	Asymptotically stable
$\alpha\pm\beta i$, $\alpha>0$	Unstable spiral	Unstable
$\pm\beta i$ (purely imaginary)	Center — closed orbits	Lyapunov stable, not asymptotic
$\lambda_1=\lambda_2$, two eigenvectors	Star node	Sign of $\lambda$
$\lambda_1=\lambda_2$, one eigenvector	Degenerate node	Sign of $\lambda$

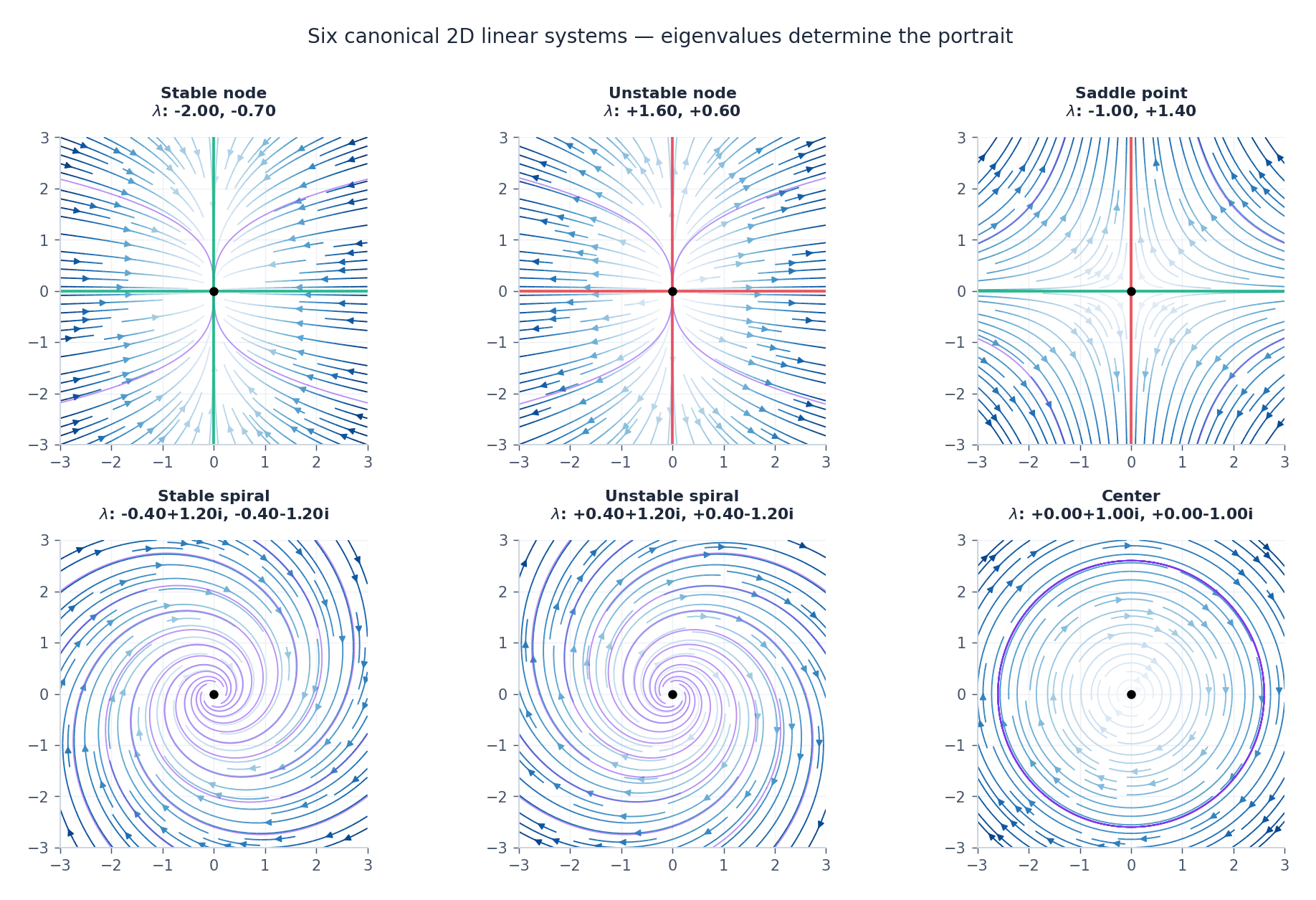

Phase portraits of the six canonical 2D linear systems, with eigenvector lines colored by stability and arrows showing the direction field.

Figure 3. The phase portrait zoo. Green lines mark stable eigen-directions, red mark unstable. The eigenvalues alone determine which picture you get — the rest is just rotation and rescaling of these six prototypes.

4.1 The trace–determinant trick

You don’t always need the eigenvalues themselves; for a $2\times 2$ matrix the characteristic polynomial is

$$\lambda^2 - \tau\lambda + \delta = 0, \qquad \tau = \mathrm{tr}\,A = \lambda_1+\lambda_2, \quad \delta = \det A = \lambda_1\lambda_2,$$

so the discriminant is $\Delta = \tau^2 - 4\delta$. The position of $(\tau,\delta)$ in the plane already classifies the equilibrium:

$\delta < 0$ → real eigenvalues of opposite sign → saddle.
$\delta > 0,\ \Delta > 0$ → real same-sign eigenvalues → node (sign of $\tau$ gives stability).
$\delta > 0,\ \Delta < 0$ → complex eigenvalues → spiral (sign of $\tau$ gives stability).
$\delta > 0,\ \tau = 0$ → purely imaginary → center.
The parabola $\Delta = 0$ is the locus of repeated eigenvalues.

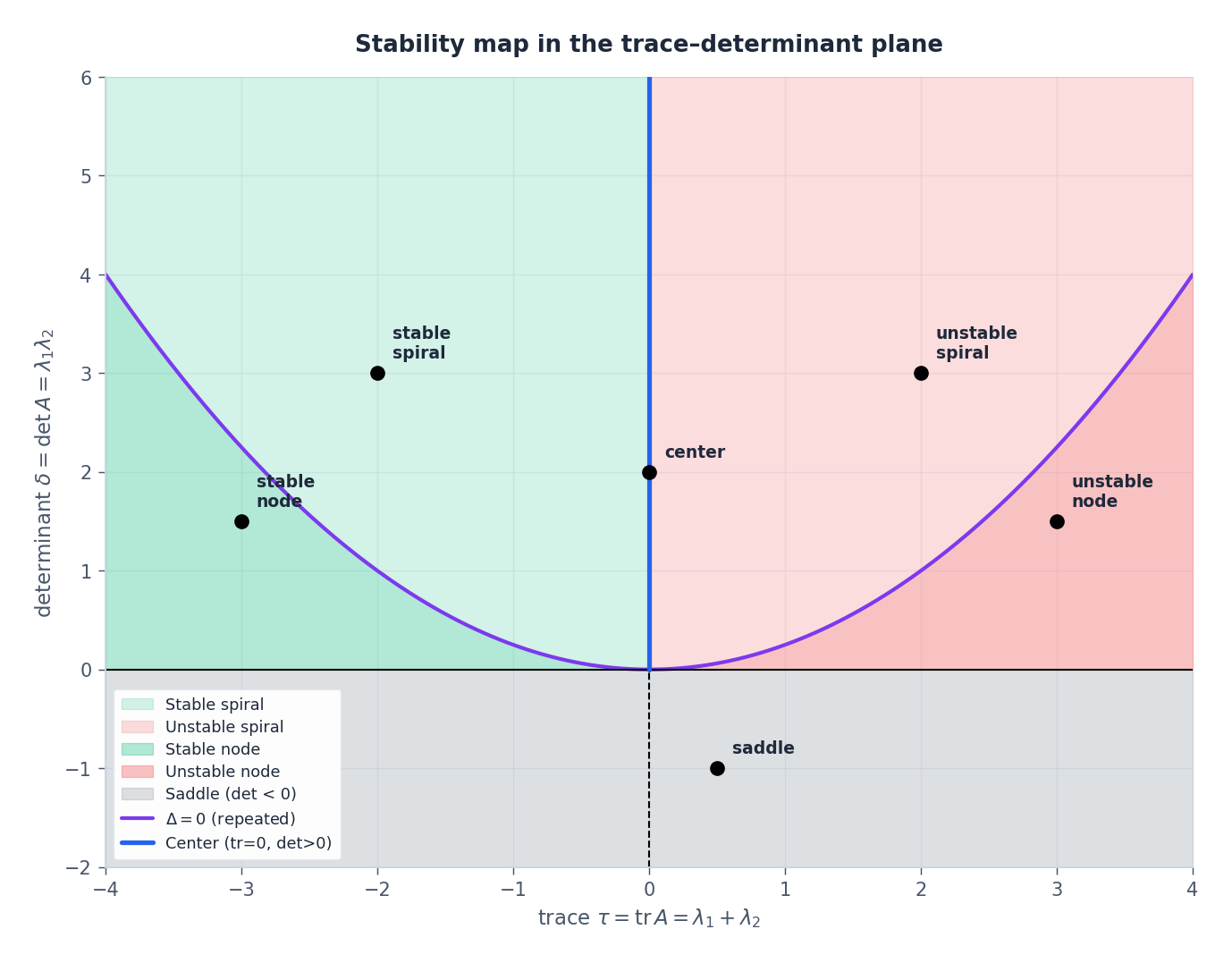

Stability map in the trace-determinant plane: parabola Delta=0 separates nodes from spirals, the axis det=0 marks saddles, and tr=0 with det>0 marks centers.

Figure 4. The stability map. A single point $(\tau,\delta)$ tells you the equilibrium type without ever computing the eigenvalues. Centers — the line $\tau=0,\ \delta>0$ — are non-generic: an arbitrarily small perturbation pushes them into spirals.

5. Repeated Eigenvalues and Generalized Eigenvectors

The classification table above quietly hides a complication. A repeated eigenvalue $\lambda$ with algebraic multiplicity $2$ may have either two linearly independent eigenvectors (rare — this happens iff $A=\lambda I$ on that subspace; the result is a star node) or only one (the generic defective case — a degenerate node).

In the defective case, the eigenvalue method gives only one solution $e^{\lambda t}\mathbf{v}$. The trick: solve

$$(A - \lambda I)\,\mathbf{w} = \mathbf{v}$$

for a generalized eigenvector $\mathbf{w}$. Then

$$\mathbf{x}_2(t) \;=\; e^{\lambda t}\bigl(t\,\mathbf{v} + \mathbf{w}\bigr)$$

is a second, linearly independent solution. The polynomial-times-exponential growth of the $t$ factor is the algebraic fingerprint of degeneracy.

This is exactly the Jordan-block phenomenon: $A$ acts like $\lambda I + N$ where $N$ is nilpotent, and $e^{(\lambda I + N)t} = e^{\lambda t}(I + tN + \tfrac12 t^2 N^2 + \cdots)$. The series terminates because $N$ is nilpotent, leaving a polynomial in $t$.

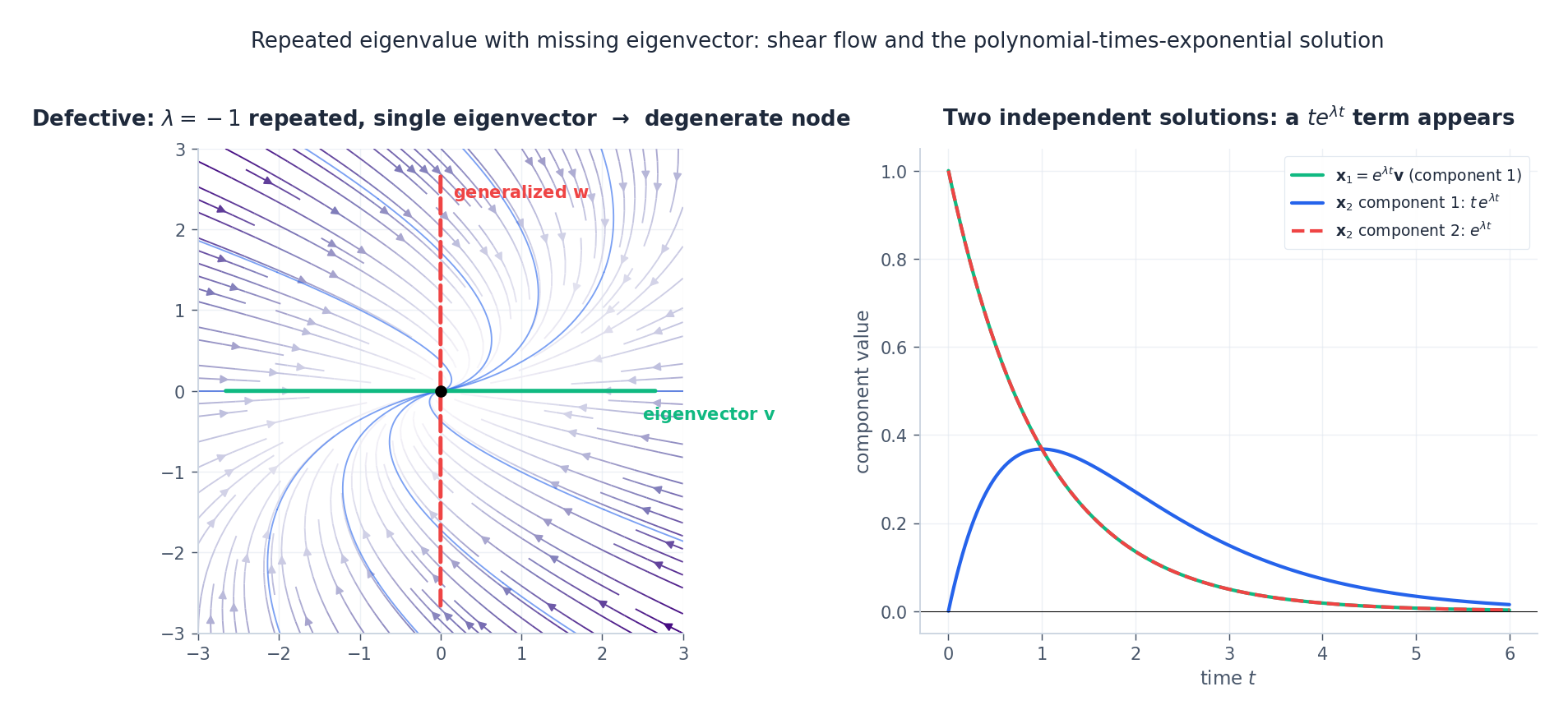

A defective 2x2 system: the flow shears toward the single eigen-direction, and the second independent solution acquires a t e^{lambda t} component.

Figure 5. Left: the defective system $\dot{\mathbf{x}}=\bigl(\begin{smallmatrix}-1&1\\0&-1\end{smallmatrix}\bigr)\mathbf{x}$. The single eigen-direction (green) is the only one orbits can come in along; the generalized direction (red dashed) is where the shear $t\mathbf v$ term lives. Right: the components of the two basis solutions — note the rising-then-decaying $t e^{\lambda t}$ shape.

6. Non-Homogeneous Systems: Duhamel’s Formula

Add a forcing term:

$$\mathbf{x}' = A\mathbf{x} + \mathbf{g}(t), \qquad \mathbf{x}(0)=\mathbf{x}_0.$$

The solution is the matrix version of variation of parameters:

$$\boxed{\;\mathbf{x}(t) \;=\; e^{At}\mathbf{x}_0 \;+\; \int_0^t e^{A(t-\tau)}\,\mathbf{g}(\tau)\,d\tau.\;}$$

This is Duhamel’s formula. Read the integrand $e^{A(t-\tau)}\mathbf{g}(\tau)$ this way: at time $\tau$ the forcing kicks the system by $\mathbf{g}(\tau)d\tau$, and that kick then propagates freely under the flow $e^{A(t-\tau)}$ for the remaining time. The full state is the superposition of all such delayed responses — a continuous-time impulse response.

In control theory the same formula appears with $\mathbf{g}(t) = B\mathbf u(t)$:

$$\mathbf{x}(t) = e^{At}\mathbf{x}_0 + \int_0^t e^{A(t-\tau)} B\,\mathbf u(\tau)\,d\tau,$$

and we are one short step from controllability and the matrix $\bigl[B,\,AB,\,A^2B,\dots\bigr]$.

7. Application: Coupled Oscillators, Normal Modes, and Beats

Two equal masses on a line, each tied to a wall by a spring of stiffness $k$ and to each other by a coupling spring of stiffness $\kappa$:

Wall —/\/\/— [m] —/\/\/— [m] —/\/\/— Wall
       k        κ        k

Newton’s laws give

$$\ddot x_1 = -k\,x_1 + \kappa(x_2 - x_1), \qquad \ddot x_2 = -k\,x_2 + \kappa(x_1 - x_2).$$

A clean change of variables is $u=\tfrac{x_1+x_2}{\sqrt 2}$, $v=\tfrac{x_1-x_2}{\sqrt 2}$. The equations decouple:

$$\ddot u = -k\,u, \qquad \ddot v = -(k+2\kappa)\,v.$$

These are the normal modes: an in-phase mode at angular frequency $\omega_s=\sqrt{k}$ (the coupling spring never stretches) and an out-of-phase mode at $\omega_a=\sqrt{k+2\kappa}$ (the coupling spring is doing extra work). Every motion is a superposition of the two.

The drama happens when the modes are nearly degenerate ($\kappa \ll k$): displacing only mass 1 excites both modes with equal amplitude, and their slow relative dephasing causes energy to slosh entirely from mass 1 into mass 2 and back. These are beats — the audible rise and fall when two slightly mistuned tuning forks sound together.

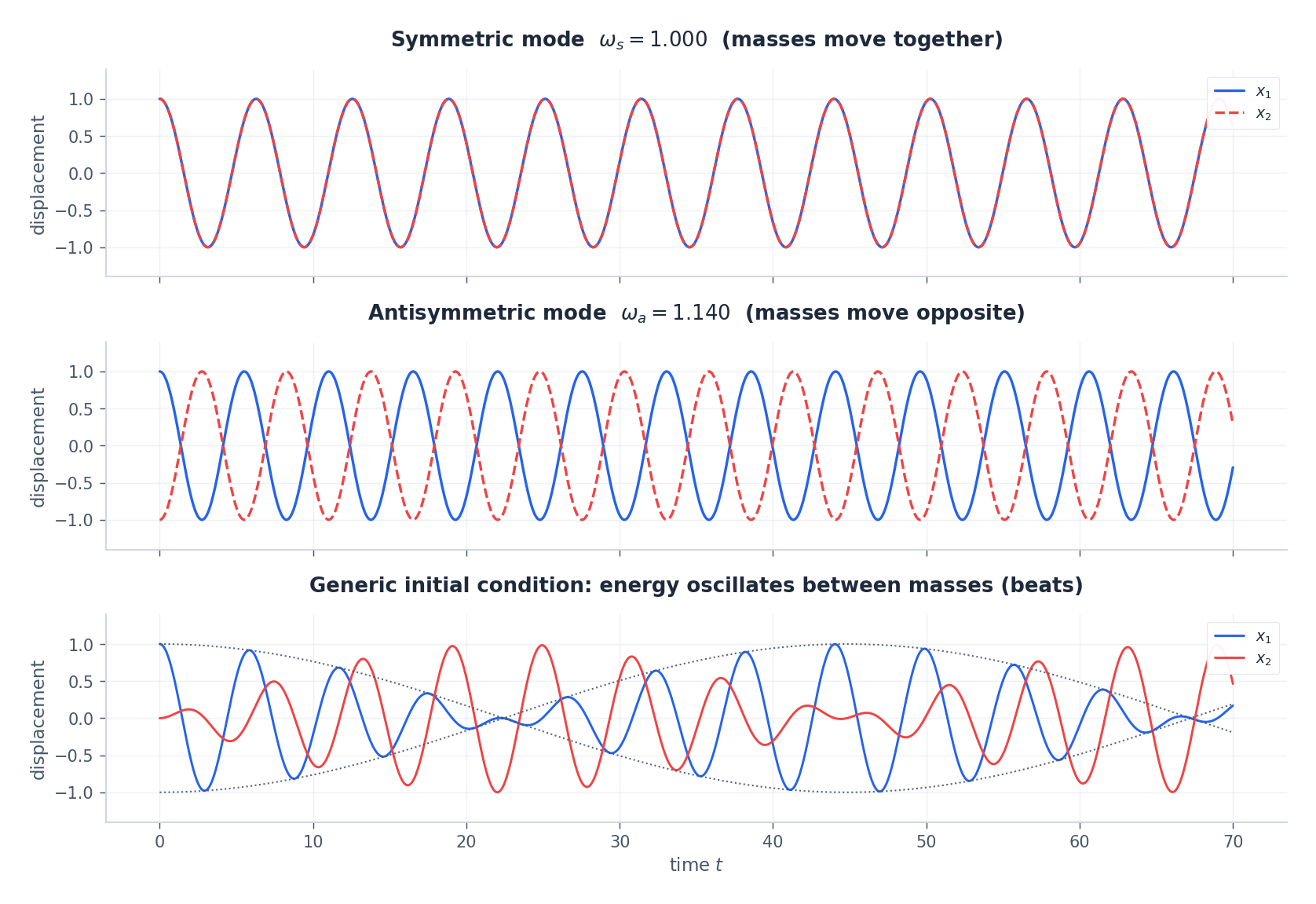

Three time-series stacked: pure symmetric mode, pure antisymmetric mode, and the beat pattern arising when only one mass is initially displaced.

Figure 6. Symmetric mode (top): both masses move in phase at $\omega_s$. Antisymmetric mode (middle): they move out of phase at the higher frequency $\omega_a$. Generic initial condition (bottom): the two modes are slightly mistuned and their interference produces beats — energy moves periodically from one mass to the other under the dotted envelope $\cos\bigl(\tfrac{\omega_a-\omega_s}{2}t\bigr)$.

This is the same mathematics as Rabi oscillations between two quantum states, the swap of energy in coupled LC circuits, and the synchronization of weakly coupled pendulum clocks.

8. Stability: The Eigenvalue Criterion

For the linear flow $\mathbf{x}'=A\mathbf{x}$, the long-time behavior is decided entirely by the spectrum of $A$:

Theorem.
All $\mathrm{Re}(\lambda) < 0\ \Longrightarrow\ e^{At}\to 0$, and the origin is asymptotically stable.
Any $\mathrm{Re}(\lambda) > 0\ \Longrightarrow$ origin is unstable.
The borderline $\mathrm{Re}(\lambda) = 0$ requires a closer look (centers, Jordan blocks).

The liouville formula sharpens this: $\det \Phi(t) = \det \Phi(0)\,\exp\bigl(\int_0^t \mathrm{tr}\,A\,d\tau\bigr)$. So $\mathrm{tr}\,A < 0$ means phase-space volumes contract (a dissipative system), $\mathrm{tr}\,A = 0$ means volumes are preserved (the Hamiltonian case), and $\mathrm{tr}\,A > 0$ means they expand.

Chapter 7 will lift this entire theory to nonlinear systems via linearization at fixed points — the Hartman–Grobman theorem says that, away from the borderline cases, the local picture of a nonlinear system is the picture of its Jacobian.

Summary

Concept	Key Point
Vector form $\mathbf{x}'=A\mathbf{x}$	Solution is $e^{At}\mathbf{x}_0$
Matrix exponential	Power series; computed via eigendecomposition or Padé scaling-and-squaring
Eigenvalue method	$\sum c_k e^{\lambda_k t}\mathbf{v}_k$ — linear combinations of eigenmodes
Complex eigenvalues	Real solutions are $e^{\alpha t}\bigl(\cos\beta t,\ \sin\beta t\bigr)$-style — spirals
Repeated, defective	Generalized eigenvector adds a $te^{\lambda t}$ solution
Phase portraits	Eigenvalues $\to$ node / spiral / saddle / center; trace-det map summarizes
Non-homogeneous	Duhamel: $\mathbf{x}=e^{At}\mathbf{x}_0+\int_0^t e^{A(t-\tau)}\mathbf{g}(\tau)d\tau$
Stability	All $\mathrm{Re}(\lambda)<0\ \Leftrightarrow$ asymptotically stable

Exercises

Basic

Compute $e^{At}$ for $A=\bigl(\begin{smallmatrix}0&1\\-1&0\end{smallmatrix}\bigr)$ from the power series and by eigendecomposition. Verify they agree.
Solve $\mathbf{x}'=\bigl(\begin{smallmatrix}1&2\\0&3\end{smallmatrix}\bigr)\mathbf{x}$ with $\mathbf{x}(0)=(1,1)^\top$.
Classify the origin for (a) $A=\bigl(\begin{smallmatrix}-1&2\\-2&-1\end{smallmatrix}\bigr)$ and (b) $A=\bigl(\begin{smallmatrix}1&0\\0&-2\end{smallmatrix}\bigr)$.

Advanced

Prove $\det e^A = e^{\mathrm{tr}\,A}$. Hint: upper-triangularize $A$ over $\mathbb C$ (Schur decomposition).
Find the normal-mode frequencies of three equal masses in a line, each connected to its neighbour and to the walls by springs of stiffness $k$. Identify the symmetric, antisymmetric, and “breathing” modes.
Give a $2\times 2$ counterexample to $e^{A+B}=e^A e^B$ when $AB\ne BA$.

Programming

Write a phase-portrait plotter that, given any $2\times 2$ matrix, automatically labels the equilibrium type using the trace–determinant test.
Simulate the coupled-oscillator system for varying coupling $\kappa$ and plot the beat period $T_{\text{beat}} = 2\pi/(\omega_a - \omega_s)$ as a function of $\kappa$. Compare against the small-$\kappa$ approximation.

References

Hirsch, Smale, & Devaney, Differential Equations, Dynamical Systems, and an Introduction to Chaos, Academic Press (2012)
Strang, Linear Algebra and Learning from Data, Wellesley-Cambridge (2019)
Moler & Van Loan, “Nineteen Dubious Ways to Compute the Exponential of a Matrix,” SIAM Review 45(1) (2003)
Perko, Differential Equations and Dynamical Systems, Springer (2001)
