Optimization (1): Convex Analysis Foundations

This article is the foundation the rest of the series is built on. Almost every result we will prove later — convergence rates of gradient descent, Lagrangian duality, the proximal operator, even the analysis of stochastic methods — relies on a small set of facts about convex sets and convex functions. We will derive all of them from scratch.

If you only remember three things from this article, make it these:

A set is convex iff it contains every line segment between its points; a function is convex iff its epigraph is a convex set.
The conjugate $$f^*$$ is the Legendre transform generalized — it converts pointwise inequalities into linear ones and is the bridge between primal and dual problems.
The subdifferential $\partial f(x)$ is the right notion of “gradient” for non-smooth convex functions; it is non-empty whenever $$x$$ lies in the relative interior of $\mathrm{dom}(f)$ .

The first time I tried to prove a gradient-descent convergence rate on my own, I got stuck not on the inequalities but on a wall of innocent-looking words: convex set, epigraph, conjugate, subgradient. None of them is mysterious; together they felt like jargon for jargon’s sake.

This article is what I wish someone had written for me back then. We start with a few mental pictures — a line segment, a bowl, a pair of tangent lines — and only then do we start gluing names onto them. By the time we are deriving step-size bounds or Lagrangian duality, you will see that all of these tools are just a small handful of geometric moves coming back in different costumes.

If you only remember three things:

A set is convex iff it contains every line segment between its points; a function is convex iff its epigraph (the region above its graph) is convex. Every other definition reduces to this.
The conjugate $$f^*$$ converts pointwise inequalities into linear ones — it is the bridge under every duality argument later in the series.
The subdifferential $\partial f(x)$ extends “gradient” to convex functions with corners; it is non-empty as long as $$x$$ sits comfortably inside the domain.

Below I build all of this up from the most ordinary 2-D pictures, asking “what real shape is this describing?” before writing any formula.

What You Will Learn#

Convex sets, convex hulls, the projection theorem (with proof).
Convex functions and the four equivalent characterizations (definition, epigraph, first-order condition, second-order condition).
Operations that preserve convexity — pointwise sup, composition, perspective.
The conjugate function $$f^*$$ and Fenchel–Young inequality.
Subgradients and the subdifferential calculus.
Worked computations: $\partial \|x\|_1$ , $\partial \|x\|_2$ , $\partial \max\{0, x\}$ .

Prerequisites#

Linear algebra (inner products, norms), basic real analysis (limits, continuity, supremum), and multivariable calculus (gradients, Hessians). No prior optimization background required.

Convex sets#

Definition and basic examples#

\lambda x + (1 - \lambda) y \in C.

Geometrically: the segment connecting any two points of $$C$$ stays inside $$C$$ .

Examples worth knowing by heart:

Affine subspaces $\{x : Ax = b\}$ and halfspaces $\{x : a^\top x \leq b\}$ .
Norm balls $\{x : \|x\| \leq r\}$ for any norm.
The positive semidefinite cone $\mathbf{S}^n_+ = \{X \in \mathbb{R}^{n \times n} : X = X^\top, X \succeq 0\}$ .
The probability simplex $\Delta^{n-1} = \{p \in \mathbb{R}^n_+ : \sum_i p_i = 1\}$ .

A surprising one: the set of invertible matrices is not convex. Consider $$X = I$$ and $$Y = -I$$ ; their midpoint is the zero matrix.

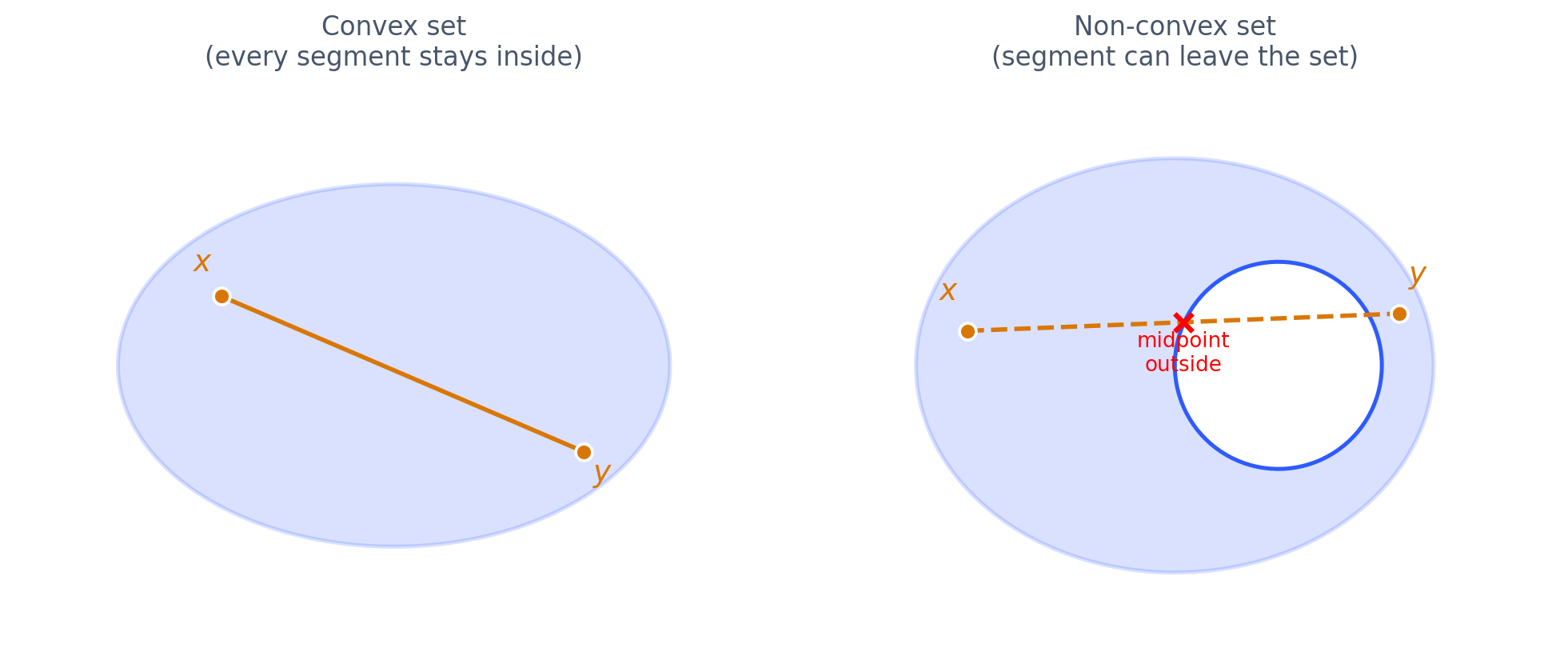

Convex set vs non-convex set: a set is convex iff every line segment between two of its points stays inside.

Operations that preserve convexity#

The following constructions take convex inputs to convex outputs. Each is a one-line check from the definition; you should be able to write the proofs without looking.

Operation	Statement
Intersection	$\bigcap_{i \in I} C_i$ is convex if each $$C_i$$ is.
Affine image	$A C + b = \{Ax + b : x \in C\}$ is convex.
Cartesian product	$C_1 \times C_2$ is convex.
Sum	$C_1 + C_2 = \{x + y : x \in C_1, y \in C_2\}$ is convex.
Inverse affine image	$\{x : Ax + b \in C\}$ is convex.

The intersection rule is the most useful in practice — it is the reason a polyhedron $\{x : Ax \leq b\}$ is convex (it is an intersection of halfspaces) and why the feasible set of a convex optimization problem is convex.

The projection theorem#

A theorem we will use repeatedly:

Projection theorem. Let $C \subseteq \mathbb{R}^n$ be a non-empty closed convex set and $y \in \mathbb{R}^n$ . There exists a unique point $\pi_C(y) \in C$ minimizing $\|x - y\|_2$ over $x \in C$ . Moreover, $z = \pi_C(y)$ if and only if

\langle y - z, x - z \rangle \leq 0 \quad \text{for all } x \in C.

\|x_k - x_m\|_2^2 = 2 \|x_k - y\|_2^2 + 2 \|x_m - y\|_2^2 - 4 \left\| \tfrac{x_k + x_m}{2} - y \right\|_2^2.

\|x_k - x_m\|_2^2 \leq 2 \|x_k - y\|_2^2 + 2 \|x_m - y\|_2^2 - 4 d^2 \to 0

as $k, m \to \infty$ . The sequence converges to some $$z$$ , which lies in $$C$$ because $$C$$ is closed and satisfies $\|z - y\|_2 = d$ .

\|z_1 - z_2\|_2^2 \leq 2 d^2 + 2 d^2 - 4 d^2 = 0,

so $$z_1 = z_2$$ .

\|y - z\|_2^2 \leq \|y - z - \lambda (x - z)\|_2^2 = \|y - z\|_2^2 - 2 \lambda \langle y - z, x - z \rangle + \lambda^2 \|x - z\|_2^2.

2 \langle y - z, x - z \rangle \leq \lambda \|x - z\|_2^2.

Letting $\lambda \to 0^+$ gives the inequality. The converse is a similar calculation: assume the inequality holds for all $x \in C$ and expand $\|x - y\|_2^2 = \|(x - z) - (y - z)\|_2^2 \geq \|y - z\|_2^2$ . $\blacksquare$

The projection theorem has a beautiful geometric reading: $\pi_C(y)$ is the point of $$C$$ where the segment $y \to z$ meets $$C$$ at an angle of at most $90^\circ$ to every other direction inside $$C$$ .

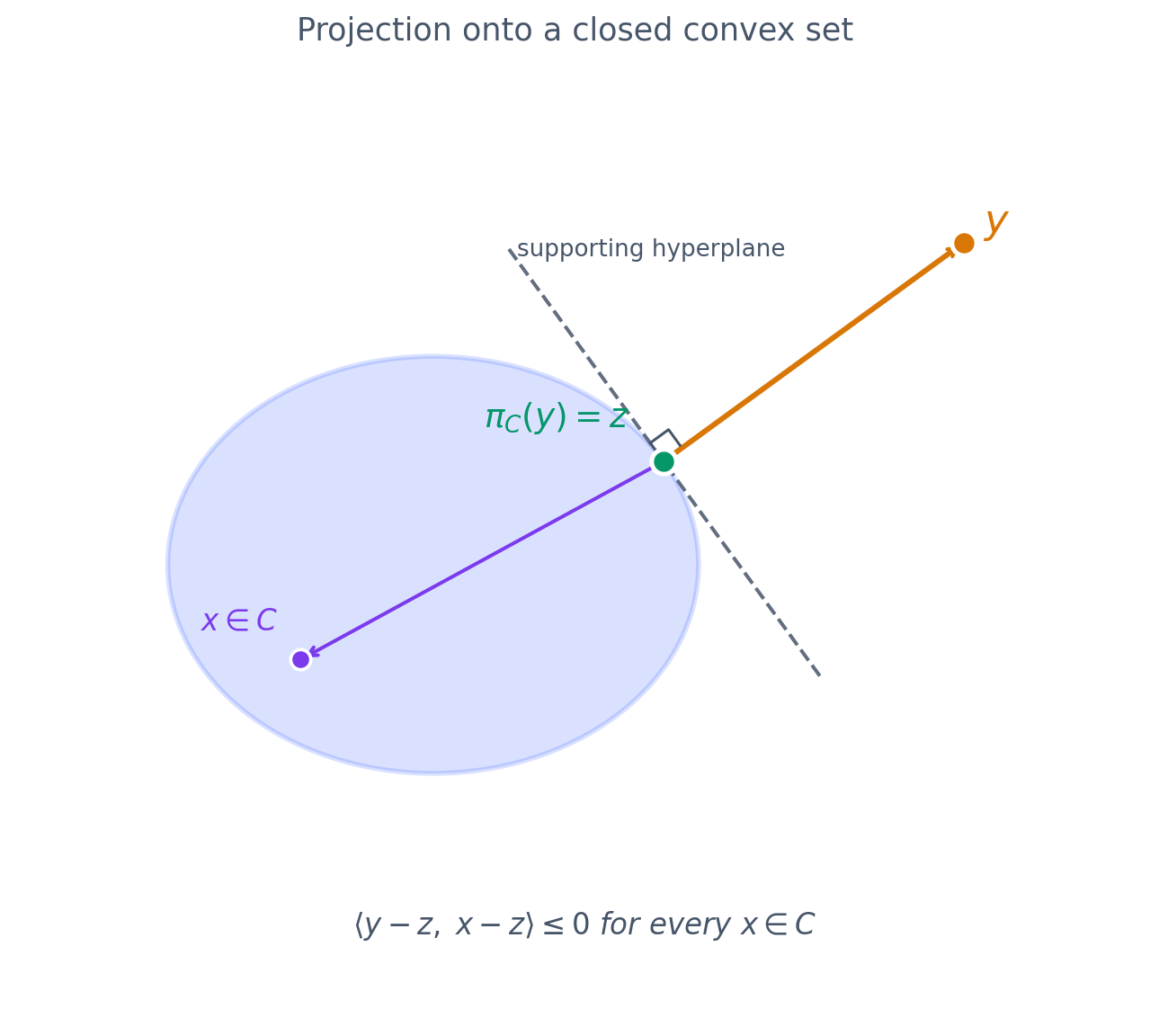

Projection of $y$
onto a closed convex set $C$
: $z = \pi_C(y)$
is the unique closest point, and the residual $y - z$
makes a non-acute angle with every direction $x - z$
pointing into $C$
.

Convex functions#

Four equivalent characterizations#

Let $f : \mathbb{R}^n \to \mathbb{R} \cup \{+\infty\}$ with effective domain $\mathrm{dom}(f) = \{x : f(x) < +\infty\}$ assumed convex. The following are equivalent and we will use them interchangeably:

f(\lambda x + (1 - \lambda) y) \leq \lambda f(x) + (1 - \lambda) f(y). \tag{D}

Epigraph characterization. The set $\mathrm{epi}(f) = \{(x, t) \in \mathbb{R}^{n+1} : f(x) \leq t\}$ is a convex subset of $\mathbb{R}^{n+1}$ .

f(y) \geq f(x) + \langle \nabla f(x), y - x \rangle. \tag{F1}

\nabla^2 f(x) \succeq 0. \tag{F2}

Equivalence of (D) and the epigraph: $(\lambda x + (1 - \lambda) y, \lambda s + (1 - \lambda) t) \in \mathrm{epi}(f)$ for any $(x, s), (y, t) \in \mathrm{epi}(f)$ is exactly inequality (D) when we take $$s = f(x), t = f(y)$$ .

\frac{f(x + \lambda (y - x)) - f(x)}{\lambda} \leq f(y) - f(x).

Letting $\lambda \to 0^+$ on the left yields the directional derivative $\langle \nabla f(x), y - x \rangle$ .

f(x + tv) \geq f(x) + t \langle \nabla f(x), v \rangle.

Taylor expansion gives $f(x + tv) = f(x) + t \langle \nabla f(x), v \rangle + \tfrac{t^2}{2} v^\top \nabla^2 f(x) v + o(t^2)$ . Comparing yields $v^\top \nabla^2 f(x) v \geq 0$ .

(F2) $\Rightarrow$ (D): integrate twice. Specifically, for the line $g(\lambda) = f((1 - \lambda) x + \lambda y)$ , $g''(\lambda) = (y - x)^\top \nabla^2 f((1 - \lambda) x + \lambda y) (y - x) \geq 0$ , so $$g$$ is convex on $$[0, 1]$$ , which is exactly (D).

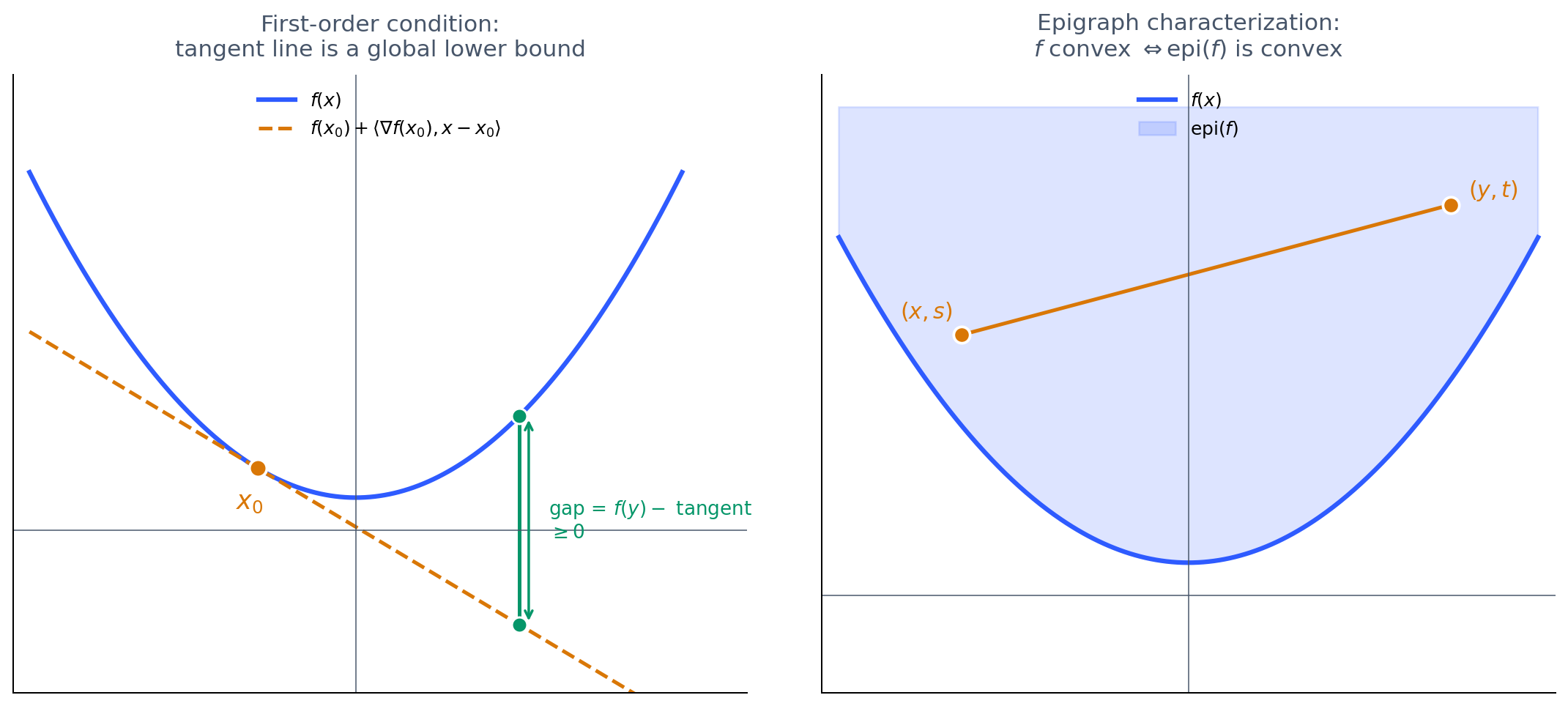

Two equivalent views of convexity: (left) the first-order condition says the tangent at any point is a global lower bound on $f$
; (right) the epigraph $\mathrm{epi}(f)$
is itself a convex set in $\mathbb{R}^{n+1}$
.

Strict and strong convexity#

Strictly convex: (D) holds with strict inequality whenever $x \neq y$ and $\lambda \in (0, 1)$ .
$\mu$ -strongly convex (for $\mu > 0$ ): $f - \frac{\mu}{2} \|x\|_2^2$ is convex. Equivalently, $f(y) \geq f(x) + \langle \nabla f(x), y - x \rangle + \frac{\mu}{2} \|y - x\|_2^2.$ Strong convexity is to convexity what “uniformly continuous” is to continuous — it gives a quantitative gap and is what makes optimization rates concrete. We unpack it in detail in article 02.

Examples#

You should be able to verify each of these with the second-order condition (or directly):

$$f(x)$$	Convex?	Justification
$\mid x\mid_p$ for $p \geq 1$	Yes	Triangle inequality + positive homogeneity.
$\log(1 + e^x)$ (softplus)	Yes	$f''(x) = \frac{e^x}{(1 + e^x)^2} > 0$ .
$-\log \det X$ on $\mathbf{S}^n_{++}$	Yes	Hessian is $X^{-1} \otimes X^{-1}$ ; PSD.
$x \log x$ on $\mathbb{R}_+$	Yes	$$f''(x) = 1/x > 0$$ .
$$x^4$$	Strictly convex	$f''(x) = 12 x^2 \geq 0$ , vanishes only at $$x = 0$$ (not strong).
$\frac{1}{2} x^\top Q x$ , $Q \succ 0$	$\lambda_{\min}(Q)$ -strongly convex	$\nabla^2 f = Q$ .

Operations preserving convexity#

Operation	Convexity preserved?
Non-negative weighted sum	Yes ( $\sum_i w_i f_i$ with $w_i \geq 0$ ).
Pointwise supremum	$\sup_{i \in I} f_i$ is convex (epigraph is intersection of epigraphs).
Composition with affine map	$$g(x) = f(Ax + b)$$ inherits convexity.
Composition $$g(x) = h(f(x))$$	Convex if $$h$$ is convex non-decreasing and $$f$$ is convex.
Perspective $$g(x, t) = t f(x/t)$$ for $$t > 0$$	Convex.
Partial minimization	$g(x) = \inf_y f(x, y)$ is convex if $$f$$ is jointly convex.

The pointwise supremum rule is the secret weapon: it explains why the support function $\sigma_C(y) = \sup_{x \in C} \langle y, x \rangle$ is convex regardless of $$C$$ , and why the maximum of convex functions is convex.

The conjugate function#

f^*(y) = \sup_{x \in \mathbb{R}^n} \big[ \langle y, x \rangle - f(x) \big].

The conjugate $$f^*$$ is always convex, even if $$f$$ is not — it is the pointwise supremum of affine functions of $$y$$ .

Geometric reading#

For a fixed slope $$y$$ , $$f^*(y)$$ is the largest value of $\langle y, x \rangle - f(x)$ . Equivalently, the affine function $x \mapsto \langle y, x \rangle - f^*(y)$ is the highest affine minorant of $$f$$ with slope $$y$$ . So $$f^*$$ tracks, for each slope, how far the supporting hyperplane sits below the graph.

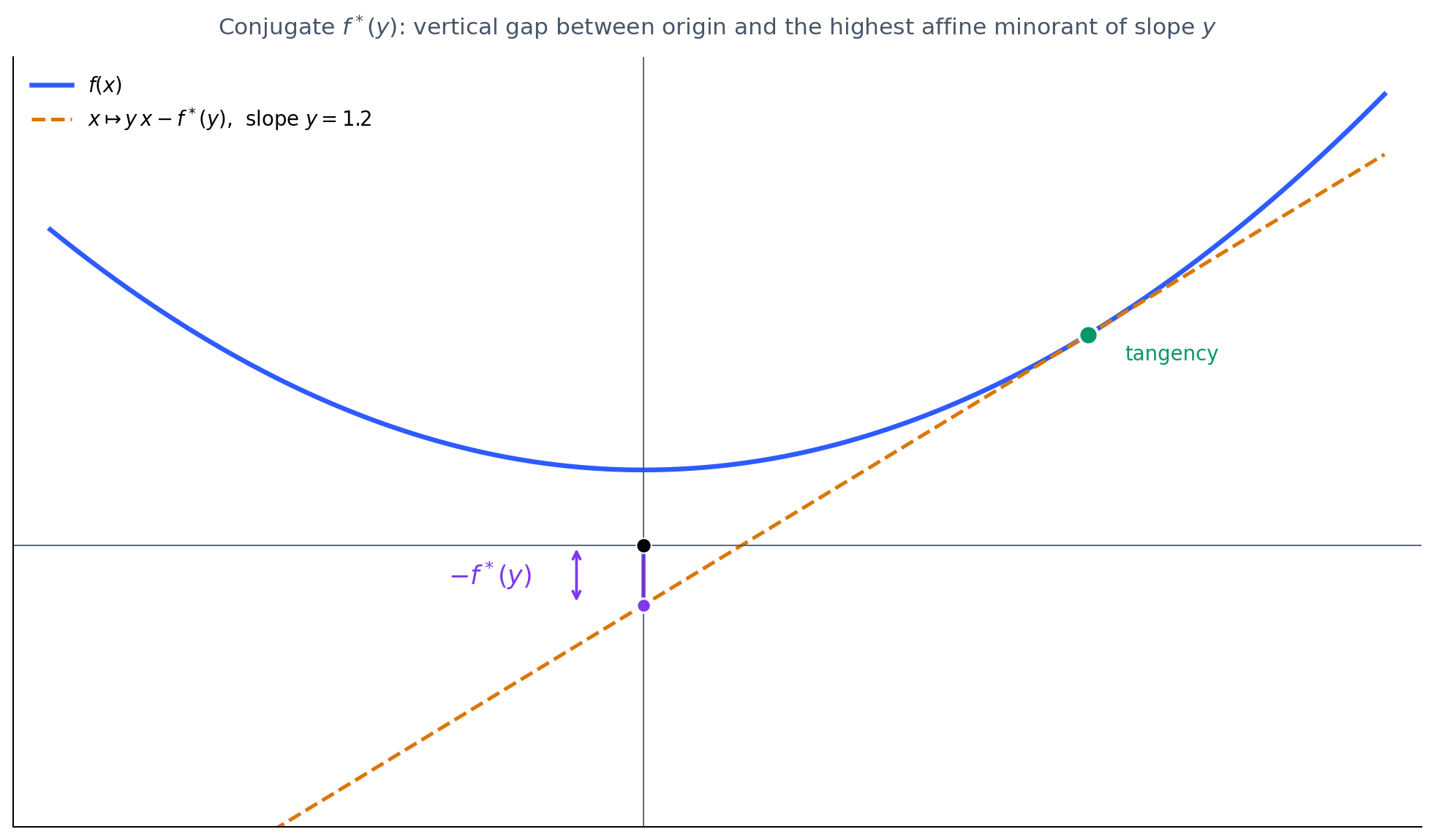

Geometric meaning of the conjugate: for slope $y$
, the highest affine minorant of $f$
with that slope is $x \mapsto y\,x - f^*(y)$
; the value $f^*(y)$
measures the vertical drop from the origin to where this line crosses the $y$
-axis.

Fenchel–Young inequality#

f(x) + f^*(y) \geq \langle x, y \rangle. \tag{FY}

Equality holds iff $y \in \partial f(x)$ (introduced below). This is the convex-analytic generalization of the AM-GM and Young inequalities; setting $f(x) = \frac{1}{p} |x|^p$ for $$p > 1$$ and computing $$f^*$$ recovers the classical Young inequality $\frac{|x|^p}{p} + \frac{|y|^q}{q} \geq xy$ with $\frac{1}{p} + \frac{1}{q} = 1$ .

Worked conjugates#

Memorize these — we use them as building blocks throughout the series.

$$f(x)$$	$$f^*(y)$$
$\frac{1}{2} \mid x\mid_2^2$	$\frac{1}{2} \mid y\mid_2^2$ (self-conjugate).
$\frac{1}{2} x^\top Q x$ , $Q \succ 0$	$\frac{1}{2} y^\top Q^{-1} y$ .
Indicator $\iota_C$	Support function $\sigma_C(y) = \sup_{x \in C} \langle y, x \rangle$ .
$\mid x\mid$ (any norm)	$\iota_{B^\circ}(y) = \begin{cases} 0 & \mid y\mid_* \leq 1 \\ +\infty & \text{else} \end{cases}$ where $\mid\cdot\mid_*$ is the dual norm.
$$e^x$$	$y \log y - y$ for $$y > 0$$ (entropy-like).
$\log(1 + e^x)$	$y \log y + (1 - y) \log(1 - y)$ for $y \in [0, 1]$ .
$-\log x$ on $$x > 0$$	$-1 - \log(-y)$ on $$y < 0$$ .

The pair (norm, indicator of dual unit ball) explains the entire LASSO duality story we develop in article 06.

Biconjugate and why convexity is closure under $$(f^)^$$ #

The biconjugate $f^{**} = (f^*)^*$ satisfies $f^{**} \leq f$ pointwise. The two are equal exactly when $$f$$ is convex and lower semicontinuous; in that case $f^{**} = f$ . So the operation “take the conjugate twice” is the smallest convex closed function below $$f$$ — the convex envelope of $$f$$ . This is why people sometimes write convex relaxations as $f^{**}$ .

Subgradients#

The subdifferential#

\partial f(x) = \{g \in \mathbb{R}^n : f(y) \geq f(x) + \langle g, y - x \rangle \text{ for all } y\}.

A vector $$g$$ in $\partial f(x)$ is a subgradient at $$x$$ . Compare with (F1): when $$f$$ is differentiable, $\partial f(x) = \{\nabla f(x)\}$ , a singleton.

x^\star \in \arg\min f \iff 0 \in \partial f(x^\star).

Existence and basic calculus#

Theorem. If $$f$$ is convex and $x \in \mathrm{relint}(\mathrm{dom}(f))$ , then $\partial f(x)$ is non-empty.

This follows from the existence of a supporting hyperplane to the convex set $\mathrm{epi}(f)$ at $$(x, f(x))$$ (the supporting hyperplane theorem). When $$x$$ is on the boundary of the domain, $\partial f(x)$ may be empty — for example, $f(x) = -\sqrt{x}$ on $[0, \infty)$ has $\partial f(0) = \emptyset$ .

Calculus rules — these are the workhorses of proximal methods:

Rule	Statement
Sum	$\partial(f + g)(x) = \partial f(x) + \partial g(x)$ if $\mathrm{relint}\,\mathrm{dom}\,f \cap \mathrm{relint}\,\mathrm{dom}\,g \neq \emptyset$ .
Affine composition	$\partial(f \circ A)(x) = A^\top \partial f(Ax)$ when $\mathrm{relint}\,\mathrm{dom}\,f \cap \mathrm{range}(A) \neq \emptyset$ .
Pointwise max	$\partial \max_i f_i(x) = \mathrm{conv} \bigcup_{i \in I(x)} \partial f_i(x)$ where $I(x) = \{i : f_i(x) = \max_j f_j(x)\}$ .
Conjugate equivalence	$g \in \partial f(x) \iff x \in \partial f^(g) \iff f(x) + f^(g) = \langle x, g \rangle$ .

Worked examples#

\partial f(x) = \begin{cases} \{1\} & x > 0 \\ \{-1\} & x < 0 \\ [-1, 1] & x = 0. \end{cases}

At $$x = 0$$ , every slope between $$-1$$ and $$1$$ defines a tangent line that lies below $$|x|$$ everywhere.

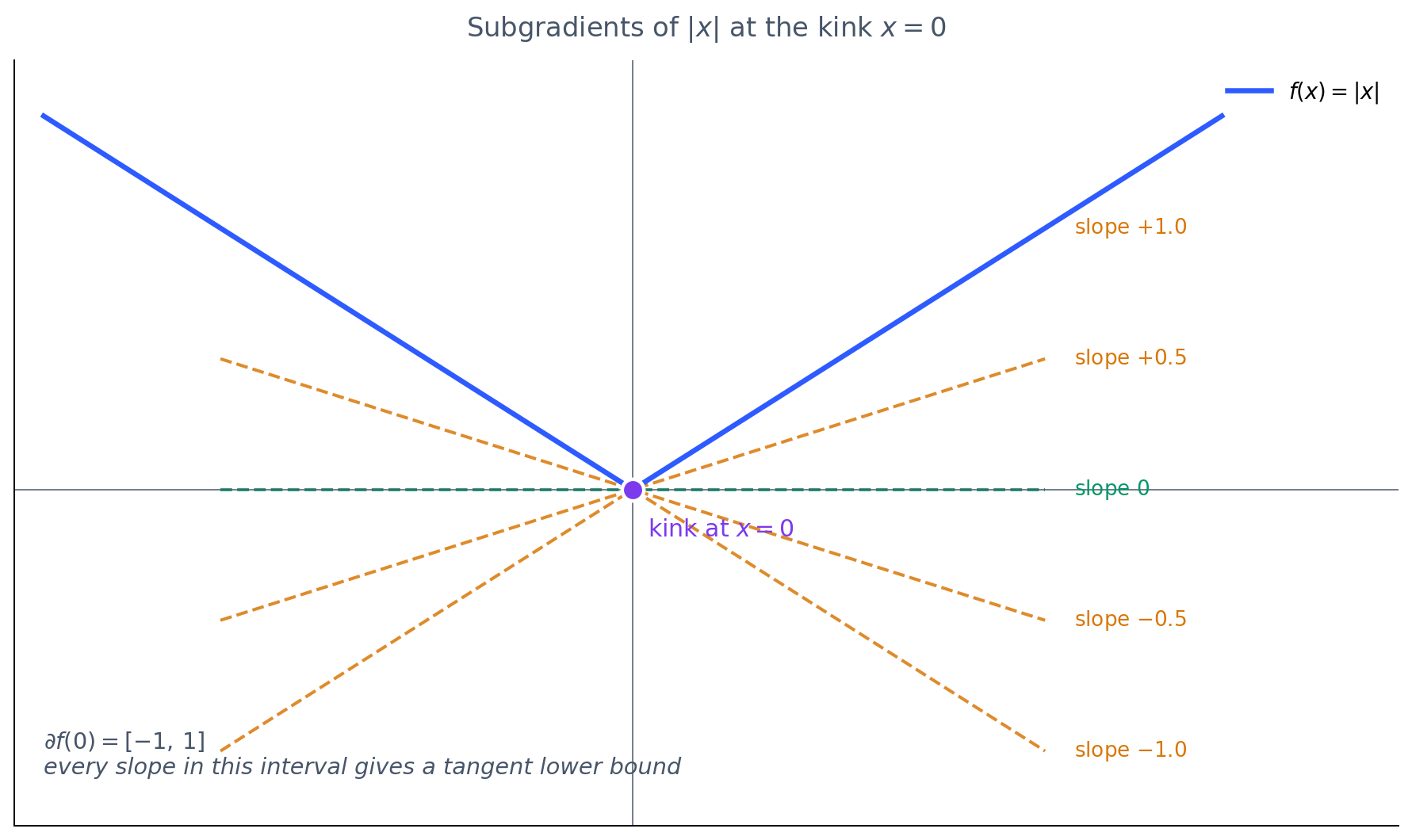

Subgradients of $|x|$
at the kink: every slope in $[-1, 1]$
produces a line through the origin that stays below $|x|$
, so $\partial f(0) = [-1, 1]$
.

Example 2: $f(x) = \|x\|_1$ on $\mathbb{R}^n$ .

g_i = \begin{cases} \mathrm{sign}(x_i) & x_i \neq 0 \\ \in [-1, 1] & x_i = 0. \end{cases}

This is exactly the structure ISTA exploits to produce sparse solutions.

\partial \|\cdot\|_2(x) = \begin{cases} \{x / \|x\|_2\} & x \neq 0 \\ \{g : \|g\|_2 \leq 1\} & x = 0. \end{cases}

\partial f(x) = \begin{cases} \{0\} & x > 1 \\ \{-1\} & x < 1 \\ [-1, 0] & x = 1. \end{cases}

The point $$x = 1$$ is the kink — at this margin boundary, the loss can be assigned any slope in $$[-1, 0]$$ , which is what lets SVM duality go through cleanly.

Optimality: from $\nabla f = 0$ to $0 \in \partial f$ #

The result we will rely on most: if $$f$$ is convex, then $x^\star \in \arg\min f$ iff $0 \in \partial f(x^\star)$ . The forward direction is (D) applied to $y = x^\star$ and arbitrary $$x$$ . For the reverse, $0 \in \partial f(x^\star)$ means $f(y) \geq f(x^\star)$ for all $$y$$ .

0 \in \partial f(x^\star) + N_C(x^\star),

where $N_C(x^\star) = \{g : \langle g, y - x^\star \rangle \leq 0 \ \forall y \in C\}$ is the normal cone of $$C$$ at $x^\star$ . We will revisit this with KKT in article 08.

Putting it together: a worked problem#

\min_x F(x) := \tfrac{1}{2} \|Ax - b\|_2^2 + \lambda \|x\|_1,

with $A \in \mathbb{R}^{m \times n}$ , $b \in \mathbb{R}^m$ , $\lambda > 0$ .

0 \in A^\top (Ax^\star - b) + \lambda \, \partial \|\cdot\|_1(x^\star).

r_i = -\lambda \, \mathrm{sign}(x^\star_i) \text{ if } x^\star_i \neq 0, \quad r_i \in [-\lambda, \lambda] \text{ if } x^\star_i = 0.

This is the celebrated KKT condition for LASSO — it tells us that any coordinate with $|r_i| < \lambda$ must have $x^\star_i = 0$ , i.e. why $\ell_1$ regularization produces sparsity. We rederive it as a fixed point of the soft-threshold operator in article 06.

Summary#

Concept	What it lets you do
Convex set	Talk about feasibility and projection cleanly.
Convex function	Use any of the four equivalent characterizations to verify convexity quickly.
Conjugate $$f^*$$	Cross between primal and dual, derive Young-type inequalities, build duals.
Subgradient	Replace $\nabla f$ when $$f$$ is non-smooth; state optimality as $0 \in \partial f$ .
Normal cone	State optimality on a constrained domain; bridge to KKT.

The next article makes this concrete: we show that adding two extra assumptions — Lipschitz smoothness and strong convexity — gives quantitative convergence rates for gradient descent.

What’s Next#

Article 02 builds smoothness and strong convexity on top of these foundations and proves the convergence of GD in three regimes.
Article 06 uses subgradients and the conjugate to derive ISTA, FISTA, and ADMM.
Article 08 generalizes the optimality condition $0 \in \partial f$ to constrained problems via the KKT system.

References#

Boyd & Vandenberghe, Convex Optimization, Ch. 2–3 — the canonical reference for sets and functions.
Rockafellar, Convex Analysis — the deeper monograph; everything about subgradients and conjugates is here.
Bertsekas, Convex Optimization Theory, Ch. 1 — concise and self-contained.
Nesterov, Lectures on Convex Optimization, Ch. 1 — the modern algorithmic angle.
