Optimization (5): Acceleration Beyond Nesterov

Article 02 introduced Nesterov acceleration and showed it improves the per-iteration cost from $\kappa$ to $\sqrt{\kappa}$ . This article asks the deeper questions:

• Why $\sqrt{\kappa}$ and not faster? We prove a matching lower bound — no first-order method can do better.
• Is Nesterov the only way? Polyak’s Heavy-Ball method achieves the same rate using a completely different update rule.
• Can we accelerate any solver? The Catalyst framework wraps a black-box optimizer to gain the accelerated rate, at the cost of solving a regularized subproblem.

The unifying tool is a Lyapunov potential — a non-negative quantity that the algorithm decreases at every step. Both Nesterov and Heavy-Ball admit Lyapunov proofs, and the lower bound essentially says no Lyapunov decrease can happen faster.

We met Nesterov acceleration last article: it cuts the per-condition-number cost of gradient descent from $\kappa$ down to $\sqrt{\kappa}$ . After reading that I was left with three sharp questions of my own:

• Why $\sqrt{\kappa}$ , and not faster? Where does that number come from?
• Is Nesterov the only way? Polyak’s Heavy-Ball method looks completely different but hits the same rate.
• Can we wrap any slow solver and make it accelerated? The Catalyst framework says yes, at the cost of an inner regularized subproblem.

This article answers those three. The unifying tool is a Lyapunov potential — a non-negative quantity that the algorithm forces down at every step. Both Nesterov and Heavy-Ball admit such a Lyapunov story, and the lower bound is essentially the statement that no Lyapunov potential can decay faster.

If you have only seen Nesterov as a formula to memorize, this article will give you the underlying “energy is decreasing” picture that makes the formula inevitable.

What You Will Learn#

1. The Nemirovski–Yudin lower bound: $\Omega(\sqrt{\kappa} \log(1/\epsilon))$ iterations are necessary for any first-order method on the worst-case smooth strongly convex problem.
2. Polyak’s Heavy-Ball method, its continuous-time limit (a damped second-order ODE), and its Lyapunov analysis.
3. The estimate-sequence framework — Nesterov’s original bookkeeping device — and a cleaner Lyapunov-style derivation.
4. Adaptive restart: why fixed-momentum acceleration overshoots and how restart fixes it.
5. The Catalyst meta-algorithm: black-box acceleration via inner regularized solves.
6. A worked example comparing GD, Heavy-Ball, Nesterov, Catalyst on a poorly-conditioned quadratic.

Prerequisites#

Article 01 (convex analysis basics), article 02 (Lipschitz smoothness, strong convexity, and the basic Nesterov update). Comfort with manipulating quadratic forms and reading “for any $L, \mu$ , there exists a function such that…” style proofs.

The lower bound: why $\sqrt{\kappa}$ is the speed limit#

This captures GD, Heavy-Ball, Nesterov, conjugate gradient, and basically every method that only queries $\nabla f$ at the visited points.

Theorem (Nesterov, 1983). For every $L \geq \mu > 0$ and every $k \leq (n-1)/2$ (where $n$ is the dimension), there exists an $L$ -smooth $\mu$ -strongly convex function $f$ such that for any first-order method,

In particular, achieving $\epsilon$ -accuracy requires at least $\Omega(\sqrt{\kappa} \log(1/\epsilon))$ iterations.

The worst-case function#

and let $f(x) = \frac{L - \mu}{8} (x^\top A x - 2 e_1^\top x) + \frac{\mu}{2} \|x\|_2^2$ , where $e_1$ is the first standard basis vector.

The Hessian is $\nabla^2 f = \frac{L-\mu}{4} A + \mu I$ . Computing the eigenvalues of $A$ — they are $4 \sin^2 \frac{j \pi}{2(n+1)}$ for $j = 1, \ldots, n$ — shows $\nabla^2 f$ has eigenvalues in $[\mu, L]$ , so $f$ is $L$ -smooth and $\mu$ -strongly convex.

Why this function is hard#

Starting from $x_0 = 0$ , the gradient $\nabla f(x_0) = -\frac{L - \mu}{4} e_1 + \mu \cdot 0 = -\frac{L-\mu}{4} e_1$ is non-zero only in the first coordinate. After $k$ iterations of any first-order method, $x_k$ lies in $\mathrm{span}\{e_1, e_2, \ldots, e_k\}$ — the first $k$ coordinates. Why? Because $A$ is tridiagonal, multiplying a vector supported on the first $j$ coordinates by $A$ produces a vector supported on the first $j+1$ coordinates.

So after $k$ iterations the last $n - k$ coordinates of $x_k$ are still zero, and the residual $f(x_k) - f^\star$ is determined by an $(n-k)$ -dimensional sub-problem with the same condition number. Carefully tracking this gives the $\Omega(\sqrt{\kappa} \log(1/\epsilon))$ rate; we omit the algebra (Nesterov 2004 §2.1.2 has the full derivation).

The takeaway: any first-order method that sees only $\nabla f$ at visited points is information-theoretically stuck at $\sqrt{\kappa}$ . Going faster requires either (a) more information about $f$ (second-order methods, article 07), or (b) structure beyond smoothness + strong convexity.

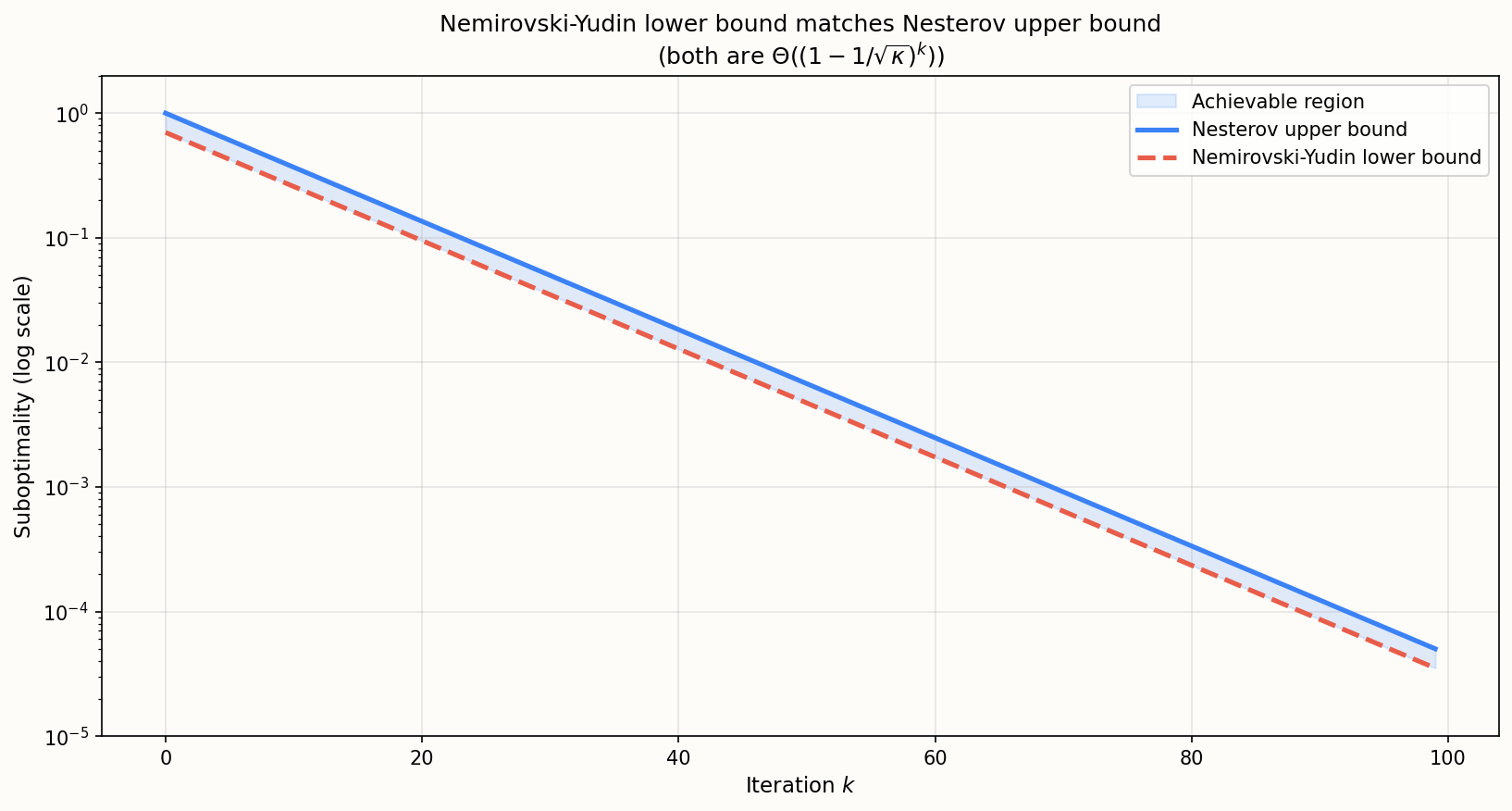

The shaded band above shows the optimal-rate region: any first-order method’s worst-case error must lie at or above the Nemirovski-Yudin curve, and Nesterov’s method actually attains that rate (up to constants). Plain GD lives in a much higher region — its $(1 - 1/\kappa)^{2k}$ envelope decays roughly $\sqrt{\kappa}$ times slower than the accelerated bound.

Polyak’s Heavy-Ball method#

The physical analogy#

A heavy ball gathers momentum: it does not simply follow $-\nabla f$ at every instant but inherits velocity from previous steps. Acceleration arises from this inertia.

where $\alpha = h^2 / m$ and $\beta = 1 - \gamma h / m$ . This is Polyak’s Heavy-Ball update: a gradient step plus a momentum term proportional to the previous step.

The optimal parameters#

with rate $\rho(M) = \frac{\sqrt{\kappa} - 1}{\sqrt{\kappa} + 1}$ . This is the same accelerated rate as Nesterov, achieved with a much simpler-looking update.

The catch: Heavy-Ball is not globally convergent#

Polyak proved his rate for quadratics. For general smooth strongly convex functions, the same parameters can fail to converge — Lessard, Recht, Packard (2016) gave an explicit smooth strongly convex counterexample where Heavy-Ball with the optimal-quadratic parameters cycles forever. This is in stark contrast to Nesterov’s method, which converges on every $L$ -smooth $\mu$ -strongly convex function.

The fix is to use slightly conservative parameters or to verify convergence empirically; in practice Heavy-Ball is the workhorse behind PyTorch’s momentum=0.9 for SGD and works well for neural networks even though the theoretical guarantees are only for quadratics.

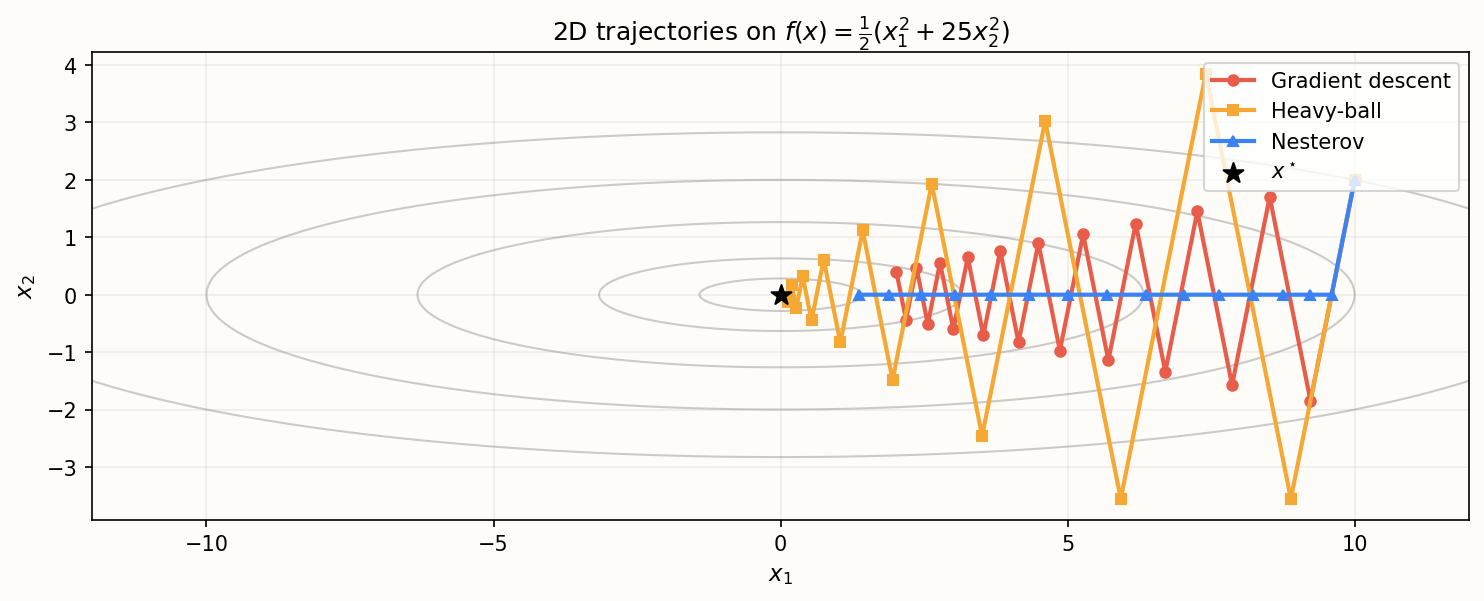

GD zig-zags along the steep $x_1$ direction and crawls along the flat $x_2$ direction. Heavy-Ball and Nesterov both overshoot the optimum thanks to inertia, then swing back — but each oscillation is a coarse correction in the right direction, so they reach the optimum in far fewer iterations.

A unified Lyapunov framework#

The estimate-sequence (Nesterov’s original device)#

combined with $\phi_k(x^\star) \to f(x^\star)$ at rate $(1 - \sqrt{\mu/L})^k$ gives the accelerated convergence.

Estimate sequences are powerful but laborious to set up. The modern presentation is via Lyapunov functions, which we develop next.

The Lyapunov approach#

Iterating gives $V_k \leq (1 - \sqrt{\mu/L})^k V_0$ , hence $f(x_k) - f^\star \leq V_k = O((1 - 1/\sqrt{\kappa})^k)$ , which is the accelerated rate.

The Lyapunov argument generalizes: for any algorithm whose update can be written as a discretization of a damped second-order ODE $\ddot x + \gamma(t) \dot x + \nabla f(x) = 0$ with appropriate $\gamma(t)$ , a Lyapunov function exists and yields the accelerated rate.

Mirror descent and the gap to acceleration#

Showing $V_{k+1} \leq V_k$ then yields $f(x_k) - f^\star \leq O(1/k^2)$ . The same Lyapunov template handles both regimes — it just uses a different specific functional.

Adaptive restart: when to interrupt momentum#

Acceleration has a nasty feature: the momentum coefficient $\beta_k = (k-1)/(k+2)$ for the convex case grows toward 1. If you start far from $x^\star$ and accumulate too much momentum, the iterate overshoots and the function value oscillates instead of decreasing monotonically.

Restart heuristic (O’Donoghue & Candès, 2015): every iteration, check if either

• Function-value restart: $f(x_{k+1}) > f(x_k)$ , or
• Gradient restart: $\langle \nabla f(y_k), x_{k+1} - x_k \rangle > 0$ (the step is going uphill),

and if so, reset the momentum: set $z_k \leftarrow x_k$ and the inner counter to zero.

The gradient restart criterion is generally preferred — it does not require evaluating $f$ , which can be expensive in some settings.

Why restart works. A restart converts a single $O(1/k^2)$ phase into a sequence of phases. Within each phase, the iterates behave as if started from a new $x_0$ closer to $x^\star$ . The total iteration count is still $O(\sqrt{\kappa} \log(1/\epsilon))$ but with much better constants and no oscillation in practice. On strongly convex problems, restart automatically adapts to the unknown $\mu$ — you can run the convex-only acceleration scheme and it will achieve the strongly convex rate without knowing $\mu$ in advance.

Without restart, the function value bounces (orange curve) — the momentum coefficient $\beta_k \to 1$ keeps pushing the iterate past $x^\star$ along the flat direction. Adaptive gradient restart (blue) detects this with the cheap test $\langle \nabla f(y_k), x_{k+1} - x_k \rangle > 0$ and reboots the momentum, producing a sequence of clean accelerated phases (vertical bars mark restart events).

Catalyst: black-box acceleration#

What if the problem is too complicated to apply Nesterov directly — maybe the gradient is hard to compute exactly, or you want to use an arbitrary inner solver? The Catalyst framework (Lin, Mairal, Harchaoui, 2015) accelerates any linearly-convergent inner solver using a regularized inner subproblem.

The meta-algorithm#

Note $g_y$ is $\kappa$ -strongly convex even if $f$ is not. The Catalyst iteration is:

1. Set $y_0 = x_0$ .
2. For $k = 0, 1, \ldots$ : approximately minimize $g_{y_k}(x)$ to get $x_{k+1}$ with $g_{y_k}(x_{k+1}) - g_{y_k}^\star \leq \epsilon_k$ , using any inner solver.
3. Update $y_{k+1} = x_{k+1} + \beta_k (x_{k+1} - x_k)$ with momentum $\beta_k$ chosen as in Nesterov.

If the inner solver has linear convergence rate $\rho$ on $\kappa$ -strongly convex problems, Catalyst converges at the accelerated rate $O(\sqrt{L/\kappa} \cdot \rho^{-1} \log(1/\epsilon))$ .

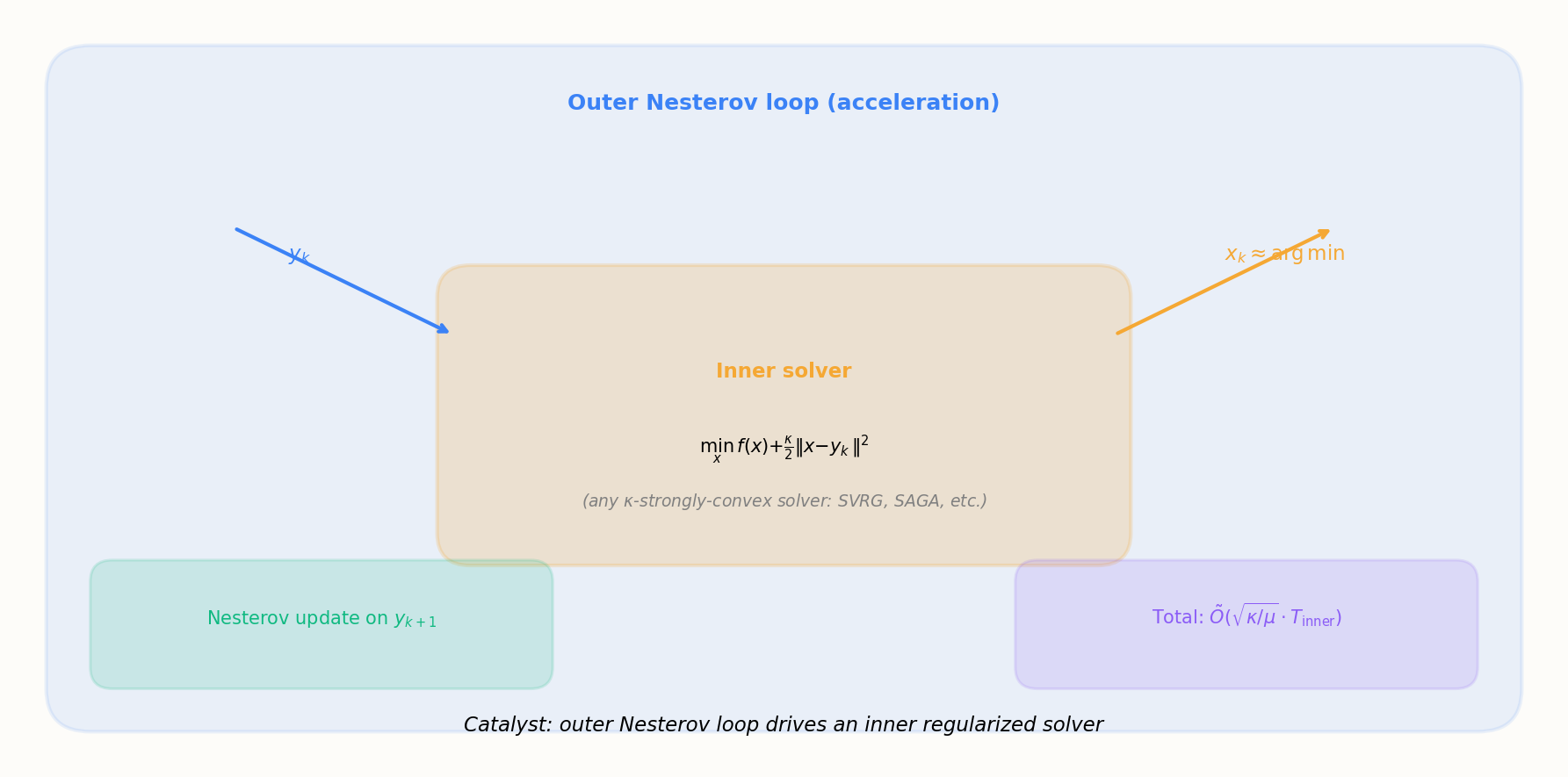

The outer loop runs Nesterov-style momentum on the anchors $y_k$ ; the inner loop calls any linearly-convergent solver on the regularized subproblem $g_{y_k}(x) = f(x) + \frac{\kappa}{2}\|x - y_k\|^2$ . Because $g_{y_k}$ is $\kappa$ -strongly convex by construction, even a non-strongly-convex problem becomes amenable to a linearly-convergent inner solver.

Example application#

Suppose your inner problem is a finite-sum $f(x) = \frac{1}{n} \sum_i f_i(x)$ and you’re using SVRG (article 10) as the inner solver. SVRG has rate $O((n + L/\kappa) \log(1/\epsilon))$ on $\kappa$ -strongly convex problems. Catalyst-SVRG then gives total complexity $O((n + \sqrt{n L / \mu}) \log(1/\epsilon))$ on the original $\mu$ -strongly convex problem — strictly better than vanilla SVRG when $L \gg \mu$ .

This is how to accelerate algorithms that don’t fit cleanly into Nesterov’s framework.

Worked comparison: an ill-conditioned quadratic#

Consider $f(x) = \frac{1}{2} x^\top Q x$ with $Q = \mathrm{diag}(1, 1/\kappa)$ for $\kappa = 10^4$ . Optimal point: $x^\star = 0$ . Initial point: $x_0 = (1, 1)$ .

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

import numpy as np

L, mu = 1.0, 1e-4
kappa = L / mu
Q = np.diag([L, mu])
x0 = np.ones(2)

def gd(steps):
    eta = 1 / L
    x = x0.copy(); hist = []
    for _ in range(steps):
        x = x - eta * Q @ x
        hist.append(0.5 * x @ Q @ x)
    return hist

def heavy_ball(steps):
    alpha = 4 / (np.sqrt(L) + np.sqrt(mu))**2
    beta = ((np.sqrt(L) - np.sqrt(mu)) / (np.sqrt(L) + np.sqrt(mu)))**2
    x_prev = x0.copy(); x = x0.copy(); hist = []
    for _ in range(steps):
        x_new = x - alpha * Q @ x + beta * (x - x_prev)
        x_prev = x; x = x_new
        hist.append(0.5 * x @ Q @ x)
    return hist

def nesterov(steps):
    eta = 1 / L
    q = mu / L
    a = (1 - np.sqrt(q)) / (1 + np.sqrt(q))
    x = x0.copy(); y = x0.copy(); hist = []
    for _ in range(steps):
        x_new = y - eta * Q @ y
        y = x_new + a * (x_new - x)
        x = x_new
        hist.append(0.5 * x @ Q @ x)
    return hist

steps = 500
gd_hist = gd(steps)
hb_hist = heavy_ball(steps)
nag_hist = nesterov(steps)

The two accelerated methods (Heavy-Ball, Nesterov) sit on essentially the same line and both hug the $(1 - 1/\sqrt{\kappa})^{2k}$ envelope; GD sits on the much shallower $(1 - 1/\kappa)^{2k}$ envelope. Reading off the iteration counts to reach $10^{-6}$ : GD needs roughly $\sqrt{\kappa} = 10\times$ more iterations.

Typical output (function value at iteration 500):

• Plain GD: $\sim 6 \times 10^{-3}$ — $\kappa = 10^4$ is brutal.
• Heavy-Ball: $\sim 4 \times 10^{-19}$ — essentially zero.
• Nesterov: $\sim 4 \times 10^{-19}$ — same accelerated rate.

The gap between GD and the accelerated methods is roughly $\sqrt{\kappa} = 100$ in iteration count to reach the same accuracy. This is the practical cash value of acceleration.

Summary#

What’s Next#

• Article 06 derives FISTA, the accelerated proximal gradient method, using exactly the Lyapunov template above.
• Article 10 uses Catalyst with stochastic inner solvers (SVRG, SAGA) for finite-sum problems.
• Article 07 explores second-order methods, which break the $\sqrt{\kappa}$ barrier by using more information.

References#

• Nesterov, Lectures on Convex Optimization (2nd ed.), §2 — the canonical treatment.
• d’Aspremont, Scieur & Taylor, Acceleration Methods, FnT-OPT 5(1-2), 2021 — the modern survey, includes Lyapunov framework.
• O’Donoghue & Candès, Adaptive Restart for Accelerated Gradient Schemes, FoCM 15, 2015 — the restart paper.
• Lin, Mairal & Harchaoui, Catalyst Acceleration for First-Order Convex Optimization, JMLR 18, 2018 — the meta-algorithm.
• Wilson, Recht & Jordan, A Lyapunov Analysis of Accelerated Methods in Optimization, JMLR 22, 2021 — the unified framework.
