PDE and Machine Learning (7): Diffusion Models and Score Matching

What This Article Covers

Since 2020, diffusion models have become the dominant paradigm in generative AI. From DALL·E 2 to Stable Diffusion to Sora, their generation quality and training stability are unmatched by GANs and VAEs. Beneath this success lies a remarkably clean mathematical structure: diffusion models are numerical solvers for partial differential equations.

Adding Gaussian noise corresponds to integrating the Fokker–Planck equation forward in time.
Learning to denoise is equivalent to learning the score function $\nabla\log p_t$.
DDPM is a discretised reverse SDE; DDIM is the corresponding probability-flow ODE.
Stable Diffusion is the same machinery, executed in a low-dimensional latent space.

What you will learn

The heat equation and Gaussian kernels — the mathematics of diffusion.
SDEs and the Fokker–Planck equation — how probability density evolves.
Score functions, score matching (DSM/SSM), and Langevin dynamics.
DDPM as a discretised reverse SDE; DDIM as a probability-flow ODE.
Latent diffusion (Stable Diffusion) and connections to scientific computing.

Prerequisites: multivariable calculus, basic probability (Gaussian, Bayes), neural network fundamentals.

1. Heat Equation and Diffusion Processes

1.1 Fick’s Law and the Diffusion Equation

$$ \mathbf{J} = -D\,\nabla u, $$$$ \frac{\partial u}{\partial t} = D\,\nabla^2 u. \tag{1} $$

The Laplacian measures local “curvature” of $u$: where $u$ is concave (a hot spot), $\nabla^2 u < 0$ and $u$ decreases; where $u$ is convex (a cold spot), $u$ increases. The end state is uniform.

1.2 Gaussian Kernels: Fundamental Solutions

$$ G(\mathbf{x}, t) = \frac{1}{(4\pi D t)^{d/2}}\exp\!\left(-\frac{\|\mathbf{x}\|^2}{4Dt}\right). \tag{2} $$$$ u(\mathbf{x}, t) = (G_t * u_0)(\mathbf{x}). $$

Diffusion = “blur with a growing Gaussian”. Conceptually, that is exactly what the forward noising in a diffusion model does.

1.3 Fourier Perspective: Diffusion as a Low-Pass Filter

$$ \hat u(\mathbf{k}, t) = \hat u_0(\mathbf{k})\,e^{-D\|\mathbf{k}\|^2 t}. $$

High-frequency content (large $\|\mathbf{k}\|$) decays exponentially faster than low-frequency content. Diffusion is a low-pass filter — fine structure dies first, the coarse structure last. The reverse, denoising, must therefore reconstruct the high-frequency content; this is precisely what the score network does.

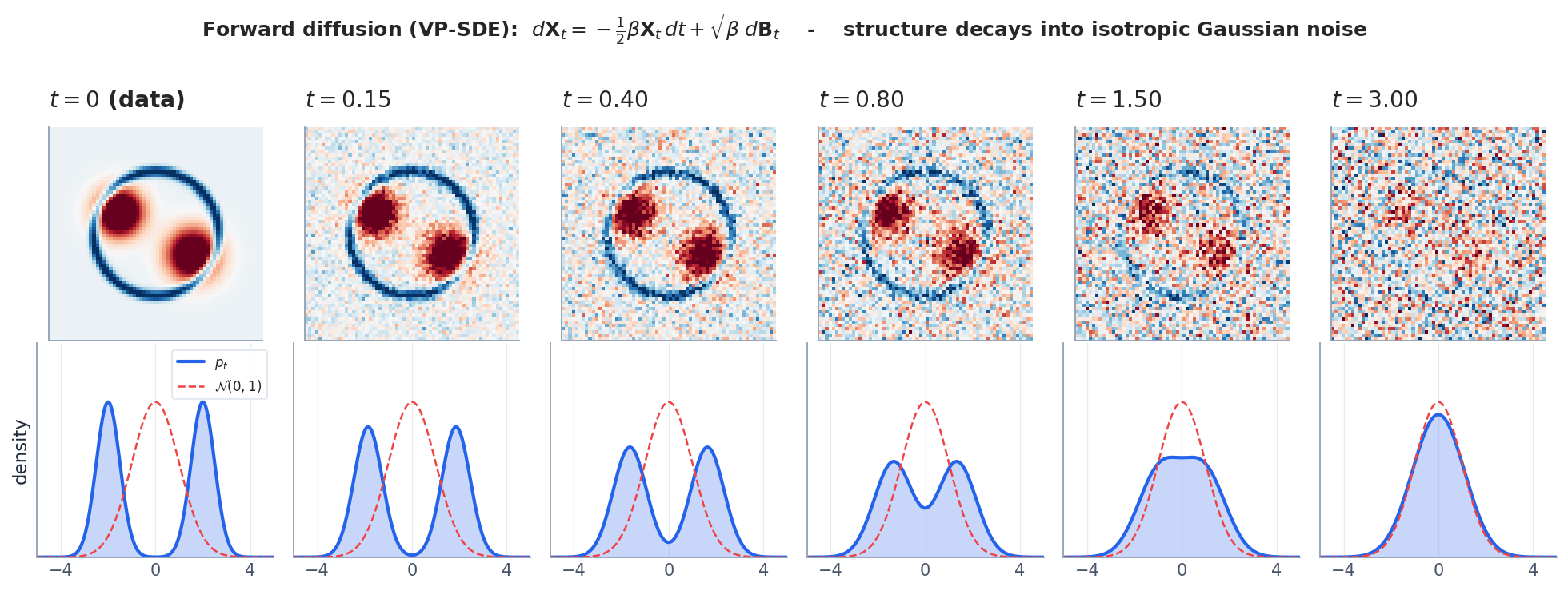

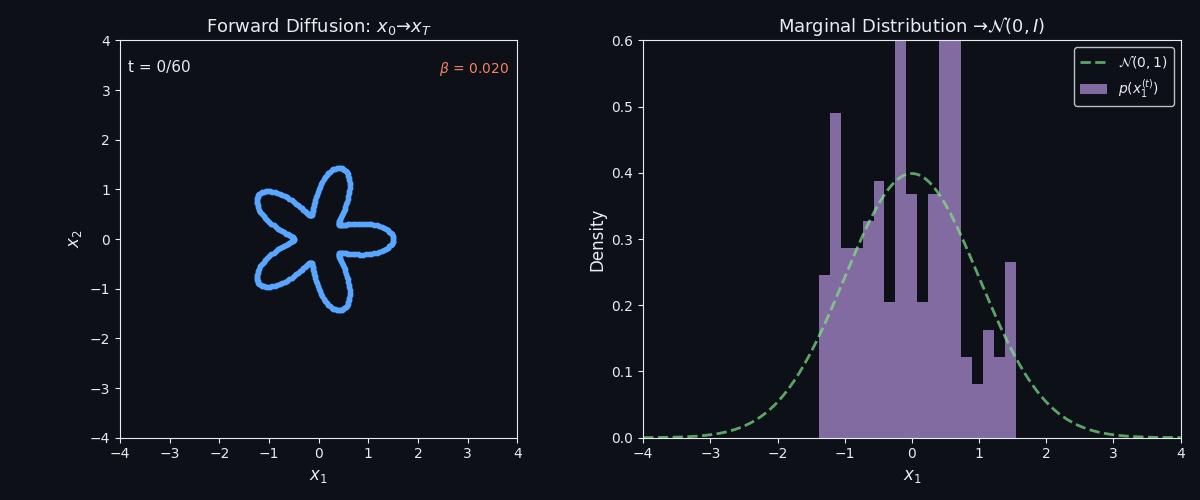

Forward diffusion turns structured data into isotropic Gaussian noise; the bottom row shows the marginal density $p_t$ converging to $\mathcal{N}(0, I)$ as predicted by the Fokker–Planck equation.

2. SDEs and the Fokker–Planck Equation

The heat equation describes a deterministic evolution of densities. If we want to think of individual sample paths — which is what diffusion models actually generate — we need stochastic differential equations.

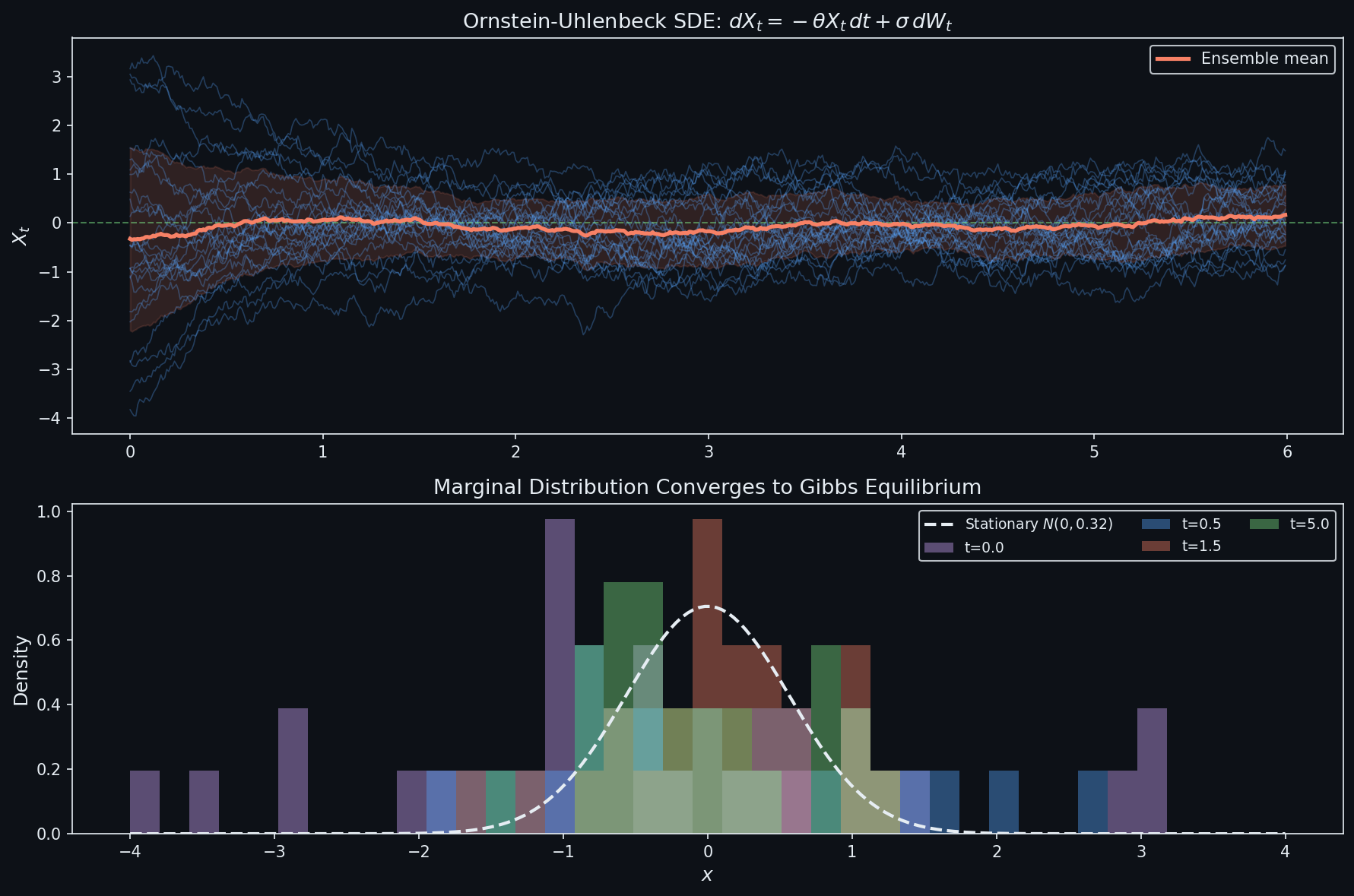

2.1 Brownian Motion and Itô SDEs

$$ d\mathbf{X}_t = f(\mathbf{X}_t, t)\,dt + g(t)\,d\mathbf{B}_t, \tag{3} $$

with drift $f$ (the deterministic pull) and diffusion coefficient $g$ (the noise amplitude).

The two schedules dominating the diffusion-model literature are:

Schedule	Drift $f(\mathbf{x}, t)$	Diffusion $g(t)$	Stationary law
Variance-Preserving (VP)	$-\tfrac{1}{2}\beta(t)\,\mathbf{x}$	$\sqrt{\beta(t)}$	$\mathcal{N}(\mathbf{0},\,\mathbf{I})$
Variance-Exploding (VE)	$0$	$\sqrt{d\sigma^2/dt}$	variance grows without bound

DDPM is a discretisation of VP; the original NCSN of Song & Ermon (2019) is a discretisation of VE.

2.2 The Fokker–Planck Equation

$$ \boxed{\;\frac{\partial p}{\partial t} \;=\; -\nabla\!\cdot\!\bigl(f\,p\bigr) \;+\; \tfrac{1}{2}\,g^2\,\nabla^2 p\;.\;} \tag{4} $$$$ d\varphi(\mathbf{X}_t) = \bigl(f\!\cdot\!\nabla\varphi + \tfrac{1}{2}g^2\nabla^2\varphi\bigr)\,dt + g\,\nabla\varphi\!\cdot\!d\mathbf{B}_t. $$

Taking expectations kills the martingale term, and writing $\mathbb{E}[\varphi(\mathbf{X}_t)] = \int \varphi\,p\,d\mathbf{x}$ then integrating by parts (using that $\varphi$ is arbitrary) yields (4). $\blacksquare$

Sanity check. Setting $f \equiv 0$ and $g^2/2 = D$ in (4) recovers the heat equation $\partial_t p = D\,\nabla^2 p$. The Fokker–Planck equation is exactly the heat equation plus a drift term.

2.3 The Kolmogorov Backward Equation

$$ \partial_s u + f\!\cdot\!\nabla u + \tfrac{1}{2}g^2 \nabla^2 u = 0, $$

with terminal condition $u(T, \mathbf{x}) = g(\mathbf{x})$. The forward equation evolves densities forward in time; the backward equation evolves expectations backward. Together they are the Feynman–Kac correspondence — and the time-reversed forward SDE is exactly what we will use to generate samples.

3. Score-Based Generative Models

3.1 The Score Function

$$ \mathbf{s}(\mathbf{x}) \;:=\; \nabla_{\mathbf{x}}\,\log p(\mathbf{x}). \tag{5} $$

Three useful properties:

Normalisation-free. $\nabla \log(p / Z) = \nabla \log p$, so we never need the partition function.
Closed form for Gaussians. If $p = \mathcal{N}(\boldsymbol\mu, \sigma^2 \mathbf{I})$, then $\mathbf{s}(\mathbf{x}) = -(\mathbf{x} - \boldsymbol\mu) / \sigma^2$.
Zero mean. $\mathbb{E}_p[\mathbf{s}(\mathbf{x})] = \mathbf{0}$ (under mild regularity).

Geometrically, the score is a vector field that always points toward high-probability regions and grows large in low-density valleys.

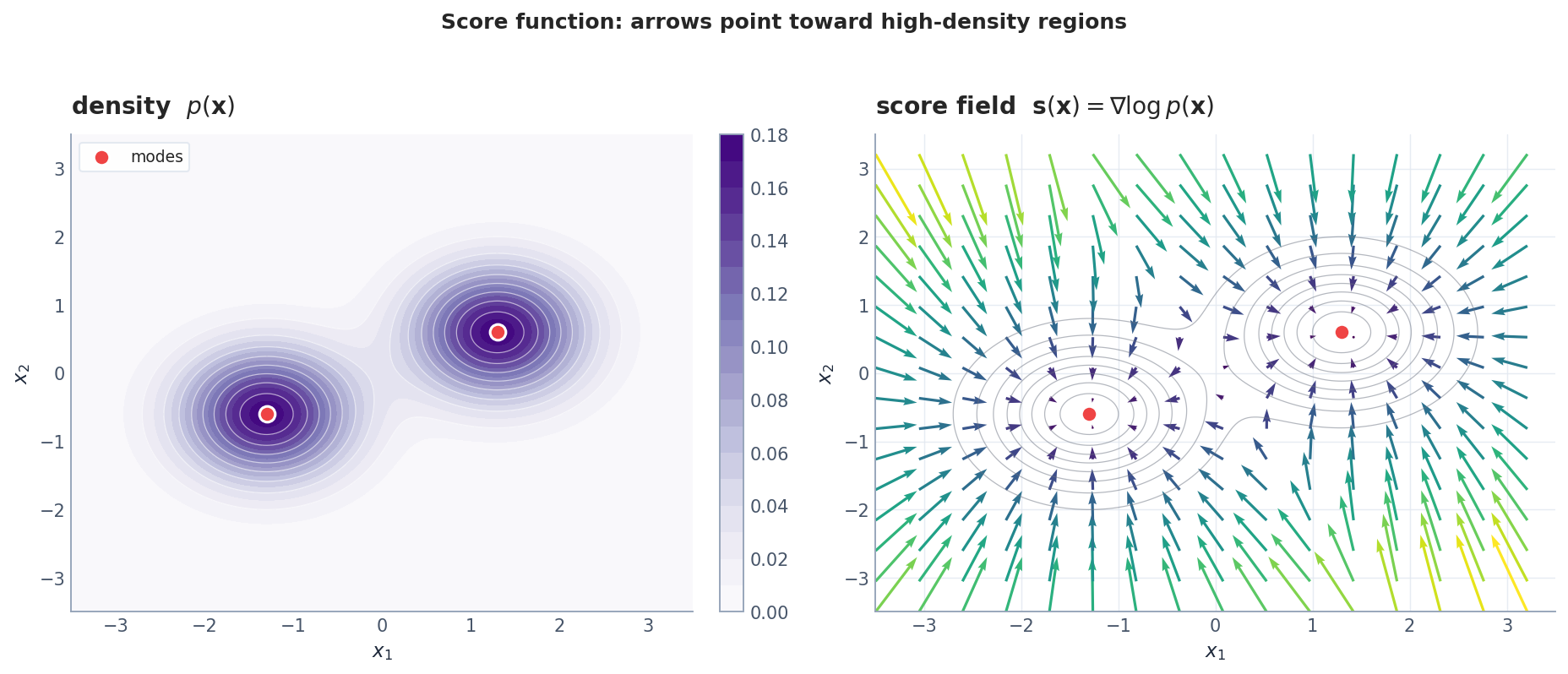

Score of a 2-mode Gaussian mixture: the field points uphill, away from low-density regions and toward the modes.

3.2 Score Matching

Because $p$ is unknown we cannot directly minimise $\mathbb{E}_p\,\|\mathbf{s}_\theta - \nabla\log p\|^2$. There are three workable surrogates.

$$ \mathcal{L}_{\text{ISM}}(\theta) = \mathbb{E}_p\Bigl[\,\tfrac{1}{2}\|\mathbf{s}_\theta(\mathbf{x})\|^2 + \mathrm{tr}\bigl(\nabla\mathbf{s}_\theta(\mathbf{x})\bigr)\Bigr]. $$

The trace of the Jacobian is expensive in high dimensions.

$$ \mathcal{L}_{\text{SSM}}(\theta) = \mathbb{E}_{\mathbf{v}, \mathbf{x}}\Bigl[\,\mathbf{v}^\top \nabla\mathbf{s}_\theta(\mathbf{x})\,\mathbf{v} + \tfrac{1}{2}(\mathbf{v}^\top \mathbf{s}_\theta(\mathbf{x}))^2\Bigr]. $$

One Hessian–vector product per sample suffices.

$$ \boxed{\;\mathcal{L}_{\text{DSM}}(\theta) = \mathbb{E}_{\mathbf{x}, \tilde{\mathbf{x}}}\Bigl[\bigl\|\mathbf{s}_\theta(\tilde{\mathbf{x}}) + \tfrac{\tilde{\mathbf{x}} - \mathbf{x}}{\sigma^2}\bigr\|^2\Bigr].\;} \tag{6} $$

Vincent showed (6) has the same minimiser as matching the true score of the noisy distribution $p_\sigma = p * \mathcal{N}(0, \sigma^2 \mathbf{I})$. As $\sigma \to 0$, $p_\sigma \to p$. In practice we anneal $\sigma$ during training.

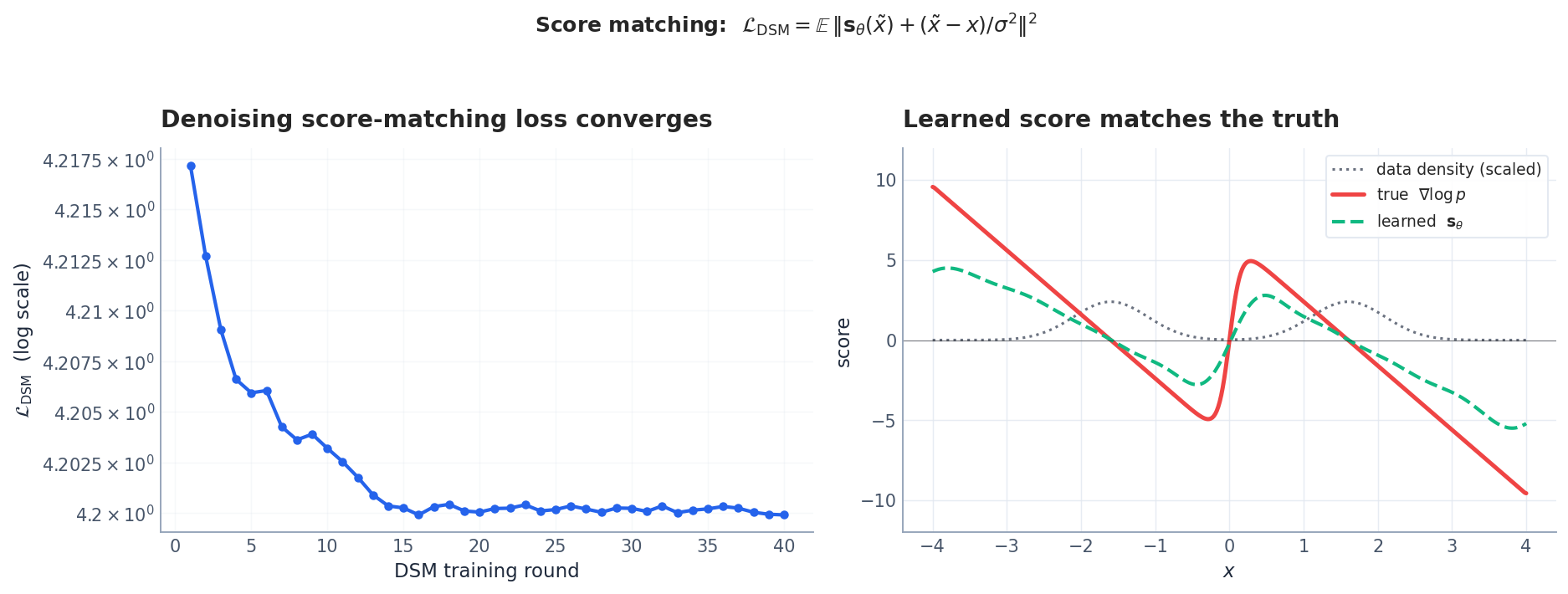

Left: DSM loss decreases monotonically and plateaus. Right: the learned score matches the true $\nabla\log p$ in high-density regions; near low-density valleys (centre) it is intentionally smoothed by the noise level $\sigma$.

3.3 Langevin Dynamics

$$ \mathbf{x}_{k+1} = \mathbf{x}_k + \tfrac{\epsilon}{2}\,\mathbf{s}_\theta(\mathbf{x}_k) + \sqrt{\epsilon}\,\boldsymbol\eta_k,\qquad \boldsymbol\eta_k \sim \mathcal{N}(\mathbf{0}, \mathbf{I}). \tag{7} $$

As $\epsilon \to 0$ and $k \to \infty$ the chain converges to $p$. The deterministic term is exploitation (climb the score), the noise term is exploration (escape local maxima).

3.4 Anderson’s Reverse-Time SDE

$$ \boxed{\;d\mathbf{X}_t = \bigl[\,f(\mathbf{X}_t, t) - g(t)^2\,\nabla\log p_t(\mathbf{X}_t)\,\bigr]\,dt + g(t)\,d\bar{\mathbf{B}}_t,\;} \tag{8} $$

where $\bar{\mathbf{B}}_t$ is a Brownian motion in reverse time and $p_t$ is the marginal of (3) at time $t$. The only thing that depends on the data distribution is $\nabla\log p_t$ — exactly what the score network learns. Run (8) backward from $\mathbf{x}_T \sim \mathcal{N}(\mathbf{0}, \mathbf{I})$ and you generate a sample from (approximately) the data distribution.

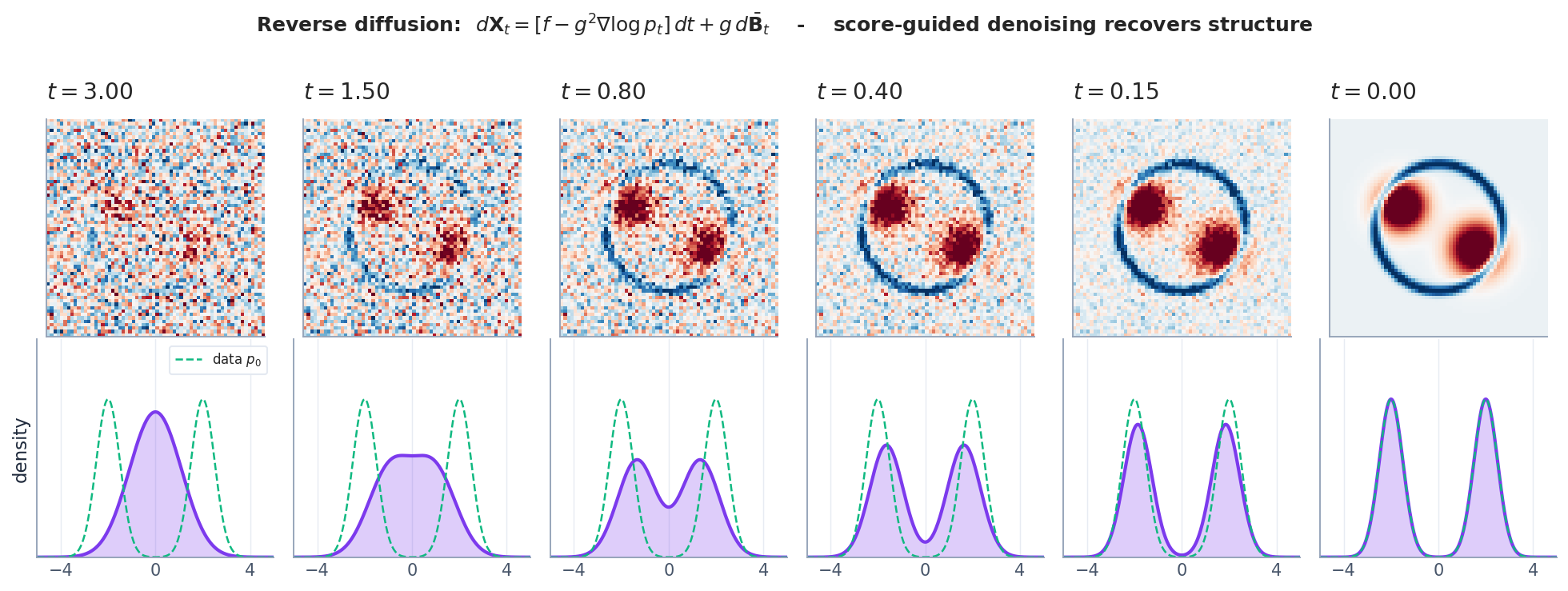

Reverse diffusion runs from $t = T$ down to $t = 0$; the score network supplies the drift correction needed to reverse the noising process.

4. From Continuous Theory to DDPM and DDIM

4.1 DDPM: Forward Process in Closed Form

$$ q(\mathbf{x}_t \mid \mathbf{x}_{t-1}) = \mathcal{N}\bigl(\mathbf{x}_t;\,\sqrt{\alpha_t}\,\mathbf{x}_{t-1},\,\beta_t\mathbf{I}\bigr), $$$$ \mathbf{x}_t = \sqrt{\bar\alpha_t}\,\mathbf{x}_0 + \sqrt{1 - \bar\alpha_t}\,\boldsymbol\epsilon,\qquad \boldsymbol\epsilon \sim \mathcal{N}(\mathbf{0}, \mathbf{I}). \tag{9} $$

This is exactly the Euler–Maruyama discretisation of the VP-SDE, so $\bar\alpha_T \to 0$ and $\mathbf{x}_T \approx \mathcal{N}(\mathbf{0}, \mathbf{I})$.

4.2 The DDPM Loss = Weighted DSM

$$ \mathcal{L}_{\text{DDPM}}(\theta) = \mathbb{E}_{t,\,\mathbf{x}_0,\,\boldsymbol\epsilon}\Bigl[\,\bigl\|\boldsymbol\epsilon_\theta(\mathbf{x}_t, t) - \boldsymbol\epsilon\bigr\|^2\Bigr]. \tag{10} $$$$ \nabla_{\mathbf{x}_t} \log q(\mathbf{x}_t \mid \mathbf{x}_0) = -\frac{\boldsymbol\epsilon}{\sqrt{1 - \bar\alpha_t}}, $$

so the network is learning a scaled score: $\mathbf{s}_\theta(\mathbf{x}_t, t) = -\boldsymbol\epsilon_\theta(\mathbf{x}_t, t)/\sqrt{1 - \bar\alpha_t}$. (10) is precisely (6) with weights $w(t) = 1$.

4.3 DDIM: The Probability-Flow ODE

$$ \boxed{\;\frac{d\mathbf{x}}{dt} = f(\mathbf{x}, t) - \tfrac{1}{2}\,g(t)^2\,\nabla\log p_t(\mathbf{x}).\;} \tag{11} $$

This is the probability-flow ODE. Marginals match because both (8) and (11) yield the same Fokker–Planck equation (4) for $p_t$. Solving (11) backward in time with a high-order ODE solver — Heun, RK4, DPM-Solver — is the basis of DDIM and its descendants. The result is deterministic (same noise → same image), supports much larger step sizes (25–50 vs 1000), and is exactly invertible (one can encode an image back to its latent noise).

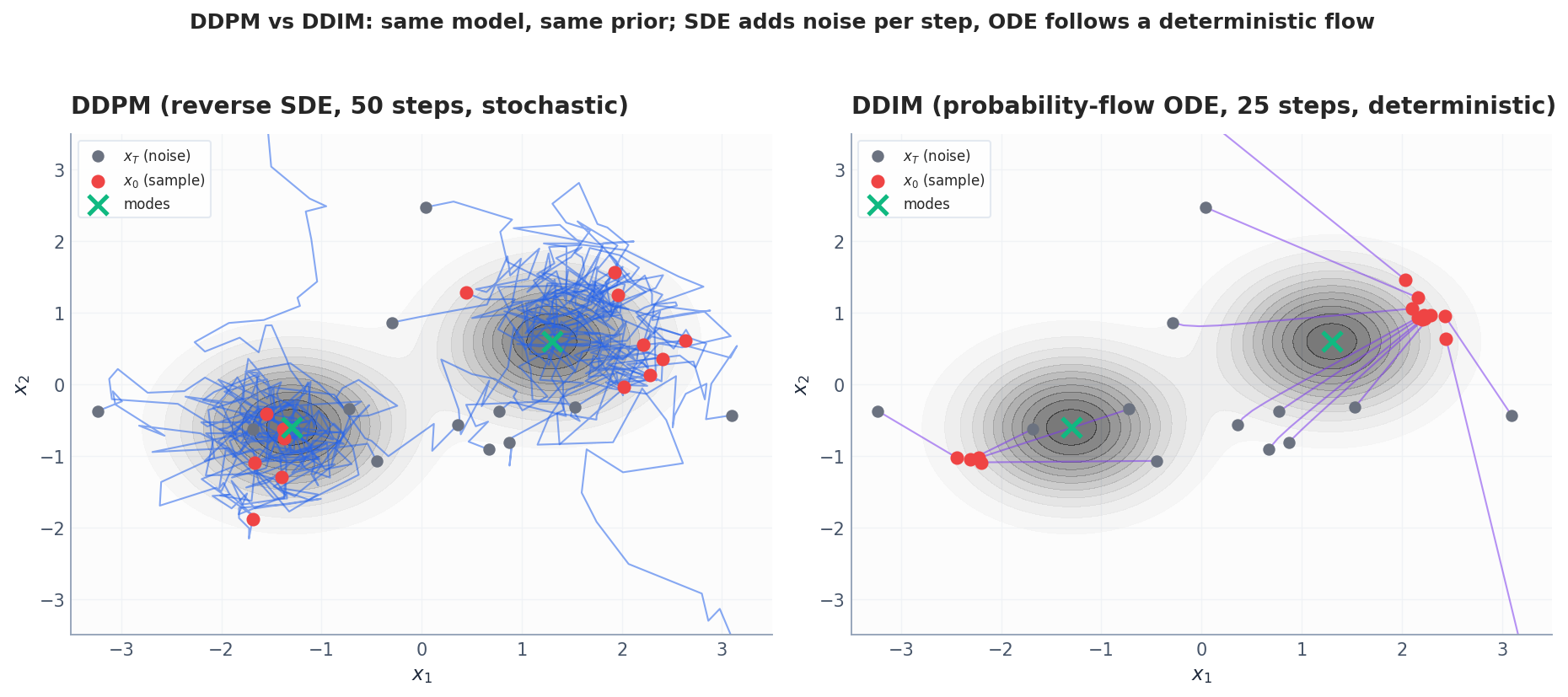

DDPM (left) injects fresh noise at each reverse step; DDIM (right) follows a deterministic flow under the same learned score, reaching the modes in far fewer steps.

4.4 A Unified View

Method	Process	Typical steps	Deterministic?	Strength
DDPM	Reverse SDE (8)	~1000	No	Diversity, simple training
DDIM	Probability-flow ODE (11)	~25–50	Yes	Speed, exact inversion
DPM-Solver	Higher-order ODE	~10–20	Yes	Even faster, same fidelity
EDM (Karras et al.)	Continuous, refined preconditioning	~30	Tunable	SOTA quality

4.5 The PDE → Diffusion Model Map

Putting it all together:

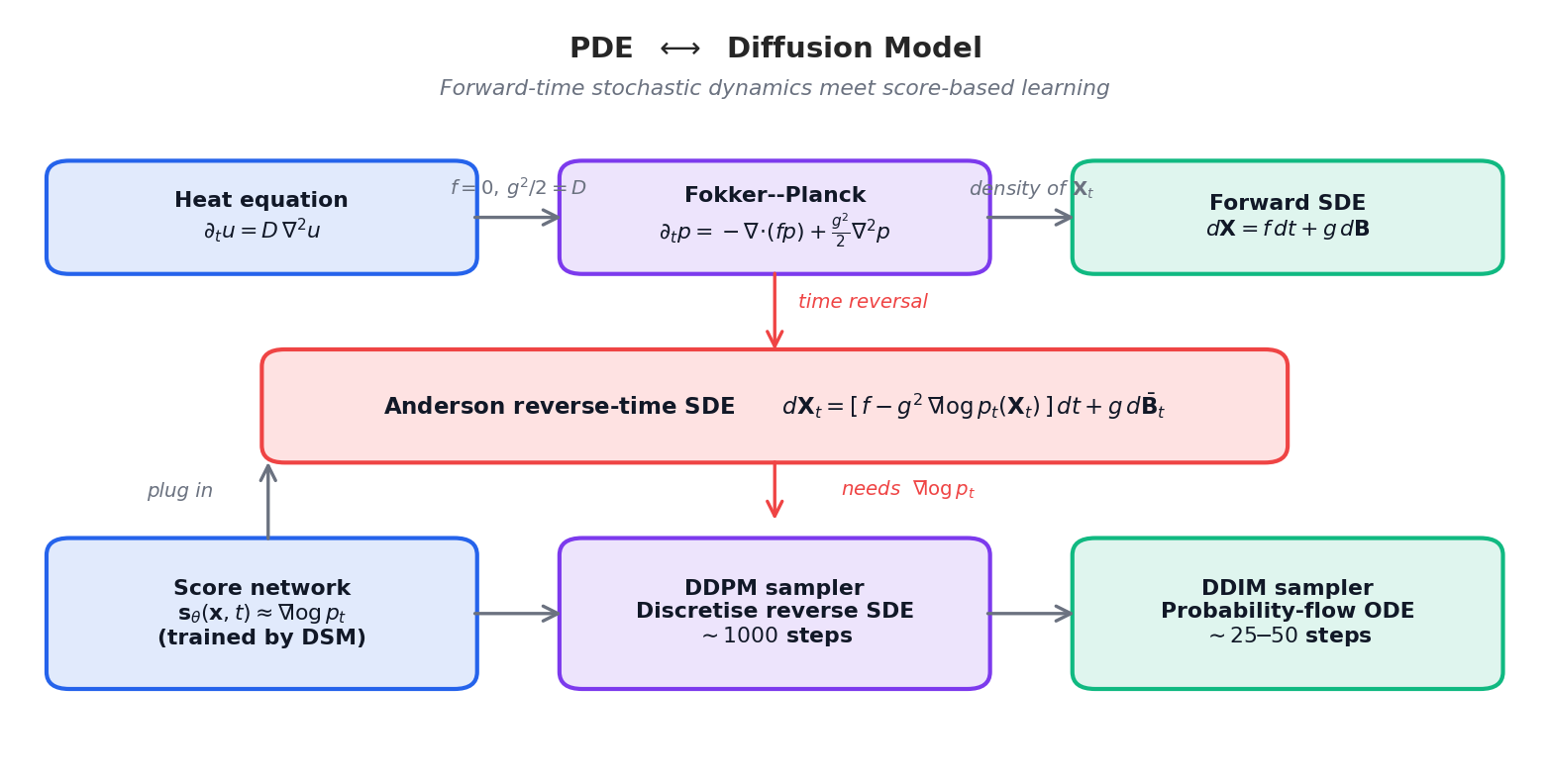

Heat equation $\to$ Fokker–Planck $\to$ forward SDE; Anderson’s time-reversal needs $\nabla\log p_t$, which the score network learns by DSM; the same score then drives DDPM (SDE) or DDIM (ODE).

5. Latent Diffusion: Stable Diffusion in One Picture

Pixel-space diffusion on $512 \times 512$ images is expensive: every U-Net forward pass operates on ~$8\times 10^5$ floats. Latent Diffusion (Rombach et al., 2022) trains a VAE-like autoencoder $(\mathcal{E}, \mathcal{D})$ first to map images to an $\sim\!8\times$ smaller latent $\mathbf{z}_0 = \mathcal{E}(\mathbf{x})$, and runs the entire diffusion process in latent space. Decoding $\hat{\mathbf{x}} = \mathcal{D}(\mathbf{z}_0)$ is a single feed-forward pass.

Conditioning (text, class labels, depth maps, ControlNet poses, …) enters the U-Net through cross-attention.

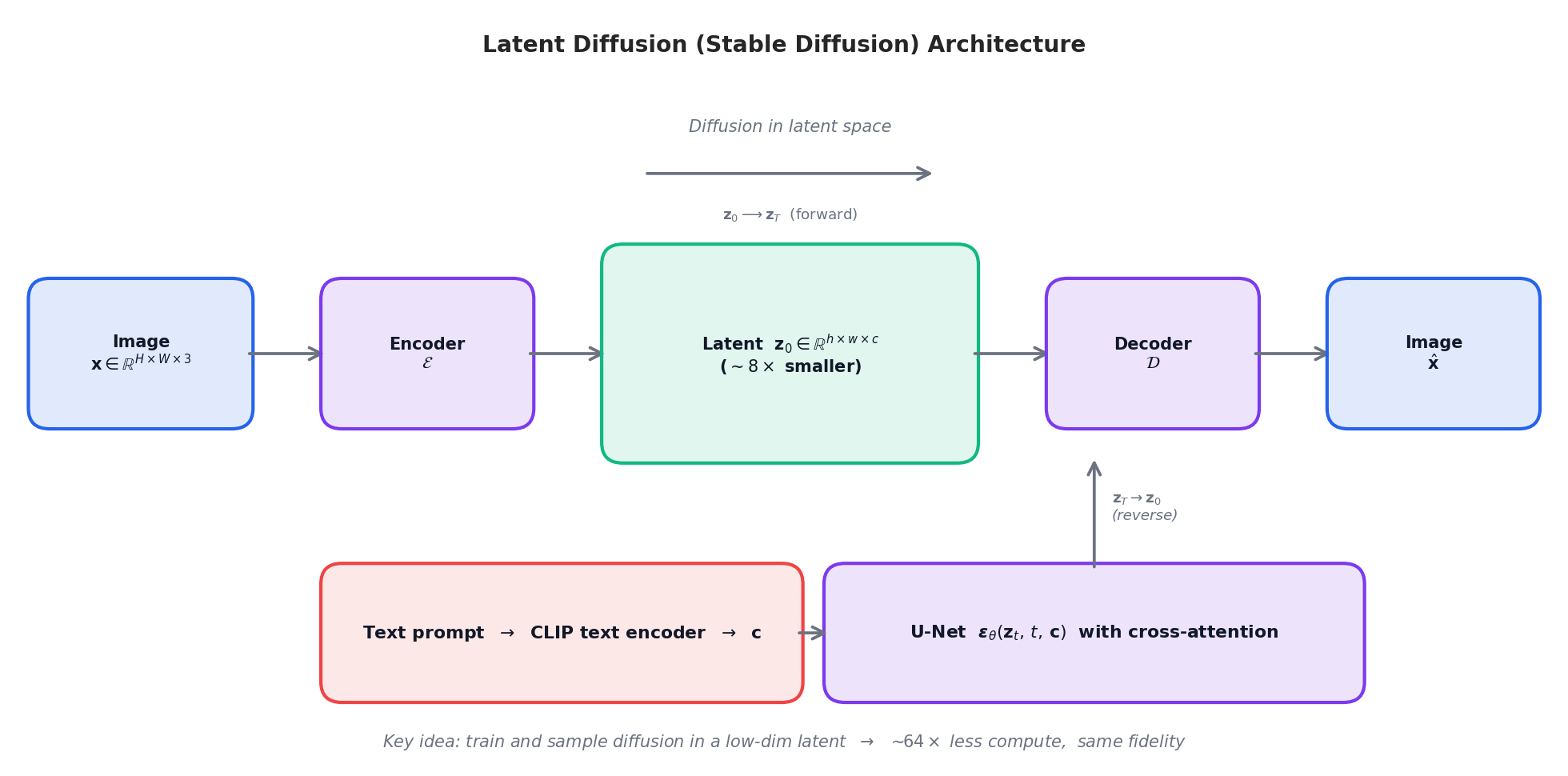

Stable Diffusion = autoencoder + diffusion in latent space + cross-attention conditioning.

The compute saving is roughly $f^{2d}$ where $f$ is the spatial downsampling factor (typically 8) and $d=2$, i.e. ~$64\times$. It is the architectural trick that turned diffusion models into a consumer technology.

6. Connection to Scientific Computing

Score-based diffusion is not just a generative-modelling trick — it is a tool for sampling from arbitrary, possibly intractable, probability distributions. Two application directions are particularly relevant for the PDE community:

Conditional generation under PDE constraints. Train a score model $\mathbf{s}_\theta(\mathbf{x}, t \mid \mathcal{C})$ where $\mathcal{C}$ encodes a PDE residual or boundary data. Reverse sampling produces fields that respect the constraint (in distribution). This is the basis of diffusion posterior sampling for inverse problems (Chung et al., 2023): tomography, super-resolution, deblurring, etc.
Surrogate samplers for Bayesian inference. Many Bayesian inverse problems require sampling from a posterior $p(\theta \mid \mathbf{y}) \propto p(\mathbf{y}\mid\theta)\,p(\theta)$. If we can train a score model on $(\theta, \mathbf{y})$ pairs from simulation, conditional reverse sampling replaces MCMC.

The unifying message: whenever you need to sample from a high-dimensional, multimodal distribution and you can afford to simulate forward dynamics, the diffusion-model recipe applies.

7. Exercises

Exercise 1. Show the heat equation is the special case $f \equiv 0$, $g^2 / 2 = D$ of Fokker–Planck.

Solution. Substitute into (4): $\partial_t p = -\nabla\!\cdot\!(\mathbf{0}\cdot p) + D\nabla^2 p = D\nabla^2 p$. $\blacksquare$

Exercise 2. Explain why the DDPM loss equals (weighted) score matching.

Solution. From (9), $q(\mathbf{x}_t\mid\mathbf{x}_0) = \mathcal{N}(\sqrt{\bar\alpha_t}\,\mathbf{x}_0, (1-\bar\alpha_t)\mathbf{I})$, so $\nabla_{\mathbf{x}_t}\log q = -(\mathbf{x}_t - \sqrt{\bar\alpha_t}\,\mathbf{x}_0)/(1-\bar\alpha_t) = -\boldsymbol\epsilon/\sqrt{1-\bar\alpha_t}$. Predicting $\boldsymbol\epsilon$ is therefore predicting a scaled score, and (10) is (6) with $w(t)=1$. $\blacksquare$

Exercise 3. Why can DDIM use far fewer steps than DDPM?

Solution. DDIM solves a smooth deterministic ODE (11) and admits high-order multi-step methods (Heun, RK4, DPM-Solver). DDPM solves an SDE whose strong-order convergence is $\mathcal{O}(\sqrt{\Delta t})$, so the step size must remain small for accuracy. $\blacksquare$

Exercise 4. Interpret diffusion as a low-pass filter and explain why this is consistent with “noise destroys high-frequency content first”.

Solution. Fourier modes evolve as $\hat p(\mathbf{k}, t) \propto \exp(-D\|\mathbf{k}\|^2 t)$, so high-$\|\mathbf{k}\|$ content decays exponentially faster than low-$\|\mathbf{k}\|$ content. Since high $\|\mathbf{k}\|$ corresponds to fine detail, the fine structure is destroyed first; the coarse structure persists longer. $\blacksquare$

Exercise 5. Derive Anderson’s reverse-time SDE drift in 1D for the OU process $dX_t = -\tfrac12 \beta X_t\,dt + \sqrt\beta\,dB_t$ with stationary $\mathcal{N}(0,1)$.

Solution sketch. In stationary regime $p_t(x) = \mathcal{N}(x;0,1)$, so $\nabla\log p_t(x) = -x$. Plug $f = -\tfrac12\beta x$, $g^2 = \beta$ into (8): drift $= -\tfrac12\beta x - \beta(-x) = \tfrac12\beta x$, i.e. the reverse process has a positive mean reversion away from zero — exactly what is needed to “uncrunch” the OU collapse to the origin. $\blacksquare$

References

[1] Song, Y., et al. (2020). Score-based generative modeling through stochastic differential equations. arXiv:2011.13456 .

[2] Ho, J., Jain, A., & Abbeel, P. (2020). Denoising diffusion probabilistic models. NeurIPS. arXiv:2006.11239 .

[3] Song, J., Meng, C., & Ermon, S. (2021). Denoising diffusion implicit models. ICLR. arXiv:2010.02502 .

[4] Song, Y., & Ermon, S. (2019). Generative modeling by estimating gradients of the data distribution. NeurIPS. arXiv:1907.05600 .

[5] Karras, T., Aittala, M., Aila, T., & Laine, S. (2022). Elucidating the design space of diffusion-based generative models (EDM). NeurIPS. arXiv:2206.00364 .

[6] Lu, C., et al. (2022). DPM-Solver: a fast ODE solver for diffusion models. NeurIPS. arXiv:2206.00927 .

[7] Rombach, R., et al. (2022). High-resolution image synthesis with latent diffusion models. CVPR. arXiv:2112.10752 .

[8] Anderson, B. D. O. (1982). Reverse-time diffusion equation models. Stochastic Processes and their Applications, 12(3), 313–326.

[9] Hyvärinen, A. (2005). Estimation of non-normalized statistical models by score matching. JMLR.

[10] Vincent, P. (2011). A connection between score matching and denoising autoencoders. Neural Computation.

[11] Chung, H., et al. (2023). Diffusion posterior sampling for general noisy inverse problems. ICLR. arXiv:2209.14687 .

This is Part 7 of the PDE and Machine Learning series. Next: Part 8 — Reaction-Diffusion Systems and GNN . Previous: Part 6 — Continuous Normalizing Flows .
