Reinforcement Learning (5): Model-Based RL and World Models

Every algorithm we have covered so far – DQN, REINFORCE, A2C, PPO, SAC – is model-free: the agent treats the environment as a black box, throws actions at it, and updates its policy from the rewards that come back. The approach works, but it is profligate. DQN needs roughly 10 million frames to master Atari Pong. OpenAI Five trained on Dota 2 for the equivalent of ~45,000 years of self-play. AlphaStar consumed years of StarCraft for a single agent.

Humans clearly do not learn this way. A chess player imagines positions a few moves deep and prunes obvious blunders; a child learns “cliffs are bad” once, by inference, not by falling. Both rely on an internal model of how the world responds to actions, and they spend most of their cognitive budget in that model, not in the world.

Model-Based RL (MBRL) formalises this idea: learn an approximate dynamics model$\hat{P}(s'\mid s, a)$and reward model$\hat{R}(s, a)$, then use them as a cheap simulator for planning, policy improvement, or value estimation. The payoff, on tasks where it works, is a 10-100x reduction in real-environment samples – the difference between a robot that needs three months of physical interaction and one that needs an afternoon.

This article traces the modern lineage: Dyna (1990) -> MBPO (2019) -> World Models (2018) -> Dreamer (2020-23) -> MuZero (2020). Each method rests on a single sharp idea, and the seven figures in this post visualise those ideas one at a time.

What You Will Learn

• The exact trade-offs that make model-based RL win or lose
• Dyna-Q: the original blueprint for mixing real and imagined updates
• MBPO: why short-horizon imagination is the sweet spot
• MPC as a pure planning loop with a learned model
• World Models (V/M/C): compressing pixels into a latent dream space
• Dreamer / RSSM: end-to-end latent imagination with a recurrent + stochastic state
• MuZero: planning without ever predicting an observation

Prerequisites: Parts 1-3 (MDPs, value functions, policy gradients, Actor-Critic).

1. Two Paradigms, One Goal

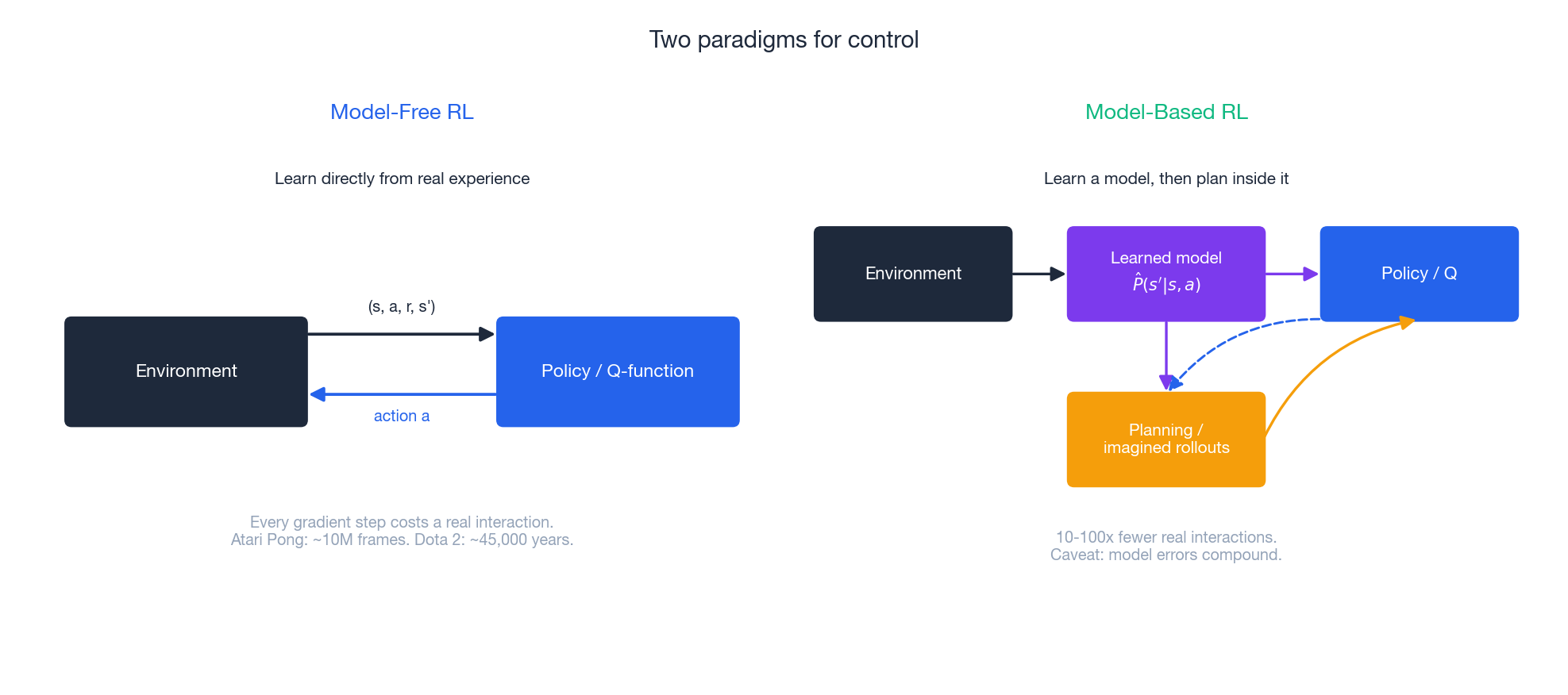

In model-free RL the only loop is act -> observe -> learn. In model-based RL we insert a second loop: learn a model -> plan inside the model -> improve the policy. Real-world interaction now amortises across thousands of imagined updates.

The Trade-off

Sample Efficiency in Practice

The gap is roughly one order of magnitude in continuous control and even larger when the simulator is expensive (real robots, slow physics).

When to Reach for Model-Based

Good fit:

• Real interaction is expensive: robotics, autonomous driving, drug discovery, dialogue systems with users in the loop.
• Dynamics are learnable with reasonable data: smooth physics, board games, structured environments.
• You will face multiple downstream tasks, so the model amortises across them.

Poor fit:

• A free, fast, high-fidelity simulator already exists (Atari is the simulator).
• Dynamics are highly stochastic or adversarial (financial markets, social interaction).
• The state space is so high-dimensional that no model fits in the data budget.

2. Dyna-Q: The Original Blueprint

Sutton’s Dyna (1990) is the first system to articulate the model-based loop in its purest form. Each real transition is consumed three times:

1. Direct learning – update Q with the real$(s,a,r,s')$,
2. Model learning – store the transition in a tabular model$M(s,a)\to(r,s')$,
3. Planning – sample$n$previously-seen$(s,a)$pairs, query the model, and apply$n$additional Q-updates from these imagined transitions.

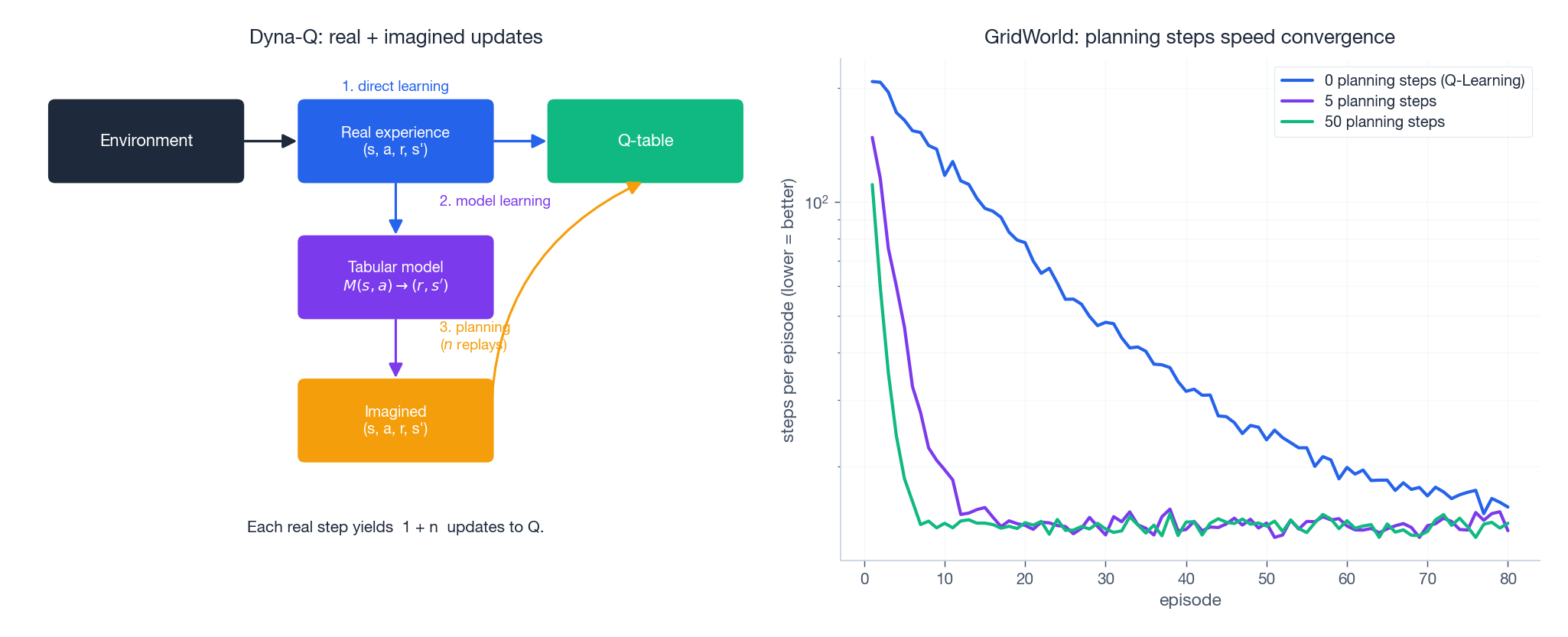

The convergence plot on the right shows the consequence on a deterministic GridWorld: increasing$n$from 0 (vanilla Q-Learning) to 50 collapses convergence by an order of magnitude in episodes – because every real step now triggers 51 Bellman updates instead of 1.

Reference Implementation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

import numpy as np


class DynaQ:
    """Tabular Dyna-Q: real learning + planning from a remembered model."""

    def __init__(self, n_states, n_actions, alpha=0.1, gamma=0.95,
                 epsilon=0.1, planning_steps=10):
        self.Q = np.zeros((n_states, n_actions))
        self.model = {}                    # (s, a) -> (r, s')
        self.visited = []                  # ordered list for sampling
        self.alpha, self.gamma = alpha, gamma
        self.epsilon = epsilon
        self.planning_steps = planning_steps

    def select_action(self, s):
        if np.random.rand() < self.epsilon:
            return np.random.randint(self.Q.shape[1])
        return int(np.argmax(self.Q[s]))

    def _q_update(self, s, a, r, s_next):
        target = r + self.gamma * np.max(self.Q[s_next])
        self.Q[s, a] += self.alpha * (target - self.Q[s, a])

    def learn(self, s, a, r, s_next):
        # 1. direct RL
        self._q_update(s, a, r, s_next)
        # 2. model learning (deterministic env: just memorise)
        if (s, a) not in self.model:
            self.visited.append((s, a))
        self.model[(s, a)] = (r, s_next)
        # 3. planning -- replay imagined transitions
        for _ in range(self.planning_steps):
            sp, ap = self.visited[np.random.randint(len(self.visited))]
            rp, sp_next = self.model[(sp, ap)]
            self._q_update(sp, ap, rp, sp_next)

What Dyna Teaches Us, and Where It Breaks

Dyna isolates the core insight: a learned model lets you spend compute instead of samples. The trade-off it surfaces – and that every modern method inherits – is that planning on a wrong model injects bias straight into the value function. In tabular deterministic worlds this is invisible; with a neural-network model and a long horizon, errors compound exponentially. The rest of this article is essentially a sequence of clever answers to that one problem.

3. MBPO: Keep Your Imagination Short

Model-Based Policy Optimization (Janner et al., NeurIPS 2019) is the cleanest modern instantiation of Dyna for continuous control. Its title insight is in two words: short rollouts.

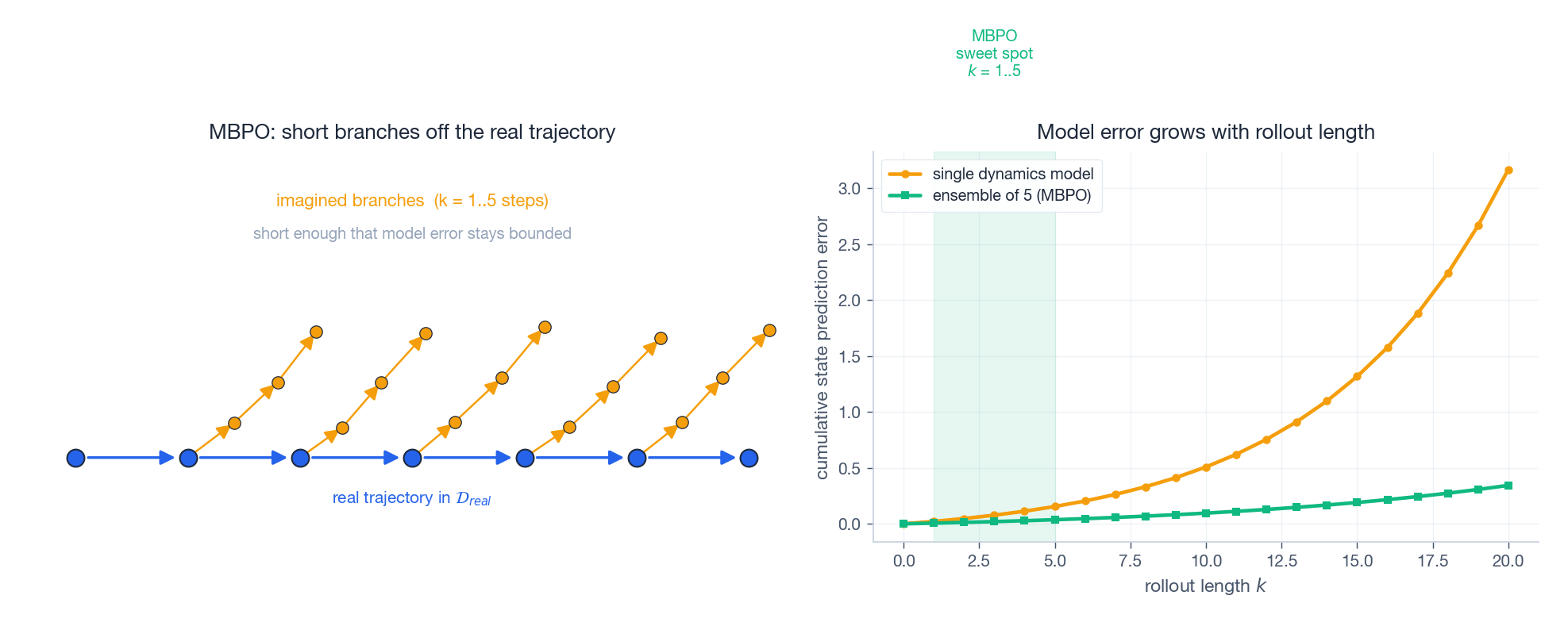

The right-hand panel shows the issue. Cumulative state-prediction error grows roughly geometrically with rollout length$k$. By$k = 20$even an ensemble of 5 dynamics models has drifted far enough to be useless for credit assignment. The MBPO answer is to branch only 1-5 steps off real states (left panel), then hand the resulting transitions to SAC for the long-horizon credit assignment that model-free methods do well.

Algorithm

1. Roll the current policy in the real environment, append to$\mathcal{D}_{\text{real}}$.
2. Fit an ensemble of 5 probabilistic dynamics models$f_\theta(s,a)\to(s',r)$on$\mathcal{D}_{\text{real}}$.
3. Repeatedly sample initial states from$\mathcal{D}_{\text{real}}$, branch a $k$-step rollout in a randomly chosen ensemble member, and append imagined transitions to$\mathcal{D}_{\text{model}}$.
4. Train SAC on a mixture of$\mathcal{D}_{\text{real}}$and$\mathcal{D}_{\text{model}}$.

The ensemble matters: averaging or random sampling across members both regularises predictions (they disagree most where data is sparse) and supplies epistemic uncertainty the policy can implicitly avoid.

Sketch

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

import numpy as np
import torch
import torch.nn as nn


class EnsembleDynamics(nn.Module):
    """5 probabilistic dynamics models predicting (delta_s, reward)."""

    def __init__(self, state_dim, action_dim, hidden=256, n=5):
        super().__init__()
        self.heads = nn.ModuleList([
            nn.Sequential(
                nn.Linear(state_dim + action_dim, hidden), nn.SiLU(),
                nn.Linear(hidden, hidden), nn.SiLU(),
                nn.Linear(hidden, 2 * (state_dim + 1)),  # mean + log_std
            ) for _ in range(n)
        ])
        self.state_dim = state_dim

    def sample(self, s, a):
        idx = np.random.randint(len(self.heads))
        x = torch.cat([s, a], dim=-1)
        out = self.heads[idx](x)
        mu, log_std = out.chunk(2, dim=-1)
        eps = torch.randn_like(mu) * log_std.exp()
        delta = (mu + eps)[..., : self.state_dim]
        reward = (mu + eps)[..., self.state_dim:]
        return s + delta, reward

Result

On MuJoCo HalfCheetah, MBPO reaches ~10,000 return in ~100K environment steps where SAC needs ~1M and PPO ~1.6M. The empirically-optimal rollout length is **$k=1$**for most tasks; longer rollouts hurt because compounding error overwhelms the additional credit-assignment depth.

4. Pure Planning: Model Predictive Control

If the model is good enough, you can skip “policy” altogether and plan from scratch at every step. Model Predictive Control (MPC) is the workhorse of classical control engineering, and a learned dynamics model slots straight into it.

The loop:

1. Sample$N$candidate action sequences$a_{t:t+H}$(uniform, Gaussian, or from a CEM/iCEM proposal distribution).
2. Roll each one forward $H$ steps in the learned model and score by predicted return.
3. Execute only the first action of the best sequence.
4. Observe the real next state and re-plan.

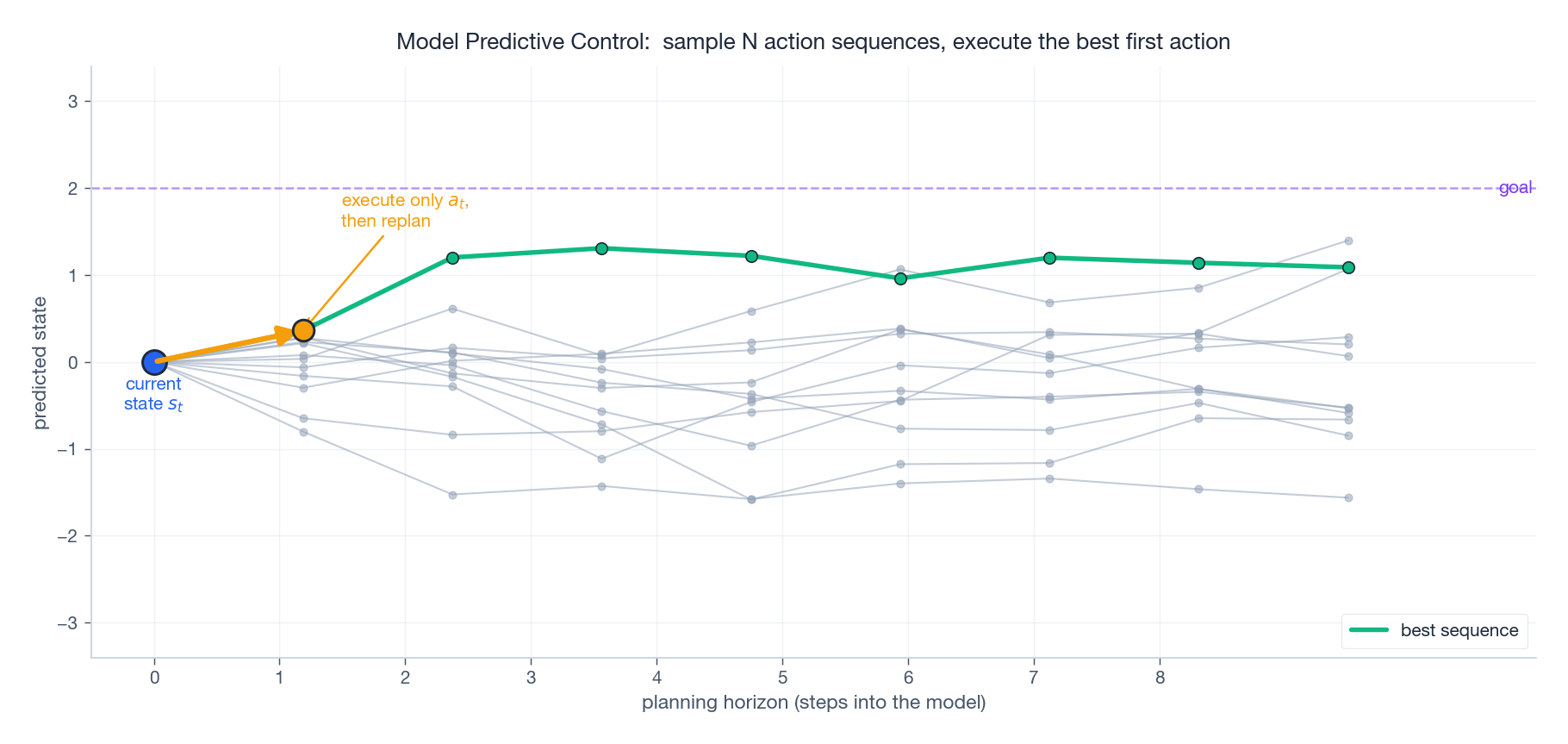

The figure shows 12 candidate trajectories (grey), the best one (green), and the single highlighted action that actually gets sent to the actuator. Crucially, executing one step at a time means the model only has to be locally accurate – compounding error never gets a chance to wreck a long open-loop plan.

MPC is the dominant choice when the cost of a mistake is high (real robots, surgery, autonomous driving). It is also the bridge between learned models and the rest of the planning literature: PETS, PlaNet, TD-MPC, and Dreamer’s policy improvement loop all reduce to “MPC inside a learned model” in some form.

5. World Models: Dreaming in a Latent Space

MBPO works because MuJoCo states are 11-23 dimensional. Predicting the next$84\times 84\times 3$Atari frame, by contrast, is hopelessly hard – and most of those pixels (sky, scoreboard) are irrelevant to control. World Models (Ha & Schmidhuber, 2018) propose a different shape:

Compress observations into a small latent code, then learn dynamics in that latent space.

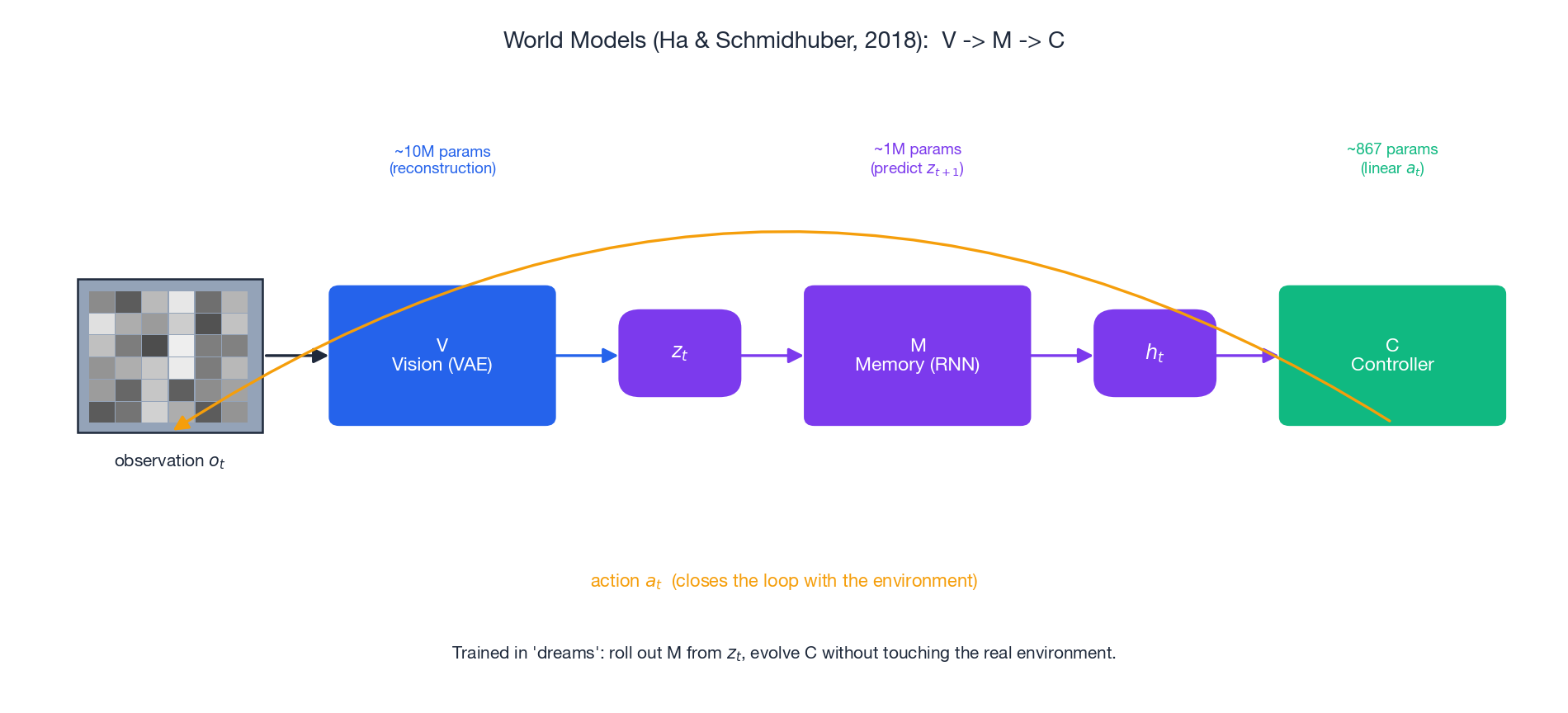

Three components, drawn left-to-right above:

• V (Vision) – a Variational Autoencoder maps each frame$o_t$to a ~32-dimensional latent$z_t$. The reconstruction loss forces$z_t$to retain enough information about the scene.
• M (Memory) – a Mixture-Density-Network RNN models$P(z_{t+1}\mid z_t, a_t, h_t)$, where$h_t$is the recurrent state. M is the world model.
• C (Controller) – a deliberately tiny linear policy maps$(z_t, h_t)\to a_t$. On CarRacing it has just 867 parameters versus DQN’s 1.7M.

Why It Works – and Why It Was Surprising

The controller can be trained entirely in dreams: roll out M from a sampled$z$, get pseudo-trajectories, evolve C with CMA-ES, and never touch the real environment until evaluation. The 867-parameter controller scores near-human on CarRacing-v0. The deeper lesson, which all of Dreamer / DreamerV3 / TD-MPC inherit, is that learning a useful representation is most of the problem: once V and M are in place, control is almost trivial.

6. Dreamer: End-to-End Latent Imagination

World Models trains V, M, C in three separate phases, which means the VAE optimises for pixel reconstruction rather than for what the controller actually needs. Dreamer (Hafner et al., ICLR 2020; DreamerV2 2021; DreamerV3 2023) trains the entire stack jointly and adds a key architectural piece: the Recurrent State-Space Model (RSSM).

RSSM in One Picture

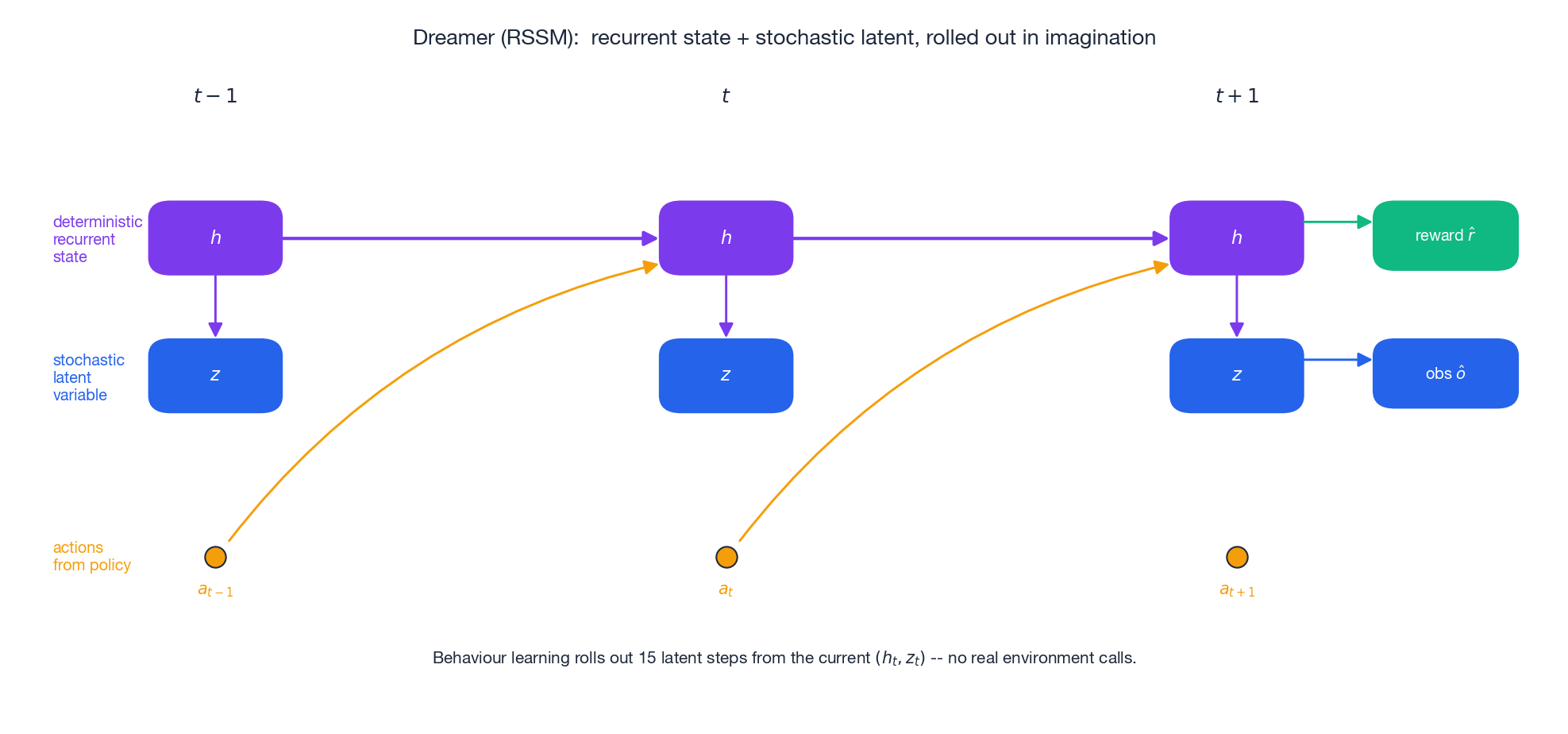

The figure shows three time steps. At each step the latent state has two parts:

-$h_t$(deterministic) – a GRU hidden state carrying long-range memory:$h_t = \mathrm{GRU}(h_{t-1}, z_{t-1}, a_{t-1})$. -$z_t$(stochastic) – a small categorical or Gaussian latent sampled from a prior$p(z_t\mid h_t)$at imagination time, or a posterior$q(z_t\mid h_t, o_t)$at training time.

This separation matters. The deterministic$h$ remembers, while the stochastic$z$ models genuinely uncertain dynamics (a Pong ball going off-screen, a Minecraft chest hiding random loot). Heads on$(h_t, z_t)$predict reward, value, and (during training) the observation – so any decoder loss flows back through the dynamics and into the representation.

Behaviour Learning Happens Entirely in Imagination

Once the world model is fitted on real data, Dreamer trains the actor and critic by:

1. Sampling a batch of real$(h_t, z_t)$as starting points.
2. Rolling the prior dynamics 15 steps forward, sampling actions from the actor.
3. Bootstrapping a value target through the imagined trajectory and updating the actor by reparameterised policy gradient.

No real interaction during this step. A single batch on the real buffer fuels thousands of imagined gradient updates – the same Dyna idea, but now in a learned latent space.

Results

• DMControl Walker: ~900 return in 100K steps, where SAC needs ~1M.
• Atari: DreamerV2 matches IQN/Rainbow on the 55-game suite while running on a single GPU.
• Minecraft (DreamerV3, 2023): the first algorithm to collect diamonds from scratch, with no demonstrations and no per-task hyperparameter tuning.

DreamerV3’s claim to fame is robustness: the same model-based agent, with the same hyperparameters, beats specialised baselines across more than 150 tasks spanning DMControl, Atari, Crafter, and Minecraft.

7. MuZero: Plan Without Predicting Pixels

The thread running through World Models and Dreamer is “predict observations”. MuZero (Schrittwieser et al., Nature 2020) noticed that for planning, you do not actually need observations – you need value, policy, and reward. Everything else is a means to that end.

MuZero learns three small networks operating on an abstract hidden state:

• Representation:$s_0 = h(o_0)$– encode the real observation into a hidden state.
• Dynamics:$s_{k+1}, r_{k+1} = g(s_k, a_k)$– transition purely in hidden space.
• Prediction:$p_k, v_k = f(s_k)$– emit policy logits and value.

The hidden states$s_k$do not have to correspond to anything in the real environment; they only have to be useful for the Monte Carlo Tree Search that plans on top of them.

Training Loss

For a trajectory unrolled $K$ steps with MCTS targets$z^v, z^p$and observed rewards$z^r$:

Crucially, no reconstruction term ever appears. The model is implicit – it is whatever makes the MCTS targets self-consistent.

Results

A single algorithm with a single hyperparameter set achieves:

• Go, chess, shogi: matches or exceeds AlphaZero – without being given the game rules.
• Atari 57: new SOTA over R2D2.
• MuZero Reanalyse / Sampled MuZero / EfficientZero (2021): human-level Atari in 2 hours of game time.

MuZero is the cleanest demonstration of a deep principle: your model only has to be as faithful as your downstream use of it requires.

8. The Big Picture: Sample Efficiency

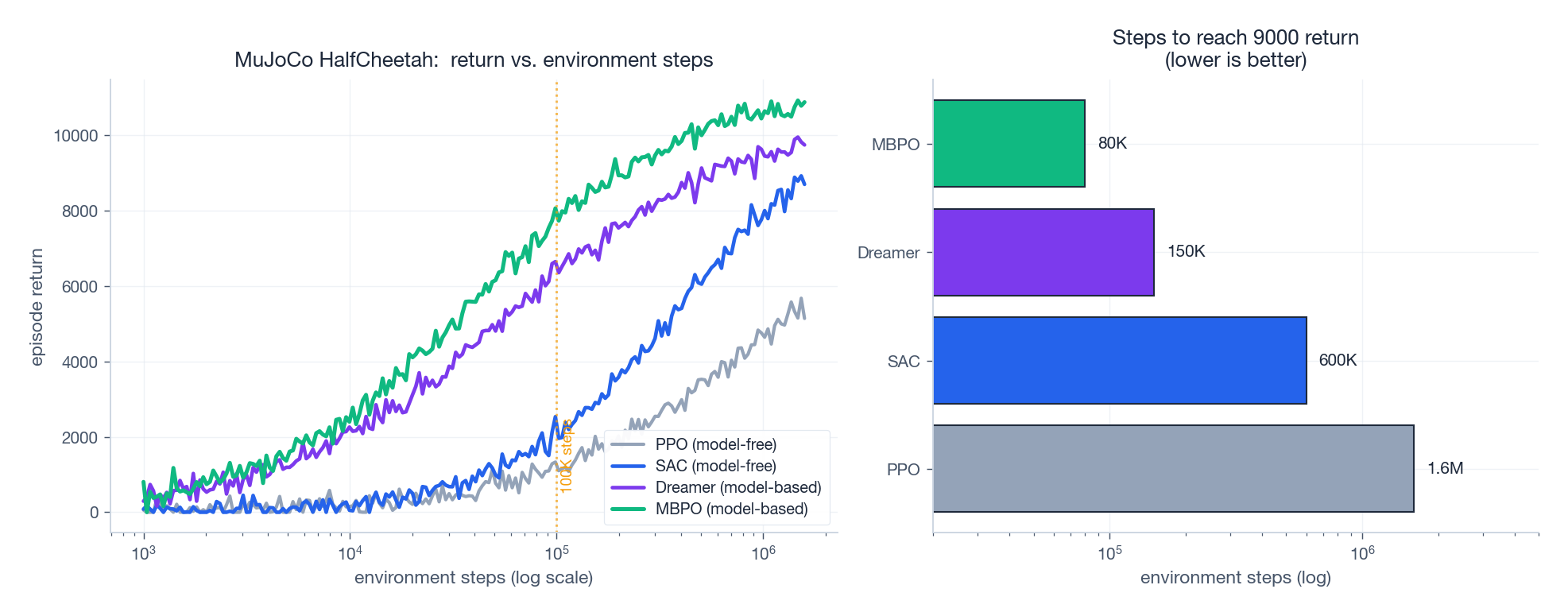

Stacking the methods on one plot makes the central claim concrete. On HalfCheetah, MBPO and Dreamer reach a score that takes SAC ~600K steps and PPO ~1.6M to match – in 80-150K real steps. The shape of every model-based curve is the same: a slow start (the model is being learned) followed by a sharp climb once imagined updates start carrying useful gradients.

That said, the plot also shows an honest limitation. Model-based curves do not always exceed model-free asymptotes; they reach the same level much faster. When samples are cheap, model-free methods often win by simplicity. When samples are expensive – which is the empirically interesting regime – model-based wins by a wide margin.

9. Choosing the Right Tool

10. Open Problems

Three frontiers are particularly active:

1. Model error in the long tail. All current methods either keep horizons short (MBPO, MPC) or hide the problem in latent space (Dreamer). Neither scales gracefully to tasks needing 1000-step credit assignment with photorealistic dynamics.
2. Stochastic and multi-modal worlds. RSSM’s stochastic$z$is a step, but predicting genuinely multi-modal futures (driving, dialogue) remains hard.
3. World models for foundation agents. Recent work (Genie, Sora-as-world-model, V-JEPA) treats large generative video models as the dynamics component; whether a single pretrained world model can transfer across tasks the way LLMs do is an open and consequential question.

Summary

Model-based RL is the family of methods that spend compute to save samples:

• Dyna introduced the loop – mix real and imagined updates to amortise interaction.
• MBPO showed that short imagined rollouts beat long ones, because model error compounds.
• MPC treats the model as a one-step-ahead simulator and replans every step.
• World Models moved dynamics learning into a compressed latent space, making pixels tractable.
• Dreamer / RSSM trains representation, dynamics, and policy jointly and learns behaviour entirely in imagination.
• MuZero dropped reconstruction altogether: the model just has to be self-consistent under MCTS.

The unifying lesson is that what you predict should match how you use the prediction. Predict pixels if pixels matter; predict$(r, v, p)$if those are all that the planner consumes. That principle is what makes the modern wave – DreamerV3, EfficientZero, TD-MPC2 – finally feel general.

Next up: Part 6 dives into PPO and TRPO – the trust-region policy gradient methods that quietly power industrial RL, from robotic manipulation to ChatGPT’s RLHF.

References

• Sutton, R. S. (1990). Integrated architectures for learning, planning, and reacting based on approximating dynamic programming. ICML.
• Janner, M., Fu, J., Zhang, M., & Levine, S. (2019). When to trust your model: model-based policy optimization. NeurIPS. arXiv:1906.08253 ↗
• Chua, K., Calandra, R., McAllister, R., & Levine, S. (2018). Deep reinforcement learning in a handful of trials using probabilistic dynamics models (PETS). NeurIPS. arXiv:1805.12114 ↗
• Ha, D., & Schmidhuber, J. (2018). World models. NeurIPS. arXiv:1803.10122 ↗
• Hafner, D., Lillicrap, T., Ba, J., & Norouzi, M. (2020). Dream to control: learning behaviors by latent imagination (Dreamer). ICLR. arXiv:1912.01603 ↗
• Hafner, D., Lillicrap, T., Norouzi, M., & Ba, J. (2021). Mastering Atari with discrete world models (DreamerV2). ICLR. arXiv:2010.02193 ↗
• Hafner, D., et al. (2023). Mastering diverse domains through world models (DreamerV3). arXiv:2301.04104 ↗
• Schrittwieser, J., et al. (2020). Mastering Atari, Go, chess and shogi by planning with a learned model (MuZero). Nature. arXiv:1911.08265 ↗
• Ye, W., Liu, S., Kurutach, T., Abbeel, P., & Gao, Y. (2021). Mastering Atari games with limited data (EfficientZero). NeurIPS. arXiv:2111.00210 ↗
• Hansen, N., Wang, X., & Su, H. (2022/2024). Temporal difference learning for model predictive control (TD-MPC / TD-MPC2). arXiv:2310.16828 ↗
