The moment your model contains a sampling step, training hits a hard wall: how do gradients flow through a random node?

The reparameterization trick has a clean answer — rewrite $z\sim p_\theta(z)$ as $z=g_\theta(\epsilon)$, isolating the randomness in a parameter-free noise variable $\epsilon$, so backprop can flow through $g_\theta$. The trouble starts with discrete variables: operations like $\arg\max$ are not differentiable. Gumbel-Softmax (a.k.a. the Concrete distribution) replaces the discrete sample with a tempered softmax over Gumbel-perturbed logits, giving you a smooth, differentiable surrogate that you can train end-to-end.

This post walks through the derivations, the intuition, the implementation details, the bias-variance trade-off behind the temperature, and the most common training pitfalls.

What you’ll learn

Why gradients cannot flow through $z\sim\mathcal N(\mu,\sigma^2)$, but flow freely through $z=\mu+\sigma\epsilon$.
Where the Gumbel distribution comes from and why “logits + Gumbel noise + argmax = softmax sampling” is exact.
How the Gumbel-Softmax temperature $\tau$ trades bias for variance, plus annealing in practice.
The Straight-Through estimator (ST-GS): hard forward, soft backward.
Variance comparison vs. REINFORCE / score-function estimators (typically 1–3 orders of magnitude lower).
Full PyTorch implementations for both continuous and discrete VAEs, with the most common training pitfalls.

Prerequisites

Expectations, densities, change-of-variables.
Basic PyTorch and the chain rule under autograd.
Familiarity with the variational autoencoder (see the companion post VAE: From Intuition to Implementation ).

1. Why we need reparameterization

The general training objective looks like

$$ \mathcal L(\theta) \;=\; \mathbb E_{z\sim q_\theta(z)}\,[\,f(z)\,]. $$

In a VAE, $f$ is the reconstruction log-likelihood; in RL, it’s a return; in discrete structure learning, it’s the downstream loss. The trouble: $\theta$ appears both inside $f$ and inside the distribution. Naively “sample $z$, evaluate $f(z)$, call .backward()” breaks because the computation graph is severed at the sampling step.

A blunt PyTorch example:

1
2
3
4
5
6
7
# Wrong: sampling inside the graph
mu, logvar = encoder(x)
sigma = torch.exp(0.5 * logvar)
z = torch.normal(mu, sigma)        # <- not differentiable
recon = decoder(z)
loss = (recon - x).pow(2).sum()
loss.backward()                    # mu, sigma receive no gradient

torch.normal(mu, sigma) is a stochastic op: there is no smooth functional relationship between its output $z$ and its inputs $\mu,\sigma$. Change $\mu$ a tiny bit and the distribution shifts, but a particular drawn $z$ does not move smoothly with it — there is no derivative to define.

Core problem: training requires $\nabla_\theta \mathbb E_{q_\theta}[f(z)]$, but the sampling step kills backprop.

Two families of fixes exist:

Score-function / REINFORCE: rewrite the gradient as $\mathbb E[f(z)\nabla_\theta\log q_\theta(z)]$. Universal, works on any random variable — but the variance is enormous.
Reparameterization: pull the randomness out of the parameters, replace it with parameter-free noise, and keep the graph differentiable. Low variance and end-to-end trainable, but requires a distribution that admits such a rewrite.

2. Reparameterizing continuous distributions

2.1 The general form

Express $z$ as a deterministic, differentiable function of a parameter-free noise $\epsilon$:

$$ z \;=\; g_\theta(\epsilon),\qquad \epsilon \sim p(\epsilon), $$

where $p(\epsilon)$ is a fixed base distribution (e.g. $\mathcal N(0,I)$ or $\mathrm{Uniform}(0,1)$). Substituting back,

$$ \mathcal L(\theta) \;=\; \mathbb E_{\epsilon\sim p(\epsilon)}\,[\,f(g_\theta(\epsilon))\,]. $$

Now $\theta$ no longer appears inside the expectation, so we can swap differentiation and expectation:

$$ \nabla_\theta\,\mathcal L(\theta) \;=\; \mathbb E_{\epsilon\sim p(\epsilon)}\,[\,\nabla_\theta\, f(g_\theta(\epsilon))\,]. $$

A Monte Carlo estimate is just: draw one (or a few) $\epsilon$, run autograd through $f(g_\theta(\epsilon))$.

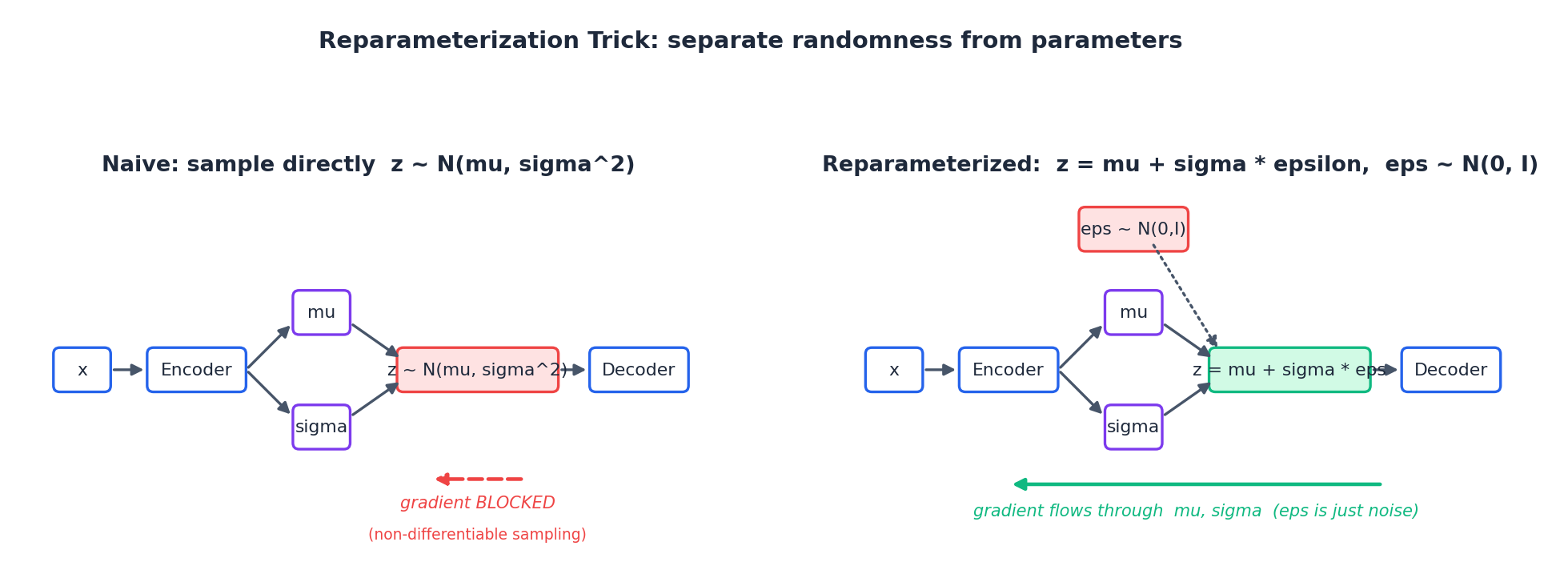

Side-by-side: on the left, $z\sim\mathcal N(\mu,\sigma^2)$ is a stochastic node and gradients cannot flow through it; on the right, $z=\mu+\sigma\epsilon$ is a deterministic function of $\mu,\sigma$ and gradients flow through the green path back into the encoder.

2.2 The Gaussian case

The textbook example: for $z\sim\mathcal N(\mu,\sigma^2)$,

$$ z \;=\; \mu \;+\; \sigma \odot \epsilon,\qquad \epsilon \sim \mathcal N(0,I). $$

Verify on both sides: (i) $\mathbb E[z]=\mu$, $\mathrm{Var}(z)=\sigma^2$; (ii) since linear transforms preserve normality, $z$’s marginal is exactly $\mathcal N(\mu,\sigma^2)$. Crucially, $\partial z/\partial\mu=1$ and $\partial z/\partial\sigma=\epsilon$ — both trivial expressions, gradients are unobstructed.

In PyTorch, predict $\log\sigma^2$ rather than $\sigma$ for numerical stability:

1
2
3
4
5
def reparameterize(mu: Tensor, logvar: Tensor) -> Tensor:
    """z = mu + sigma * eps,  eps ~ N(0, I)."""
    std = torch.exp(0.5 * logvar)        # sigma >= 0 by construction
    eps = torch.randn_like(std)          # the only random source
    return mu + std * eps

2.3 In the VAE

The VAE optimizes the evidence lower bound (ELBO):

$$ \mathcal L_{\text{ELBO}}(\theta,\phi;x) \;=\; \mathbb E_{q_\phi(z|x)}\!\bigl[\log p_\theta(x|z)\bigr] \;-\;\mathrm{KL}\!\bigl(q_\phi(z|x)\,\Vert\,p(z)\bigr). $$

The expectation in the first term is taken w.r.t. $q_\phi(z|x)$, which has $\phi$ inside. Reparameterization is what makes this term differentiable: writing $z=\mu_\phi(x)+\sigma_\phi(x)\odot\epsilon$,

$$ \nabla_\phi\,\mathbb E_{q_\phi(z|x)}[\log p_\theta(x|z)] \;=\;\mathbb E_{\epsilon\sim\mathcal N(0,I)}\!\bigl[\,\nabla_\phi\log p_\theta(x\mid \mu_\phi+\sigma_\phi\epsilon)\,\bigr]. $$

The gradient w.r.t. $\phi$ flows through the decoder all the way back into the encoder. The KL term has a closed form when $q_\phi=\mathcal N(\mu,\sigma^2)$ and $p=\mathcal N(0,I)$:

$$ \mathrm{KL}=\tfrac12\sum_j\!\bigl(\mu_j^2+\sigma_j^2-1-\log\sigma_j^2\bigr), $$

so no Monte Carlo is needed there.

2.4 Which continuous distributions are “naturally” reparameterizable?

Anything that admits a location-scale form, or a base-noise + differentiable transform:

Distribution	Reparameterization
$\mathcal N(\mu,\sigma^2)$	$z=\mu+\sigma\epsilon$, $\epsilon\sim\mathcal N(0,1)$
$\mathrm{Logistic}(\mu,s)$	$z=\mu+s\,\log\frac{u}{1-u}$, $u\sim\mathrm U(0,1)$
$\mathrm{Laplace}(\mu,b)$	$z=\mu-b,\mathrm{sign}(u)\log(1-2
$\mathrm{Exp}(\lambda)$	$z=-\tfrac1\lambda\log(1-u)$, $u\sim\mathrm U(0,1)$
$\mathrm{Gumbel}(\mu,\beta)$	$z=\mu-\beta\log(-\log u)$, $u\sim\mathrm U(0,1)$

Counter-examples: Gamma, Beta, Dirichlet, Student-t do not have a simple location-scale form. They need implicit reparameterization gradients or pathwise tricks (Figurnov et al., NeurIPS 2018; see §7).

3. Reparameterizing discrete distributions: the Gumbel-Max trick

3.1 The difficulty

Take a $K$-class categorical $\mathrm{Cat}(\pi_1,\dots,\pi_K)$ with $\pi_i=\mathrm{softmax}(\alpha)_i=\frac{\exp(\alpha_i)}{\sum_j\exp(\alpha_j)}$. The naive “sample” is: compute $\pi$, draw a class index $k$ from a multinomial. That step is completely non-differentiable — its output is a one-hot vector, with no notion of smooth variation.

The fallback is the score-function estimator:

$$ \nabla_\alpha\,\mathbb E_{k\sim\mathrm{Cat}(\pi)}[f(k)] \;=\;\mathbb E_{k}\bigl[f(k)\,\nabla_\alpha\log\pi_k\bigr], $$

universal but with variance large enough to wreck training stability. Can we, like in the Gaussian case, factor sampling into “noise + deterministic transform”? The answer is the Gumbel-Max trick.

3.2 A quick tour of the Gumbel distribution

The standard Gumbel $\mathrm{Gumbel}(0,1)$ has CDF/PDF

$$ F(g)=\exp(-e^{-g}),\qquad f(g)=\exp\!\bigl(-(g+e^{-g})\bigr). $$

Mode at $0$, mean at the Euler–Mascheroni constant $\gamma\approx 0.5772$. Crucially, it is the extreme-value distribution for maxima of iid samples (under suitable scaling). Gumbel-Max exploits exactly this property.

Inverse-CDF sampling is one line:

$$ u\sim\mathrm U(0,1) \;\Rightarrow\; g=-\log(-\log u)\sim\mathrm{Gumbel}(0,1). $$

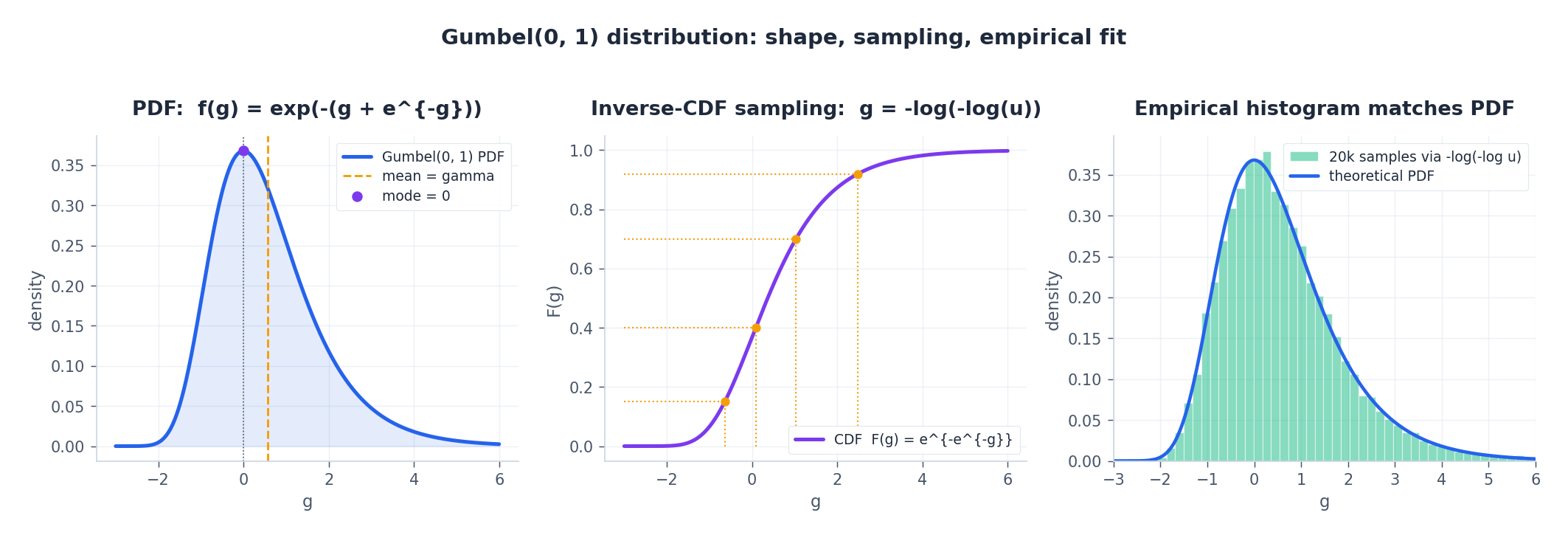

Left: the Gumbel(0,1) PDF; middle: inverse-CDF sampling visualized; right: 20k samples drawn via $-\log(-\log u)$, with the empirical histogram matching the analytic PDF.

3.3 The Gumbel-Max trick

Claim. Let $g_1,\dots,g_K\overset{iid}{\sim}\mathrm{Gumbel}(0,1)$ and define

$$ k^\star \;=\; \arg\max_i\,(\alpha_i + g_i). $$

Then $k^\star\sim\mathrm{Cat}(\mathrm{softmax}(\alpha))$. In words, adding Gumbel noise to logits and taking argmax is equivalent to sampling from the softmax distribution.

Proof (probability of class 1)

$\Pr[k^\star=1] = \Pr\bigl[\,\forall i\neq 1:\;\alpha_1+g_1>\alpha_i+g_i\,\bigr] = \Pr\bigl[\,\forall i\neq 1:\;g_i<\alpha_1-\alpha_i+g_1\,\bigr]$.

Conditioning on $g_1=t$:

$$ \Pr[k^\star=1\mid g_1=t]=\prod_{i\neq 1}F(\alpha_1-\alpha_i+t) =\prod_{i\neq 1}\exp\!\bigl(-e^{-(\alpha_1-\alpha_i+t)}\bigr) =\exp\!\Bigl(-e^{-t}\!\!\sum_{i\neq 1}e^{\alpha_i-\alpha_1}\Bigr). $$

Let $S=\sum_{i\neq 1}e^{\alpha_i-\alpha_1}$ and integrate over $g_1$:

$$ \Pr[k^\star=1]=\int e^{-(t+e^{-t})}\cdot\exp(-S e^{-t})\,dt =\int e^{-t}\exp\!\bigl(-(1+S)e^{-t}\bigr)\,dt. $$

Substituting $u=(1+S)e^{-t}$, $du=-(1+S)e^{-t}dt$ gives $\frac{1}{1+S}\int_0^\infty e^{-u}du=\frac{1}{1+S}$.

But $1+S=1+\sum_{i\neq 1}e^{\alpha_i-\alpha_1}=e^{-\alpha_1}\sum_i e^{\alpha_i}$, so

$$ \Pr[k^\star=1]=\frac{e^{\alpha_1}}{\sum_i e^{\alpha_i}}=\mathrm{softmax}(\alpha)_1. \quad\blacksquare $$

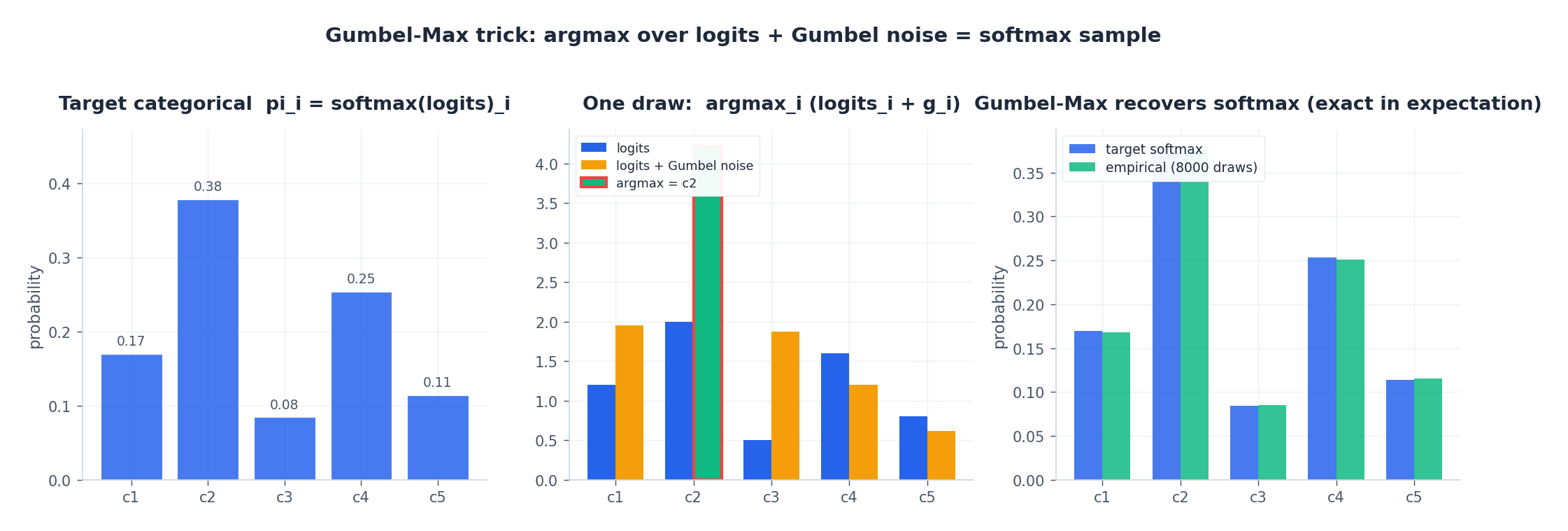

Left: target categorical distribution; middle: a single draw — adding Gumbel noise to logits and taking the argmax selects class c2; right: 8000 draws — the empirical frequencies match the target softmax probabilities, confirming exact equivalence in expectation.

Why this matters

Efficient: $K$ uniforms + one argmax. No explicit normalization, no cumulative-distribution lookup.
Numerically stable: addition followed by argmax is invariant to constant shifts in the logits.
Most importantly: all the randomness now lives in $g$; the logits $\alpha$ enter through the deterministic $\alpha+g$. We are one step away from “differentiable” — just need to soften the $\arg\max$.

4. Gumbel-Softmax: softening the argmax

4.1 Definition

Replace $\arg\max$ with a temperature-scaled softmax to obtain a sample from the Gumbel-Softmax / Concrete distribution:

$$ y_i \;=\; \frac{\exp\!\bigl((\alpha_i + g_i)/\tau\bigr)}{\sum_{j=1}^K\exp\!\bigl((\alpha_j + g_j)/\tau\bigr)}, \qquad g_i\overset{iid}{\sim}\mathrm{Gumbel}(0,1). $$

Here $y\in\Delta^{K-1}$, the $(K-1)$-simplex — a continuous vector. The two limits give intuition:

$\tau\to 0^+$: softmax degenerates into the indicator of the argmax, $y$ becomes one-hot — a true discrete sample;
$\tau\to\infty$: $(\alpha_i+g_i)/\tau\to 0$, $y$ becomes the uniform vector $(1/K,\dots,1/K)$.

Because $g$ is independent of $\alpha$ and softmax is everywhere differentiable, $y$ is differentiable in $\alpha$ (and therefore in any upstream parameter $\theta$). This is the heart of Gumbel-Softmax: a smooth, differentiable proxy for the discrete one-hot.

4.2 The temperature bias-variance trade-off

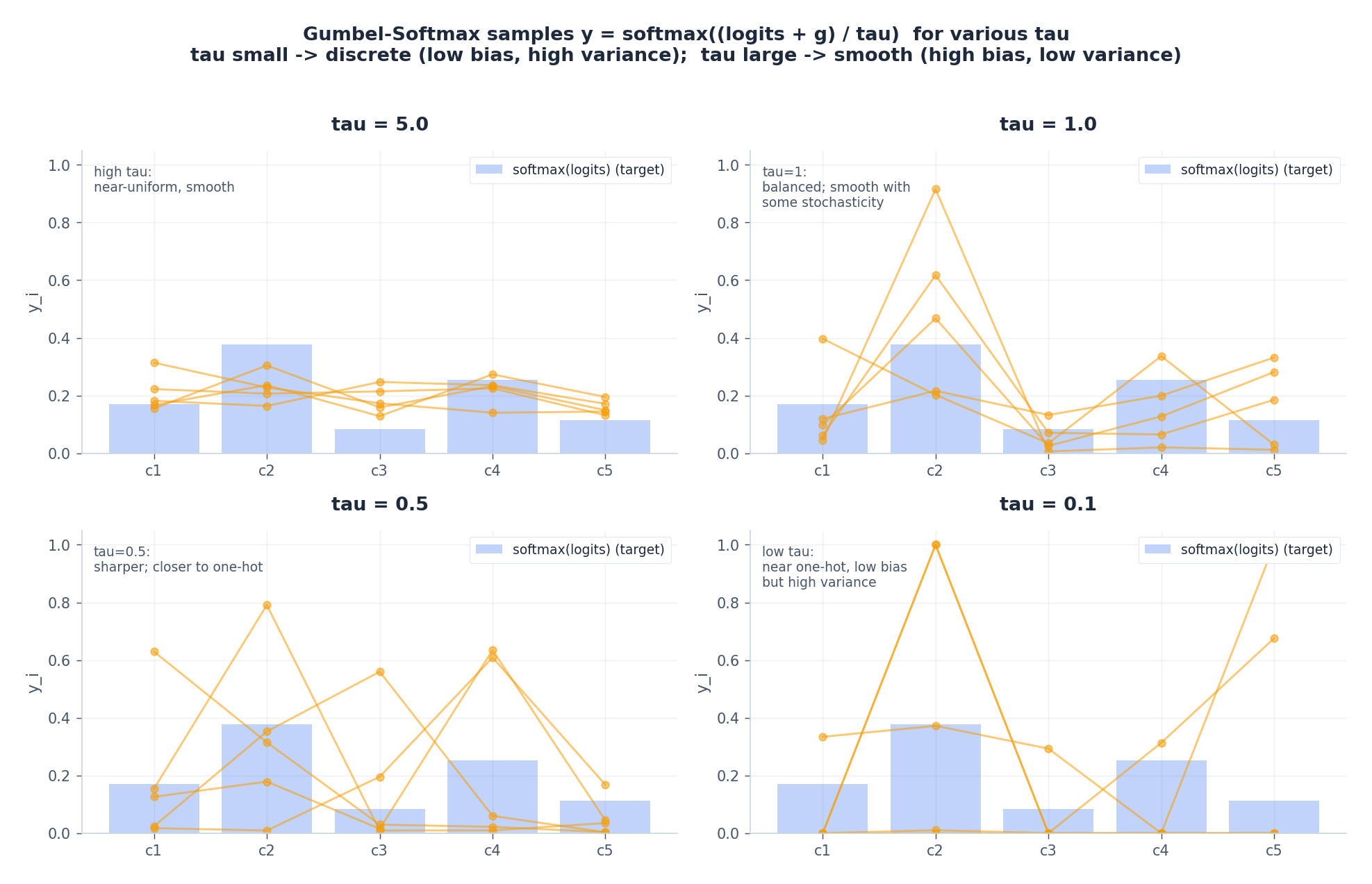

Four temperatures: in each panel the light-blue bars show the target softmax, while the orange polylines are five independent Gumbel-Softmax draws.
$\tau=5$: very smooth, near-uniform — low gradient variance but highly biased away from a true discrete sample;
$\tau=1$: balanced;
$\tau=0.5$: starts looking one-hot;
$\tau=0.1$: nearly hard one-hot — low bias but high variance (and softmax internals are prone to over/underflow).

You can read this off the gradient estimator directly: smaller $\tau$ makes $y$ closer to the true one-hot $z$, reducing bias; but the softmax Jacobian $\partial y/\partial\alpha$ scales like $1/\tau$, so variance grows like $\tau^{-2}$.

Practical annealing:

Start at $\tau\in[1.0, 2.0]$, end at $\tau\in[0.1, 0.5]$.
Exponential schedule $\tau_t=\max(\tau_{\min},\tau_0\,e^{-rt})$ with a check every $\sim 1000$ steps.
Don’t drive $\tau\to 0$ — softmax numerics blow up and gradient variance dominates. Let the model “see” the soft distribution early, then “harden” it later.

4.3 Straight-Through Gumbel-Softmax (ST-GS)

Many tasks — hard attention, discrete token selection, sparse routing — must use a strict one-hot in the forward pass (e.g. the downstream is an embedding lookup expecting an integer index). The fix is the Straight-Through estimator:

$$ \boxed{ \;\;y_{\text{hard}}=\mathrm{onehot}(\arg\max_i y_i), \qquad \tilde y \;=\; y_{\text{hard}}\;-\;\mathrm{stop\_grad}(y_{\text{soft}})\;+\;y_{\text{soft}}.\;\; } $$

Forward: $\tilde y=y_{\text{hard}}$ (strict one-hot). Backward: $\partial\tilde y/\partial\alpha=\partial y_{\text{soft}}/\partial\alpha$ (the soft Jacobian). It’s a biased but low-variance estimator: hard sample for the loss, soft sample for the gradient.

In PyTorch:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
def gumbel_softmax(logits: Tensor, tau: float = 1.0,
                   hard: bool = False) -> Tensor:
    """y = softmax((logits + g) / tau); optional ST-hard."""
    # 1) Gumbel noise; clamp to avoid log(0)
    u = torch.rand_like(logits).clamp_(1e-9, 1.0 - 1e-9)
    g = -torch.log(-torch.log(u))
    # 2) soft sample
    y_soft = F.softmax((logits + g) / tau, dim=-1)
    if not hard:
        return y_soft
    # 3) Straight-Through: hard forward, soft backward
    idx = y_soft.argmax(dim=-1, keepdim=True)
    y_hard = torch.zeros_like(y_soft).scatter_(-1, idx, 1.0)
    return y_hard - y_soft.detach() + y_soft

PyTorch ships torch.nn.functional.gumbel_softmax(logits, tau, hard) with the same semantics; rolling your own is just to make every step explicit.

5. Comparison with REINFORCE: orders-of-magnitude variance gap

5.1 Score-function / REINFORCE estimator

General form:

$$ \nabla_\theta\,\mathbb E_{z\sim q_\theta}[f(z)] =\mathbb E_{z\sim q_\theta}\!\bigl[f(z)\,\nabla_\theta\log q_\theta(z)\bigr]. $$

Its strength: it makes no assumption about differentiability of $z$ in $\theta$ — discrete, control-flow, even black-box external calls all work. Its weakness: very high variance. Intuitively, the entire scalar value $f(z)$ rides on the gradient with no differentiable path to cancel signs.

Standard variance reductions:

Baselines / control variates: replace $f(z)$ with $f(z)-b$ for some $z$-independent $b$ (e.g. a running average).
Rao–Blackwellization, antithetic sampling, importance sampling, etc.

Even with all these tricks, REINFORCE typically remains 1–3 orders of magnitude noisier than reparameterization.

5.2 Empirical comparison

We estimate $\nabla_{\alpha_0}\,\mathbb E_z[r^\top z]$ on a synthetic 8-class categorical (with a fixed reward vector $r$). Each curve aggregates 200 trials.

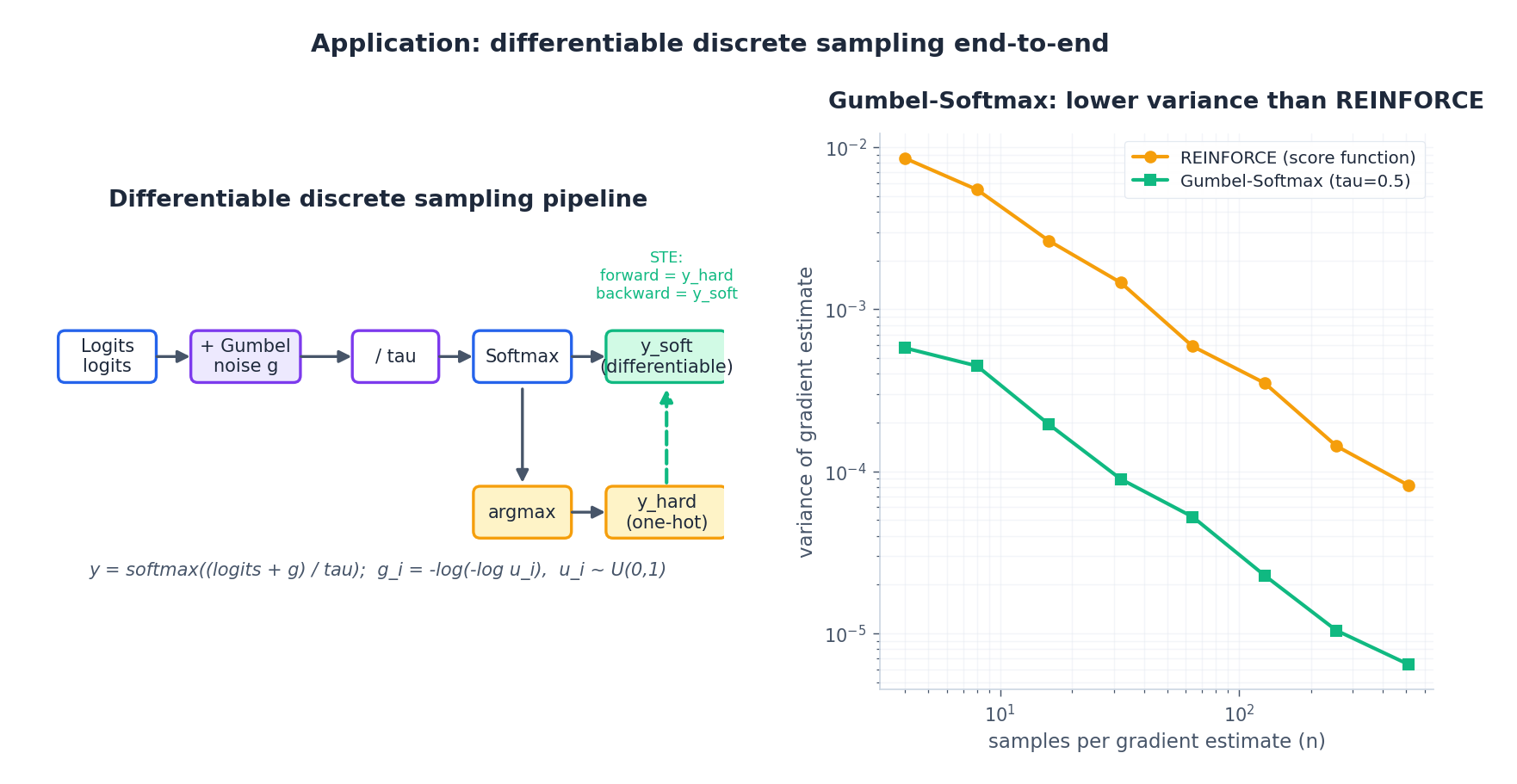

Left pipeline: logits → +Gumbel noise → /τ → softmax → $y_{\text{soft}}$; optional argmax → $y_{\text{hard}}$, combined via STE for hard-forward / soft-backward. Right curves: $x$-axis is the number of MC samples per gradient estimate, $y$-axis is the variance of the estimate (log-log). Gumbel-Softmax with $\tau=0.5$ is consistently more than an order of magnitude lower than REINFORCE; both decay as $1/n$ (slope $-1$).

This is exactly why end-to-end discrete training only became practical once reparameterization-based estimators were available.

6. Full PyTorch: continuous and discrete VAEs

6.1 Continuous VAE (reparameterization)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
import torch
import torch.nn as nn
import torch.nn.functional as F


class VAE(nn.Module):
    def __init__(self, x_dim: int = 784, h_dim: int = 400,
                 z_dim: int = 20):
        super().__init__()
        # encoder
        self.enc = nn.Sequential(nn.Linear(x_dim, h_dim), nn.ReLU())
        self.fc_mu = nn.Linear(h_dim, z_dim)
        self.fc_lv = nn.Linear(h_dim, z_dim)
        # decoder
        self.dec = nn.Sequential(
            nn.Linear(z_dim, h_dim), nn.ReLU(),
            nn.Linear(h_dim, x_dim),
        )

    def encode(self, x):
        h = self.enc(x)
        return self.fc_mu(h), self.fc_lv(h)

    def reparameterize(self, mu, logvar):
        std = torch.exp(0.5 * logvar)
        eps = torch.randn_like(std)
        return mu + std * eps

    def forward(self, x):
        mu, logvar = self.encode(x)
        z = self.reparameterize(mu, logvar)
        return self.dec(z), mu, logvar


def vae_loss(logits_x, x, mu, logvar):
    # logits + BCE-with-logits is more numerically stable than sigmoid + BCE
    recon = F.binary_cross_entropy_with_logits(
        logits_x, x, reduction="sum")
    # Closed-form KL: KL(N(mu, sigma^2) || N(0, I))
    kl = -0.5 * torch.sum(1 + logvar - mu.pow(2) - logvar.exp())
    return recon + kl

Implementation notes:

Use binary_cross_entropy_with_logits instead of BCELoss + sigmoid to avoid numerical issues in saturation regions.
Compute the KL term in closed form (rather than via sampling) to reduce gradient variance.
Optionally anneal KL ($\beta$ in $\beta$-VAE from 0 → 1) to mitigate posterior collapse.

6.2 Discrete-latent VAE (categorical + Gumbel-Softmax)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
class CategoricalVAE(nn.Module):
    def __init__(self, x_dim=784, h_dim=400, n_cat=10, n_dim=20):
        """n_cat independent categoricals, each with K = n_dim classes."""
        super().__init__()
        self.n_cat, self.n_dim = n_cat, n_dim
        self.enc = nn.Sequential(nn.Linear(x_dim, h_dim), nn.ReLU(),
                                 nn.Linear(h_dim, n_cat * n_dim))
        self.dec = nn.Sequential(nn.Linear(n_cat * n_dim, h_dim),
                                 nn.ReLU(), nn.Linear(h_dim, x_dim))

    def forward(self, x, tau: float, hard: bool = False):
        logits = self.enc(x).view(-1, self.n_cat, self.n_dim)
        # Gumbel-Softmax along the class dimension
        z = F.gumbel_softmax(logits, tau=tau, hard=hard, dim=-1)
        z_flat = z.view(-1, self.n_cat * self.n_dim)
        return self.dec(z_flat), logits


def cat_vae_loss(logits_x, x, q_logits):
    """Closed-form KL: KL(q || Uniform(K)) = log K - H(q)."""
    recon = F.binary_cross_entropy_with_logits(
        logits_x, x, reduction="sum")
    K = q_logits.size(-1)
    log_q = F.log_softmax(q_logits, dim=-1)
    q = log_q.exp()
    kl = (q * (log_q + torch.log(torch.tensor(float(K))))).sum()
    return recon + kl


# Inside the training loop, anneal temperature:
# tau = max(tau_min, tau0 * exp(-r * step))
