Session-based Recommendation with Graph Neural Networks (SR-GNN)

A user clicks A, B, C, B, D. A sequence model reads this as five tokens and folds them into a hidden state. SR-GNN sees a graph in which the edge B -> C survives even after the user returns to B, the node B is reused (so its in/out neighbours both inform its embedding), and the geometry of the click stream is preserved as adjacency. That structural insight is why SR-GNN (Wu et al., AAAI 2019) ↗ outperforms purely sequential baselines such as GRU4Rec and NARM on standard session-based recommendation (SBR) benchmarks.

This note unpacks SR-GNN end to end: how the session graph is built, how the gated GNN (GGNN) propagates information over it, how a session vector is assembled from a local (last click) and global (attention) view, how scoring and training work, and where the model breaks. The aim is to leave you in a position to either drop SR-GNN into your stack or, more usefully, to know exactly when not to.

What you will learn

• How the click stream is converted into a directed weighted session graph (and how the in/out adjacency rows feed the GGNN)
• The gated GNN update unpacked as a GRU cell over an aggregated message
• Session pooling: why local + global beats either alone, and how attention is anchored on the last click
• The training objective, the realistic hyperparameters, and what BPTT actually means for a graph this small
• Why session graphs beat RNN/GRU baselines on multi-step click patterns
• Concrete failure modes (short sessions, popularity collapse, cold-start items, large catalogs) and the standard fixes
• Reasonable variants (attention-weighted GGNN, time-gap edges, multi-task heads) and when they help

Prerequisites

• Comfortable with message passing and basic GNN vocabulary (adjacency, propagation steps)
• Familiar with GRU / LSTM gates
• Working knowledge of recommendation metrics: Recall@K, MRR@K, sampled softmax

---

1. Background: what makes session-based recommendation different

In session-based recommendation there is no stable long-term user profile to lean on. We see only the current short sequence of clicks $s = [v_{s,1}, v_{s,2}, \dots, v_{s,n}]$ over an item catalog $V = \{v_1, \dots, v_{|V|}\}$, and we have to predict the next item $v_{s,n+1}$. The model outputs a score vector $\hat z \in \mathbb{R}^{|V|}$ over the catalog and the top-$K$ items are recommended.

Two properties make this regime awkward for classical CF and for plain RNNs:

• Short context: a typical session is 2–10 clicks. There is no signal beyond the session itself, so the model must extract intent from very little.
• Repeated items and non-monotone intent: users wander, double back, compare. The same item can show up multiple times in one session, and a “later” click is not necessarily a “better” preference signal than an earlier one.

Pure sequence models compress these clicks into a single hidden state and inevitably lose the relational structure between revisited items. SR-GNN’s contribution is to keep that structure explicit – as a graph – and let message passing handle the rest.

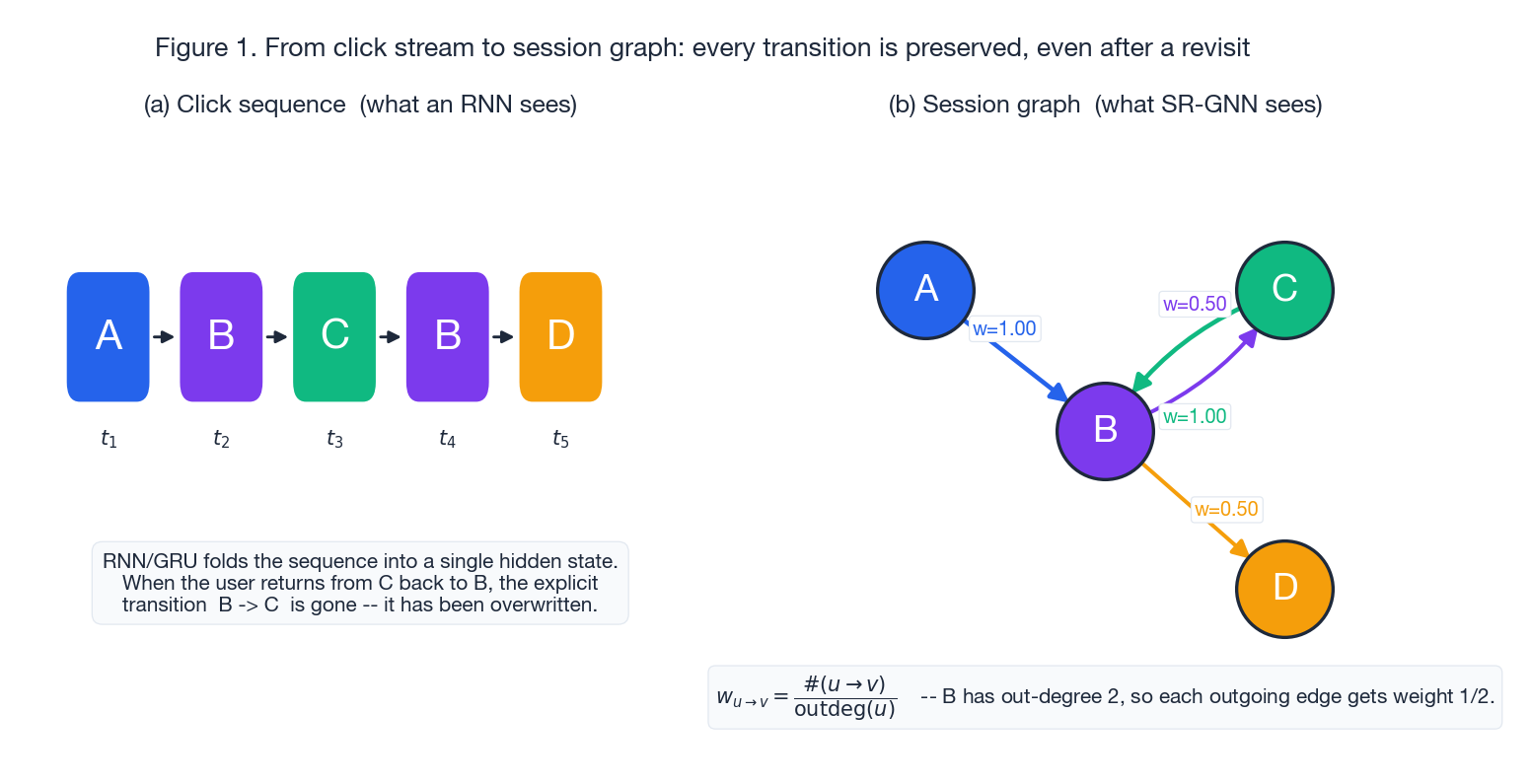

2. Session graph construction

For each session $s$, SR-GNN builds a directed graph $G_s = (V_s, E_s)$ where $V_s$ are the unique items clicked in this session and $E_s$ contains a directed edge $u \to v$ for every observed transition. Repeated nodes are deduplicated (each item appears once as a node, no matter how many times it is clicked), but every transition is preserved as an edge. Edge weights are normalised by the source’s out-degree:

$$ w_{u \to v} \;=\; \frac{\#(u \to v)}{\mathrm{outdeg}(u)} \, . $$

Two adjacency matrices fall out of this construction: the incoming adjacency $A^{(\text{in})}$ (row $i$ tells node $i$ which other nodes feed it) and the outgoing adjacency $A^{(\text{out})}$ (row $i$ tells node $i$ which nodes it feeds). They are concatenated into a single $|V_s| \times 2|V_s|$ matrix $A_s$ that the GGNN uses for message passing.

Concretely, for the click stream A, B, C, B, D:

edge	count	source out-deg	weight
$A \to B$	1	1	1.00
$B \to C$	1	2	0.50
$C \to B$	1	1	1.00
$B \to D$	1	2	0.50

A pure GRU over the same stream would compress the second visit to B into the hidden state and effectively forget the B -> C transition once it absorbs C -> B. The graph view loses none of this.

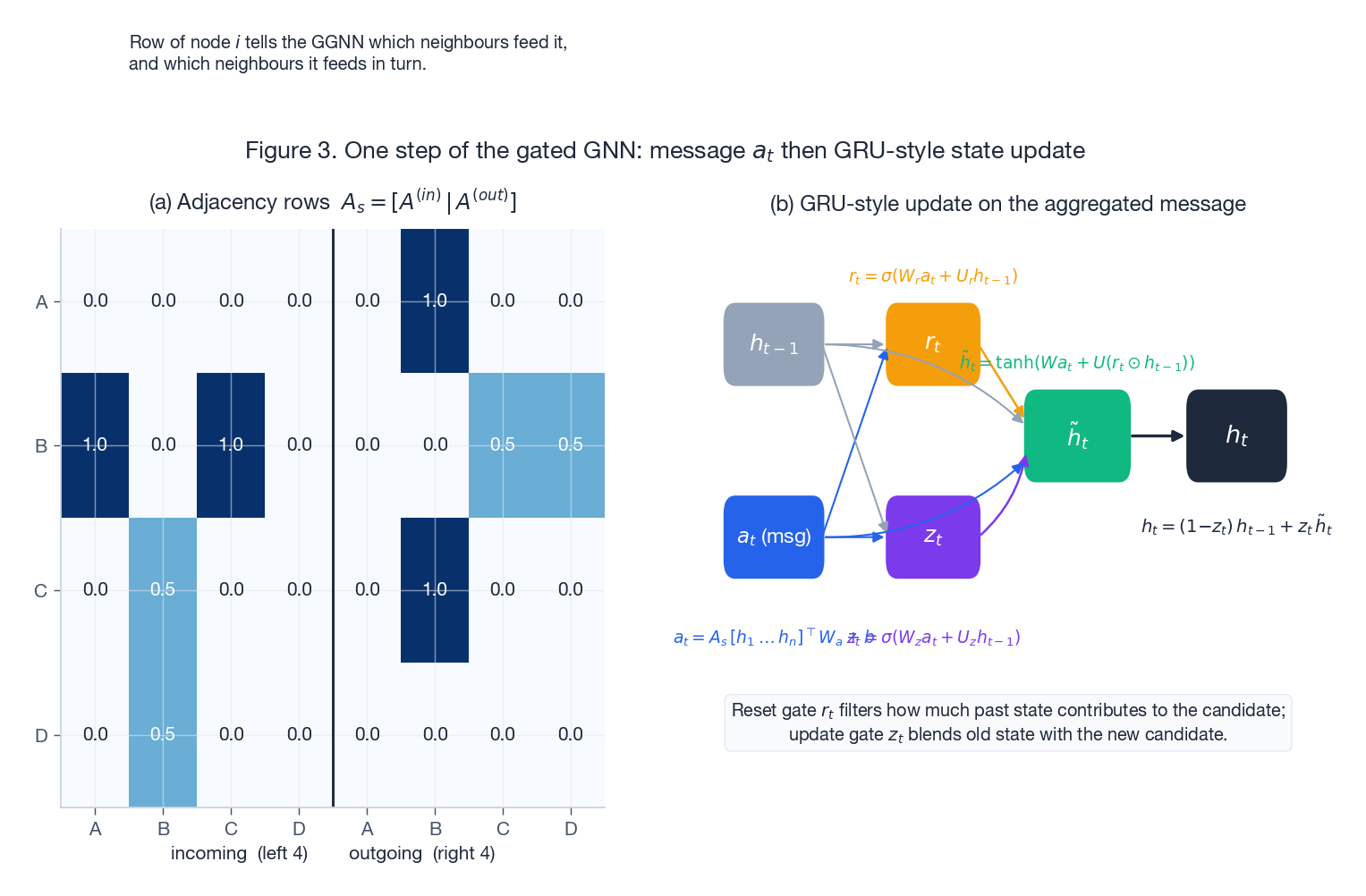

3. Gated GNN propagation

Each item $v$ in the session has a $d$-dimensional embedding $h_v$ pulled from a global item table $V \in \mathbb{R}^{|V|\times d}$. SR-GNN runs $T$ rounds of message passing over the session graph using a Gated Graph Neural Network (Li et al., 2016), which is essentially a GRU cell driven by an aggregated message rather than a sequential input.

For node $i$ at step $t$ the message is

$$ a_t^{(i)} \;=\; A_{s,i:}\, \big[h_1^{(t-1)}, \dots, h_n^{(t-1)}\big]^\top\, W_a \;+\; b, $$

where $A_{s,i:}$ is row $i$ of the concatenated $[A^{(\text{in})}\,|\,A^{(\text{out})}]$ adjacency. The aggregated message then drives a GRU-style update:

$$ \begin{aligned} z_t &\;=\; \sigma\!\big(W_z\, a_t + U_z\, h_{t-1}\big), \\ r_t &\;=\; \sigma\!\big(W_r\, a_t + U_r\, h_{t-1}\big), \\ \tilde h_t &\;=\; \tanh\!\big(W\, a_t + U\, (r_t \odot h_{t-1})\big), \\ h_t &\;=\; (1 - z_t)\, h_{t-1} \;+\; z_t\, \tilde h_t \, . \end{aligned} $$

The reset gate $r_t$ controls how much of the previous state contributes to the candidate; the update gate $z_t$ then blends old and new. The intuition is the same as in a GRU sequence model, but the “next input” is now the graph message $a_t$, not the next item in a list.

After $T$ steps each node carries a context-aware embedding $h_v$ that depends on its in/out neighbours, on its position in any cycles within the session, and on how often each transition fires.

A few practical notes on the propagation:

• Number of steps $T$: the original paper uses $T = 1$ on Yoochoose and $T = 1$ on Diginetica. Increasing $T$ rarely helps because session graphs are tiny (rarely more than 10 nodes) and signal already saturates.
• Parameter sharing: the GRU cell parameters $(W_z, U_z, W_r, U_r, W, U, W_a, b)$ are shared across all nodes and across all sessions – the model is transductive over the session catalog only at the embedding table level, not at the cell level.
• Repeated visits: because deduplicated nodes appear exactly once in the graph, both visits to B share the same embedding throughout propagation. The model recovers ordering information later, in the pooling step.

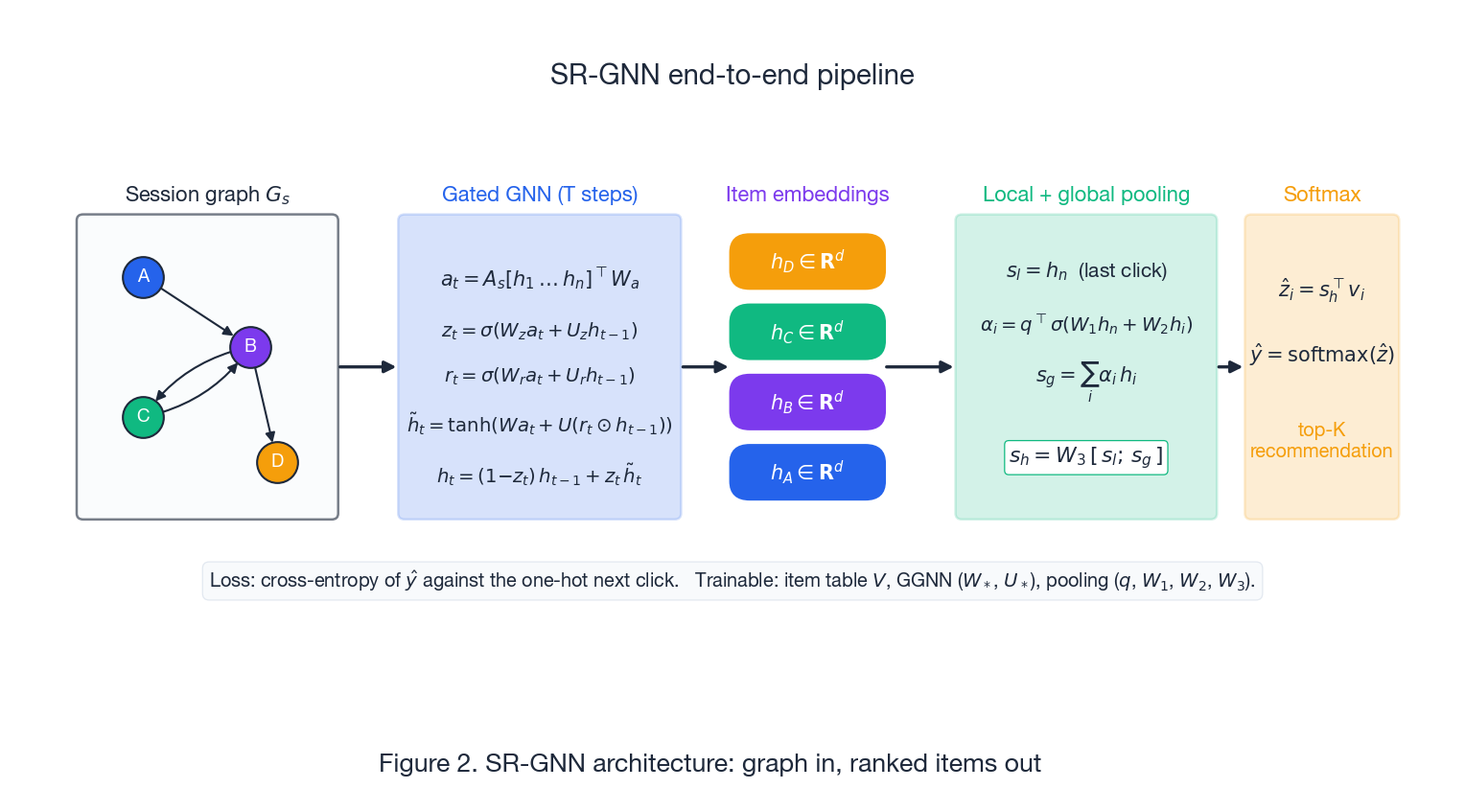

4. Building the session representation

After propagation, SR-GNN turns the per-item embeddings $\{h_1, \dots, h_n\}$ into a single session vector $s_h$. A naive choice – “use the last $h_n$” – works surprisingly well on short sessions but throws away everything else the graph learned. The paper’s design uses two views, fused linearly.

Local intent. The embedding of the last clicked item:

$$ s_l \;=\; h_n \, . $$

This is the strongest single signal of the user’s current mood in the session.

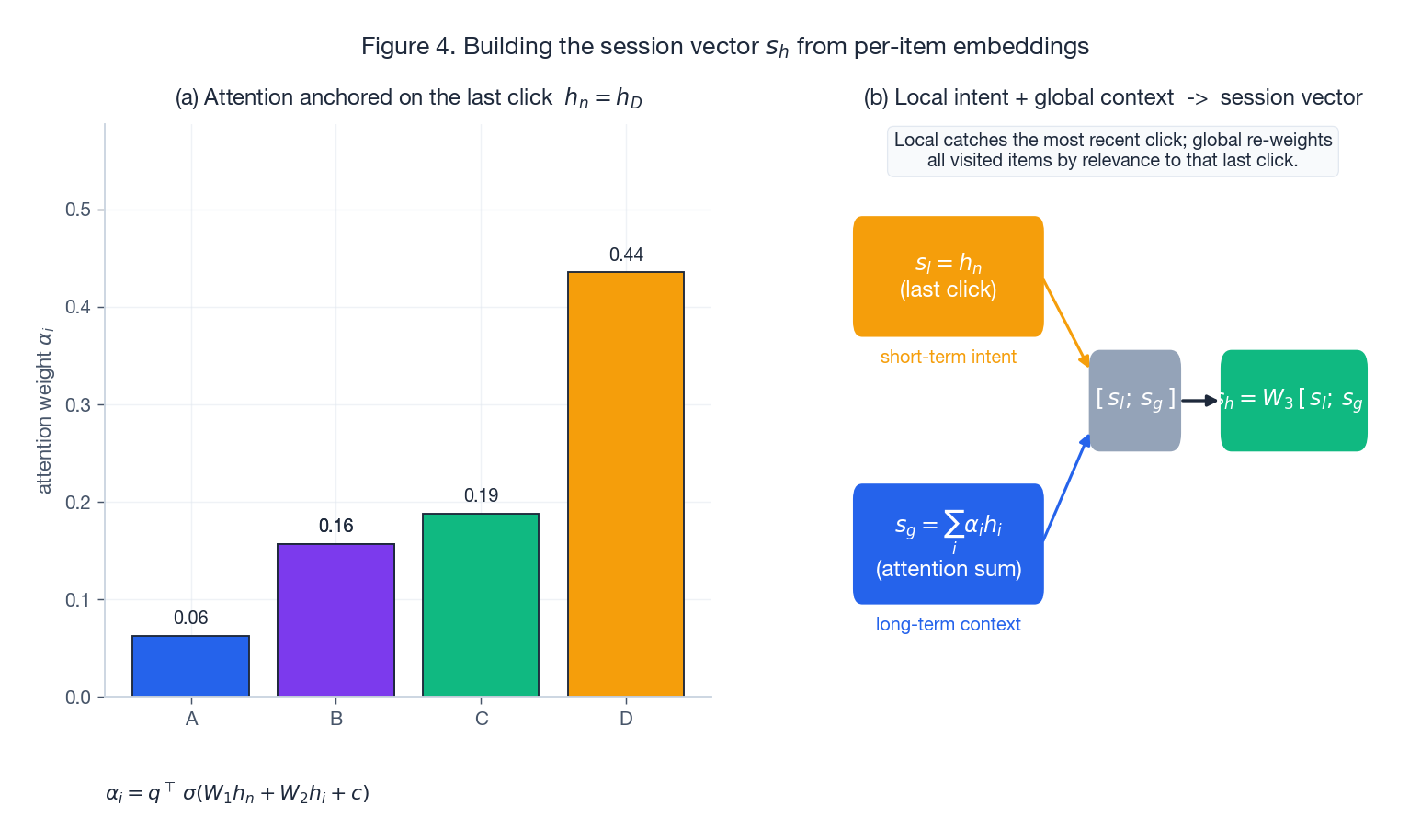

Global context. A soft-attention sum over all per-item embeddings, where the attention is anchored on $h_n$:

$$ \alpha_i \;=\; q^\top\, \sigma\!\big(W_1\, h_n \;+\; W_2\, h_i \;+\; c\big), \qquad s_g \;=\; \sum_{i=1}^{n} \alpha_i\, h_i \, . $$

Here $q \in \mathbb{R}^d$ is a learnable query and $W_1, W_2 \in \mathbb{R}^{d\times d}$ project both the last click and each item into a shared scoring space. Items that look “relevant to where the user just was” earn more weight; items that have been overshadowed earn less.

Final session vector. Concatenate and project:

$$ s_h \;=\; W_3\, [\,s_l \,;\, s_g\,], \qquad W_3 \in \mathbb{R}^{d \times 2d} \, . $$

The local + global split is the same idea you see in NARM and STAMP, but with one important difference: SR-GNN’s per-item embeddings already encode graph structure, so the global term aggregates structurally aware vectors rather than raw item embeddings. This is most of the empirical win.

5. Scoring and training

Given $s_h$ and the item table $V \in \mathbb{R}^{|V|\times d}$, candidate scores are dot products:

$$ \hat z_i \;=\; s_h^\top\, v_i, \qquad \hat y \;=\; \mathrm{softmax}(\hat z) \, . $$

Training minimises cross-entropy against the one-hot ground-truth next item:

$$ \mathcal{L} \;=\; -\sum_{i=1}^{|V|} y_i \log \hat y_i \, . $$

A few details that matter in practice:

• BPTT, but for a tiny graph: gradients flow through $T$ GGNN steps. Because $T$ is typically 1 and graphs have at most a dozen nodes, this is cheap – nothing like sequence-model BPTT over hundreds of tokens.
• Optimiser: Adam with $\eta = 10^{-3}$, $\beta_1 = 0.9$, $\beta_2 = 0.999$. L2 weight decay $10^{-5}$ on all matrices.
• Embedding size: $d = 100$ is the standard. Going larger (256, 512) overfits Yoochoose 1/64 and Diginetica without lifting Recall@20.
• Batching: sessions vary in length, so the implementation pads each batch to the max session size and masks accordingly. The official repo at https://github.com/CRIPAC-DIG/SR-GNN/tree/master ↗ handles this carefully – if you reimplement, copy that masking logic.
• Sampled softmax for huge catalogs: with $|V| > 10^5$ the full softmax becomes the bottleneck. Replace it with sampled softmax or a two-tower retrieval head; SR-GNN itself stays unchanged.

6. Why session graphs outperform sequential baselines

The pure-sequence formulation is $h_t = \mathrm{GRU}(h_{t-1}, v_t)$. It has three weaknesses that the graph view fixes by construction:

• Lost transitions on revisits. When a user clicks A -> B -> C -> B, the GRU’s hidden state at the second B overwrites information about the B -> C step. The session graph keeps both edges $B \to C$ and $C \to B$ explicit; the GGNN sees both as part of node $B$’s neighbourhood.
• Implicit relational learning. A sequence model has to learn that “two clicks in different positions on the same item refer to the same item” through gradient signal alone. The session graph encodes that fact in the adjacency.
• Single direction of information flow. RNNs are left-to-right. The graph propagates in both directions through the in/out adjacency split, so D can pull information from B (its predecessor) without waiting for a backward pass.

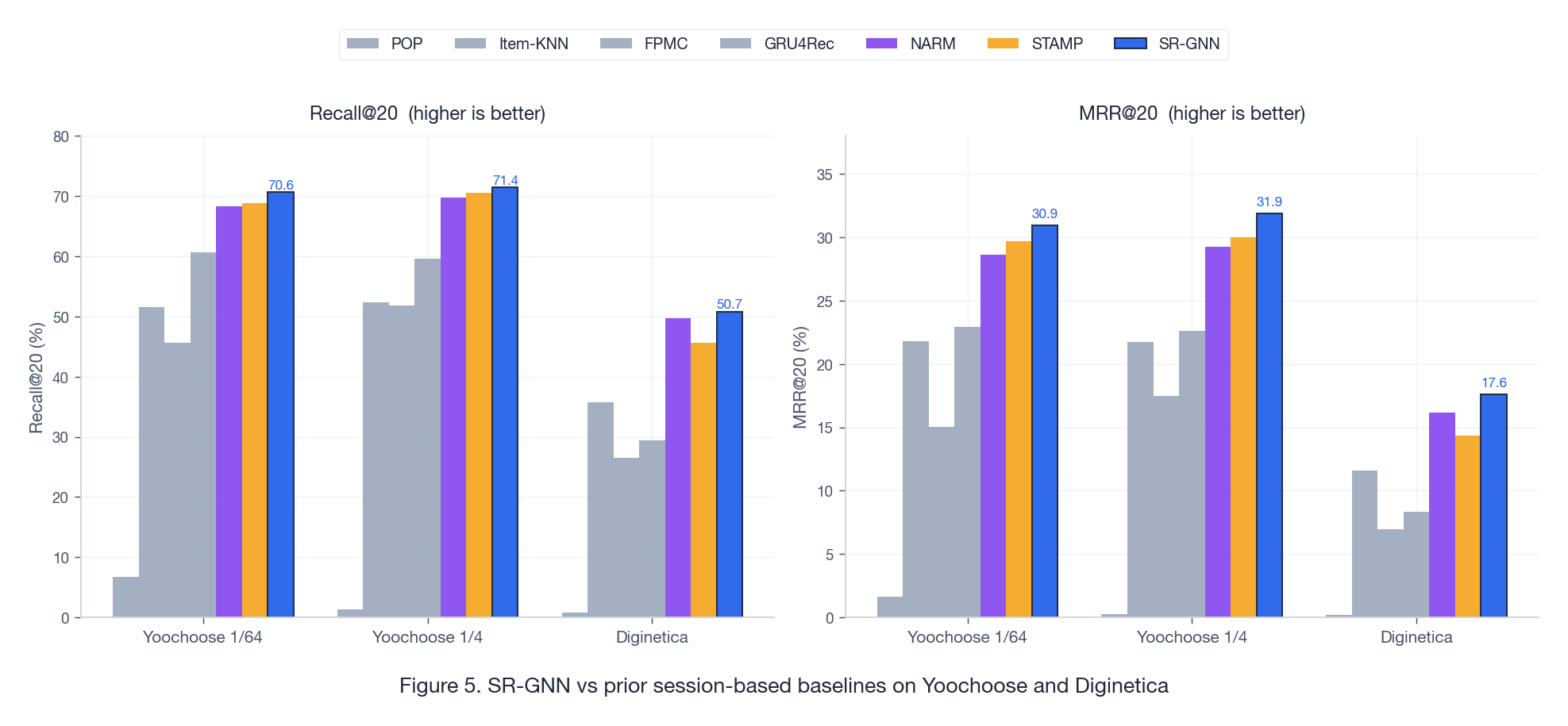

Empirically these add up. On the standard SR-GNN evaluation – Yoochoose 1/64, Yoochoose 1/4, Diginetica – the model beats POP, Item-KNN, FPMC, GRU4Rec, NARM and STAMP on both Recall@20 and MRR@20:

The lifts are biggest on Diginetica, where sessions are longer and have more revisits – exactly the regime where sequence models lose the most transition information.

7. Hyperparameters and training recipe

The paper’s defaults are unusually well-tuned and tend to transfer to new SBR datasets with little change. Use them as a starting point:

Hyperparameter	Value	Notes
Embedding dim $d$	100	64–128 is the sweet spot; 256+ overfits typical SBR data
GGNN propagation steps $T$	1	2 helps marginally on Diginetica, hurts on Yoochoose
Optimiser	Adam	$\eta = 10^{-3}$, $(\beta_1, \beta_2) = (0.9, 0.999)$
LR schedule	Decay by 0.1 / 3 ep	Apply after epoch 3; decay improves Recall@20 by ~0.5–1.0 pt
Batch size	100	50–200 all work; not very sensitive
L2 weight decay	$10^{-5}$	Apply to all $W_*$ matrices and the item table
Dropout	None on GGNN, 0.5 on item table during eval	Item-table dropout regularises the long tail
Early stopping	Patience 5 on Recall@20	Most runs converge in 8–12 epochs

A subtle gotcha: the official preprocessing filters sessions of length 1 and filters items appearing fewer than 5 times. If you reuse the published numbers without these filters your Recall@20 will look ~3–5 points worse, and you will spend a week debugging the model rather than the data.

8. Failure modes and how to fix them

SR-GNN is not a universal SBR solution. The four modes below show up reliably enough that they belong in any production checklist.

8.1 Popularity collapse

Symptom. Recall@20 looks fine, but the top-$K$ list is dominated by 5–10 globally popular items regardless of session. Diversity (intra-list distance, coverage@K) is low.

Cause. Cross-entropy with a global softmax is biased toward popular items: they contribute to most positive examples. The model learns “predict popular items” because it is the lowest-loss strategy on average.

Fix.

• Popularity penalty in the score: $\hat z_i \mathrel{-}= \lambda \log \mathrm{freq}(i)$. Tune $\lambda \in [0.1, 1.0]$ on a diversity-vs-recall trade-off.
• Inverse-propensity-weighted softmax: down-weight popular positives during training.
• Negative sampling with popularity-proportional sampling, which forces the model to discriminate against popular items it would otherwise default to.

8.2 Poor performance on very short sessions ($n \le 3$)

Symptom. The model is excellent on sessions of length 5+ but loses to a co-click baseline on length-2 and length-3 sessions.

Cause. A length-2 session graph has 2 nodes and 1 edge; there is essentially no graph structure for the GGNN to exploit, and pooling reduces to “use $h_n$”.

Fix.

• Hybrid serving: route sessions of length $\le 3$ to an item-KNN or co-click model, and only use SR-GNN for length $\ge 4$. The blend usually wins on every length bucket.
• Graph augmentation: attach the last item to its top-$k$ co-clicked neighbours from the global click graph. This “borrows” structure when the session itself has none.
• Pretrain item embeddings on the global co-click graph (DeepWalk / node2vec) and initialise the SR-GNN item table from them. Short sessions then start with informative embeddings rather than random ones.

8.3 Overfitting on small datasets

Symptom. Training Recall@20 climbs steadily; validation Recall@20 plateaus by epoch 4 and starts to drop.

Cause. The item table $V \in \mathbb{R}^{|V|\times d}$ is by far the largest parameter block; on small datasets it memorises long-tail item identities.

Fix.

• Drop $d$ from 100 to 50.
• Add dropout 0.5–0.7 on the item table during training (fix the same dropout mask per session).
• L2 weight decay up to $10^{-4}$.
• Earlier early-stopping: patience 3 instead of 5.

8.4 Cold-start items

Symptom. Items that appear fewer than ~5 times in training are almost never recommended; their dot product with any $s_h$ stays small.

Cause. Their rows in the item table $V$ have near-zero gradient signal and stay close to initialisation.

Fix.

• Add content features (title text embedding, category, brand) as a side-channel and learn $v_i = V[i] + g(\text{content}_i)$. The cold-start row inherits a prior from $g$.
• Use two-tower retrieval for the candidate generation step and reserve SR-GNN for ranking on a smaller candidate set.

9. Variants and useful extensions

A few extensions are worth knowing because they recur in follow-up SBR papers and in production systems.

9.1 Attention-weighted message passing

Replace the fixed $A_s$ with attention weights computed per-edge:

$$ \alpha_{ij} \;=\; \mathrm{softmax}_j\!\big(\mathrm{LeakyReLU}(a^\top [W h_i \,||\, W h_j])\big), \qquad a_t^{(i)} \;=\; \sum_{j \in \mathcal N(i)} \alpha_{ij}\, W h_j \, . $$

This is essentially GAT inside the GGNN cell. Helps when transitions are not equally informative.

9.2 Time-gap edges

Sessions span seconds to minutes; a click that happens 2 seconds after the previous one is a stronger signal than one 5 minutes later. Encode the time gap $\Delta t_{u \to v}$ into the edge weight:

$$ w_{u \to v} \;=\; \exp\!\big(-\beta \cdot \Delta t_{u \to v}\big) \cdot \frac{\#(u \to v)}{\mathrm{outdeg}(u)} \, . $$

A learnable $\beta$ usually settles around $0.05$–$0.2$ when $\Delta t$ is in seconds.

9.3 Multi-task heads

Add auxiliary losses on the same $s_h$:

• Session length prediction (regression on $\log n$).
• Will-the-user-return (binary classification within the next 24 h).
• Category prediction for the next click.

These regularise the session vector and tend to help when the next-click loss alone is noisy. Keep the auxiliary loss weights small ($0.05$–$0.2$) – they are guides, not objectives.

10. When to use SR-GNN vs alternatives

Scenario	Recommendation
Long sessions with revisits ($n \ge 5$)	SR-GNN – this is its sweet spot
Very short sessions ($n \le 3$)	Item-KNN or co-click; SR-GNN has no graph to exploit
Heavy cold-start	Two-tower with content features; SR-GNN as a re-ranker only
Real-time latency budget $< 5$ ms	Cache per-item neighbour reps; consider a distilled MLP head
Catalog $	V
Data with strong long-term user history	Look at sequential models with user embeddings (SASRec, BERT4Rec)

Summary: SR-GNN in five points

• Session as a graph. Click streams become directed weighted graphs; revisits and cycles are preserved as adjacency rather than overwritten in a hidden state.
• GGNN = GRU on graph messages. A single message $a_t$ aggregated over the in/out adjacency drives reset, update and candidate gates. One propagation step is usually enough.
• Local + global pooling. The session vector fuses the last-click embedding (short-term intent) with an attention sum over all item embeddings (global context anchored on the last click).
• Cross-entropy training, dot-product scoring. The setup is standard; the win comes from what the embeddings encode, not from a fancier loss.
• Sweet spot is medium-length sessions with revisits. Outside that regime – length $\le 3$, cold-start items, very large catalogs – pair SR-GNN with the right complement (KNN, content tower, sampled softmax) instead of trying to fix it from inside.

The deeper takeaway is structural. Session-based recommendation is not a sequence problem dressed up; it is a graph problem with a sequential prior. Once you commit to the graph view, every later improvement in this line of work – attention-weighted GNNs (GC-SAN), hyperbolic embeddings (HCGR), LLM-augmented session models (LLMGR) – becomes much easier to read.
