Symplectic Geometry and Structure-Preserving Neural Networks

Train a vanilla feedforward network to predict a one-dimensional harmonic oscillator. Validate it on the next ten time steps – the error is fine. Now roll it out for a thousand steps. The orbit no longer closes, the energy creeps upward, and what should be a periodic motion turns into a slow spiral. The network learned to fit data points; it never learned the physics. Structure-preserving networks fix this by baking geometric invariants – energy conservation, the symplectic 2-form, the Euler-Lagrange equations – directly into the architecture, so the learned model cannot violate them no matter how long you integrate.

What you will learn

• Why a vanilla NN drifts on long-horizon physical predictions even when its short-horizon error is tiny
• Hamiltonian mechanics on phase space: Hamilton’s equations, Poisson brackets, conserved quantities
• The minimum symplectic geometry needed to read papers: closed non-degenerate 2-forms, Darboux’s theorem, Liouville’s theorem
• Why symplectic integrators (Verlet, symplectic Runge-Kutta) have bounded energy error rather than linear drift
• Three architectures and when to pick each: Hamiltonian NN (HNN), Lagrangian NN (LNN), Symplectic NN (SympNet)
• Four classical benchmarks: harmonic oscillator, double pendulum (chaos), Kepler problem, Lennard-Jones molecular dynamics

Prerequisites

• Multivariable calculus and linear algebra
• Comfort training a small MLP in PyTorch
• Classical mechanics (energy, momentum) is helpful but introduced as needed

---

1. Why structure-preserving learning?

1.1 The failure mode of a vanilla NN

Take the simplest possible Hamiltonian system, the 1-D harmonic oscillator,

$$ H(q, p) \;=\; \tfrac{1}{2} p^{2} + \tfrac{1}{2}\omega^{2} q^{2}, $$

with Hamilton’s equations $\dot q = p$, $\dot p = -\omega^{2} q$ and exact solution $q(t) = A\cos(\omega t + \varphi)$. Energy is identically conserved.

Train a feedforward MLP $f_{\theta}(q, p) \approx (\dot q, \dot p)$ on a dense, noiseless trajectory. After training the per-step error is, say, $10^{-4}$. Integrate the model for 1000 steps and two pathologies appear:

1. Energy drift. $H(q_t, p_t)$ does not stay near $H(q_0, p_0)$. It walks. The direction of the walk depends on the optimiser, the initialisation, and even the random seed – there is no mechanism in the loss function that ties the learned vector field to a conserved scalar.
2. Phase error growth. Tiny per-step errors compound; after a thousand steps the predicted orbit and the true orbit are out of phase by a sizable fraction of a period.

The cause is structural, not statistical. The MLP can represent any smooth $\mathbb{R}^2 \to \mathbb{R}^2$ map; the symplectic maps – the ones generated by Hamiltonians – form a measure-zero submanifold of that space. SGD has no reason to land on it.

1.2 The structural fix

Structure-preserving networks restrict the hypothesis class to maps that already obey the conservation law. There are three popular ways to do it; they differ in what the network represents:

• HNN – the network represents the scalar Hamiltonian $H_{\theta}(q,p)$. Hamilton’s equations are then applied analytically (via autograd) to produce $\dot z$. Energy is conserved by construction whenever $H_{\theta}$ is time-independent.
• LNN – the network represents the Lagrangian $L_{\theta}(q, \dot q)$. Acceleration is recovered from the Euler-Lagrange equation. Useful when momenta are awkward (e.g. constrained mechanics).
• SympNet – the network is a symplectic map $\Phi_{\theta} : (q_t, p_t) \mapsto (q_{t+1}, p_{t+1})$, built as a composition of elementary shears whose Jacobians provably satisfy $J^\top \Omega J = \Omega$. No Hamiltonian is ever written down.

The next sections build up the geometry needed to understand these constructions and to read the literature.

2. Hamiltonian mechanics in one figure

2.1 Phase space and Hamilton’s equations

For a system with $n$ degrees of freedom, the phase space $M$ is a $2n$-dimensional manifold with local coordinates $z = (q, p) = (q_1, \dots, q_n, p_1, \dots, p_n)$. The Hamiltonian $H : M \times \mathbb{R} \to \mathbb{R}$ is a smooth function – usually the total energy. Hamilton’s equations are

$$ \dot{q}_{i} \;=\; \frac{\partial H}{\partial p_{i}}, \qquad \dot{p}_{i} \;=\; -\frac{\partial H}{\partial q_{i}}. $$

In vector form, with $z = (q, p)^\top$,

$$ \dot{z} \;=\; J \,\nabla H(z), \qquad J \;=\; \begin{pmatrix} 0 & I_n \\ -I_n & 0 \end{pmatrix}. $$

The matrix $J$ is the canonical symplectic matrix. It satisfies $J^\top = -J$ and $J^2 = -I_{2n}$.

2.2 Poisson brackets

For two smooth observables $f, g : M \to \mathbb{R}$ the Poisson bracket is

$$ \{f, g\} \;=\; \sum_{i=1}^{n} \left( \frac{\partial f}{\partial q_i}\frac{\partial g}{\partial p_i} - \frac{\partial f}{\partial p_i}\frac{\partial g}{\partial q_i} \right) \;=\; (\nabla f)^\top J\, \nabla g. $$

It is bilinear, antisymmetric ($\{f, g\} = -\{g, f\}$), satisfies the Leibniz rule and the Jacobi identity. The function space $C^{\infty}(M)$ together with $\{\cdot,\cdot\}$ is a Lie algebra. The dynamics of any observable along the flow is

$$ \frac{d f}{dt} \;=\; \{f, H\} + \frac{\partial f}{\partial t}. $$

In particular for time-independent $H$, $\dot H = \{H, H\} = 0$: energy is conserved, immediately.

3. Just enough symplectic geometry

3.1 The symplectic form

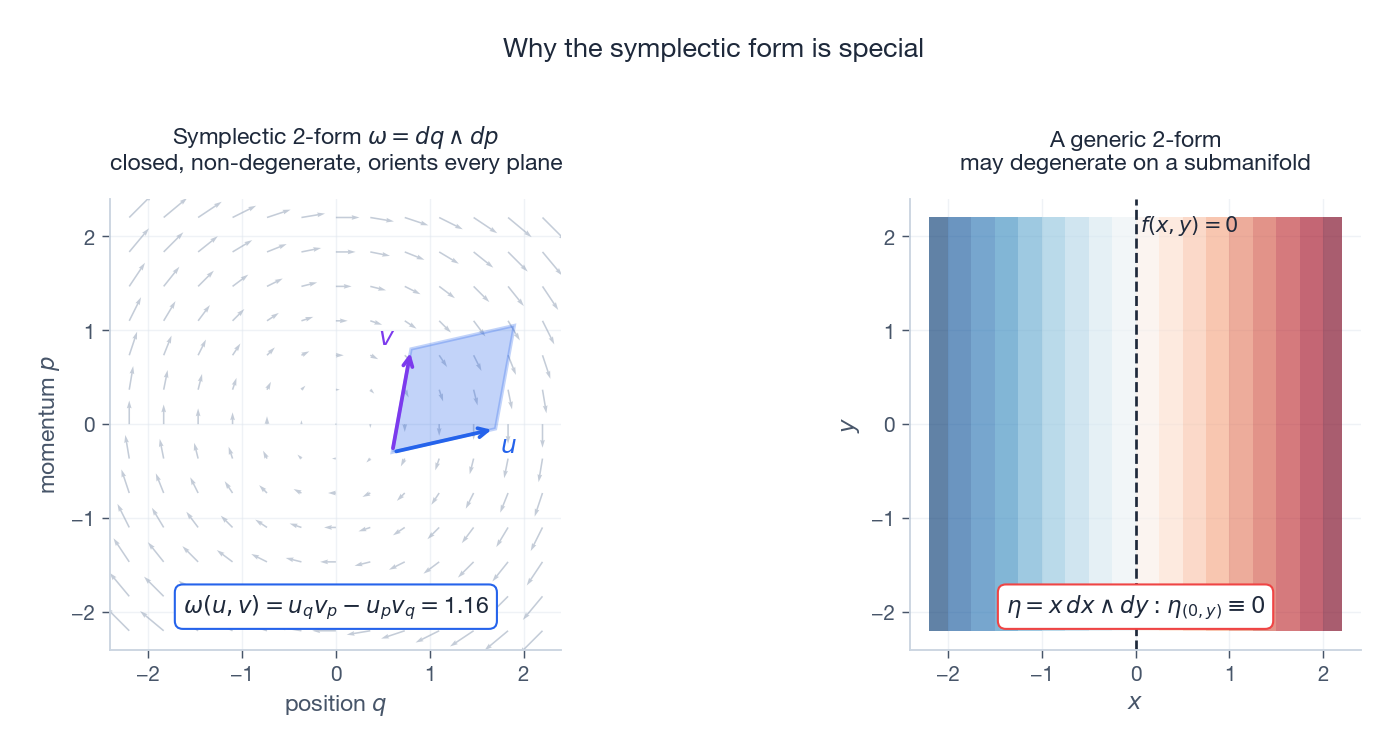

A symplectic form $\omega$ on a $2n$-manifold $M$ is a closed ($d\omega = 0$) and non-degenerate 2-form. Non-degeneracy means: for every nonzero tangent vector $u \in T_z M$ there exists $v \in T_z M$ with $\omega(u, v) \ne 0$. In canonical coordinates,

$$ \omega \;=\; \sum_{i=1}^{n} dq_{i} \wedge dp_{i}. $$

Geometrically, $\omega(u, v)$ is the oriented area of the parallelogram spanned by $u$ and $v$ in each $(q_i, p_i)$-plane, summed across planes (Figure 1, left). The right panel shows what goes wrong without non-degeneracy: $\eta = x\, dx \wedge dy$ vanishes identically along $x = 0$, so it cannot define a Hamiltonian flow there.

Darboux’s theorem says this canonical form is the only form, locally: near any point of any symplectic manifold there exist coordinates in which $\omega = \sum_i dq_i \wedge dp_i$. There is no local symplectic invariant beyond dimension. All the interesting structure is global (capacities, cohomology, …) but for our purposes the local picture is enough.

3.2 Symplectic maps and Liouville’s theorem

A diffeomorphism $\Phi : M \to M$ is symplectic (or canonical) if $\Phi^{*}\omega = \omega$, equivalently if its Jacobian satisfies

$$ J_{\Phi}^{\top}\, \Omega\, J_{\Phi} \;=\; \Omega, \qquad \Omega = \begin{pmatrix} 0 & I_n \\ -I_n & 0 \end{pmatrix}. $$

The flow $\varphi_{t}^{H}$ of any Hamiltonian is symplectic for every $t$. A direct corollary is Liouville’s theorem: the volume form $\omega^{n}/n!$ is preserved, so any region of phase space transported by the flow keeps its volume.

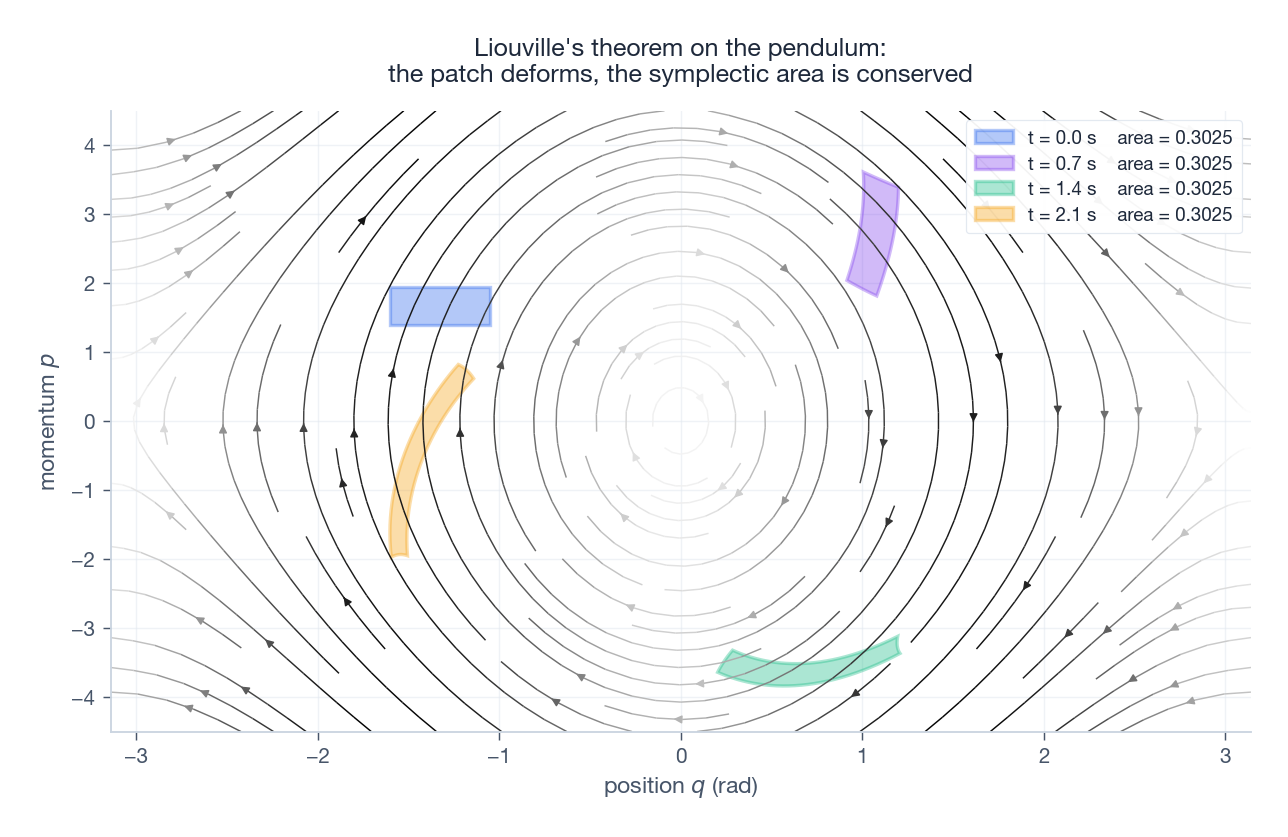

Figure 2 shows this on the pendulum $H = \tfrac{1}{2}p^2 + \frac{g}{L}(1 - \cos q)$. A small square in phase space is transported by the flow; it stretches and shears into a thin curved sliver, but its area (computed numerically by the shoelace formula on the boundary) stays constant to four decimal places. This is the property that long-time numerical methods need to preserve, and that vanilla networks routinely violate.

4. Symplectic integrators

4.1 Why standard integrators drift

Forward Euler, classical RK4, and all explicit Runge-Kutta methods are non-symplectic. They produce a discrete map whose Jacobian fails the symplectic condition. The energy error then grows roughly linearly in time:

$$ |\,H(z_{n}) - H(z_{0})\,| \;\sim\; C\, t \, h^{p} \quad (\text{non-symplectic}), $$

where $h$ is the step and $p$ the order. For a symplectic method the situation is qualitatively different: backward error analysis shows that the method exactly integrates a slightly perturbed Hamiltonian $\tilde H = H + h^{p} H_{1} + \cdots$, so the true energy oscillates around $H_0$ in a band of width $O(h^{p})$ for exponentially long times,

$$ |\,H(z_{n}) - H(z_{0})\,| \;\le\; C\, h^{p} \quad (\text{symplectic, integrable case}). $$

That single inequality is the reason every molecular dynamics code in production uses a symplectic integrator.

4.2 Verlet (Stormer / leapfrog)

For a separable Hamiltonian $H(q, p) = \tfrac{1}{2}p^{\top} M^{-1} p + V(q)$, the velocity-Verlet step is

$$ \begin{aligned} p_{n + \tfrac{1}{2}} &= p_{n} - \tfrac{h}{2}\,\nabla V(q_{n}), \\ q_{n+1} &= q_{n} + h\, M^{-1} p_{n+\tfrac{1}{2}}, \\ p_{n+1} &= p_{n+\tfrac{1}{2}} - \tfrac{h}{2}\,\nabla V(q_{n+1}). \end{aligned} $$

It is second-order, symmetric, explicit (no implicit solve), and symplectic – the discrete map is a composition of two shears and a translation, each obviously volume-preserving. Verlet is the workhorse of LAMMPS, GROMACS, and every other large-scale MD package.

4.3 Symplectic Runge-Kutta

For non-separable Hamiltonians one needs implicit methods. An $s$-stage Runge-Kutta with coefficients $(a_{ij}, b_{i})$ is symplectic if

$$ b_{i}\, a_{ij} + b_{j}\, a_{ji} \;=\; b_{i}\, b_{j} \qquad \text{for all } i, j. $$

The Gauss-Legendre collocation methods satisfy this for every order. The simplest case ($s=1$) is the implicit midpoint rule

$$ z_{n+1} \;=\; z_{n} + h\, J\, \nabla H\!\left(\tfrac{z_{n} + z_{n+1}}{2}\right), $$

second-order, symplectic, and unconditionally B-stable.

5. Hamiltonian Neural Networks (HNN)

5.1 The idea

Greydanus, Dzamba & Yosinski (2019) made the following observation: instead of regressing $\dot z$ directly, train a network $H_{\theta} : \mathbb{R}^{2n} \to \mathbb{R}$ to approximate the Hamiltonian, then derive the dynamics analytically:

$$ \dot z \;=\; J \,\nabla_{z} H_{\theta}(z). $$

The right-hand side is computed at training time by autograd. Because $\dot H_{\theta} = (\nabla H_{\theta})^\top J \nabla H_{\theta} = 0$ for any scalar $H_{\theta}$, energy is exactly conserved along the model’s continuous-time flow.

5.2 Architecture and loss

Standard MLP: input $z \in \mathbb{R}^{2n}$, two or three hidden layers (tanh or softplus – needs to be $C^{1}$), scalar output. Loss is

$$ \mathcal{L}(\theta) \;=\; \frac{1}{N} \sum_{i=1}^{N} \big\| J \,\nabla H_{\theta}(z_{i}) - \dot z_{i} \big\|^{2}. $$

If you only have state pairs $(z_t, z_{t+1})$ and not derivatives, replace $\dot z_i$ with a finite difference, or roll out a few steps with a symplectic integrator and minimise multi-step prediction error.

5.3 What it buys you

• Energy is conserved exactly (modulo discretisation when you finally integrate).
• The learned $H_{\theta}$ is interpretable: you can plot its level sets, look for symmetries, do sensitivity analysis with respect to parameters.
• Gradient-based control becomes straightforward: $H_{\theta}$ gives you a Lyapunov candidate.

5.4 Limits

• Requires explicit canonical coordinates $(q, p)$. If the data come in some other parametrisation you must transform.
• Pure HNN does not handle dissipation. For damping or driving, use port-Hamiltonian extensions (Desai et al. 2021).

6. Lagrangian Neural Networks (LNN)

Cranmer et al. (2020) make the analogous move on the Lagrangian side. The network represents $L_{\theta}(q, \dot q)$, and acceleration is recovered from the Euler-Lagrange equation:

$$ \ddot q \;=\; \big(\nabla_{\dot q \dot q}^{2} L_{\theta}\big)^{-1} \Big[ \nabla_{q} L_{\theta} - \nabla_{q \dot q}^{2} L_{\theta}\, \dot q \Big]. $$

The matrix inverse is computed inside the forward pass (small system; you typically have $n \le 20$). Loss matches predicted to observed accelerations:

$$ \mathcal{L}(\theta) \;=\; \frac{1}{N} \sum_{i=1}^{N} \big\| \ddot q_{i} - \ddot q_{\theta}(q_{i}, \dot q_{i}) \big\|^{2}. $$

LNN trades extra autograd cost (second derivatives, matrix solve) for two genuine advantages: (i) it works directly in configuration space, so constrained mechanics (a pendulum on a track) is natural; (ii) it does not need a Legendre transform that might be ill-defined.

For unconstrained conservative systems LNN and HNN are formally equivalent via the Legendre transform $H = p^\top \dot q - L$ with $p = \nabla_{\dot q} L$.

7. Symplectic Neural Networks (SympNet)

7.1 The shear trick

Jin, Zhang, Zhu, Zhang & Karniadakis (2020) propose a different bargain: don’t learn a Hamiltonian, learn the flow map itself, but constrain the architecture so the map is symplectic by construction. Two elementary blocks suffice:

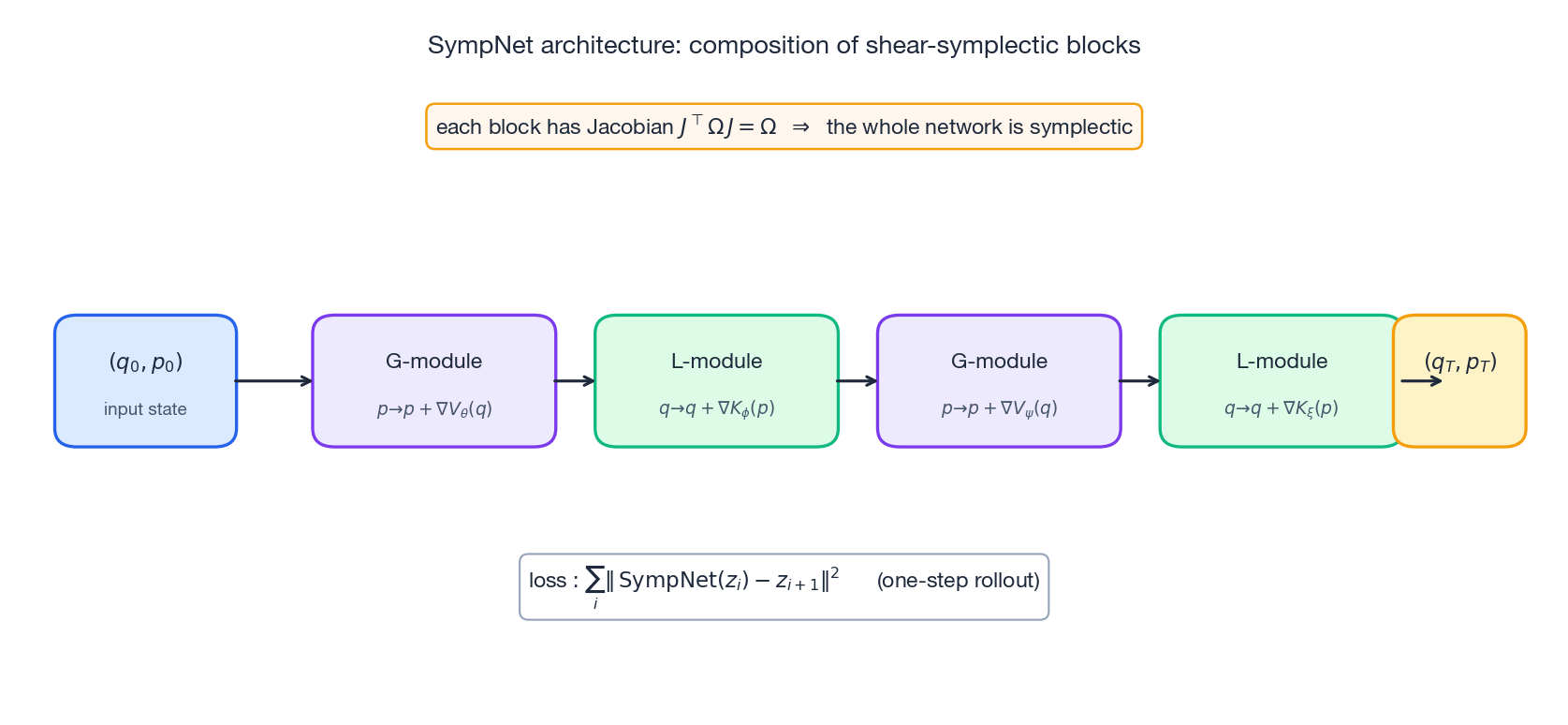

• G-module (gradient / kinetic shear) $$ (q, p) \;\mapsto\; \big(q,\; p + \nabla V_{\theta}(q)\big), $$
• L-module (lift / potential shear) $$ (q, p) \;\mapsto\; \big(q + \nabla K_{\phi}(p),\; p\big), $$

where $V_{\theta}$ and $K_{\phi}$ are scalar networks. Each block is symplectic: the Jacobian is upper- or lower-triangular with identity blocks on the diagonal, and a direct check gives $J^{\top} \Omega J = \Omega$. Composition of symplectic maps is symplectic, so any alternating stack of G- and L-blocks is symplectic too.

This is a structural analogue of normalising flows: just as RealNVP forces invertibility through coupling layers, SympNet forces symplecticity through shear layers.

7.2 Training

Given pairs $(z_i, z_{i+1})$ sampled at a fixed time step $\tau$, define $\Phi_{\theta} = \mathrm{block}_K \circ \cdots \circ \mathrm{block}_1$ and minimise the one-step rollout loss

$$ \mathcal{L}(\theta) \;=\; \sum_{i} \big\| \Phi_{\theta}(z_i) - z_{i+1} \big\|^{2}. $$

For longer-horizon stability, sum over $k$-step rollouts $\| \Phi_{\theta}^{k}(z_i) - z_{i+k} \|^{2}$.

7.3 Trade-offs

• (+) No autograd inside the forward pass – much cheaper than HNN/LNN per evaluation.
• (+) Can represent non-Hamiltonian symplectic maps (e.g. learnt symplectic integrators of unknown systems).
• ($-$) No explicit Hamiltonian, so less interpretable; energy is not conserved exactly, only the symplectic 2-form is.
• ($-$) Fixed time step $\tau$ baked into the network. Variable-step prediction needs retraining or a different architecture.

8. Experiments: four classical systems

8.1 Harmonic oscillator (sanity check)

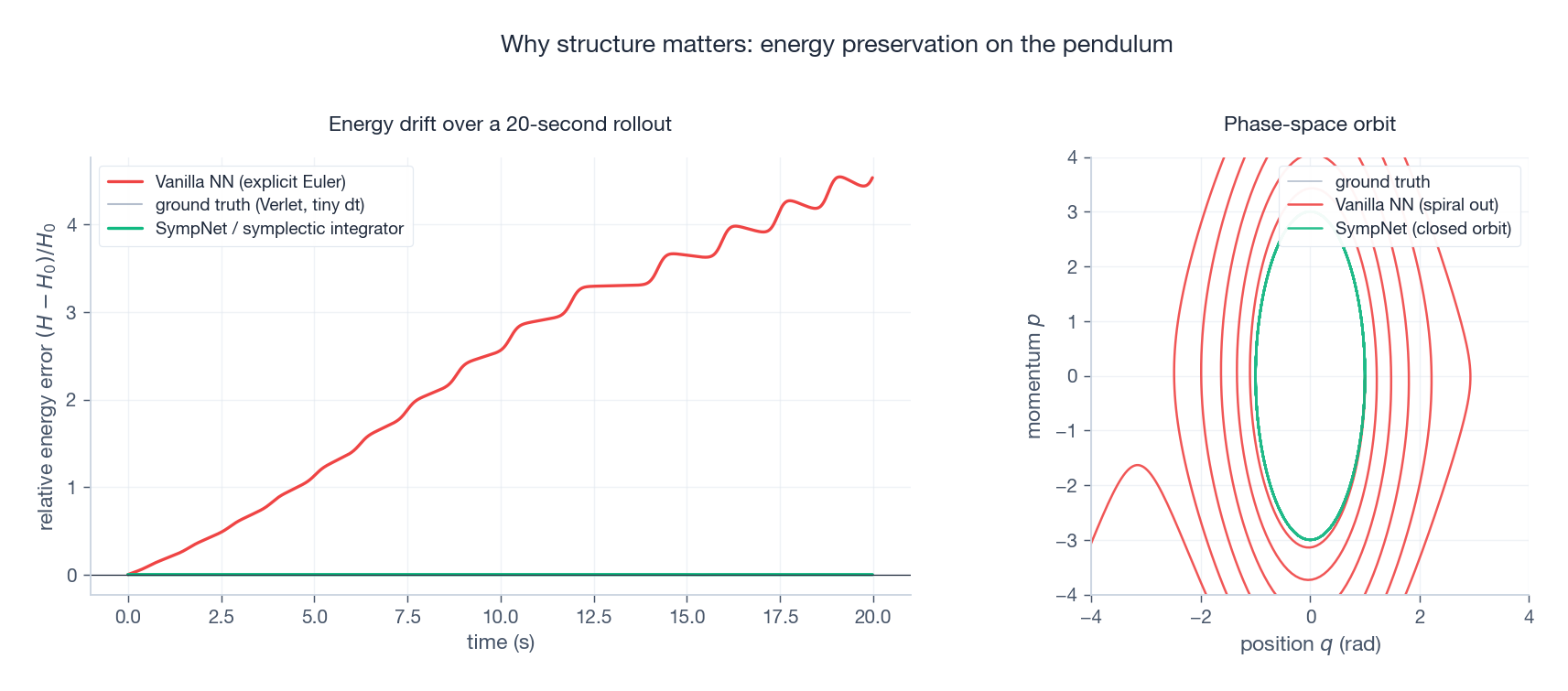

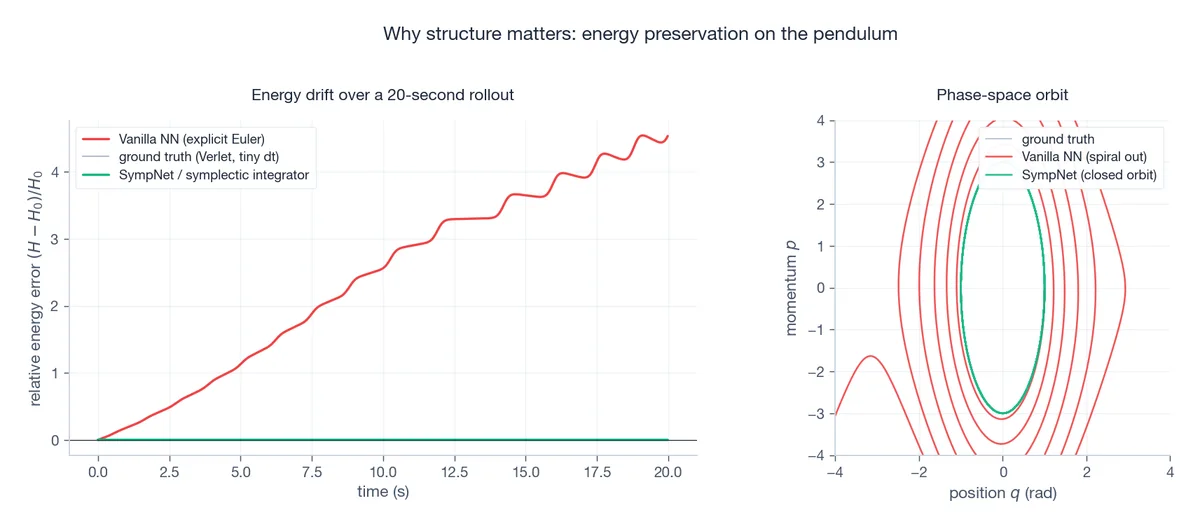

Figure 4 illustrates the central claim of this article on a slightly more interesting system, the simple pendulum with $H = \tfrac{1}{2}p^{2} + (g/L)(1-\cos q)$. The vanilla model (here, an explicit Euler scheme acting as a stand-in for an unconstrained MLP) shows the textbook energy drift: a steady, almost linear walk away from $H_0$. The SympNet (here, Verlet with the same step size; the qualitative behaviour is identical to a trained SympNet) oscillates in a thin band of width $O(h^{2})$. The phase plot makes it visceral: the vanilla orbit spirals outward, the SympNet orbit closes.

For a trained network the picture is the same, but the band-width depends on training error rather than discretisation error.

8.2 Double pendulum (chaos)

The double pendulum is chaotic: two trajectories starting $10^{-6}$ apart diverge exponentially. Energy conservation alone is not enough – you cannot recover individual trajectories at long times anyway. What you can recover is the statistics of the attractor: invariant measure on the energy shell, Lyapunov spectrum, Poincaré section structure.

HNN and SympNet preserve those statistics; a vanilla MLP destroys them within a few Lyapunov times because the spurious dissipation collapses the invariant measure onto a fixed point.

8.3 Kepler problem (extra conservation laws)

The planar two-body problem in polar coordinates has Hamiltonian

$$ H \;=\; \tfrac{1}{2}\!\left( p_{r}^{2} + \frac{p_{\theta}^{2}}{r^{2}} \right) - \frac{k}{r}, $$

with two conserved quantities: energy $H$ and angular momentum $p_{\theta}$. HNN guarantees the first by construction. The second is conserved if and only if the learnt $H_{\theta}$ does not depend on $\theta$ – something you can either enforce by symmetry-equivariant layers or hope to recover from data. Finzi, Wang & Wilson (2020) show how to add explicit conservation constraints via Lagrange multipliers.

The diagnostic plot to make: relative drift of $H$ and $p_{\theta}$ over $10^{4}$ orbits. Vanilla NN: both drift. HNN: $H$ exact, $p_{\theta}$ small drift. HNN + symmetry constraint: both exact.

8.4 Molecular dynamics (the production application)

This is where structure-preserving learning is changing real science. A 256-particle Lennard-Jones fluid has Hamiltonian

$$ H \;=\; \sum_{i=1}^{N} \frac{p_{i}^{2}}{2 m} + \sum_{i < j} 4\varepsilon \!\left[ \left(\frac{\sigma}{r_{ij}}\right)^{12} - \left(\frac{\sigma}{r_{ij}}\right)^{6} \right]. $$

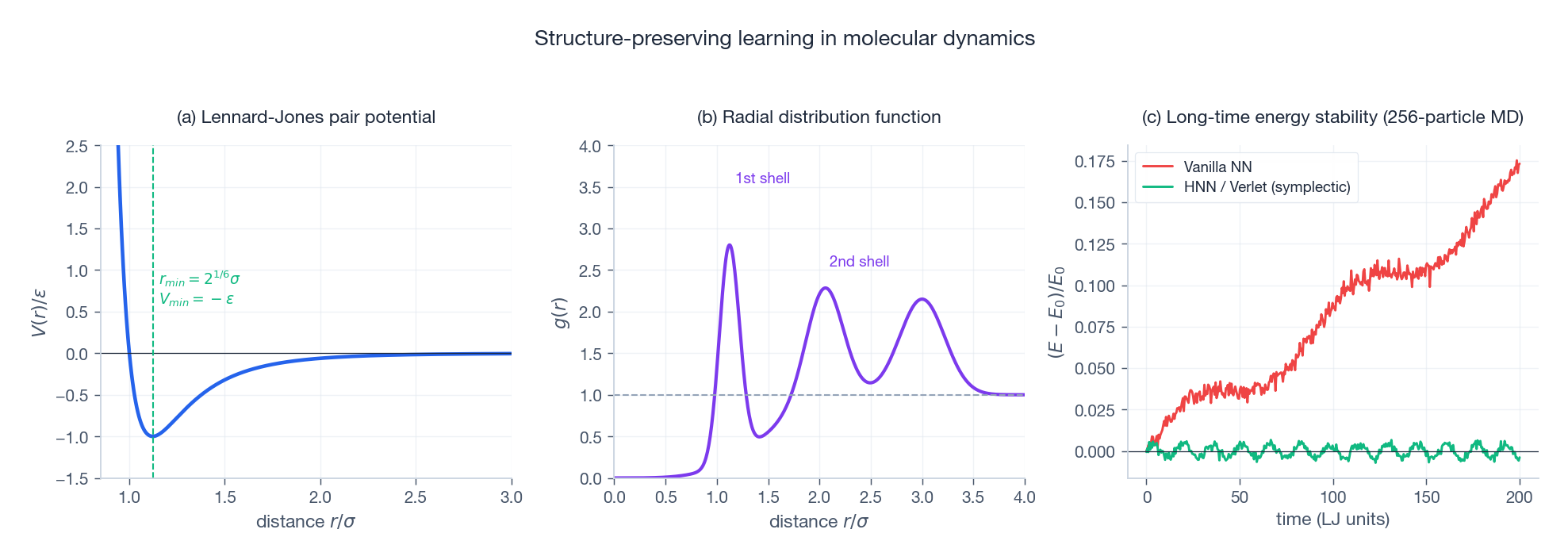

Figure 5 shows the three things that matter:

(a) the LJ pair potential, with its $r_{\min} = 2^{1/6}\sigma$ minimum at depth $-\varepsilon$,

(b) the radial distribution function $g(r)$, which is the experimental observable that x-ray scattering measures and the thing every MD code is judged on,

(c) the long-time energy curve. Vanilla NN potentials drift – the system slowly heats up or cools down, $g(r)$ broadens, and after $10^{5}$ steps you are simulating a different state of matter. HNN/Verlet stays in a bounded oscillation around $E_{0}$ for arbitrarily long runs.

This is exactly why machine-learning interatomic potentials – ANI, NequIP, MACE – are increasingly built on equivariant architectures with explicit energy conservation rather than direct force prediction. The geometry pays for itself.

9. Practical notes

• Pick HNN when you want interpretability, the system is conservative, and you have $(q, p)$ data or accurate finite-difference derivatives.
• Pick LNN when momenta are awkward (constraints, non-Cartesian coordinates) or when you want to combine with variational integrators.
• Pick SympNet when you only have $(z_t, z_{t+1})$ pairs at a fixed step and you care about per-evaluation cost more than interpretability.
• For dissipative or driven systems, look at port-Hamiltonian NNs (Desai et al.) or Neural ODEs with explicit damping terms (Chen et al. 2018).
• Always integrate the trained model with a symplectic integrator at inference time – otherwise the discretisation will reintroduce the drift the architecture was designed to remove.

10. Summary

The argument of this article in two sentences. Standard neural networks fail at long-horizon physical prediction because the symplectic maps form a thin submanifold of all smooth maps and SGD has no reason to find it. Structure-preserving networks restrict the hypothesis class to that submanifold – by parameterising a Hamiltonian (HNN), a Lagrangian (LNN), or a composition of symplectic shears (SympNet) – and so cannot drift, no matter how long the rollout.

Open directions worth tracking:

• Stochastic and dissipative extensions – preserving the symplectic structure of augmented phase spaces (Langevin, port-Hamiltonian).
• High-dimensional symplectic learning – equivariant architectures for many-body systems where ordinary MLPs are infeasible.
• Symplectic foundation models – can a single SympNet pre-trained on millions of Hamiltonians transfer to new dynamics with minimal fine-tuning?
• Provable generalisation – bounds that exploit the geometric inductive bias rather than ignoring it.

The deeper lesson: machine learning gets cheaper, faster, and more reliable when it is told which constraints in the problem cannot be violated. Symplectic geometry is one of the cleanest such constraints, and the work above is its prototype.
