Terraform for AI Agents (2): Provider, Auth, and Remote State on OSS

This article is where you stop reading and start typing. By the end, you’ll have:

1. The alicloud Terraform provider installed and version-pinned.
2. Authentication wired up — through the right method, not the convenient one.
3. Remote state on an OSS bucket with Tablestore-based locking.
4. Three workspaces (dev, staging, prod) that share a backend but isolate state.
5. A working terraform plan against an empty config.

Nothing here provisions an agent yet. This lays the foundation for all future articles. If you skip this and try to wing it in article 3, you’ll likely face a state-corruption incident within a week.

Step 0: install Terraform#

I won’t dwell — the official Install Terraform doc covers all OSes. On macOS:

1
2
3
4
5

brew tap hashicorp/tap
brew install hashicorp/tap/terraform
terraform version
# Terraform v1.9.x
# on darwin_arm64

Pin to a recent stable. The Aliyun docs are tested against >= 0.12, but on a fresh project use >= 1.9. There are real ergonomic improvements in newer versions — for_each, optional(), refined moved blocks, the declarative import block — and you will use all of them in this series.

Step 1: pin the provider#

Create a project directory and a versions.tf:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# versions.tf
terraform {
  required_version = ">= 1.9"

  required_providers {
    alicloud = {
      source  = "aliyun/alicloud"
      version = "~> 1.230"   # any 1.230.x — minor patches OK, no major bumps
    }
  }
}

The ~> 1.230 constraint allows 1.230.0 through 1.230.x but blocks 1.231.0. This is the right default. Once you commit .terraform.lock.hcl to git (Terraform creates it on terraform init), you also lock the exact provider version and its checksum. If a teammate runs terraform init later, they get the same provider — bit-identical.

Pinning early is cheap insurance. The alicloud provider has introduced breaking changes between minor versions (the OSS bucket schema rework around 1.220 cost me three afternoons). When you need to upgrade, do it deliberately in a PR, with the diff in plan output, not by accident on a teammate’s laptop at 11pm.

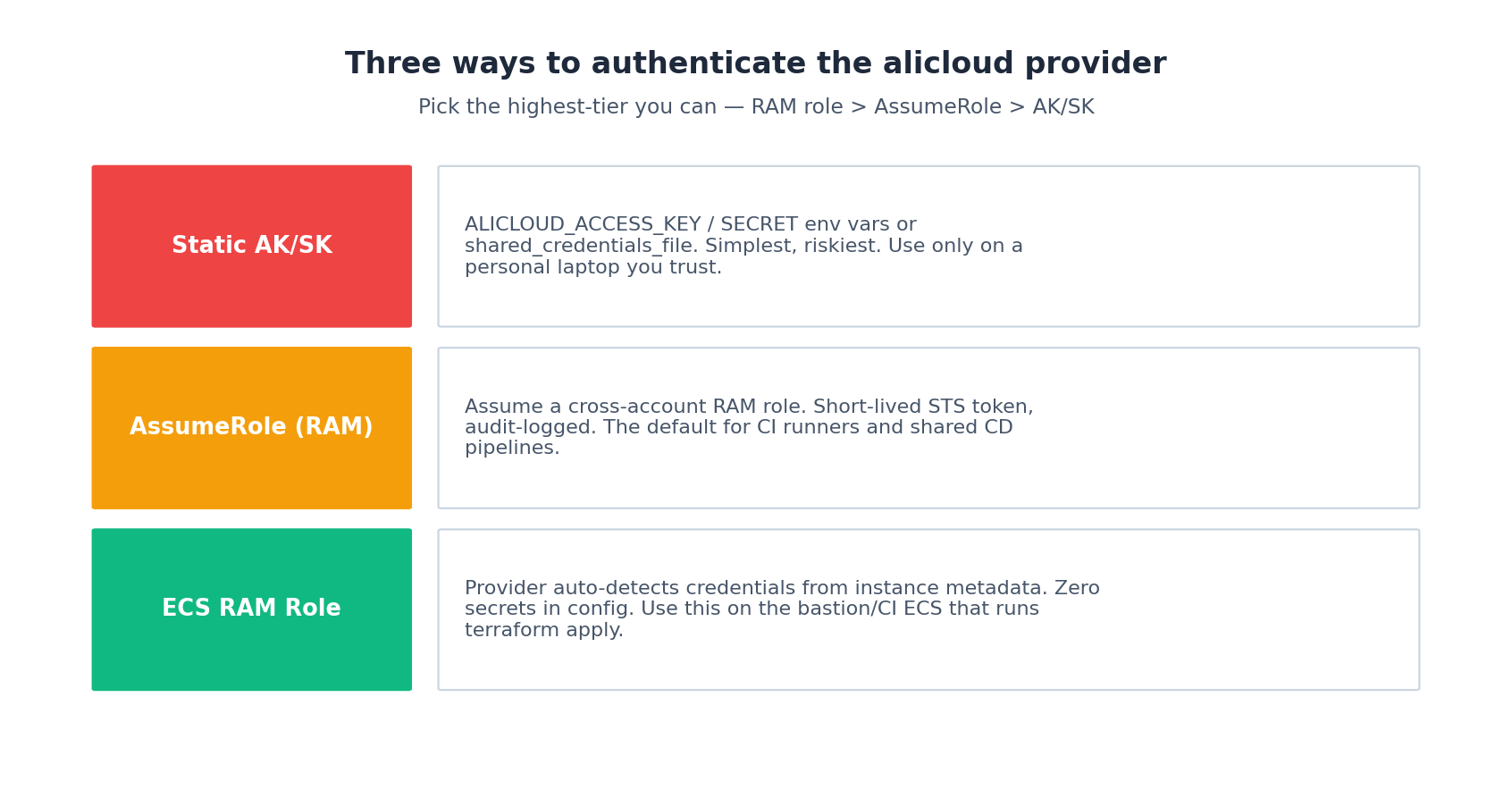

Step 2: authenticate — three options, ranked#

The provider needs Aliyun credentials. Here are three options, ranked by professional acceptability:

Option A: static AK/SK (only on a personal laptop)#

1
2
3

export ALICLOUD_ACCESS_KEY="LTAI5tXXXXXXXXXXXXXX"
export ALICLOUD_SECRET_KEY="XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"
export ALICLOUD_REGION="cn-shanghai"

The provider auto-discovers these env vars. Do not — under any circumstances — write the keys into your .tf files. The state file does not store them; the provider {} block does, and that block lives in git.

If the AK/SK is for a RAM sub-account scoped to only the resources Terraform manages, it’s acceptable for a solo project. For anything shared, skip to option B.

Option B: AssumeRole (CI runners)#

CI runners shouldn’t carry long-lived AKs. Give the runner an AK with one permission only — sts:AssumeRole on a target role — and have Terraform assume that role at apply time:

1
2
3
4
5
6
7
8
9

provider "alicloud" {
  region = var.region

  assume_role {
    role_arn           = "acs:ram::${var.account_id}:role/TerraformDeployRole"
    session_name       = "ci-${var.commit_sha}"
    session_expiration = 3600
  }
}

The role has the actual write permissions; the AK only has the right to assume it. STS sessions are short-lived (one hour by default), audit-logged in ActionTrail, and can be revoked instantly by detaching the trust policy. This is the recommended model for GitLab CI, GitHub Actions, and Jenkins runners.

Option C: ECS RAM role (the bastion / IaC service runner)#

If terraform apply runs on an Aliyun ECS instance — your team’s ops bastion or the Aliyun-hosted IaC Service runner — attach a RAM role to the instance and the provider picks credentials up automatically from instance metadata:

1
2
3
4
5

provider "alicloud" {
  region = var.region
  # No assume_role block, no env vars — provider auto-detects from
  # http://100.100.100.200/latest/meta-data/ram/security-credentials/
}

Zero secrets in any config, env var, or file. Rotation is automatic. This is the gold standard, and it’s the path I push every team toward within their first month.

Real-world tip: Whatever you pick, set ALICLOUD_REGION (or provider { region = ... }) explicitly. If unset, the provider does not pick a default — you get a confusing “Region must be specified” error on terraform plan that has tripped me up more than once.

Step 3: state — why local tfstate is a footgun#

When you run terraform apply, by default Terraform writes terraform.tfstate in the current directory. That file is the source of truth for your infrastructure. Three things can go wrong:

1. Loss. Delete the directory and Terraform thinks nothing exists. The next apply tries to recreate everything (or fails on duplicates).
2. Conflict. Two engineers running apply simultaneously can corrupt the state file.
3. Secrets in plaintext. Some resource attributes (RDS passwords, KMS material, generated tokens) end up in tfstate. Leaving it on a laptop is bad. Committing it to git is worse — and people do.

What actually lives in tfstate#

A common misconception: tfstate just stores resource IDs. False. The state file contains every attribute Terraform knows about every resource — including computed ones like RDS connection strings, generated passwords, KMS key material, and sensitive variables.

Run this on any non-trivial state and look at the output:

1

terraform show -json | jq '.values.root_module.resources[] | select(.values | tostring | test("password|secret|key"; "i"))'

You will see passwords. You will see API keys. You may see entire JSON blobs of credentials. This is by design — Terraform needs the values for diff and apply.

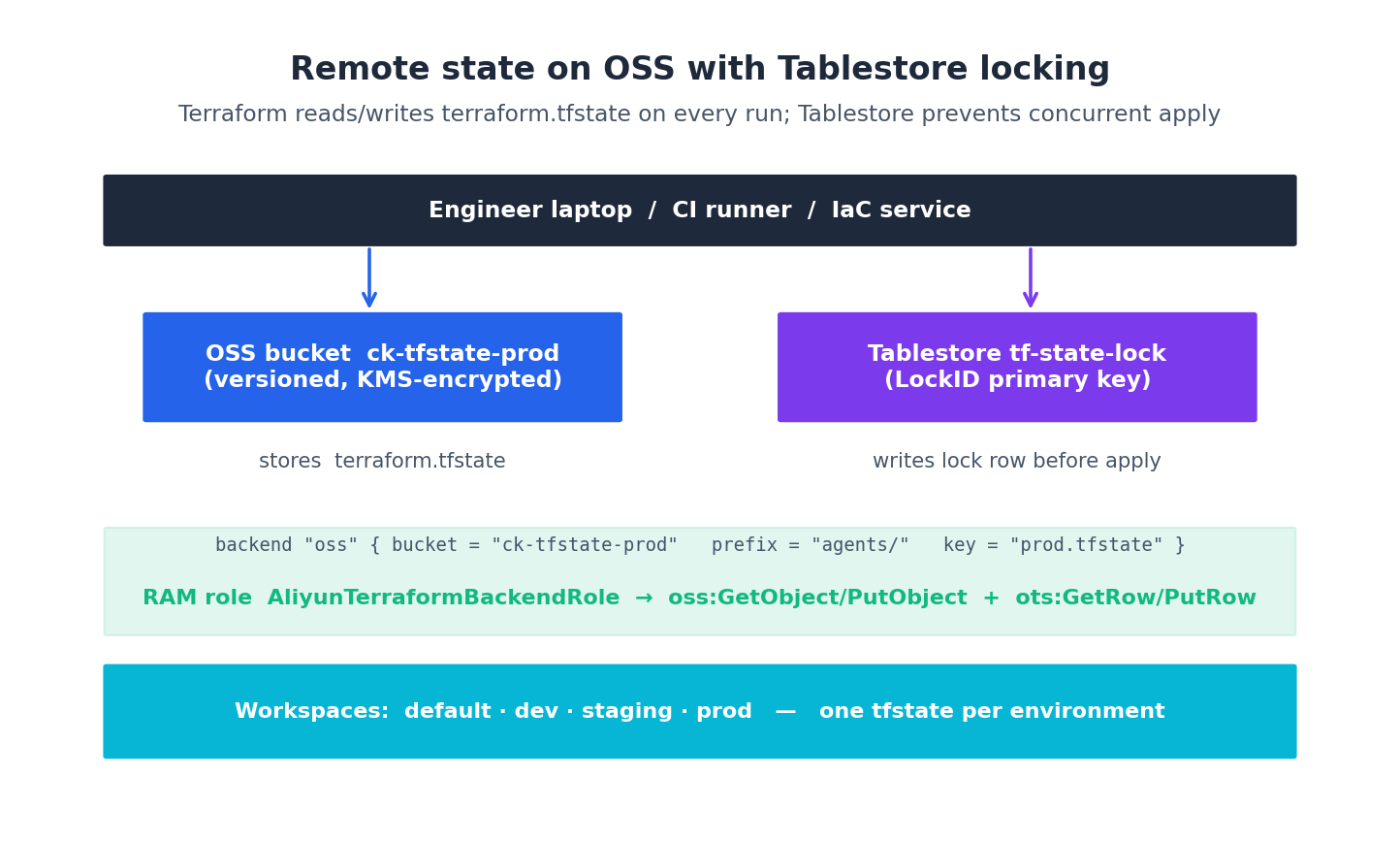

That is exactly why local tfstate doesn’t cut it past day one. The fix is remote state with state locking. On Aliyun, the canonical setup is OSS + Tablestore:

OSS holds the actual terraform.tfstate file (with versioning enabled — recovery is one CLI command if something corrupts). Tablestore holds a tiny “lock” row that Terraform writes before any apply and deletes after. If a second apply starts while the first holds the lock, the second one waits or fails — never both running at once.

Two non-negotiables follow from what tfstate contains:

• The OSS bucket holding state must be KMS-encrypted. We will turn this on in step 4. If you skip it, anyone with oss:GetObject on the bucket reads your secrets.
• Mark sensitive variables sensitive = true so plan/apply output doesn’t leak them into CI logs:

1
2
3
4

variable "rds_admin_password" {
  type      = string
  sensitive = true
}

The value still lives in tfstate (encrypted), but at least your GitHub Actions log won’t expose the password.

Step 4: bootstrap the backend (chicken-and-egg)#

The OSS bucket and Tablestore that hold our backend… need to exist before the backend can use them. The honest workflow is to provision them in a tiny one-off bootstrap/ directory using a local state file, then never touch it again.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

# bootstrap/main.tf — run once, store local tfstate in this directory only
provider "alicloud" {
  region = "cn-shanghai"
}

resource "alicloud_oss_bucket" "tfstate" {
  bucket = "ck-tfstate-prod"
  acl    = "private"

  versioning {
    status = "Enabled"
  }

  server_side_encryption_rule {
    sse_algorithm = "KMS"
  }

  lifecycle {
    prevent_destroy = true   # never let terraform destroy this bucket
  }
}

resource "alicloud_ots_instance" "tflock" {
  name          = "tf-state-lock"
  description   = "Terraform state lock"
  instance_type = "Capacity"
}

resource "alicloud_ots_table" "tflock" {
  instance_name = alicloud_ots_instance.tflock.name
  table_name    = "TerraformLock"
  primary_key {
    name = "LockID"
    type = "String"
  }
  time_to_live = -1
  max_version  = 1
}

terraform init && terraform apply from inside bootstrap/. About 30 seconds. Then archive the local tfstate somewhere (I keep it in 1Password as a sanity backup) and never run from this directory again. Add bootstrap/terraform.tfstate* to .gitignore before you forget.

Step 5: configure the backend#

Back in your real project, add:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# backend.tf
terraform {
  backend "oss" {
    bucket              = "ck-tfstate-prod"
    prefix              = "agents/"
    key                 = "terraform.tfstate"
    region              = "cn-shanghai"
    tablestore_endpoint = "https://tf-state-lock.cn-shanghai.ots.aliyuncs.com"
    tablestore_table    = "TerraformLock"
    encrypt             = true
  }
}

The prefix lets you stash multiple state files in one bucket — handy when you split your infra into multiple Terraform projects later. encrypt = true enables OSS-side encryption (we already turned on the bucket-level KMS rule, but defense-in-depth never hurts).

Run:

1
2
3
4
5

terraform init
# Initializing the backend...
# Successfully configured the backend "oss"!
# Initializing provider plugins...
# - Installing aliyun/alicloud v1.230.x...

If this fails with AccessDenied, your auth role doesn’t have oss:GetObject/PutObject on the bucket. The minimum role policy is:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["oss:GetObject", "oss:PutObject", "oss:DeleteObject"],
      "Resource": ["acs:oss:*:*:ck-tfstate-prod/agents/*"]
    },
    {
      "Effect": "Allow",
      "Action": ["ots:GetRow", "ots:PutRow", "ots:DeleteRow"],
      "Resource": ["acs:ots:*:*:instance/tf-state-lock/table/TerraformLock"]
    }
  ]
}

Apply this to the role you authenticate with. Don’t grant oss:* — least privilege matters even for backend roles, because that role is in your CI runner and one leaked AK there reads every state file you have.

Step 6: workspaces for env isolation#

A workspace is a separate state file inside the same backend. The default workspace is — usefully — called default. Create the others you need:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

terraform workspace new dev
terraform workspace new staging
terraform workspace new prod

terraform workspace list
#   default
#   dev
#   staging
# * prod

terraform workspace select dev

Inside HCL, terraform.workspace resolves to the current workspace name, which lets you parameterise resource sizes:

1
2
3
4
5
6
7

locals {
  is_prod = terraform.workspace == "prod"

  ecs_count         = local.is_prod ? 3 : 1
  ecs_instance_type = local.is_prod ? "ecs.c7.xlarge" : "ecs.c7.large"
  rds_class         = local.is_prod ? "pg.x4.large.2c" : "pg.n2.medium.1c"
}

A clean alternative is one *.tfvars file per env:

1
2

terraform plan -var-file=env/dev.tfvars
terraform plan -var-file=env/prod.tfvars

I use tfvars files for “configuration that obviously differs” (CIDR blocks, region, instance counts) and terraform.workspace only for the conditional is_prod toggle. Mixing both is fine — pick one as the primary mechanism per project.

Workspace vs separate state files: the real call#

The article so far has shown terraform workspace new dev/staging/prod. That’s the simple answer and works for most teams. But there’s a real architectural choice hiding inside it, and you should make it deliberately rather than by default.

Workspaces (one project, N states): one backend, prefix splits by workspace name (agents/env:dev/terraform.tfstate); one set of HCL files, parameterised by terraform.workspace. Pro: the diff between dev and prod is visible — same code, different vars. Con: a typo in a count expression can affect every workspace; one PR can’t isolate “only changes prod”.

Separate state files (one project per env): separate directories envs/dev/, envs/staging/, envs/prod/; each env has its own backend.tf, main.tf calling shared modules. Pro: prod has its own PR review, its own apply, its own RAM permissions. Con: code duplication; bumping a module version needs N edits; harder to enforce “all envs run the same code”.

My rule of thumb: workspaces below 5 engineers, separate states above. Below 5, the simplicity wins. Above 5, the blast radius matters — you want a prod PR that only touches envs/prod/ and is approved by the on-call rotation, not a dev.tfvars change that accidentally cascades.

This series uses workspaces because the focus is one engineer or a small team. The upgrade path is fine if you ever outgrow it: terraform state pull from the workspace, terraform state push into the new project, retire the workspace. Painful exactly once.

Real-world tip: The workspace name is just a string. Set it via TF_WORKSPACE=prod terraform plan in CI to avoid the “I forgot to switch workspace” class of incident. Combine with branch protection so the prod workspace can only be applied from main.

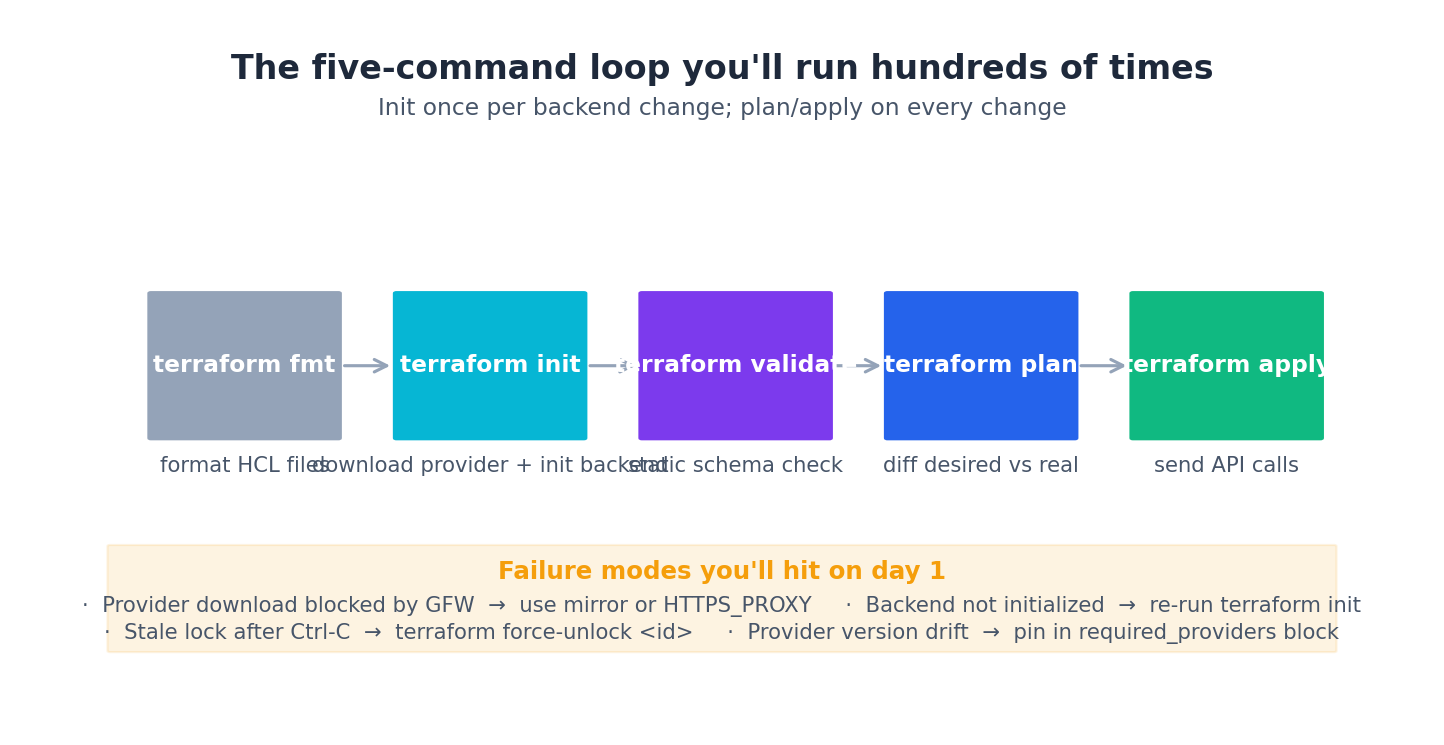

Step 7: the five-command loop#

Day-to-day Terraform is just five commands:

1
2
3
4
5

terraform fmt        # normalise indentation; pre-commit hook
terraform validate   # static schema check; runs in <1s
terraform plan       # diff desired vs real; READ THIS CAREFULLY
terraform apply      # send the API calls
terraform show       # inspect current state

Three rules:

1. Always read the plan output before applying. It tells you exactly what’s about to happen — which resources will create (+), update in-place (~), force replace (-/+), or destroy (-). The replace-in-place arrows in particular hide downtime.
2. Make plan and apply two steps in CI. Run terraform plan -out=tfplan, post the plan output to the PR, get human approval, then terraform apply tfplan on merge. Never auto-apply on push.
3. Don’t rush past state. terraform state list shows everything you currently manage; terraform state show <addr> shows one resource’s full attributes. When you’re debugging weird drift, this is where you start.

Step 8: state surgery for the 5% of days when apply won’t unstick a problem#

The five-command loop covers 95% of days. The other 5% are when something is wrong with the state file itself, and the right fix is direct surgery — not a panicked terraform destroy && apply. Here are the four manoeuvres I reach for, in increasing order of nervousness.

terraform import — adopting a manually-created resource#

You created a VPC in the console six months ago. Now you want Terraform to manage it. The wrong move is to write the HCL and apply — Terraform will try to create a second VPC. The right move is import:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

# Write the HCL stub first, with the right resource address
cat > vpc.tf <<EOF
resource "alicloud_vpc" "legacy" {
  vpc_name   = "legacy-prod"
  cidr_block = "172.16.0.0/16"
}
EOF

# Import the existing resource into the state at that address
terraform import alicloud_vpc.legacy vpc-uf6abc123def456

# Now diff. The HCL almost certainly doesn't match reality yet.
terraform plan
# Plan: 0 to add, 1 to change, 0 to destroy.
#   ~ tags = { ... }   # the console-set tags Terraform doesn't know about

Then iterate the HCL until terraform plan shows no changes. This is the only safe way to bring console-built infra under management. Terraform >= 1.5 supports the declarative import block, which is the version I now reach for first:

1
2
3
4

import {
  to = alicloud_vpc.legacy
  id = "vpc-uf6abc123def456"
}

terraform state rm — telling Terraform to forget a resource#

The opposite of import. You decided to manage a resource in a different stack, or hand it back to the ops team. You don’t want to destroy it, you want Terraform to stop tracking it:

1
2

terraform state rm alicloud_oss_bucket.legacy_archive
# Removed alicloud_oss_bucket.legacy_archive

The bucket still exists in OSS. Terraform’s state no longer references it. Subsequent plan won’t try to destroy it (because it’s not in state) and won’t try to create it (because the HCL is gone too — remove the HCL block in the same PR).

I use this for the chicken-and-egg bootstrap/ directory. Once the OSS+Tablestore management is folded into the main stack, I terraform state rm them from the bootstrap state and delete the bootstrap directory entirely.

terraform state mv — renaming or restructuring#

You want to move resources from one module path to another — say, alicloud_vpc.this → module.vpc.alicloud_vpc.this. Without mv, Terraform sees this as “destroy old, create new” and would actually delete and recreate your production VPC. With mv:

1
2
3

terraform state mv alicloud_vpc.this module.vpc.alicloud_vpc.this
# Move "alicloud_vpc.this" to "module.vpc.alicloud_vpc.this"
# Successfully moved 1 object(s).

Now the state thinks the resource was always at the new address. The next plan shows no changes. This is how every refactor of a Terraform repo without downtime is done.

Modern Terraform (>= 1.1) gives you the moved block, which is the declarative version:

1
2
3
4

moved {
  from = alicloud_vpc.this
  to   = module.vpc.alicloud_vpc.this
}

Always prefer moved over state mv — it’s checked into git, reviewable in a PR, and works for everyone on the team without anyone having to run a manual command.

terraform apply -replace — force-recreating one resource#

An ECS instance is in a weird state — disk full, kernel panic, who knows. You want Terraform to destroy and recreate just that one instance without touching anything else:

1
2

terraform apply -replace=alicloud_instance.agent[1]
# Plan: 1 to add, 0 to change, 1 to destroy.

The old terraform taint does the same thing but is deprecated. -replace is the current spelling. I use this maybe once a quarter when an ECS instance gets into an unrecoverable state and a stop/start doesn’t help.

Real-world tip: Before any state surgery, terraform state pull > backup.tfstate so you have a known-good copy. State surgery is one of the few places where a typo can lose you hours; the backup turns it into a 10-second restore (terraform state push backup.tfstate).

The eight failure modes you will hit on day one#

In the order they happened to me:

1. Error: Failed to query available provider packages on terraform init. GFW. Set HTTPS_PROXY or use the Aliyun mirror: https://mirrors.aliyun.com/terraform/.
2. Error: state lock. You hit Ctrl-C during a previous apply and the lock is stale. Run terraform force-unlock <LOCK_ID> (the ID is in the error). Verify nothing’s actually running first.
3. Error: Region must be specified. Set ALICLOUD_REGION env var or region in the provider block.
4. AccessDenied on backend init. RAM permissions on the OSS bucket prefix. Re-check step 5’s policy.
5. InvalidParameter.NotFound on Tablestore. You bootstrapped the wrong region. Tablestore endpoint and OSS bucket region must match.
6. Provider produced inconsistent result after apply. Almost always a stale .terraform/ cache after a provider version bump. rm -rf .terraform .terraform.lock.hcl && terraform init.
7. Resource already exists. You created the resource by hand in the console. Either delete it or import it (see step 8).
8. A terraform plan diff you didn’t expect on a freshly-applied resource. Drift. Either someone touched the resource in the console, or the provider’s read logic differs from create. Look at the specific attributes in the diff; usually the fix is to set the attribute explicitly so Terraform stops “noticing” the difference.

Real-world tip: Run terraform plan immediately after every apply, even on no changes. The plan should be empty. If it isn’t, you have drift, and the longer you let drift live the harder it is to reconcile.

What’s Next#

If this article worked end-to-end, you should now be able to run terraform init, terraform workspace select dev, terraform plan and see “No changes.” That’s the foundation. Everything else stacks on top of it.

Article 3 builds the first real piece of infrastructure: a reusable vpc-baseline module. VPC, three vSwitches across three zones, NAT gateway, EIP, security group baseline, KMS key. We will use it in every subsequent article — it’s the single most copy-pasted module in my agent stacks.
