Time Series Forecasting (1): Traditional Statistical Models

Next: LSTM Deep Dive –>

What You Will Learn

• Why stationarity is the entry ticket for the whole ARIMA family, and how differencing buys it.
• How to read ACF and PACF plots like a Box-Jenkins practitioner: cut-off vs. tail-off as the rule for identifying $p$ and $q$.
• The full ARIMA / SARIMA machinery, including how seasonality is folded in via lag-$s$ operators.
• Where VAR, GARCH, exponential smoothing, Prophet and the Kalman filter sit on the same map – mean dynamics vs. variance dynamics vs. state-space recursion.
• A decision rule for when a traditional model is the right answer and when to graduate to the deep models in the rest of this series.

Prerequisites

• Basic probability and statistics (mean, variance, covariance, correlation).
• Familiarity with NumPy and pandas time indexes.
• A little linear algebra for the VAR / Kalman sections (matrix multiplication, eigenvalues).

1. Why traditional models still matter

Before the deep-learning era, the time-series toolbox was already remarkably complete. ARIMA captures linear autocorrelation, SARIMA adds calendar effects, VAR generalises to vectors, GARCH models the variance, and the Kalman filter unifies the lot inside a state-space recursion. They share three properties that deep models do not give for free:

1. Interpretability. Every parameter has a meaning – “yesterday’s level matters with weight $\phi_1$”, “the shock from two months ago decays with weight $\theta_2$”.
2. Calibrated uncertainty. Confidence intervals fall out of maximum likelihood, not from ad-hoc dropout tricks.
3. Sample efficiency. A few hundred observations is enough; you do not need a GPU.

If your series is short, smooth, or has clean calendar structure, a traditional model will routinely beat an LSTM and is much easier to debug. Use this article as the baseline you must defeat before reaching for anything fancier.

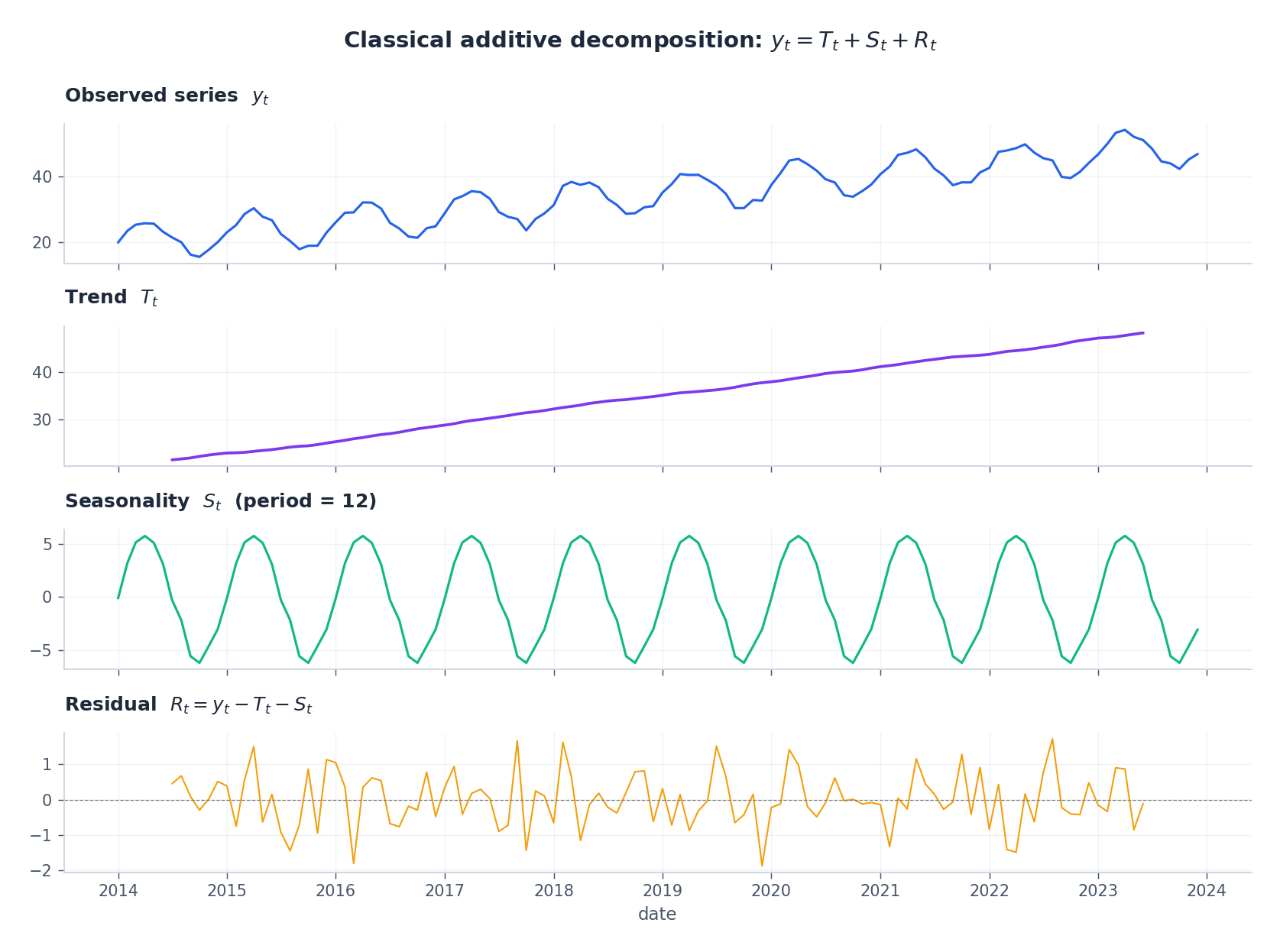

2. The decomposition view

A good mental picture before any modelling: most series can be written as

a slowly moving trend $T_t$, a periodic seasonal component $S_t$ (period $s$), and a residual $R_t$ that should look like noise once the structure is removed. The classical additive decomposition makes this concrete:

The whole ARIMA programme can be summarised in one sentence: transform the data until what is left looks stationary, then fit a linear model with autocorrelated errors.

Stationarity, formally

A series is (weakly) stationary if its mean, variance and autocovariances do not depend on $t$:

Most real series are not stationary – they trend, drift, or have variance that grows with the level. The two standard remedies are:

• Differencing: $\nabla y_t = y_t - y_{t-1}$ removes a linear trend; $\nabla^2 y_t$ removes a quadratic one.
• Variance-stabilising transforms: $\log y_t$ or a Box-Cox transform tames multiplicative growth.

The Augmented Dickey-Fuller (ADF) test gives a hypothesis test: $H_0$ is “unit root present”, so a small $p$-value lets you treat the (transformed) series as stationary.

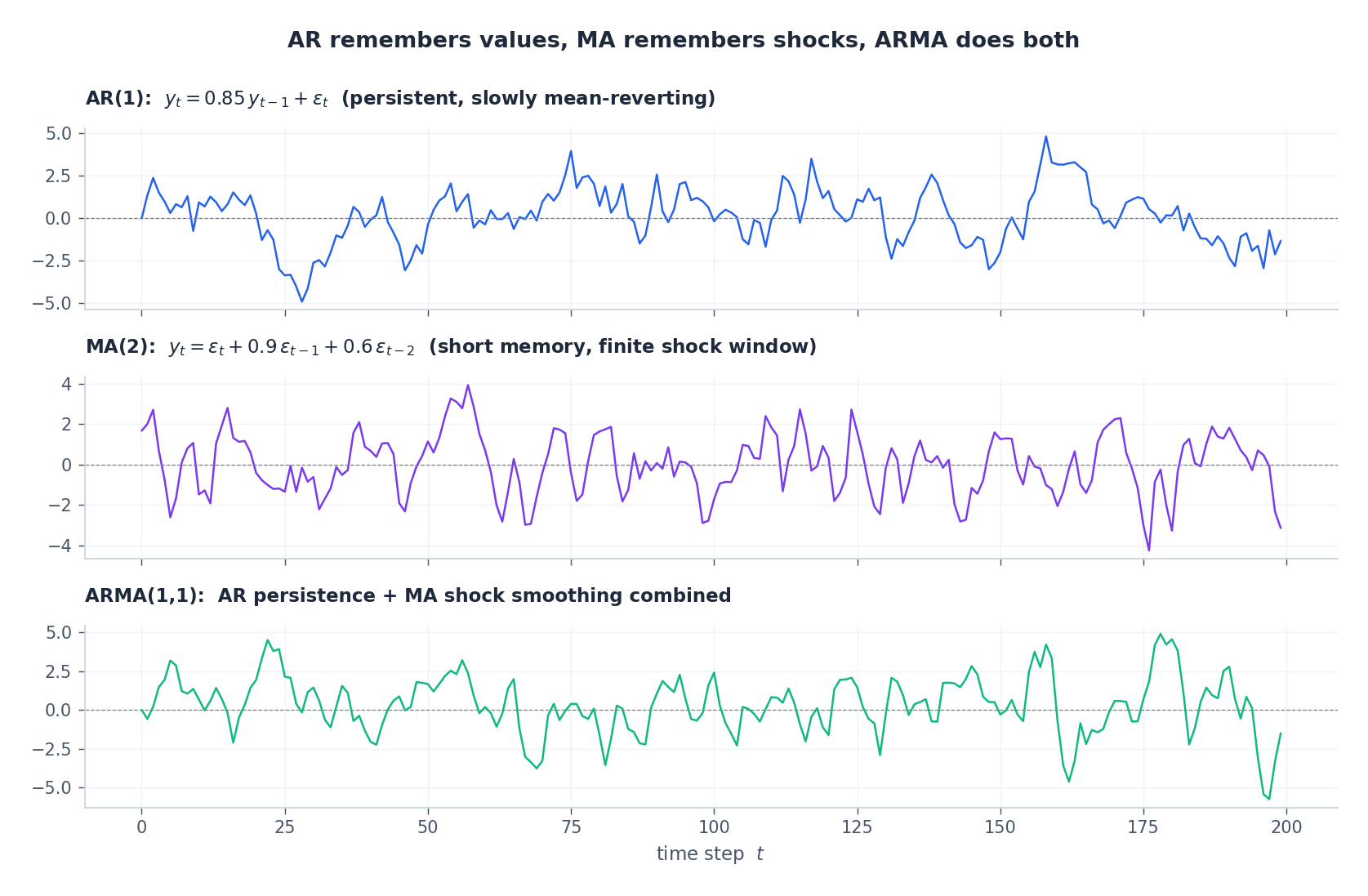

3. AR, MA, and ARMA – three flavours of memory

ARIMA is built from two atomic ingredients. They look similar but encode very different ideas about what the series remembers.

Autoregressive: AR($p$)

Today’s value is a linear combination of the previous $p$ values plus a white-noise shock $\varepsilon_t \sim \mathcal{N}(0, \sigma^2)$. Persistence is encoded directly in the coefficients $\phi_k$. AR(1) with $\phi_1$ near 1 produces a very smooth, slowly mean-reverting path.

Moving average: MA($q$)

Today’s value is a linear combination of the last $q$ shocks. The memory window is finite: an event that happened more than $q$ steps ago has zero direct effect.

Combining: ARMA($p$, $q$)

where $B$ is the lag operator ($B y_t = y_{t-1}$) and

ARMA is parsimonious: a small $(p, q)$ can imitate the autocorrelation of an MA($\infty$) or AR($\infty$). For stationarity all roots of $\phi(B) = 0$ must lie outside the unit circle; for invertibility the same holds for $\theta(B)$.

From ARMA to ARIMA

If the raw series is non-stationary, take $d$-th differences and fit ARMA on the result. The full notation is ARIMA($p, d, q$):

In practice $d = 1$ handles linear drift, $d = 2$ handles curvature; rarely do you need $d > 2$.

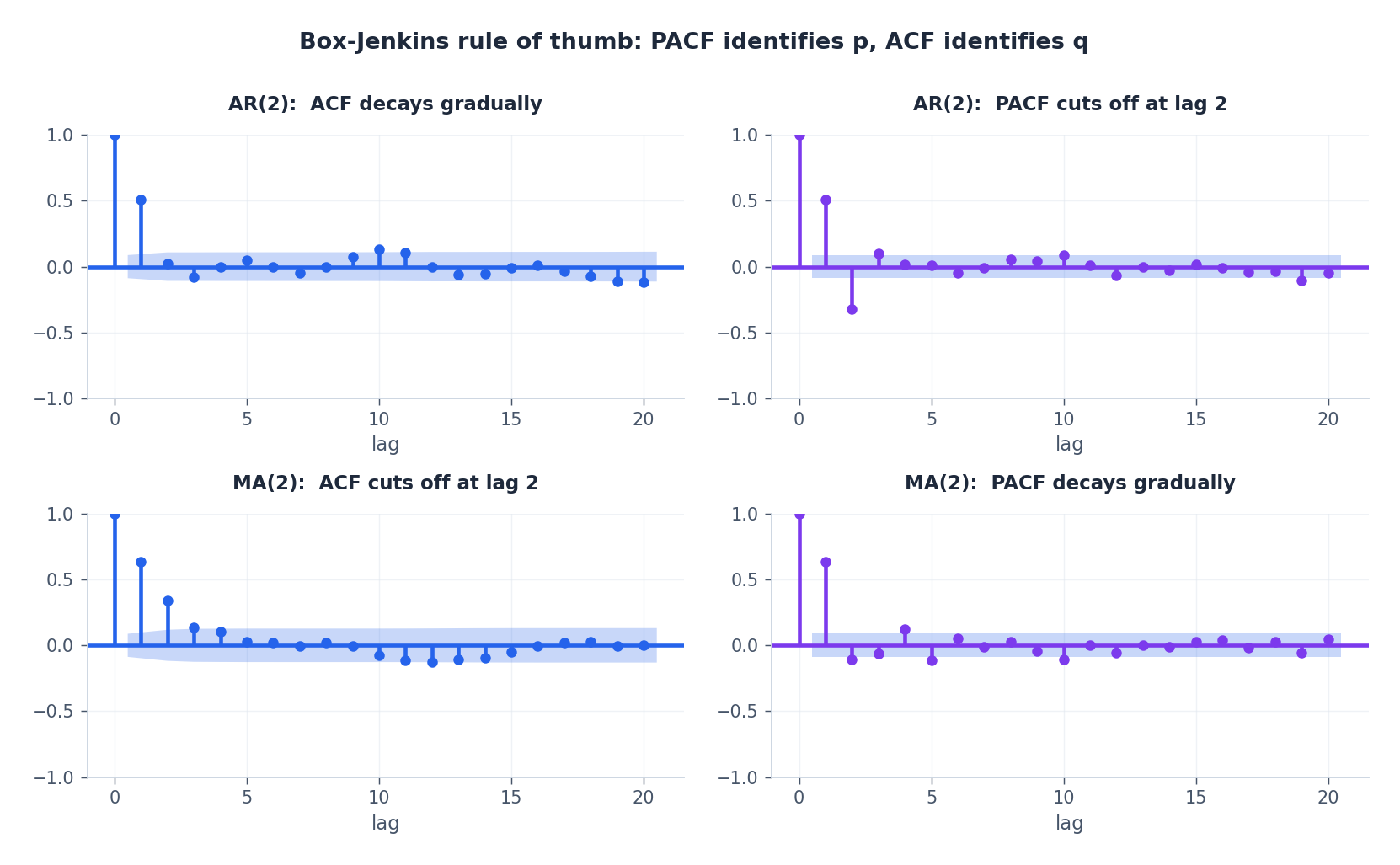

4. ACF and PACF – the model-identification microscope

How do you pick $p$ and $q$? Two diagnostic plots almost always do the job.

• Autocorrelation function (ACF): $\rho_k = \mathrm{Corr}(y_t, y_{t-k})$.
• Partial autocorrelation (PACF): the correlation between $y_t$ and $y_{t-k}$ after removing the linear effect of $y_{t-1}, \ldots, y_{t-k+1}$.

The Box-Jenkins identification rules:

When neither plot has a clean cut-off, you are looking at an ARMA process; the cleanest path is then to grid-search $(p, q)$ and pick the pair that minimises an information criterion.

AIC and BIC

with $\ell$ the maximised log-likelihood, $k$ the number of free parameters, $n$ the sample size. BIC penalises complexity more harshly and is the safer default when $n$ is small.

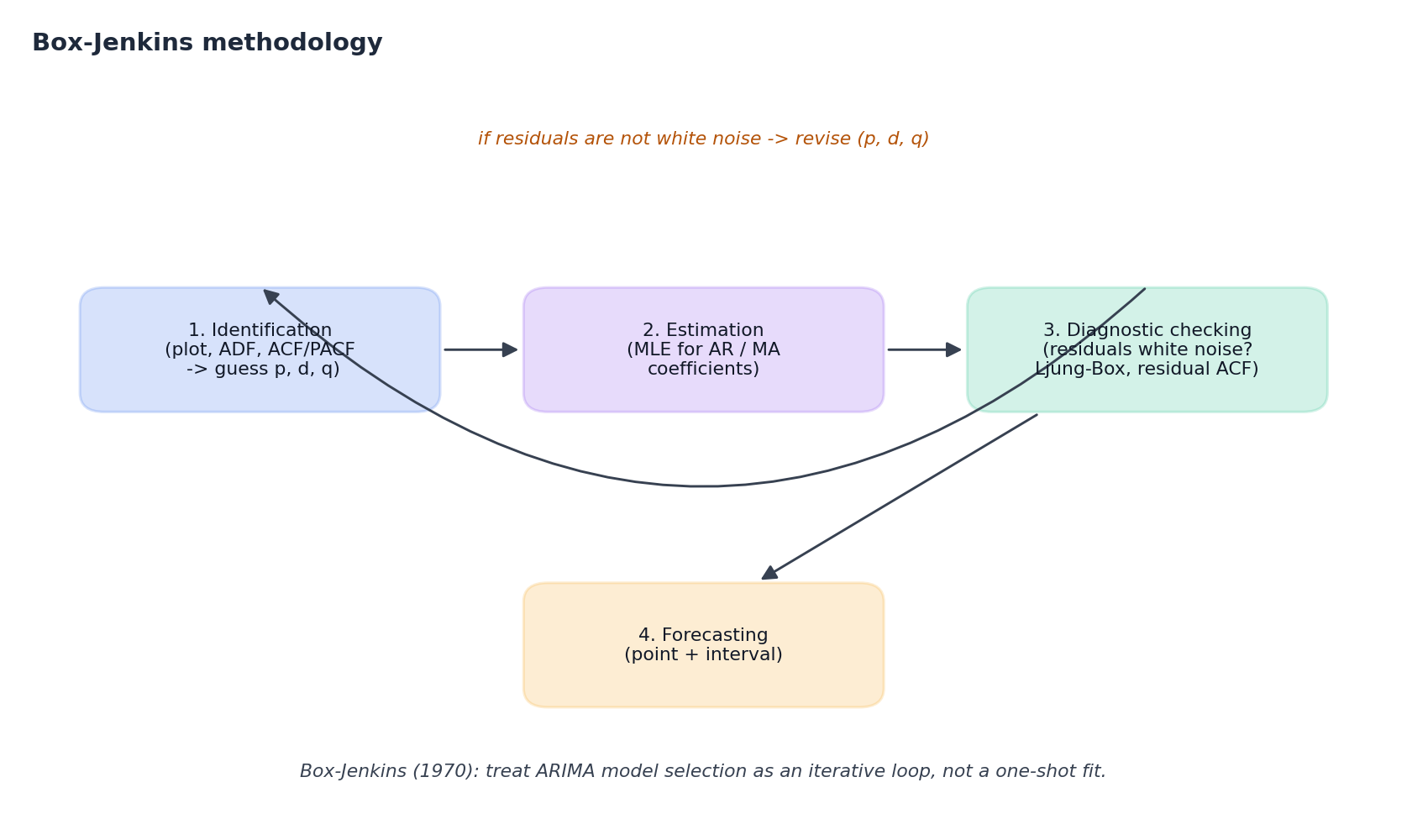

5. The Box-Jenkins workflow

ARIMA is not a one-shot fit; it is an iterative loop that Box and Jenkins formalised in 1970. Every subsequent statistical-forecasting toolkit (including auto.arima) is just an automation of the same four boxes.

1. Identification. Plot the series, run ADF for stationarity, study ACF/PACF, propose a candidate $(p, d, q)$.
2. Estimation. Fit by maximum likelihood (or conditional least squares). All major libraries do this for you.
3. Diagnostic checking. Are the residuals white noise?
   • The Ljung-Box statistic $Q = n(n+2)\sum_{k=1}^h \hat{\rho}_k^2 / (n-k)$ should fail to reject $H_0$.
   • The residual ACF should lie inside the $\pm 1.96/\sqrt{n}$ band.
   • QQ-plots and Jarque-Bera check normality (matters for prediction intervals).
4. Forecasting. Only after the residuals look clean do you produce point and interval forecasts.

6. ARIMA in code

A faithful, minimal walk-through using statsmodels:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

import numpy as np
import pandas as pd
from statsmodels.tsa.arima.model import ARIMA
from statsmodels.tsa.stattools import adfuller
from statsmodels.stats.diagnostic import acorr_ljungbox

# 1. Simulate a non-stationary series (random walk + drift)
rng = np.random.default_rng(0)
n = 200
eps = rng.normal(0, 1.0, n)
y = np.zeros(n)
for t in range(1, n):
    y[t] = y[t - 1] + 0.05 + 0.6 * eps[t]

series = pd.Series(y, index=pd.date_range("2018-01-01", periods=n, freq="D"))

# 2. Identification: ADF test on the level vs the first difference
print("ADF on level :", adfuller(series)[1])         # large p -> non-stationary
print("ADF on diff  :", adfuller(series.diff().dropna())[1])  # small p -> stationary

# 3. Estimation: train on the first 170 points
train, test = series.iloc[:-30], series.iloc[-30:]
model = ARIMA(train, order=(2, 1, 1)).fit()

# 4. Diagnostic checking
lb = acorr_ljungbox(model.resid, lags=[10], return_df=True)
print(lb)  # high p-value -> residuals are white noise

# 5. Forecasting with a 95% interval
fc = model.get_forecast(steps=30)
mean_fc = fc.predicted_mean
ci = fc.conf_int(alpha=0.05)

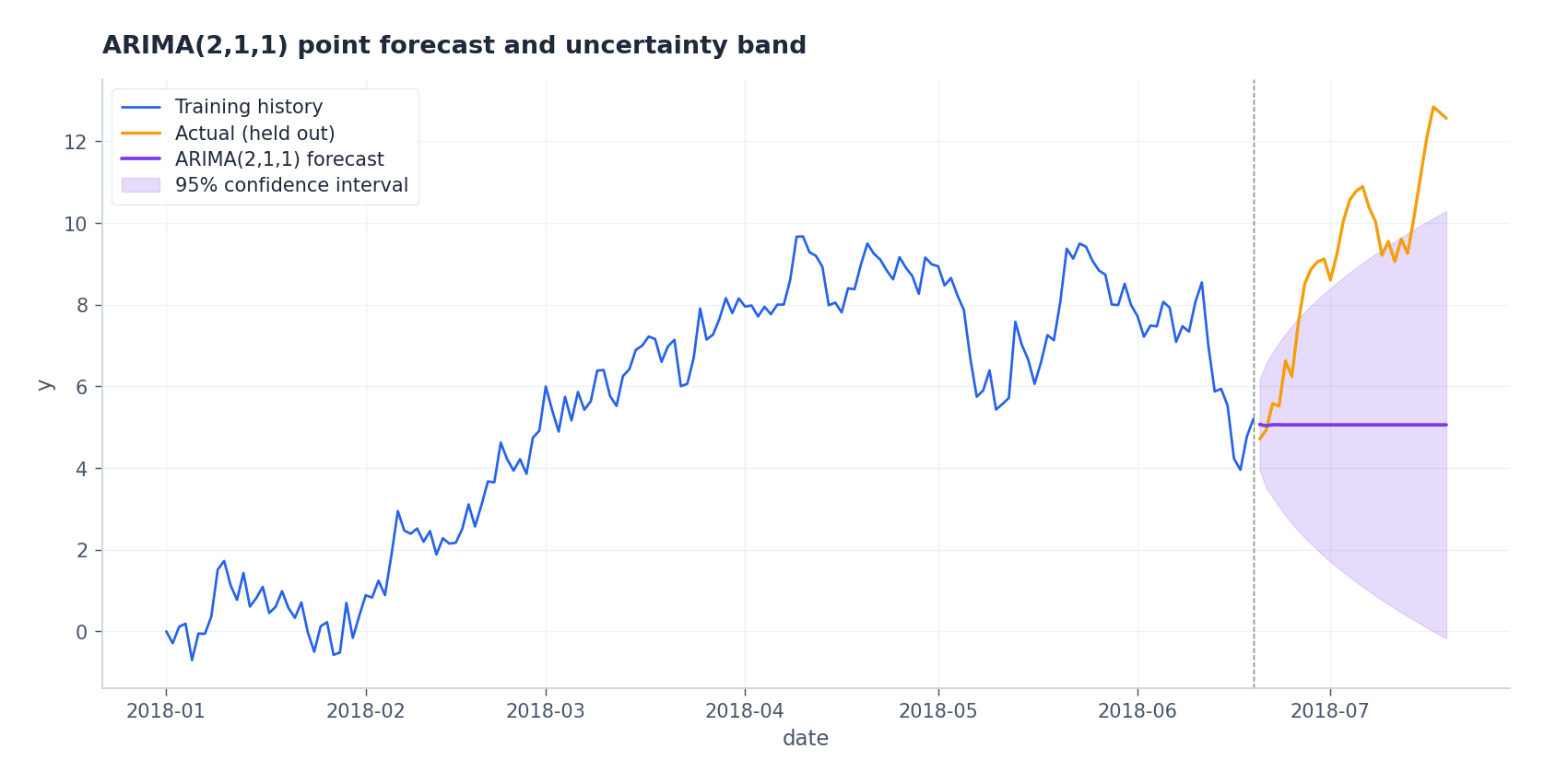

The forecast on a held-out tail looks like this:

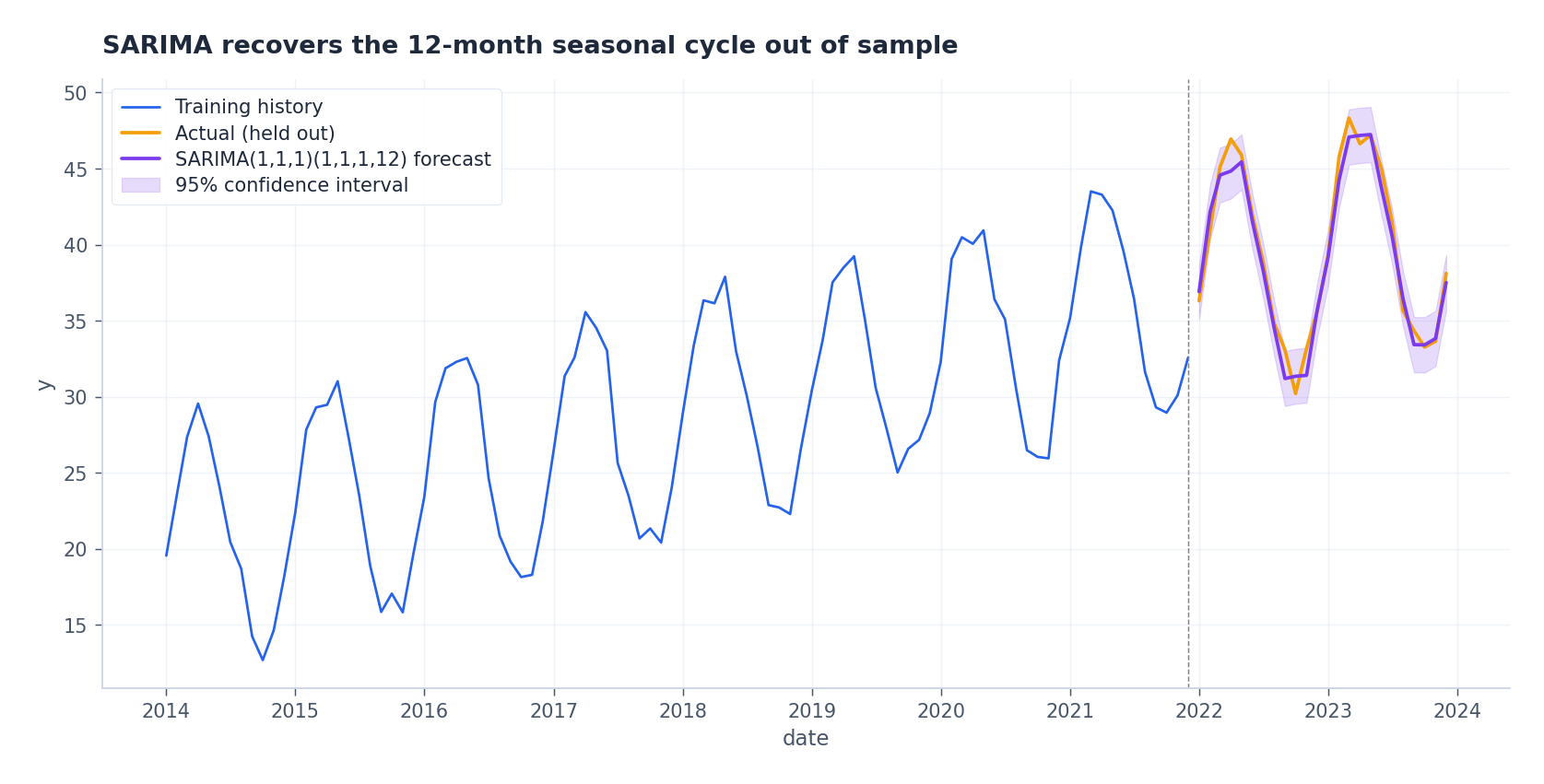

7. Seasonality: SARIMA

Many series have a calendar that ARIMA on its own cannot exploit – monthly retail with a December peak, daily traffic with a weekly cycle, hourly load with a 24-hour cycle. SARIMA ($p, d, q$)($P, D, Q$)$_s$ folds in seasonal lags of period $s$:

You apply two kinds of differencing – regular ($1-B$) for trend and seasonal ($1-B^s$) for the period – and then attach AR/MA terms at both regular lags and lags that are multiples of $s$.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

from statsmodels.tsa.statespace.sarimax import SARIMAX

model = SARIMAX(
    train,
    order=(1, 1, 1),
    seasonal_order=(1, 1, 1, 12),  # P, D, Q, s
    enforce_stationarity=False,
    enforce_invertibility=False,
).fit(disp=False)

forecast = model.get_forecast(steps=24)

Identification cheat sheet for the seasonal part: look at the ACF/PACF of the seasonally differenced series at the seasonal lags $s, 2s, 3s, \ldots$. The same cut-off / tail-off rules apply as in the non-seasonal case.

8. Beyond ARIMA: the rest of the family

The ideas above generalise in four useful directions. They are not separate worlds – each one specialises ARIMA in a single dimension.

8.1 VAR – multivariate dynamics

When you have several series that influence each other (GDP and unemployment, electricity demand and temperature), promote the scalar AR to a vector autoregression:

Each entry of the matrix $A_k$ has an interpretation: $(A_k)_{ij}$ is the marginal effect of variable $j$ at lag $k$ on variable $i$ today. This makes VAR popular in macroeconomics where Granger causality (“does $x$ help predict $y$ beyond $y$’s own past?”) is the central question.

A practical caveat: with $K$ series and lag $p$ the model has $K + pK^2$ free parameters. For $K = 10, p = 4$ that is already 410 numbers from probably a few hundred observations. Hence the regularised cousins – Bayesian VAR, factor models – exist for high-dimensional settings.

8.2 GARCH – variance dynamics

ARIMA models the mean; GARCH models the conditional variance. The basic GARCH(1,1) is:

The $\alpha$ term lets a large shock yesterday push variance up today (the “ARCH” effect); the $\beta$ term lets variance be persistent. Stationarity requires $\alpha + \beta < 1$, and in financial data $\alpha + \beta$ typically lands near 0.95-0.99 – volatility is a slow-moving thing.

GARCH is the standard tool for risk management (VaR, options pricing) and pairs naturally with an ARIMA mean model: fit ARIMA to the returns, then GARCH to the squared residuals.

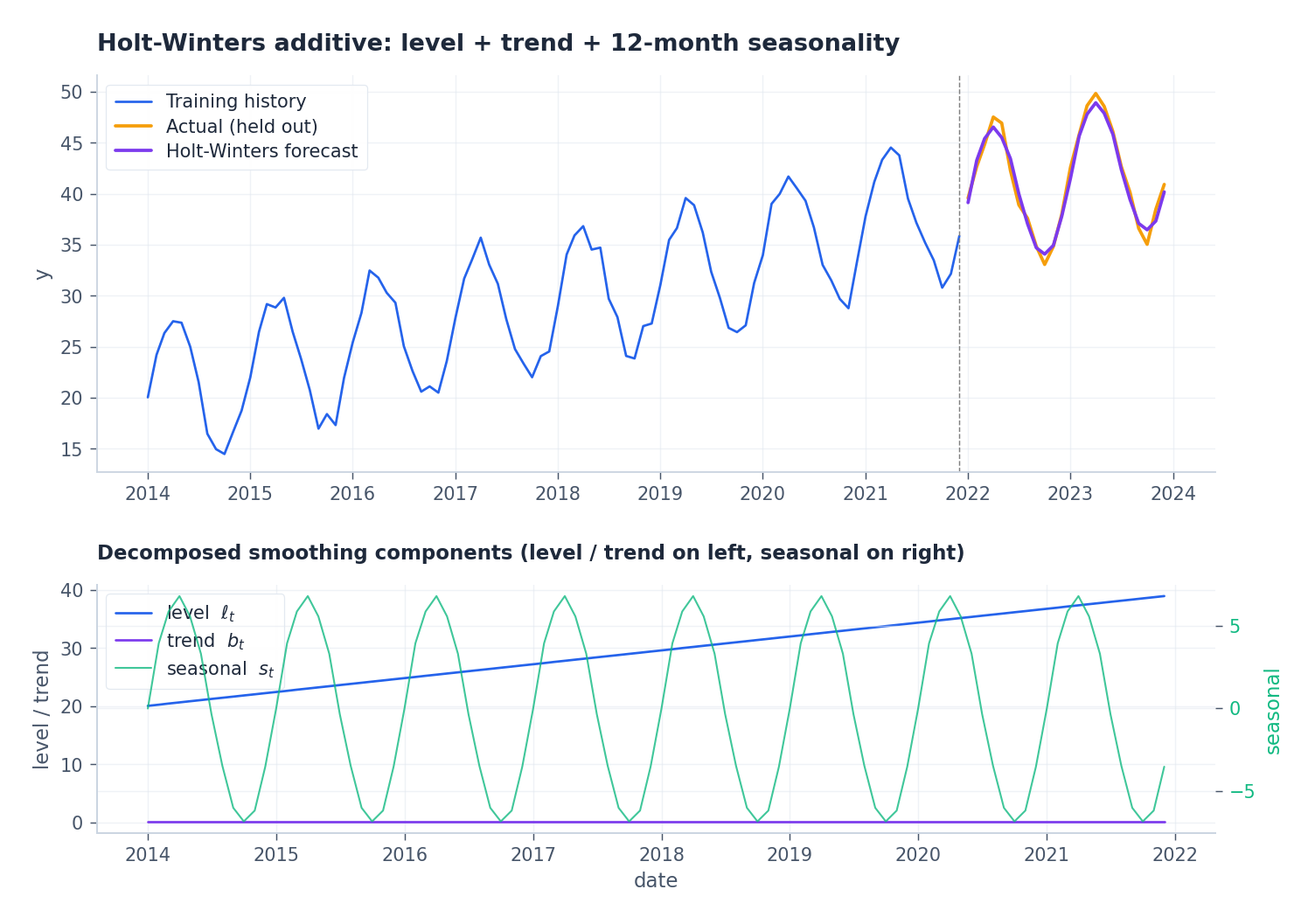

8.3 Exponential smoothing and Holt-Winters

If ARIMA is the “explicitly stochastic” view, exponential smoothing is the “weighted-average” view. Simple exponential smoothing assumes a level $\ell_t$ that drifts with new information:

Holt adds a trend $b_t$; Holt-Winters adds a seasonal $s_t$. The additive variant is:

This is the workhorse behind the ETS family in R / statsmodels, and many of the methods that won the M-competitions are sophisticated descendants of it.

8.4 Prophet

Prophet (Facebook, 2017) is a deliberately simple additive decomposition aimed at business analysts:

where $g(t)$ is a piecewise-linear or logistic trend with changepoints, $s(t)$ is a Fourier expansion for multiple seasonalities, and $h(t)$ encodes user-supplied holidays. It is fitted with Stan via MAP or full Bayesian sampling, exposes only a handful of tunables, and is robust to missing data and outliers. In practice it is not state of the art on benchmarks, but the API quality and the holiday handling are why it remains a default in product analytics.

8.5 The Kalman filter and the state-space view

Everything above is a special case of a linear Gaussian state-space model:

The Kalman filter is the exact Bayesian recursion that maintains $p(\mathbf{x}_t \mid \mathbf{y}_{1:t}) = \mathcal{N}(\hat{\mathbf{x}}_t, P_t)$ as data arrive:

Why this matters: ARIMA, exponential smoothing, dynamic linear regressions, structural models with seasonal dummies – all of them can be cast in the form above and inherit the Kalman recursion for free. That is exactly how statsmodels’s SARIMAX works under the hood, and why it can handle missing observations and exogenous regressors with no extra effort.

9. Choosing a model

A pragmatic recipe: start with ETS or SARIMA as a baseline, add GARCH if the variance is the quantity you care about, and only move to deep models (LSTM, TCN, Transformer, N-BEATS, Informer – the rest of this series) when the residuals show clear non-linear structure or you have many parallel series to share information across.

10. Limits, and what comes next

Traditional models reach their ceiling when:

• The dynamics are non-linear (regime switches, thresholds, hard saturations).
• You have hundreds or thousands of parallel series that should share parameters.
• The relevant context window is very long and ARMA roots cannot represent it parsimoniously.
• The signal is non-Gaussian in a way that even Box-Cox cannot fix.

That is the launchpad for the next seven articles. We start with LSTM as the canonical non-linear sequential model, then build up through GRU, attention, the Transformer, TCN, N-BEATS, and finally Informer for very long sequences. Each of them generalises one of the linear models above; treat ARIMA / SARIMA / Holt-Winters as the baselines you must beat, not as the past you can skip.

References

• Box, G., Jenkins, G., Reinsel, G., & Ljung, G. (2015). Time Series Analysis: Forecasting and Control (5th ed.). Wiley.
• Hamilton, J. D. (1994). Time Series Analysis. Princeton University Press.
• Hyndman, R. J., & Athanasopoulos, G. (2021). Forecasting: Principles and Practice (3rd ed.). OTexts. https://otexts.com/fpp3/ ↗
• Durbin, J., & Koopman, S. J. (2012). Time Series Analysis by State Space Methods (2nd ed.). Oxford University Press.
• Engle, R. F. (1982). Autoregressive conditional heteroscedasticity with estimates of the variance of United Kingdom inflation. Econometrica, 50(4), 987-1007.
• Bollerslev, T. (1986). Generalized autoregressive conditional heteroskedasticity. Journal of Econometrics, 31(3), 307-327.
• Taylor, S. J., & Letham, B. (2018). Forecasting at scale. The American Statistician, 72(1), 37-45.
