阿里云全栈实战（一）：生态全景图——阿里云到底是什么

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# 先安装 Alibaba Cloud CLI
# macOS
brew install aliyun-cli

# 或者从 https://github.com/aliyun/aliyun-cli/releases 下载

# 用根账号配置 CLI（临时，用来创建管理员用户）
aliyun configure set \
  --profile root \
  --mode AK \
  --access-key-id <YOUR_ROOT_AK_ID> \
  --access-key-secret <YOUR_ROOT_AK_SECRET> \
  --region cn-hangzhou

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

# 创建 RAM 用户
aliyun ram CreateUser --UserName admin

# 为新用户创建 AccessKey
aliyun ram CreateAccessKey --UserName admin

# 绑定 AdministratorAccess 策略
aliyun ram AttachPolicyToUser \
  --PolicyType System \
  --PolicyName AdministratorAccess \
  --UserName admin

# 开启 RAM 用户的控制台登录权限
aliyun ram CreateLoginProfile \
  --UserName admin \
  --Password 'YourStrongPassword123!' \
  --MFABindRequired true

1
2
3
4
5
6
7
8
9

aliyun configure set \
  --profile admin \
  --mode AK \
  --access-key-id <RAM_USER_AK_ID> \
  --access-key-secret <RAM_USER_AK_SECRET> \
  --region cn-hangzhou

# 设为默认 profile
aliyun configure set --profile admin

1
2

# 快速检查：这个月我花了多少？
aliyun bssopenapi QueryAccountBalance

1
2
3
4
5
6
7
8
9

# 启动一台抢占式实例
aliyun ecs RunInstances \
  --RegionId cn-hangzhou \
  --InstanceType ecs.c7.large \
  --SpotStrategy SpotAsPriceGo \
  --SpotPriceLimit 0.2 \
  --ImageId aliyun_3_x64_20G_alibase_20240819.vhd \
  --SecurityGroupId sg-bp1xxxxxxxx \
  --VSwitchId vsw-bp1xxxxxxxx

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

# Create a VPC
VPC_ID=$(aliyun vpc CreateVpc \
  --RegionId cn-hangzhou \
  --CidrBlock 172.16.0.0/16 \
  --VpcName "fullstack-vpc" \
  --Description "VPC for aliyun-fullstack series" \
  | jq -r '.VpcId')

echo "VPC ID: $VPC_ID"

# Wait for VPC to become available
sleep 5

# Create a VSwitch (subnet) in zone cn-hangzhou-h
VSWITCH_ID=$(aliyun vpc CreateVSwitch \
  --RegionId cn-hangzhou \
  --ZoneId cn-hangzhou-h \
  --VpcId "$VPC_ID" \
  --CidrBlock 172.16.1.0/24 \
  --VSwitchName "fullstack-vsw" \
  | jq -r '.VSwitchId')

echo "VSwitch ID: $VSWITCH_ID"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

# Create security group
SG_ID=$(aliyun ecs CreateSecurityGroup \
  --RegionId cn-hangzhou \
  --VpcId "$VPC_ID" \
  --SecurityGroupName "fullstack-sg" \
  --SecurityGroupType normal \
  | jq -r '.SecurityGroupId')

echo "Security Group ID: $SG_ID"

# Allow SSH from your IP only
MY_IP=$(curl -s ifconfig.me)
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-hangzhou \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp \
  --PortRange 22/22 \
  --SourceCidrIp "${MY_IP}/32" \
  --Description "SSH from my IP"

# Allow HTTP from anywhere
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-hangzhou \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp \
  --PortRange 80/80 \
  --SourceCidrIp "0.0.0.0/0" \
  --Description "HTTP from anywhere"

# Allow HTTPS from anywhere
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-hangzhou \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp \
  --PortRange 443/443 \
  --SourceCidrIp "0.0.0.0/0" \
  --Description "HTTPS from anywhere"

1
2
3
4
5
6
7

# Create key pair
aliyun ecs CreateKeyPair \
  --RegionId cn-hangzhou \
  --KeyPairName "fullstack-key" \
  | jq -r '.PrivateKeyBody' > ~/.ssh/fullstack-key.pem

chmod 600 ~/.ssh/fullstack-key.pem

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# Find the latest Alibaba Cloud Linux 3 image
IMAGE_ID=$(aliyun ecs DescribeImages \
  --RegionId cn-hangzhou \
  --OSType linux \
  --ImageOwnerAlias system \
  --ImageName "aliyun_3_x64*" \
  --PageSize 1 \
  --SortKey CreationDate \
  | jq -r '.Images.Image[0].ImageId')

echo "Image: $IMAGE_ID"

# Launch the instance
INSTANCE_ID=$(aliyun ecs RunInstances \
  --RegionId cn-hangzhou \
  --InstanceType ecs.c7.large \
  --ImageId "$IMAGE_ID" \
  --SecurityGroupId "$SG_ID" \
  --VSwitchId "$VSWITCH_ID" \
  --InstanceName "fullstack-01" \
  --HostName "fullstack-01" \
  --KeyPairName "fullstack-key" \
  --SystemDiskCategory cloud_essd \
  --SystemDiskSize 40 \
  --InternetMaxBandwidthOut 5 \
  --InstanceChargeType PostPaid \
  --SpotStrategy NoSpot \
  --Amount 1 \
  | jq -r '.InstanceIdSets.InstanceIdSet[0]')

echo "Instance ID: $INSTANCE_ID"

1
2
3
4
5

# Wait for the instance to start (usually 30-60 seconds)
aliyun ecs DescribeInstances \
  --RegionId cn-hangzhou \
  --InstanceIds "['$INSTANCE_ID']" \
  | jq -r '.Instances.Instance[0] | "\(.Status) \(.PublicIpAddress.IpAddress[0])"'

1
2
3
4
5
6
7

# SSH in
ECS_IP=$(aliyun ecs DescribeInstances \
  --RegionId cn-hangzhou \
  --InstanceIds "['$INSTANCE_ID']" \
  | jq -r '.Instances.Instance[0].PublicIpAddress.IpAddress[0]')

ssh -i ~/.ssh/fullstack-key.pem root@$ECS_IP

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86

# main.tf
terraform {
  required_providers {
    alicloud = {
      source  = "aliyun/alicloud"
      version = "~> 1.230"
    }
  }
}

provider "alicloud" {
  region = "cn-hangzhou"
}

resource "alicloud_vpc" "main" {
  vpc_name   = "fullstack-vpc"
  cidr_block = "172.16.0.0/16"
}

resource "alicloud_vswitch" "main" {
  vswitch_name = "fullstack-vsw"
  vpc_id       = alicloud_vpc.main.id
  cidr_block   = "172.16.1.0/24"
  zone_id      = "cn-hangzhou-h"
}

resource "alicloud_security_group" "main" {
  name   = "fullstack-sg"
  vpc_id = alicloud_vpc.main.id
}

resource "alicloud_security_group_rule" "ssh" {
  security_group_id = alicloud_security_group.main.id
  type              = "ingress"
  ip_protocol       = "tcp"
  port_range        = "22/22"
  cidr_ip           = "YOUR_IP/32"
  description       = "SSH from my IP"
}

resource "alicloud_security_group_rule" "http" {
  security_group_id = alicloud_security_group.main.id
  type              = "ingress"
  ip_protocol       = "tcp"
  port_range        = "80/80"
  cidr_ip           = "0.0.0.0/0"
  description       = "HTTP from anywhere"
}

resource "alicloud_ecs_key_pair" "main" {
  key_pair_name = "fullstack-key"
}

data "alicloud_images" "alinux3" {
  owners      = "system"
  name_regex  = "^aliyun_3_x64"
  most_recent = true
}

resource "alicloud_instance" "main" {
  instance_name        = "fullstack-01"
  host_name            = "fullstack-01"
  instance_type        = "ecs.c7.large"
  image_id             = data.alicloud_images.alinux3.images[0].id
  security_groups      = [alicloud_security_group.main.id]
  vswitch_id           = alicloud_vswitch.main.id
  key_name             = alicloud_ecs_key_pair.main.key_pair_name
  system_disk_category = "cloud_essd"
  system_disk_size     = 40

  internet_max_bandwidth_out = 5
  instance_charge_type       = "PostPaid"

  tags = {
    Project = "aliyun-fullstack"
    Series  = "01-ecosystem-map"
  }
}

output "public_ip" {
  value = alicloud_instance.main.public_ip
}

output "instance_id" {
  value = alicloud_instance.main.id
}

1
2
3

terraform init
terraform plan
terraform apply

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

# On the ECS instance (Alibaba Cloud Linux 3 uses dnf, same as RHEL 8+)
sudo dnf update -y

# Web server
sudo dnf install -y nginx
sudo systemctl enable --now nginx

# Development tools
sudo dnf install -y python3 python3-pip nodejs npm git curl wget jq

# Verify
nginx -v
python3 --version
node --version

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

# Create a simple test page
cat > /usr/share/nginx/html/index.html << 'HTMLEOF'
<!DOCTYPE html>
<html>
<head><title>Alibaba Cloud Full Stack</title></head>
<body>
  <h1>It works.</h1>
  <p>ECS instance is live. Series: aliyun-fullstack, Article 01.</p>
  <p>Server time: <script>document.write(new Date().toISOString())</script></p>
</body>
</html>
HTMLEOF

# Restart nginx
sudo systemctl restart nginx

1

curl http://$ECS_IP

1
2
3
4
5
6
7

# On the ECS instance — install CloudMonitor agent
ARGUS_VERSION=3.5.8
curl -sL "https://cms-agent-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/cms-go-agent/${ARGUS_VERSION}/CmsGoAgent.linux-amd64.tar.gz" \
  | tar xzf - -C /usr/local/

/usr/local/CmsGoAgent/CmsGoAgent start
/usr/local/CmsGoAgent/CmsGoAgent status

1
2
3
4
5
6
7
8

# Stop the instance (you still pay for the disk, ~0.5 CNY/day for 40 GB ESSD)
aliyun ecs StopInstance --InstanceId "$INSTANCE_ID"

# Or release it entirely (all data is lost)
aliyun ecs DeleteInstance --InstanceId "$INSTANCE_ID" --Force true

# If using Terraform, just:
terraform destroy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

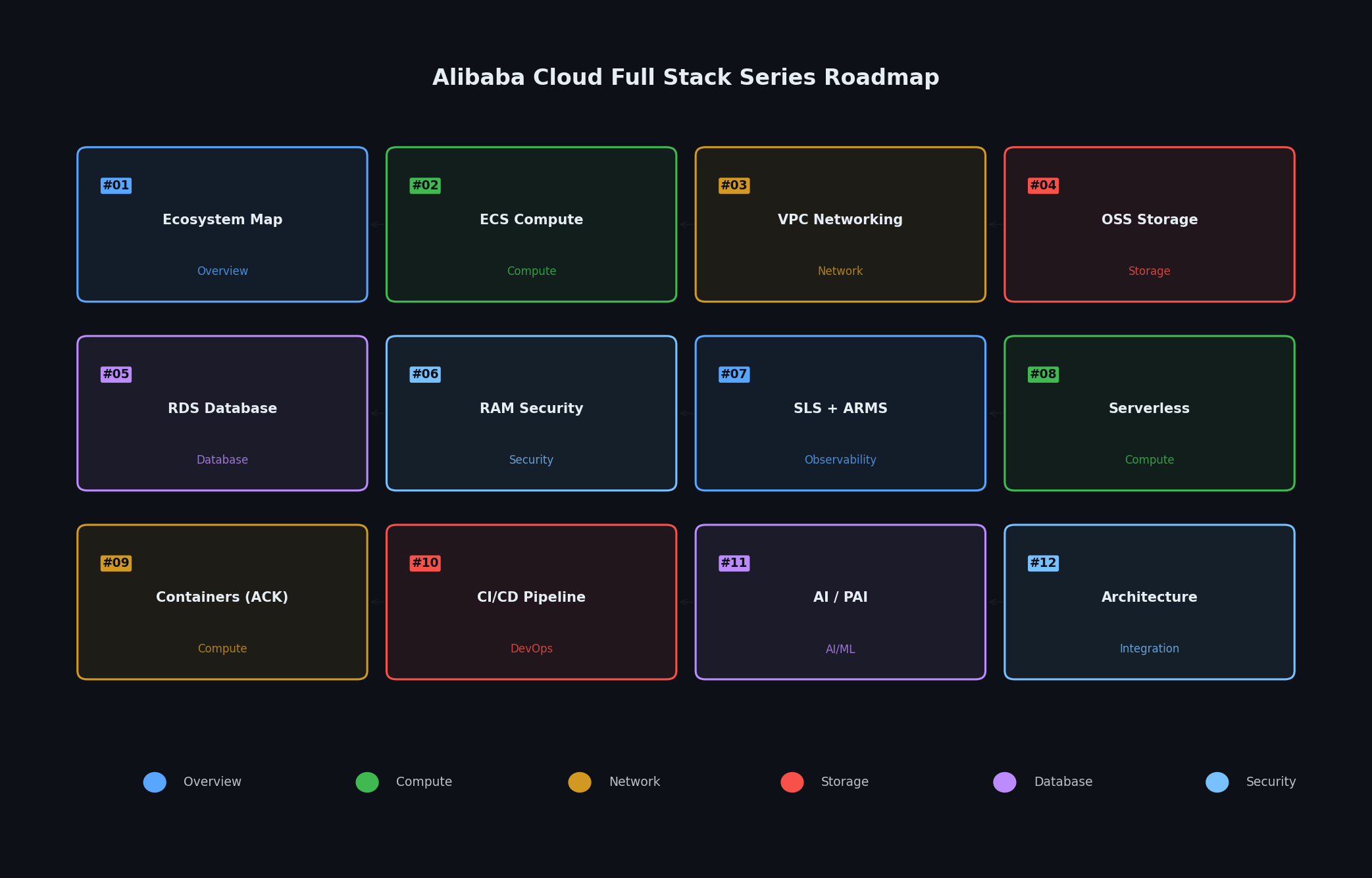

Article 01: The Ecosystem Map (you are here)
    |
    v
Article 02: ECS Deep Dive — Instance Types, Images, Disks
    |
    v
Article 03: Networking — VPC, SLB, CDN, DNS
    |
    v
Article 04: Storage — OSS, NAS, Block Storage Patterns
    |
    v
Article 05: Databases — RDS, PolarDB, Redis, MongoDB
    |
    v
Article 06: Security — RAM, KMS, Security Groups, WAF
    |
    v
Article 07: Infrastructure as Code — Terraform on Alibaba Cloud
    |
    v
Article 08: Containers — ACK, SAE, and When to Use What
    |
    v
Article 09: Serverless — Function Compute, EventBridge
    |
    v
Article 10: Observability — SLS, CloudMonitor, ARMS
    |
    v
Article 11: AI/ML — PAI, DashScope, Bailian
    |
    v
Article 12: Putting It All Together — A Production Architecture
