阿里云全栈实战（二）：ECS——让计算回归本质

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

                  ┌──────────┐

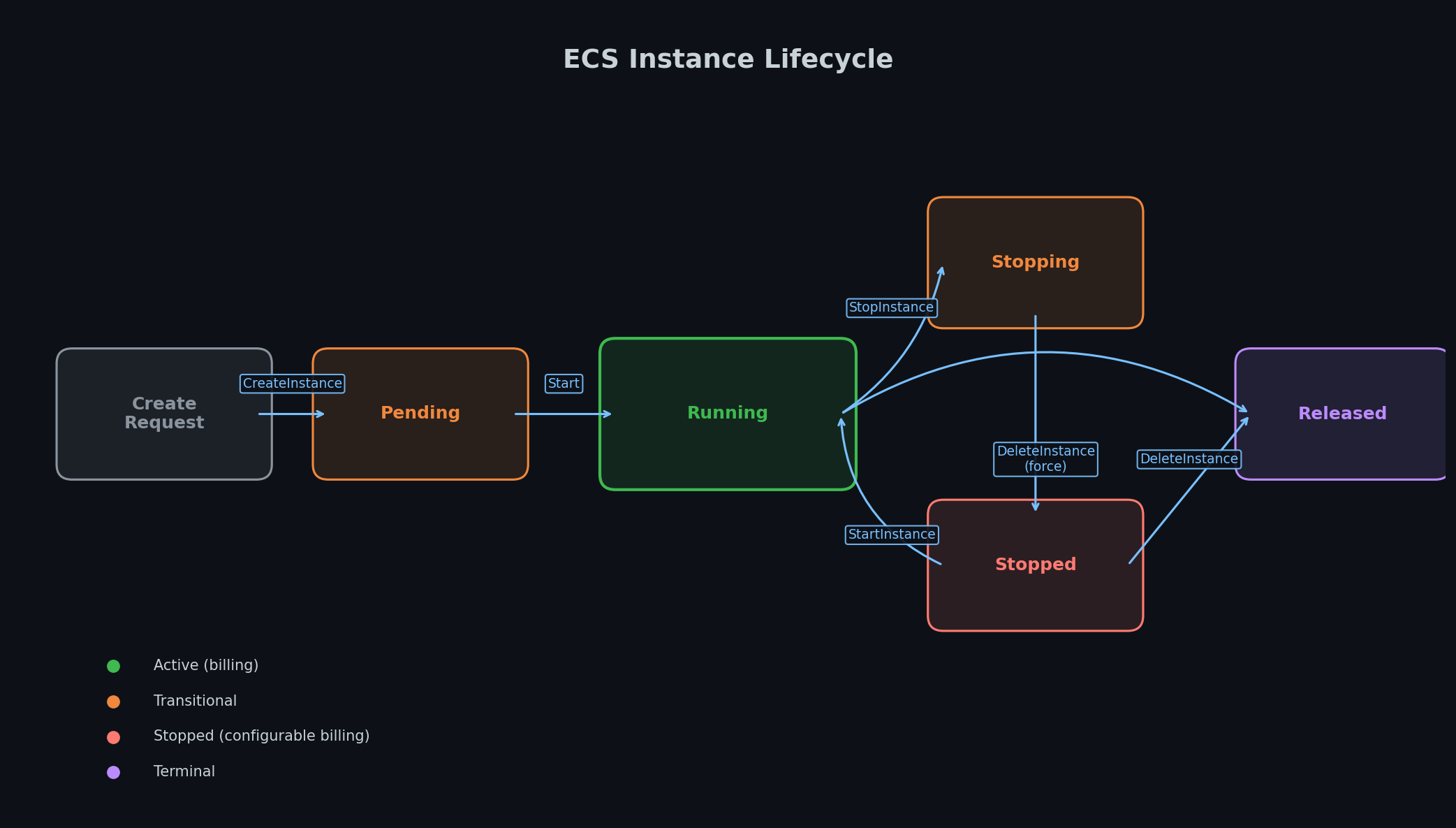

         create   │          │  start
    ────────────► │ Stopped  │ ──────────┐
                  │          │           │
                  └────┬─────┘           ▼
                       │          ┌──────────┐
                 delete│          │          │
                       │          │ Starting │
                       ▼          │          │
                  ┌──────────┐    └────┬─────┘
                  │          │         │
                  │ Released │         ▼
                  │          │    ┌──────────┐
                  └──────────┘    │          │  stop
                                  │ Running  │ ──────┐
                                  │          │       │
                                  └────┬─────┘       ▼
                                       │       ┌──────────┐
                                       │       │          │
                                       └───────│ Stopping │
                                               │          │
                                               └──────────┘

1
2
3
4
5
6
7

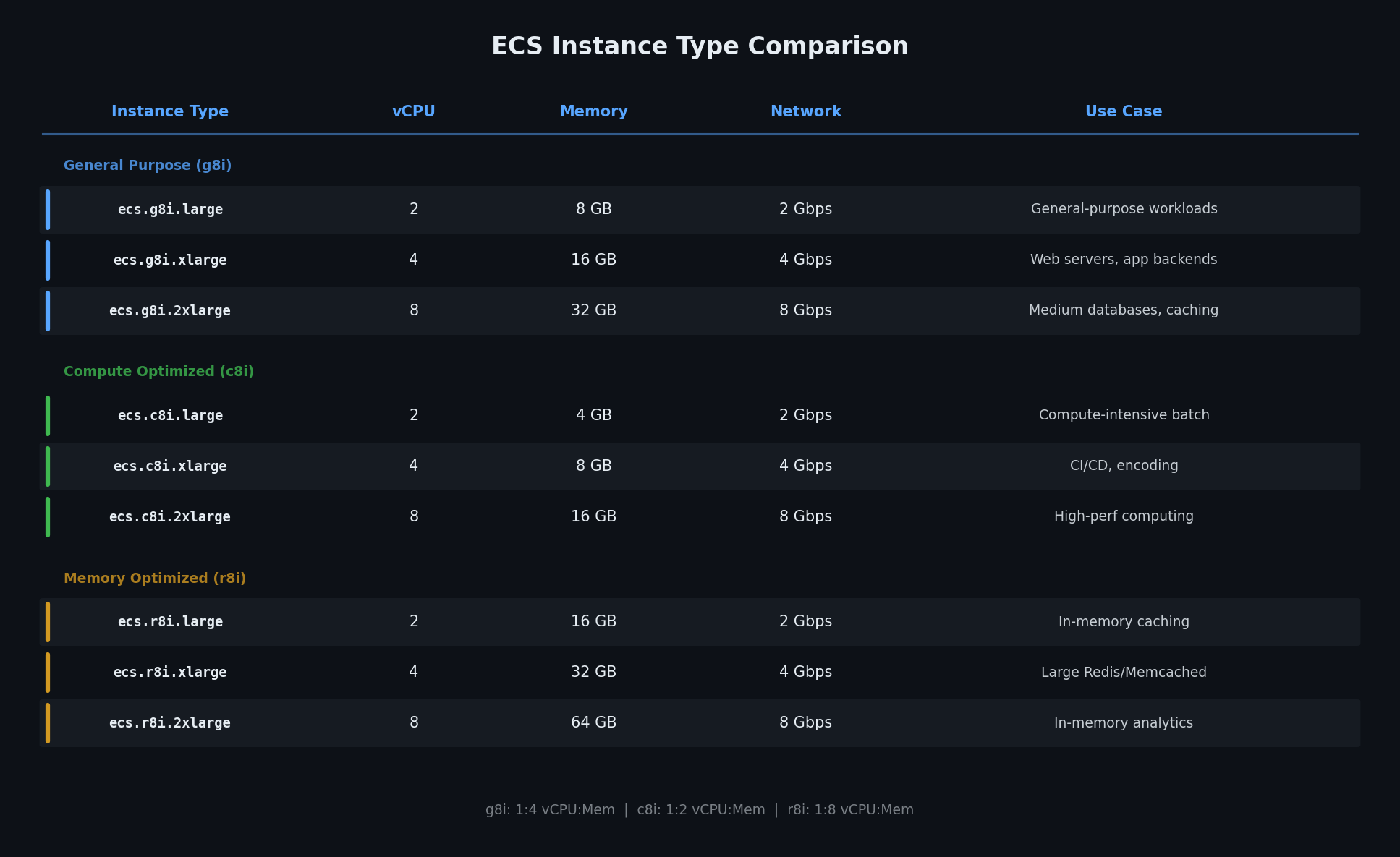

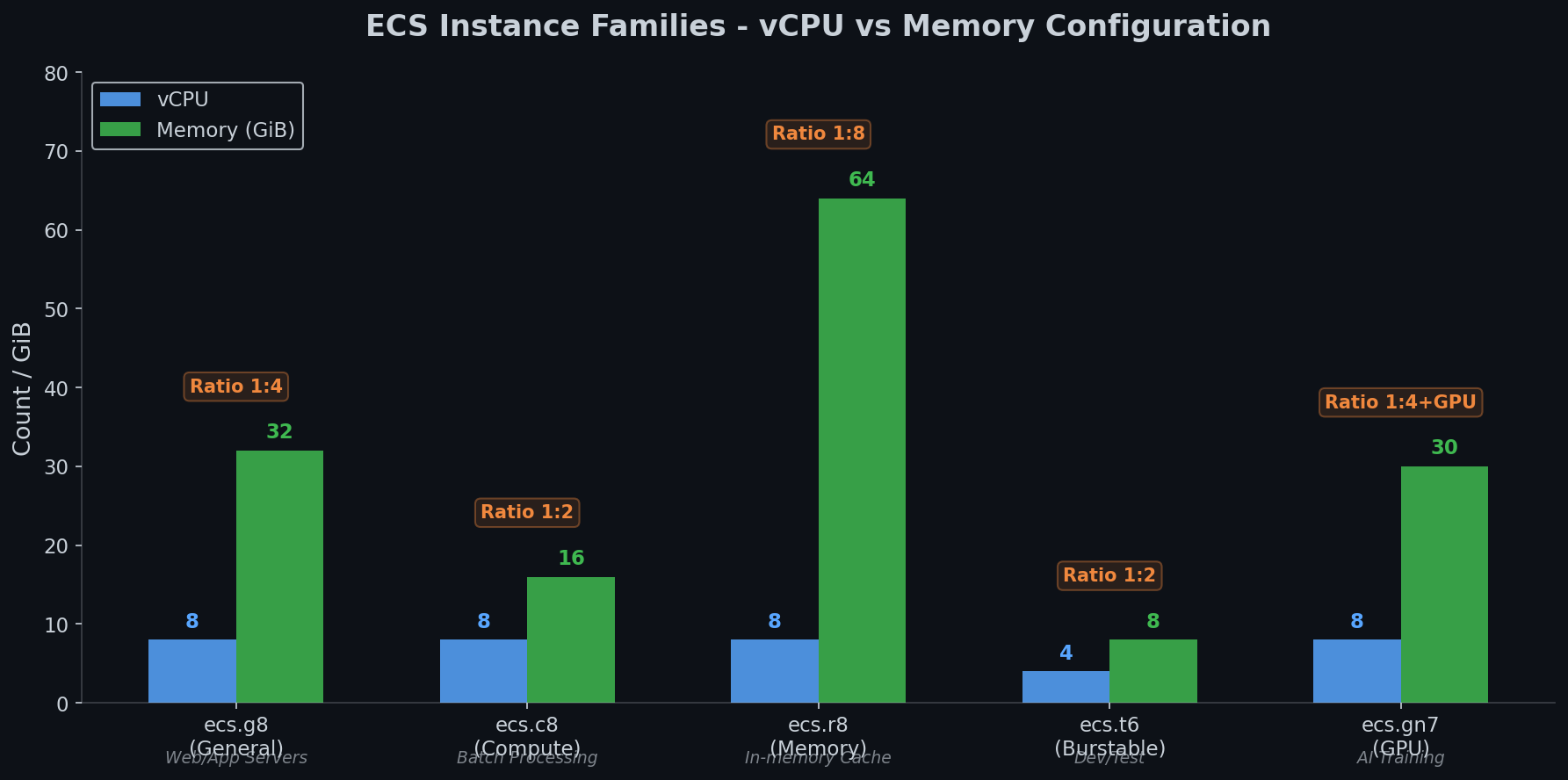

ecs.{family}{generation}.{size}

Examples:
  ecs.g8i.large      →  General Purpose, gen 8 (Intel), large
  ecs.c8y.xlarge     →  Compute Optimized, gen 8 (Yitian ARM), xlarge
  ecs.r7.2xlarge     →  Memory Optimized, gen 7, 2xlarge
  ecs.gn7i.xlarge    →  GPU (NVIDIA), gen 7 (Intel), xlarge

1
2
3
4
5
6
7

# Create security group
aliyun ecs CreateSecurityGroup \
  --RegionId cn-beijing \
  --VpcId vpc-2ze1234567890abcdef \
  --SecurityGroupName "app-server-sg" \
  --SecurityGroupType normal \
  --Description "Security group for app servers"

1
2
3
4
5
6
7
8
9

# Create key pair — the private key is returned ONLY ONCE
aliyun ecs CreateKeyPair \
  --RegionId cn-beijing \
  --KeyPairName "app-server-key" | tee keypair-response.json

# Extract and save the private key
cat keypair-response.json | jq -r '.PrivateKeyBody' > ~/.ssh/app-server-key.pem
chmod 600 ~/.ssh/app-server-key.pem
rm keypair-response.json

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

aliyun ecs CreateInstance \
  --RegionId cn-beijing \
  --ZoneId cn-beijing-h \
  --InstanceType ecs.c7.large \
  --ImageId aliyun_3_x64_20G_alibase_20240528.vhd \
  --SecurityGroupId sg-2ze1234567890abcdef \
  --VSwitchId vsw-2ze1234567890abcdef \
  --InstanceName "app-server-01" \
  --HostName "app-server-01" \
  --KeyPairName "app-server-key" \

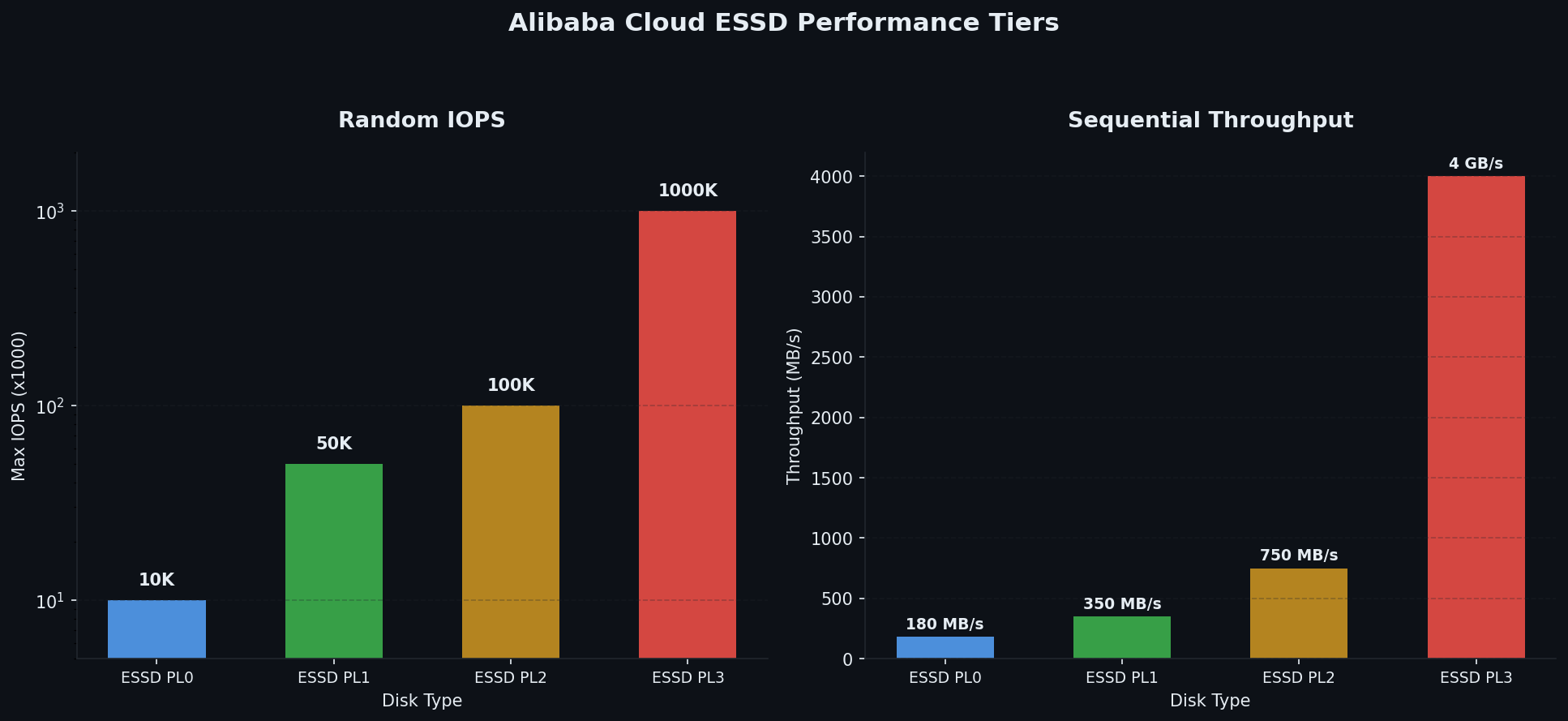

  --SystemDisk.Category cloud_essd \
  --SystemDisk.Size 40 \
  --SystemDisk.PerformanceLevel PL0 \
  --InternetMaxBandwidthOut 5 \
  --InternetChargeType PayByTraffic \
  --InstanceChargeType PostPaid \
  --SpotStrategy NoSpot \
  --UserData "$(base64 -w0 cloud-init.yaml)" \
  --Description "Production app server" \
  --Tag.1.Key Environment \
  --Tag.1.Value production \
  --Tag.2.Key App \
  --Tag.2.Value web-server

1
2
3
4
5
6
7
8

aliyun ecs DescribeImages \
  --RegionId cn-beijing \
  --OSType linux \
  --ImageOwnerAlias system \
  --ImageName "Alibaba Cloud Linux 3*" \
  --PageSize 1 \
  --SortKey CreatedOn \
  | jq '.Images.Image[0] | {ImageId, ImageName, CreationTime}'

1

aliyun ecs StartInstance --InstanceId i-2ze1234567890abcdef

1

ssh -i ~/.ssh/app-server-key.pem root@<public-ip>

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

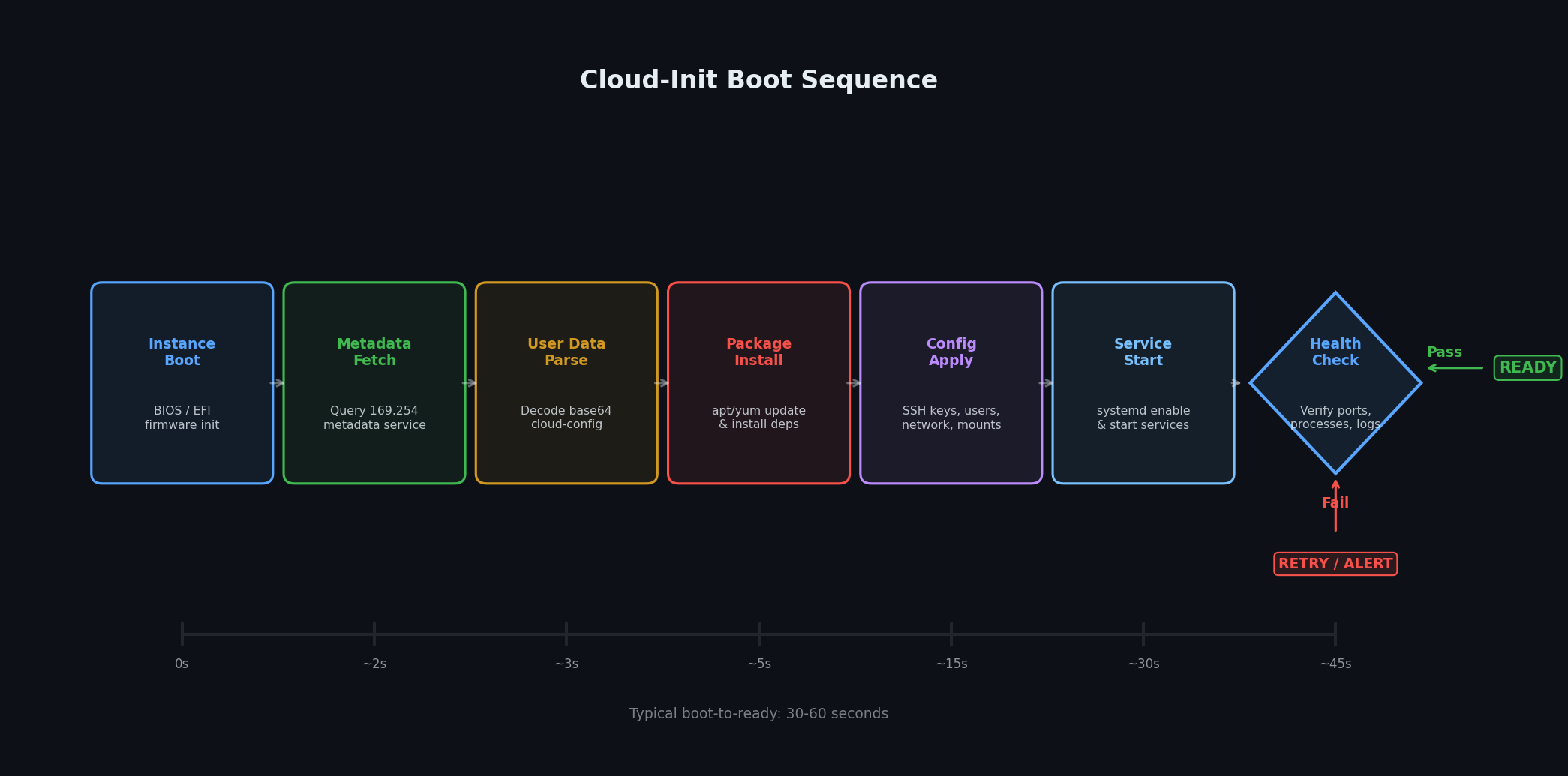

#cloud-config

# --- System ---
timezone: Asia/Shanghai
locale: en_US.UTF-8

# --- Package management ---
package_update: true
package_upgrade: true
packages:
  - nginx
  - python3
  - python3-pip
  - python3-venv
  - git
  - curl
  - htop
  - jq
  - supervisor
  - certbot
  - python3-certbot-nginx
  - fail2ban

# --- Users ---
users:
  - name: deploy
    groups: [sudo, www-data]
    shell: /bin/bash
    sudo: ALL=(ALL) NOPASSWD:ALL
    ssh_authorized_keys:
      - ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQ... deploy@workstation

# --- SSH hardening ---
ssh_pwauth: false
disable_root: false

write_files:
  - path: /etc/ssh/sshd_config.d/hardened.conf
    content: |
      PermitRootLogin prohibit-password
      PasswordAuthentication no
      ChallengeResponseAuthentication no
      MaxAuthTries 3
      ClientAliveInterval 300
      ClientAliveCountMax 2

  - path: /opt/app/deploy.sh
    permissions: "0755"
    content: |
      #!/bin/bash
      set -euxo pipefail
      cd /opt/app
      python3 -m venv venv
      source venv/bin/activate
      pip install --upgrade pip
      pip install flask gunicorn

      cat > app.py << 'PYEOF'
      from flask import Flask, jsonify
      import os, socket

      app = Flask(__name__)

      @app.route("/health")
      def health():
          return jsonify(status="ok", host=socket.gethostname())

      @app.route("/")
      def index():
          return jsonify(message="Hello from ECS", instance=os.uname().nodename)
      PYEOF

      cat > /etc/supervisor/conf.d/app.conf << 'SUPEOF'
      [program:app]
      command=/opt/app/venv/bin/gunicorn -w 4 -b 127.0.0.1:8000 app:app
      directory=/opt/app
      user=deploy
      autostart=true
      autorestart=true
      stderr_logfile=/var/log/app/error.log
      stdout_logfile=/var/log/app/access.log
      SUPEOF

      mkdir -p /var/log/app
      chown deploy:deploy /var/log/app
      supervisorctl reread
      supervisorctl update

  - path: /etc/nginx/sites-available/app
    content: |
      server {
          listen 80;
          server_name _;

          location / {
              proxy_pass http://127.0.0.1:8000;
              proxy_set_header Host $host;
              proxy_set_header X-Real-IP $remote_addr;
              proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
              proxy_set_header X-Forwarded-Proto $scheme;
          }

          location /health {
              proxy_pass http://127.0.0.1:8000/health;
              access_log off;
          }
      }

# --- Run commands on first boot ---
runcmd:
  # Enable and start fail2ban
  - systemctl enable fail2ban
  - systemctl start fail2ban

  # Configure nginx
  - ln -sf /etc/nginx/sites-available/app /etc/nginx/sites-enabled/app
  - rm -f /etc/nginx/sites-enabled/default
  - nginx -t && systemctl reload nginx

  # Deploy the application
  - /opt/app/deploy.sh

  # Restart SSH with hardened config
  - systemctl restart sshd

  # Log completion
  - echo "cloud-init complete at $(date)" >> /var/log/cloud-init-complete.log

1
2
3
4
5
6
7
8

# Check cloud-init status
cloud-init status --long

# If something failed, check the log
tail -100 /var/log/cloud-init-output.log

# Verify the app is running
curl http://localhost/health

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

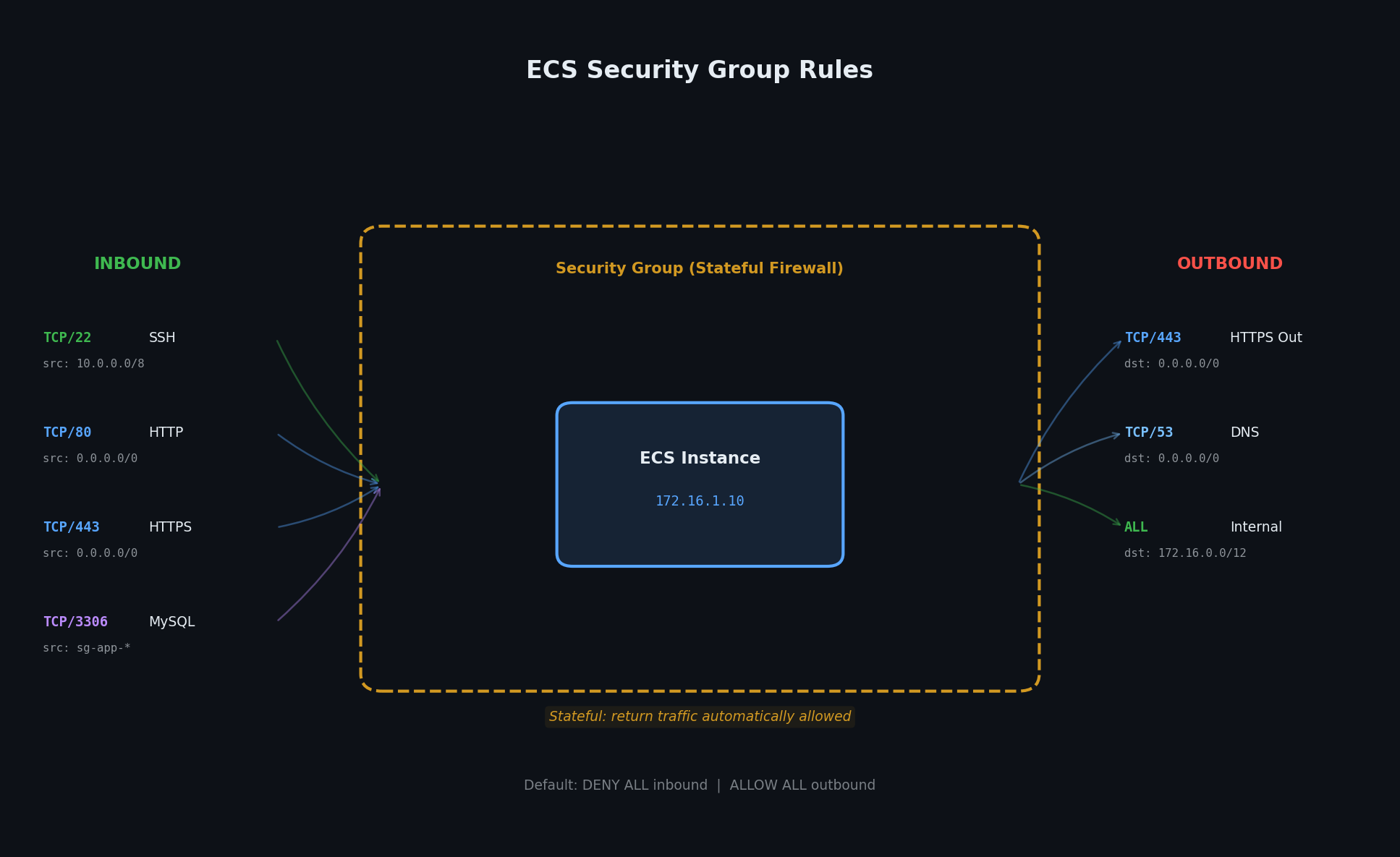

# Allow HTTP from anywhere
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId sg-2ze1234567890abcdef \
  --IpProtocol tcp \
  --PortRange 80/80 \
  --SourceCidrIp 0.0.0.0/0 \
  --Policy accept \
  --Priority 1 \
  --Description "Allow HTTP"

# Allow HTTPS from anywhere
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId sg-2ze1234567890abcdef \
  --IpProtocol tcp \
  --PortRange 443/443 \
  --SourceCidrIp 0.0.0.0/0 \
  --Policy accept \
  --Priority 1 \
  --Description "Allow HTTPS"

# Allow SSH from your office IP only
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId sg-2ze1234567890abcdef \
  --IpProtocol tcp \
  --PortRange 22/22 \
  --SourceCidrIp 203.0.113.50/32 \
  --Policy accept \
  --Priority 1 \
  --Description "Allow SSH from office"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# Allow PostgreSQL from app server security group
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId sg-2zeDBSERVERSG \
  --IpProtocol tcp \
  --PortRange 5432/5432 \
  --SourceGroupId sg-2zeAPPSERVERSG \
  --Policy accept \
  --Priority 1 \
  --Description "Allow PostgreSQL from app servers"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

# Your SSH config (~/.ssh/config)
Host app-server
    HostName 47.94.xxx.xxx
    User root
    IdentityFile ~/.ssh/app-server-key.pem
    StrictHostKeyChecking accept-new

Host bastion
    HostName 47.94.yyy.yyy
    User deploy
    IdentityFile ~/.ssh/bastion-key.pem
    StrictHostKeyChecking accept-new

Host app-internal
    HostName 172.16.1.10
    User deploy
    IdentityFile ~/.ssh/app-server-key.pem
    ProxyJump bastion

1
2
3
4
5
6
7
8

# Direct access to public instance
ssh app-server

# Access internal instance via bastion (two-hop)
ssh app-internal

# Copy files through bastion
scp -o ProxyJump=bastion localfile.tar.gz app-internal:/opt/app/

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

# Step 1: Expand the disk via API (does not touch the filesystem)
aliyun ecs ResizeDisk \
  --DiskId d-2ze1234567890abcdef \
  --NewSize 100 \
  --Type online

# Step 2: SSH into the instance and grow the filesystem
# For ext4:
sudo growpart /dev/vda 1
sudo resize2fs /dev/vda1

# For xfs:
sudo growpart /dev/vda 1
sudo xfs_growfs /

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

# Create an on-demand snapshot
aliyun ecs CreateSnapshot \
  --DiskId d-2ze1234567890abcdef \
  --SnapshotName "pre-migration-backup" \
  --Description "Before v2.0 database migration" \
  --RetentionDays 30

# Create an automatic snapshot policy (daily at 02:00, keep 7 days)
aliyun ecs CreateAutoSnapshotPolicy \
  --RegionId cn-beijing \
  --autoSnapshotPolicyName "daily-7d" \
  --timePoints '["2"]' \
  --repeatWeekdays '["1","2","3","4","5","6","7"]' \
  --retentionDays 7

# Apply the policy to a disk
aliyun ecs ApplyAutoSnapshotPolicy \
  --autoSnapshotPolicyId sp-2ze1234567890abcdef \
  --diskIds '["d-2ze1234567890abcdef"]'

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# Alert when CPU > 90% for 5 minutes
aliyun cms PutResourceMetricRule \
  --RuleId "ecs-cpu-high" \
  --RuleName "ECS CPU High" \
  --Namespace "acs_ecs_dashboard" \
  --MetricName "CPUUtilization" \
  --Resources '[{"instanceId":"i-2ze1234567890abcdef"}]' \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Average" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 90 \
  --Escalations.Critical.Times 3 \
  --Period 60

1
2
3
4
5

# Check for pending system events
aliyun ecs DescribeInstancesFullStatus \
  --RegionId cn-beijing \
  --InstanceId.1 i-2ze1234567890abcdef \
  | jq '.InstanceFullStatusSet.InstanceFullStatusType[] | .ScheduledSystemEventSet'

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

# Create VPC
VPC_ID=$(aliyun vpc CreateVpc \
  --RegionId cn-beijing \
  --CidrBlock 172.16.0.0/12 \
  --VpcName "prod-vpc" \
  | jq -r '.VpcId')

echo "VPC: $VPC_ID"

# Wait for VPC to be available
sleep 5

# Create VSwitch in zone H
VSWITCH_ID=$(aliyun vpc CreateVSwitch \
  --RegionId cn-beijing \
  --ZoneId cn-beijing-h \
  --VpcId "$VPC_ID" \
  --CidrBlock 172.16.1.0/24 \
  --VSwitchName "prod-app-subnet" \
  | jq -r '.VSwitchId')

echo "VSwitch: $VSWITCH_ID"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# Create security group
SG_ID=$(aliyun ecs CreateSecurityGroup \
  --RegionId cn-beijing \
  --VpcId "$VPC_ID" \
  --SecurityGroupName "prod-app-sg" \
  | jq -r '.SecurityGroupId')

echo "Security Group: $SG_ID"

# Allow HTTP
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp --PortRange 80/80 \
  --SourceCidrIp 0.0.0.0/0 --Policy accept --Priority 1

# Allow HTTPS
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp --PortRange 443/443 \
  --SourceCidrIp 0.0.0.0/0 --Policy accept --Priority 1

# Allow SSH from specific IP (replace with yours)
aliyun ecs AuthorizeSecurityGroup \
  --RegionId cn-beijing \
  --SecurityGroupId "$SG_ID" \
  --IpProtocol tcp --PortRange 22/22 \
  --SourceCidrIp "$(curl -s ifconfig.me)/32" --Policy accept --Priority 1

1
2
3
4
5
6

aliyun ecs CreateKeyPair \
  --RegionId cn-beijing \
  --KeyPairName "prod-app-key" \
  | jq -r '.PrivateKeyBody' > ~/.ssh/prod-app-key.pem

chmod 600 ~/.ssh/prod-app-key.pem

1
2
3
4
5
6
7
8
9

IMAGE_ID=$(aliyun ecs DescribeImages \
  --RegionId cn-beijing \
  --OSType linux \
  --ImageOwnerAlias system \
  --ImageName "Alibaba Cloud Linux 3*" \
  --PageSize 1 \
  | jq -r '.Images.Image[0].ImageId')

echo "Image: $IMAGE_ID"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

# Create instance with cloud-init user data
INSTANCE_ID=$(aliyun ecs CreateInstance \
  --RegionId cn-beijing \
  --ZoneId cn-beijing-h \
  --InstanceType ecs.c7.large \
  --ImageId "$IMAGE_ID" \
  --SecurityGroupId "$SG_ID" \
  --VSwitchId "$VSWITCH_ID" \
  --InstanceName "prod-app-01" \
  --HostName "prod-app-01" \
  --KeyPairName "prod-app-key" \
  --SystemDisk.Category cloud_essd \
  --SystemDisk.Size 40 \
  --SystemDisk.PerformanceLevel PL0 \
  --InternetMaxBandwidthOut 10 \
  --InternetChargeType PayByTraffic \
  --InstanceChargeType PostPaid \
  --UserData "$(base64 -w0 cloud-init.yaml)" \
  | jq -r '.InstanceId')

echo "Instance: $INSTANCE_ID"

# Start the instance
aliyun ecs StartInstance --InstanceId "$INSTANCE_ID"

# Wait for it to be running
echo "Waiting for instance to start..."
sleep 30

# Get the public IP
PUBLIC_IP=$(aliyun ecs DescribeInstances \
  --RegionId cn-beijing \
  --InstanceIds "[\"$INSTANCE_ID\"]" \
  | jq -r '.Instances.Instance[0].PublicIpAddress.IpAddress[0]')

echo "Public IP: $PUBLIC_IP"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# Wait for cloud-init to finish (usually 2-3 min)
sleep 120

# Test the health endpoint
curl -s "http://$PUBLIC_IP/health" | jq .
# Expected: {"host":"prod-app-01","status":"ok"}

# SSH in and check logs
ssh -i ~/.ssh/prod-app-key.pem root@"$PUBLIC_IP" \
  "cloud-init status --long && supervisorctl status"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

ssh -i ~/.ssh/prod-app-key.pem root@"$PUBLIC_IP" << 'EOF'
  certbot --nginx -d app.example.com \
    --non-interactive --agree-tos \
    --email admin@example.com

  # Verify auto-renewal
  certbot renew --dry-run

  # Set up cron for renewal
  echo "0 3 * * * certbot renew --quiet" | crontab -
EOF

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# Create alert for CPU
aliyun cms PutResourceMetricRule \
  --RuleId "prod-app-01-cpu" \
  --RuleName "Prod App CPU High" \
  --Namespace "acs_ecs_dashboard" \
  --MetricName "CPUUtilization" \
  --Resources "[{\"instanceId\":\"$INSTANCE_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Average" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 90 \
  --Escalations.Critical.Times 3 \
  --Period 60

# Create alert for disk usage
aliyun cms PutResourceMetricRule \
  --RuleId "prod-app-01-disk" \
  --RuleName "Prod App Disk Full" \
  --Namespace "acs_ecs_dashboard" \
  --MetricName "diskusage_utilization" \
  --Resources "[{\"instanceId\":\"$INSTANCE_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 85 \
  --Escalations.Critical.Times 1 \
  --Period 300
