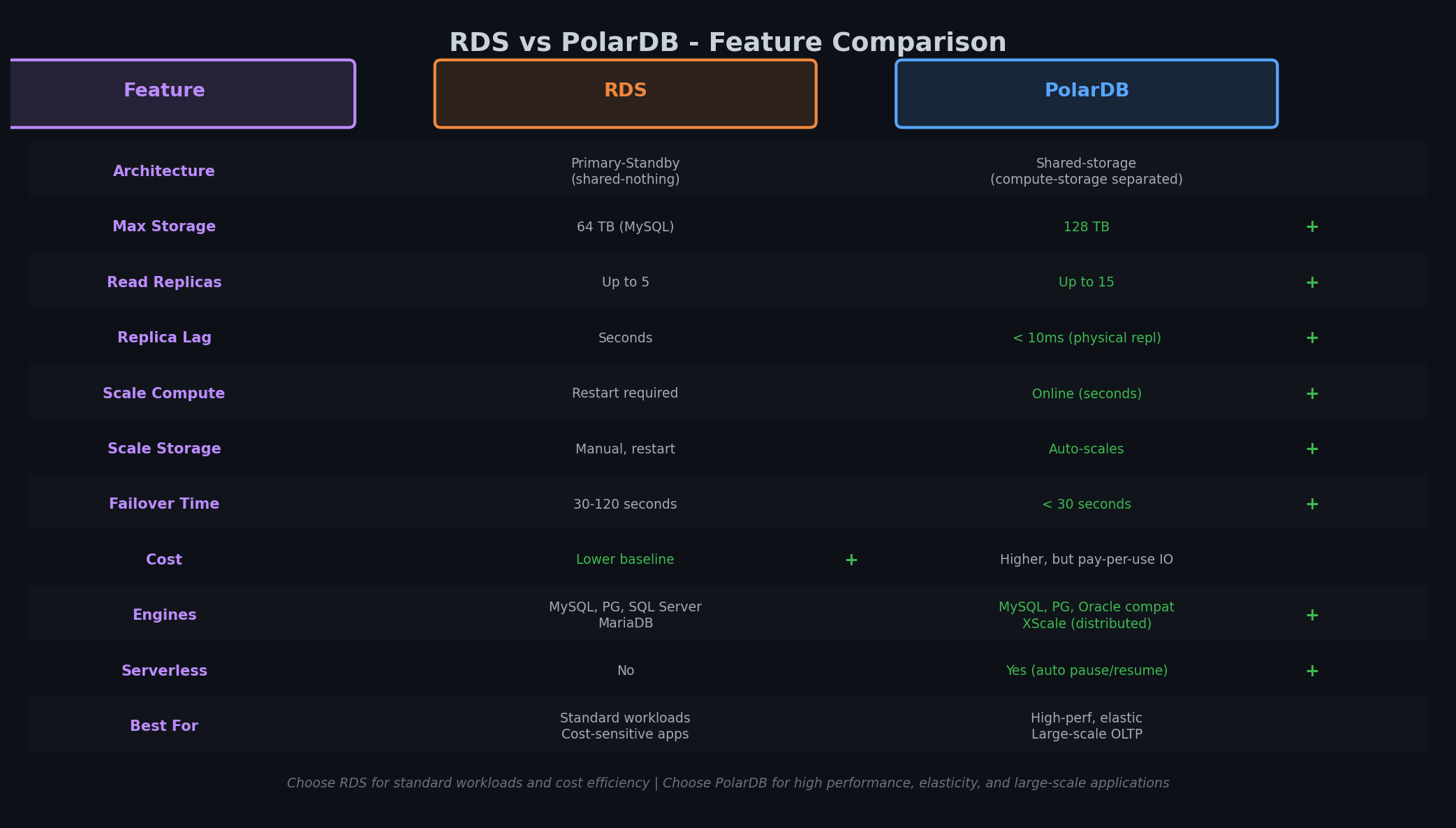

阿里云全栈实战（五）：RDS 与 PolarDB 数据基石

1
2
3
4

Buffer Pool Size ≈ 75% of instance memory
Working Set = frequently accessed data + all indexes
If Working Set ≤ Buffer Pool Size → fast
If Working Set > Buffer Pool Size → disk thrashing

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

-- Buffer pool hit ratio (should be > 99%)
SHOW GLOBAL STATUS LIKE 'Innodb_buffer_pool_read_requests';
SHOW GLOBAL STATUS LIKE 'Innodb_buffer_pool_reads';

-- Calculate: hit_ratio = 1 - (reads / read_requests)
-- If hit_ratio < 0.99, your buffer pool is too small

-- Actual buffer pool size
SHOW GLOBAL VARIABLES LIKE 'innodb_buffer_pool_size';

-- Data + index size for each database
SELECT
  table_schema AS db,
  ROUND(SUM(data_length + index_length) / 1024 / 1024, 2) AS size_mb
FROM information_schema.tables
GROUP BY table_schema
ORDER BY size_mb DESC;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# SQLAlchemy connection pool example
from sqlalchemy import create_engine

engine = create_engine(
    "mysql+pymysql://appuser:password@rm-bp1xxx.mysql.rds.aliyuncs.com:3306/mydb",
    pool_size=20,          # Maintain 20 connections
    max_overflow=10,       # Allow 10 extra connections under load
    pool_timeout=30,       # Wait 30s for a connection before erroring
    pool_recycle=3600,     # Recycle connections every hour
    pool_pre_ping=True     # Verify connection is alive before using
)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

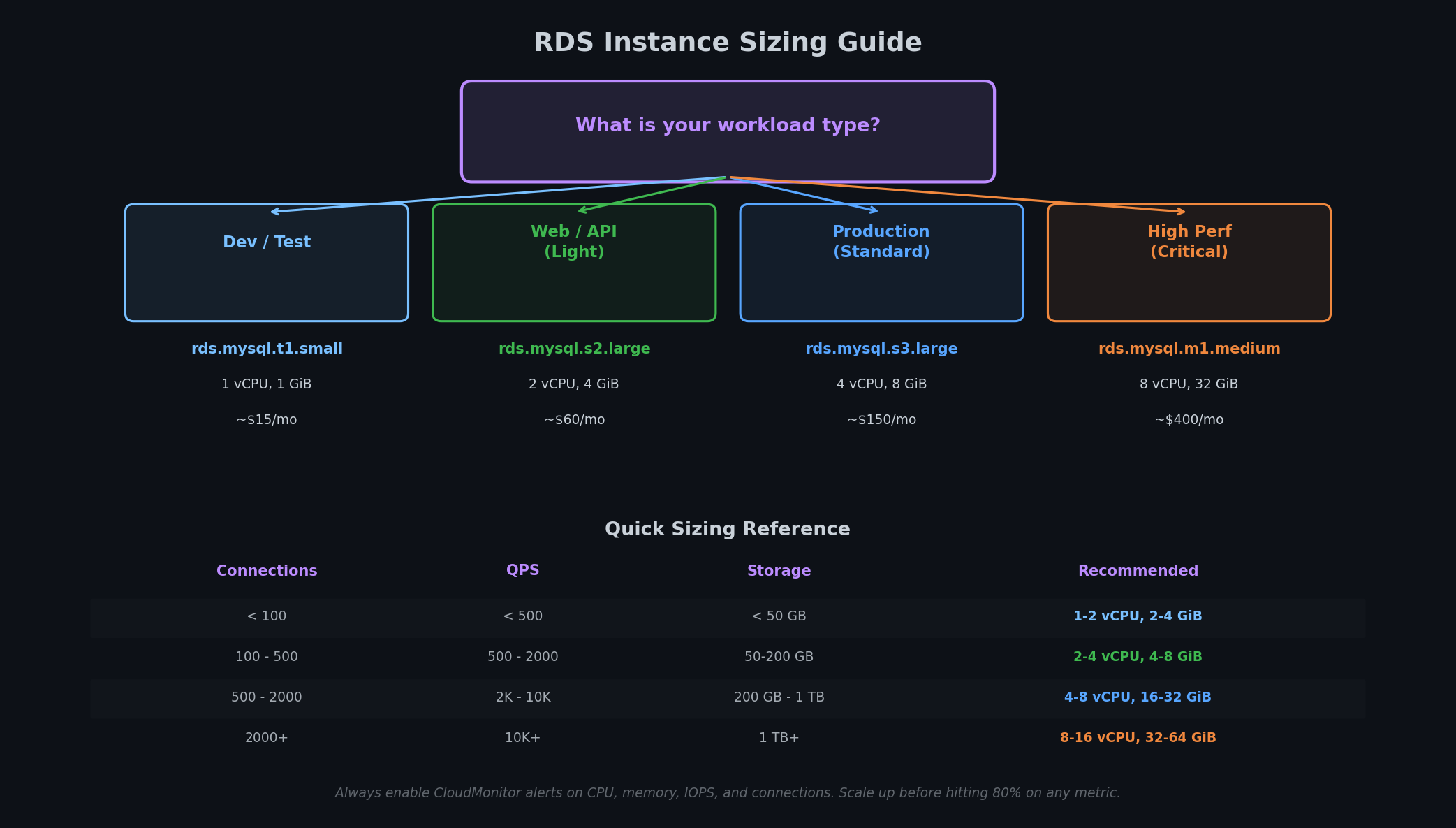

# Create RDS MySQL 8.0 HA instance
aliyun rds CreateDBInstance \
  --RegionId cn-hangzhou \
  --Engine MySQL \
  --EngineVersion "8.0" \
  --DBInstanceClass rds.mysql.s3.large \
  --DBInstanceStorage 100 \
  --DBInstanceStorageType cloud_essd \
  --Category HighAvailability \
  --DBInstanceNetType Intranet \
  --VPCId vpc-bp1xxxxxxxxx \
  --VSwitchId vsw-bp1xxxxxxxxx \
  --ZoneId cn-hangzhou-h \
  --ZoneIdSlave1 cn-hangzhou-i \
  --SecurityIPList "10.0.10.0/24,10.0.11.0/24" \
  --PayType Postpaid \
  --DBInstanceDescription "Production MySQL" \
  --ConnectionMode Standard \
  --InstanceNetworkType VPC

1
2
3
4

# Check instance status (wait for "Running")
aliyun rds DescribeDBInstanceAttribute \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --output cols=DBInstanceStatus,DBInstanceClass,Engine,EngineVersion

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

# Create the application database
aliyun rds CreateDatabase \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --DBName myapp \
  --CharacterSetName utf8mb4 \
  --DBDescription "Main application database"

# Create a normal account (not superuser) for the application
aliyun rds CreateAccount \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --AccountName appuser \
  --AccountPassword "YourStr0ngP@ssw0rd" \
  --AccountType Normal \
  --AccountDescription "Application service account"

# Grant permissions
aliyun rds GrantAccountPrivilege \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --AccountName appuser \
  --DBName myapp \
  --AccountPrivilege ReadWrite

1
2
3
4

# Get the internal connection string
aliyun rds DescribeDBInstanceNetInfo \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --output cols=ConnectionString,IPAddress,Port,DBInstanceNetType

1
2
3
4

# Test connection from an ECS instance in the same VPC
mysql -h rm-bp1xxxxxxxxx.mysql.rds.aliyuncs.com \
  -u appuser -p \
  -e "SELECT VERSION(); SHOW DATABASES;"

1
2
3
4
5
6
7
8

# View current parameters
aliyun rds DescribeParameters \
  --DBInstanceId rm-bp1xxxxxxxxx

# Modify key parameters for production
aliyun rds ModifyParameter \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --Parameters "innodb_buffer_pool_size:6442450944;slow_query_log:ON;long_query_time:1;max_connections:500;innodb_flush_log_at_trx_commit:1;sync_binlog:1"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

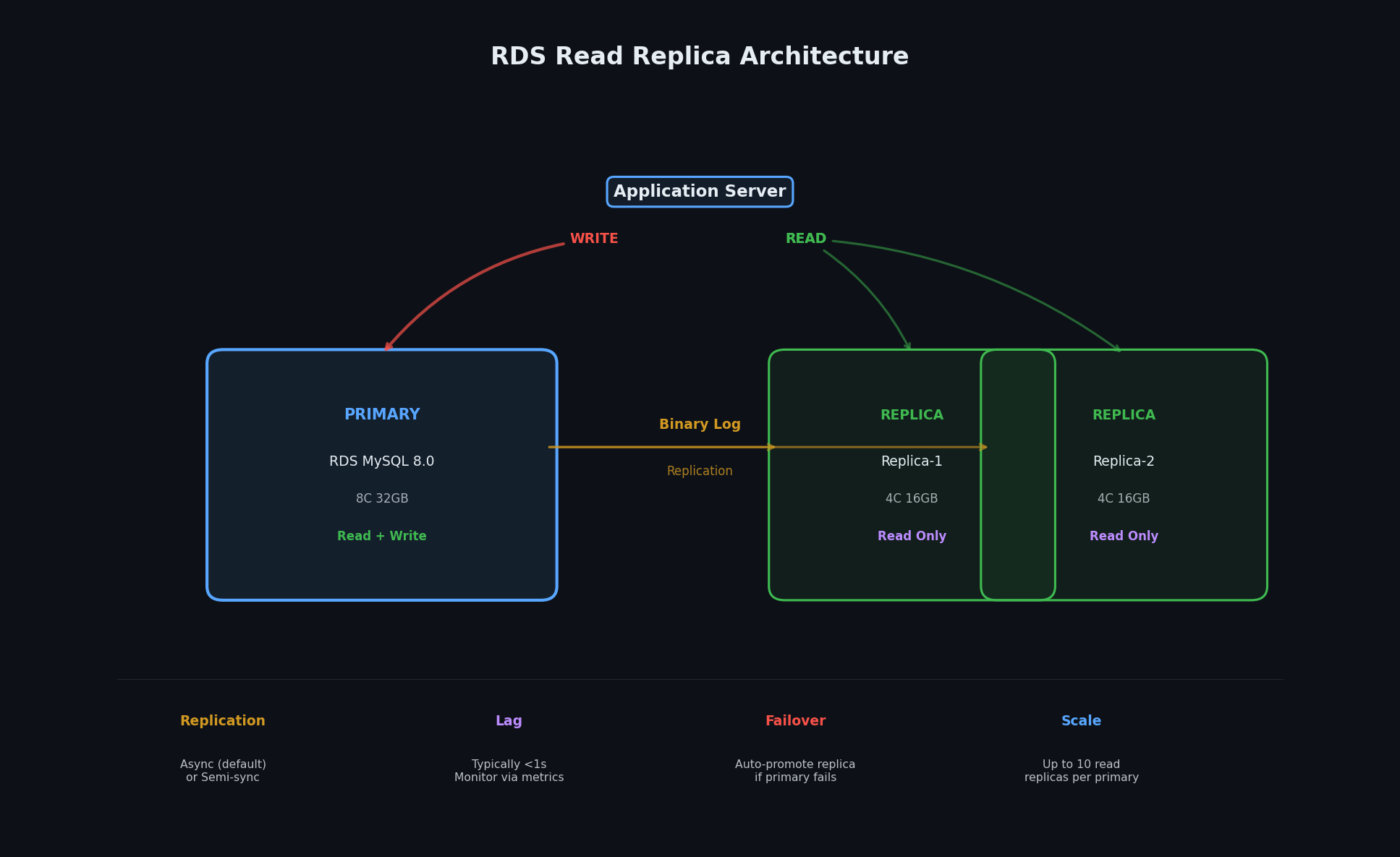

# Create a read replica
aliyun rds CreateReadOnlyDBInstance \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --RegionId cn-hangzhou \
  --ZoneId cn-hangzhou-i \
  --EngineVersion "8.0" \
  --DBInstanceClass rds.mysql.s2.large \
  --DBInstanceStorage 100 \
  --DBInstanceStorageType cloud_essd \
  --PayType Postpaid \
  --DBInstanceDescription "Read replica 1"

1
2
3
4
5
6
7

-- On the read replica, check replication lag
SHOW SLAVE STATUS\G

-- Key fields to watch:
-- Seconds_Behind_Master: should be 0 or very low
-- Slave_IO_Running: Yes
-- Slave_SQL_Running: Yes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

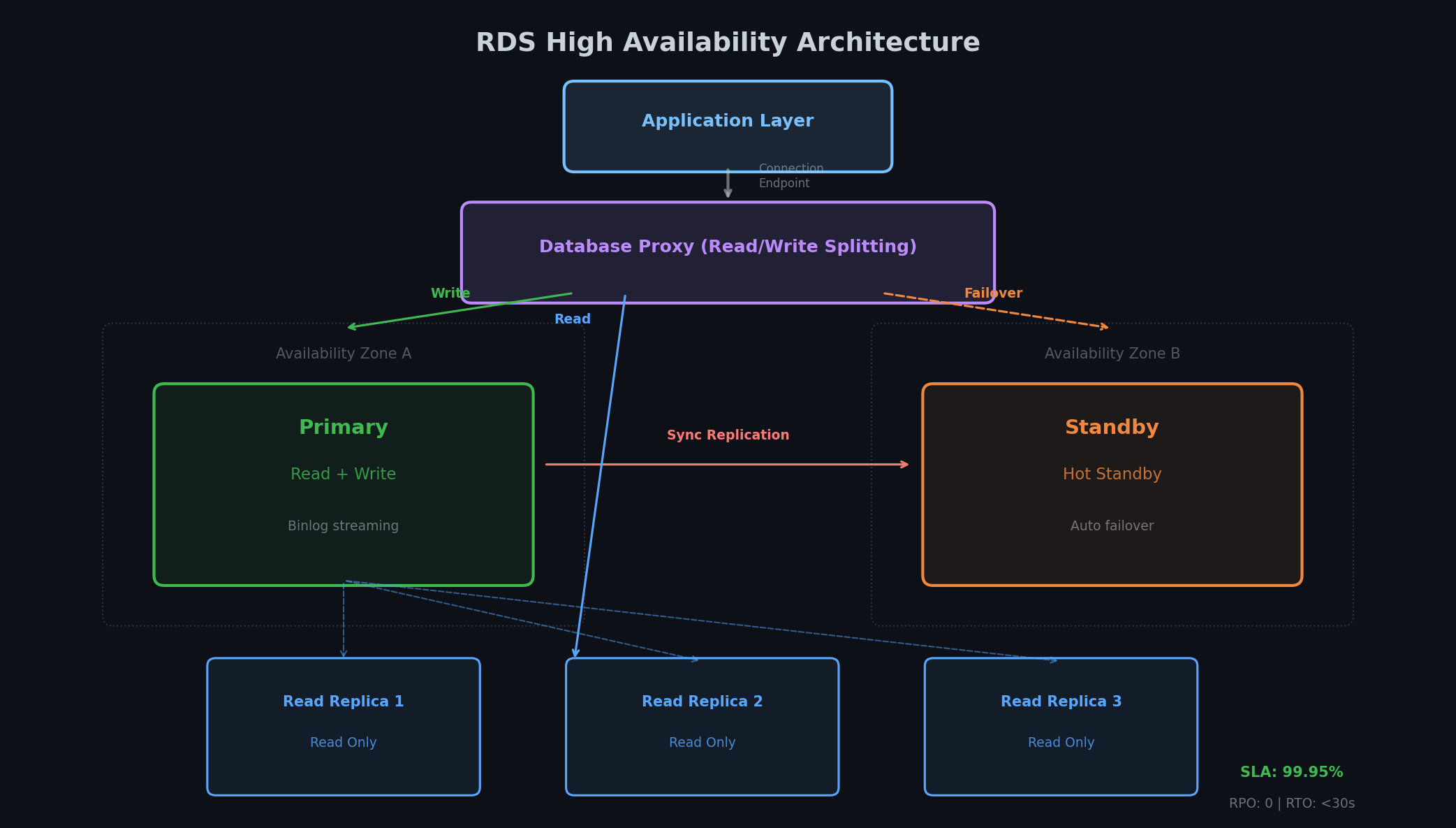

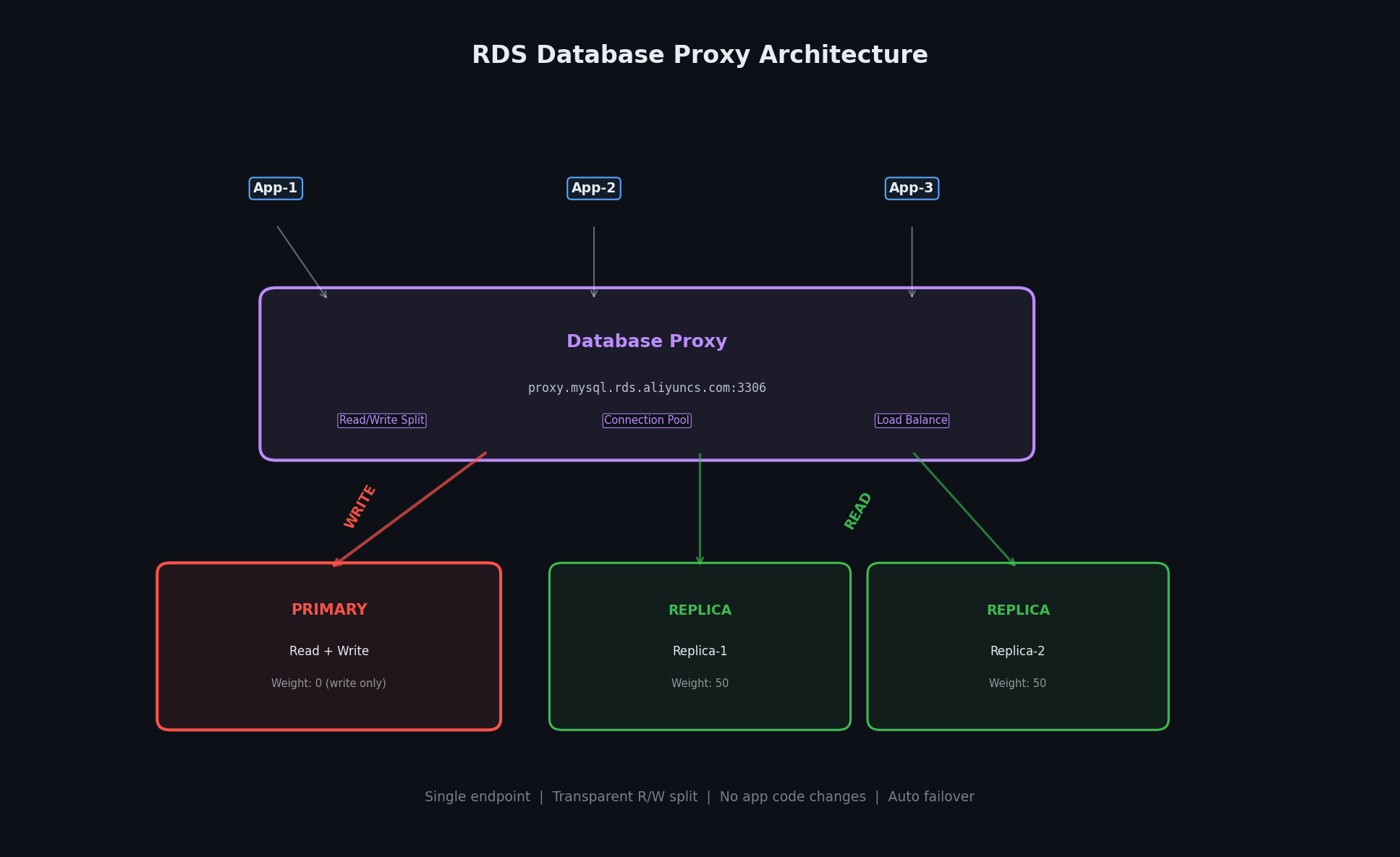

# Enable Database Proxy (dedicated proxy for HA edition)
aliyun rds ModifyDBProxy \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --ConfigDBProxyService true \
  --DBProxyInstanceType 2 \
  --DBProxyInstanceNum 2

# Get the proxy endpoint
aliyun rds DescribeDBProxy \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --output cols=DBProxyConnectString,DBProxyConnectStringPort

1
2
3
4
5
6
7

# Enable read/write splitting with weight distribution
aliyun rds ModifyReadWriteSplittingConnection \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --ConnectionStringPrefix "myapp-proxy" \
  --DistributionType Standard \
  --MaxDelayTime 10 \
  --Weight '{"rm-bp1xxxxxxxxx":"0","rr-bp1yyyyyyyyy":"100"}'

1
2
3
4
5
6
7
8
9

# Before: direct connection to primary
engine = create_engine(
    "mysql+pymysql://appuser:pass@rm-bp1xxx.mysql.rds.aliyuncs.com:3306/mydb"
)

# After: connection through Database Proxy
engine = create_engine(
    "mysql+pymysql://appuser:pass@myapp-proxy.rwlb.rds.aliyuncs.com:3306/mydb"
)

1
2
3
4
5
6
7
8

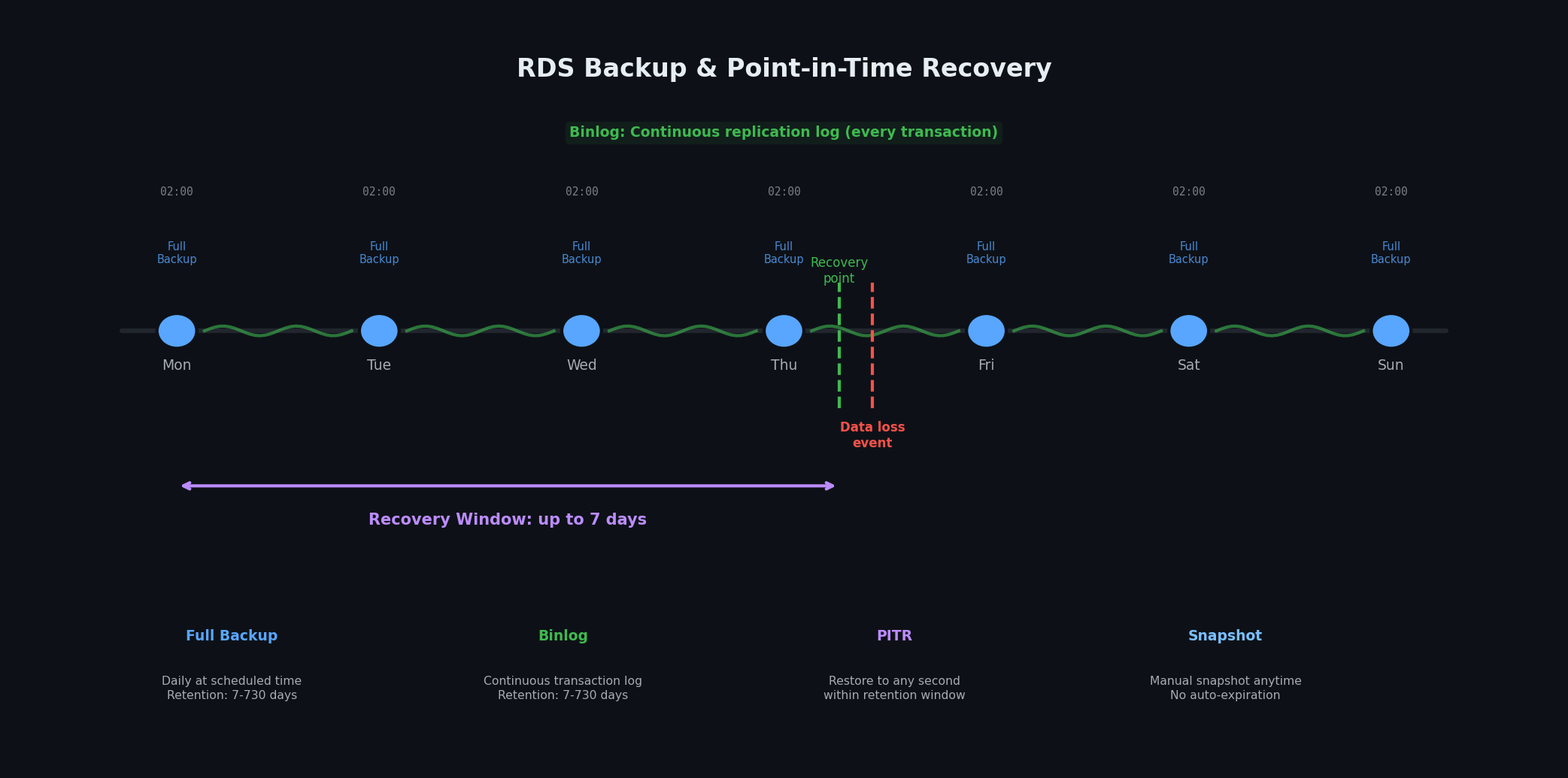

# Set backup to run between 02:00-03:00 UTC, retain 14 days
aliyun rds ModifyBackupPolicy \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --PreferredBackupTime "02:00Z-03:00Z" \
  --PreferredBackupPeriod "Monday,Wednesday,Friday,Sunday" \
  --BackupRetentionPeriod 14 \
  --EnableBackupLog true \
  --LogBackupRetentionPeriod 14

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# Create a manual backup
aliyun rds CreateBackup \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --BackupMethod Physical \
  --BackupType FullBackup \
  --DBName myapp

# List available backups
aliyun rds DescribeBackups \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --StartTime "2026-05-01T00:00Z" \
  --EndTime "2026-05-16T23:59Z" \
  --output cols=BackupId,BackupStartTime,BackupSize,BackupStatus,BackupType

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

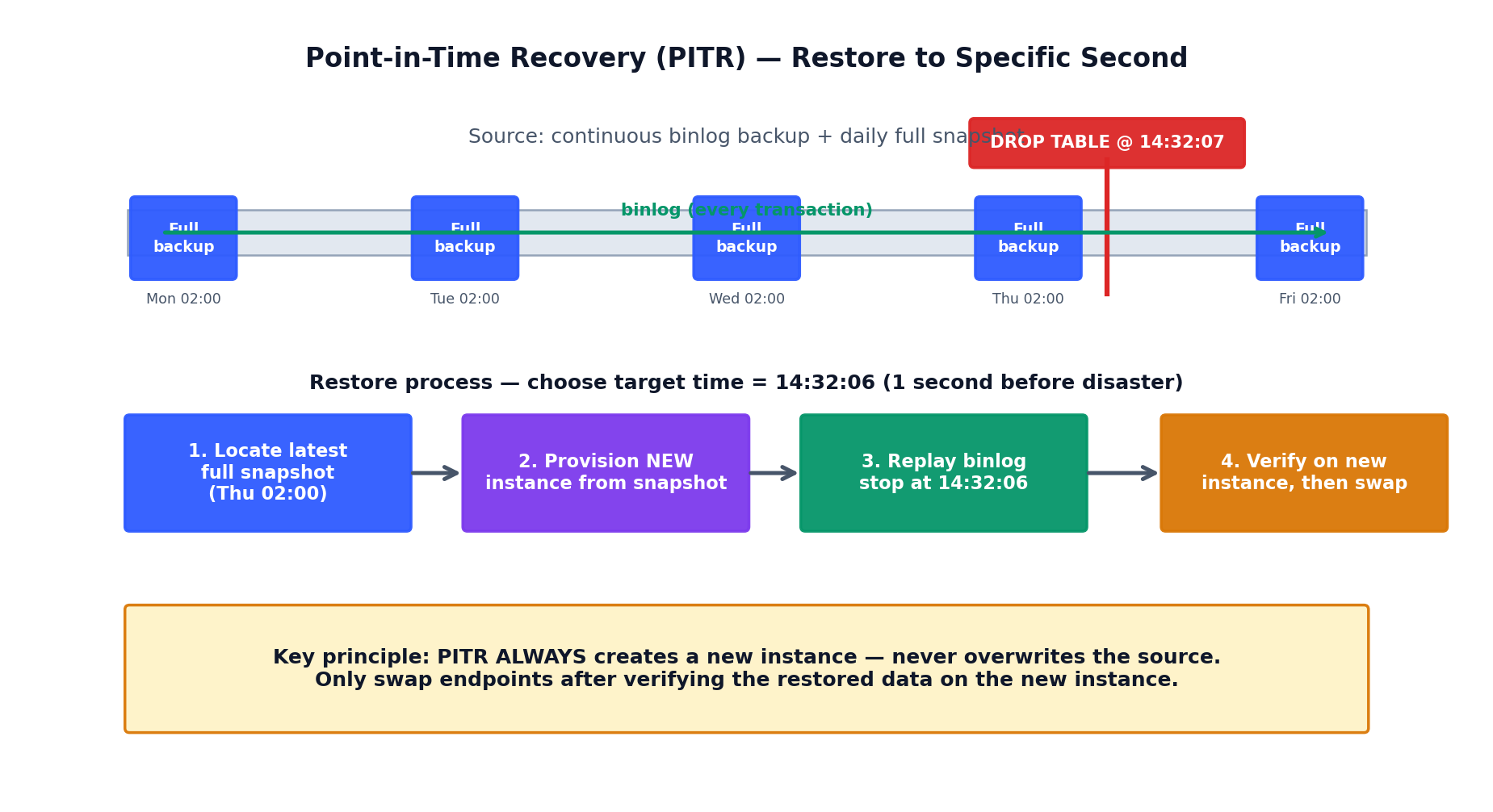

# Restore to a specific point in time (creates a new instance)
aliyun rds CreateTempDBInstance \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --RestoreTime "2026-05-15T14:32:06Z" \
  --BackupId 12345

# Or clone to a new instance at a specific point in time
aliyun rds CloneDBInstance \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --RestoreTime "2026-05-15T14:32:06Z" \
  --PayType Postpaid \
  --DBInstanceClass rds.mysql.s3.large \
  --DBInstanceStorage 100 \
  --DBInstanceStorageType cloud_essd \
  --VPCId vpc-bp1xxxxxxxxx \
  --VSwitchId vsw-bp1xxxxxxxxx

1
2
3
4
5
6
7

# Enable cross-region backup
aliyun rds ModifyInstanceCrossBackupPolicy \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --CrossBackupType 1 \
  --CrossBackupRegion cn-shanghai \
  --RetentType 1 \
  --Retention 30

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

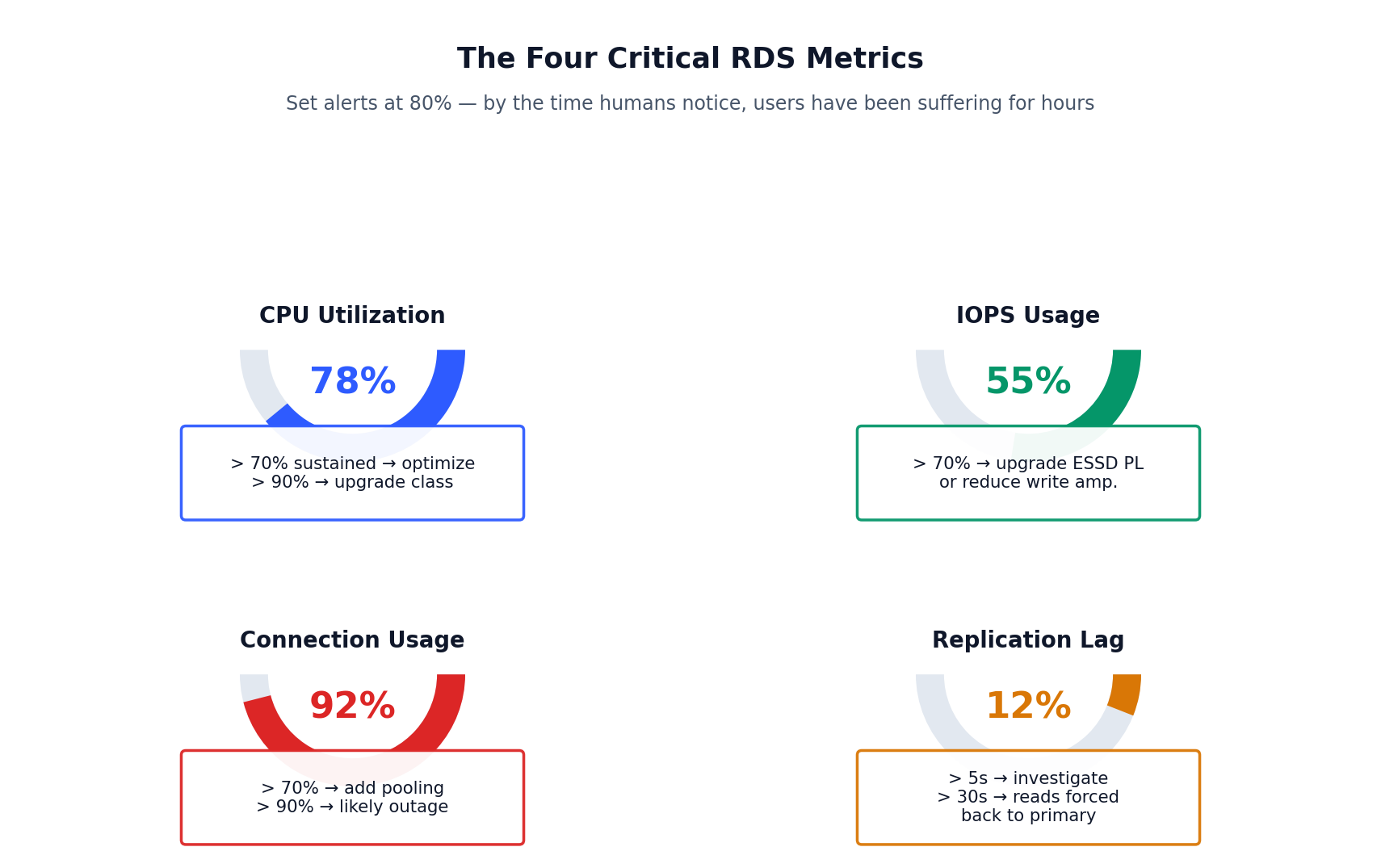

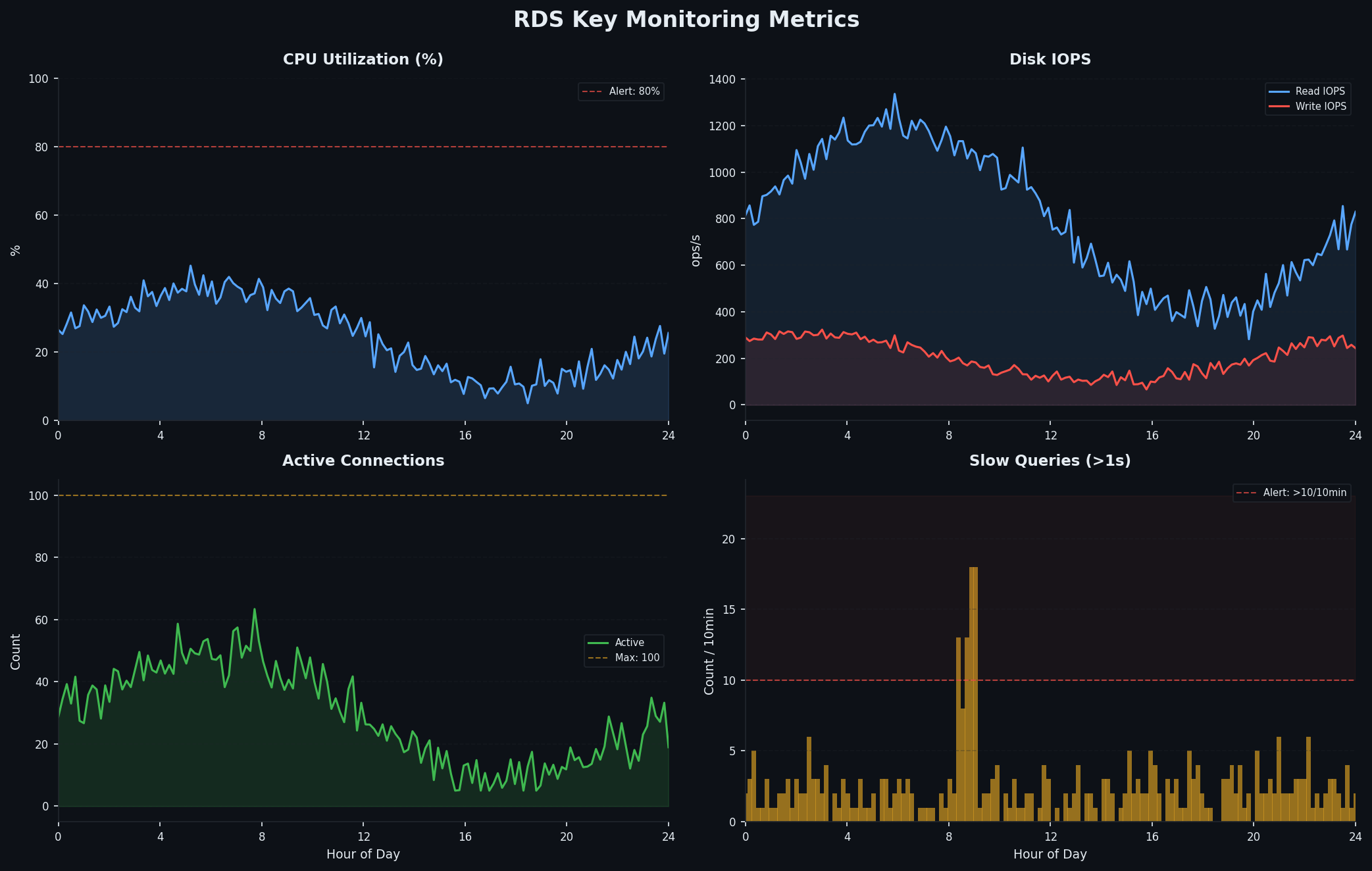

# Alert when CPU > 80% for 5 minutes
aliyun cms PutResourceMetricRule \
  --RuleId "rds-cpu-high" \
  --RuleName "RDS CPU High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "CpuUsage" \
  --Resources '[{"instanceId":"rm-bp1xxxxxxxxx"}]' \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Average" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 3 \
  --Period 60

# Alert when disk usage > 80%
aliyun cms PutResourceMetricRule \
  --RuleId "rds-disk-high" \
  --RuleName "RDS Disk Usage High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "DiskUsage" \
  --Resources '[{"instanceId":"rm-bp1xxxxxxxxx"}]' \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 1 \
  --Period 300

# Alert when active connections > 80% of limit
aliyun cms PutResourceMetricRule \
  --RuleId "rds-conn-high" \
  --RuleName "RDS Connections High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "ConnectionUsage" \
  --Resources '[{"instanceId":"rm-bp1xxxxxxxxx"}]' \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 2 \
  --Period 60

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

-- Find the slowest queries in the slow log
-- (Use DAS console for a visual interface, or query directly)

-- Check current slow queries from process list
SELECT * FROM information_schema.processlist
WHERE command != 'Sleep'
AND time > 5
ORDER BY time DESC;

-- Find tables without indexes being used in queries
SELECT
  t.table_schema,
  t.table_name,
  t.table_rows,
  ROUND(t.data_length / 1024 / 1024, 2) AS data_mb
FROM information_schema.tables t
LEFT JOIN information_schema.statistics s
  ON t.table_schema = s.table_schema
  AND t.table_name = s.table_name
WHERE s.table_name IS NULL
AND t.table_schema NOT IN ('mysql', 'sys', 'information_schema', 'performance_schema')
AND t.table_rows > 1000
ORDER BY t.table_rows DESC;

-- Check index usage statistics
SELECT
  object_schema,
  object_name,
  index_name,
  count_star AS total_ops,
  count_read,
  count_write,
  count_fetch
FROM performance_schema.table_io_waits_summary_by_index_usage
WHERE object_schema = 'myapp'
ORDER BY count_star DESC;

1
2
3
4
5
6
7
8

# List slow query log files
aliyun rds DescribeSlowLogRecords \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --StartTime "2026-05-15T00:00Z" \
  --EndTime "2026-05-16T00:00Z" \
  --DBName myapp \
  --PageSize 30 \
  --PageNumber 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

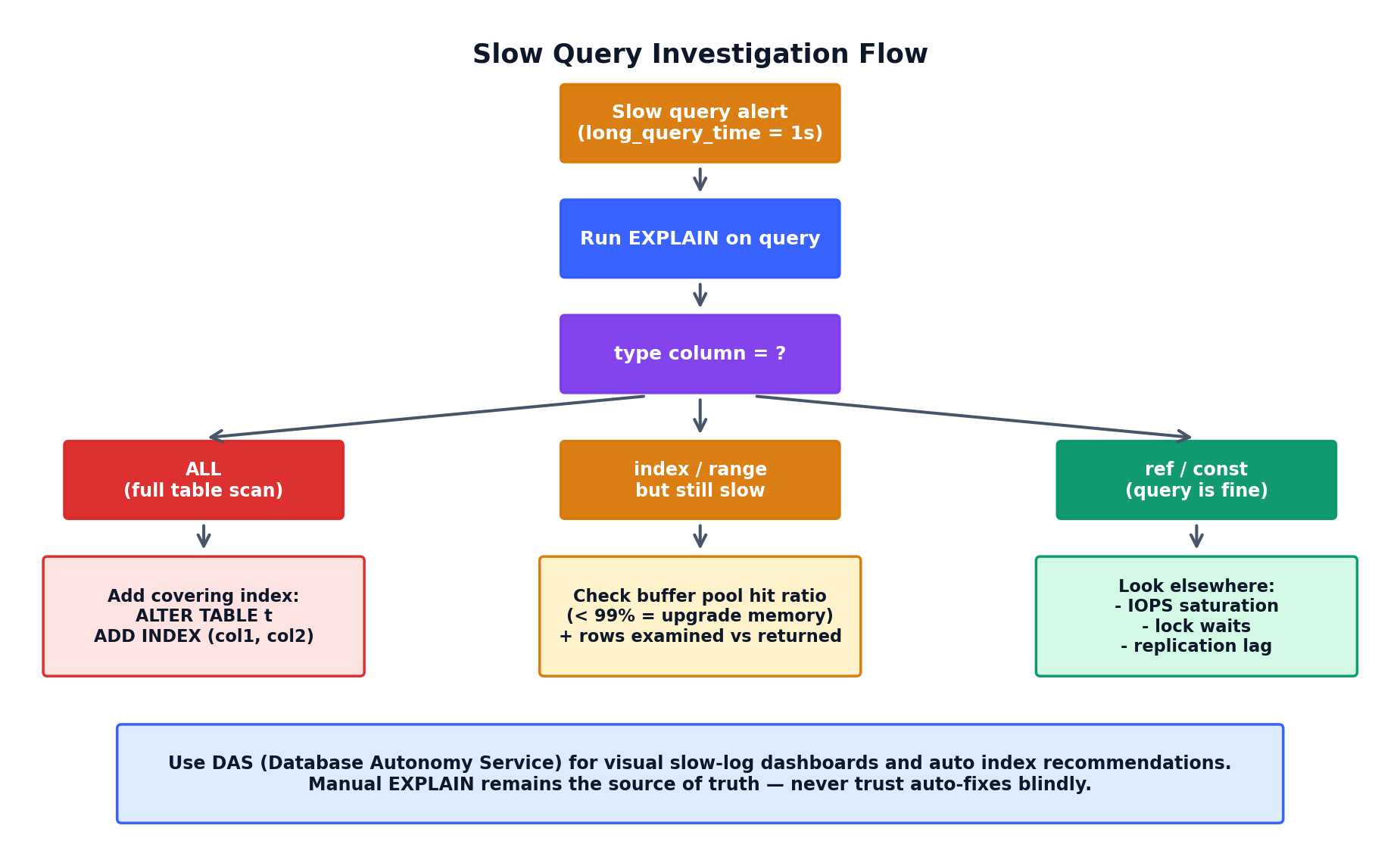

-- Analyze a slow query
EXPLAIN SELECT u.name, o.order_id, o.total
FROM users u
JOIN orders o ON u.id = o.user_id
WHERE u.email = 'user@example.com'
AND o.created_at > '2026-01-01';

-- If type shows "ALL" (full table scan), add an index:
ALTER TABLE users ADD INDEX idx_email (email);
ALTER TABLE orders ADD INDEX idx_user_created (user_id, created_at);

-- Re-run EXPLAIN to verify the index is used
-- type should show "ref" or "range" instead of "ALL"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

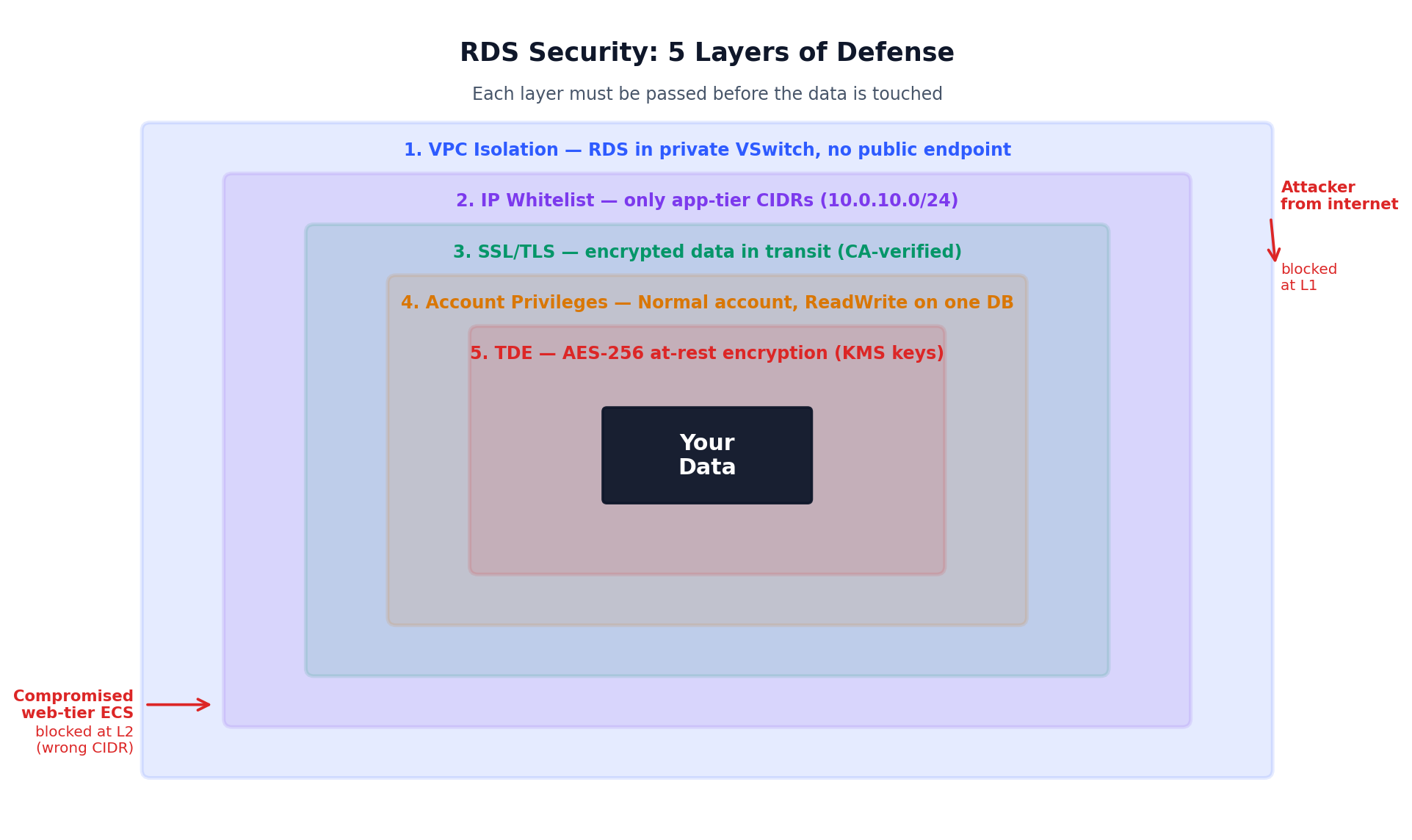

# View current whitelist
aliyun rds DescribeDBInstanceIPArrayList \
  --DBInstanceId rm-bp1xxxxxxxxx

# Set whitelist to app tier subnets only
aliyun rds ModifySecurityIps \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --SecurityIps "10.0.10.0/24,10.0.11.0/24" \
  --DBInstanceIPArrayName "app-tier"

# Add a DBA jump host IP for administrative access
aliyun rds ModifySecurityIps \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --SecurityIps "10.0.1.50/32" \
  --DBInstanceIPArrayName "dba-access" \
  --ModifyMode Append

1
2
3
4
5
6
7
8
9

# Enable SSL
aliyun rds ModifyDBInstanceSSL \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --ConnectionString "rm-bp1xxxxxxxxx.mysql.rds.aliyuncs.com" \
  --SSLEnabled 1

# Download the CA certificate
aliyun rds DescribeDBInstanceSSL \
  --DBInstanceId rm-bp1xxxxxxxxx

1
2
3
4
5
6
7
8
9

# SQLAlchemy with SSL
engine = create_engine(
    "mysql+pymysql://appuser:pass@rm-bp1xxx.mysql.rds.aliyuncs.com:3306/mydb",
    connect_args={
        "ssl": {
            "ca": "/path/to/ca-cert.pem"
        }
    }
)

1
2
3
4
5

# Enable TDE
aliyun rds ModifyDBInstanceTDE \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --TDEStatus Enabled \
  --EncryptionKey "kms-key-id-from-kms"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# Enable SQL audit
aliyun rds ModifySQLCollectorPolicy \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --SQLCollectorStatus Enable

# Query audit logs
aliyun rds DescribeSQLLogRecords \
  --DBInstanceId rm-bp1xxxxxxxxx \
  --StartTime "2026-05-15T00:00Z" \
  --EndTime "2026-05-16T00:00Z" \
  --DBName myapp \
  --QueryKeywords "DROP,DELETE,TRUNCATE"

1
2
3
4
5
6

# Verify: from app-tier ECS, connection works
mysql -h rm-bp1xxx.mysql.rds.aliyuncs.com -u appuser -p --ssl-ca=/path/to/ca.pem -e "SELECT 1"

# Verify: from web-tier ECS (different security group), connection fails
mysql -h rm-bp1xxx.mysql.rds.aliyuncs.com -u appuser -p -e "SELECT 1"
# ERROR 2003 (HY000): Can't connect to MySQL server (connection refused / timeout)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

# Create primary HA instance (cross-AZ)
RDS_ID=$(aliyun rds CreateDBInstance \
  --RegionId cn-hangzhou \
  --Engine MySQL \
  --EngineVersion "8.0" \
  --DBInstanceClass rds.mysql.s3.large \
  --DBInstanceStorage 200 \
  --DBInstanceStorageType cloud_essd \
  --Category HighAvailability \
  --DBInstanceNetType Intranet \
  --VPCId vpc-bp1xxxxxxxxx \
  --VSwitchId vsw-bp1xxxxxxxxx \
  --ZoneId cn-hangzhou-h \
  --ZoneIdSlave1 cn-hangzhou-i \
  --SecurityIPList "10.0.10.0/24,10.0.11.0/24" \
  --PayType Postpaid \
  --DBInstanceDescription "Production MySQL HA" \
  --InstanceNetworkType VPC \
  | jq -r '.DBInstanceId')

echo "RDS Instance: $RDS_ID"

# Wait for Running status
echo "Waiting for instance to be ready..."
while true; do
  STATUS=$(aliyun rds DescribeDBInstanceAttribute \
    --DBInstanceId $RDS_ID \
    | jq -r '.Items.DBInstanceAttribute[0].DBInstanceStatus')
  echo "Status: $STATUS"
  [ "$STATUS" = "Running" ] && break
  sleep 30
done

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

# Create the application database
aliyun rds CreateDatabase \
  --DBInstanceId $RDS_ID \
  --DBName myapp \
  --CharacterSetName utf8mb4 \
  --DBDescription "Main application database"

# Create application account
aliyun rds CreateAccount \
  --DBInstanceId $RDS_ID \
  --AccountName appuser \
  --AccountPassword "Pr0d_Str0ng!P@ss2026" \
  --AccountType Normal \
  --AccountDescription "Application service account"

# Grant ReadWrite on the application database
aliyun rds GrantAccountPrivilege \
  --DBInstanceId $RDS_ID \
  --AccountName appuser \
  --DBName myapp \
  --AccountPrivilege ReadWrite

# Create a DBA admin account
aliyun rds CreateAccount \
  --DBInstanceId $RDS_ID \
  --AccountName dbadmin \
  --AccountPassword "DB@dm1n_Str0ng!2026" \
  --AccountType Super \
  --AccountDescription "DBA administrative account"

1
2
3
4

# Apply production-tuned parameters
aliyun rds ModifyParameter \
  --DBInstanceId $RDS_ID \
  --Parameters "slow_query_log:ON;long_query_time:1;innodb_flush_log_at_trx_commit:1;sync_binlog:1;max_connections:500;innodb_print_all_deadlocks:ON;log_queries_not_using_indexes:ON"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

# Create read replica in the alternate AZ
REPLICA_ID=$(aliyun rds CreateReadOnlyDBInstance \
  --DBInstanceId $RDS_ID \
  --RegionId cn-hangzhou \
  --ZoneId cn-hangzhou-i \
  --EngineVersion "8.0" \
  --DBInstanceClass rds.mysql.s2.large \
  --DBInstanceStorage 200 \
  --DBInstanceStorageType cloud_essd \
  --PayType Postpaid \
  --DBInstanceDescription "Read Replica 1" \
  | jq -r '.DBInstanceId')

echo "Read Replica: $REPLICA_ID"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

# Enable Database Proxy
aliyun rds ModifyDBProxy \
  --DBInstanceId $RDS_ID \
  --ConfigDBProxyService true \
  --DBProxyInstanceType 2 \
  --DBProxyInstanceNum 2

# Get the proxy endpoint
PROXY_ENDPOINT=$(aliyun rds DescribeDBProxy \
  --DBInstanceId $RDS_ID \
  | jq -r '.DBProxyConnectStringItems.DBProxyConnectStringItems[0].DBProxyConnectString')

echo "Proxy Endpoint: $PROXY_ENDPOINT"

# Configure read/write splitting weights
# Primary: weight 0 (writes only), Replica: weight 100 (all reads)
aliyun rds ModifyReadWriteSplittingConnection \
  --DBInstanceId $RDS_ID \
  --ConnectionStringPrefix "myapp-proxy" \
  --DistributionType Standard \
  --MaxDelayTime 10 \
  --Weight "{\"$RDS_ID\":\"0\",\"$REPLICA_ID\":\"100\"}"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

# Set backup policy: daily at 02:00 UTC, retain 14 days
aliyun rds ModifyBackupPolicy \
  --DBInstanceId $RDS_ID \
  --PreferredBackupTime "02:00Z-03:00Z" \
  --PreferredBackupPeriod "Monday,Tuesday,Wednesday,Thursday,Friday,Saturday,Sunday" \
  --BackupRetentionPeriod 14 \
  --EnableBackupLog true \
  --LogBackupRetentionPeriod 14

# Enable cross-region backup to cn-shanghai
aliyun rds ModifyInstanceCrossBackupPolicy \
  --DBInstanceId $RDS_ID \
  --CrossBackupType 1 \
  --CrossBackupRegion cn-shanghai \
  --RetentType 1 \
  --Retention 30

# Enable SSL encryption
aliyun rds ModifyDBInstanceSSL \
  --DBInstanceId $RDS_ID \
  --ConnectionString "$PROXY_ENDPOINT" \
  --SSLEnabled 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

# CPU alert
aliyun cms PutResourceMetricRule \
  --RuleId "prod-rds-cpu" \
  --RuleName "Prod RDS CPU High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "CpuUsage" \
  --Resources "[{\"instanceId\":\"$RDS_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Average" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 3 \
  --Period 60

# Disk usage alert
aliyun cms PutResourceMetricRule \
  --RuleId "prod-rds-disk" \
  --RuleName "Prod RDS Disk High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "DiskUsage" \
  --Resources "[{\"instanceId\":\"$RDS_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 1 \
  --Period 300

# Connection usage alert
aliyun cms PutResourceMetricRule \
  --RuleId "prod-rds-conn" \
  --RuleName "Prod RDS Connections High" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "ConnectionUsage" \
  --Resources "[{\"instanceId\":\"$RDS_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 80 \
  --Escalations.Critical.Times 2 \
  --Period 60

# Replication lag alert (on the replica)
aliyun cms PutResourceMetricRule \
  --RuleId "prod-rds-replag" \
  --RuleName "Prod RDS Replication Lag" \
  --Namespace "acs_rds_dashboard" \
  --MetricName "ReplicationLag" \
  --Resources "[{\"instanceId\":\"$REPLICA_ID\"}]" \
  --ContactGroups '["ops-team"]' \
  --Escalations.Critical.Statistics "Maximum" \
  --Escalations.Critical.ComparisonOperator "GreaterThanThreshold" \
  --Escalations.Critical.Threshold 30 \
  --Escalations.Critical.Times 2 \
  --Period 60

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# Get all endpoints
echo "=== Connection Info ==="
echo "Primary (direct): $(aliyun rds DescribeDBInstanceNetInfo \
  --DBInstanceId $RDS_ID \
  | jq -r '.DBInstanceNetInfos.DBInstanceNetInfo[] | select(.DBInstanceNetType=="Intranet") | .ConnectionString')"

echo "Replica (direct): $(aliyun rds DescribeDBInstanceNetInfo \
  --DBInstanceId $REPLICA_ID \
  | jq -r '.DBInstanceNetInfos.DBInstanceNetInfo[] | select(.DBInstanceNetType=="Intranet") | .ConnectionString')"

echo "Proxy (r/w split): $PROXY_ENDPOINT"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# Connect through the proxy endpoint
mysql -h myapp-proxy.rwlb.rds.aliyuncs.com -u appuser -p --ssl-ca=/path/to/ca.pem << 'SQL'

-- Verify we can write
CREATE TABLE IF NOT EXISTS healthcheck (
  id INT AUTO_INCREMENT PRIMARY KEY,
  checked_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  hostname VARCHAR(255)
);

INSERT INTO healthcheck (hostname) VALUES (@@hostname);

-- Verify read/write splitting is working
-- This SELECT should go to the replica via the proxy
SELECT * FROM healthcheck ORDER BY checked_at DESC LIMIT 5;

-- Check the current server (shows which node handled the query)
SELECT @@hostname AS current_server, @@read_only AS is_readonly;

-- Verify backup status
SHOW VARIABLES LIKE 'innodb_flush_log_at_trx_commit';
SHOW VARIABLES LIKE 'sync_binlog';

-- Check replication health
SHOW SLAVE HOSTS;

SQL

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

                    ┌────────────────────────┐
                    │   Application (ECS)    │
                    │   app tier VPC subnet  │
                    └───────────┬────────────┘
                                │
                    ┌───────────▼────────────┐
                    │   Database Proxy       │
                    │   (read/write split)   │
                    │   myapp-proxy.rwlb...  │
                    └──────┬──────────┬──────┘
                           │          │
                    Write  │          │  Read
                           │          │
              ┌────────────▼──┐  ┌───▼─────────────┐
              │   Primary     │  │   Read Replica   │
              │   (AZ-H)      │  │   (AZ-I)         │
              │ 4vCPU / 8GiB  │  │ 2vCPU / 4GiB     │
              │ 200GB ESSD    │──│ async repl        │
              └───────┬───────┘  └───────────────────┘
                      │
              ┌───────▼───────┐
              │   Standby     │
              │   (AZ-I)      │
              │   semi-sync   │
              └───────────────┘
