云存储系统与分布式架构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

import bisect
import hashlib


class ConsistentHash:
    """一个最小可用的、带虚拟节点的一致性哈希环。"""

    def __init__(self, nodes=None, vnodes=128):
        self.vnodes = vnodes
        self.ring = {}              # hash -> 节点
        self.sorted_keys = []       # 排序后的 hash 列表
        for node in nodes or []:
            self.add_node(node)

    @staticmethod
    def _hash(key: str) -> int:
        return int(hashlib.md5(key.encode()).hexdigest(), 16)

    def add_node(self, node: str) -> None:
        for i in range(self.vnodes):
            h = self._hash(f"{node}#{i}")
            self.ring[h] = node
            bisect.insort(self.sorted_keys, h)

    def remove_node(self, node: str) -> None:
        for i in range(self.vnodes):
            h = self._hash(f"{node}#{i}")
            self.sorted_keys.remove(h)
            del self.ring[h]

    def get_node(self, key: str) -> str | None:
        if not self.ring:
            return None
        h = self._hash(key)
        idx = bisect.bisect_right(self.sorted_keys, h) % len(self.sorted_keys)
        return self.ring[self.sorted_keys[idx]]


ring = ConsistentHash(["s3-az-a", "s3-az-b", "s3-az-c"])
print(ring.get_node("user:12345/profile.jpg"))

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

import boto3
from botocore.config import Config

# 调优过的客户端：积极超时、签名 v4、POST 不重试
s3 = boto3.client(
    "s3",
    region_name="us-east-1",
    config=Config(
        signature_version="s3v4",
        retries={"max_attempts": 5, "mode": "adaptive"},
        connect_timeout=3,
        read_timeout=60,
        max_pool_connections=64,
    ),
)

# 服务端 KMS 加密、请求完整性校验、Intelligent-Tiering
s3.put_object(
    Bucket="my-app-data",
    Key="users/42/profile.jpg",
    Body=open("/local/profile.jpg", "rb"),
    ContentType="image/jpeg",
    StorageClass="INTELLIGENT_TIERING",
    ServerSideEncryption="aws:kms",
    SSEKMSKeyId="alias/app-data",
    Metadata={"user-id": "42", "uploader": "ios-7.2"},
    ChecksumAlgorithm="SHA256",     # 端到端完整性
)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

from concurrent.futures import ThreadPoolExecutor
import os

def multipart_upload(path: str, bucket: str, key: str,
                     part_mb: int = 16, workers: int = 16) -> None:
    size = os.path.getsize(path)
    part_size = part_mb * 1024 * 1024
    num_parts = (size + part_size - 1) // part_size

    init = s3.create_multipart_upload(Bucket=bucket, Key=key)
    upload_id = init["UploadId"]

    def _upload_part(part_no: int) -> dict:
        with open(path, "rb") as f:
            f.seek((part_no - 1) * part_size)
            data = f.read(part_size)
        resp = s3.upload_part(
            Bucket=bucket, Key=key, PartNumber=part_no,
            UploadId=upload_id, Body=data,
            ChecksumAlgorithm="SHA256",
        )
        return {"PartNumber": part_no, "ETag": resp["ETag"],
                "ChecksumSHA256": resp["ChecksumSHA256"]}

    try:
        with ThreadPoolExecutor(max_workers=workers) as ex:
            parts = list(ex.map(_upload_part, range(1, num_parts + 1)))
        s3.complete_multipart_upload(
            Bucket=bucket, Key=key, UploadId=upload_id,
            MultipartUpload={"Parts": parts},
        )
    except Exception:
        s3.abort_multipart_upload(Bucket=bucket, Key=key, UploadId=upload_id)
        raise

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

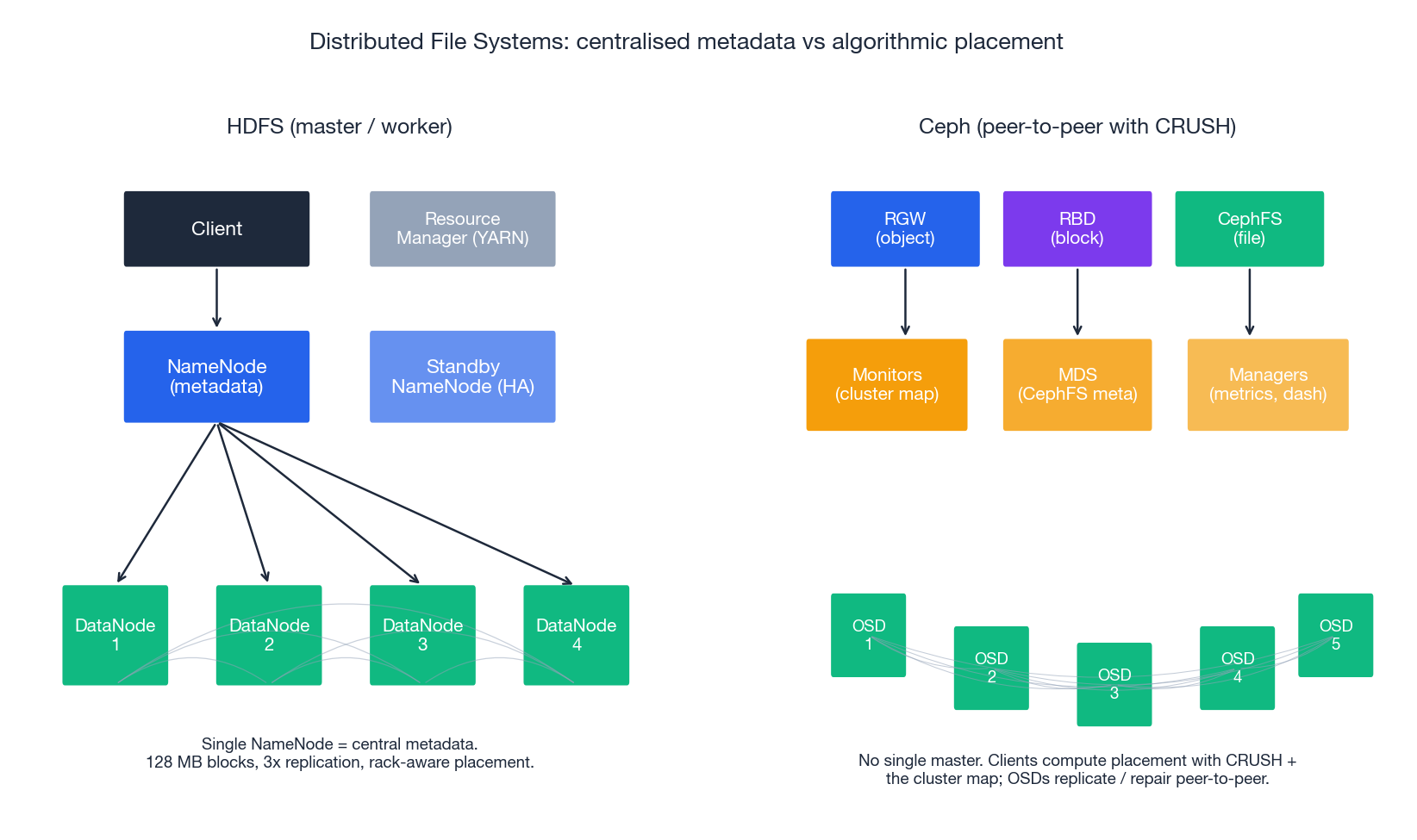

<!-- hdfs-site.xml：能上生产的最小配置 -->
<configuration>
  <property><name>dfs.replication</name>             <value>3</value></property>
  <property><name>dfs.blocksize</name>               <value>134217728</value></property> <!-- 128 MB -->
  <property><name>dfs.namenode.handler.count</name>  <value>100</value></property>
  <property><name>dfs.datanode.handler.count</name>  <value>40</value></property>
  <property><name>dfs.namenode.name.dir</name>       <value>/data/nn1,/data/nn2</value></property>
  <property><name>dfs.datanode.data.dir</name>       <value>/data/dn1,/data/dn2,/data/dn3</value></property>
  <property><name>dfs.namenode.shared.edits.dir</name>
            <value>qjournal://jn1:8485;jn2:8485;jn3:8485/cluster1</value></property>
</configuration>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# 现代 HDFS 客户端（PyArrow 的 HDFS 接口；hdfs3 已无人维护）
import pyarrow.fs as pafs

hdfs = pafs.HadoopFileSystem(host="namenode", port=9000, user="hadoop")
hdfs.create_dir("/user/data", recursive=True)
with hdfs.open_output_stream("/user/data/events.parquet") as f:
    f.write(open("/local/events.parquet", "rb").read())

for info in hdfs.get_file_info(pafs.FileSelector("/user/data", recursive=False)):
    print(f"{info.path:50s}  {info.size:>12} bytes")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

# 现代 Ceph 部署用 cephadm + 容器
cephadm bootstrap --mon-ip 10.0.1.10
ceph orch host add node2 10.0.1.11
ceph orch host add node3 10.0.1.12
ceph orch apply osd --all-available-devices

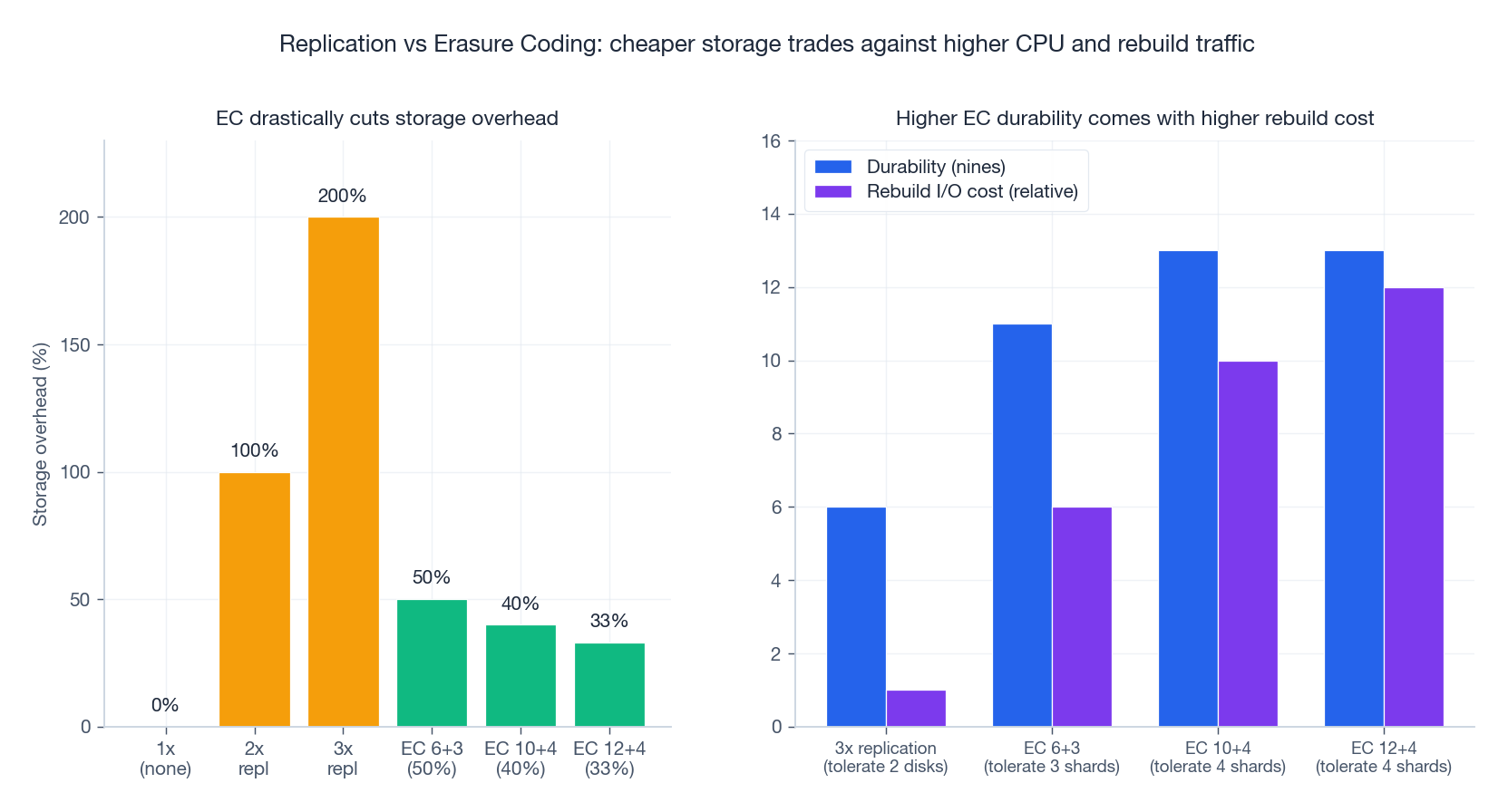

# 用 EC 4+2 建对象池（50% 开销，可容忍 2 个 OSD 故障）
ceph osd erasure-code-profile set ec42 k=4 m=2 \
    crush-failure-domain=host
ceph osd pool create cold_objects erasure ec42

1
2
3
4
5

# RBD：精简配置、可快照的虚拟磁盘
rbd create --size 100G --pool rbd vm-disk-01
rbd map rbd/vm-disk-01            # 出现 /dev/rbd0
mkfs.xfs /dev/rbd0
rbd snap create rbd/vm-disk-01@before-upgrade

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

# RGW：基于同一集群的 S3 兼容端点
import boto3
from botocore.client import Config

rgw = boto3.client(
    "s3",
    endpoint_url="http://rgw.internal:7480",
    aws_access_key_id="<access>",
    aws_secret_access_key="<secret>",
    config=Config(signature_version="s3v4"),
)
rgw.create_bucket(Bucket="ml-datasets")
rgw.put_object(Bucket="ml-datasets", Key="cifar10.tar", Body=b"...")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

s3.put_bucket_lifecycle_configuration(
    Bucket="prod-data",
    LifecycleConfiguration={
        "Rules": [
            {
                "ID": "AbortStuckUploads",
                "Status": "Enabled",
                "AbortIncompleteMultipartUpload": {"DaysAfterInitiation": 7},
            },
            {
                "ID": "TierDataset",
                "Status": "Enabled",
                "Filter": {"Prefix": "datasets/"},
                "Transitions": [
                    {"Days": 30,  "StorageClass": "STANDARD_IA"},
                    {"Days": 90,  "StorageClass": "GLACIER_IR"},
                    {"Days": 365, "StorageClass": "DEEP_ARCHIVE"},
                ],
            },
            {
                "ID": "ExpireOldLogs",
                "Status": "Enabled",
                "Filter": {"Prefix": "logs/"},
                "Expiration": {"Days": 365},
                "NoncurrentVersionExpiration": {"NoncurrentDays": 30},
            },
        ]
    },
)
