Terraform 实战（六）：LLM Gateway 与密钥管理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

locals {
  llm_secrets = {
    "dashscope-prod"  = "DashScope (Bailian) API key"
    "openai-prod"     = "OpenAI API key"
    "anthropic-prod"  = "Anthropic API key"
    "deepseek-prod"   = "DeepSeek API key"
  }
}

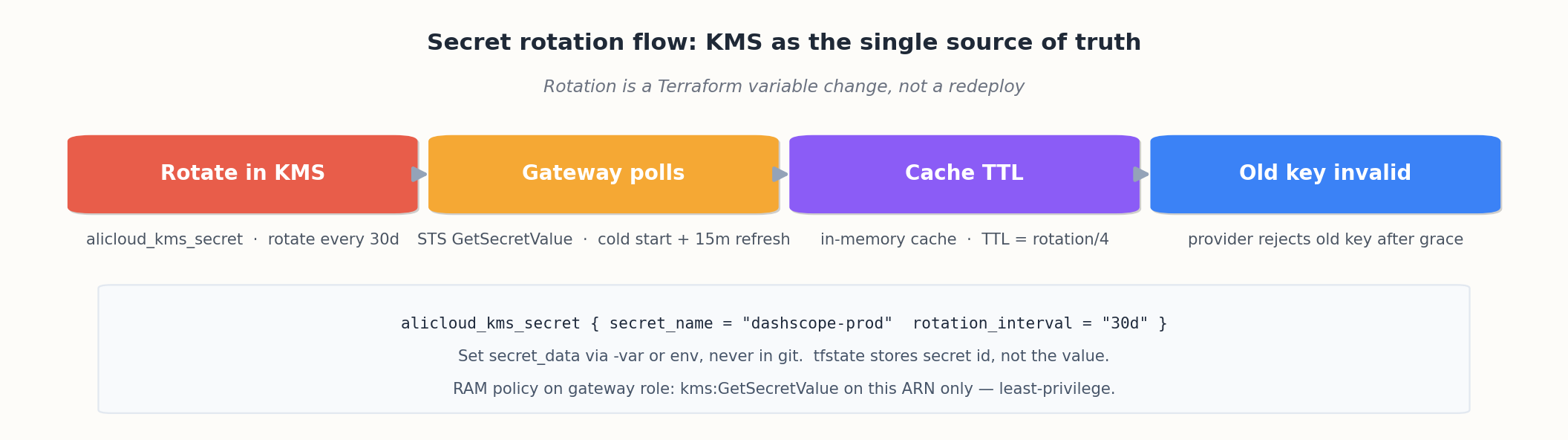

resource "alicloud_kms_secret" "llm" {
  for_each = local.llm_secrets

  secret_name              = each.key
  secret_data              = var.llm_keys[each.key]   # passed via -var or env
  version_id               = "v1"
  description              = each.value
  encryption_key_id        = module.vpc.kms_keys["secrets"]
  rotation_interval        = "30d"
  enable_automatic_rotation = false   # we rotate by updating secret_data
  recovery_window_in_days  = 7
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

resource "alicloud_ram_role" "gateway" {
  name = "agent-gateway-${terraform.workspace}"

  assume_role_policy_document = jsonencode({
    Statement = [{
      Effect = "Allow"
      Action = "sts:AssumeRole"
      Principal = {
        Service = ["ecs.aliyuncs.com"]
      }
    }]
    Version = "1"
  })
}

resource "alicloud_ram_policy" "gateway_kms" {
  policy_name = "agent-gateway-kms-${terraform.workspace}"

  policy_document = jsonencode({
    Version = "1"
    Statement = [
      {
        Effect = "Allow"
        Action = [
          "kms:GetSecretValue",
          "kms:Decrypt"
        ]
        Resource = [for s in alicloud_kms_secret.llm : s.arn]
      }
    ]
  })
}

resource "alicloud_ram_role_policy_attachment" "gateway_kms" {
  policy_name = alicloud_ram_policy.gateway_kms.policy_name
  policy_type = "Custom"
  role_name   = alicloud_ram_role.gateway.name
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

resource "alicloud_instance" "gateway" {
  count = 2  # two for HA, fronted by ALB

  instance_name        = "llm-gateway-${terraform.workspace}-${count.index + 1}"
  image_id             = data.alicloud_images.ubuntu.images[0].id
  instance_type        = "ecs.c7.large"
  availability_zone    = "cn-shanghai-${count.index == 0 ? "l" : "m"}"

  vswitch_id      = module.vpc.private_vswitch_ids[count.index]
  security_groups = [module.vpc.agent_runtime_sg_id]   # same SG; gateway is part of the runtime tier

  role_name = alicloud_ram_role.gateway.name           # gateway assumes this role

  system_disk_category = "cloud_essd"
  system_disk_size     = 40

  user_data = base64encode(templatefile("${path.module}/gateway-init.sh", {
    config_b64 = base64encode(local.litellm_config)
    sls_project = alicloud_log_project.agents.name
    sls_logstore = alicloud_log_store.gateway_requests.name
  }))

  tags = { Role = "llm-gateway" }
}

locals {
  litellm_config = yamlencode({
    model_list = [
      {
        model_name = "qwen-max"
        litellm_params = {
          model     = "dashscope/qwen-max-2026-01-15"
          api_key   = "os.environ/DASHSCOPE_API_KEY"
        }
      },
      {
        model_name = "claude-opus"
        litellm_params = {
          model     = "anthropic/claude-opus-4.7"
          api_key   = "os.environ/ANTHROPIC_API_KEY"
        }
      },
      {
        model_name = "gpt-4o"
        litellm_params = {
          model     = "openai/gpt-4o-2026-01-15"
          api_key   = "os.environ/OPENAI_API_KEY"
        }
      }
    ]
    general_settings = {
      master_key = "os.environ/LITELLM_MASTER_KEY"
      database_url = "os.environ/DATABASE_URL"
    }
  })
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

#!/bin/bash
set -euxo pipefail

apt-get update -y
apt-get install -y python3.11 python3.11-venv git curl jq

# Pull provider keys from KMS via instance role (no AK needed)
TOKEN=$(curl -s http://100.100.100.200/latest/meta-data/ram/security-credentials/agent-gateway-${ENV})
ACCESS_KEY_ID=$(echo $TOKEN | jq -r .AccessKeyId)
ACCESS_KEY_SECRET=$(echo $TOKEN | jq -r .AccessKeySecret)
SECURITY_TOKEN=$(echo $TOKEN | jq -r .SecurityToken)

# Use the Aliyun KMS CLI (or Python SDK) to fetch each key
pip install alibabacloud-kms20160120
export DASHSCOPE_API_KEY=$(python3 -c "import kms_helper; print(kms_helper.get('dashscope-prod'))")
export OPENAI_API_KEY=$(python3 -c "import kms_helper; print(kms_helper.get('openai-prod'))")
export ANTHROPIC_API_KEY=$(python3 -c "import kms_helper; print(kms_helper.get('anthropic-prod'))")

# Write LiteLLM config
mkdir -p /etc/litellm
echo "${config_b64}" | base64 -d > /etc/litellm/config.yaml

# Install and run LiteLLM under pm2
pip install 'litellm[proxy]'
npm install -g pm2
pm2 start --name llm-gateway -- litellm --config /etc/litellm/config.yaml --port 4000
pm2 save
pm2 startup systemd -u root --hp /root

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

resource "alicloud_alb_load_balancer" "gateway" {
  vpc_id              = module.vpc.vpc_id
  address_type        = "Intranet"
  load_balancer_name  = "llm-gateway-${terraform.workspace}"
  load_balancer_edition = "Standard"

  zone_mappings {
    vswitch_id = module.vpc.private_vswitch_ids[0]
    zone_id    = "cn-shanghai-l"
  }
  zone_mappings {
    vswitch_id = module.vpc.private_vswitch_ids[1]
    zone_id    = "cn-shanghai-m"
  }
}

resource "alicloud_alb_server_group" "gateway" {
  vpc_id            = module.vpc.vpc_id
  server_group_name = "llm-gateway"
  protocol          = "HTTP"
  health_check_config {
    health_check_enabled = true
    health_check_path    = "/health"
    health_check_protocol = "HTTP"
  }
  servers = [
    for inst in alicloud_instance.gateway : {
      server_id = inst.id
      port      = 4000
      weight    = 100
    }
  ]
}

resource "alicloud_alb_listener" "gateway" {
  load_balancer_id     = alicloud_alb_load_balancer.gateway.id
  listener_port        = 80
  listener_protocol    = "HTTP"
  default_actions {
    type = "ForwardGroup"
    forward_group_config {
      server_group_tuples {
        server_group_id = alicloud_alb_server_group.gateway.id
      }
    }
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

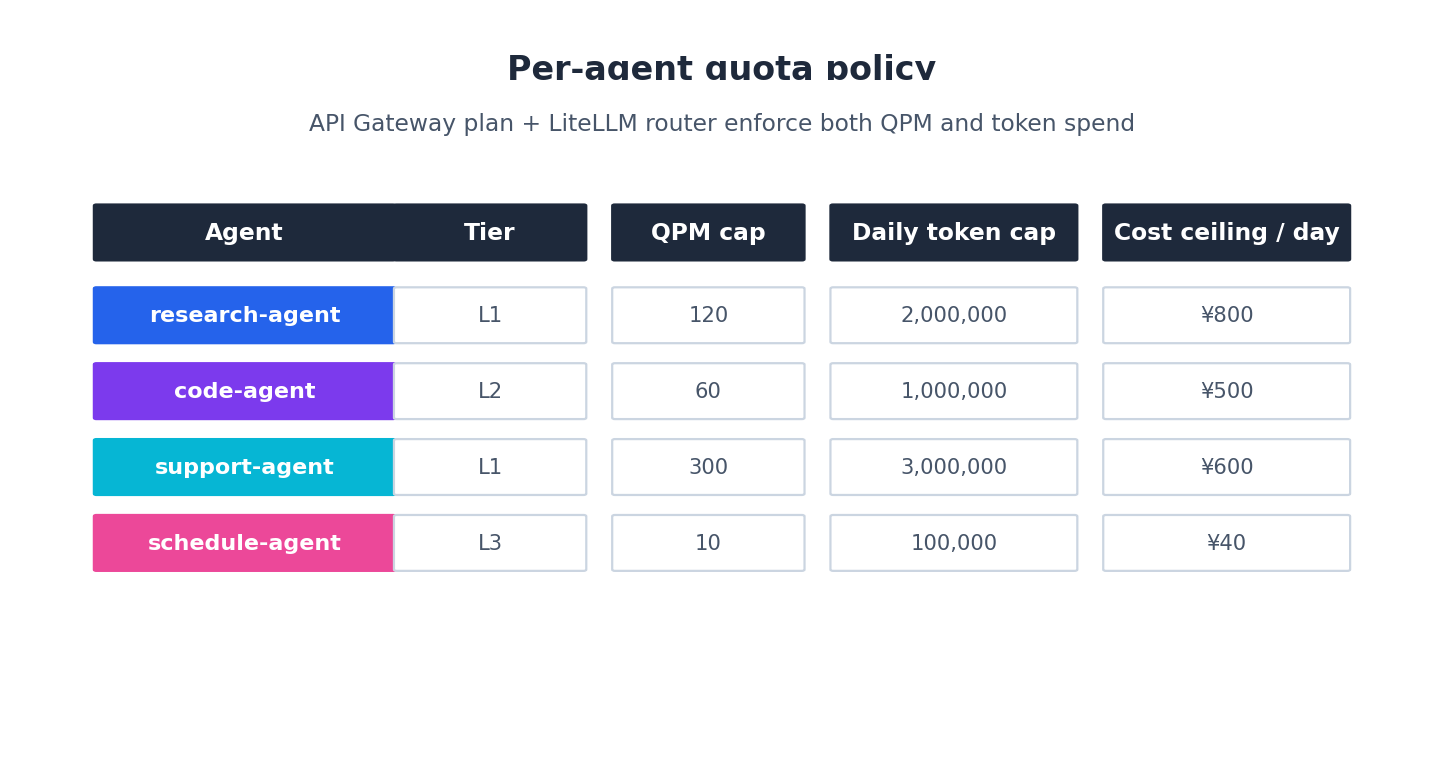

locals {
  agent_quotas = {
    "research-agent" = { qpm = 120, daily_tokens = 2000000, max_budget = 800 }
    "code-agent"     = { qpm = 60,  daily_tokens = 1000000, max_budget = 500 }
    "support-agent"  = { qpm = 300, daily_tokens = 3000000, max_budget = 600 }
    "schedule-agent" = { qpm = 10,  daily_tokens = 100000,  max_budget = 40  }
  }
}

resource "null_resource" "agent_keys" {
  for_each = local.agent_quotas

  triggers = {
    config_hash = sha256(jsonencode(each.value))
  }

  provisioner "local-exec" {
    command = <<-EOT
      curl -X POST http://${alicloud_alb_load_balancer.gateway.dns_name}/key/generate \
        -H "Authorization: Bearer ${var.litellm_master_key}" \
        -H "Content-Type: application/json" \
        -d '{
          "key_alias": "${each.key}",
          "rpm_limit": ${each.value.qpm},
          "max_budget": ${each.value.max_budget},
          "tpm_limit": ${each.value.daily_tokens / 1440}
        }'
    EOT
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

data "alicloud_kms_secret" "openai" {
  secret_name = "openai-prod"
  version_id  = "ACSCurrent"   # always the current version
}

# Use it without the value ever entering tfstate's resource section
resource "alicloud_instance" "gateway" {
  user_data = base64encode(templatefile("${path.module}/init.sh", {
    # Don't pass the secret here — pass the secret name and have the box fetch it
    openai_secret_name = "openai-prod"
  }))
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

variable "openai_key" {
  type      = string
  sensitive = true
}

# This still leaks in plan output:
resource "alicloud_kms_secret" "openai" {
  secret_data = var.openai_key
  # plan shows: secret_data = (sensitive value)  ✓
}

# But this can leak:
output "gateway_config_url" {
  value = "https://gateway.example.com?key=${var.openai_key}"
  # plan shows the full URL with key ✗
}

1
2
3
4

output "gateway_config_url" {
  value     = "https://gateway.example.com?key=${var.openai_key}"
  sensitive = true
}

1
2
3
4
5
6

# .github/workflows/no-secrets.yml
- name: check no secrets in repo
  run: |
    if git ls-files | grep -E '\.auto\.tfvars$|secrets/'; then
      echo "ERROR: secret files committed"; exit 1
    fi

1
2
3
4

TF_LOG=DEBUG terraform apply 2> /tmp/tf.log
chmod 600 /tmp/tf.log
# review locally; never paste verbatim
shred -u /tmp/tf.log    # delete when done

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

# .github/workflows/terraform-plan.yml
name: terraform-plan
on:
  pull_request:
    paths:
      - '**/*.tf'
      - '**/*.tfvars'
      - 'modules/**'

jobs:
  plan:
    runs-on: ubuntu-latest
    permissions:
      pull-requests: write   # to post the plan as a PR comment
    strategy:
      fail-fast: false
      matrix:
        workspace: [dev, staging, prod]
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
        with:
          terraform_version: 1.9.7
      - name: terraform fmt
        run: terraform fmt -check -recursive
      - name: terraform init
        env:
          ALICLOUD_ACCESS_KEY: ${{ secrets.ALICLOUD_AK_PLAN }}
          ALICLOUD_SECRET_KEY: ${{ secrets.ALICLOUD_SK_PLAN }}
        run: terraform init -input=false
      - name: terraform validate
        run: terraform validate -no-color
      - name: tflint
        uses: terraform-linters/setup-tflint@v4
      - run: tflint --init && tflint -f compact
      - name: tfsec security scan
        uses: aquasecurity/tfsec-action@v1.0.3
      - name: terraform plan
        id: plan
        env:
          TF_WORKSPACE: ${{ matrix.workspace }}
          ALICLOUD_REGION: cn-shanghai
          TF_VAR_dingtalk_webhook: ${{ secrets[format('DINGTALK_WEBHOOK_{0}', matrix.workspace)] }}
        run: |
          terraform plan -input=false -no-color -out=tfplan-${{ matrix.workspace }} \
            -var-file=env/${{ matrix.workspace }}.tfvars 2>&1 | tee plan.txt
      - name: post plan to PR
        uses: actions/github-script@v7
        with:
          script: |
            const fs = require('fs');
            const plan = fs.readFileSync('plan.txt', 'utf8').slice(0, 60000);
            github.rest.issues.createComment({
              owner: context.repo.owner,
              repo: context.repo.repo,
              issue_number: context.issue.number,
              body: `### Plan for ${{ matrix.workspace }}\n\`\`\`\n${plan}\n\`\`\``
            });
      - uses: actions/upload-artifact@v4
        with:
          name: tfplan-${{ matrix.workspace }}
          path: tfplan-${{ matrix.workspace }}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

# .github/workflows/terraform-apply.yml
on:
  workflow_dispatch:
    inputs:
      workspace:
        type: choice
        options: [dev, staging, prod]

jobs:
  apply:
    if: github.ref == 'refs/heads/main'
    runs-on: ubuntu-latest
    environment: ${{ inputs.workspace }}   # GitHub Environment with required reviewers for prod
    steps:
      - uses: actions/download-artifact@v4
        with:
          name: tfplan-${{ inputs.workspace }}
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - name: terraform apply
        env:
          ALICLOUD_ACCESS_KEY: ${{ secrets.ALICLOUD_AK_APPLY }}
          ALICLOUD_SECRET_KEY: ${{ secrets.ALICLOUD_SK_APPLY }}
        run: terraform apply -input=false -auto-approve tfplan-${{ inputs.workspace }}
