Terraform 实战（八）：一条命令拉起全栈

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

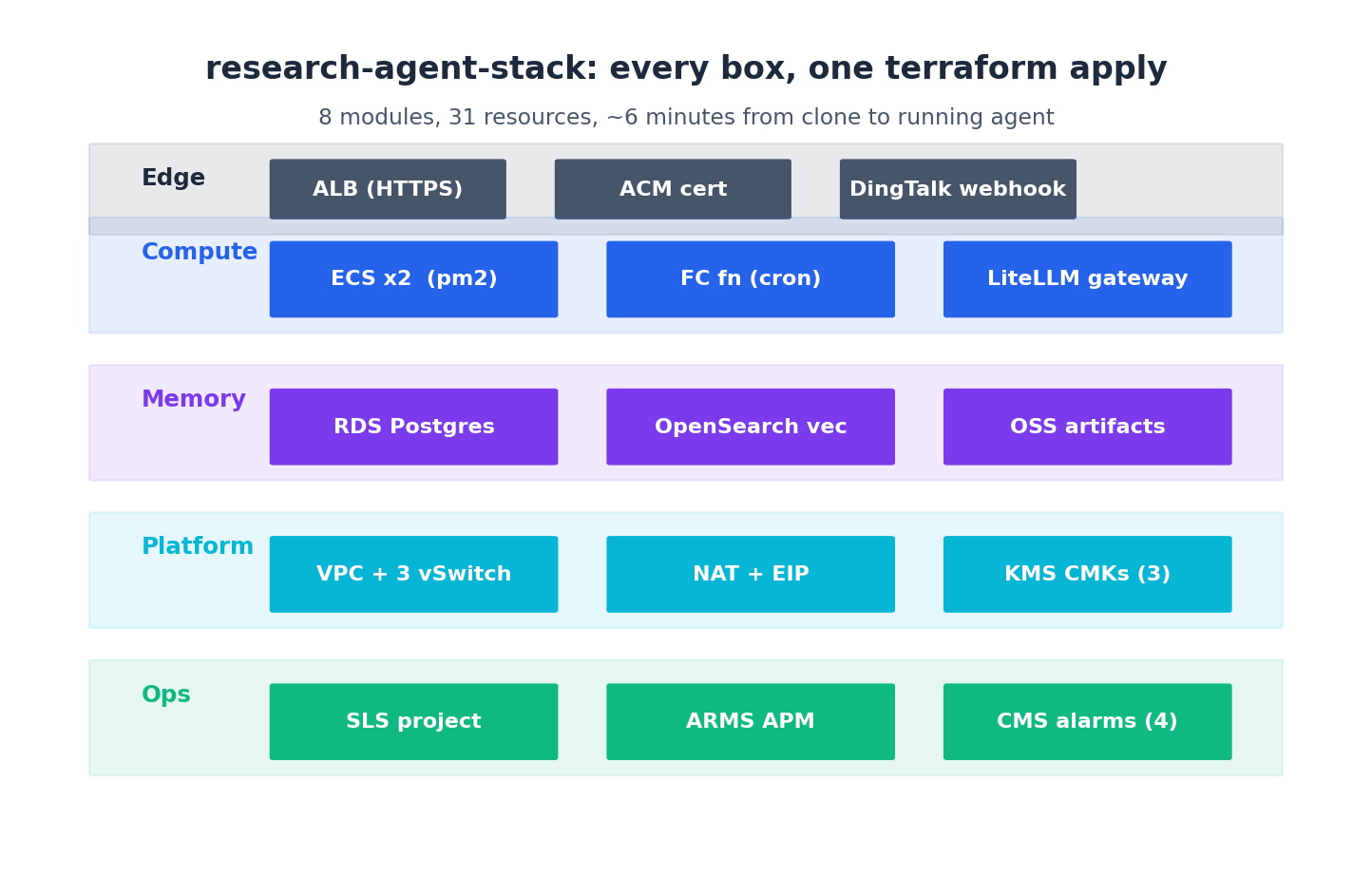

research-agent-stack/
├── README.md
├── versions.tf                  # Terraform + provider pinning
├── backend.tf                   # OSS + Tablestore remote state
├── providers.tf                 # alicloud + alicloud.beijing alias
├── variables.tf                 # top-level inputs
├── locals.tf                    # workspace-aware computed locals
├── main.tf                      # module composition
├── outputs.tf                   # endpoints + connection strings
├── env/
│   ├── dev.tfvars
│   ├── staging.tfvars
│   └── prod.tfvars
├── secrets/
│   └── secrets.auto.tfvars      # gitignored — provider keys
├── modules/
│   ├── vpc-baseline/            # article 3
│   ├── storage/                 # article 5
│   ├── compute/                 # article 4
│   ├── llm-gateway/             # article 6
│   └── observability/           # article 7
└── scripts/
    ├── cloud-init/
    │   ├── agent.sh
    │   └── gateway.sh
    └── restore-drill.sh

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

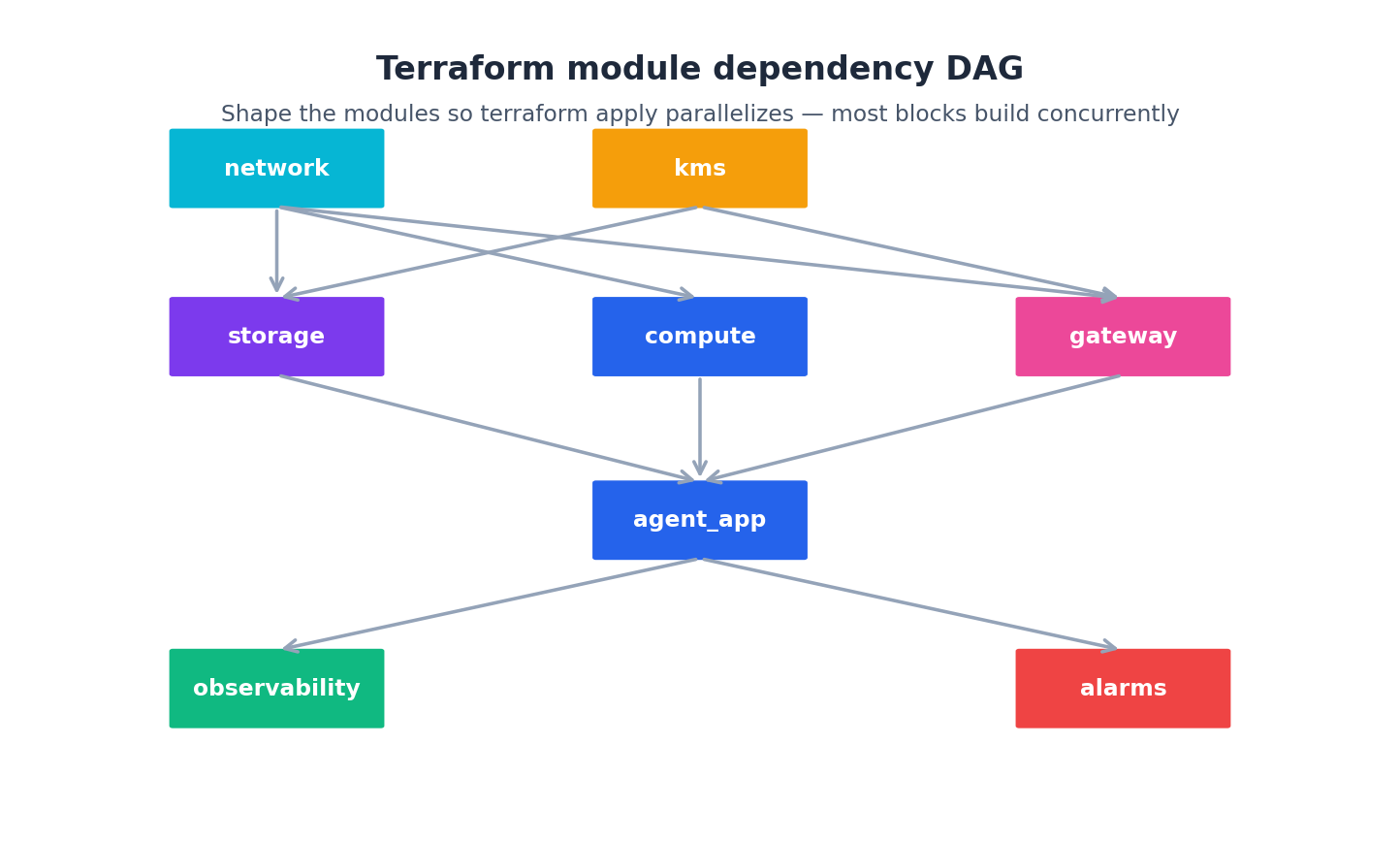

locals {
  is_prod   = terraform.workspace == "prod"
  name      = "agents-${terraform.workspace}"
  zones     = ["cn-shanghai-l", "cn-shanghai-m", "cn-shanghai-n"]

![Complete cloud architecture stack from network to application layer](https://blog-pic-ck.oss-cn-beijing.aliyuncs.com/posts/zh/terraform-agents/08-end-to-end-walkthrough/wanxiang_full_stack.png)


  common_tags = {
    Project     = "research-agent-stack"
    Environment = terraform.workspace
    ManagedBy   = "terraform"
    Owner       = "ai-platform"
  }
}

module "vpc" {
  source = "./modules/vpc-baseline"

  name       = local.name
  cidr_block = "10.20.0.0/16"
  zones      = local.zones
  tags       = local.common_tags
}

module "storage" {
  source = "./modules/storage"

  name              = local.name
  vpc               = module.vpc
  is_prod           = local.is_prod
  enable_dr         = local.is_prod   # cross-region OSS replication only in prod
  tags              = local.common_tags

  providers = {
    alicloud         = alicloud
    alicloud.beijing = alicloud.beijing
  }
}

module "observability" {
  source = "./modules/observability"

  name             = local.name
  vpc              = module.vpc
  dingtalk_webhook = var.dingtalk_webhook
  cost_ceiling_cny = local.is_prod ? 800 : 100
  tags             = local.common_tags
}

module "gateway" {
  source = "./modules/llm-gateway"

  name           = local.name
  vpc            = module.vpc
  observability  = module.observability
  llm_keys       = var.llm_keys
  agent_quotas   = var.agent_quotas
  instance_count = local.is_prod ? 2 : 1
  tags           = local.common_tags
}

module "compute" {
  source = "./modules/compute"

  name           = local.name
  vpc            = module.vpc
  storage        = module.storage
  gateway        = module.gateway
  observability  = module.observability
  agent_repo_url = var.agent_repo_url
  agent_branch   = var.agent_branch
  ecs_count      = local.is_prod ? 3 : 1
  tags           = local.common_tags
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

variable "agent_repo_url" {
  description = "Git URL of the agent runtime to deploy"
  type        = string
  default     = "https://github.com/example/research-agent.git"
}

variable "agent_branch" {
  description = "Git branch / tag to deploy"
  type        = string
  default     = "main"
}

variable "dingtalk_webhook" {
  description = "DingTalk webhook URL for alarms"
  type        = string
  sensitive   = true
}

variable "llm_keys" {
  description = "Map of provider name to API key — set via secrets.auto.tfvars"
  type        = map(string)
  sensitive   = true
}

variable "agent_quotas" {
  description = "Per-agent QPM and budget caps"
  type = map(object({
    qpm          = number
    daily_tokens = number
    max_budget   = number
  }))
  default = {
    "research-agent" = { qpm = 120, daily_tokens = 2000000, max_budget = 800 }
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# env/dev.tfvars
agent_repo_url   = "https://github.com/example/research-agent.git"
agent_branch     = "develop"
dingtalk_webhook = "https://oapi.dingtalk.com/robot/send?access_token=DEV_TOKEN"

agent_quotas = {
  "research-agent" = {
    qpm          = 30
    daily_tokens = 200000
    max_budget   = 50
  }
}

1
2
3
4
5
6
7

# secrets/secrets.auto.tfvars  (gitignored)
llm_keys = {
  "dashscope-prod" = "sk-DS-XXXXXXXXXXXXXXXXX"
  "openai-prod"    = "sk-XX-XXXXXXXXXXXXXXXXX"
  "anthropic-prod" = "sk-ant-XXXXXXXXXXXXXXXXX"
  "deepseek-prod"  = "sk-DEEPSEEK-XXXXXXXXX"
}

1
2
3
4
5
6

cd research-agent-stack
terraform workspace select dev
terraform init
terraform plan -var-file=env/dev.tfvars -out=tfplan
# review plan output: ~31 resources to add
terraform apply tfplan

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

Terraform will perform the following actions:

  # module.vpc.alicloud_vpc.this will be created
  + resource "alicloud_vpc" "this" {
      + cidr_block = "10.20.0.0/16"
      + vpc_name   = "agents-dev"
      ...
    }

  ... (29 more resources) ...

Plan: 31 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + agent_endpoints       = (known after apply)
  + gateway_url           = (known after apply)
  + sls_dashboard_url     = (known after apply)
  + total_estimated_cost  = "~¥2060/month at dev sizing"

Do you want to perform these actions in workspace "dev"?
  Enter a value: yes

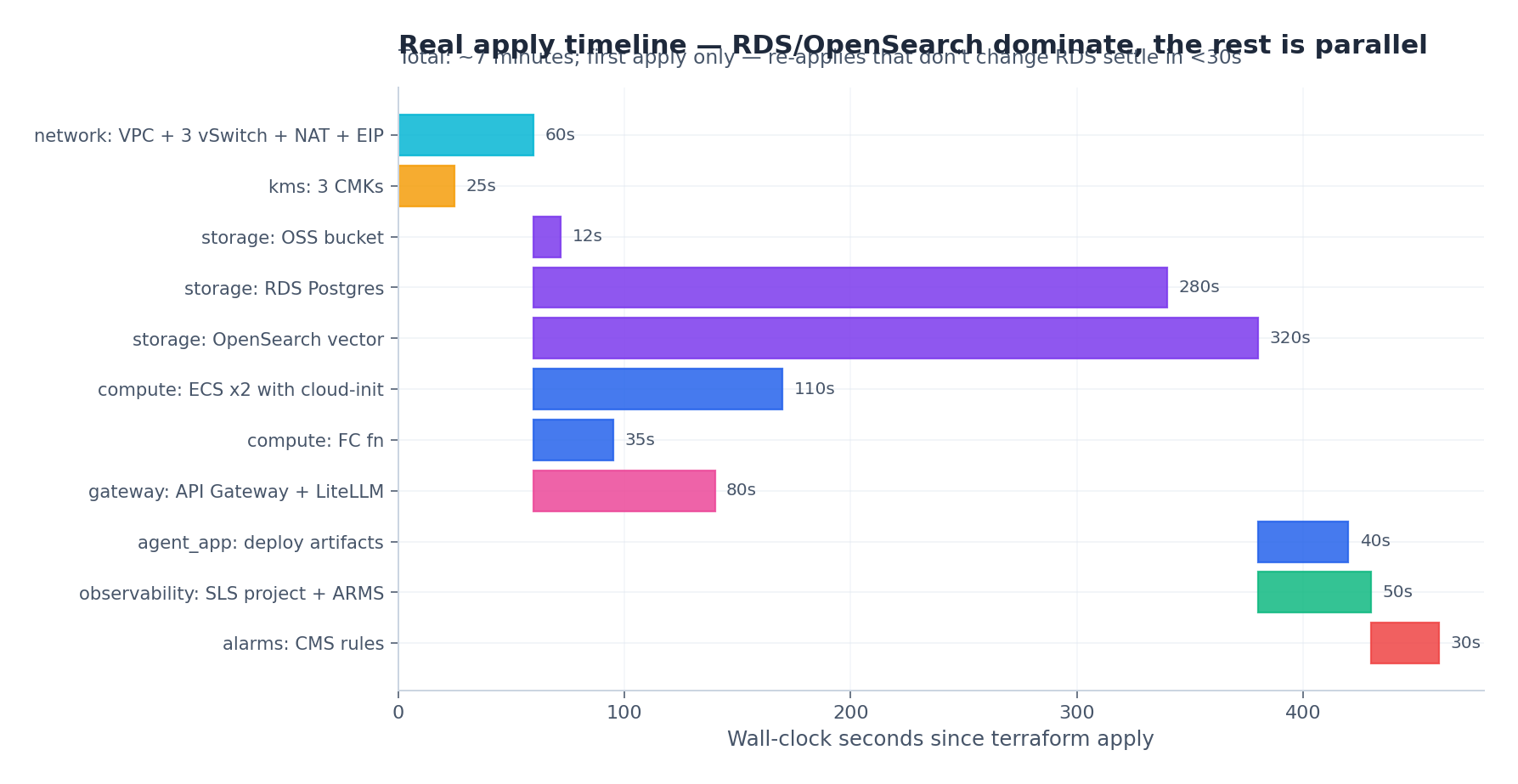

module.vpc.alicloud_vpc.this: Creating...
module.vpc.alicloud_kms_key.this["memory"]: Creating...
module.vpc.alicloud_kms_key.this["secrets"]: Creating...
module.vpc.alicloud_kms_key.this["logs"]: Creating...
module.vpc.alicloud_vpc.this: Creation complete after 4s [id=vpc-uf6abc123]
module.vpc.alicloud_vswitch.private["0"]: Creating...
...
module.storage.alicloud_db_instance.memory: Still creating... [4m 30s elapsed]
module.storage.alicloud_opensearch_app_group.vector: Still creating... [5m 10s elapsed]
module.storage.alicloud_db_instance.memory: Creation complete after 4m 38s [id=pgm-uf6def456]
module.storage.alicloud_opensearch_app_group.vector: Creation complete after 5m 24s [id=os-uf6ghi789]
...
module.compute.alicloud_instance.agent[0]: Creation complete after 1m 52s [id=i-uf6jkl012]
module.gateway.alicloud_alb_listener.gateway: Creation complete after 12s
module.observability.alicloud_log_alert.cost_ceiling: Creation complete after 3s
...

Apply complete! Resources: 31 added, 0 changed, 0 destroyed.

Outputs:

agent_endpoints      = ["http://alb-uf6.cn-shanghai.alb.aliyuncs.com"]
gateway_url          = "http://alb-uf7.cn-shanghai.alb.aliyuncs.com/v1"
sls_dashboard_url    = "https://sls.console.aliyun.com/lognext/project/agents-dev/dashboard/agent-cost-overview"
total_estimated_cost = "~¥2060/month at dev sizing"

1
2

terraform workspace select dev
terraform destroy -var-file=env/dev.tfvars

1
2

terraform state pull > /tmp/dev-state-$(date -Iseconds).json
aliyun oss cp /tmp/dev-state-*.json oss://ck-tfstate-archive/snapshots/

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

# .github/workflows/promote.yml
on:
  workflow_dispatch:
    inputs:
      from_workspace:
        type: choice
        options: [dev, staging]
      to_workspace:
        type: choice
        options: [staging, prod]
      commit_sha:
        description: "Validated commit SHA from from_workspace"

jobs:
  promote:
    steps:
      - uses: actions/checkout@v4
        with:
          ref: ${{ inputs.commit_sha }}
      - name: terraform plan in target workspace
        env:
          TF_WORKSPACE: ${{ inputs.to_workspace }}
        run: |
          terraform init
          terraform plan -var-file=env/${{ inputs.to_workspace }}.tfvars \
            -out=tfplan-promote 2>&1 | tee promote-plan.txt
      - name: post promotion plan to DingTalk for human review
        run: |
          curl -X POST "$DINGTALK_WEBHOOK" \
            -d "{\"text\":{\"content\":\"Promotion plan ${{ inputs.from_workspace }}→${{ inputs.to_workspace }} ready for review\"}}"

1
2
3
4
5
6
7

gateway=$(terraform output -raw gateway_url)
reply=$(curl -s -X POST $gateway/v1/chat/completions \
  -H "Authorization: Bearer $LITELLM_KEY" \
  -d '{"model":"qwen-max","messages":[{"role":"user","content":"ping"}]}' \
  | jq -r .choices[0].message.content)

[[ -n "$reply" ]] || { echo "Smoke test failed"; exit 1; }

1
2
3

diff <(terraform workspace select staging && terraform output -json) \
     <(terraform workspace select prod && terraform output -json) \
     | head -100

1
2
3
4
5
6
7
8

resource "alicloud_oss_bucket_replication" "tfstate" {
  bucket = alicloud_oss_bucket.tfstate.id
  action = "ALL"
  destination {
    bucket   = "ck-tfstate-prod-dr"
    location = "oss-cn-beijing"
  }
}

1
2
3
4
5
6
7
8
9

# These come from environment variables set by cloud-init
LLM_GATEWAY_URL    = os.environ["LLM_GATEWAY_URL"]    # http://alb.../v1
LITELLM_API_KEY    = os.environ["LITELLM_API_KEY"]    # the per-agent key
DATABASE_URL       = os.environ["DATABASE_URL"]       # postgres://...
VECTOR_ENDPOINT    = os.environ["VECTOR_ENDPOINT"]    # OpenSearch HTTP
ARTIFACTS_BUCKET   = os.environ["ARTIFACTS_BUCKET"]   # OSS bucket name
SLS_PROJECT        = os.environ["SLS_PROJECT"]
SLS_LOGSTORE       = os.environ["SLS_LOGSTORE"]
ARMS_OTLP_ENDPOINT = os.environ["ARMS_OTLP_ENDPOINT"]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

# providers.tf
provider "alicloud" {
  alias  = "shanghai"
  region = "cn-shanghai"
}

provider "alicloud" {
  alias  = "singapore"
  region = "ap-southeast-1"
}

# main.tf
module "stack_shanghai" {
  source = "./modules/agent-stack"
  providers = {
    alicloud = alicloud.shanghai
  }
  name        = "agents-prod-cn"
  cidr_block  = "10.20.0.0/16"
  zones       = ["cn-shanghai-l", "cn-shanghai-m", "cn-shanghai-n"]
  is_primary  = true
}

module "stack_singapore" {
  source = "./modules/agent-stack"
  providers = {
    alicloud = alicloud.singapore
  }
  name              = "agents-prod-sg"
  cidr_block        = "10.30.0.0/16"
  zones             = ["ap-southeast-1a", "ap-southeast-1b", "ap-southeast-1c"]
  is_primary        = false
  primary_endpoints = module.stack_shanghai.endpoints   # for cross-region replication
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

resource "alicloud_cen_instance" "agents" {
  cen_instance_name = "agents-cen"
  description       = "CEN linking shanghai and singapore agent VPCs"
  protection_level  = "REDUCED"
}

resource "alicloud_cen_instance_attachment" "shanghai" {
  provider                 = alicloud.shanghai
  instance_id              = alicloud_cen_instance.agents.id
  child_instance_id        = module.stack_shanghai.vpc_id
  child_instance_type      = "VPC"
  child_instance_region_id = "cn-shanghai"
}

resource "alicloud_cen_instance_attachment" "singapore" {
  provider                 = alicloud.singapore
  instance_id              = alicloud_cen_instance.agents.id
  child_instance_id        = module.stack_singapore.vpc_id
  child_instance_type      = "VPC"
  child_instance_region_id = "ap-southeast-1"
}

resource "alicloud_cen_bandwidth_package" "this" {
  bandwidth                  = 50    # Mbps between regions
  geographic_region_a_id     = "China"
  geographic_region_b_id     = "Asia-Pacific"
  cen_bandwidth_package_name = "agents-cn-sg-50m"
}

resource "alicloud_cen_bandwidth_package_attachment" "this" {
  instance_id          = alicloud_cen_instance.agents.id
  bandwidth_package_id = alicloud_cen_bandwidth_package.this.id
}
