迁移学习（六）：多任务学习

1
2
3
4
5
6

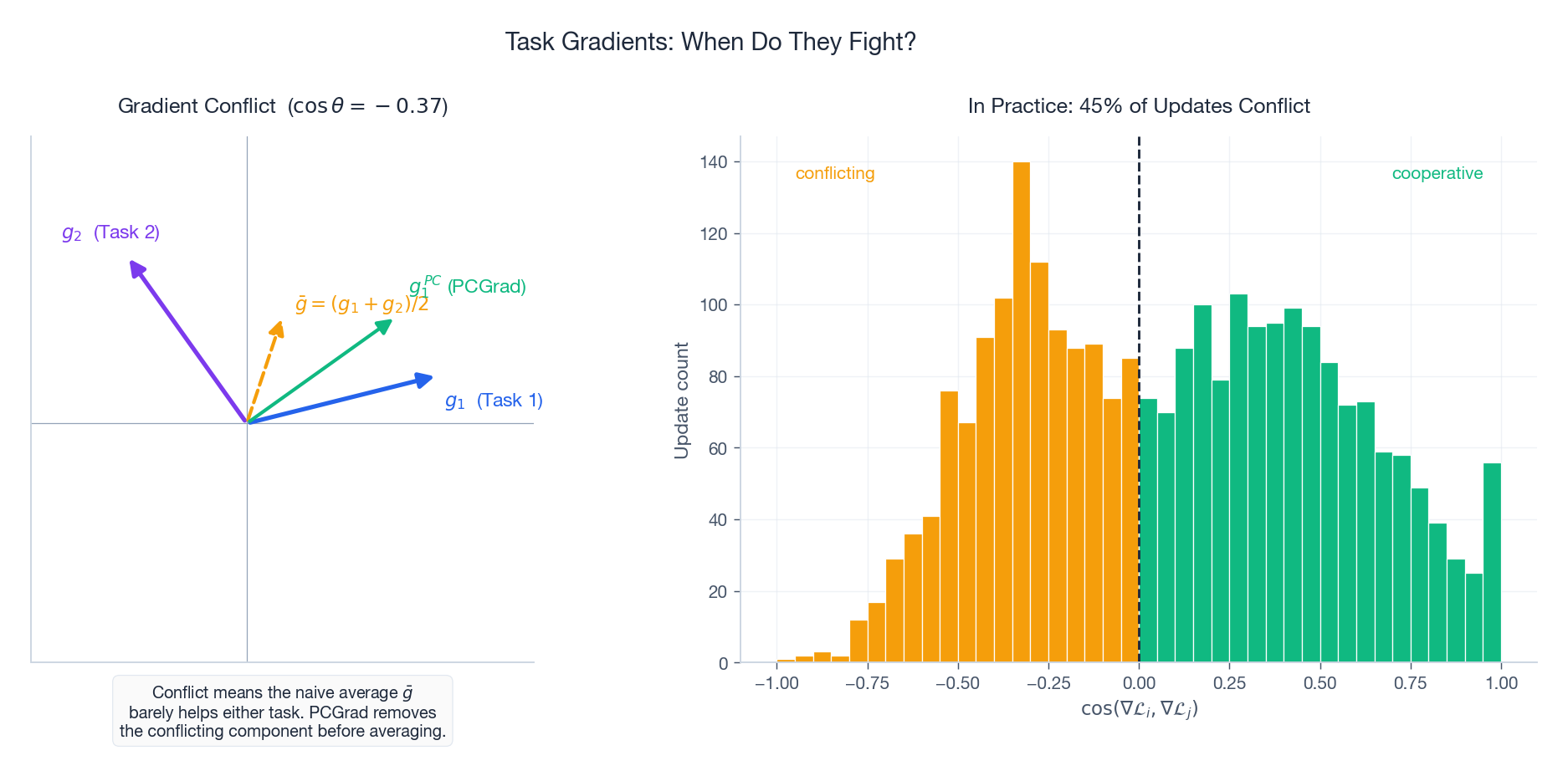

for each task i:
    g_i = loss_i 的反向传播
    for each other task j:
        if g_i . g_j < 0:                     # 冲突
            g_i = g_i - proj(g_i, g_j)        # 去掉冲突分量
final_gradient = 所有修改后梯度的均值

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.utils.data import DataLoader, Dataset
import torchvision
import numpy as np
from typing import List, Dict, Optional

# ===== 网络架构 =====

class SharedEncoder(nn.Module):
    """共享主干网络：ResNet-18 的前 3 个 block。"""
    def __init__(self):
        super().__init__()
        resnet = torchvision.models.resnet18(pretrained=False)
        self.stem = nn.Sequential(
            resnet.conv1, resnet.bn1, resnet.relu, resnet.maxpool)
        self.layer1 = resnet.layer1
        self.layer2 = resnet.layer2
        self.layer3 = resnet.layer3

    def forward(self, x):
        x = self.stem(x)
        x = self.layer1(x)
        x = self.layer2(x)
        return self.layer3(x)

class TaskHead(nn.Module):
    """任务专属的分类或回归头。"""
    def __init__(self, in_channels, num_outputs, task_type='classification'):
        super().__init__()
        self.task_type = task_type
        self.pool = nn.AdaptiveAvgPool2d(1)
        self.fc = nn.Sequential(
            nn.Linear(in_channels, 256), nn.ReLU(), nn.Dropout(0.5),
            nn.Linear(256, num_outputs))

    def forward(self, x):
        return self.fc(self.pool(x).flatten(1))

class MultiTaskNet(nn.Module):

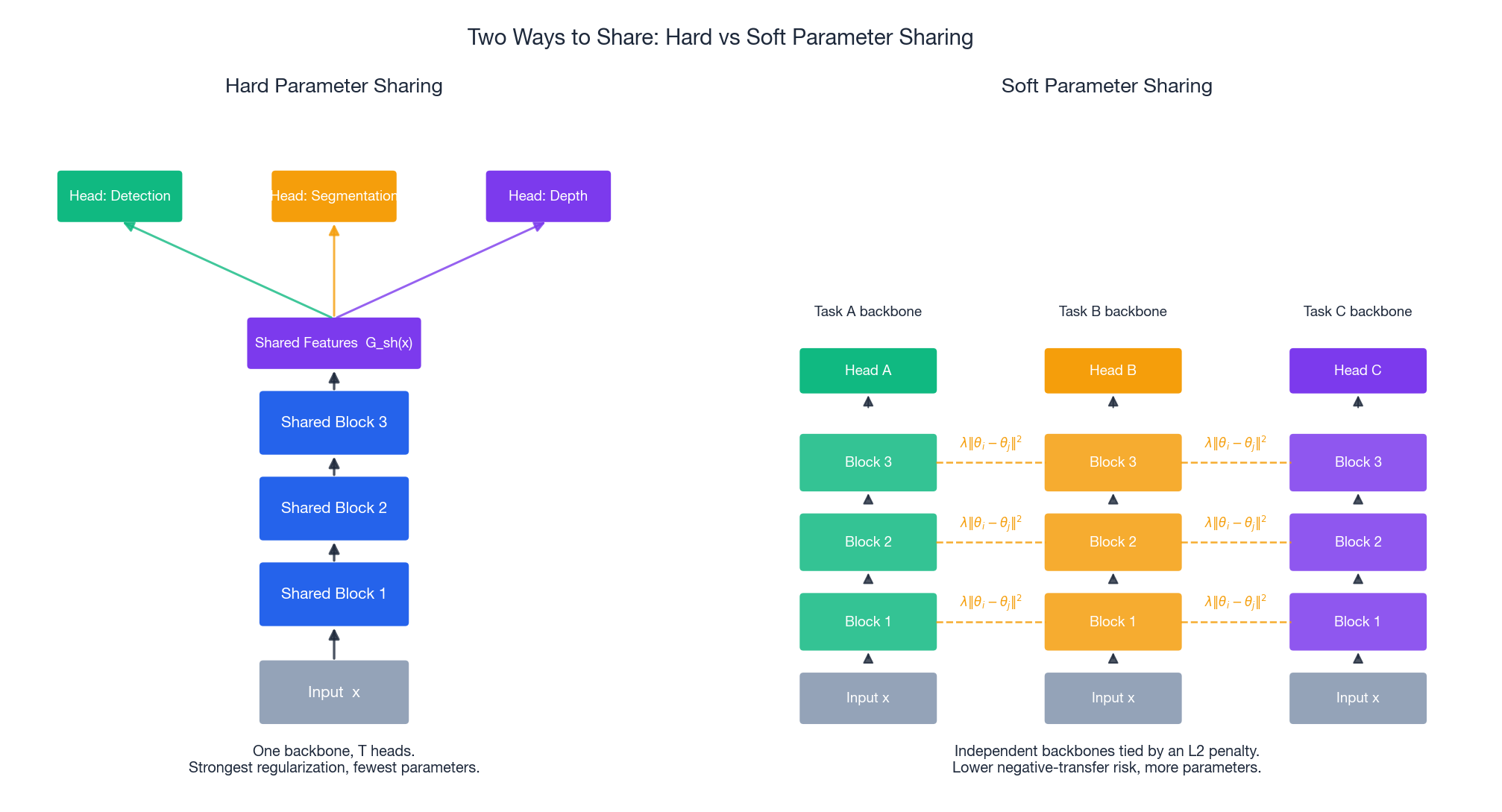

    """硬参数共享：共享编码器 + 任务专属头部。"""
    def __init__(self, task_configs):
        super().__init__()
        self.encoder = SharedEncoder()
        self.heads = nn.ModuleDict({
            cfg['name']: TaskHead(256, cfg['num_classes'], cfg['type'])
            for cfg in task_configs
        })

    def forward(self, x):
        features = self.encoder(x)
        return {name: head(features) for name, head in self.heads.items()}

# ===== PCGrad =====

class PCGrad:
    """投影冲突梯度（Yu et al., NeurIPS 2020）"""
    def __init__(self, optimizer, task_names):
        self.optimizer = optimizer
        self.task_names = task_names

    @staticmethod
    def _project(g_i, g_j):
        dot = torch.dot(g_i, g_j)
        if dot < 0:
            g_i = g_i - (dot / (g_j.norm() ** 2 + 1e-8)) * g_j
        return g_i

    def step(self, losses):
        # 1. 各任务在共享参数上的扁平化梯度
        grads = {}
        for name in self.task_names:
            self.optimizer.zero_grad()
            losses[name].backward(retain_graph=True)
            grads[name] = torch.cat([
                p.grad.flatten() for p in self.optimizer.param_groups[0]['params']
                if p.grad is not None
            ]).clone()

        # 2. 两两投影掉冲突分量
        modified = {}
        for i, ni in enumerate(self.task_names):
            g = grads[ni].clone()
            for j, nj in enumerate(self.task_names):
                if i != j:
                    g = self._project(g, grads[nj])
            modified[ni] = g

        # 3. 使用修改后梯度的均值更新优化器
        avg_grad = sum(modified.values()) / len(modified)
        self.optimizer.zero_grad()
        idx = 0
        for p in self.optimizer.param_groups[0]['params']:
            if p.grad is not None:
                n = p.numel()
                p.grad = avg_grad[idx:idx + n].view_as(p)
                idx += n
        self.optimizer.step()

# ===== GradNorm =====

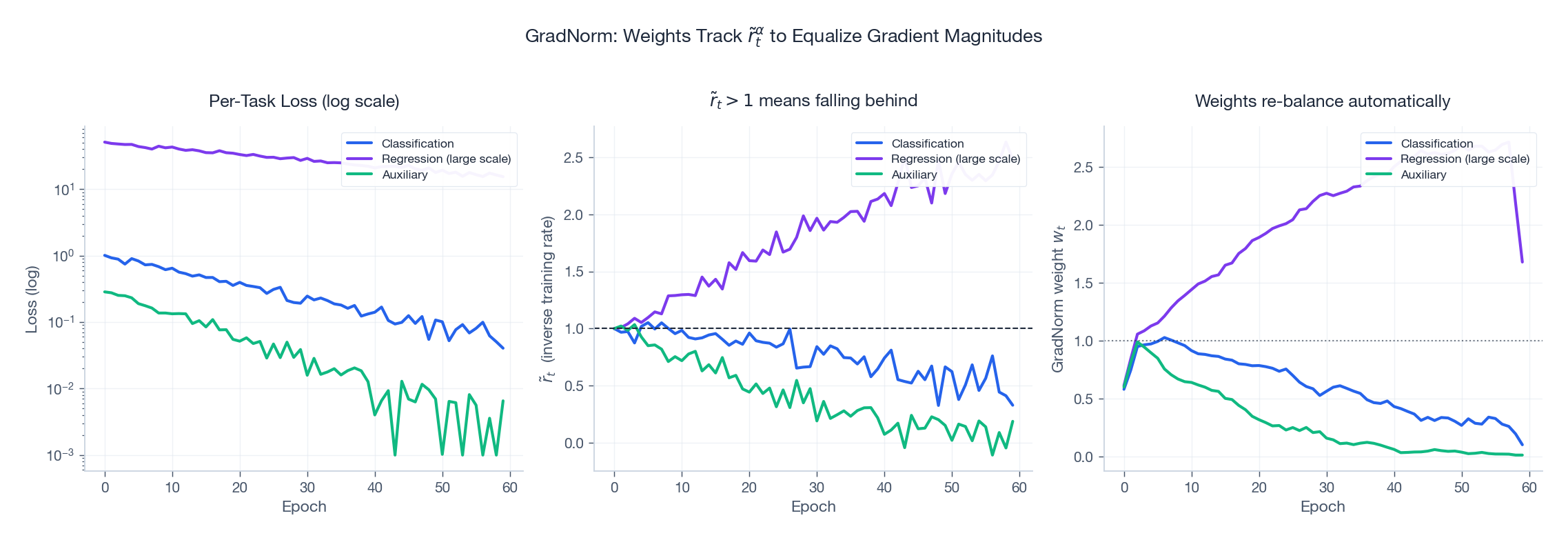

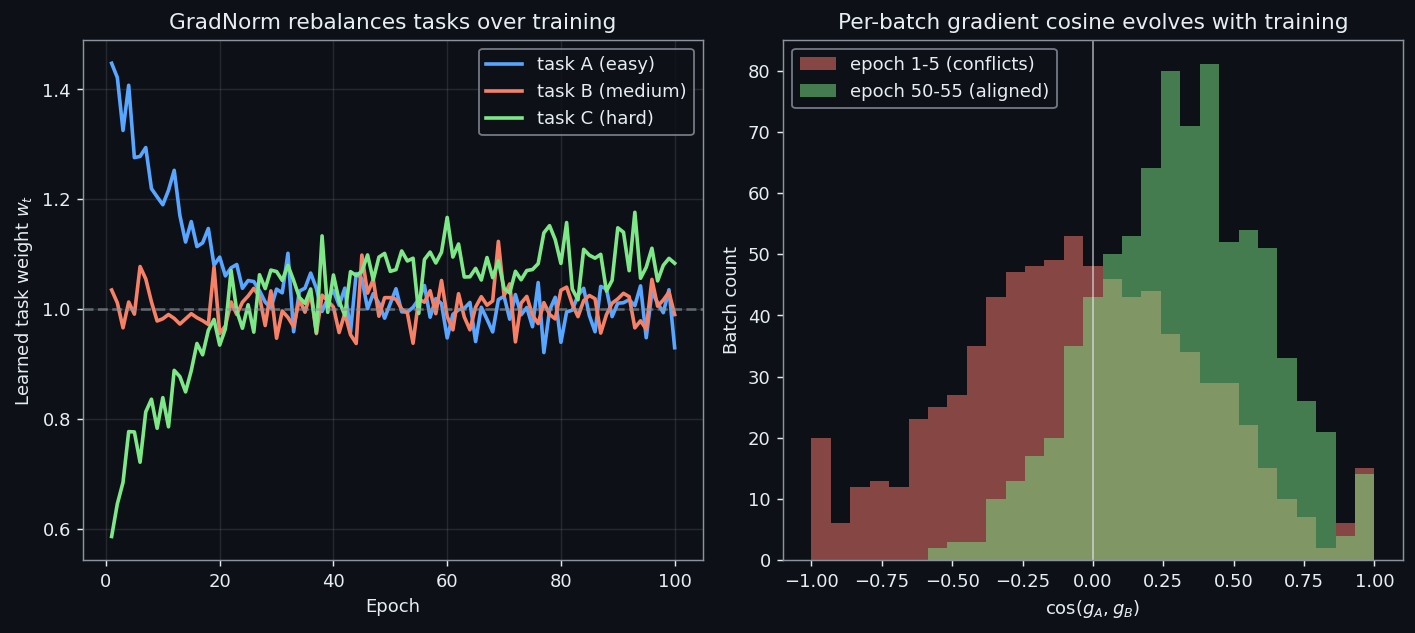

class GradNorm:
    """梯度归一化以自适应平衡损失（Chen et al., ICML 2018）"""
    def __init__(self, model, task_names, alpha=1.5, lr=0.025):
        self.model = model
        self.task_names = task_names
        self.alpha = alpha
        self.weights = nn.Parameter(torch.ones(len(task_names)))
        self.weight_optim = optim.Adam([self.weights], lr=lr)
        self.initial_losses = None

    def step(self, losses):
        if self.initial_losses is None:
            self.initial_losses = {n: l.item() for n, l in losses.items()}

        weighted = [self.weights[i] * losses[n]
                    for i, n in enumerate(self.task_names)]
        total = sum(weighted)

        # 只在共享编码器上计算各任务的梯度范数
        shared_params = list(self.model.encoder.parameters())
        grad_norms = []
        for wl in weighted:
            grads = torch.autograd.grad(
                wl, shared_params, retain_graph=True, create_graph=True)
            grad_norms.append(
                torch.norm(torch.cat([g.flatten() for g in grads])))

        avg_norm = sum(grad_norms) / len(grad_norms)
        avg_ratio = sum(
            losses[n].item() / (self.initial_losses[n] + 1e-8)
            for n in self.task_names) / len(self.task_names)

        # GradNorm 损失：让 ||w_t * grad_t|| 趋向 avg_norm * r_t^alpha
        gn_loss = sum(
            torch.abs(grad_norms[i] - avg_norm * (
                (losses[n].item() / (self.initial_losses[n] + 1e-8))
                / (avg_ratio + 1e-8)) ** self.alpha)
            for i, n in enumerate(self.task_names))

        self.weight_optim.zero_grad()
        gn_loss.backward()
        self.weight_optim.step()
        # 重新归一化权重，确保权重之和等于任务数
        with torch.no_grad():
            self.weights.data *= len(self.task_names) / self.weights.sum()

        return total, {n: self.weights[i].item()
                       for i, n in enumerate(self.task_names)}

# ===== 训练器 =====

class MTLTrainer:
    """多任务训练器，支持 uniform、PCGrad 和 GradNorm"""
    def __init__(self, model, task_configs, device='cpu', method='uniform'):
        self.model = model.to(device)
        self.device = device
        self.task_configs = {c['name']: c for c in task_configs}
        self.task_names = [c['name'] for c in task_configs]
        self.method = method
        self.optimizer = optim.Adam(model.parameters(), lr=1e-3)

        if method == 'pcgrad':
            self.pcgrad = PCGrad(self.optimizer, self.task_names)
        elif method == 'gradnorm':
            self.gradnorm = GradNorm(model, self.task_names)

    def _losses(self, outputs, targets):
        losses = {}
        for n in self.task_names:
            if self.task_configs[n]['type'] == 'classification':
                losses[n] = F.cross_entropy(outputs[n], targets[n])
            else:
                losses[n] = F.mse_loss(outputs[n], targets[n])
        return losses

    def train_epoch(self, loader, epoch):
        self.model.train()
        stats = {n: 0.0 for n in self.task_names + ['total']}
        for batch in loader:
            inputs = batch['input'].to(self.device)
            targets = {n: batch[n].to(self.device) for n in self.task_names}
            outputs = self.model(inputs)
            losses = self._losses(outputs, targets)

            if self.method == 'uniform':
                total = sum(losses.values())
                self.optimizer.zero_grad()
                total.backward()
                self.optimizer.step()
            elif self.method == 'pcgrad':
                self.pcgrad.step(losses)
                total = sum(l.item() for l in losses.values())
            elif self.method == 'gradnorm':
                total, _ = self.gradnorm.step(losses)
                self.optimizer.zero_grad()
                total.backward()
                self.optimizer.step()

            for n in self.task_names:
                stats[n] += (losses[n].item()
                             if isinstance(losses[n], torch.Tensor)
                             else losses[n])
            stats['total'] += (total.item()
                               if isinstance(total, torch.Tensor) else total)
        nb = len(loader)
        return {k: v / nb for k, v in stats.items()}

    @torch.no_grad()
    def evaluate(self, loader):
        self.model.eval()
        correct = {n: 0 for n in self.task_names}
        total = 0
        for batch in loader:
            inputs = batch['input'].to(self.device)
            targets = {n: batch[n].to(self.device) for n in self.task_names}
            outputs = self.model(inputs)
            total += inputs.size(0)
            for n in self.task_names:
                if self.task_configs[n]['type'] == 'classification':
                    correct[n] += (outputs[n].argmax(1) == targets[n]).sum().item()
        return {n: 100.0 * correct[n] / total for n in self.task_names}

# ===== 演示 =====

class DummyMTLDataset(Dataset):
    def __init__(self, n=1000):
        self.n = n
    def __len__(self):
        return self.n
    def __getitem__(self, i):
        return {
            'input': torch.randn(3, 32, 32),
            'task1': torch.randint(0, 10, ()).item(),
            'task2': torch.randint(0, 5, ()).item(),
        }

def main():
    configs = [
        {'name': 'task1', 'num_classes': 10, 'type': 'classification'},
        {'name': 'task2', 'num_classes': 5,  'type': 'classification'},
    ]
    device = 'cuda' if torch.cuda.is_available() else 'cpu'
    loader = DataLoader(DummyMTLDataset(1000), batch_size=32, shuffle=True)
    test_loader = DataLoader(DummyMTLDataset(200), batch_size=32)

    for method in ['uniform', 'pcgrad', 'gradnorm']:
        print(f"\n{'=' * 50}\nMethod: {method}\n{'=' * 50}")
        model = MultiTaskNet(configs)
        trainer = MTLTrainer(model, configs, device, method=method)
        for epoch in range(10):
            stats = trainer.train_epoch(loader, epoch)
            metrics = trainer.evaluate(test_loader)
            print(f"Epoch {epoch+1}: "
                  + " ".join(f"{k}={v:.4f}" for k, v in stats.items())
                  + " | "
                  + " ".join(f"{k}={v:.1f}%" for k, v in metrics.items()))

if __name__ == '__main__':
    main()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

import torch
from collections import defaultdict
from typing import Callable, Dict, List

def grad_conflict_logger(
    model: torch.nn.Module,
    losses: Dict[str, torch.Tensor],
    shared_param_filter: Callable[[str], bool] = lambda n: "shared" in n,
) -> Dict[str, float]:
    """计算共享参数上的各任务梯度，并返回任务对之间的余弦相似度。

    Args:
        model: 包含共享主干和任务头的 nn.Module。
        losses: 字典 {任务名: 标量损失张量}，均来自同一次前向传播。
        shared_param_filter: 用于筛选共享参数名称的谓词函数。

    Returns:
        扁平字典，包含每对无序任务的 cos(task_i, task_j)，以及各任务梯度范数。
        调用方需跨 batch 绘制直方图。
    """
    shared_params = [p for n, p in model.named_parameters()
                     if shared_param_filter(n) and p.requires_grad]
    grads: Dict[str, torch.Tensor] = {}
    for tname, loss in losses.items():
        # retain_graph=True 以支持对每个任务单独反向传播
        g = torch.autograd.grad(
            loss, shared_params, retain_graph=True, allow_unused=False,
        )
        grads[tname] = torch.cat([gi.reshape(-1) for gi in g])  # 拉平为向量

    out: Dict[str, float] = {}
    names = list(grads.keys())
    for n in names:
        out[f"||g_{n}||"] = grads[n].norm().item()
    for i in range(len(names)):
        for j in range(i + 1, len(names)):
            a, b = grads[names[i]], grads[names[j]]
            denom = a.norm() * b.norm() + 1e-12
            out[f"cos({names[i]},{names[j]})"] = (a @ b / denom).item()
    return out

# 在训练循环中使用（此时尚未调用 .backward() —— 日志函数会自行处理）。
# 日志记录后，再进行一次前向+反向以计算组合损失并执行优化步。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

import torch
from typing import List

def cagrad_step(grads: List[torch.Tensor], c: float = 0.5,
                n_iters: int = 5, lr: float = 0.5) -> torch.Tensor:
    """通过 CAGrad 计算组合梯度。grads: T 个扁平梯度张量的列表。"""
    G = torch.stack(grads)                          # [T, d]
    T = G.shape[0]
    g0 = G.mean(dim=0)                              # 平均梯度
    g0_norm = g0.norm() + 1e-12

    # 对偶变量：每个任务一个 lambda，位于单纯形上（和为 1，非负）。
    lam = torch.full((T,), 1.0 / T, device=G.device)

    GG = G @ G.t()                                  # [T, T] 格拉姆矩阵
    g0G = G @ g0                                    # [T] 各任务与平均梯度的点积

    for _ in range(n_iters):
        gw = (lam.unsqueeze(0) @ G).squeeze(0)      # 加权梯度
        gw_norm = gw.norm() + 1e-12
        # 对偶目标关于 lambda 的梯度
        dlam = (GG @ lam) / gw_norm + c * g0G / g0_norm
        lam = lam - lr * dlam
        lam = torch.clamp(lam, min=0.0)
        s = lam.sum()
        if s > 0:
            lam = lam / s                           # 投影回单纯形

    gw = (lam.unsqueeze(0) @ G).squeeze(0)
    gw_norm = gw.norm() + 1e-12
    g_star = g0 + (c * g0_norm / gw_norm) * gw
    return g_star
